| Name | CHC-CL5MD |
|---|---|
| Manufacturer | Sony |
| Released | 2001/05 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 215 x 285 x 421mm Main Body, 410 x 285 x 260mm Speaker |
| Weight | 16.2kg |
| ATRAC ver | Type-R |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100, 230 |
| Power cable | AC |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording, Tape deck |
| Outputs | 3.5mm headphone, Speaker amplifier |
| Control | Remote (Sony), PC Link |

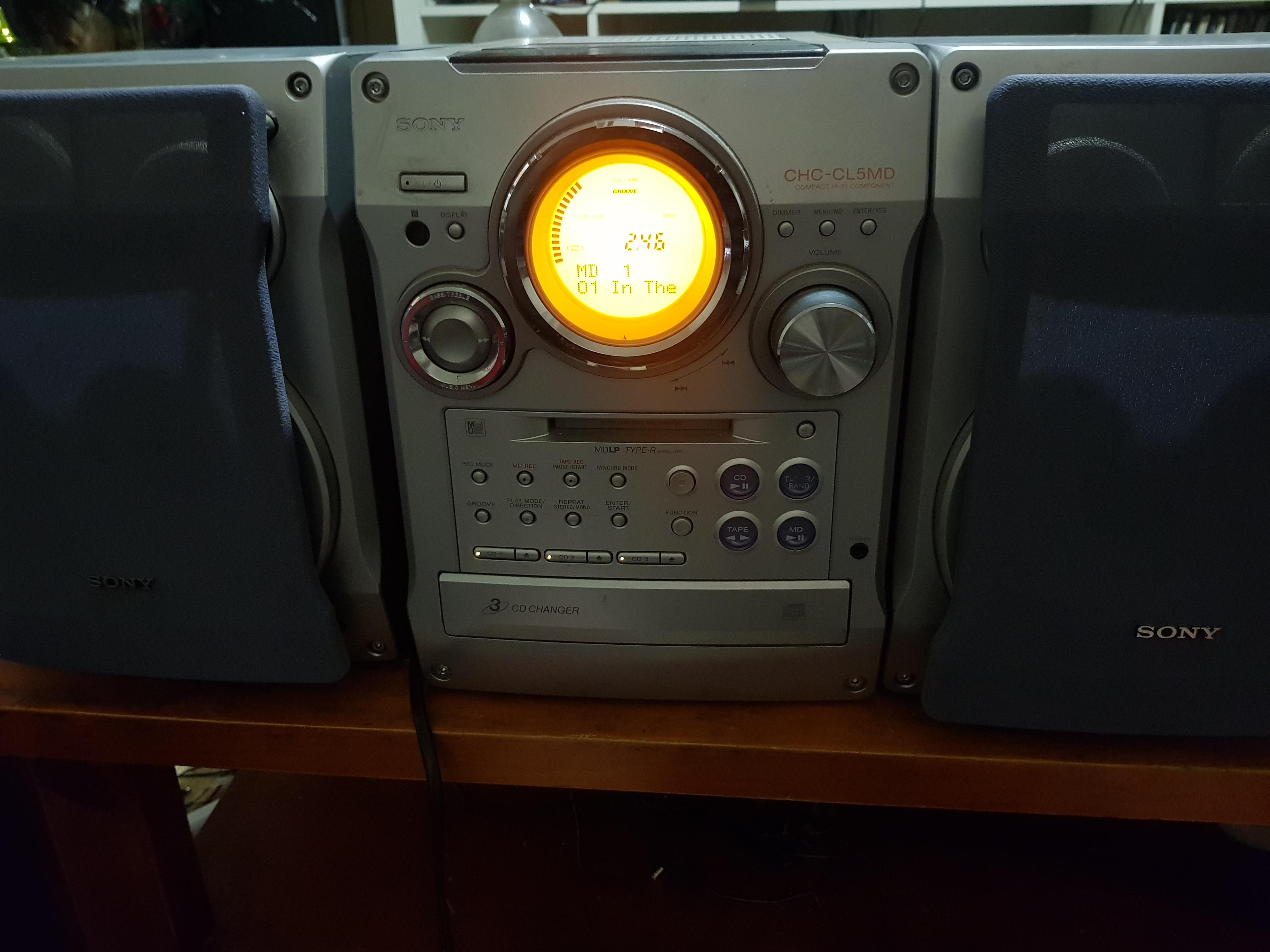

Similar to HCD-CL5MD (they share the same service manual)
3CD, 1MD, 1 Cassette, FM/AM Tuner device. Capable of direct CD → MD transfers and supports MDLP and CD-Text.
Has Toslink input, supprts resampling 32 kHz, 44.1 kHz and 48 kHz
Optional PC-Link, PCLK-MN10A, for easy retitle/editing support. Note that this is not netMD.
It does seem possible to record directly to MD from the radio. It also supports MD → Cassette transfers.
MD Mechanism Type: MDM-7B
Optical Pick-up Type: KMS-260B/K1NP
ATRAC IC: CXD2662R
DAC IC: UDA1350AH
Content adapted from: CHC-CL5MD Minidisc.org Page Sony Hungary Product Page Sony Hungary Product Page (MiniDisc Wiki mirror)
Manuals
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Repairing
Additional specifications and references
| Remote Page | |
|---|---|
| Mechanism | mdm-7b |
| Pickup | k1np |
| Atrac Ic | CXD2656R / CXD2662R |
| Manual | User manual, Service manual |
| Region | Japan, Europe |
