| Name | CMT-PX3 |
|---|---|
| Manufacturer | Sony |
| Released | 2000/09 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 215 x 147 x 326mm |
| Weight | 5.0kg |
| ATRAC ver | Type-R |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥68 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), RCA in, CD, Radio recording |

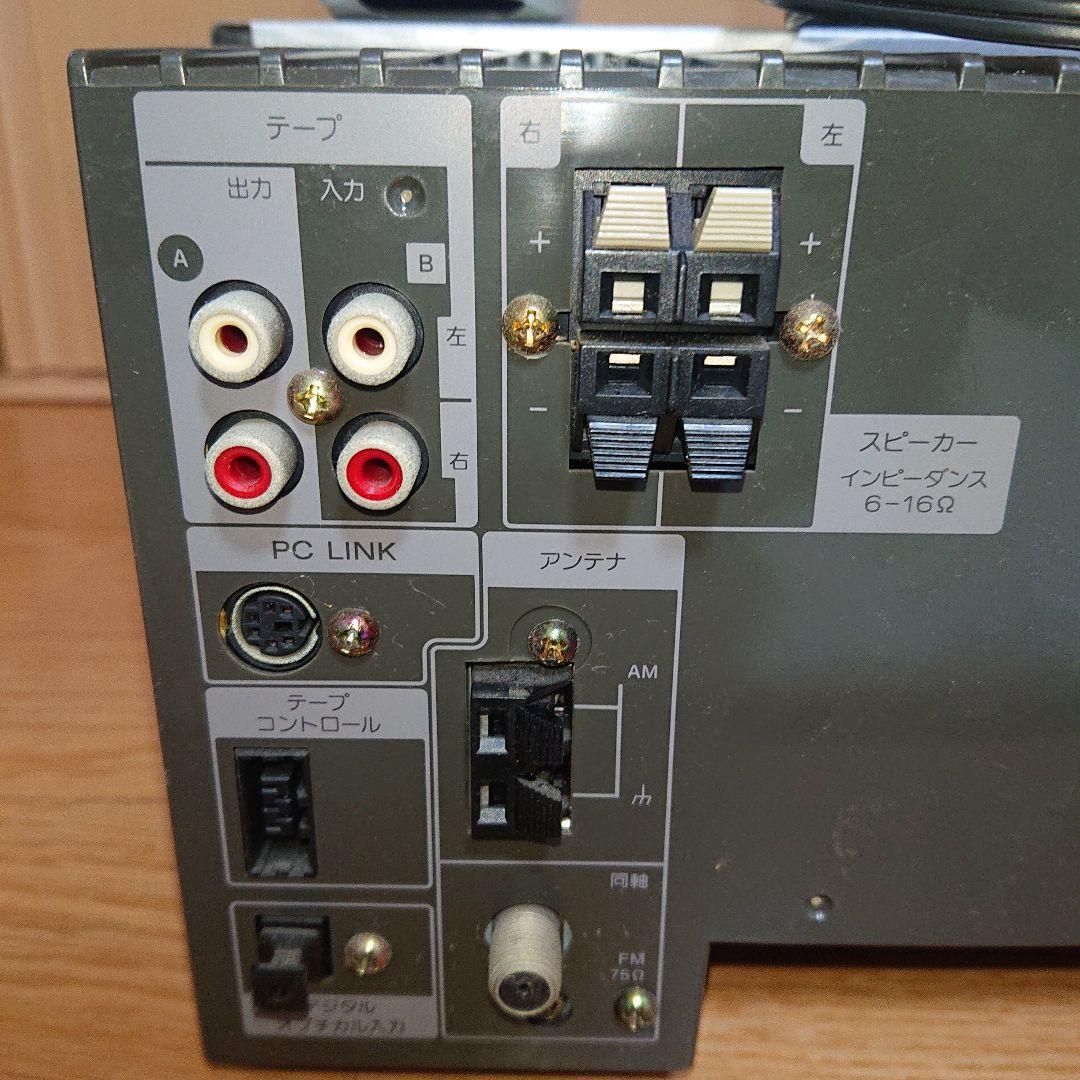

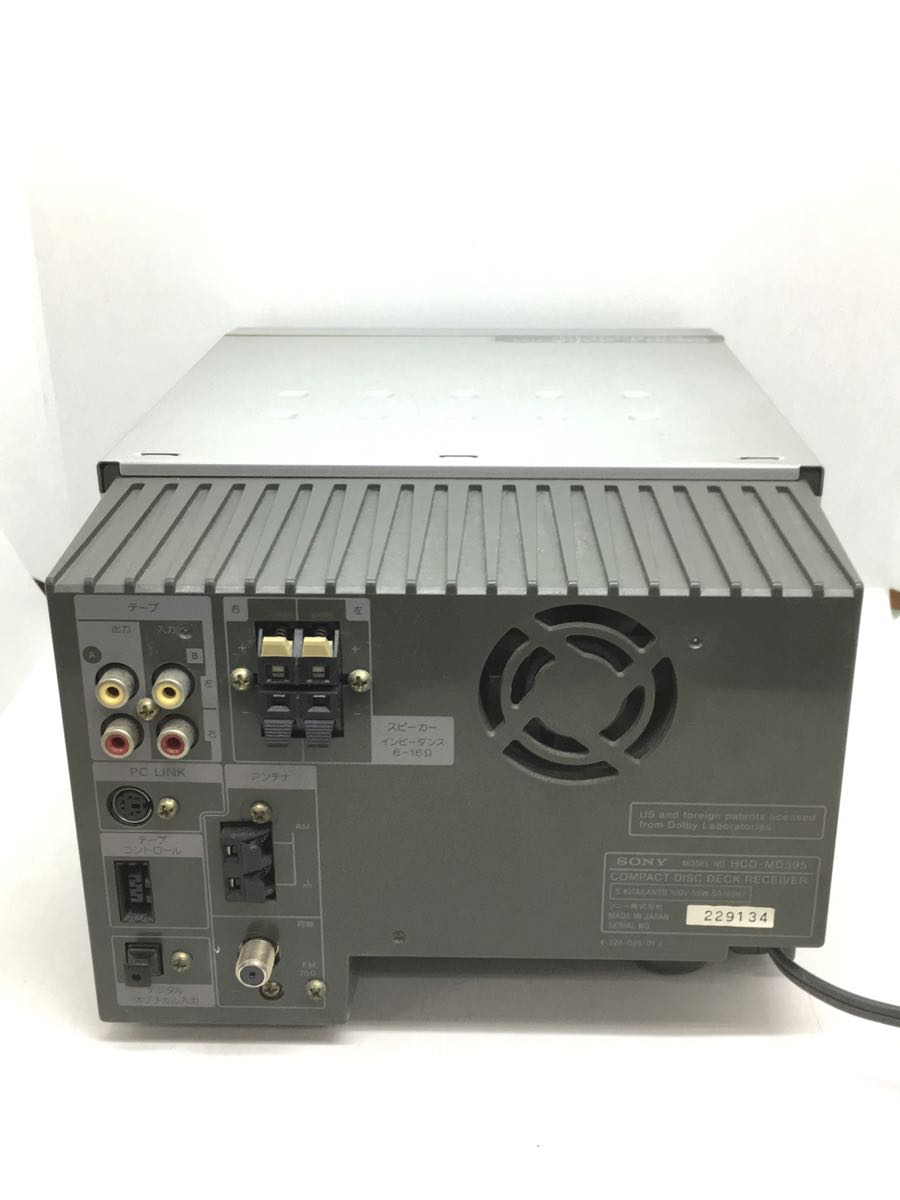

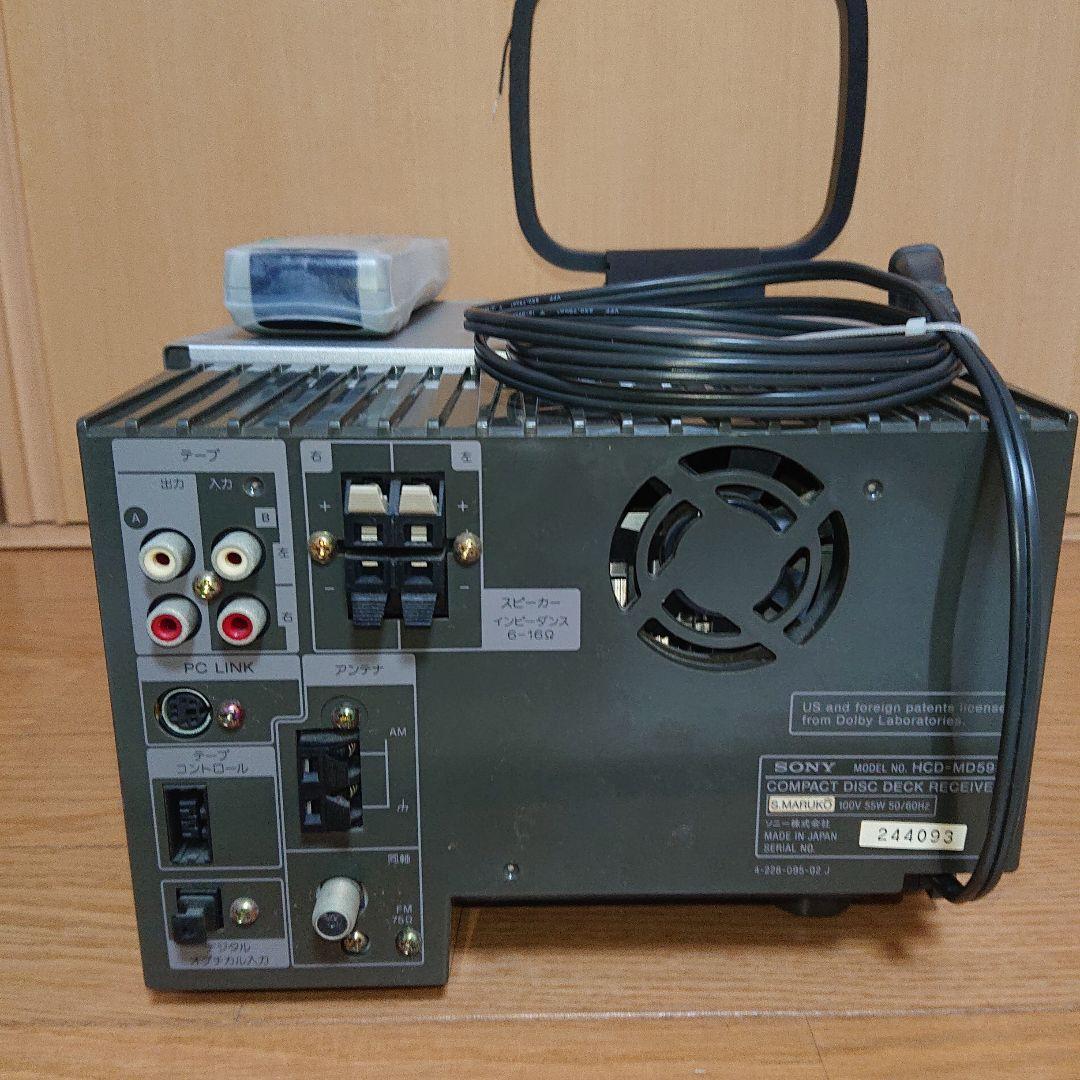

| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier |
| Control | Remote (Sony), PC Link |

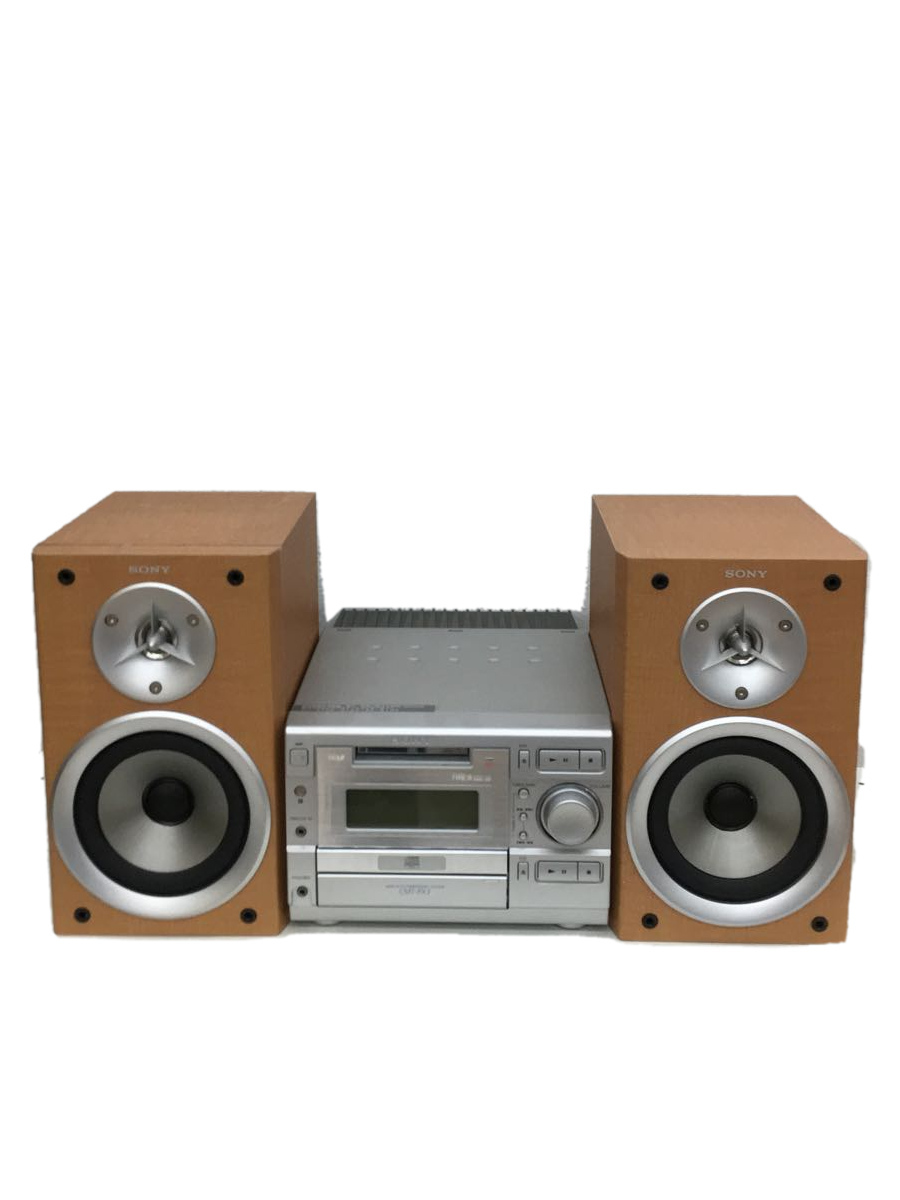

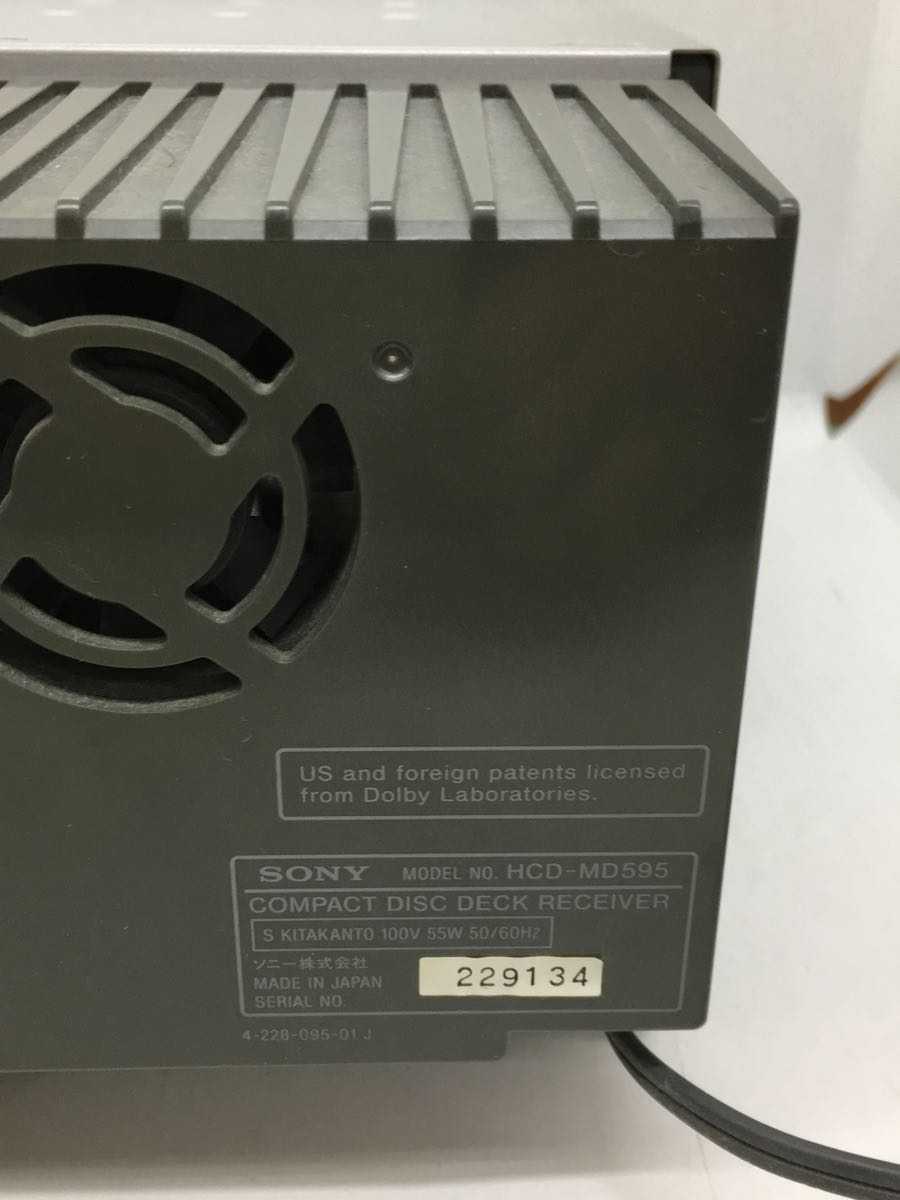

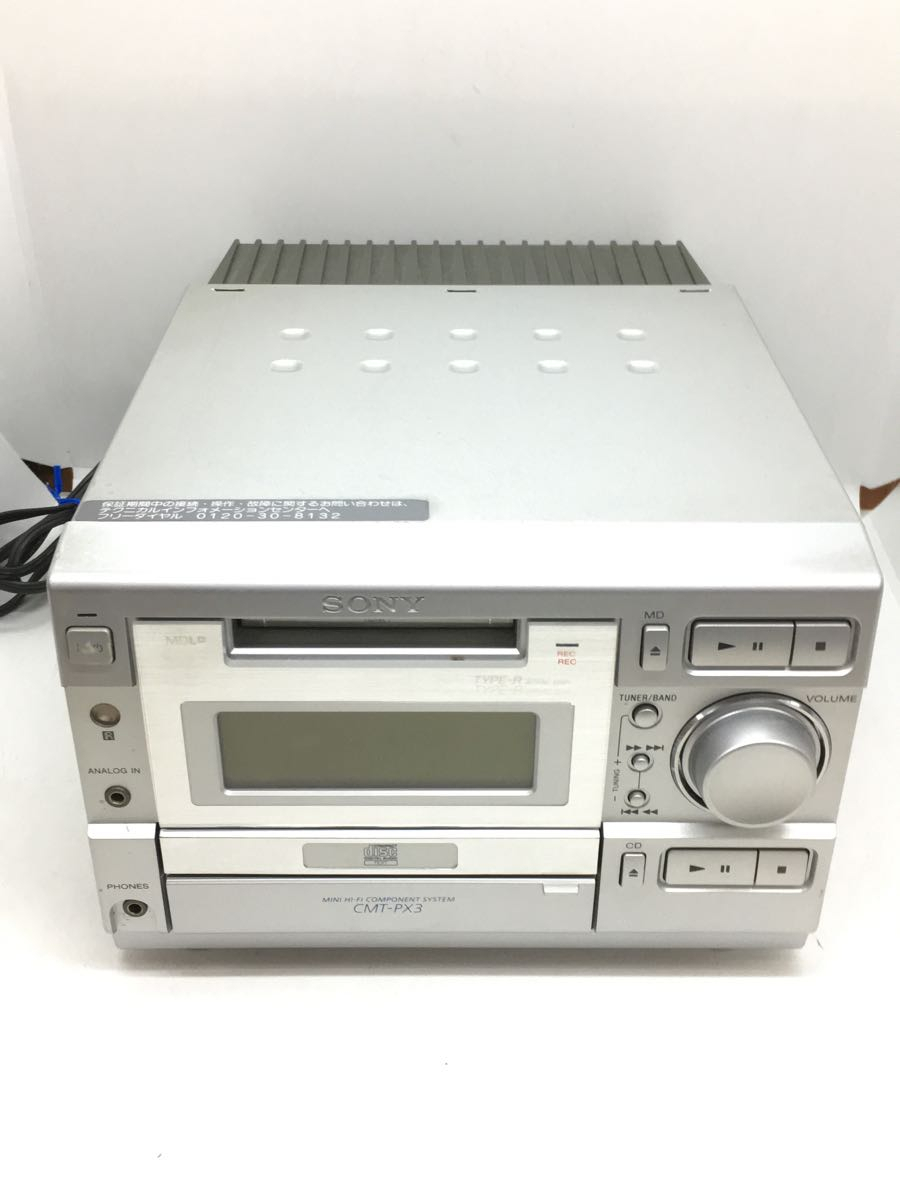

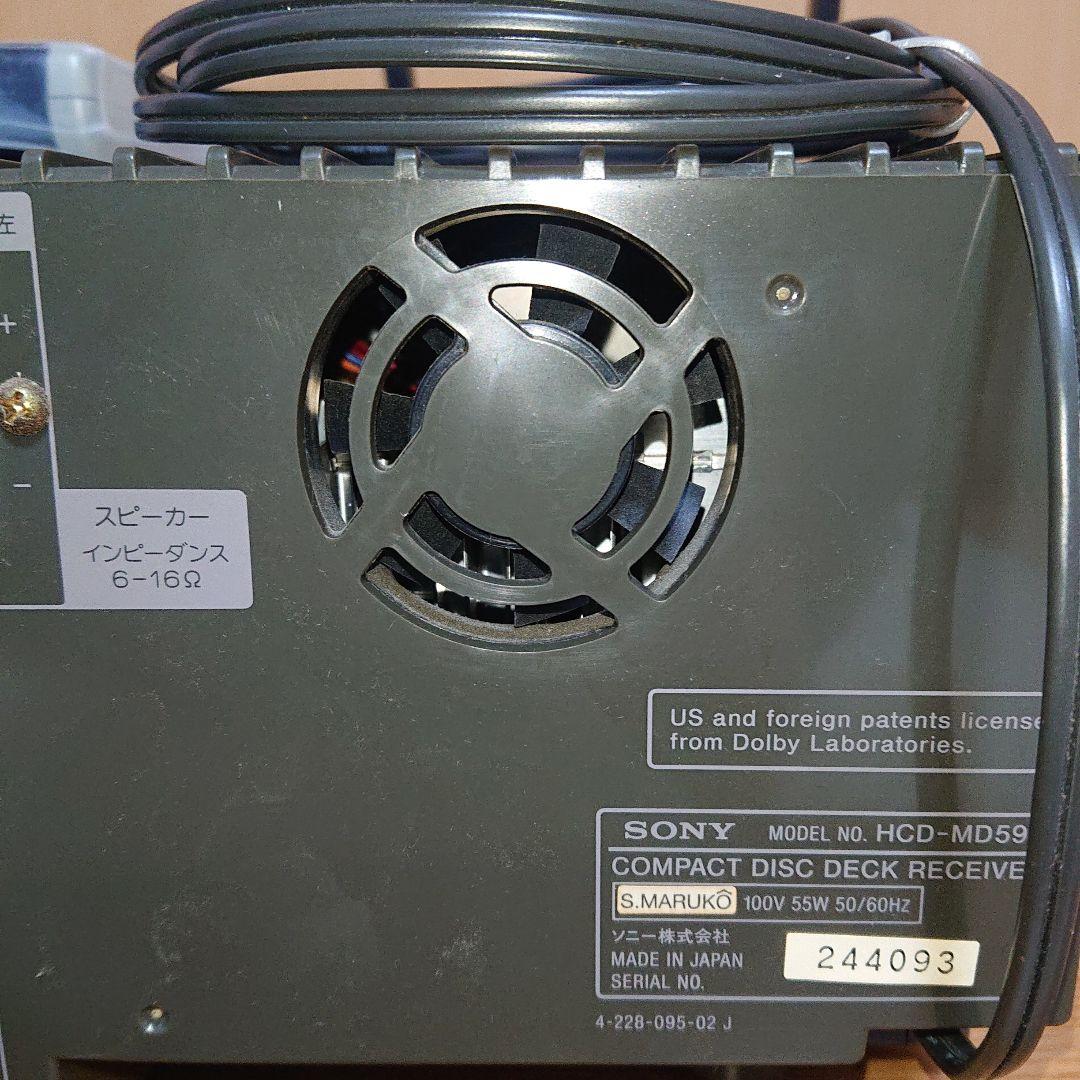

CMT is the system with speakers, the main unit was also sold separately as the DHC-MD595
Features:
- 1 CD, 1 MD, radio, optional single reverse cassette deck TC-TX33

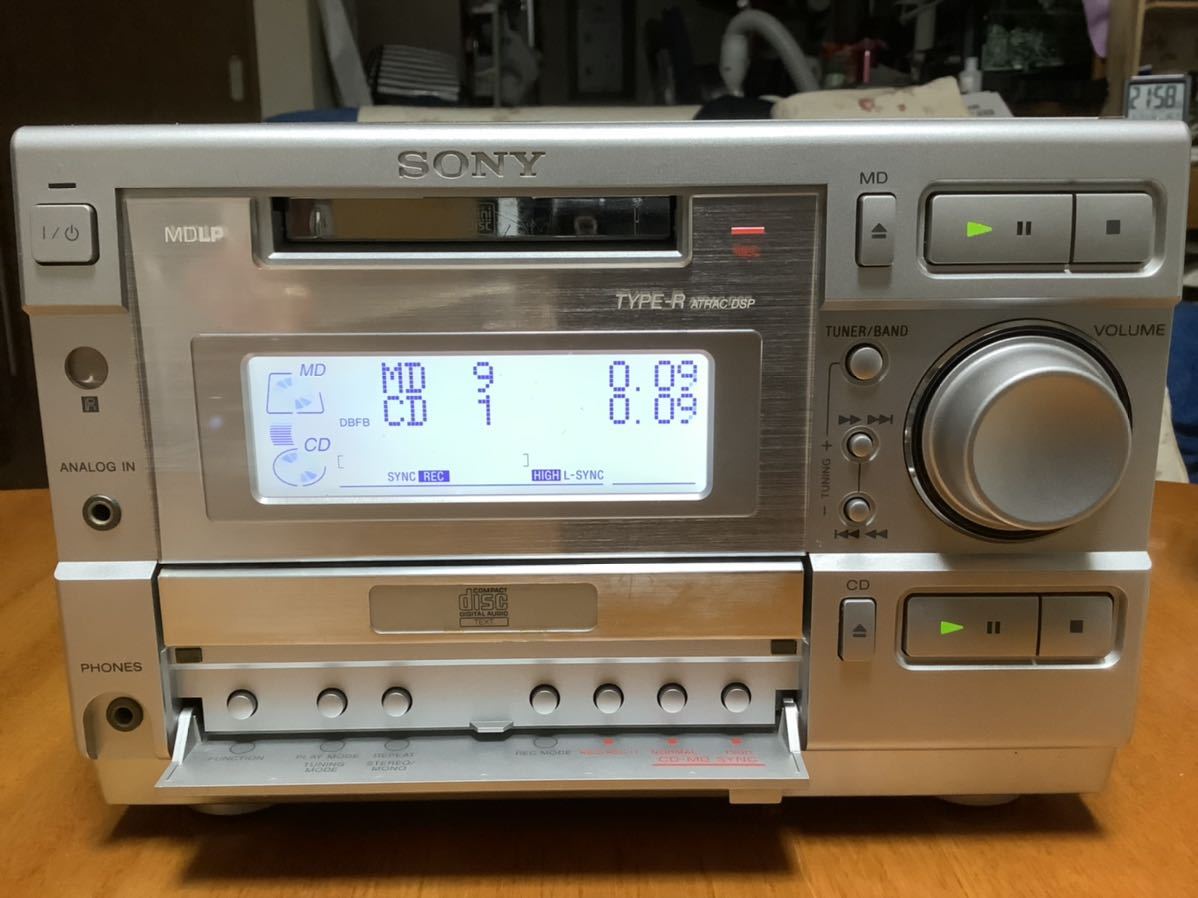

- 4x CD-to-MD recording
- MDLP capable
- Supports CD-TEXT
- USB connection allows for control via PC Link Kit PCLK-MN10
Units sold outside Asia had the following FM tuners:
- Tourist model: 76.0 – 108.0 MHz (50 kHz step)
- European model: 87.5 – 108.0 MHz (50 kHz step)
- Other models: 87.5 – 108.0 MHz
Specs: 25W + 25W. FM 76-90MHz (JDM only) / AM 531-1,602kHz

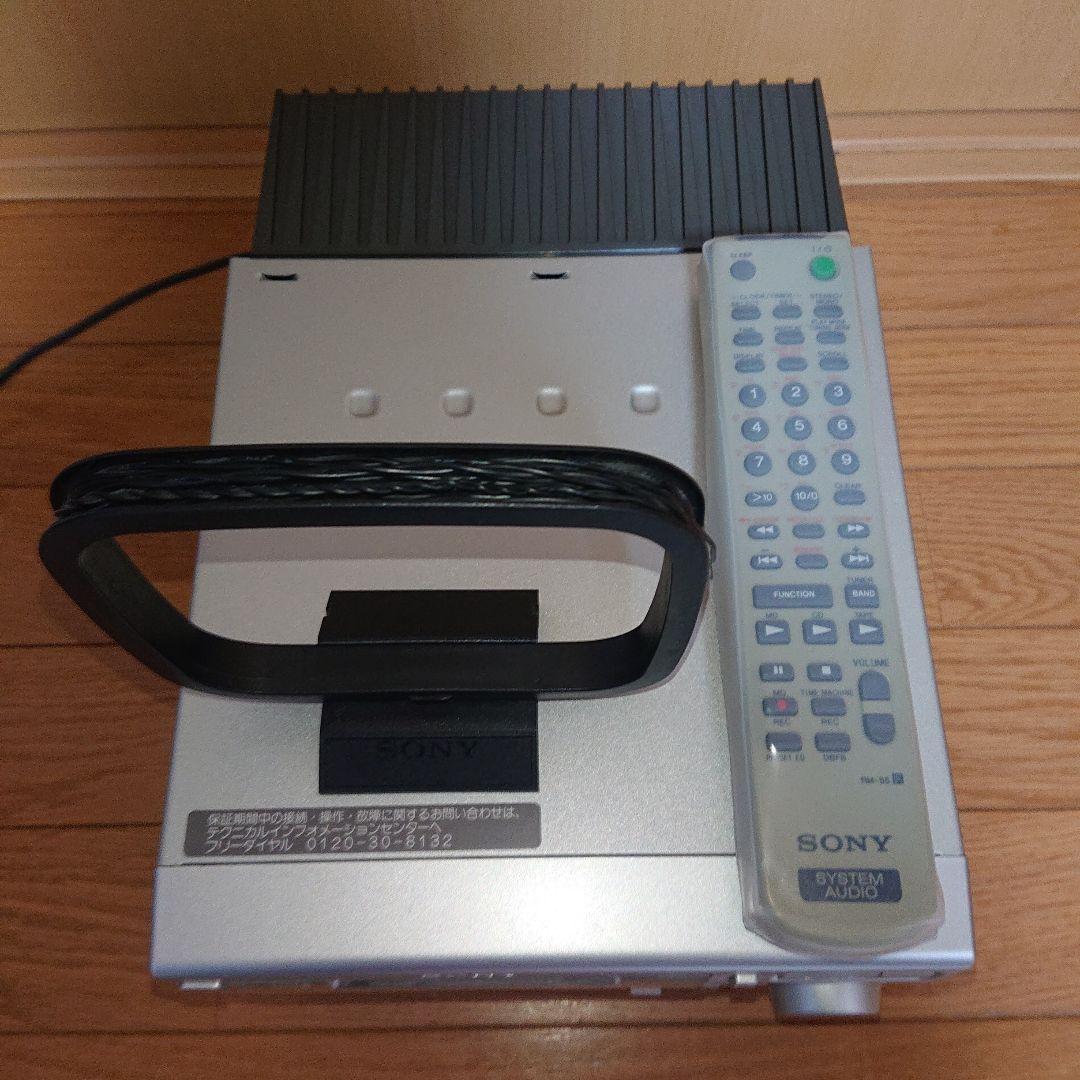

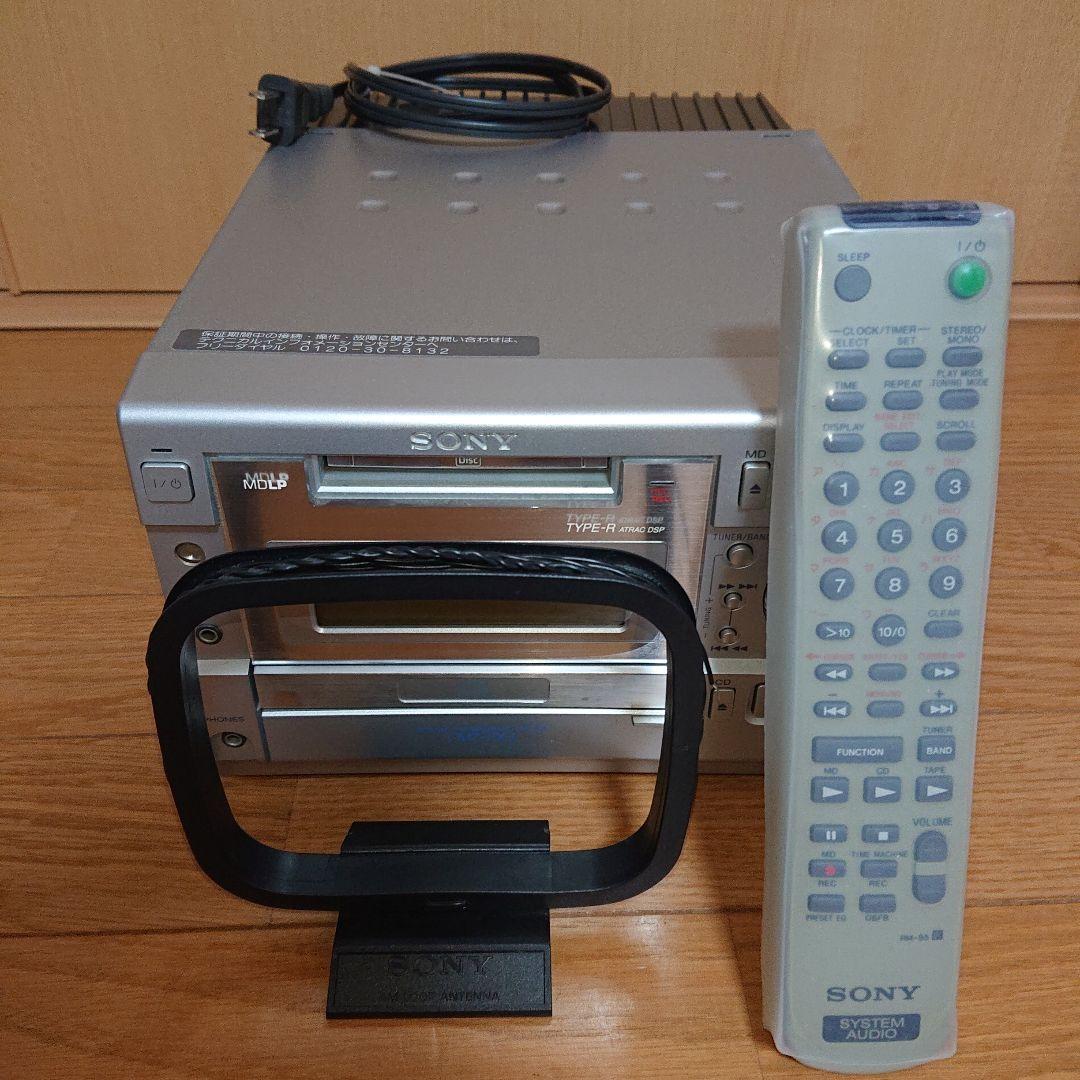

Remote: RM-S5EN (sony part# 1-476-086-21) - some functions require the remote
MD Mechanism Type: MDM-7X2A (new)
Optical Pick-up: KMS-262A/J1N
ATRAC IC: CXD2662R
Content adapted from: Sony Press Release Minidisc.org page Sony Product Park Sony Product Park (MiniDisc Wiki mirror)
Manuals
Repair

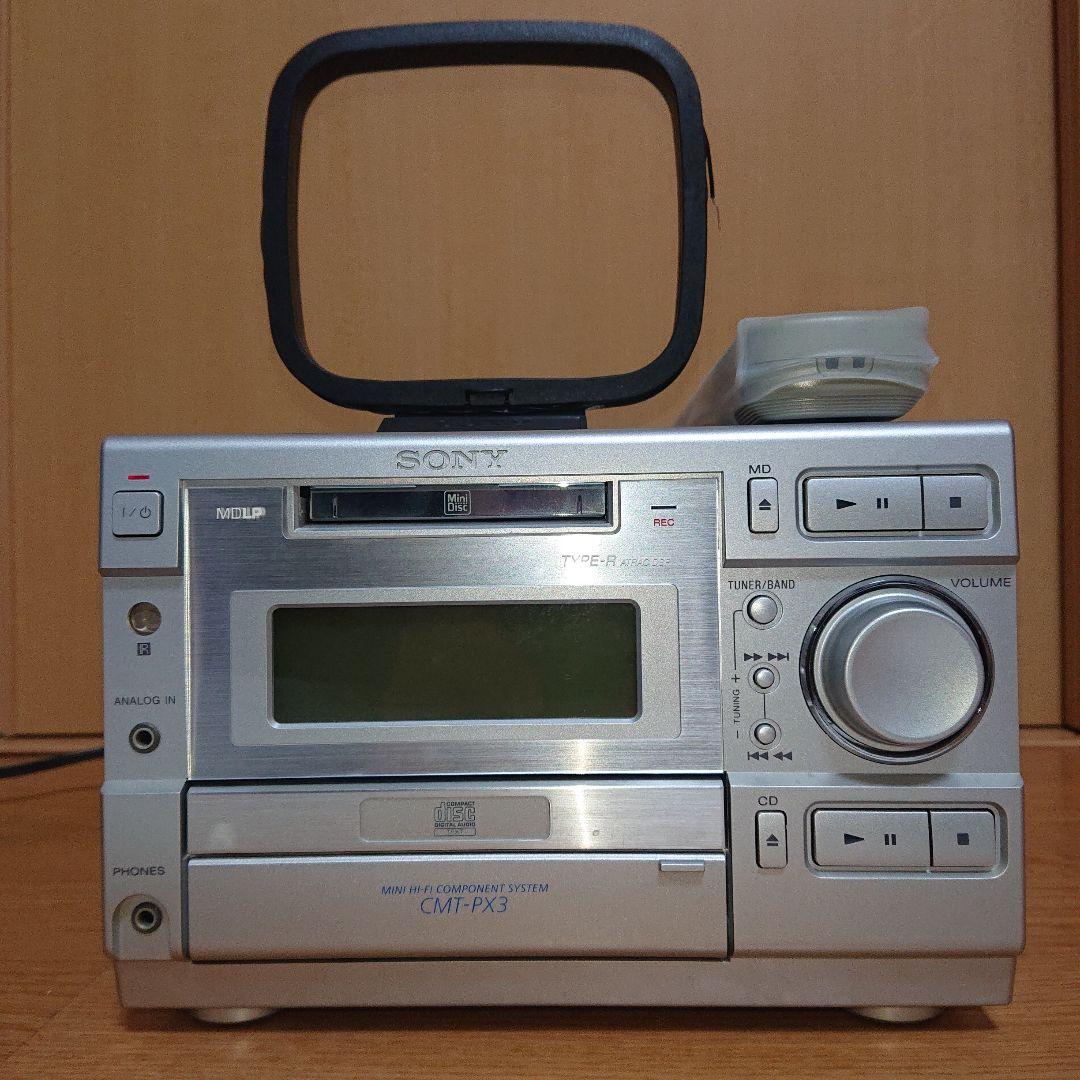

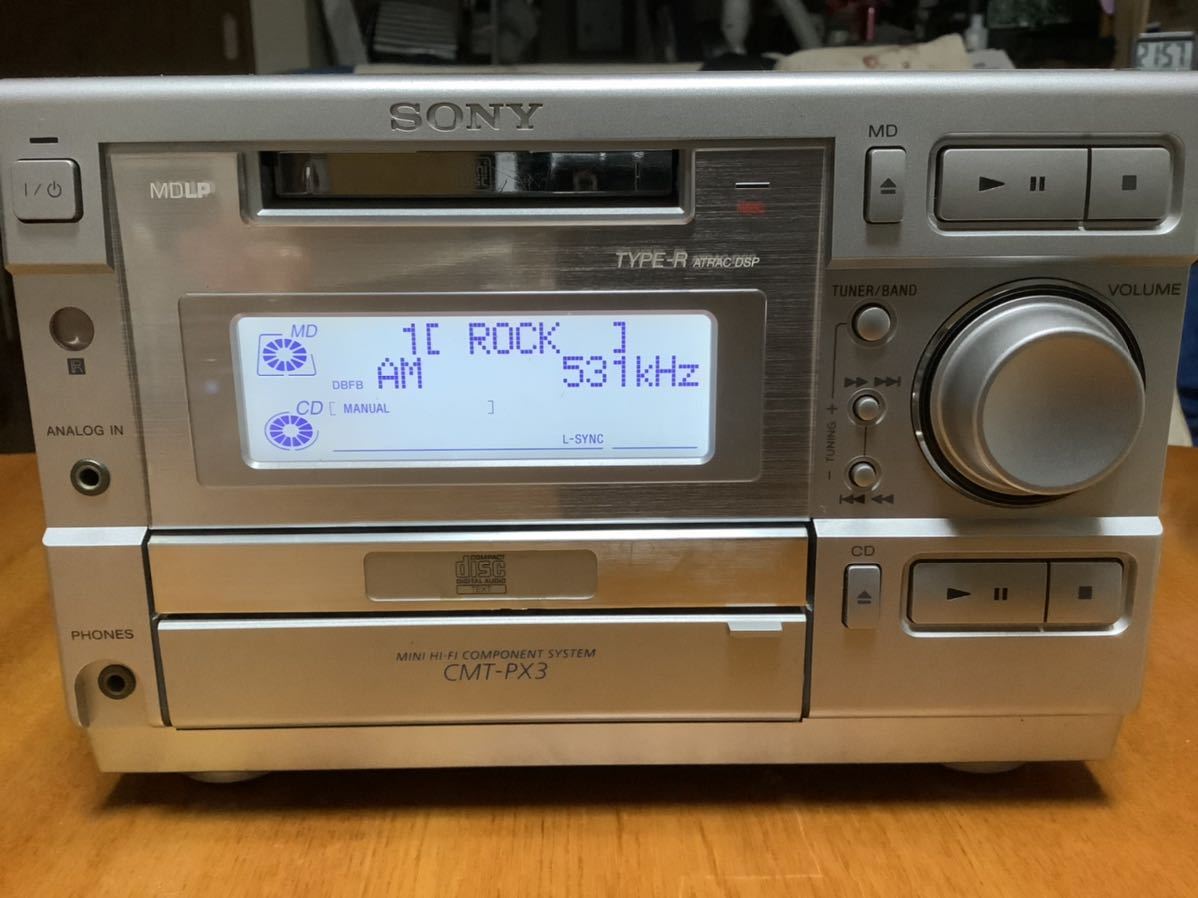

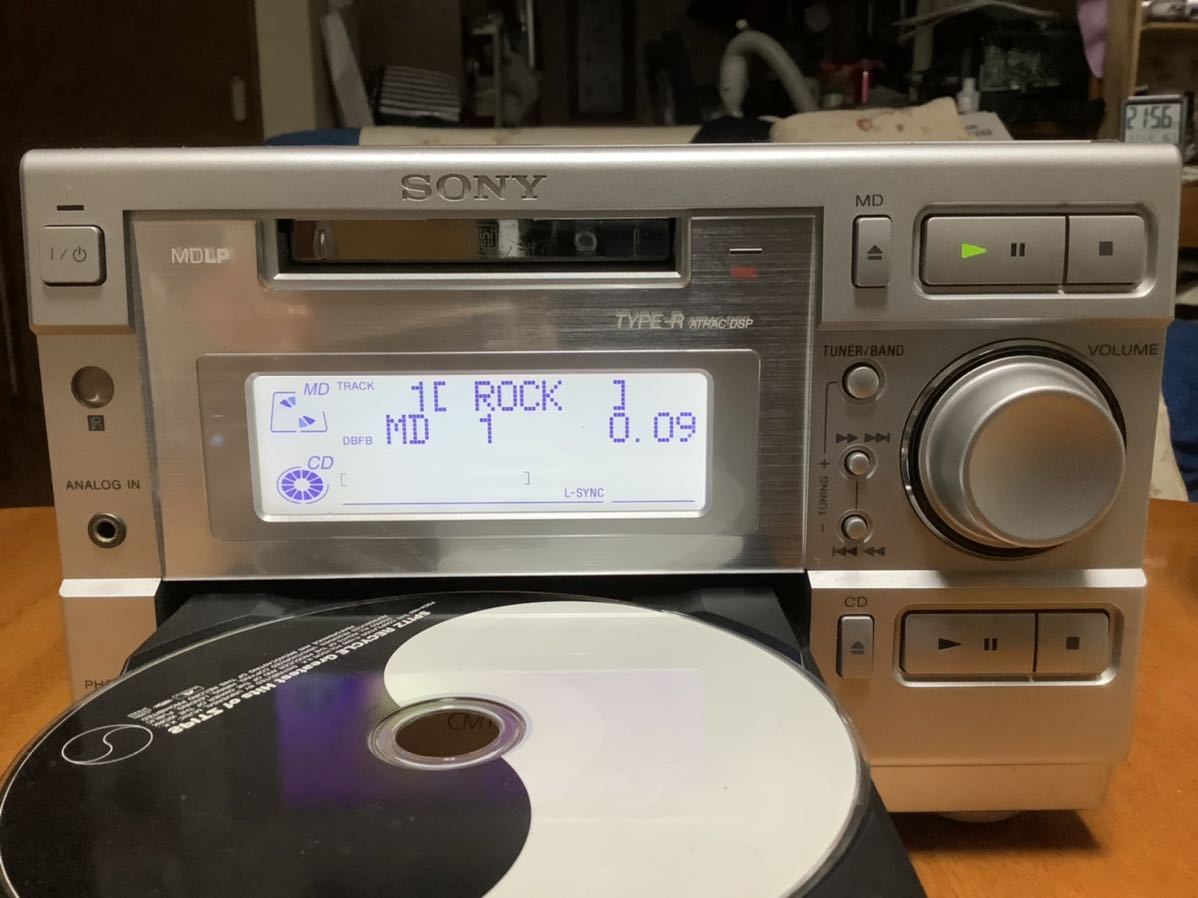

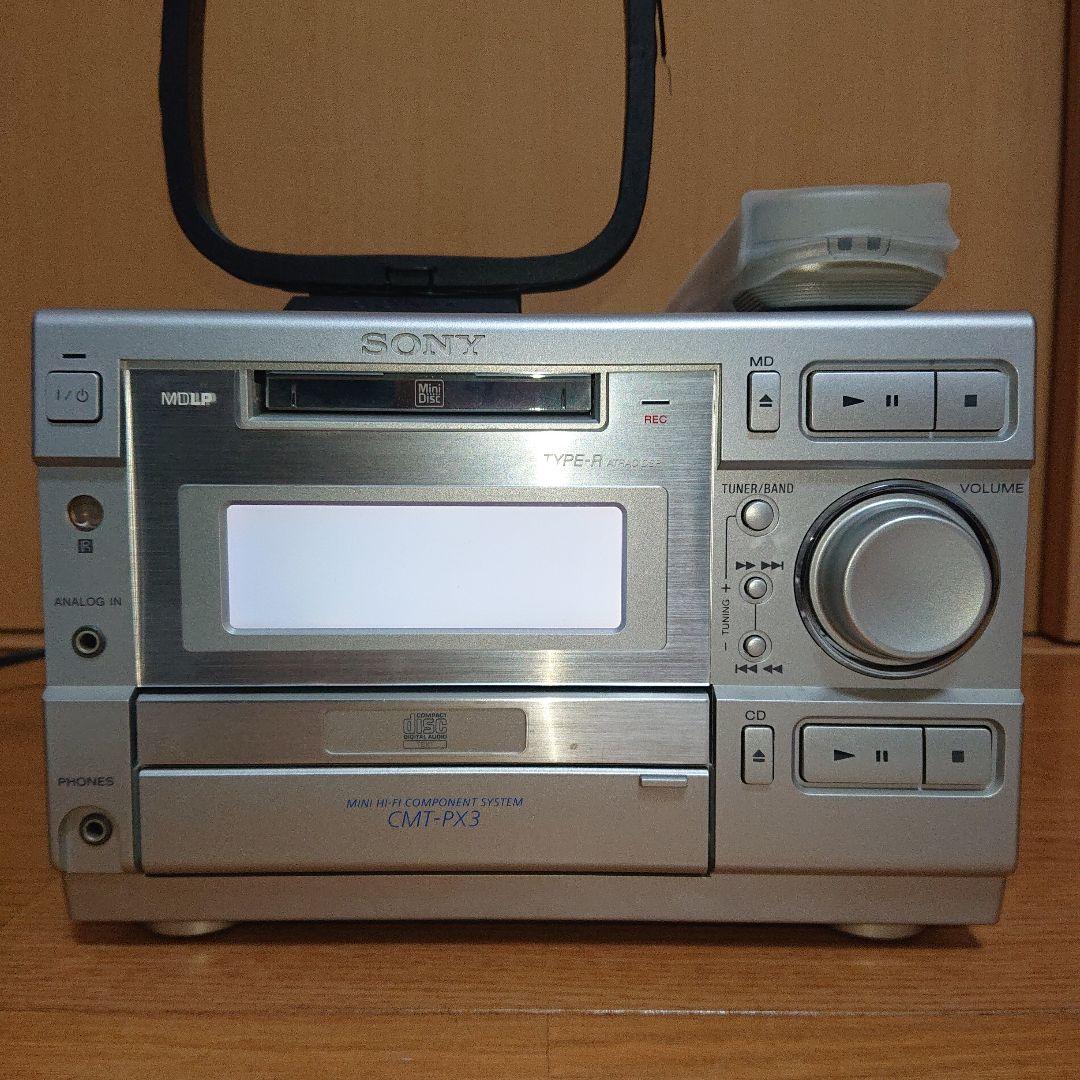

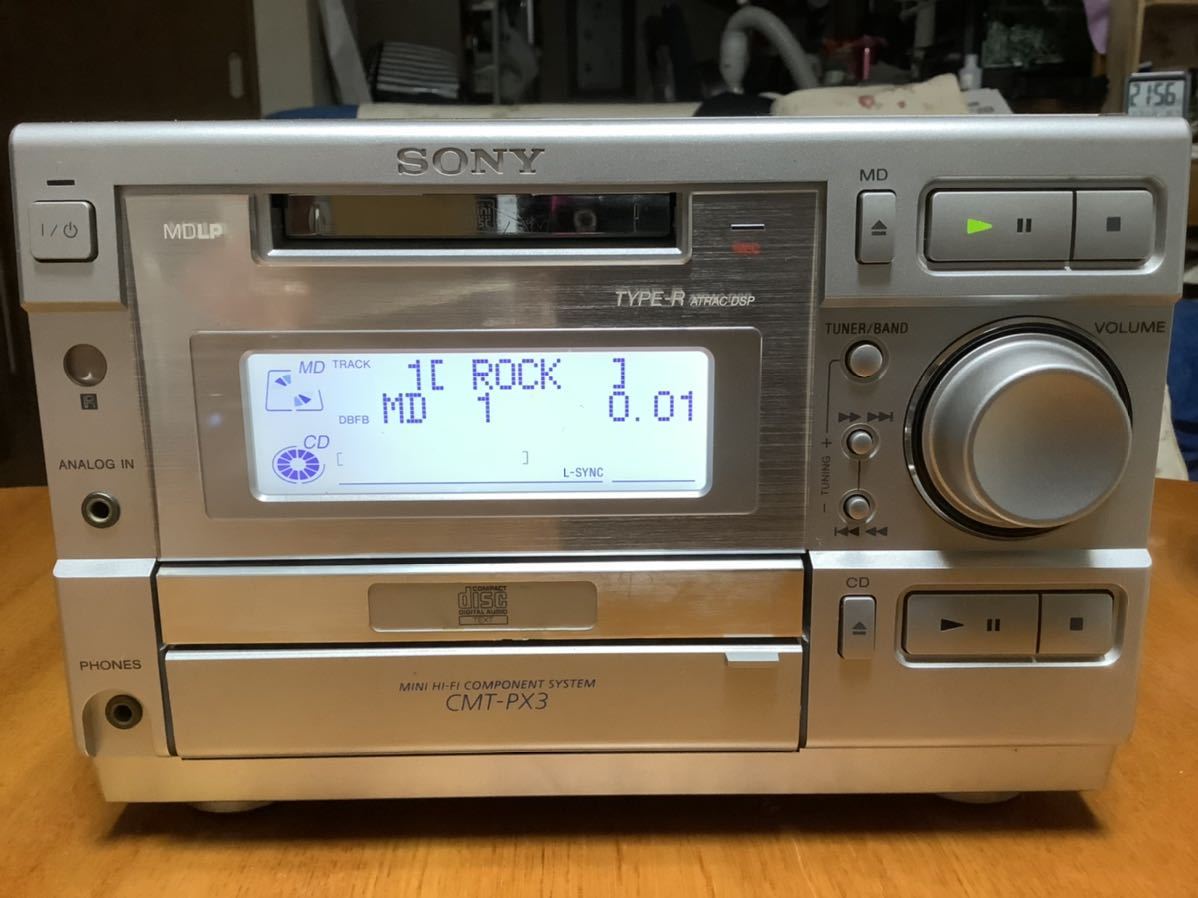

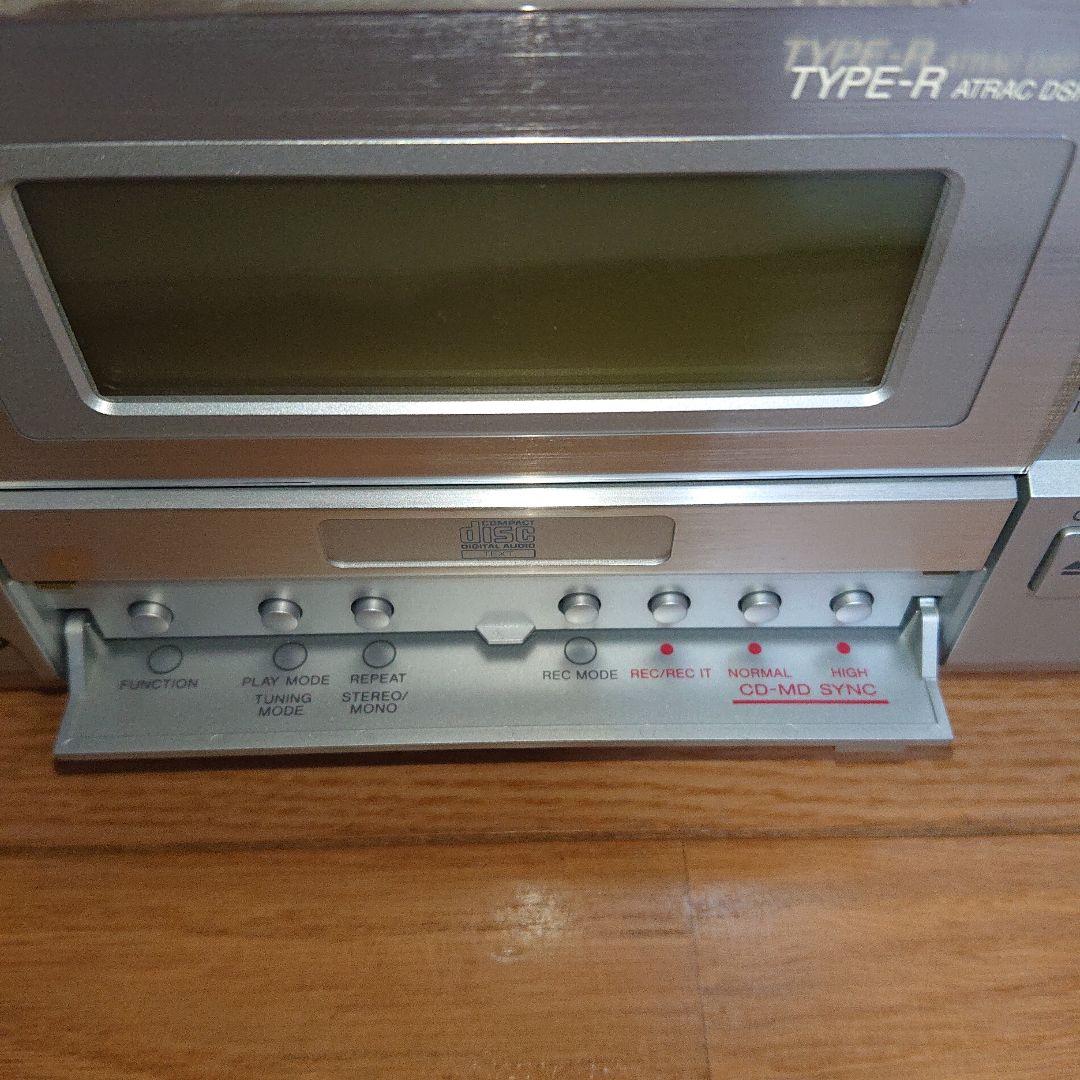

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Export | No |
| Remote Page | rm-s5en |
| Mechanism | mdm-7x2a |
| Pickup | j1n |
| Atrac Ic | CXD2656R / CXD2662R |
| Manual | User manual, Service manual |
| Region | Japan |
