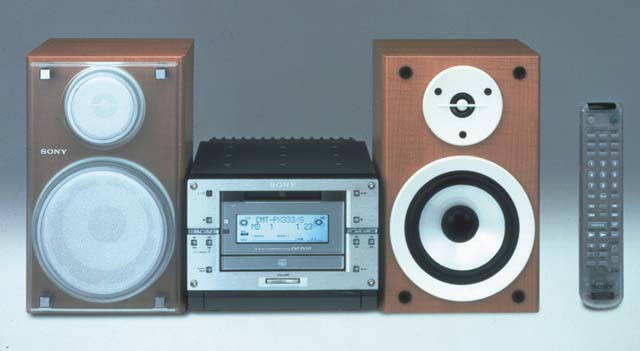

Sony CMT-PX333

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-18

Manufacturer
Sony
Model / source grouping
CMT-PX333
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony CMT-PX333”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name CMT-PX333
Manufacturer Sony
Released 2001/05
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 190 x 141 x 325mm Main Unit, 165 x 265 x 195mm Speaker
Weight 5kg Main Unit, 3kg Speaker
ATRAC ver Type-R
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-

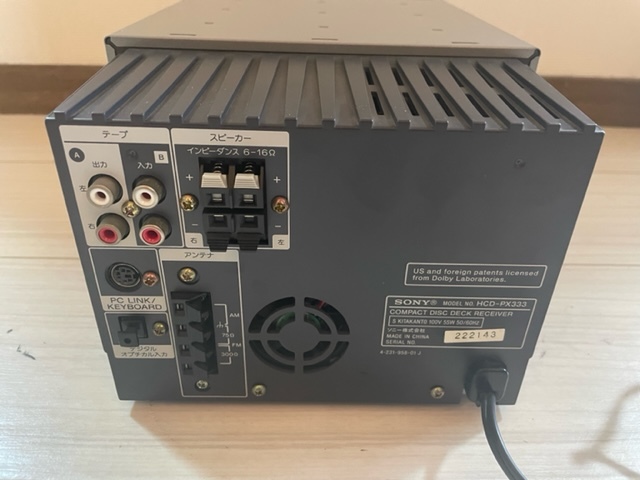

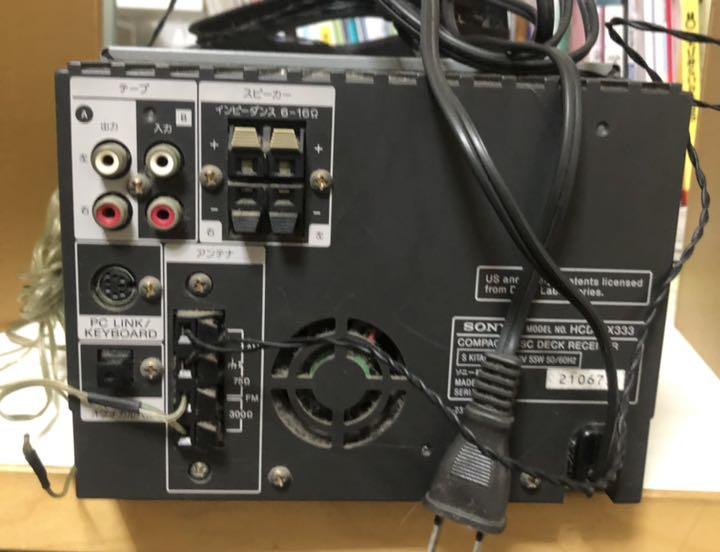

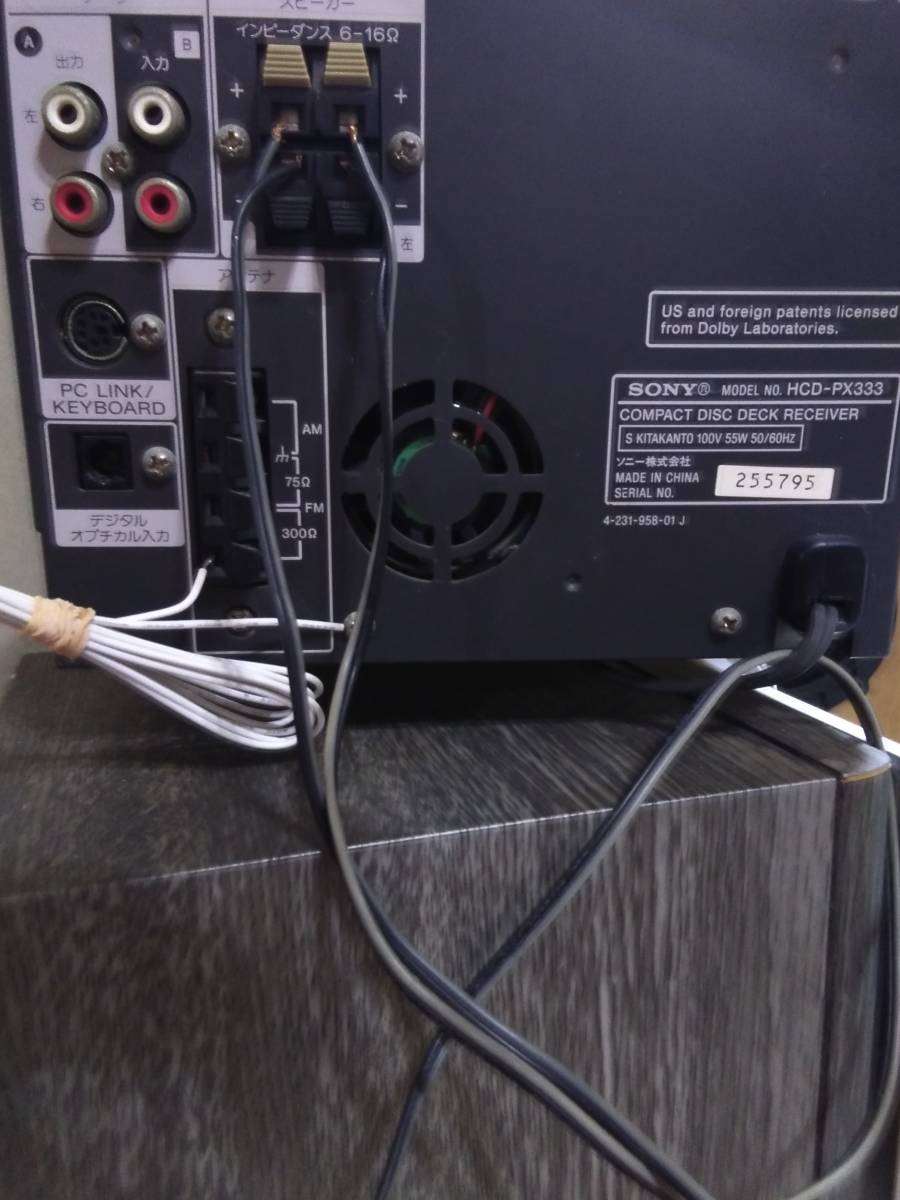

Inputs RCA in, Digital optical (TOSLINK), CD, Radio recording
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier
Control PC Link

Offered in Silver and Black.

1MD, 1CD, and FM/AM Tuner device. There is also a separate cassette deck, TC-TX21, available for purchase.

Optional PC-Link, PCLKM10/A, for easy retitle/editing support. Note that this is not netMD.

HCD-PX333 is the Amplifier, CD player, MD Deck and Tuner section in CMT-PX333.

CD Section

  • Model Name Using Similar Mechanism: HCD-MD595
  • CD Mechanism Type: CDM55A-21BD53
  • Base Unit Name: BU-21BD53
  • Optical Pick-up Name: OP Assy (A-MAX. 2)

MD Section

  • Model Name Using Similar Mechanism: HCD-MD595
  • MD Mechanism Type: MDM-7X2A
  • Optical Pick-up Name: KMS-262

ATRAC Encoder/Decoder: CXD2662R

Content adapted from: Sony Official Press Release av.watch CMT-PX333 Minidisc.org Page

Manuals

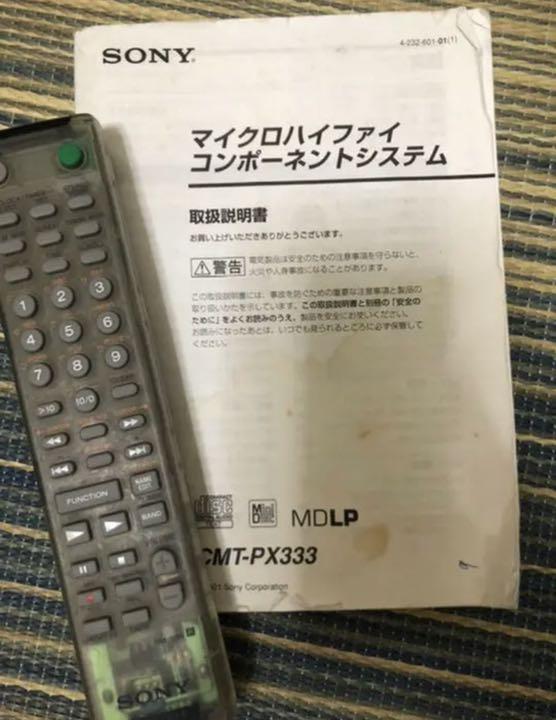

CMT-PX333 User Manual

HCD-PX333 Service Manual

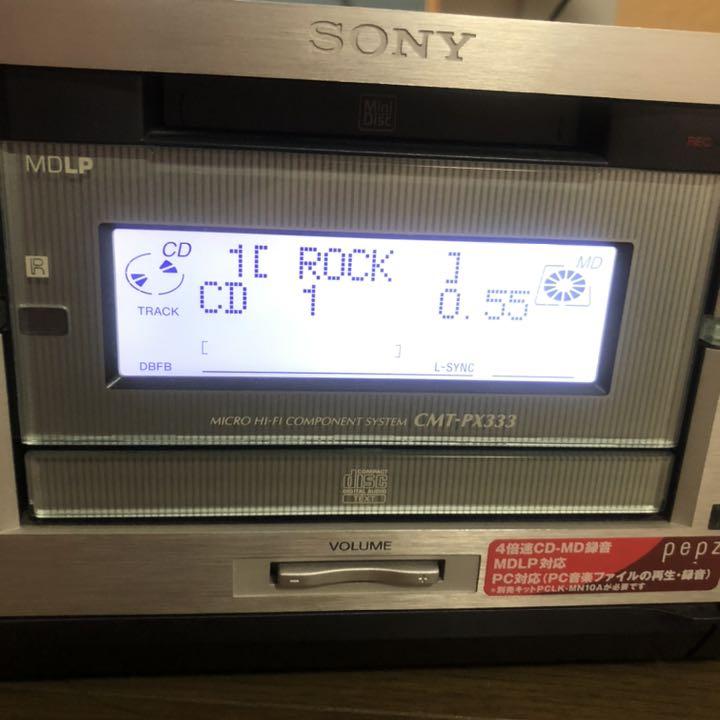

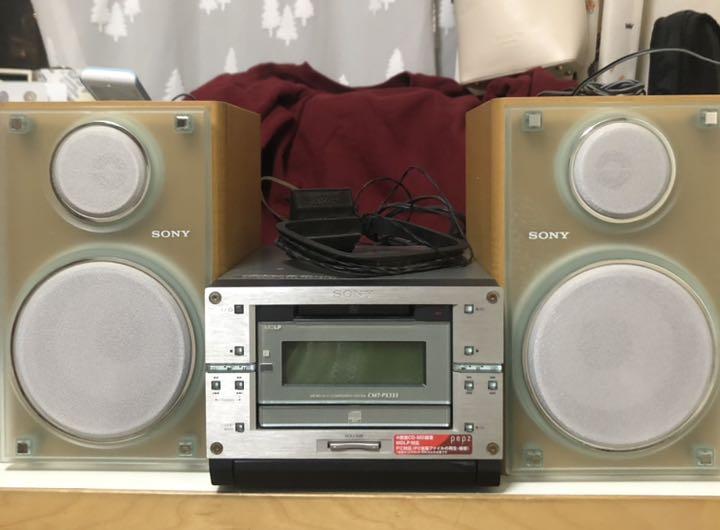

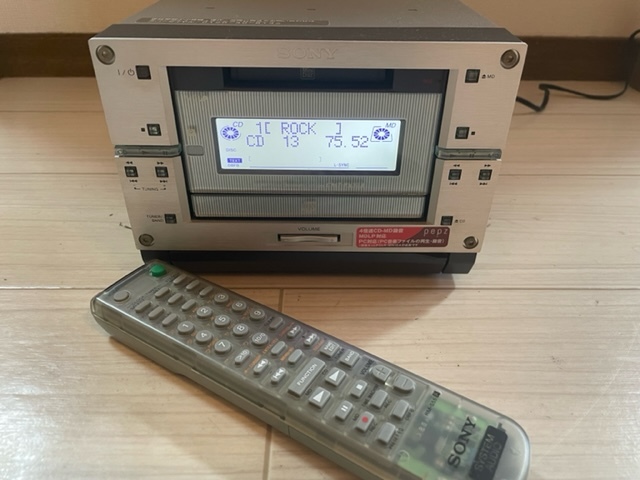

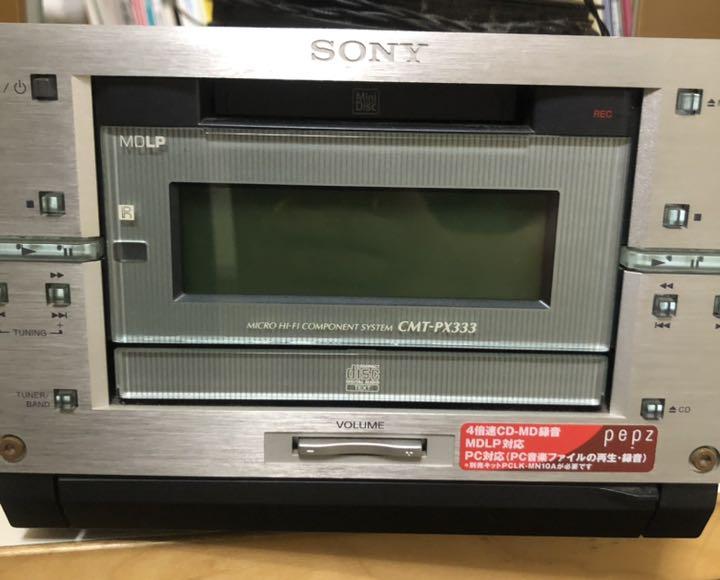

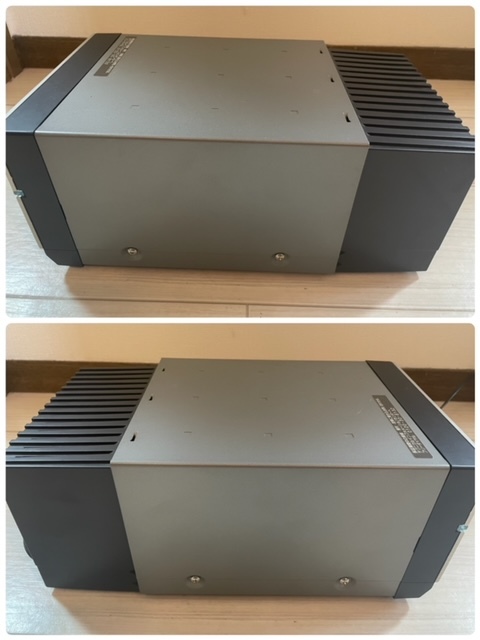

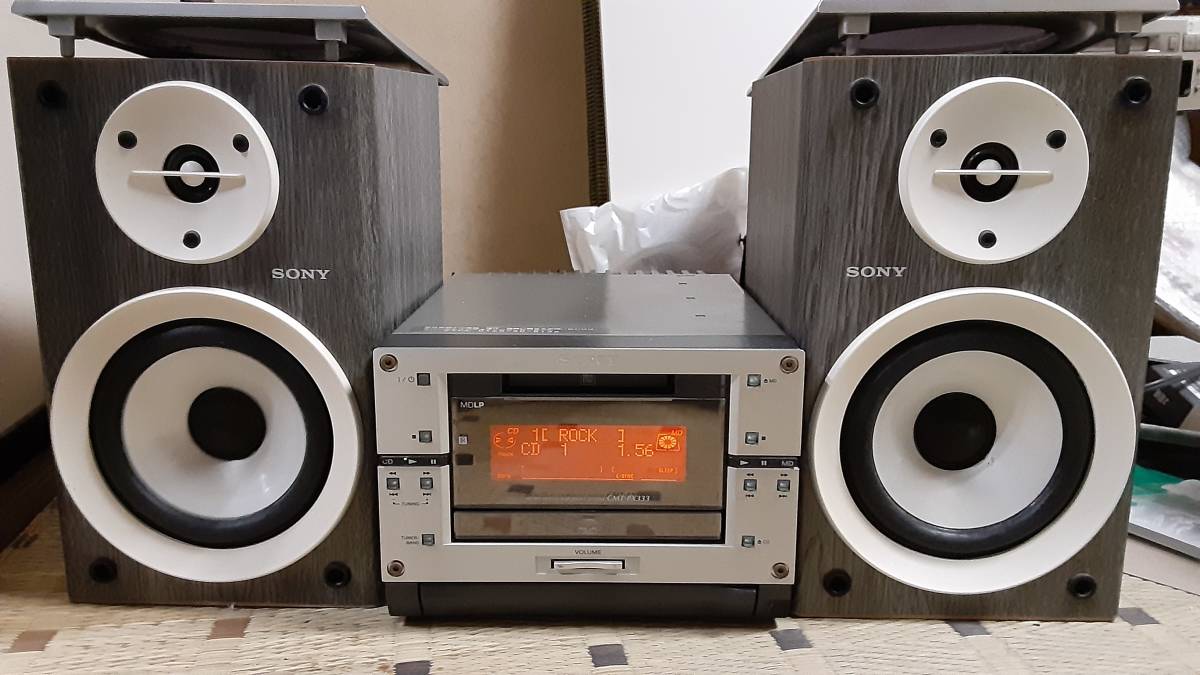

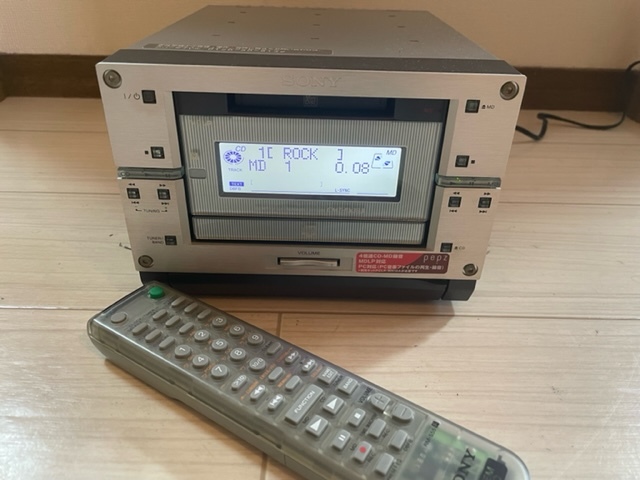

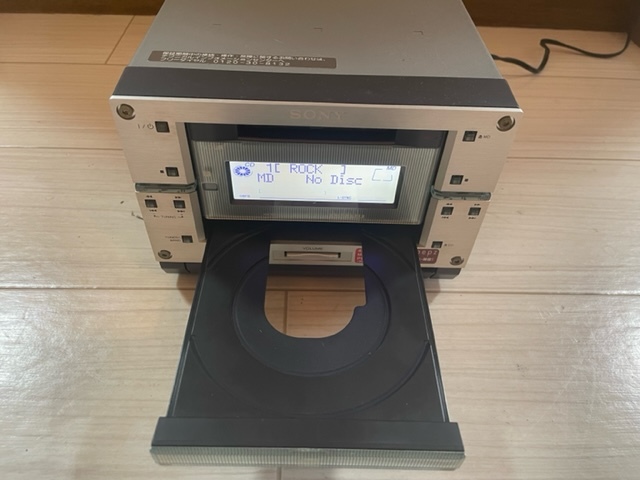

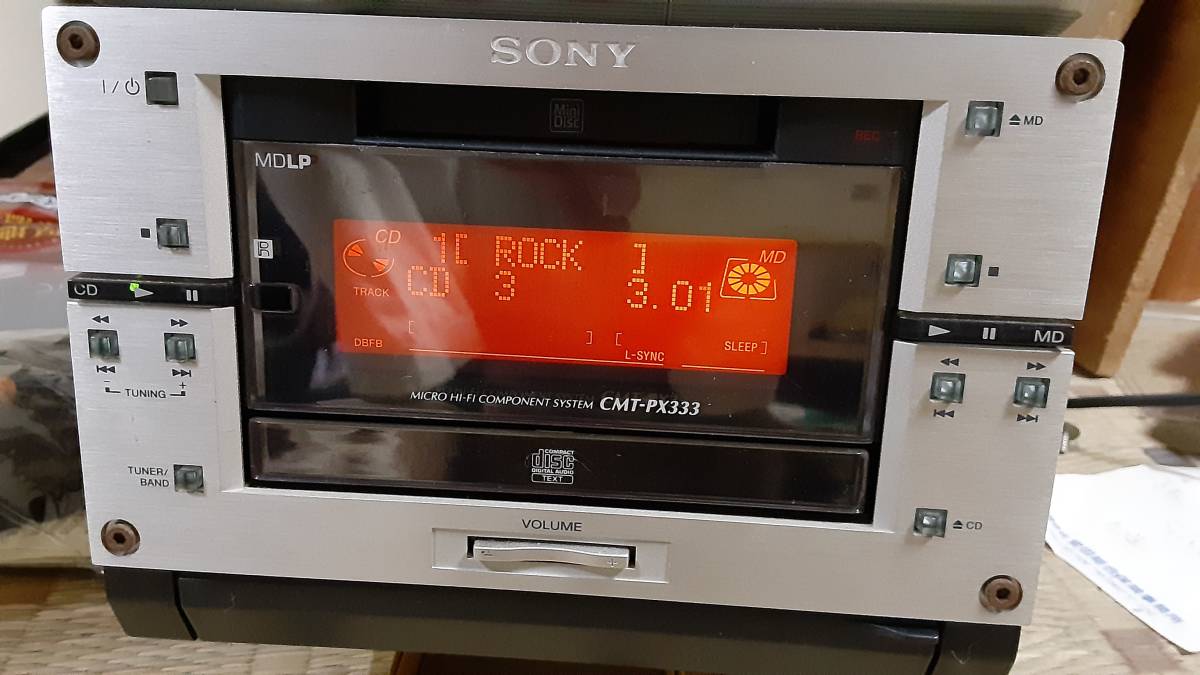

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ScmsYes
Web MdNo (not NetMD)

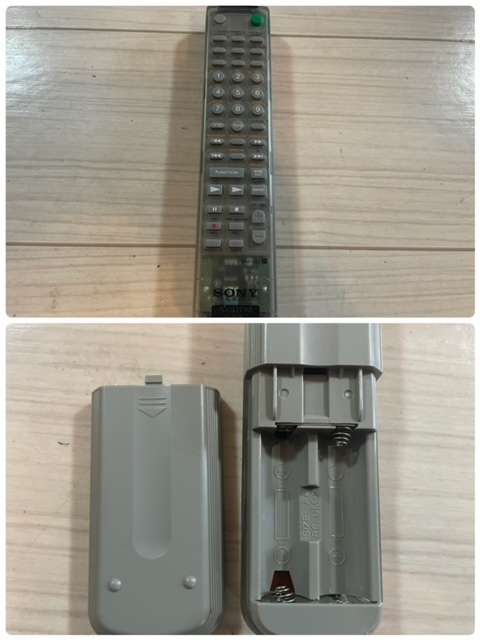

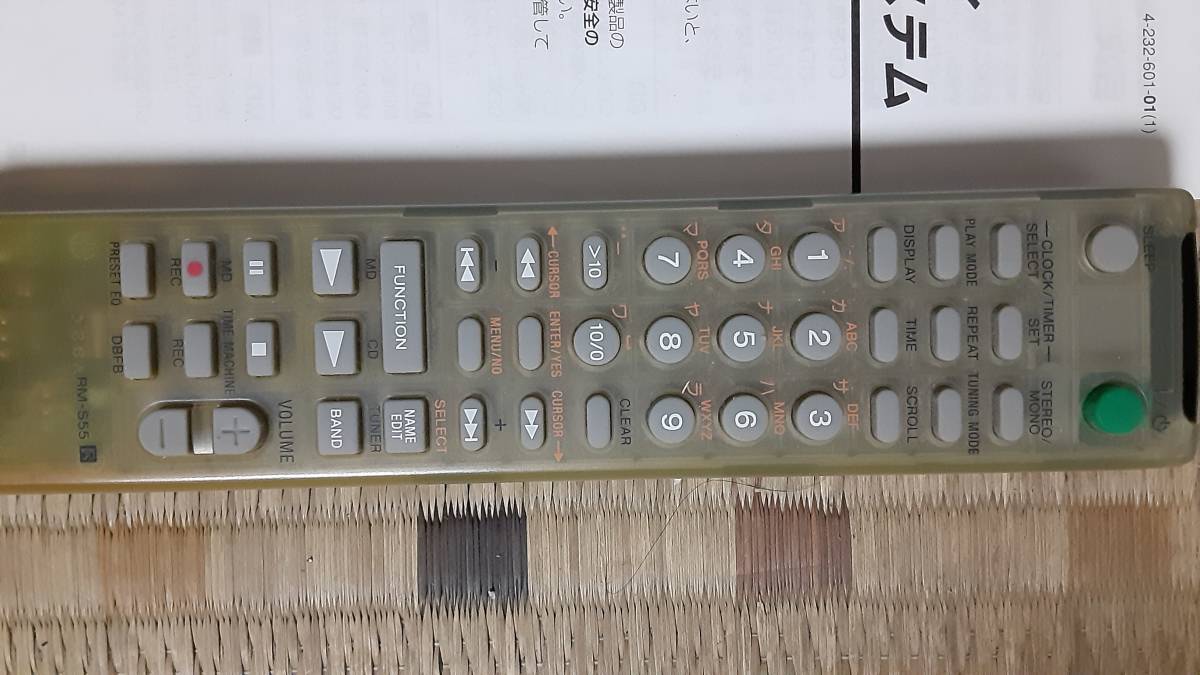

Remote Page
Atrac IcCXD2656R / CXD2662R
ManualUser manual, Service manual
RegionJapan
