Device

Sony CMT-PX5

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Sony
Model / source grouping
CMT-PX5
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony CMT-PX5”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name CMT-PX5
Manufacturer Sony
Released 2000/09
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions (main unit) 175x250x370mm (everything) W 485 x H 250 x D 370 mm
Weight 7.5kg (13.7kg with speakers)
ATRAC ver Type-R
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100, 100-110, 120
Power cable AC
Price (launch) Not recorded
¥73 000
-
Inputs CD, Radio recording
Outputs 3.5mm headphone, Speaker amplifier
Control PS/2 keyboard

Features: MDLP recording and playback, SF edit, ATRAC with Type-R DSP (in non-LP modes). 4X CD→MD copy (2X in MDLP modes, ATRAC Type-R only available in 1X copy mode). PC based titling, control and digital audio transfer from PC to MD possible with Optional PCLK-MN10 connecting kit. Keyboard titling via PS/2 keyboard connector. Optional Sony "KB-10" keyboard (¥6000) available separately. Remote control provides titling using the same character entry method as a typical portable phone (multiple button presses to select one of 3 characters).

Variants: PX5W + CMT-PX5S. CMT-PX7 model (¥124,000) features 3CD/3MD changer (allowing 3CDs to be recorded with a single button press), more power (50W x 2), FL Dot Chinese character (Kanji) display, and aluminum front panel with motorized fold down control panel. CMT-PX5LTD model (¥80,000) has higher quality analog components (e.g. transformer) achieving 54W (27Wx2?), carbon black finish, and twin dial controls for easier MD editing operations. Offered in Silver and White.

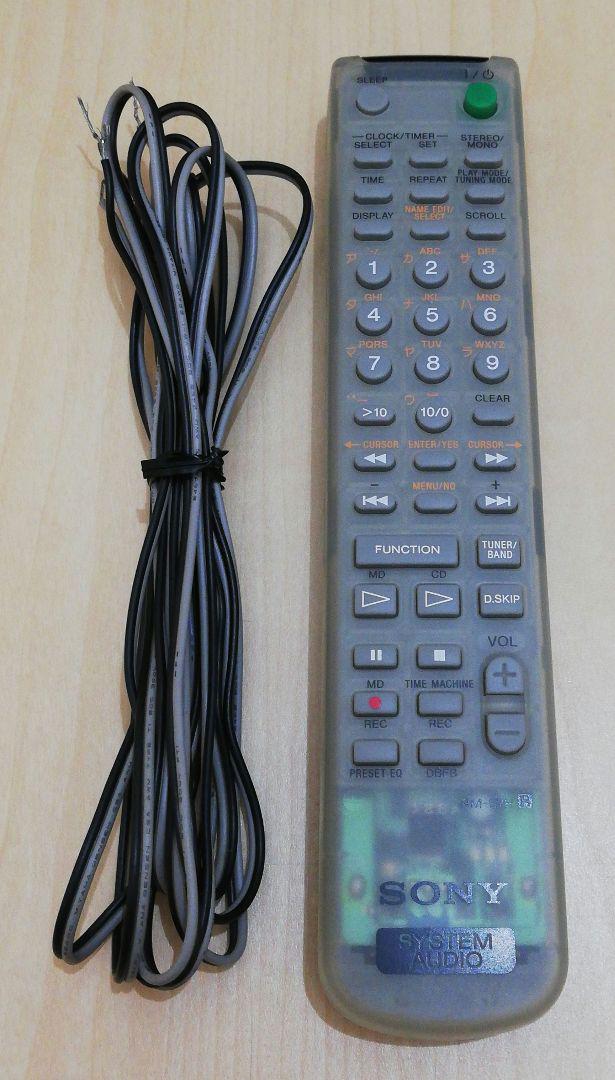

Remote: RM-S7H

Specs: Hybrid pulse DAC, 20 delta-sigma ADC, FM: 76 - 90MHz, AM: 531 - 1,602kHz, Amp: 25W x 2.

Content adapted from: Sony Press Release Minidisc.org page Sony Product Park Sony Product Park (MiniDisc Wiki mirror)

Manuals

Sony CMT-PX5 User Manual ENG

Repair

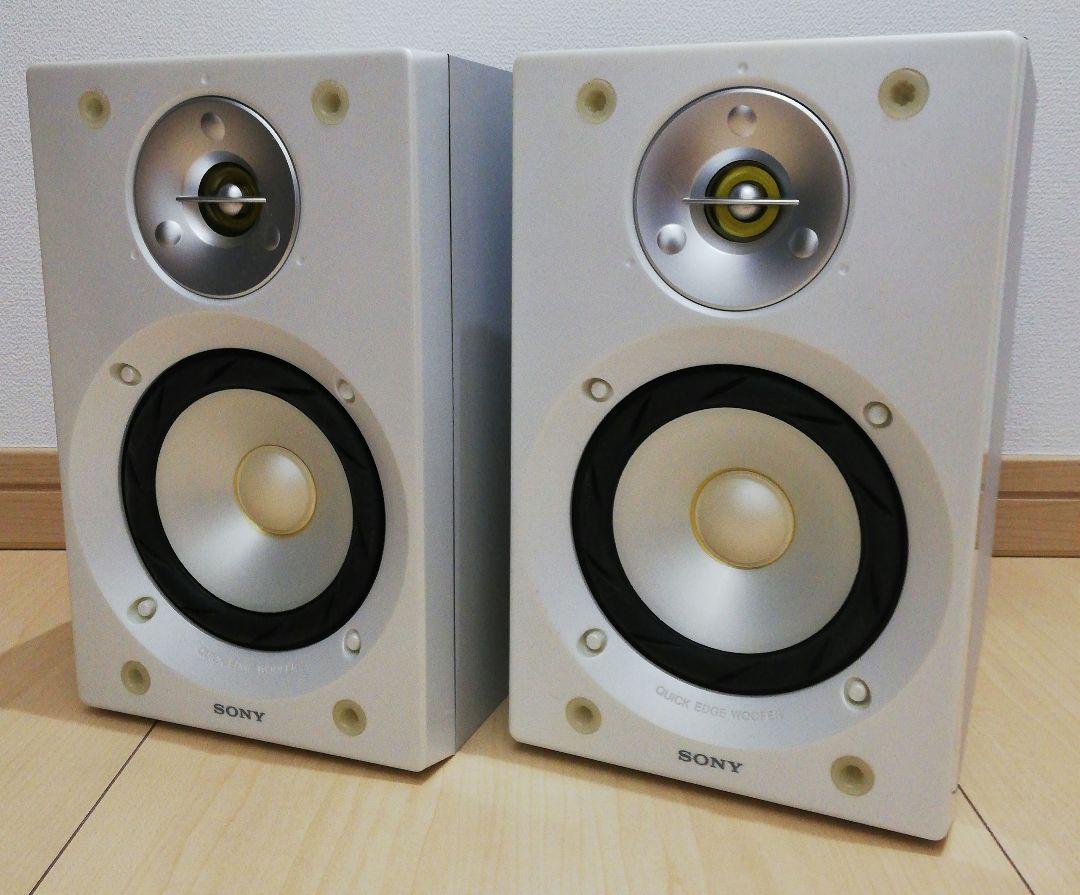

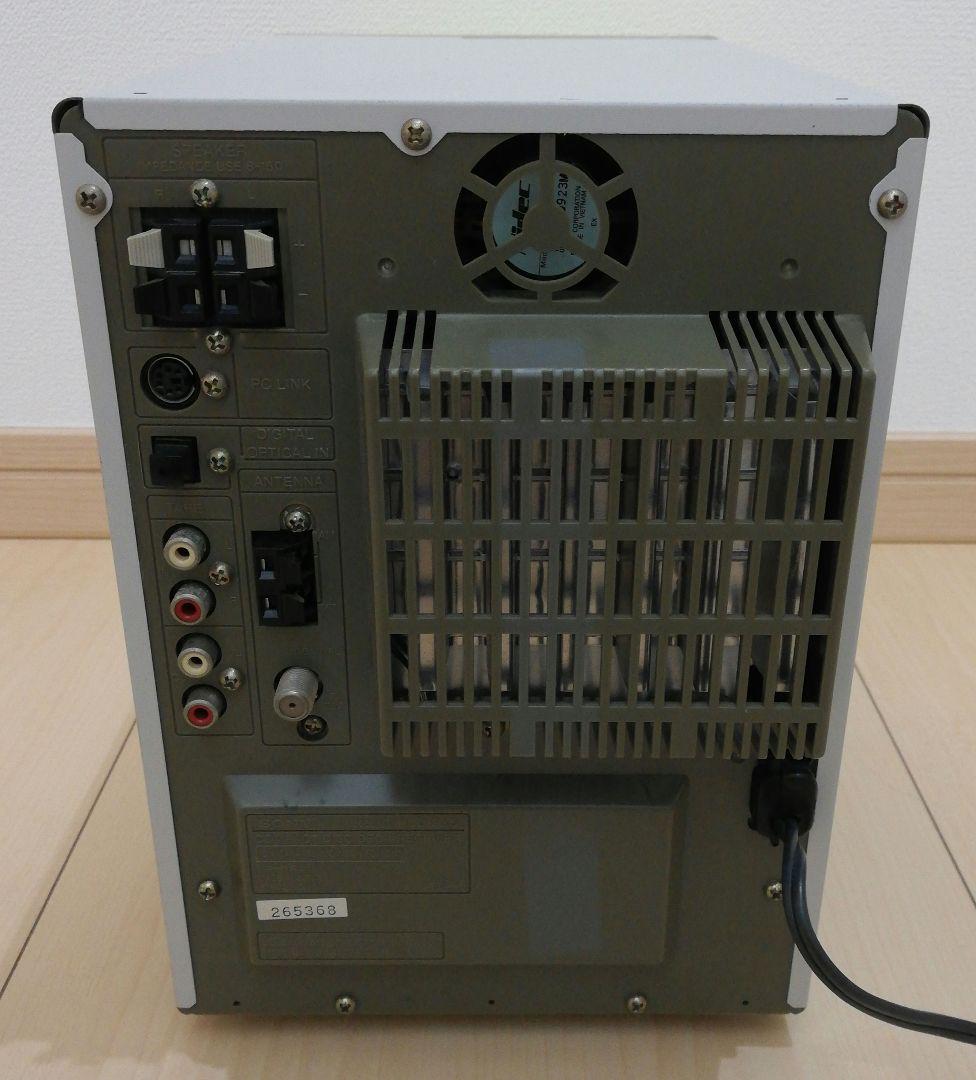

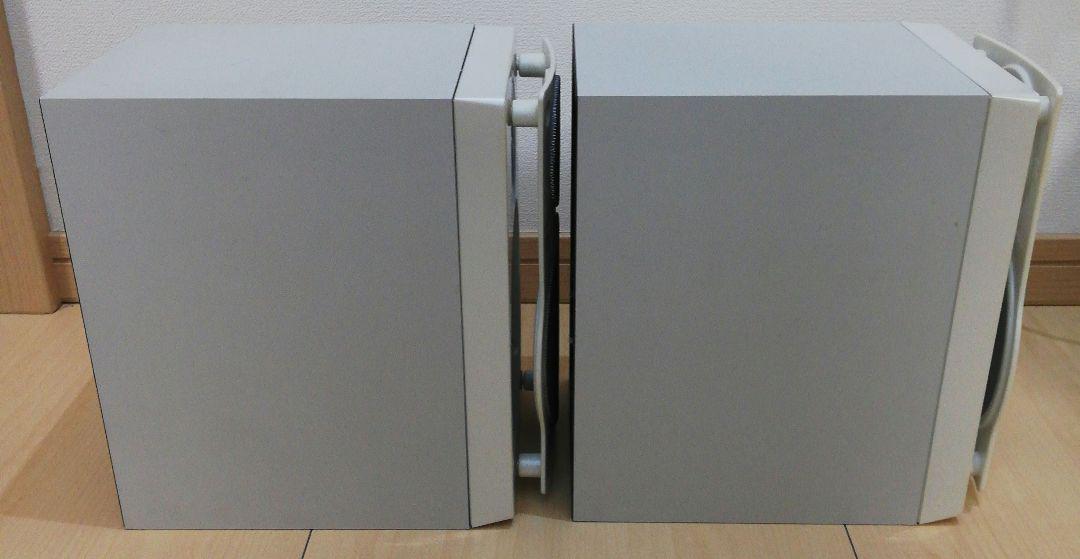

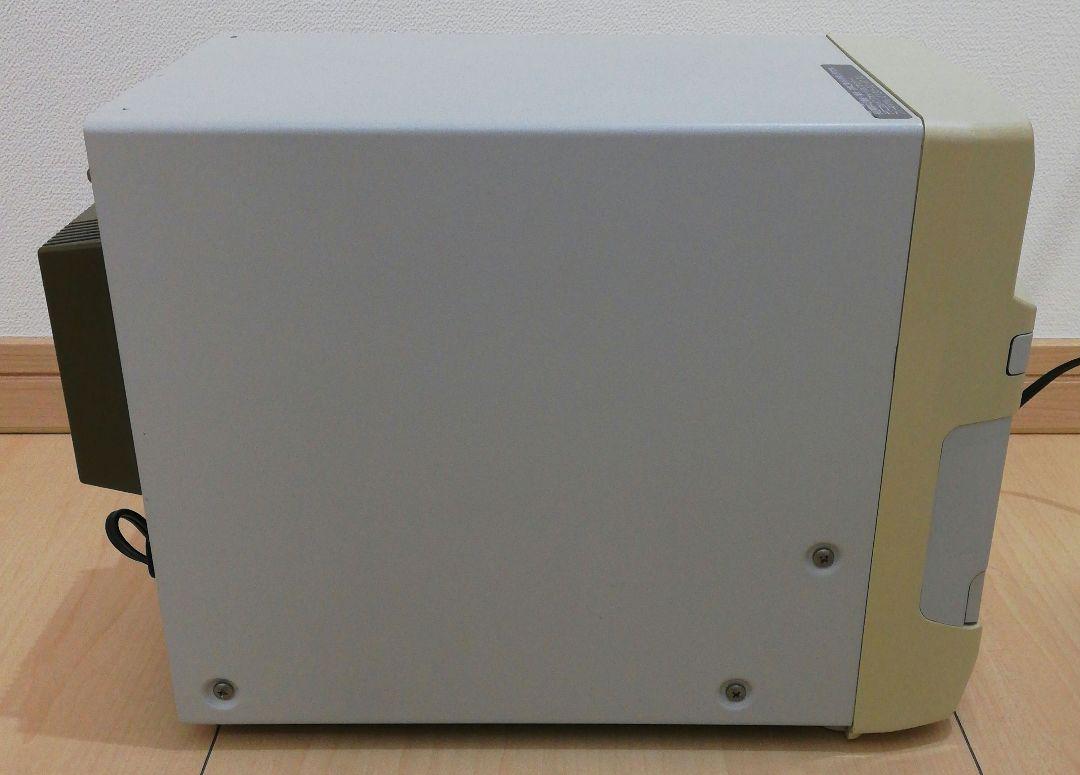

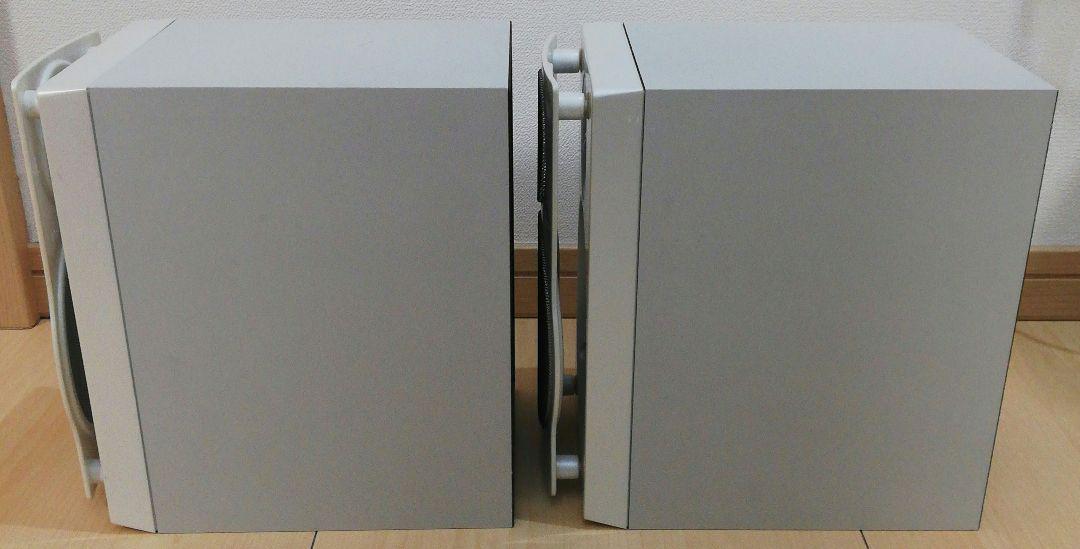

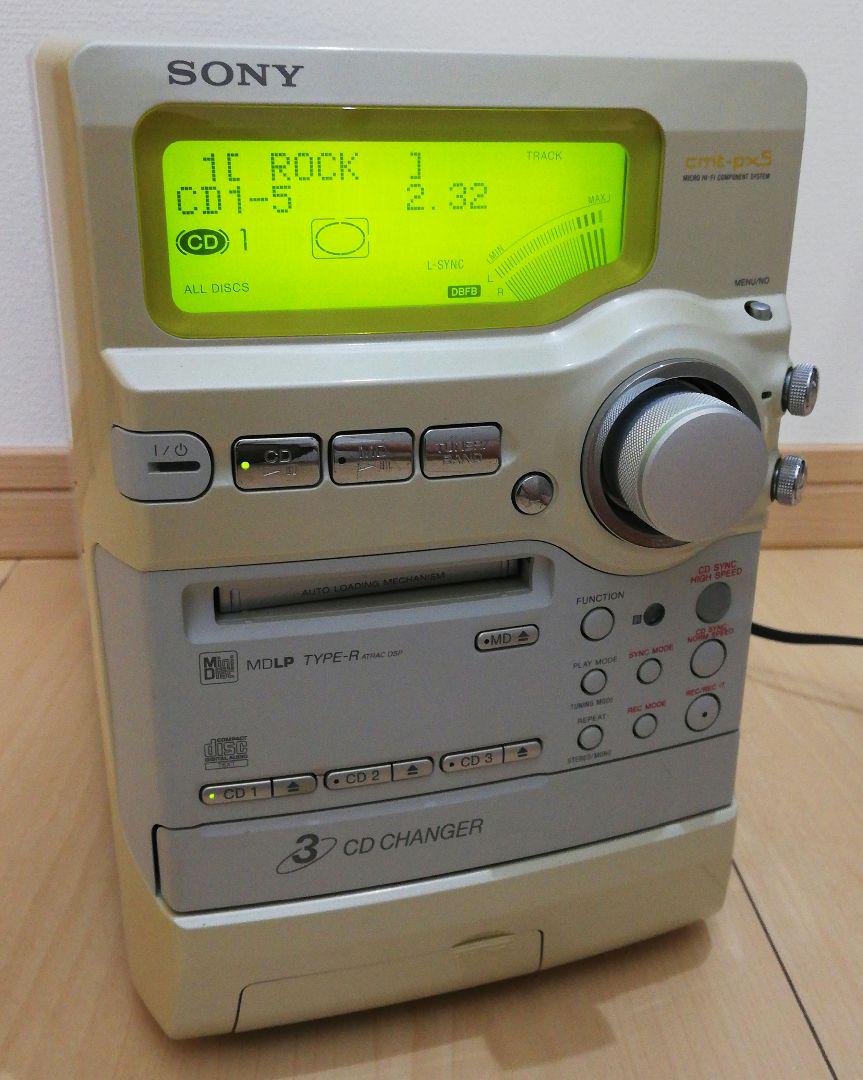

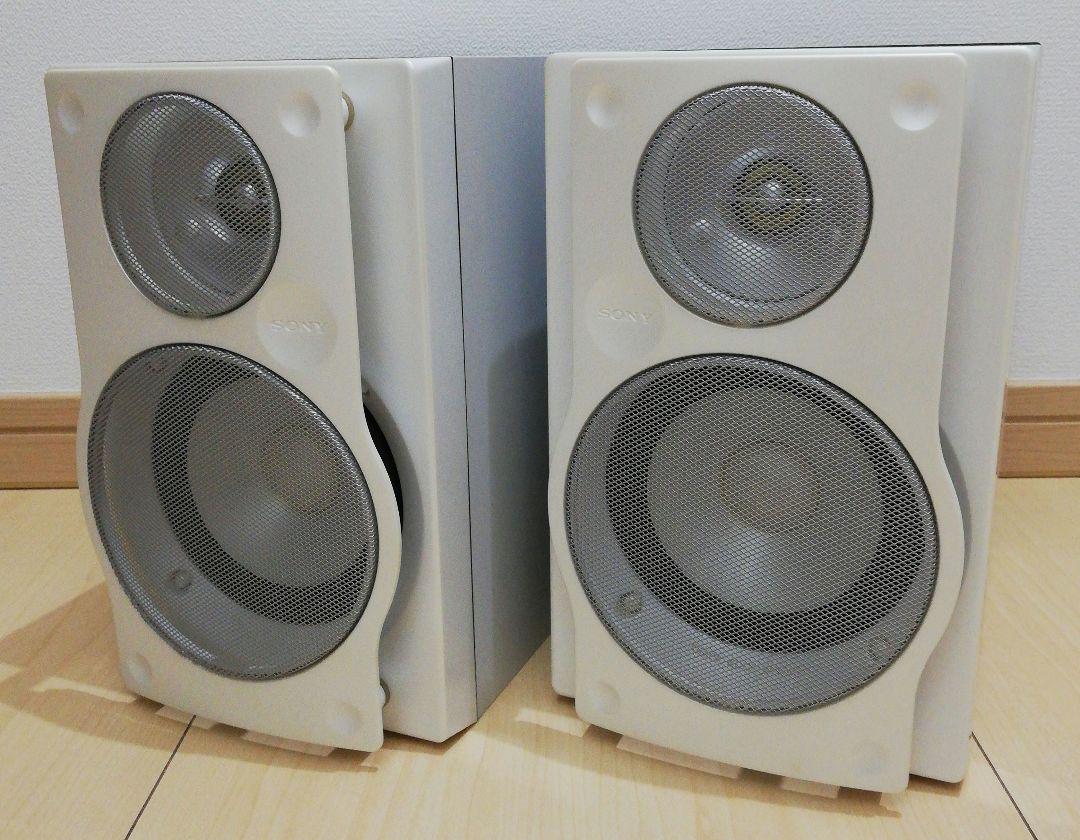

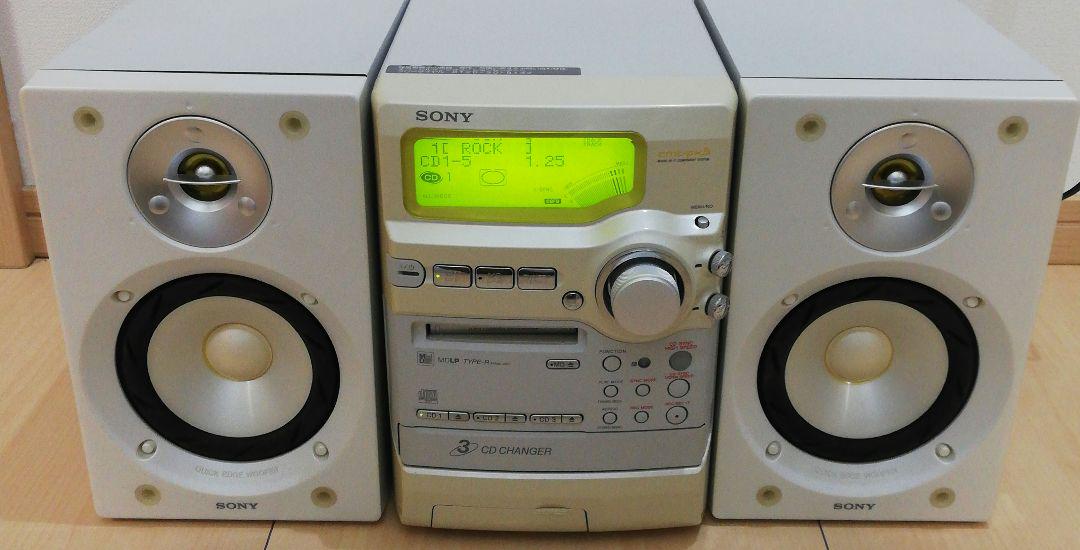

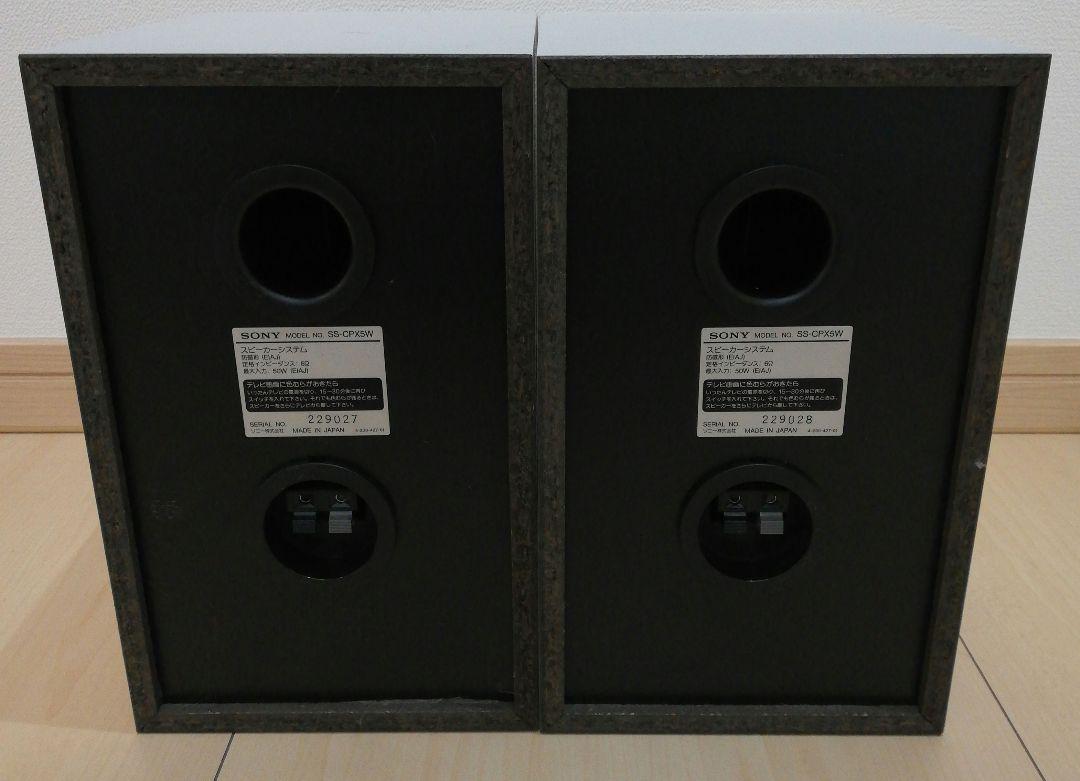

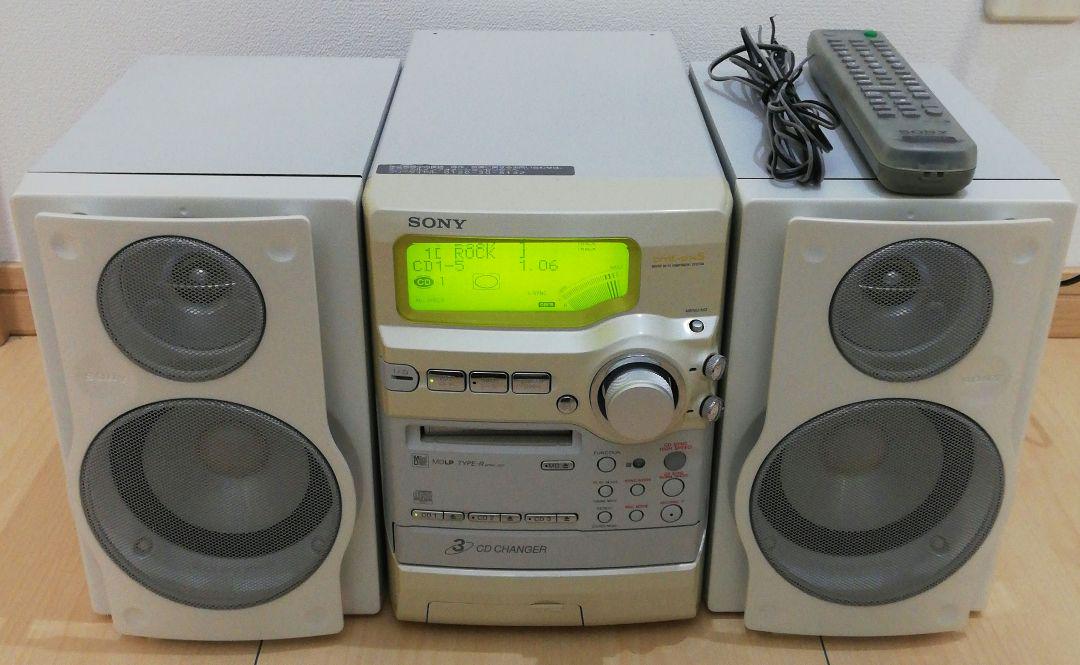

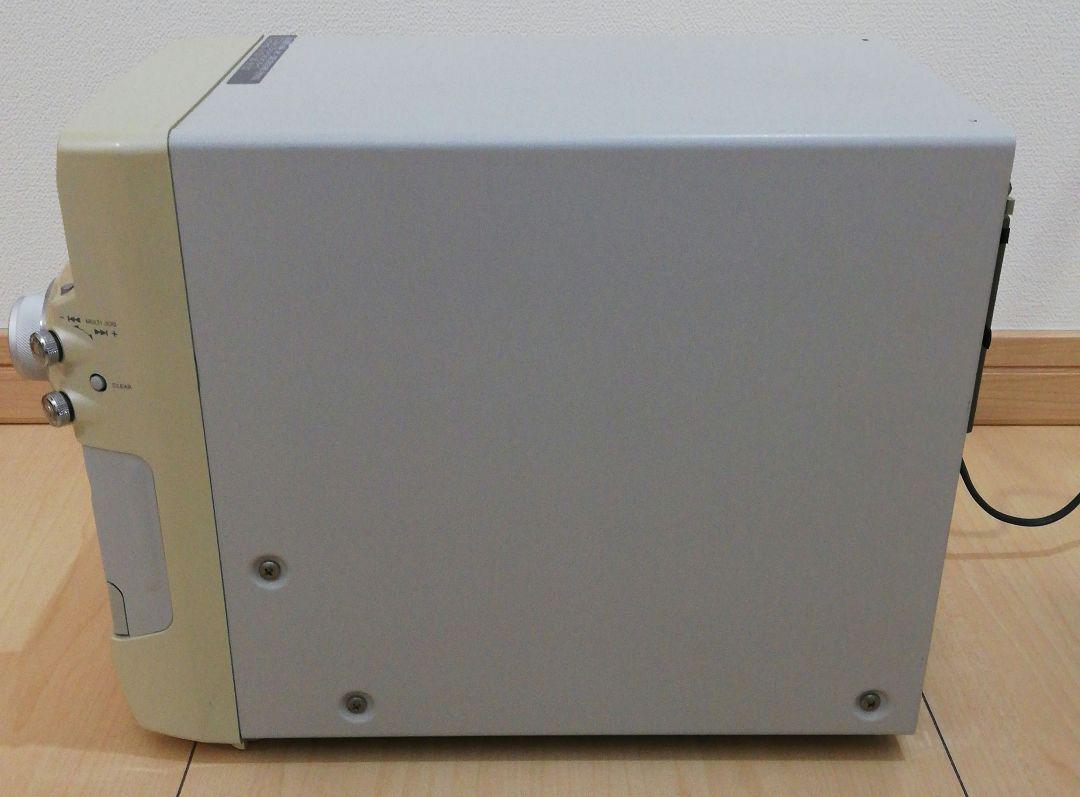

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
