Name	CMT-SD1
Manufacturer	Sony
Released	1999/04
Device type	deck
Recorder	Recorder
MDLP	No
NetMD	No
Hi-MD	No
Radio	Not recorded
Dimensions	190 x 91 x 315mm Main Unit, 165 x 280.5 x 265.5mm Speaker
Weight	4.4kg main unit, 4.3kg speaker
ATRAC ver	4
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	No
Voltage	100, 230
Power cable	AC
Price (launch)	Not recorded
Price (launch)	Not recorded
-
Inputs	RCA in, Digital optical (TOSLINK), CD, Radio recording, Tape deck
Outputs	1/4 inch headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier, Tape deck
Control	PC Link

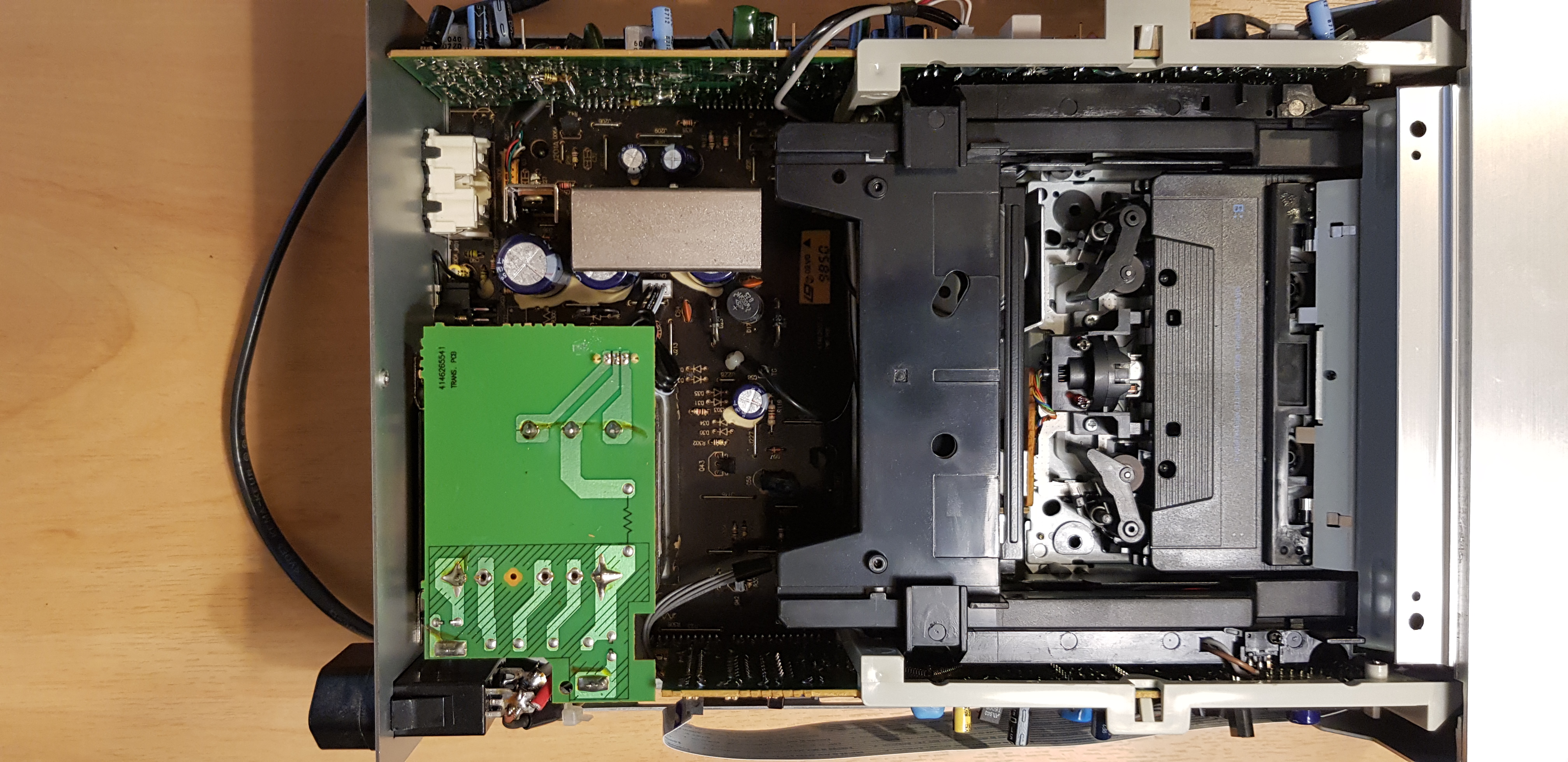

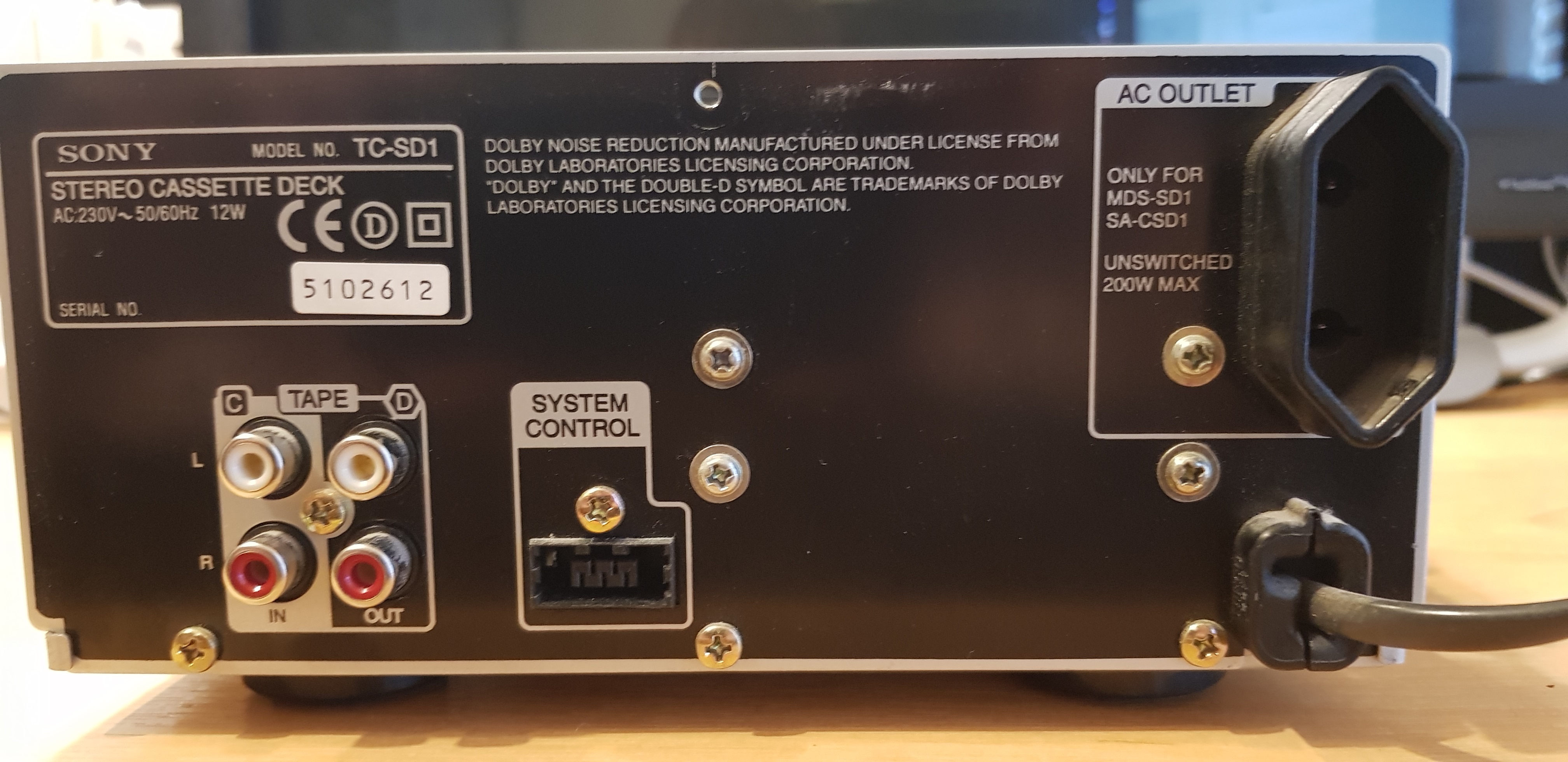

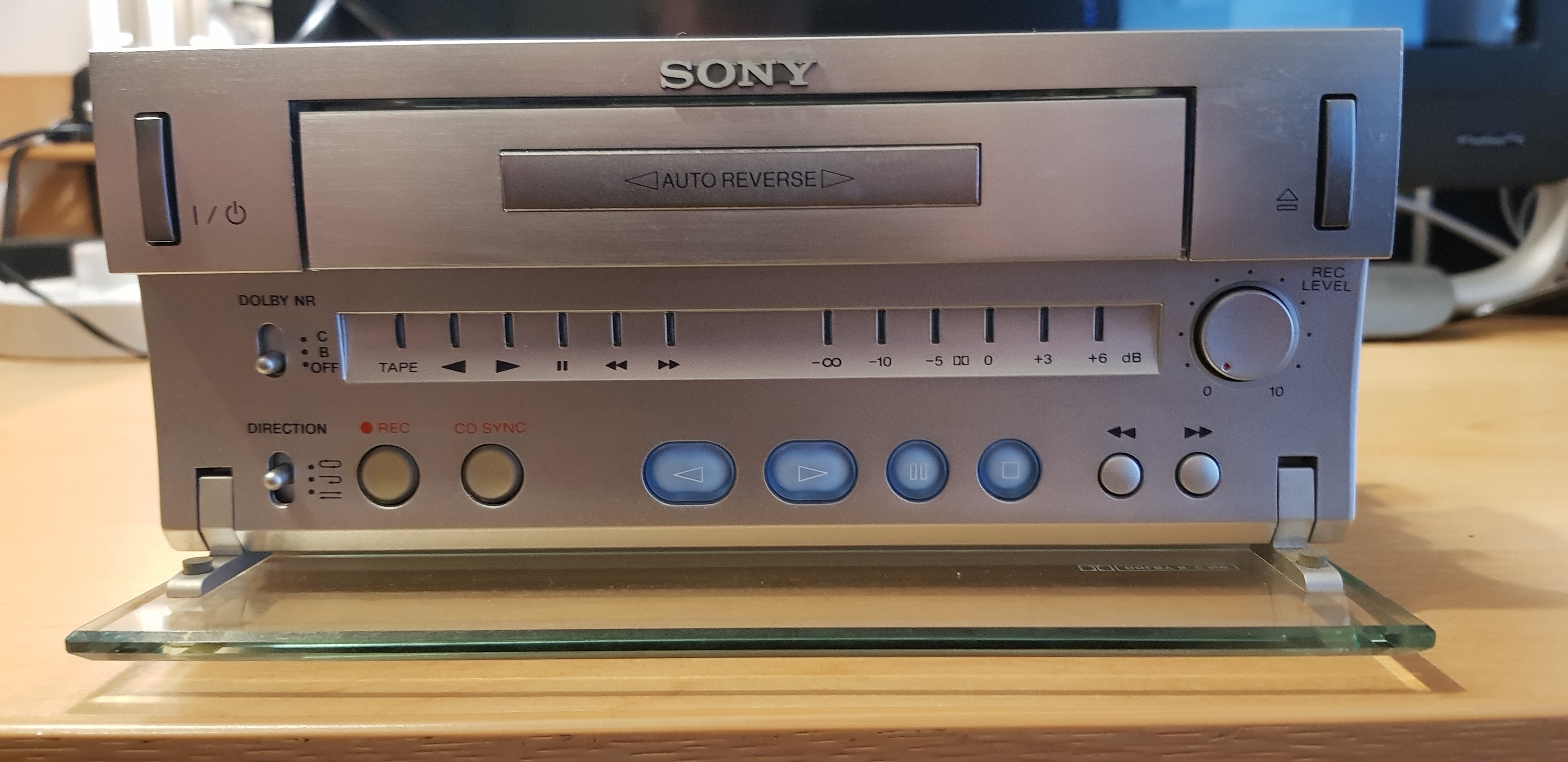

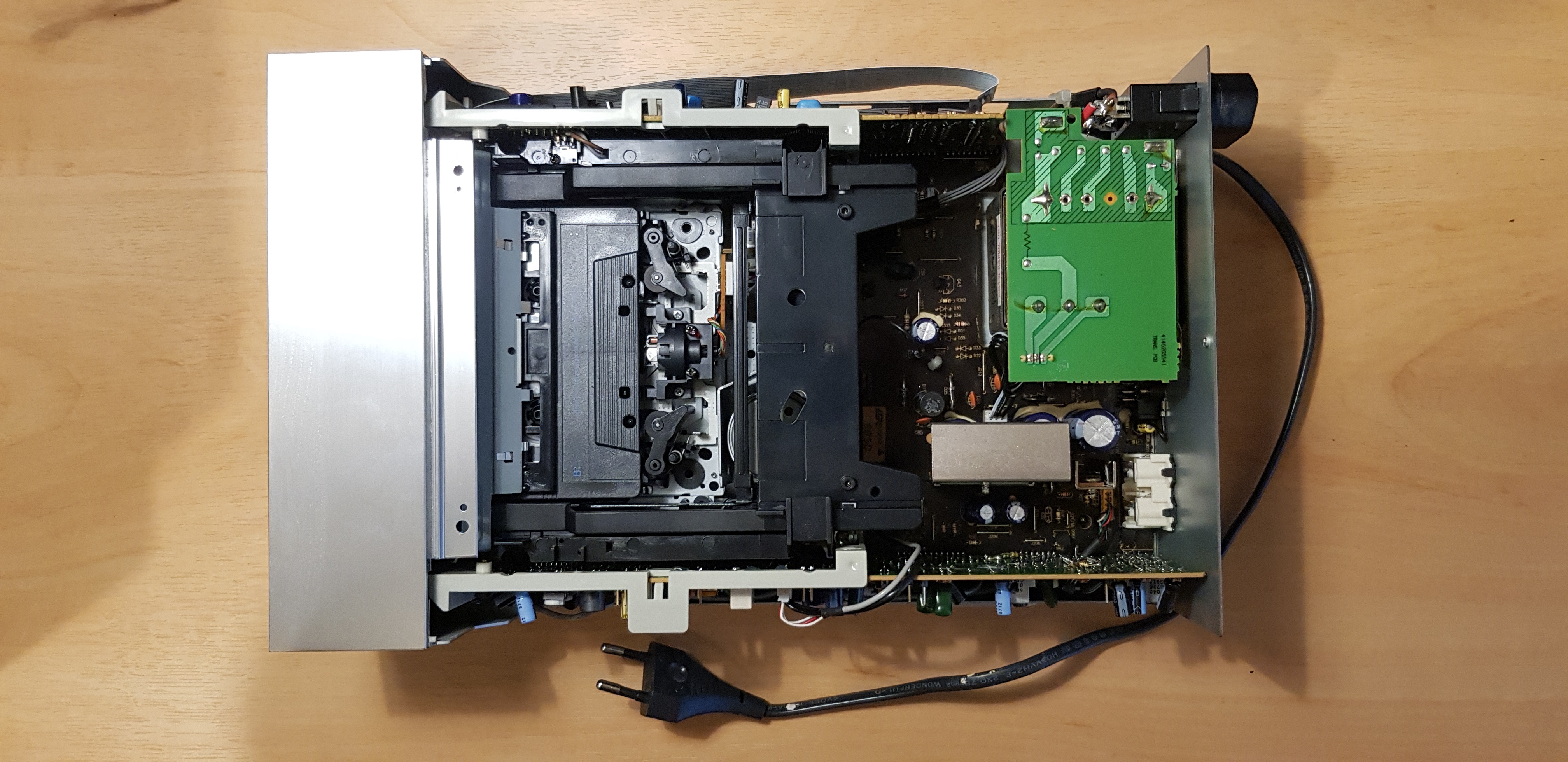

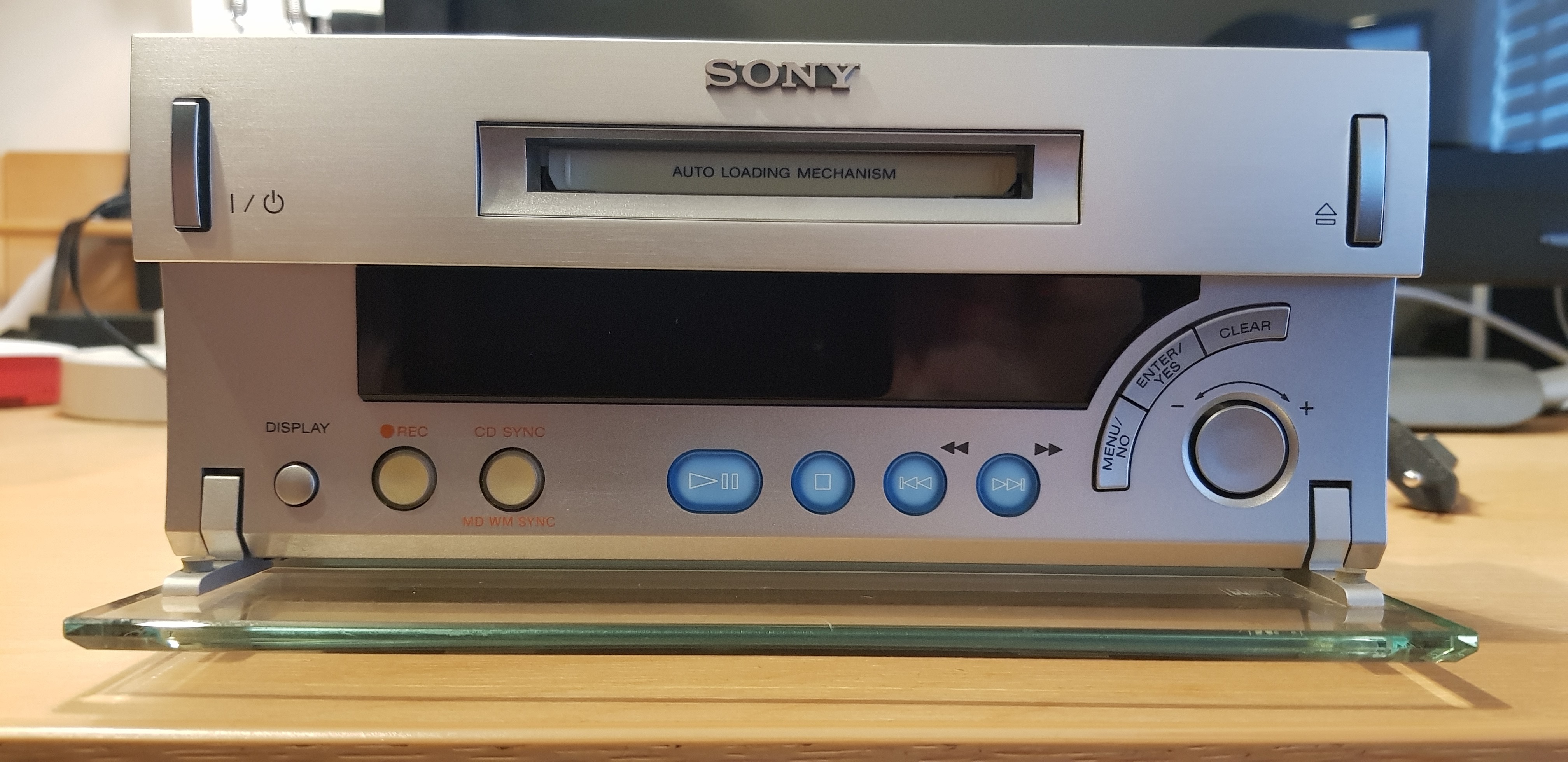

This unit is an MD, CD, Tape and FM/AM Tuner device stack. Each section is split into a separate component, with the tuner/CD/amp being HCD-SD1, tape deck being TC-SD1 and MD being MDS-SD1.

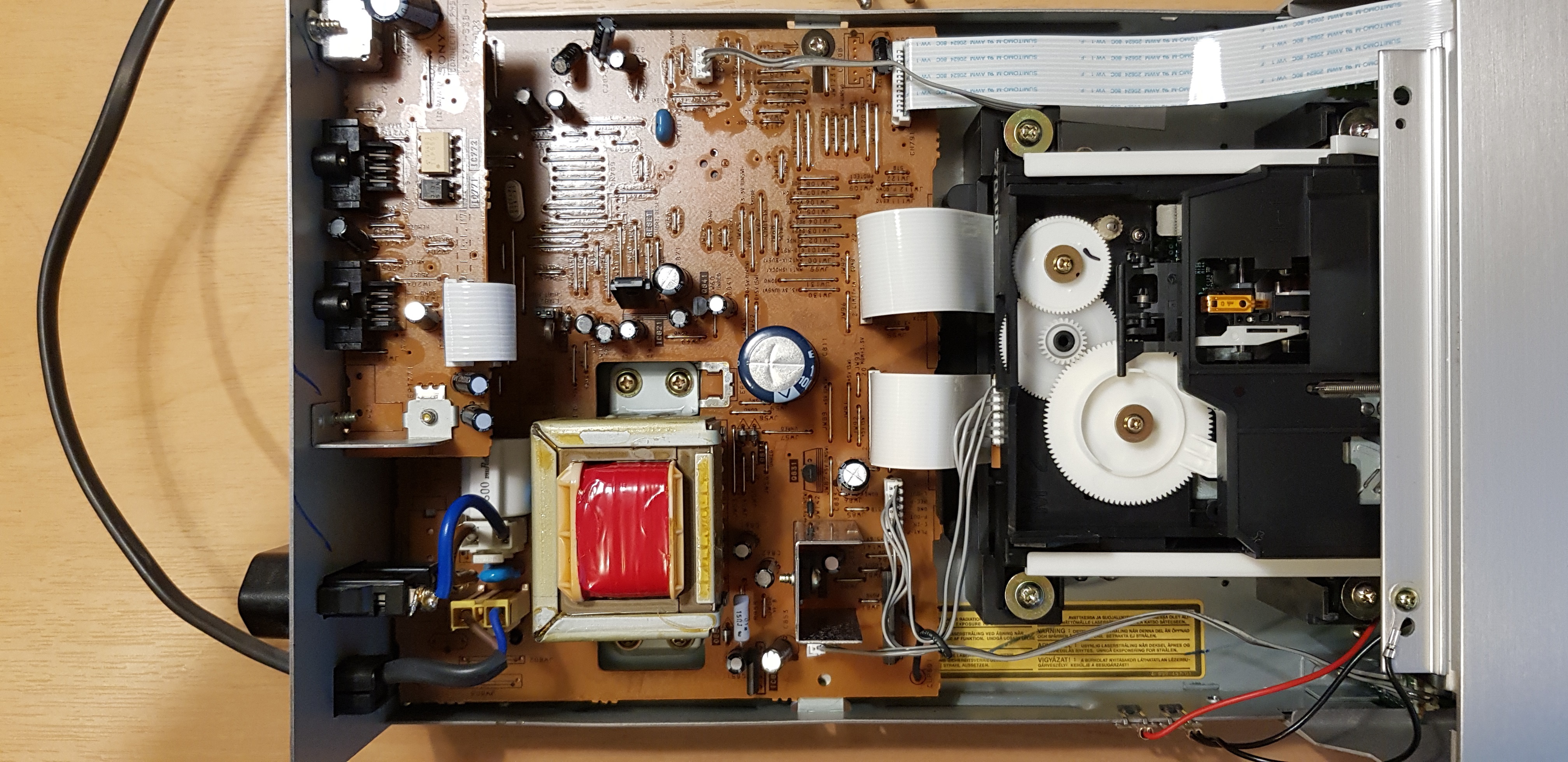

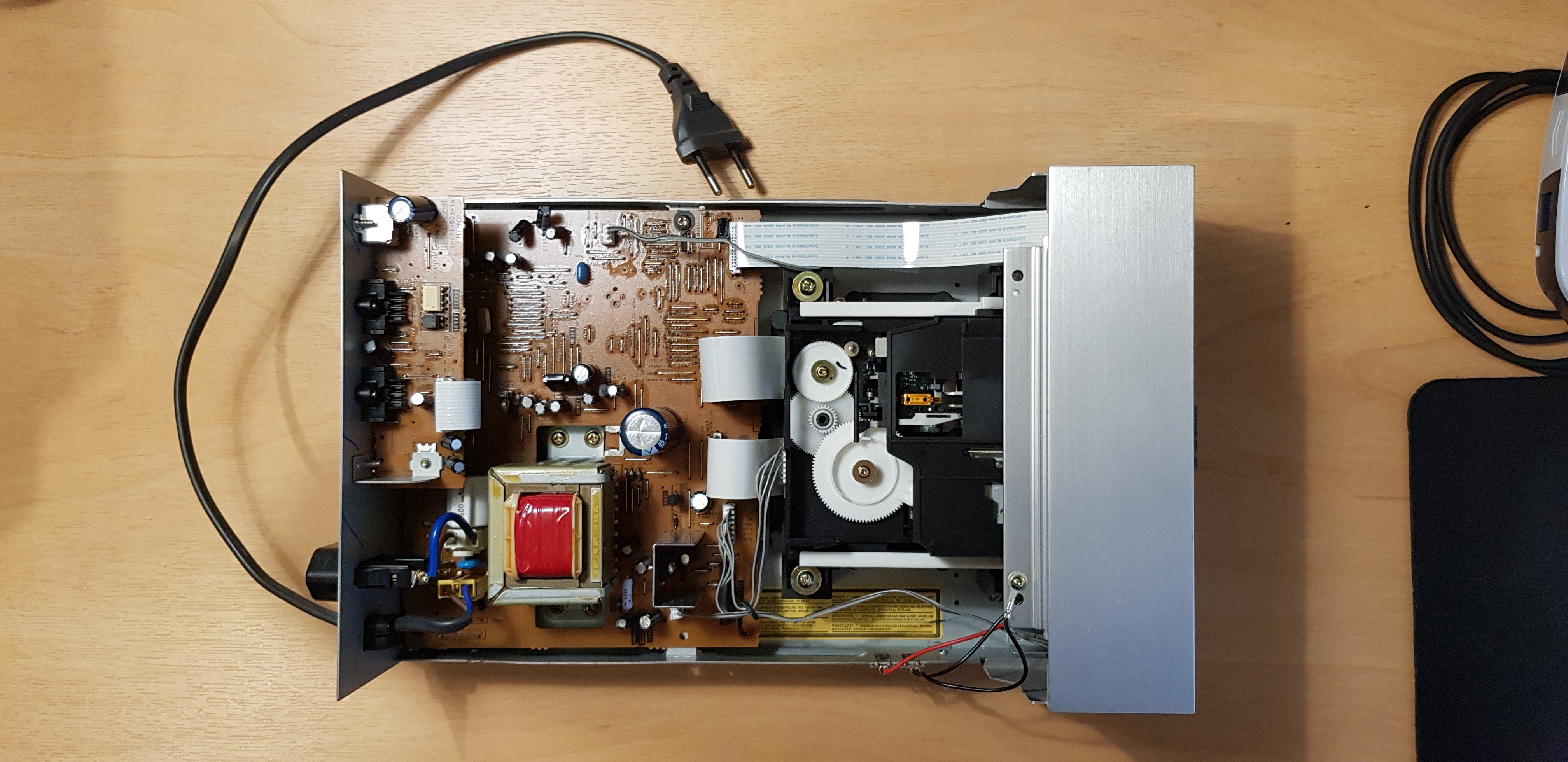

The MD component (MDS-SD1) uses the same CXD2652AR ATRAC1 chipset as some versions of the MDS-JE510, but the same MDM-5A drive as the MDS-JE520.

The MD+Amp combo was sold in Japan as the JMD-7.

Each unit can be operated as an individual, however some features may be unavailable.

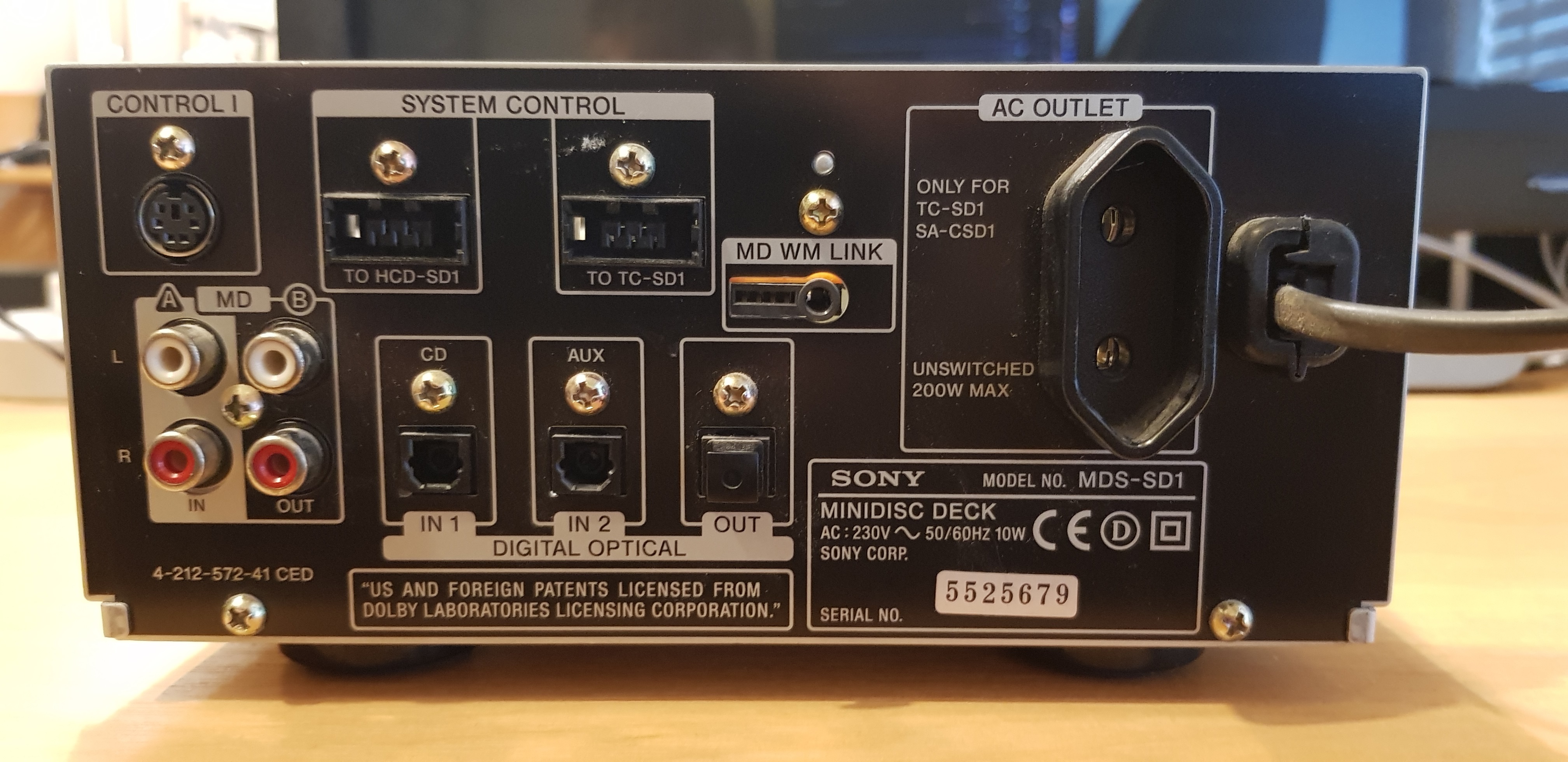

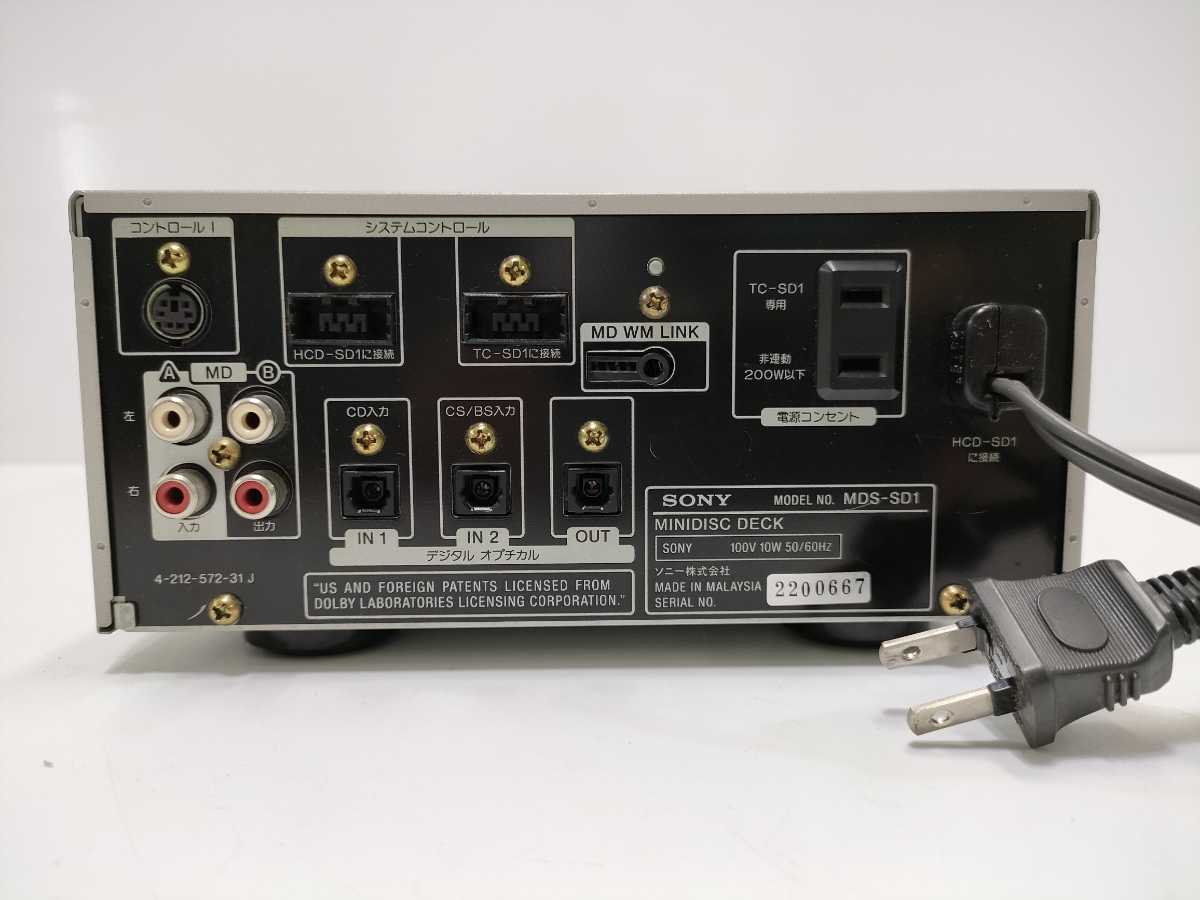

The MDS-SD1 (unconfirmed JMD-7) has a Walkman MD Link port, allowing a portable MD player to be attached with the bundled cable via the remote port to automatically copy MDs and their metadata.

MD Mechanism Type: MDM-5A
Base Unit Type: MBU-5A
Optical Pick-up Type: KMS-260A/J1N

Content adapted from: CMT-SD1 Minidisc.org page, Sony Press Release Sony Press Release (MiniDisc Wiki mirror)
