Sony DHC-MD575

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-06-30

Manufacturer
Sony
Model / source grouping
DHC-MD575
Device type
bookshelf
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony DHC-MD575”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DHC-MD575
Manufacturer Sony
Released 1999/09
Device type bookshelf
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 215 x 320 x 410mm
Weight 10kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥81 000
-
Inputs CD, Radio recording

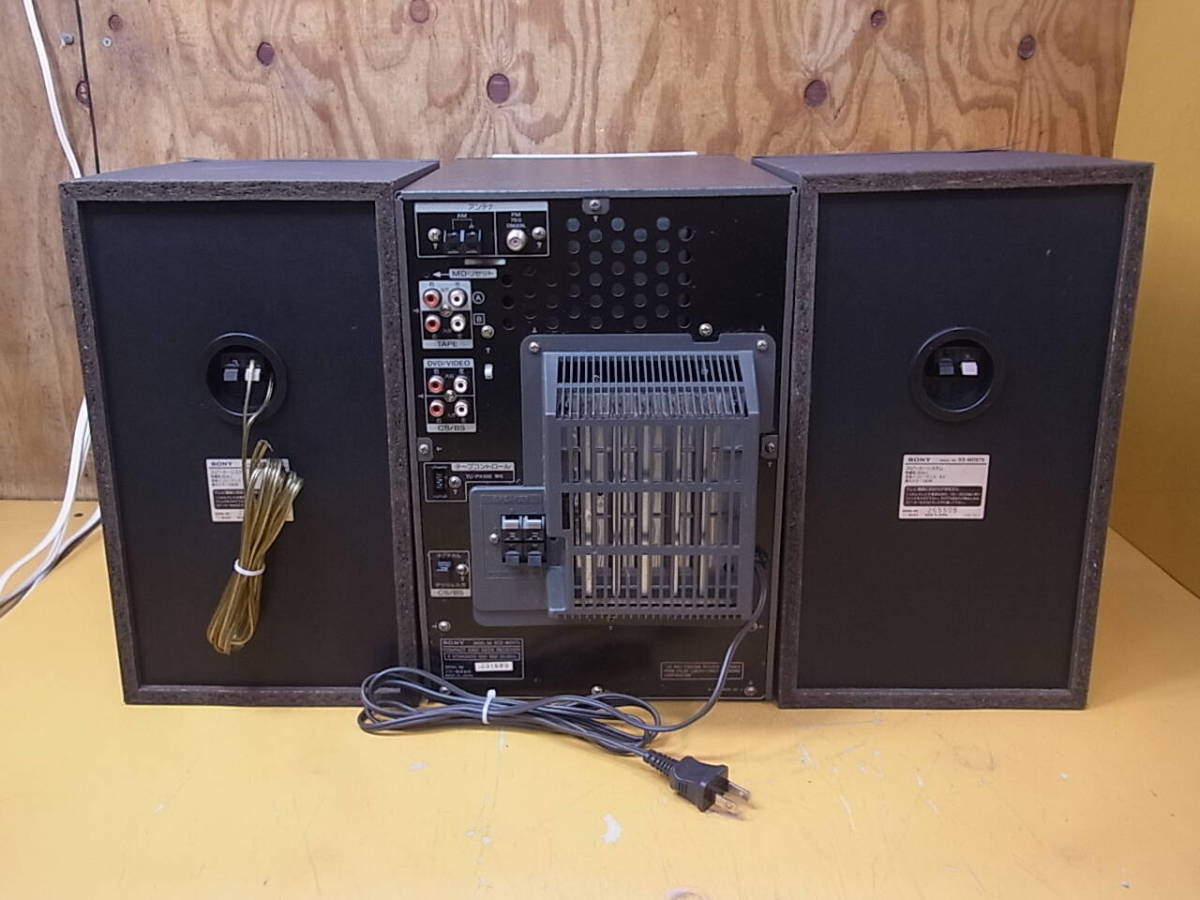

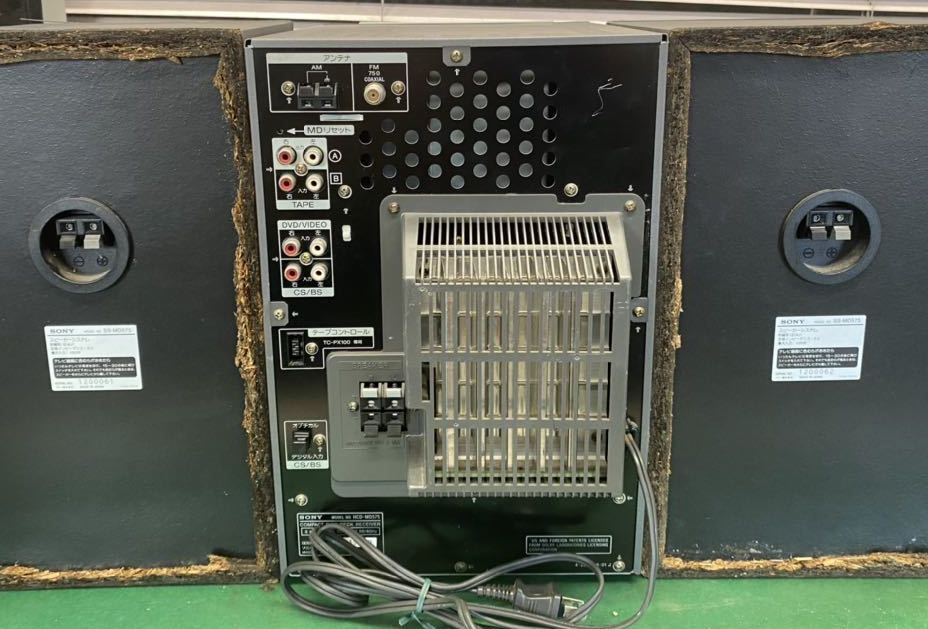

Outputs 3.5mm headphone, Speaker amplifier
Control PC Link

The main body is stamped HCD-MD575.

Features:

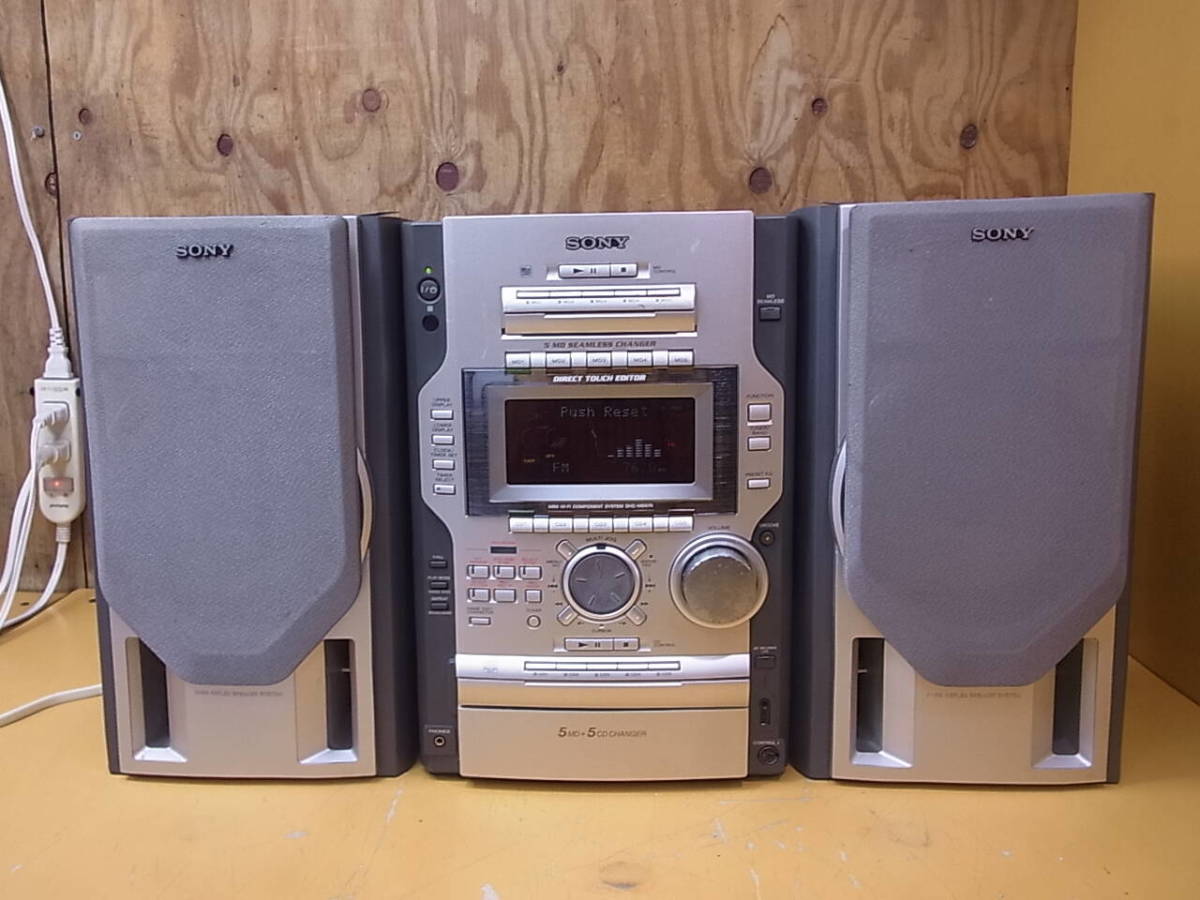

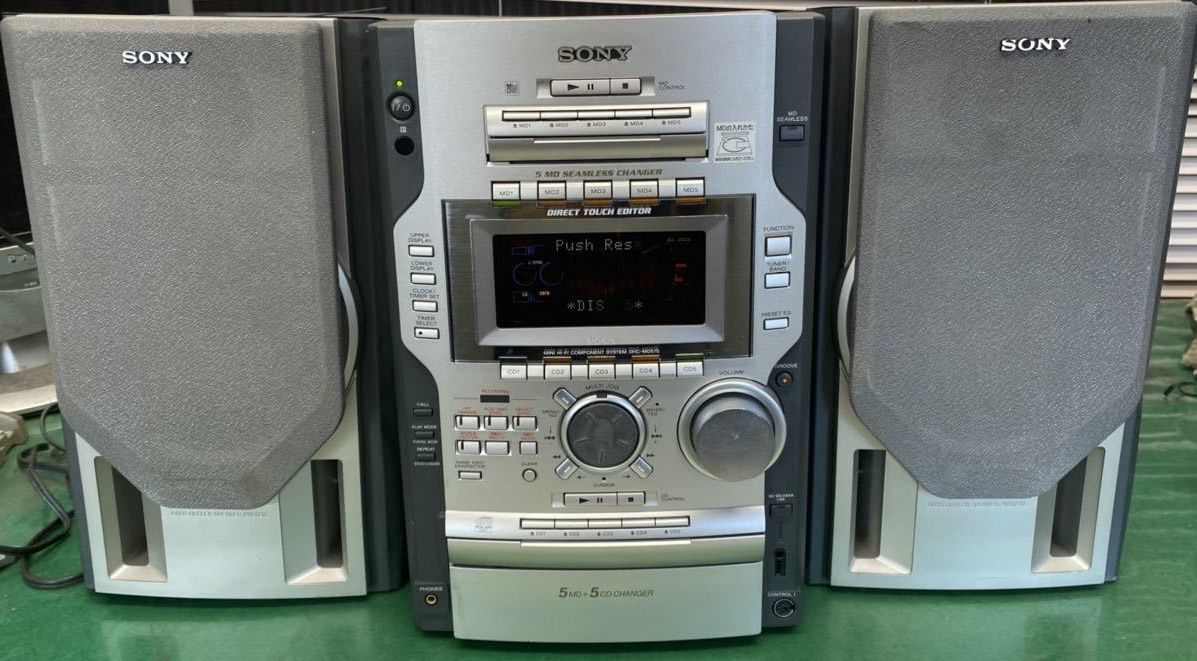

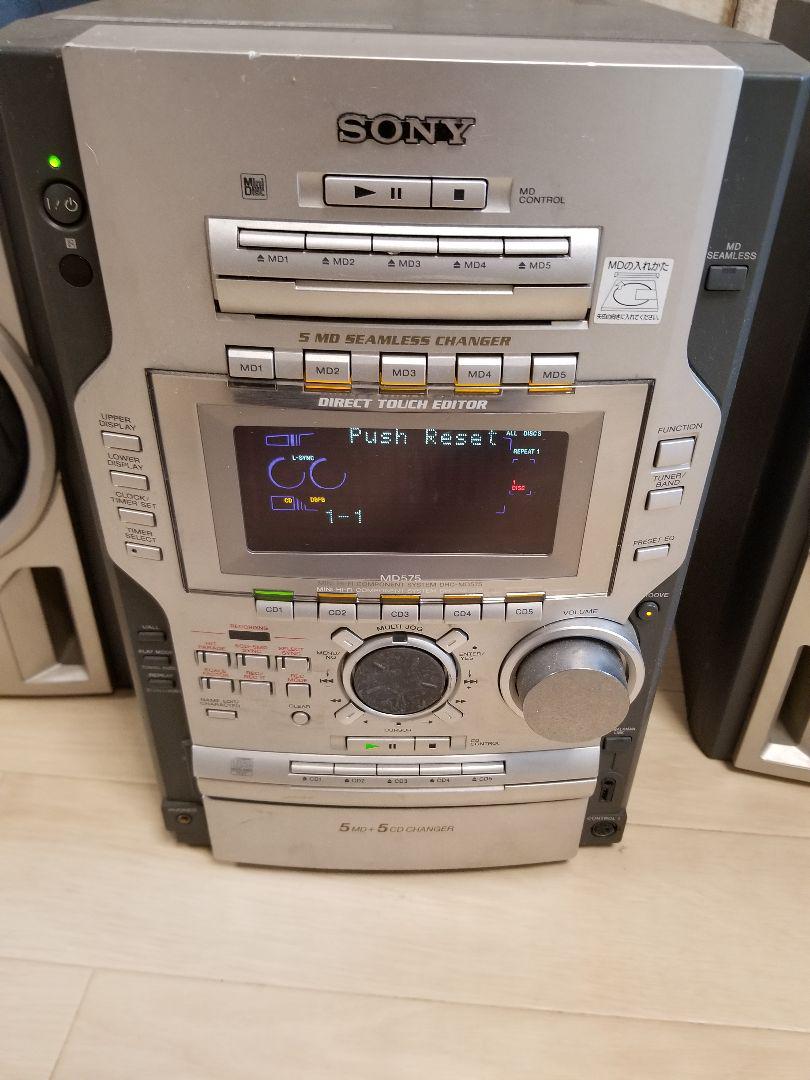

  • 5 MD, 5 CD changer.
  • Scale Factor Edit function (MD recording levels can be changed after recordings are made by adjusting the ATRAC data's scale factors). This allows track volumes to be matched and abrupt track endpoints to be smoothly faded.
  • Digital recording level control.

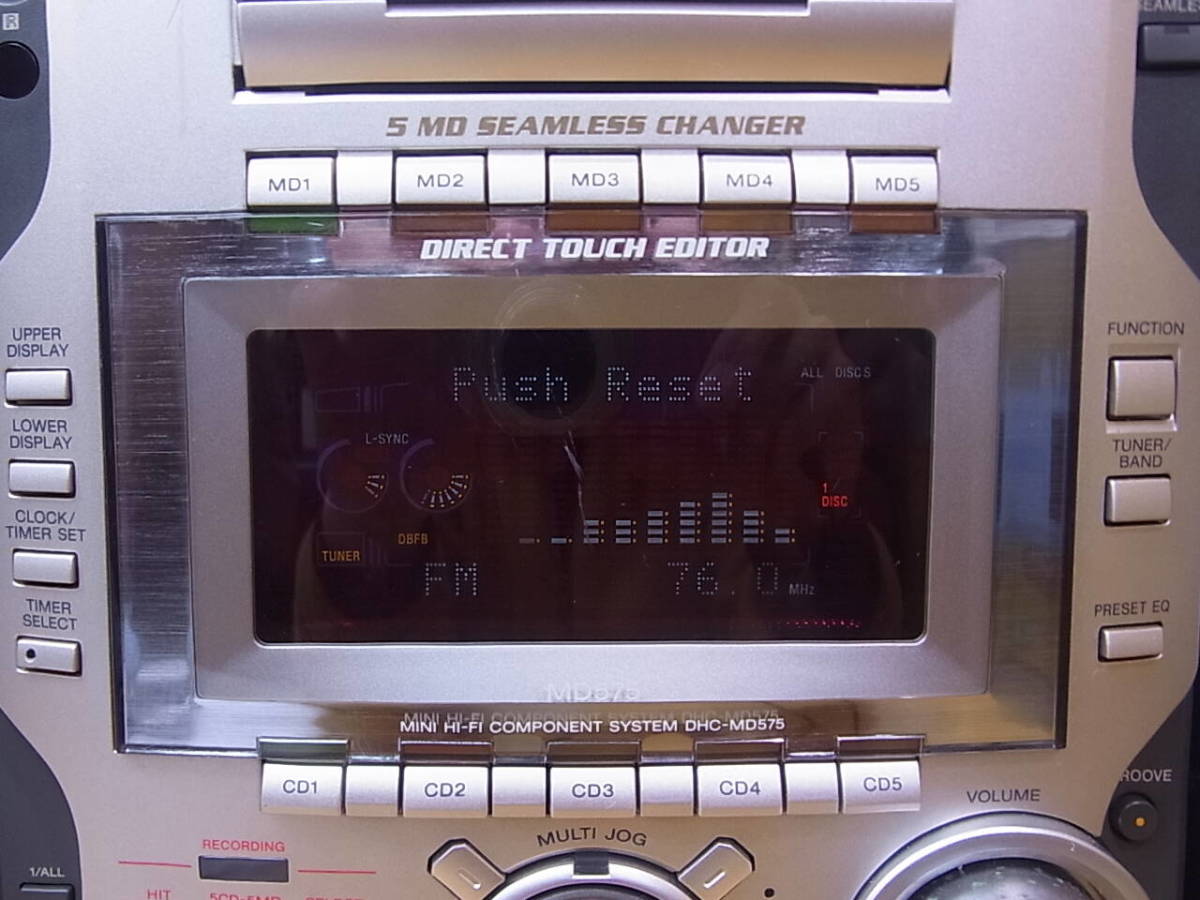

  • "Direct Touch Edit" simplifies CD to MD copying and editing.
  • MD Walkman link terminal allows connection to portable walkman via RK-TXT1
  • PCLK-PX2 kit allows titling and editing to be performed from a PC

Specs: 50W + 50W, FM (76-90MHz), AM (531-1,602kHz).

Content adapted from: Sony Press Release Minidisc.org page Sony Product Park Sony Product Park (MiniDisc Wiki mirror)
