| Name | DHC-MD77 |
|---|---|
| Manufacturer | Sony |
| Released | 1996/09 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 215+280+280+215 x 430 x 347mm |
| Weight | 23.6kg |
| ATRAC ver | 4 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥110 000 | |
| - | |
| Inputs | 3.5mm microphone, RCA in, Digital optical (TOSLINK), CD, Radio recording, Tape deck |
| Outputs | RCA out, Digital optical (TOSLINK), Speaker amplifier |
| Control | Not recorded |

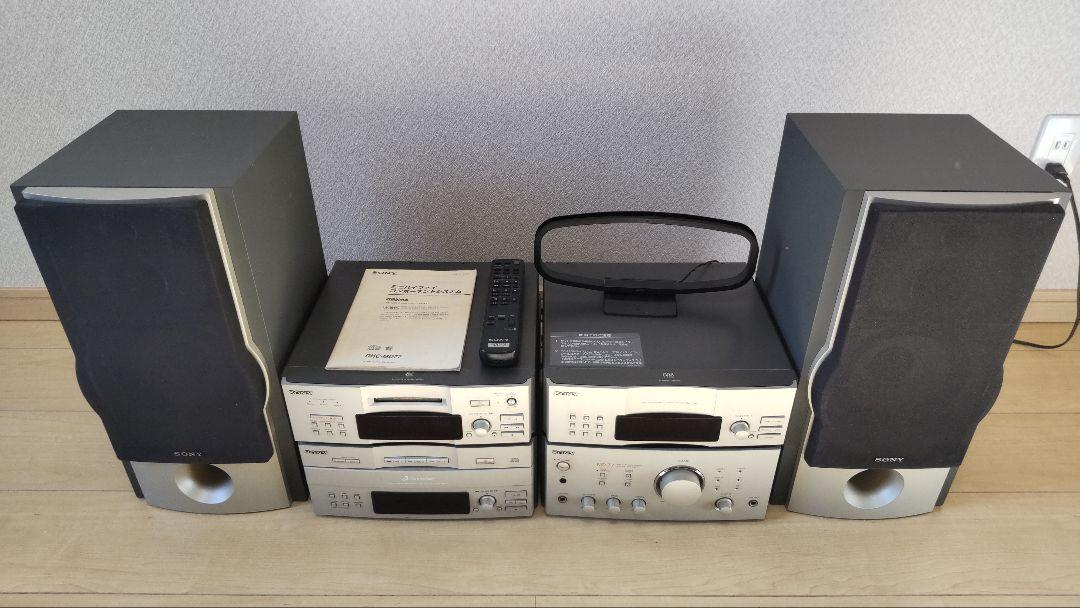

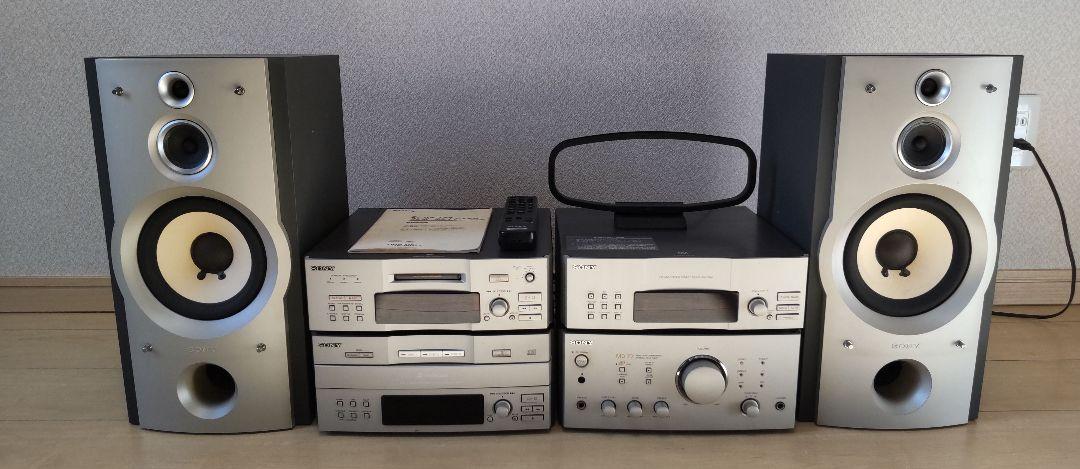

The DHC-MD77 component system consists of an Amplifier, FM Tuner, CD player and MD deck with optional Cassette Deck.

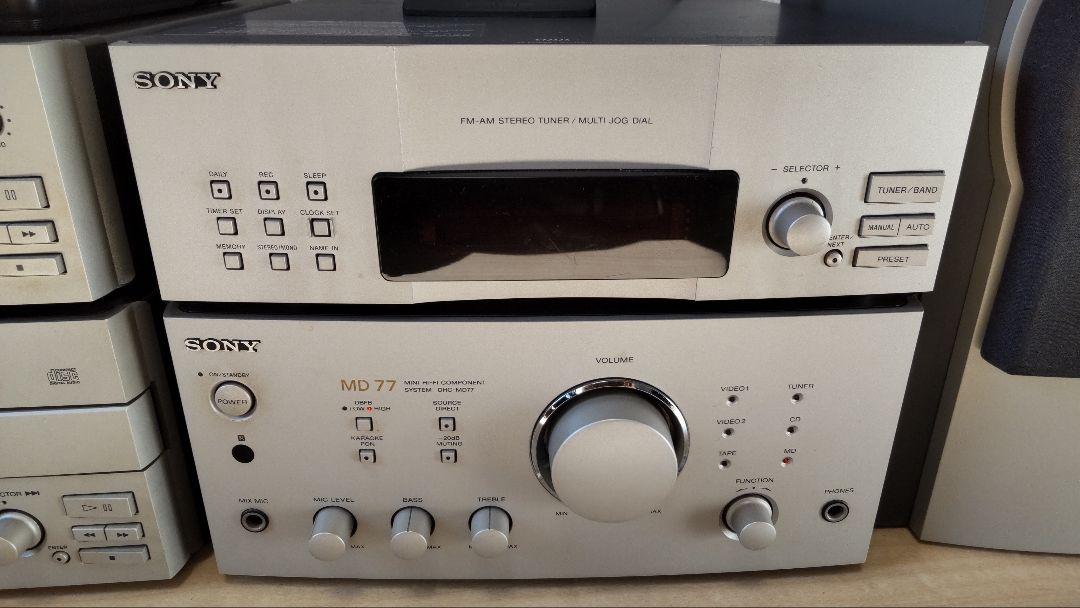

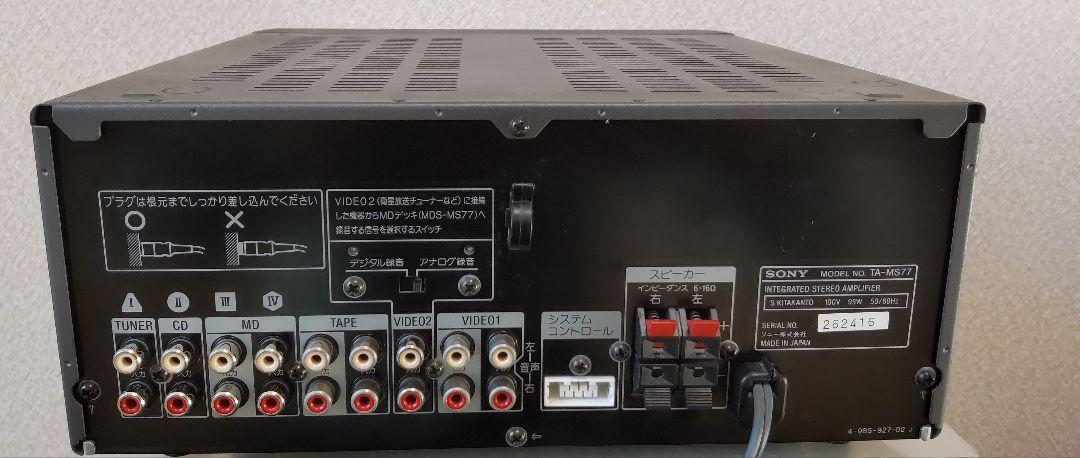

TA-MS77 - Amplifier

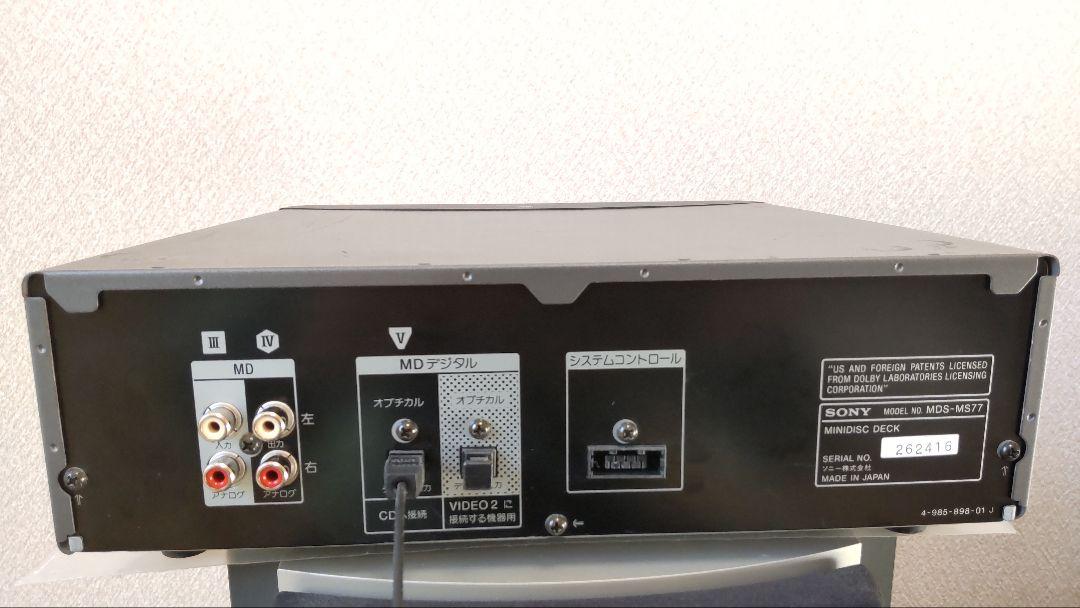

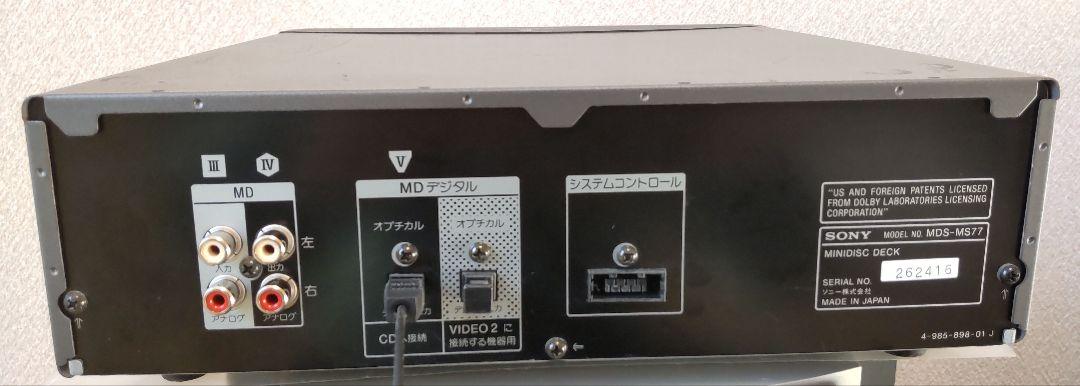

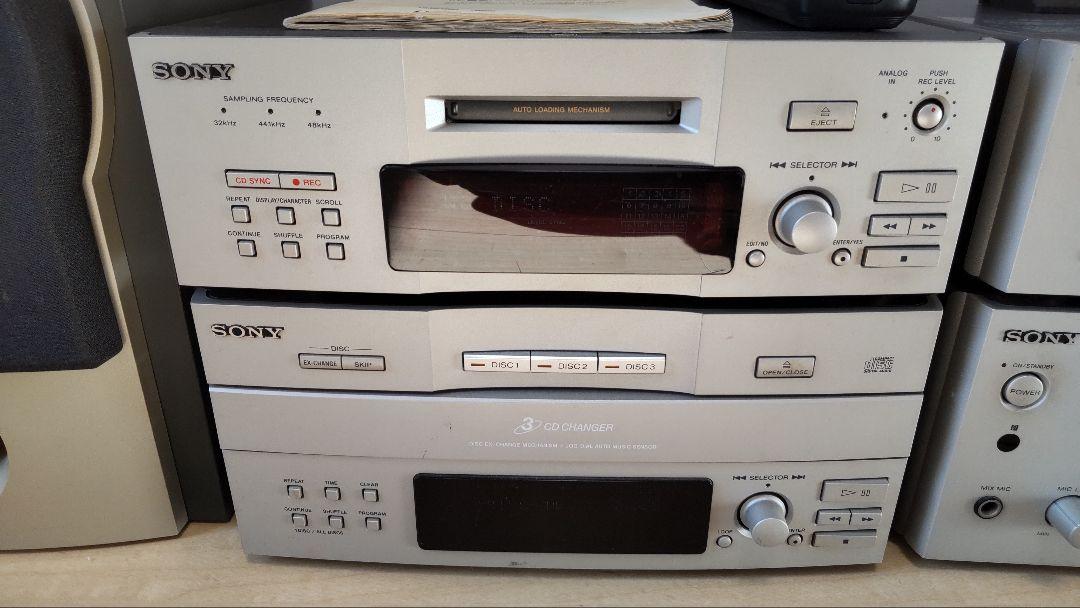

MDS-MS77 / MDS-EX77 - MD Component with 2 digital inputs. Compatible with RM-D10P remote titler.
CDP-MS77 - CD Player

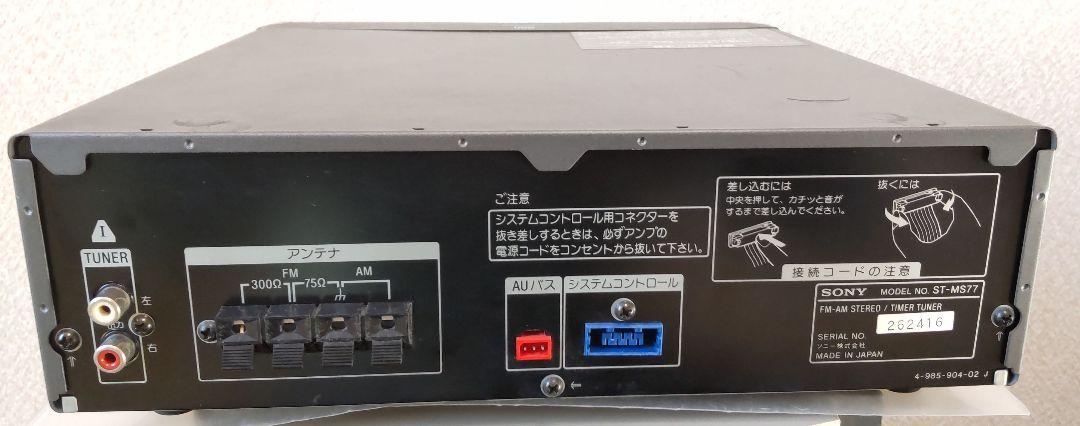

ST-MS77 - Tuner
TC-TX77 - Optional Tape component.
ATRAC Chip: CXD2650R
Model Name Using Similar Mechanism: MDS-S37
MD Mechanism Type: MDM-3A
Optical Pick-up Name: KMS-260A/J1N
Content adapted from: Sony Press Release Minidisc.org page
Manuals
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Remote Page | |
|---|---|
| Atrac Ic | CXD2650R / CXD2652/R/AR |
| Manual | User manual, Service manual |
| Region | Japan, Europe |
