Sony DHC-MD777

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-09-19

Manufacturer
Sony
Model / source grouping
DHC-MD777
Device type
bookshelf
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony DHC-MD777”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name DHC-MD777
Manufacturer Sony
Released 1998/10
Device type bookshelf
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 215×220×355mm Amp/Tuner, 215×220×355mm MD/CD Player, 200×440×300mm Speaker
Weight 6.2kg Amp/Tuner, 4.6kg MD/CD Player, 5.5kg Speaker
ATRAC ver 4.5
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥116 000
-
Inputs Not recorded
Outputs 3.5mm headphone, Speaker amplifier
Control PC Link

5CD, 5MD, FM/AM Tuner device. The MD Deck part# is HMC-MD777. Capable of connecting to a PC with the PCLK-MD1 Kit. Could also use the optional TC-PX100 Cassette deck.

MD Mechanism Type: MDM-C1F
Base Unit Name: MBU-C1F
Optical Pick-up Name: KMS-260B
Model Name Using Similar Mechanism: HCD-MD515
ATRAC IC: CXD2654R

Content adapted from: DHC-MD777 Minidisc.org page, DHC-MD777 Official Sony Page DHC-MD777 Official Sony Page (MiniDisc Wiki mirror), Sony Press Announcement

Video of operation: https://www.youtube.com/watch?v=bVwv5w_uFNM

Manuals

Sony DHC-EX770MD User Manual

Sony HMC-MD777 Service Manual

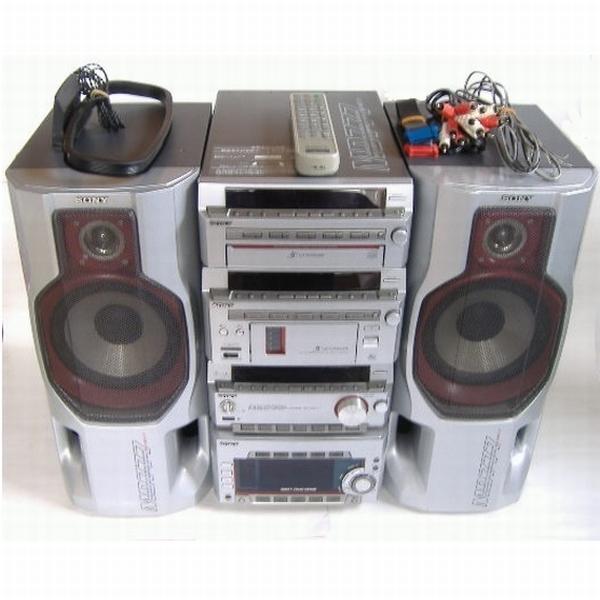

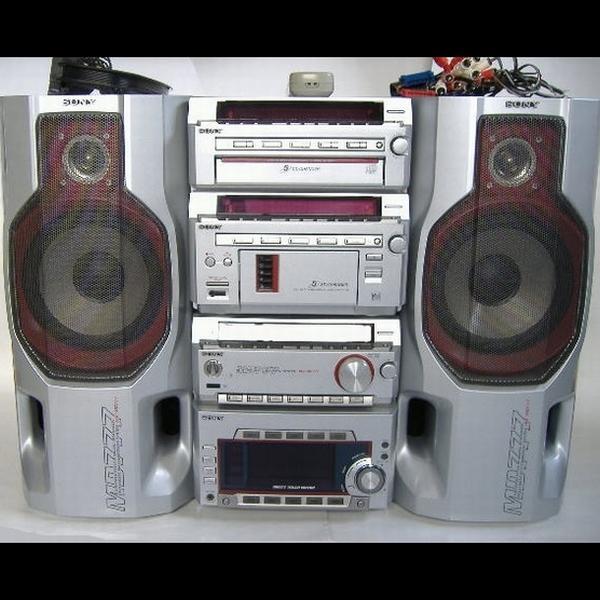

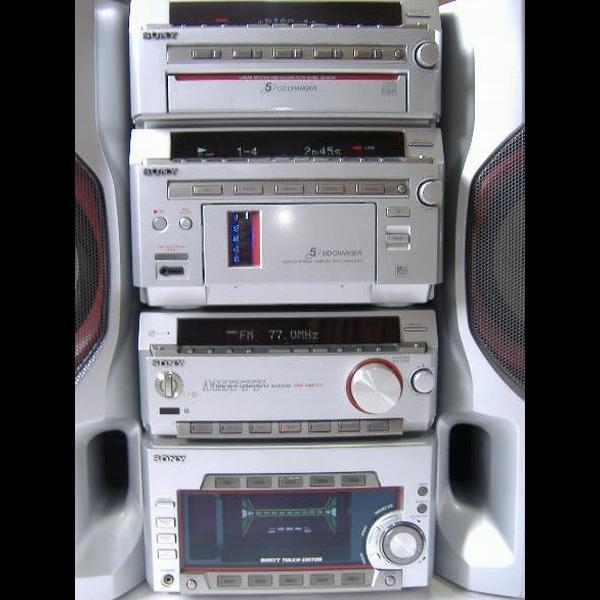

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo
ManualUser manual, Service manual
RegionJapan
