| Name | DHC-MDX10 |
|---|---|
| Manufacturer | Sony |
| Released | 1999/08 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |

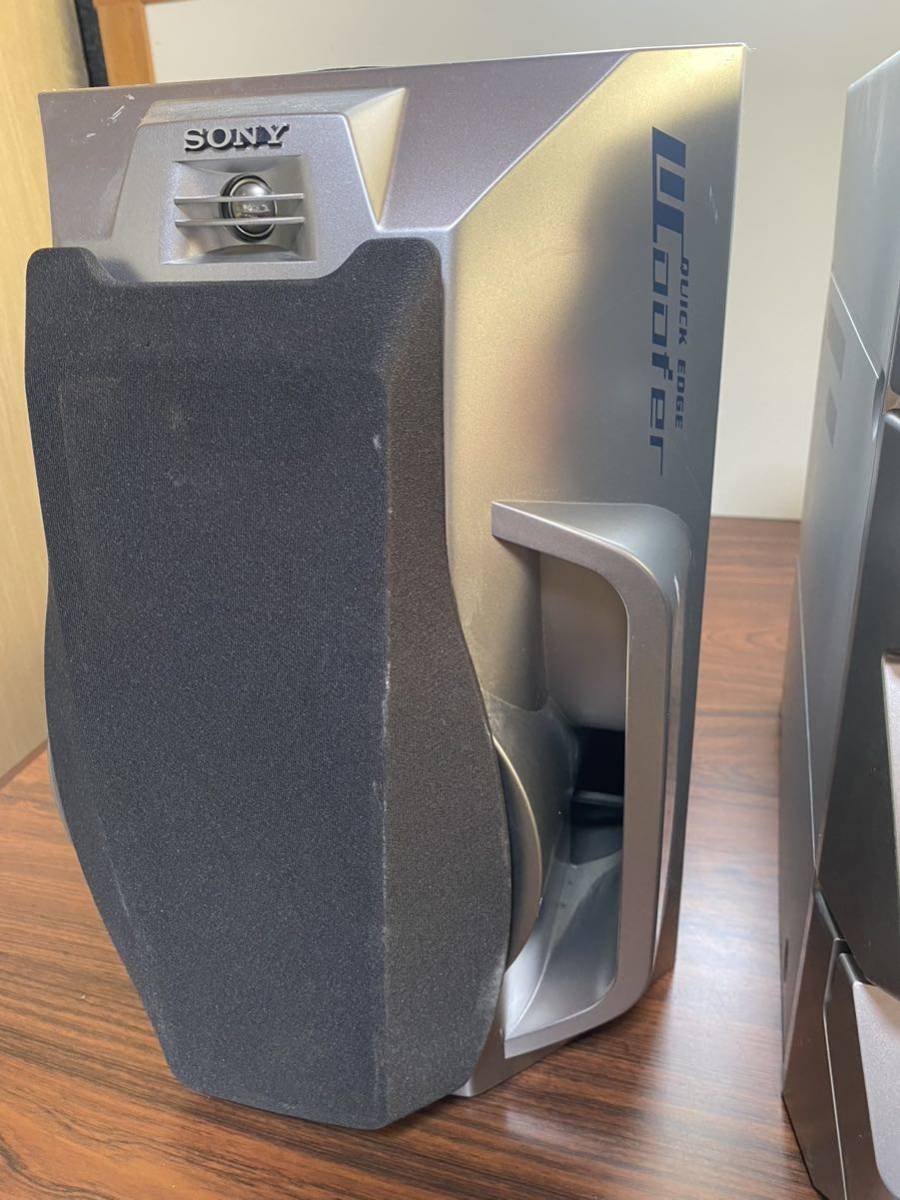

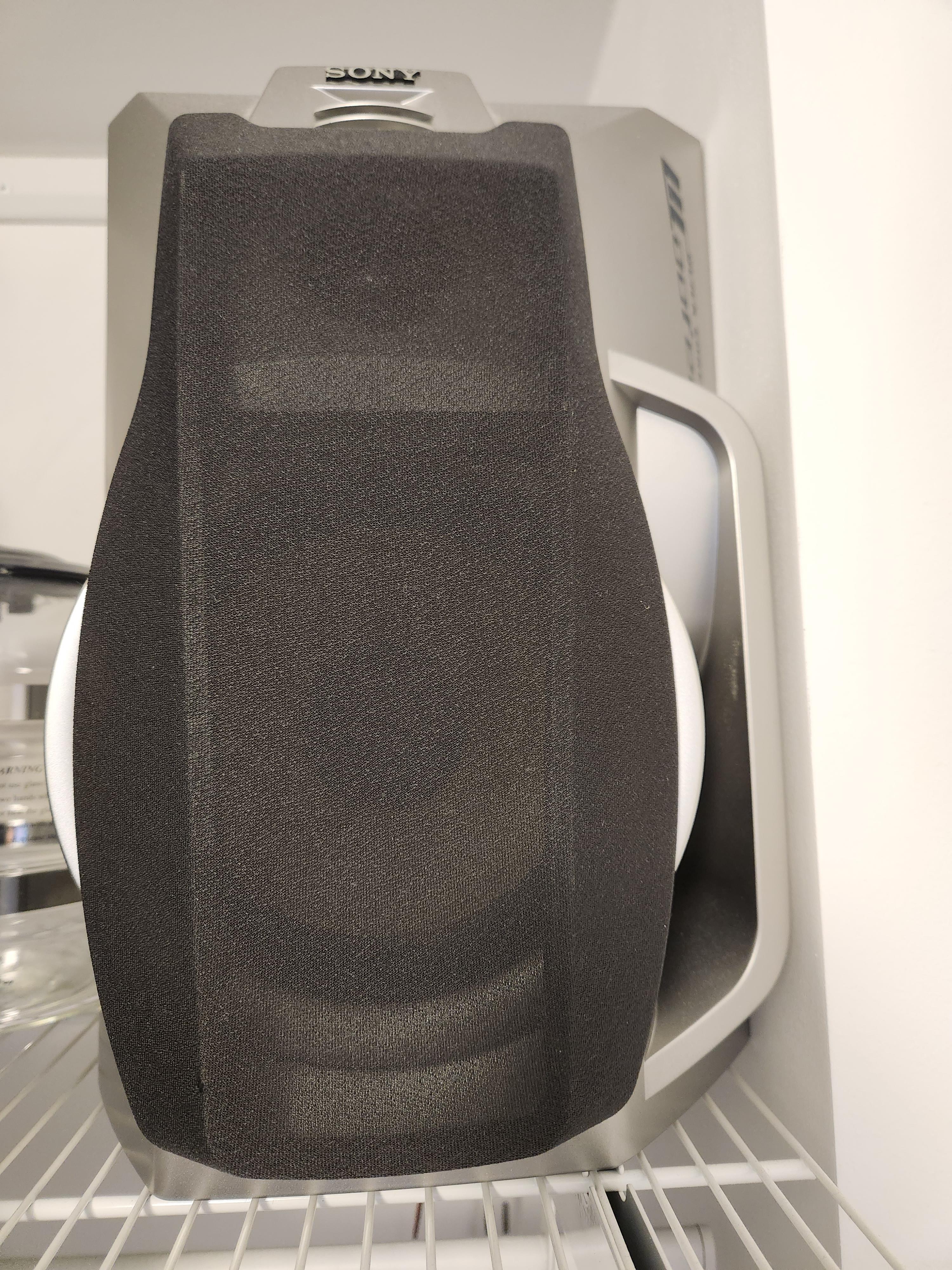

| Dimensions | 280×360×390mm main unit, 240×360×320mm speaker |
| Weight | 10.2 kg main unit, 5kg speaker |
| ATRAC ver | 4.5 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 230 |
| Power cable | AC |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording, Tape deck |
| Outputs | 3.5mm headphone, RCA out, Speaker amplifier, Tape deck |
| Control | Not recorded |

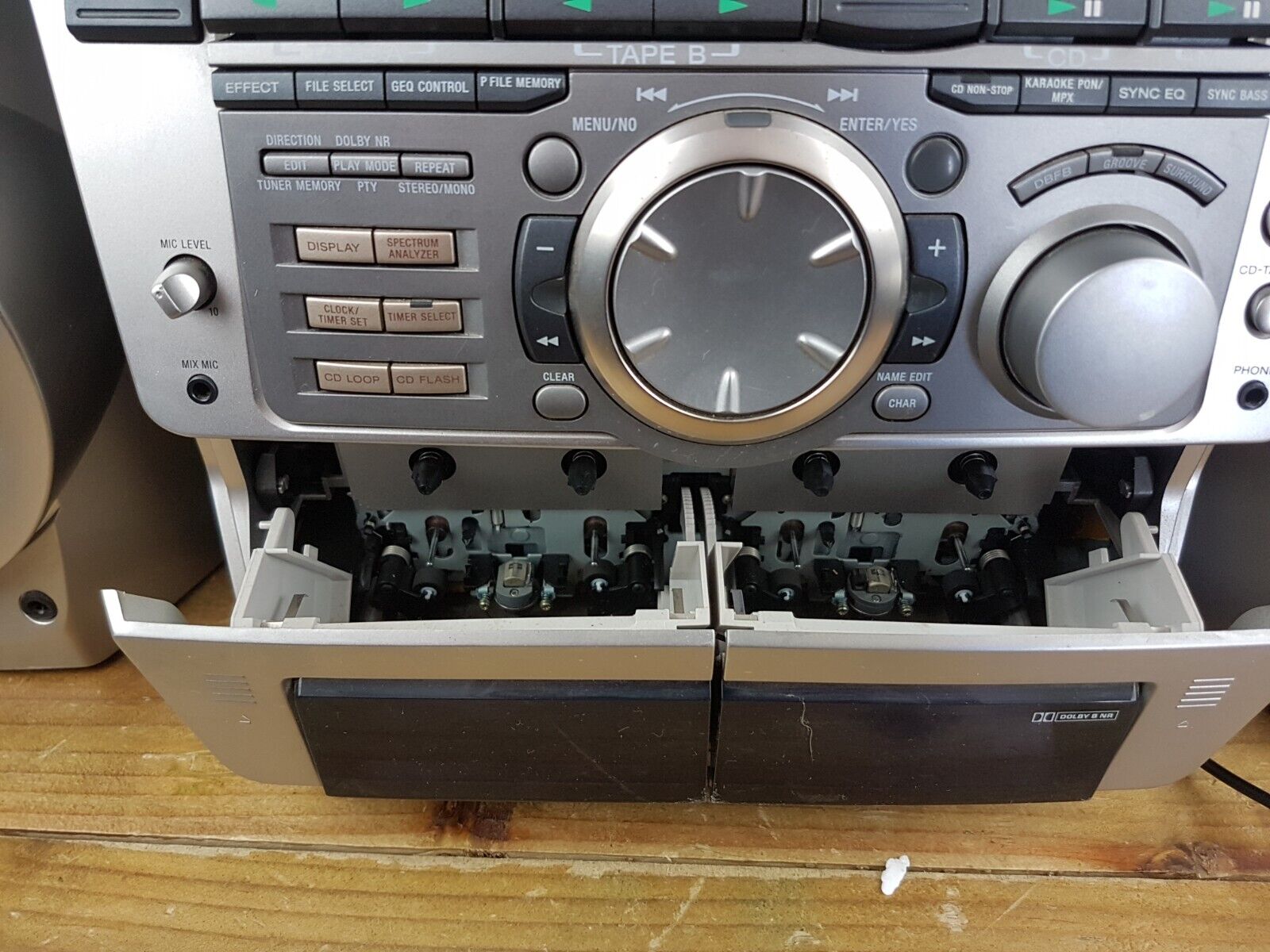

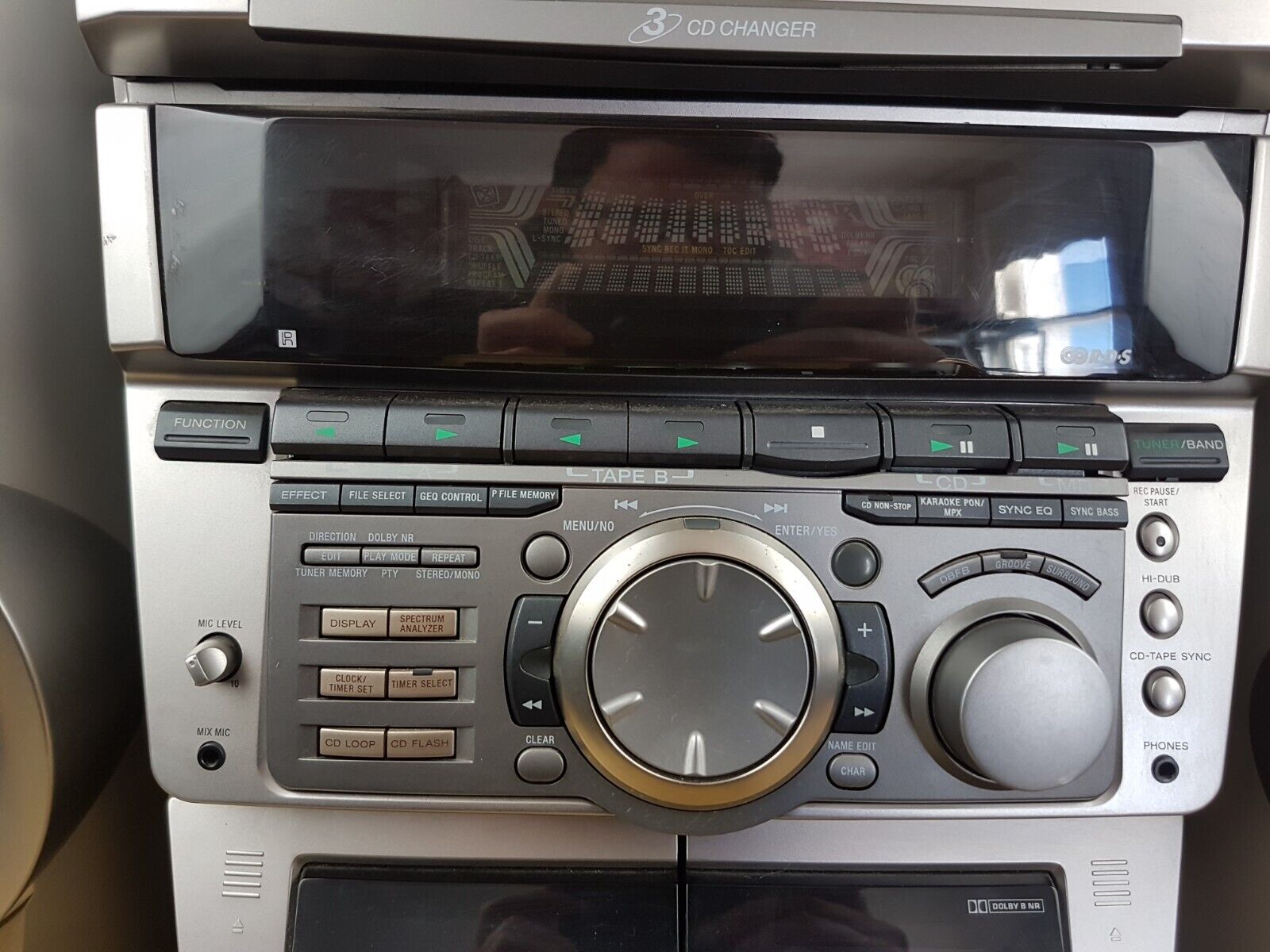

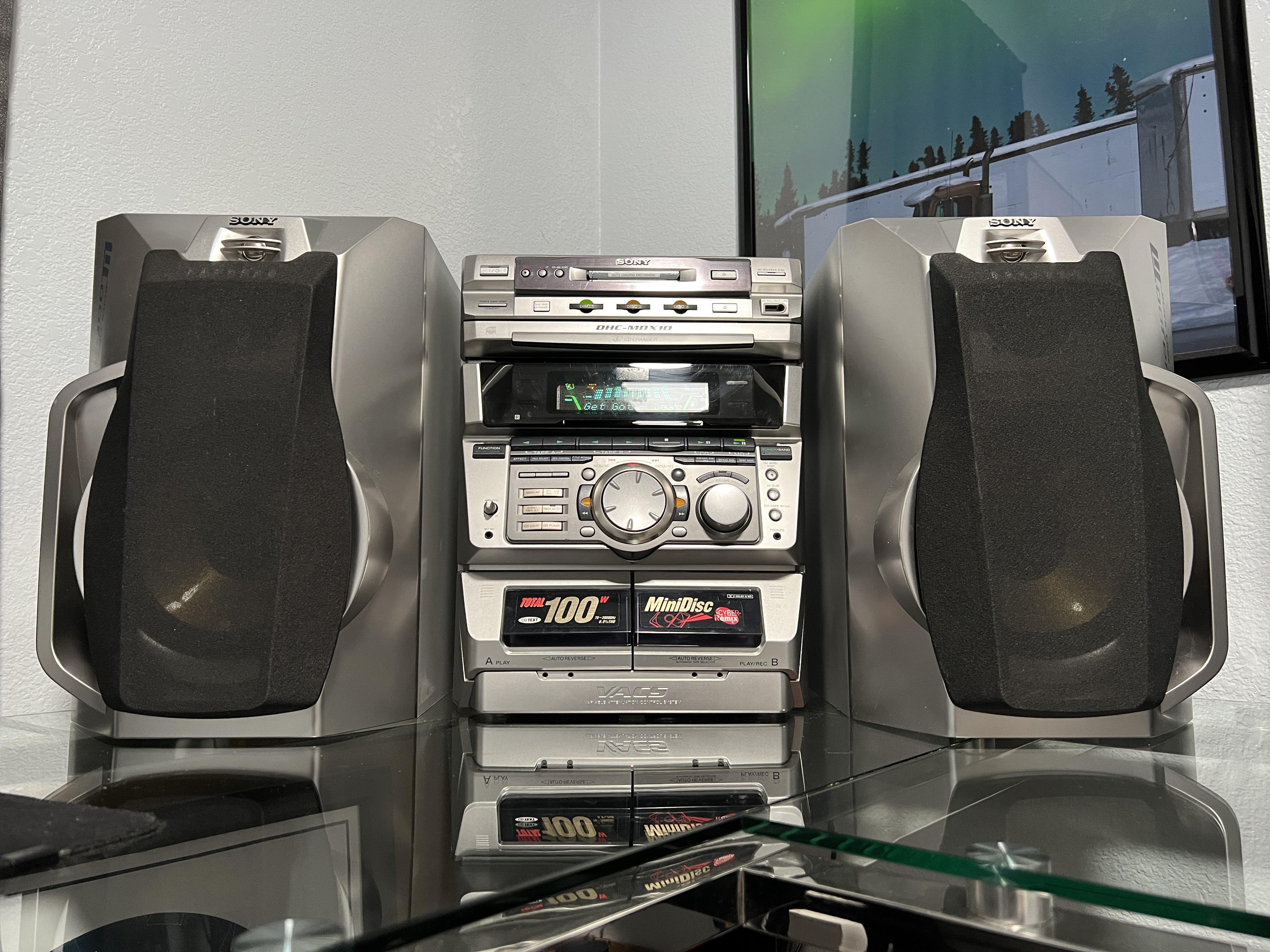

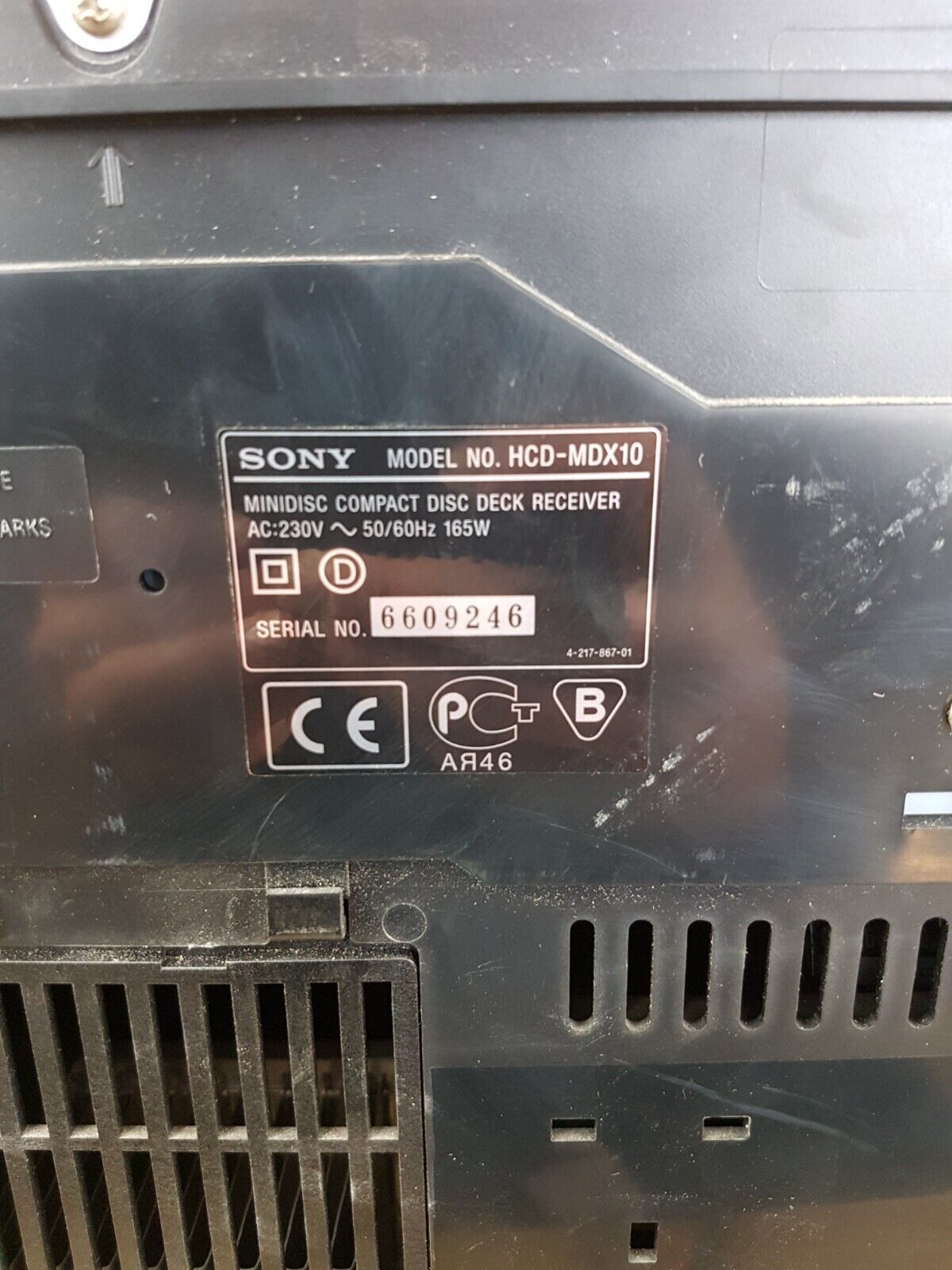

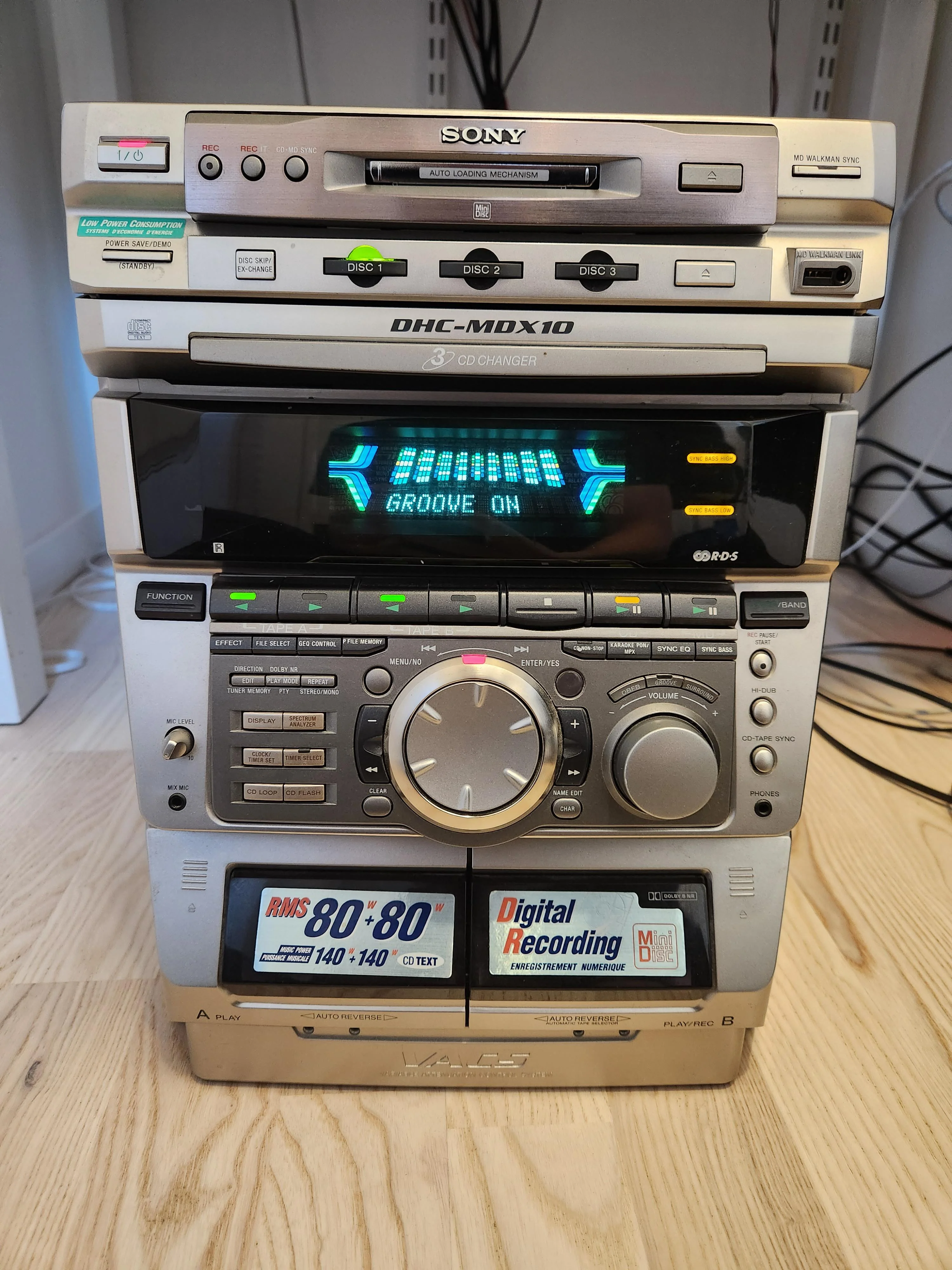

3CD, MD, Cassette, AM/FM Tuner device. Can also use MD Connect cable (MDLK-PX1). Main body part# HCD-MDX10.
Model Name Using Similar Mechanism: MDS-JE520
Mechanism Type: MDM-5A
Optical Pick-up Type: KMS-260A/K1NP
ATRAC IC: CXD2654R
Content adapted from: Minidisc.org page, Official Sony Press Release
Manuals
Sony DHC-MDX10 User Manual English (scan)
Sony DHC-MDX10 User Manual German
Sony DHC-MDX10 User Manual French
Sony DHC-MDX10 User Manual Italian

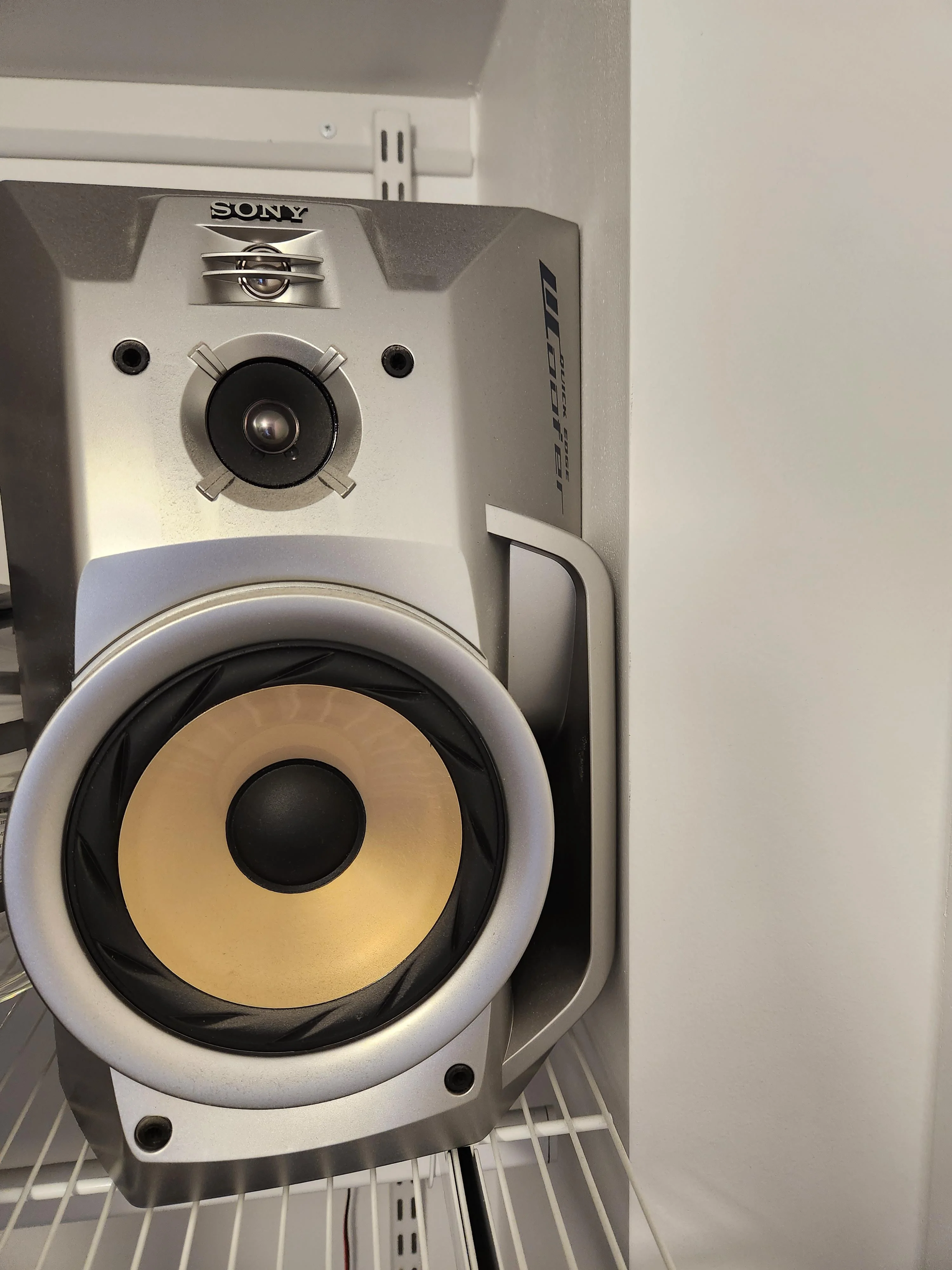

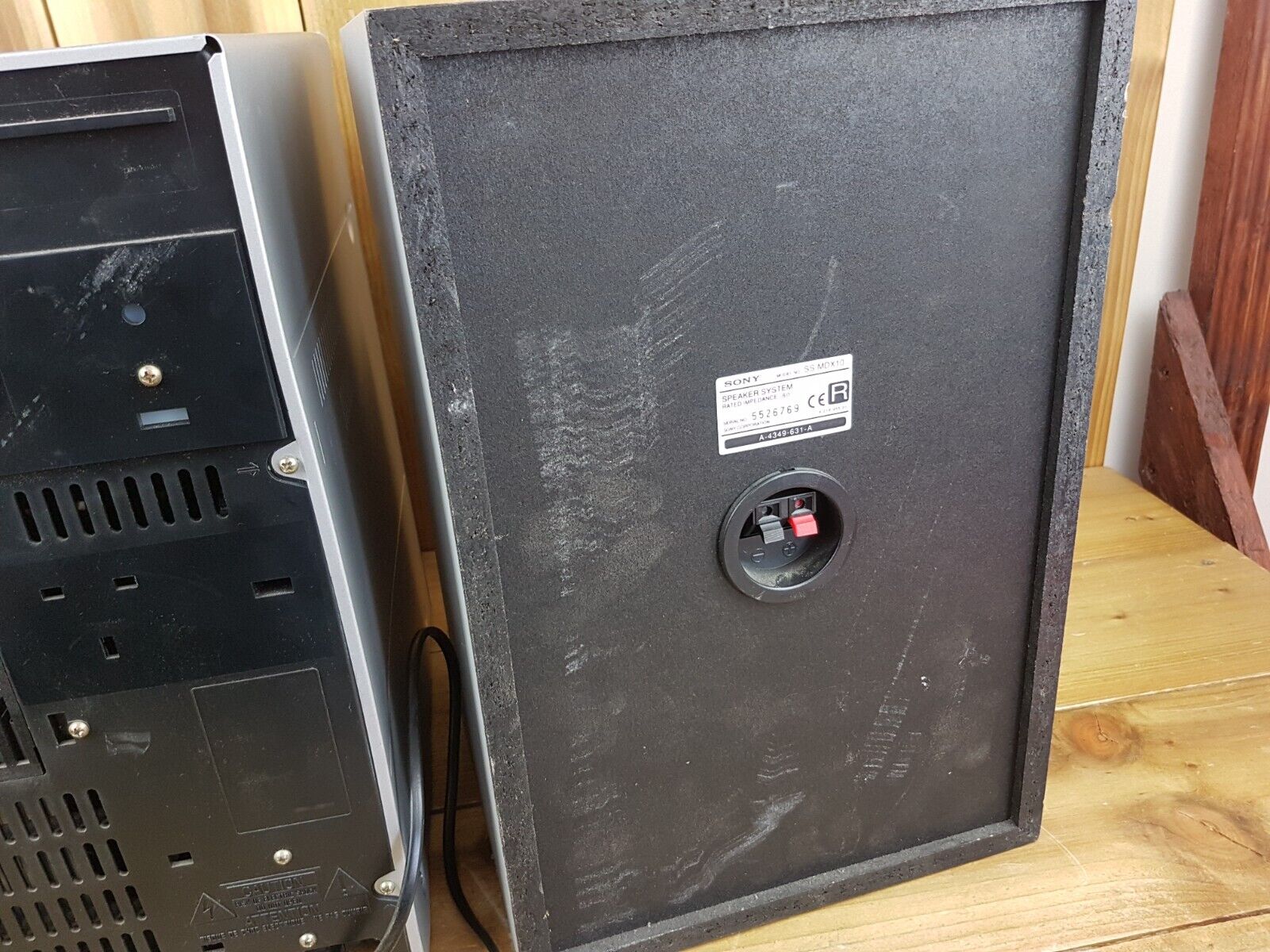

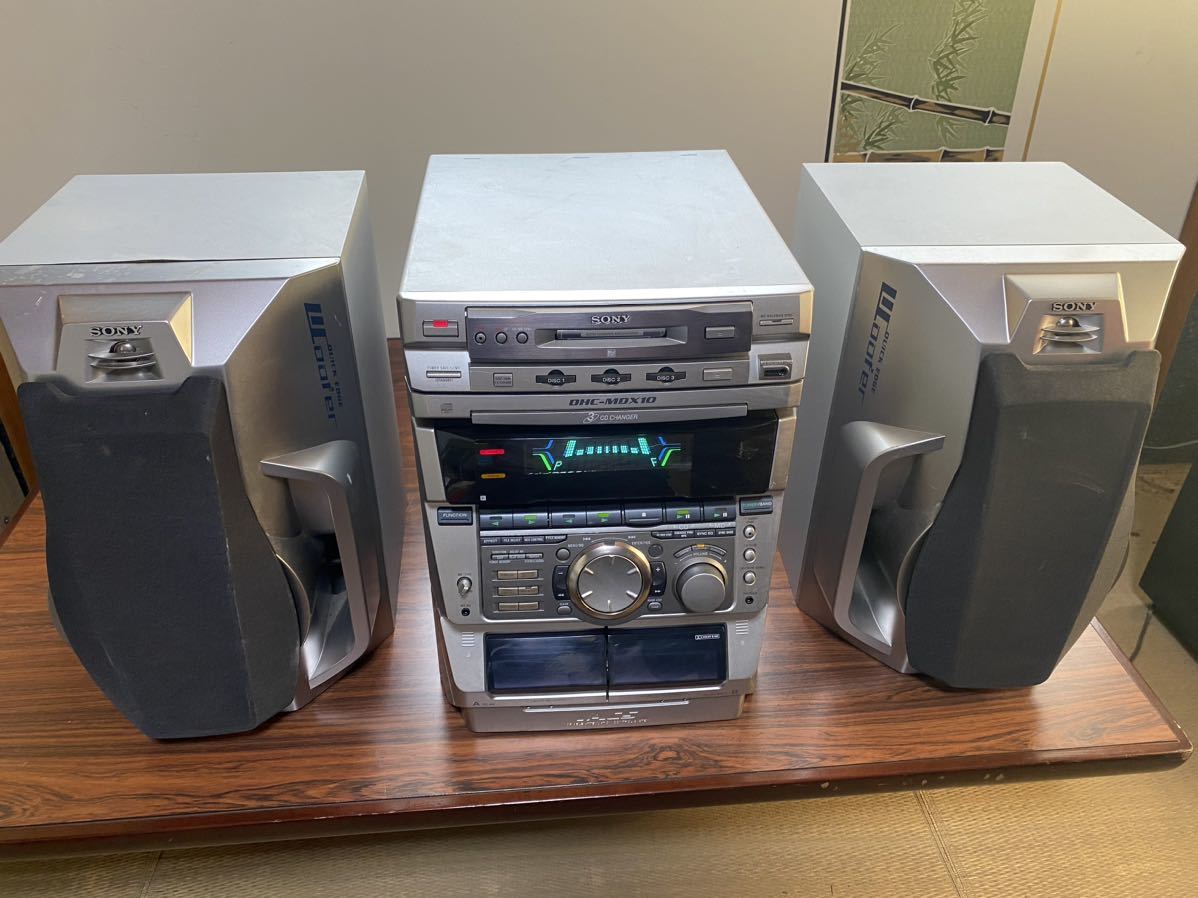

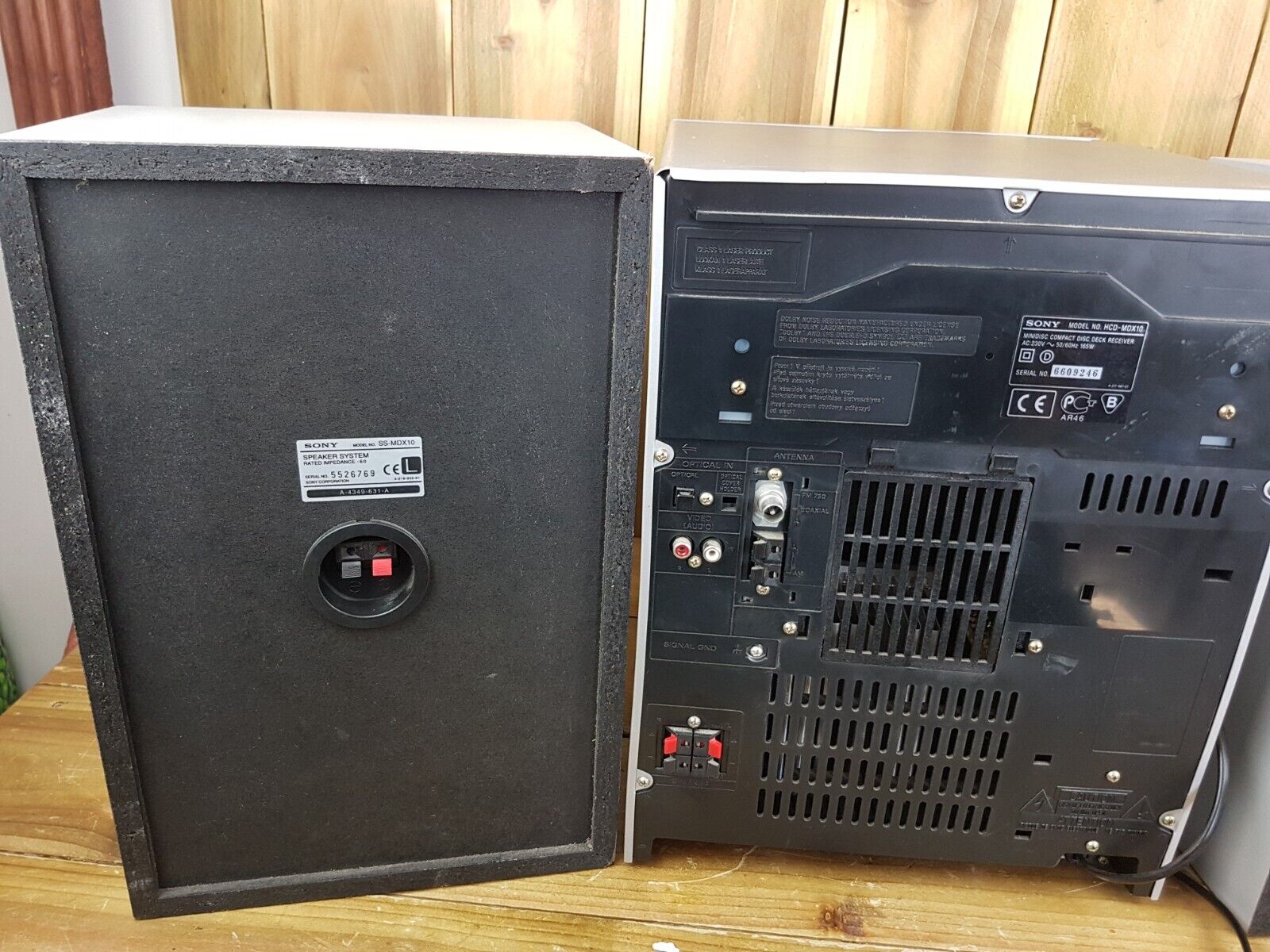

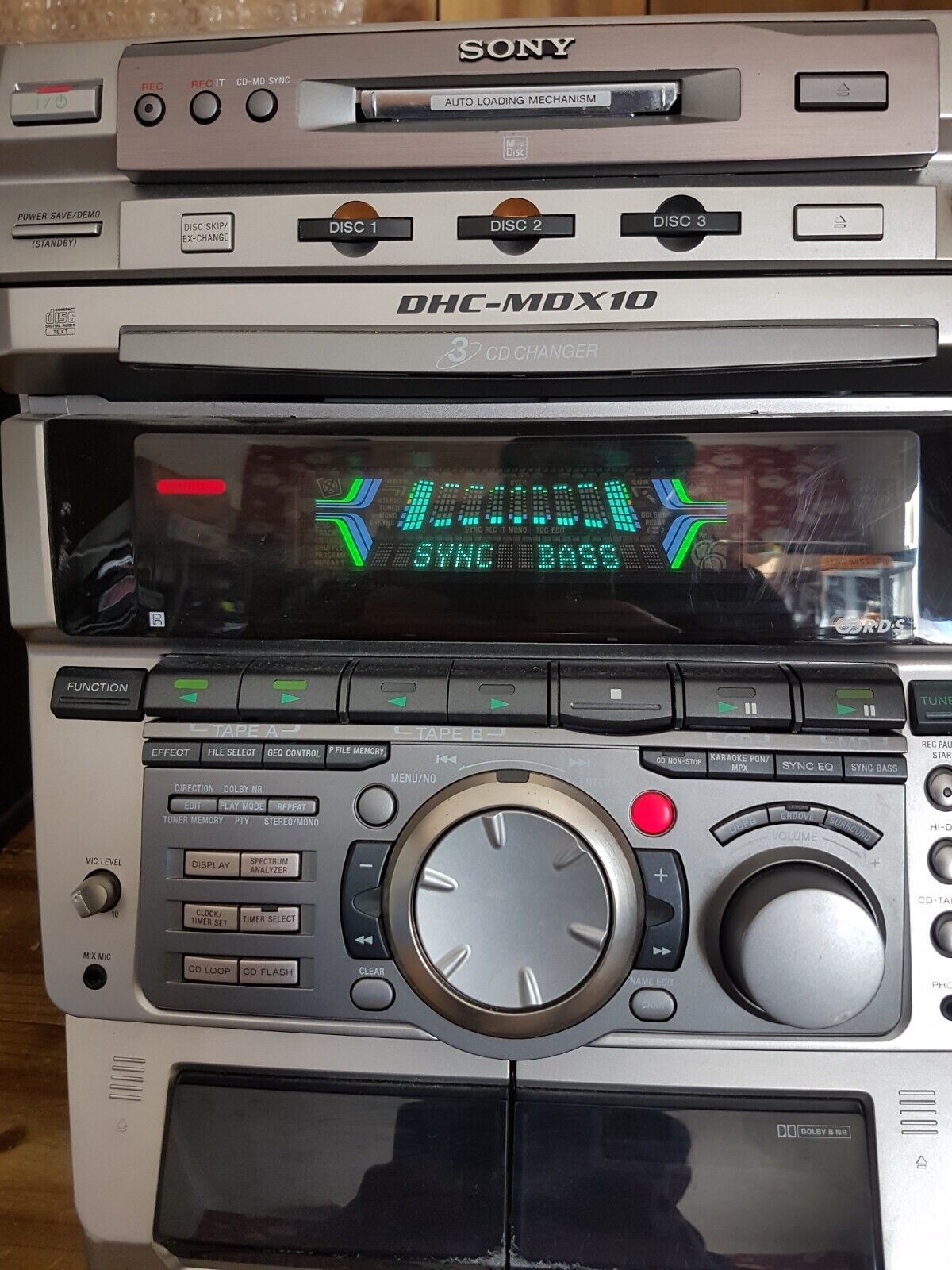

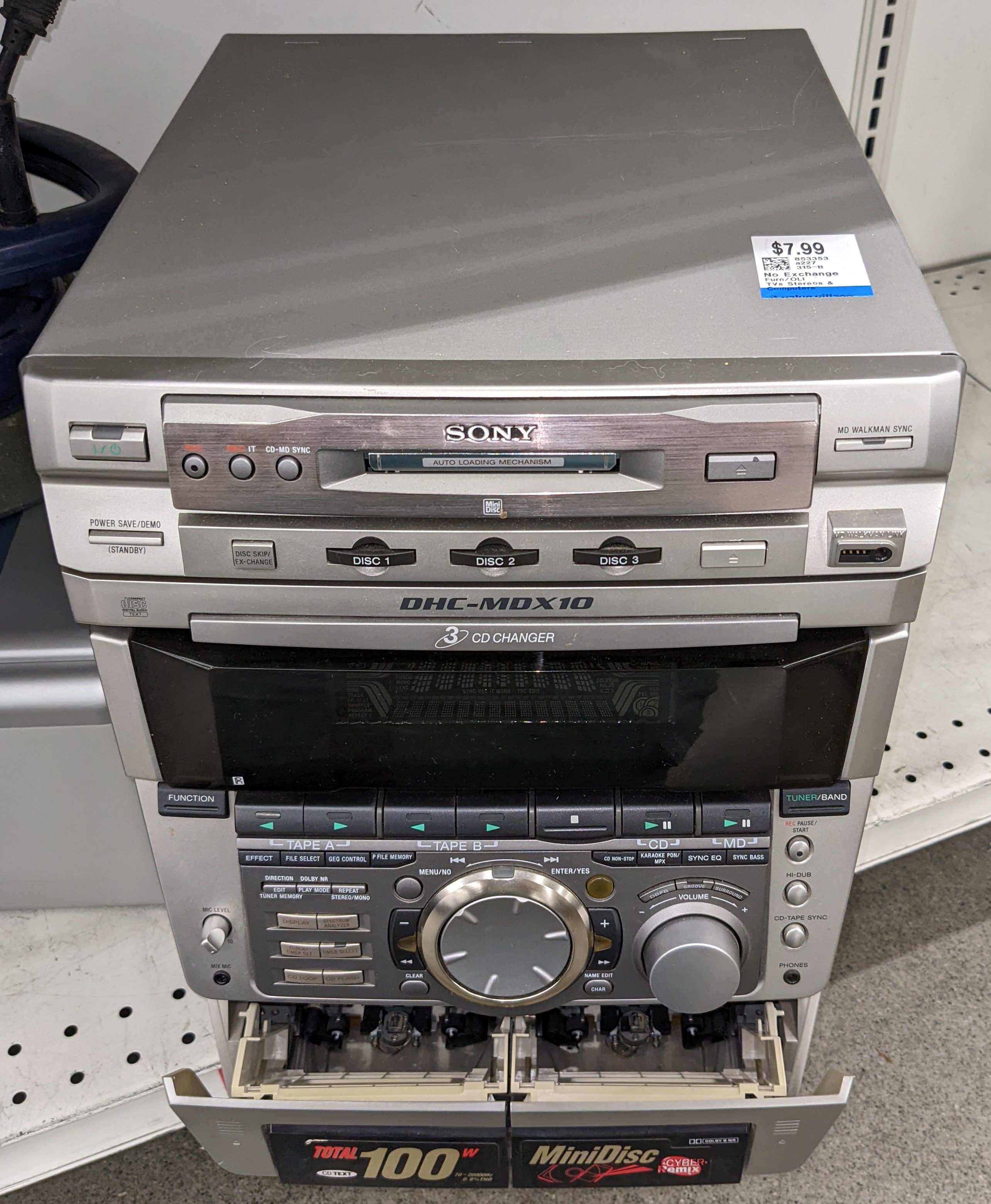

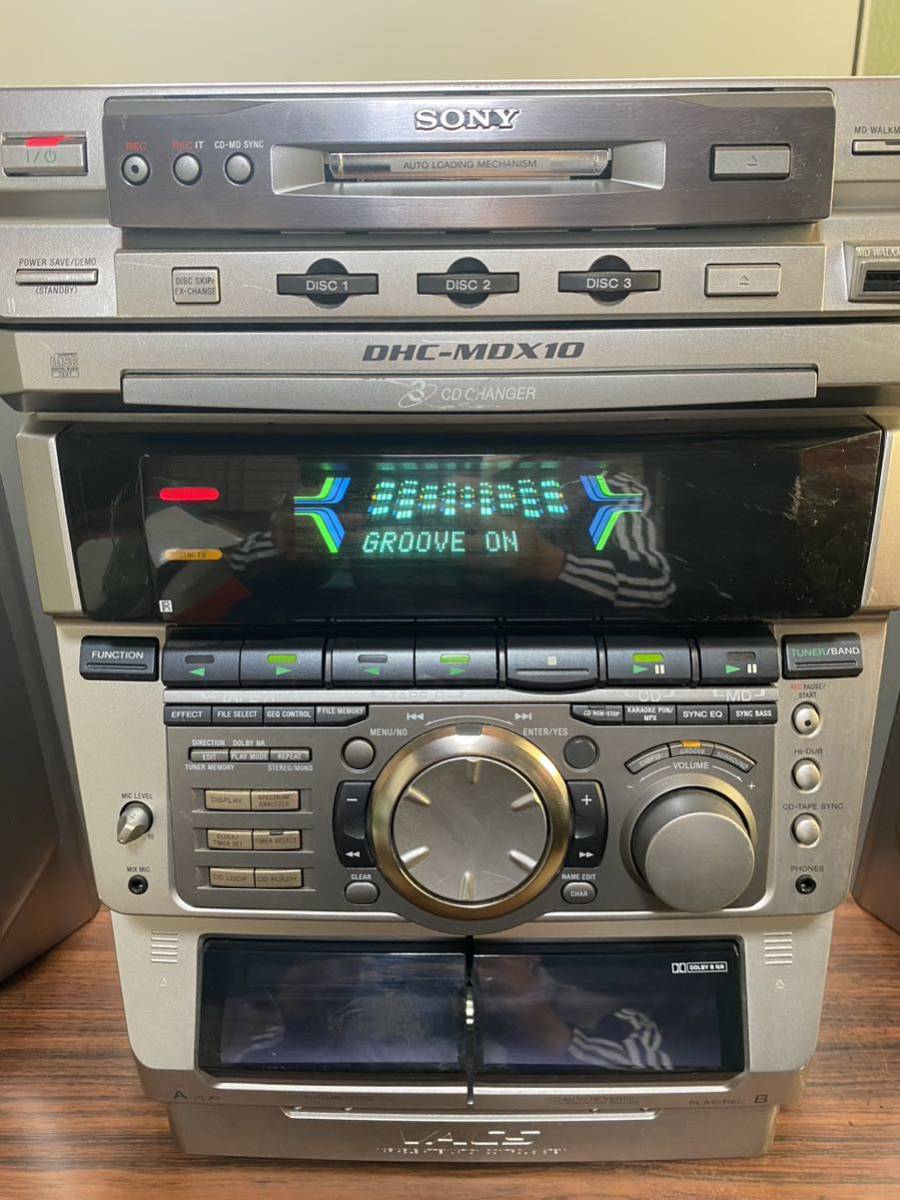

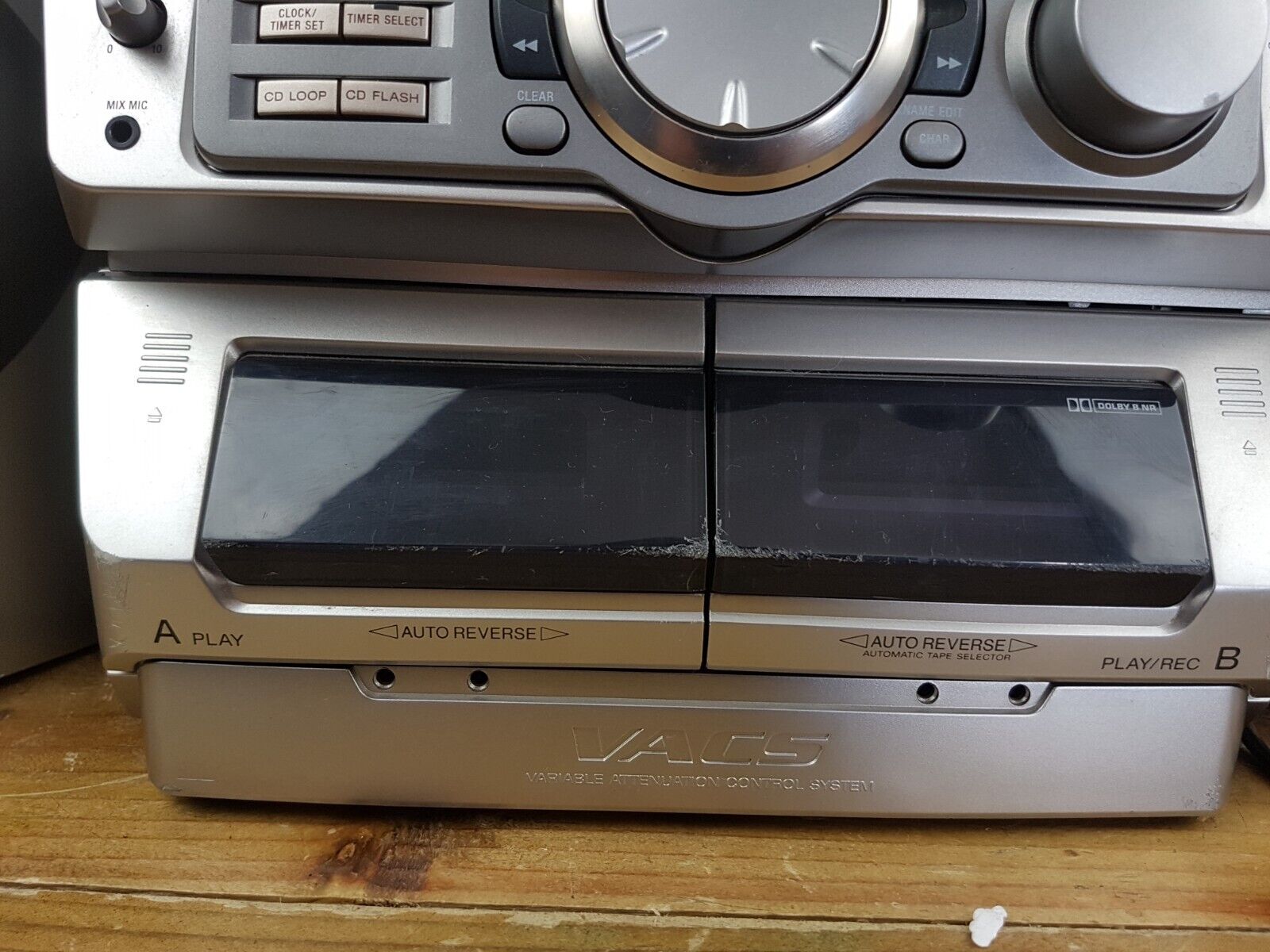

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | User manual, Service manual |
| Region | Europe |
