| Name | DHC-NX5MD |
|---|---|
| Manufacturer | Sony |
| Released | 2000/10 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 225 x 202 x 356mm (for each STR and HMC) |
| Weight | 7.8kg (7.9kg European Models) |
| ATRAC ver | Type-R |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100, 100-230 |
| Power cable | AC |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | RCA in, CD, Radio recording, Tape deck |
| Outputs | 3.5mm headphone, RCA out |
| Control | Not recorded |

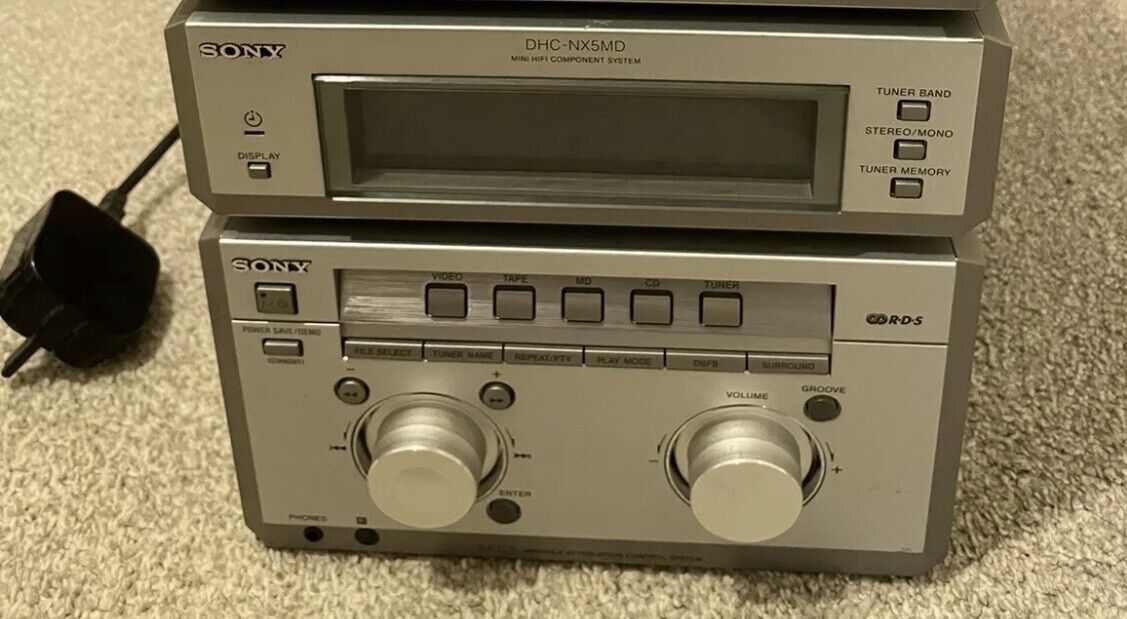

MD, 5CD, AM/FM Tuner, and Cassette device.
- MDLP capable
- CD Text
- 15-mode preset equalizer
- 2X CD-to-MD dubbing speed
MD Mechanism Type: MDM-7B
Optical Pick-up: KMS-260B/J1N
ATRAC IC: CXD2662R
Content adapted from: Minidisc.org page Sony.hk page Sony.hk page (MiniDisc Wiki mirror)
Manuals
Repair

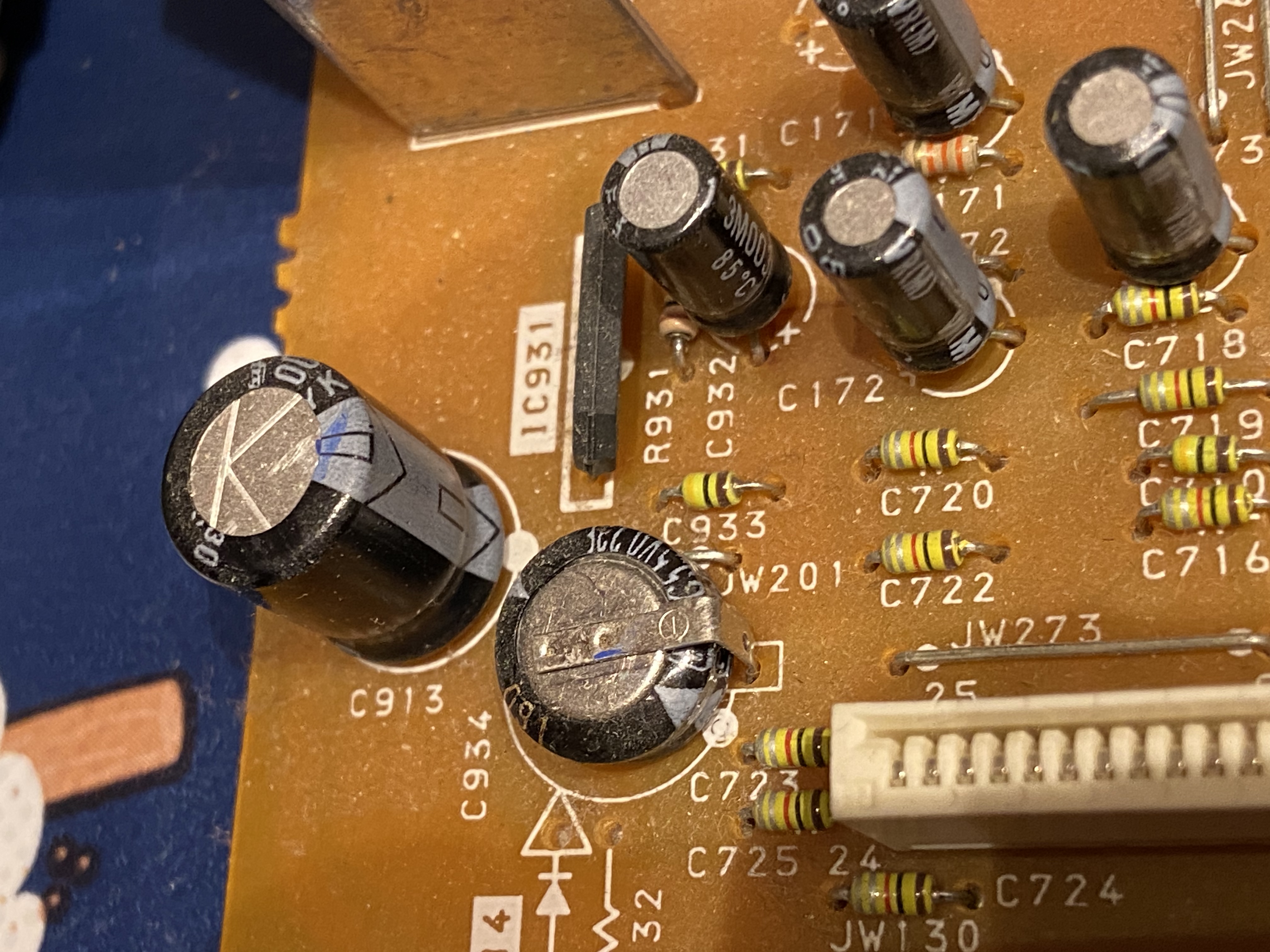

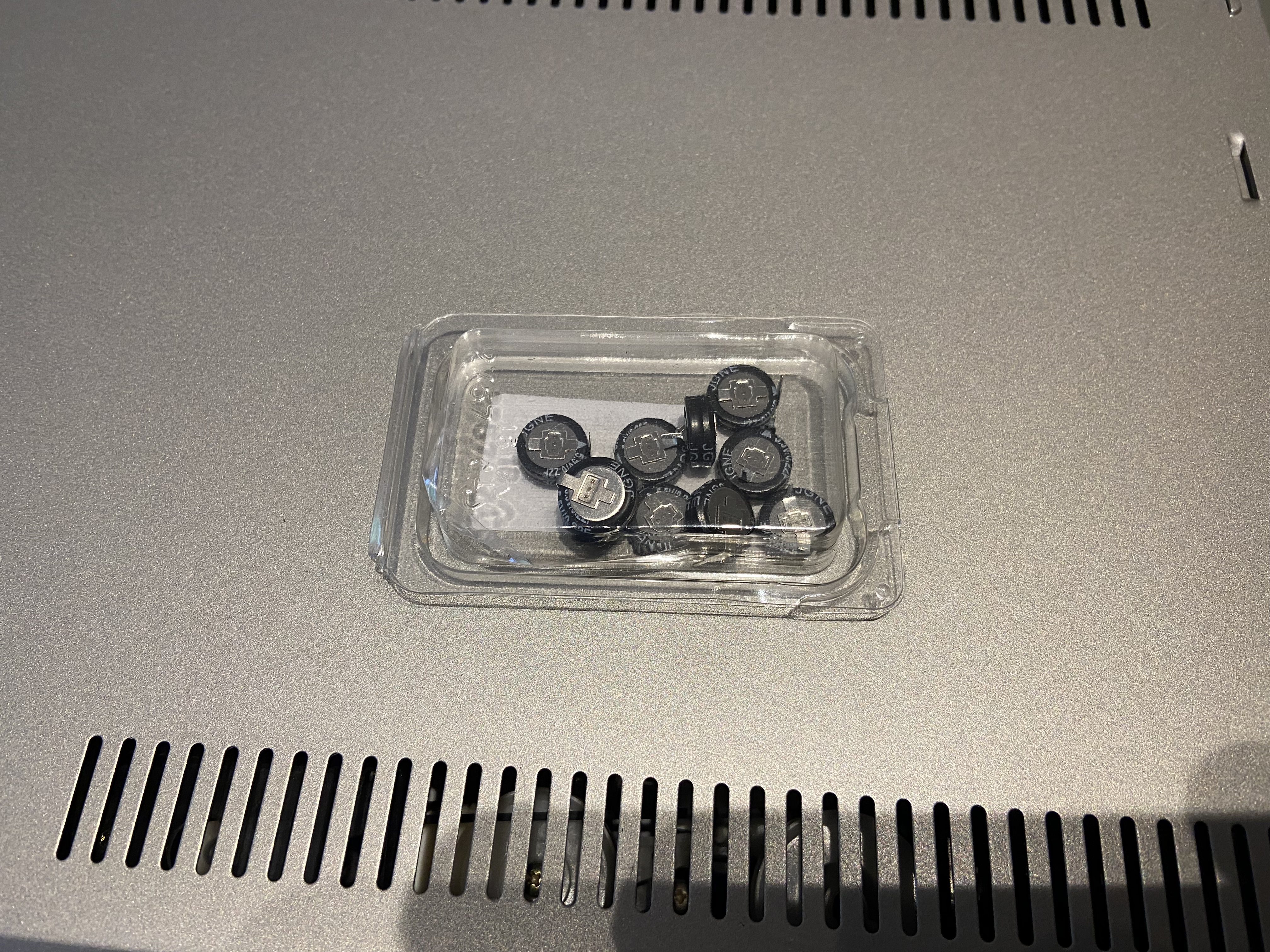

Memory retention supercap (5.5V, 0.22F, horizontal, solder pins).
}}

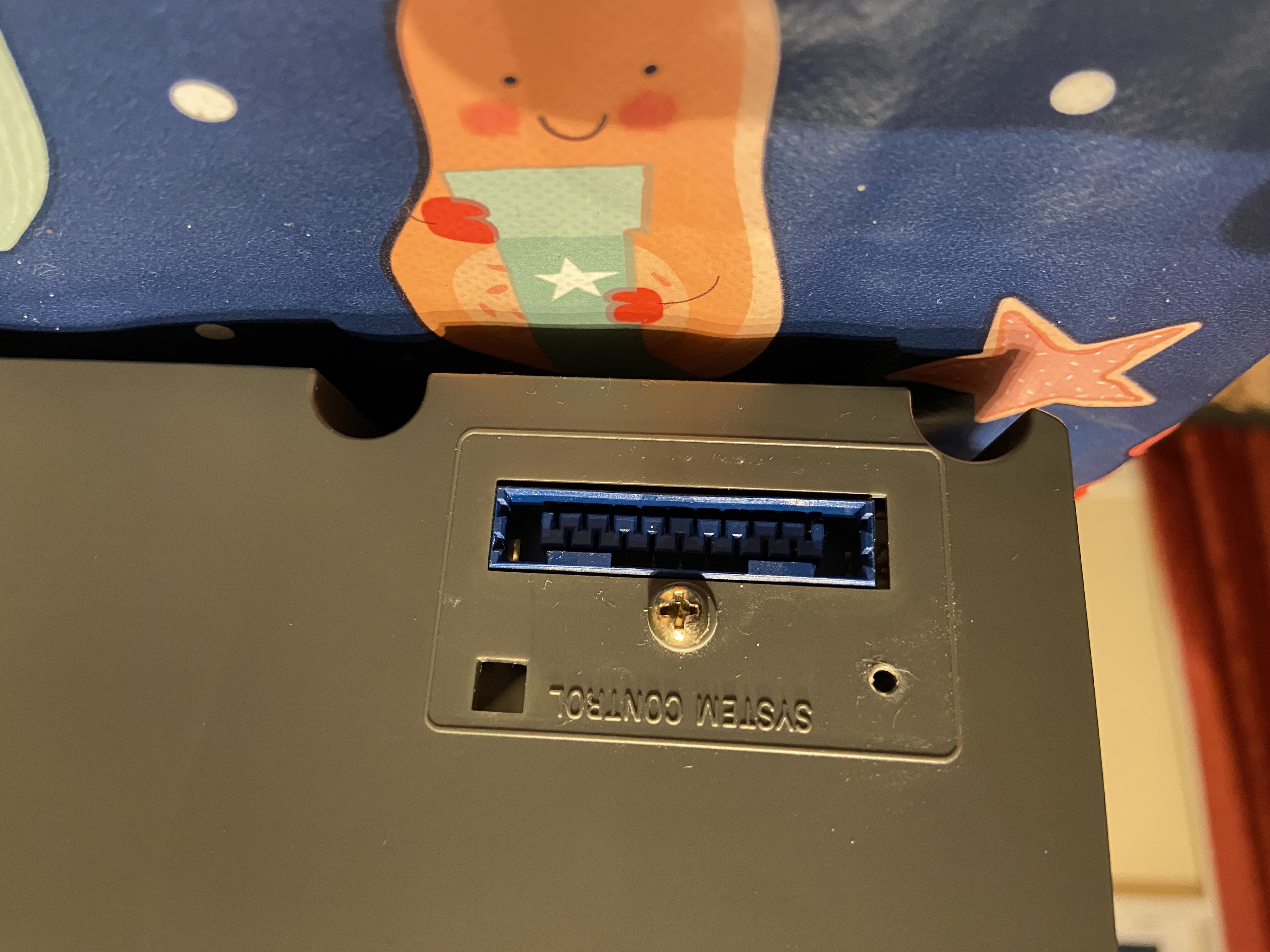

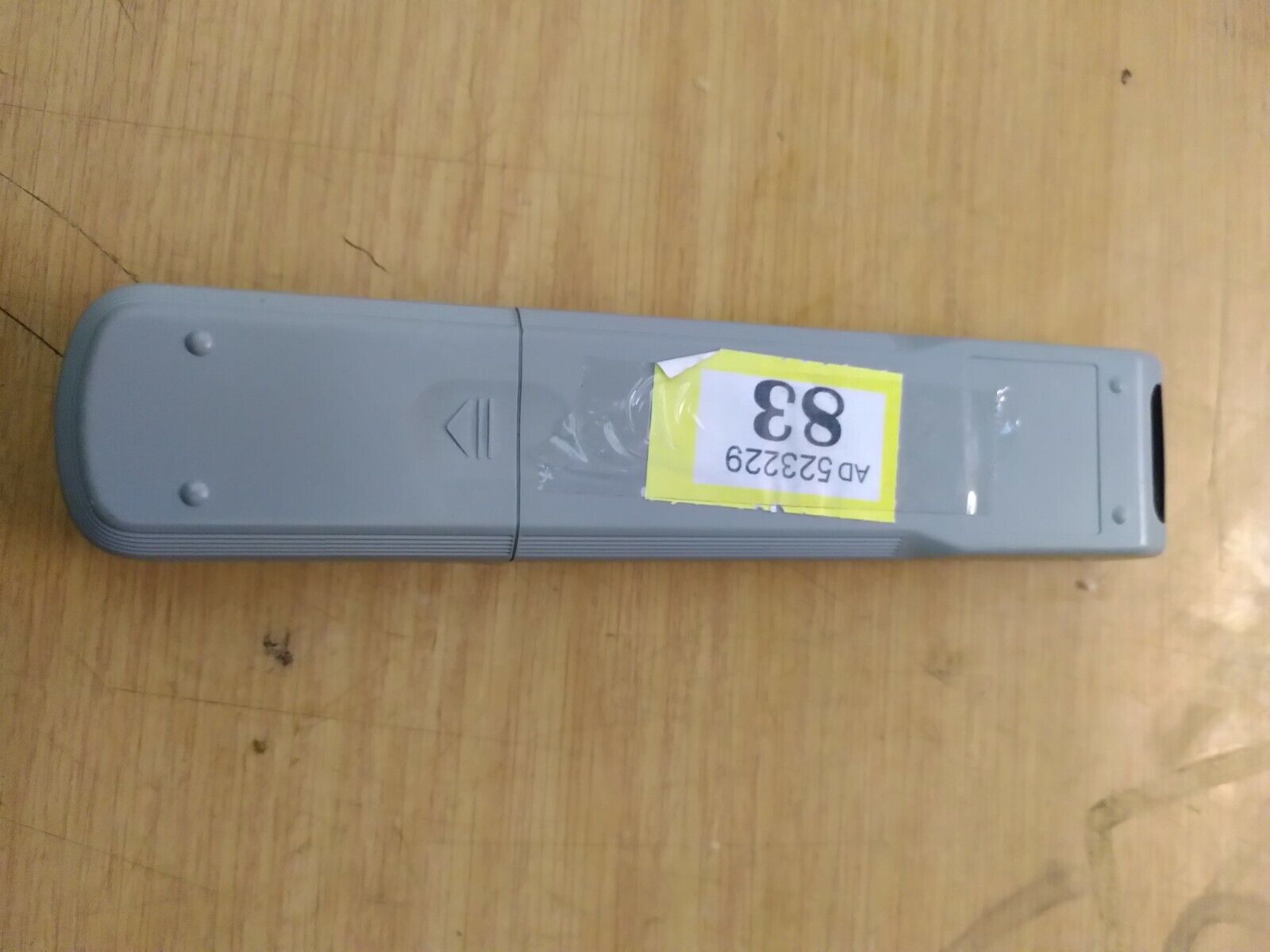

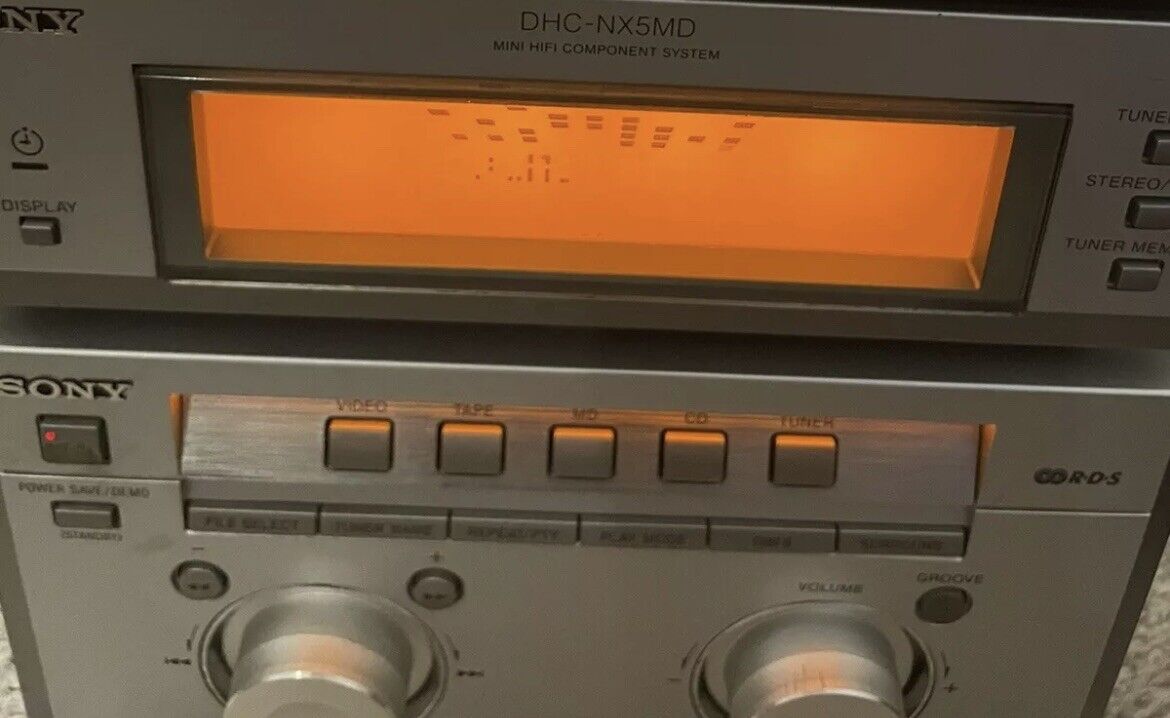

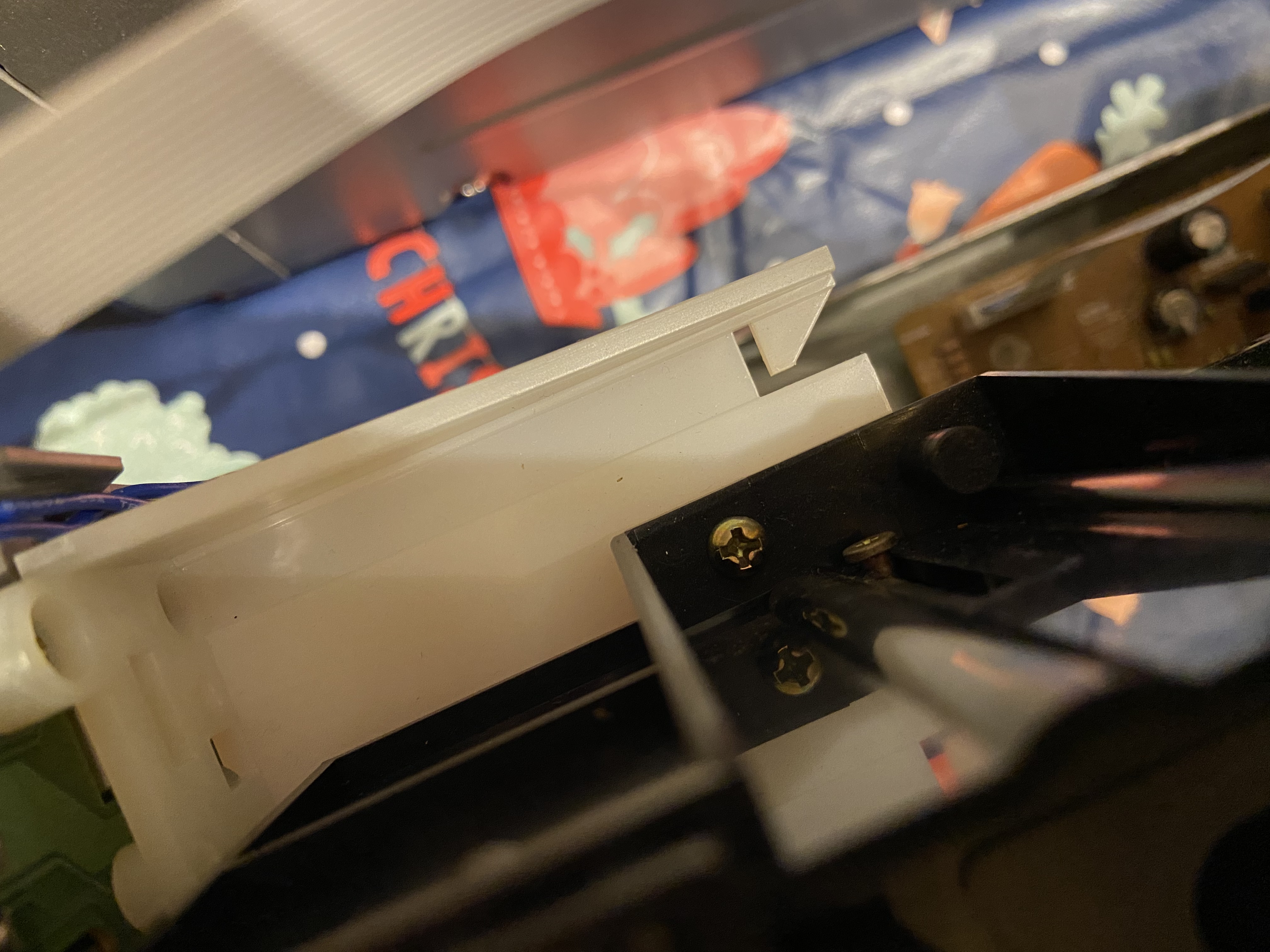

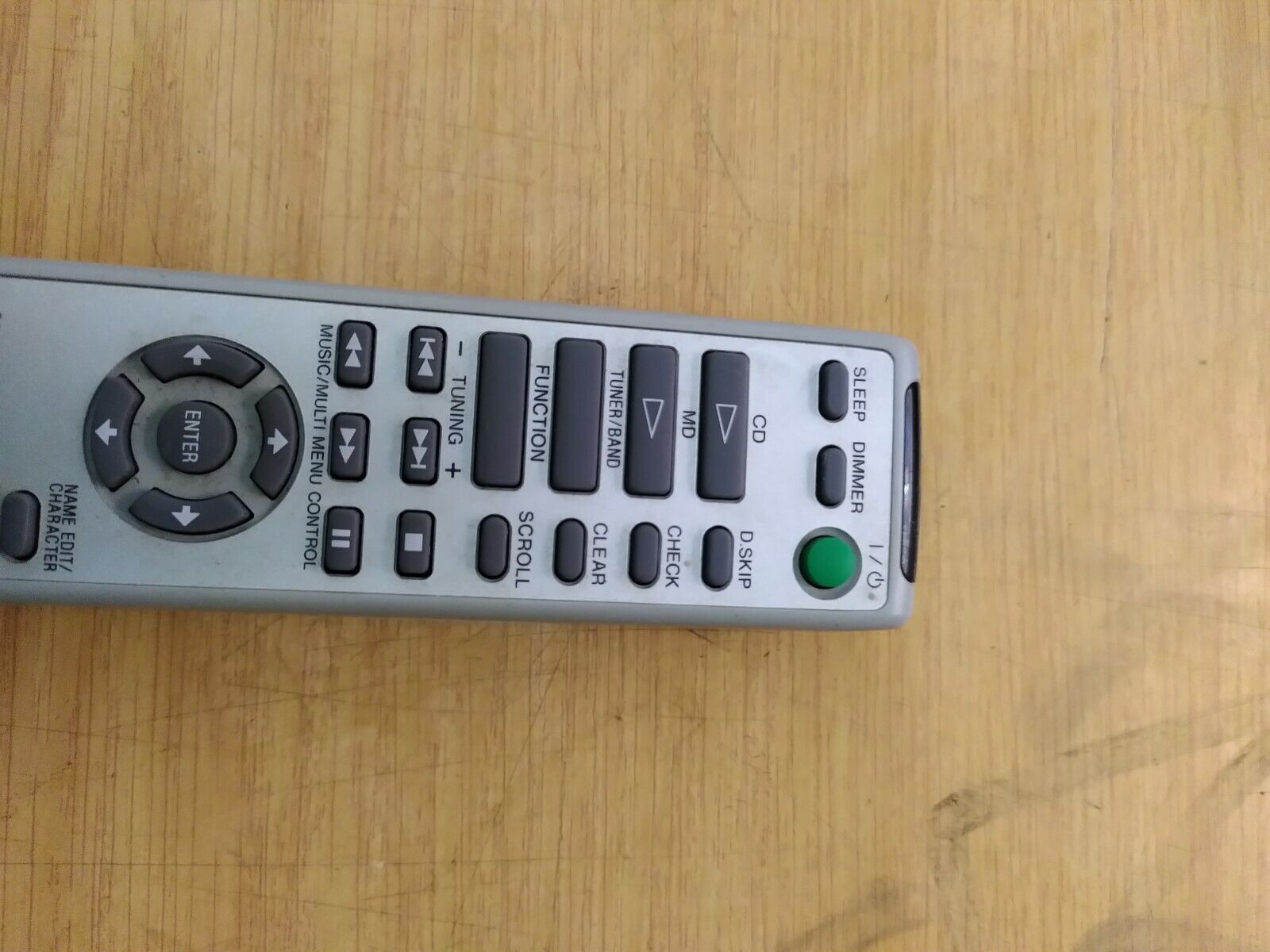

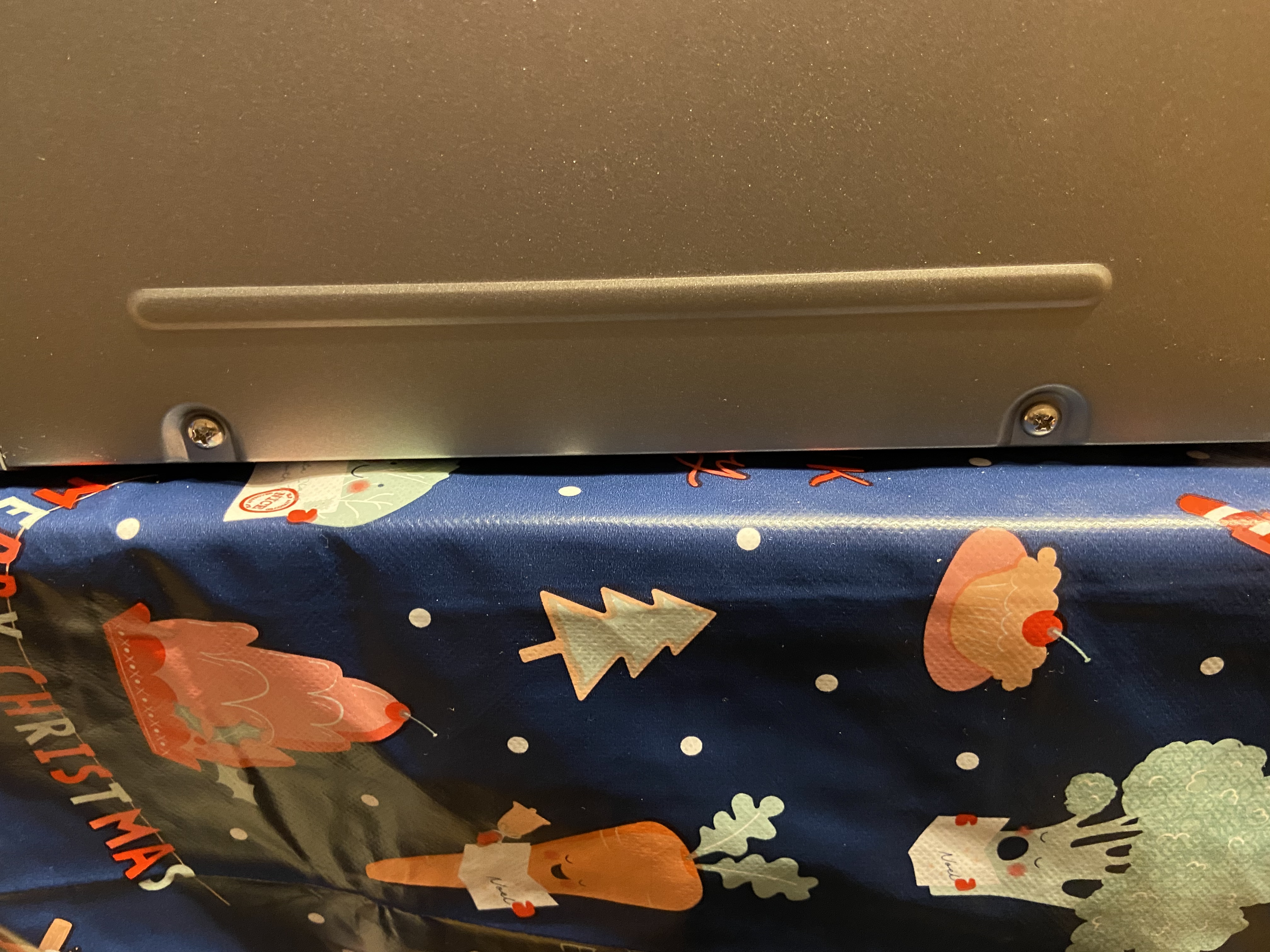

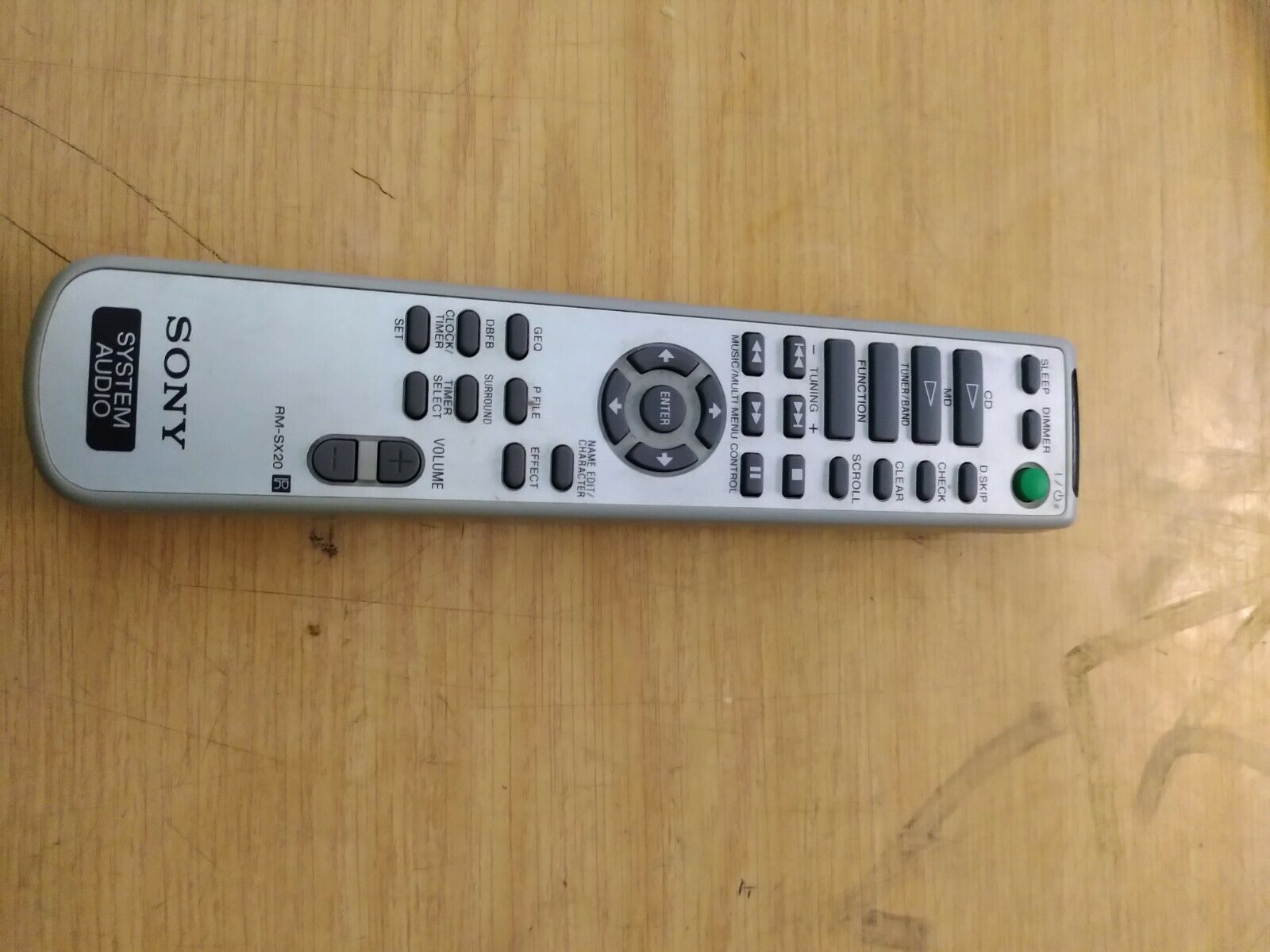

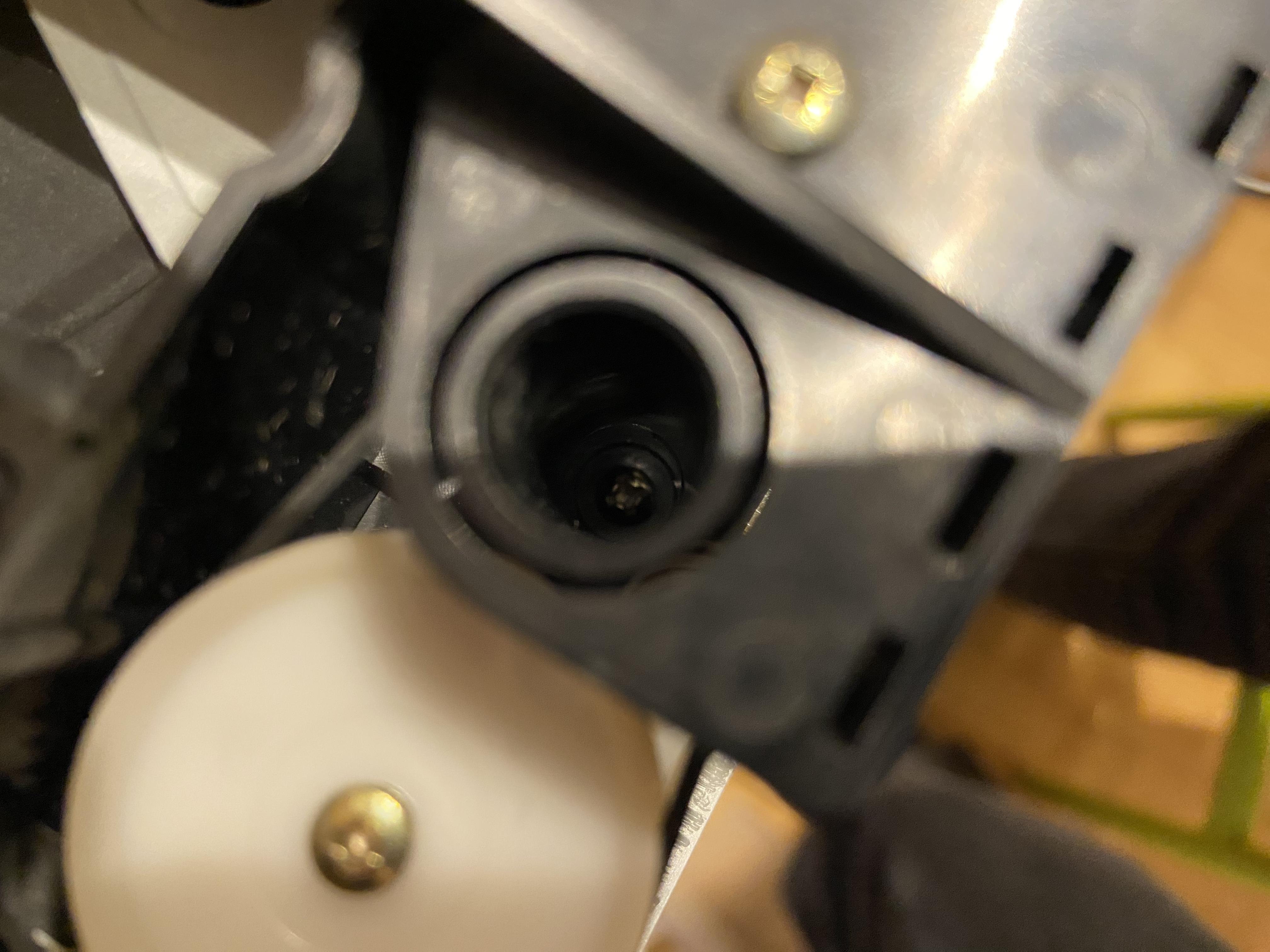

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Remote Page | |
| Atrac Ic | CXD2656R / CXD2662R |
| Manual | User manual, Service manual |
| Region | Japan |
