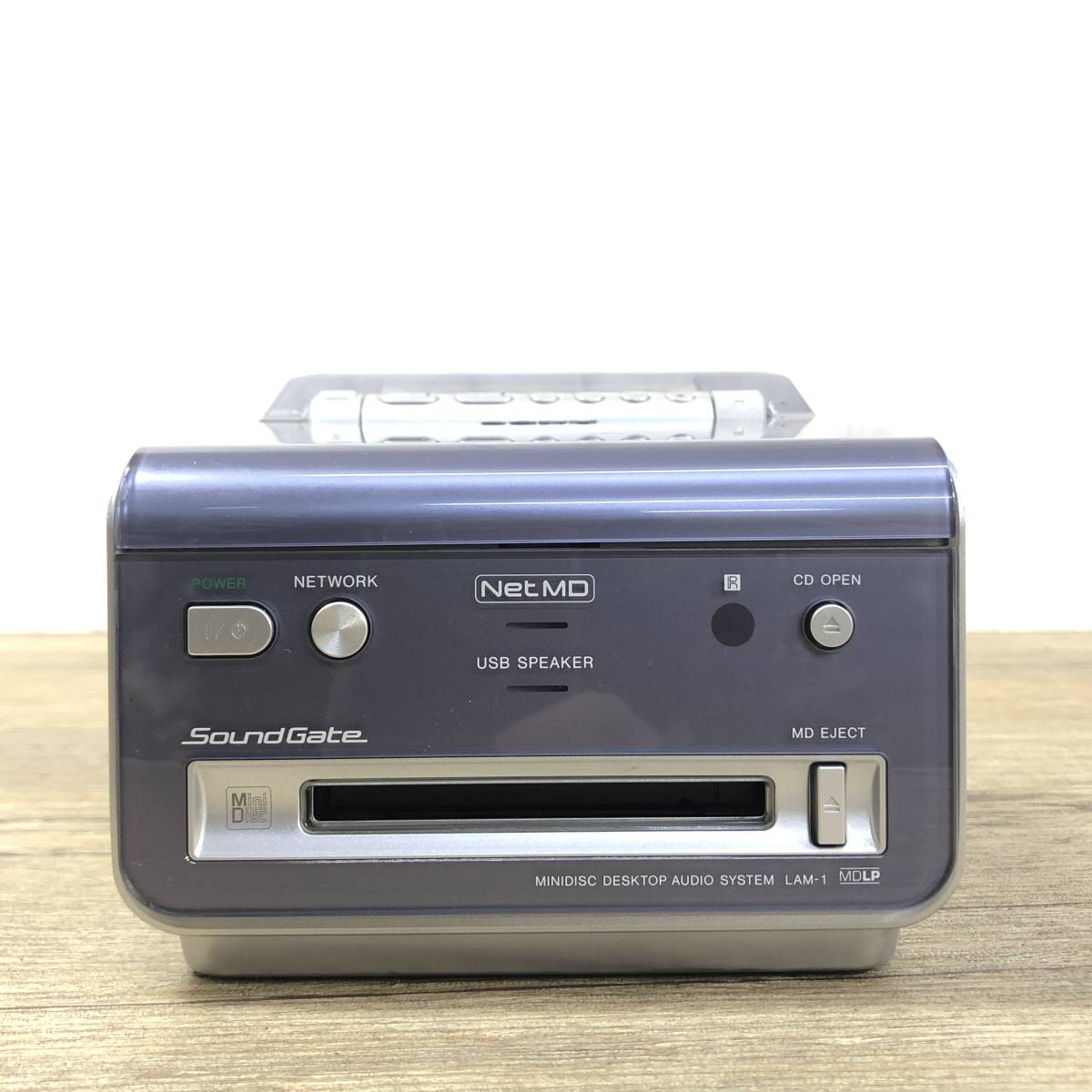

Sony LAM-Z1 / LAM-1

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony LAM-Z1 / LAM-1”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	LAM-Z1
Manufacturer	Sony
Released	2001/12
Device type	bookshelf
Recorder	Recorder
MDLP	Yes
NetMD	Yes
Hi-MD	No
Radio	No
Dimensions	138 x 118 x 165.5mm, Body (95 x 175 x 160mm Speaker)
Weight	1.5kg Body (1.5kg Speaker)
ATRAC ver	Type-R
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	No
Voltage	100
Power cable	AC
Price (launch)	Not recorded
Price (launch)	¥45 000
-
Inputs	CD

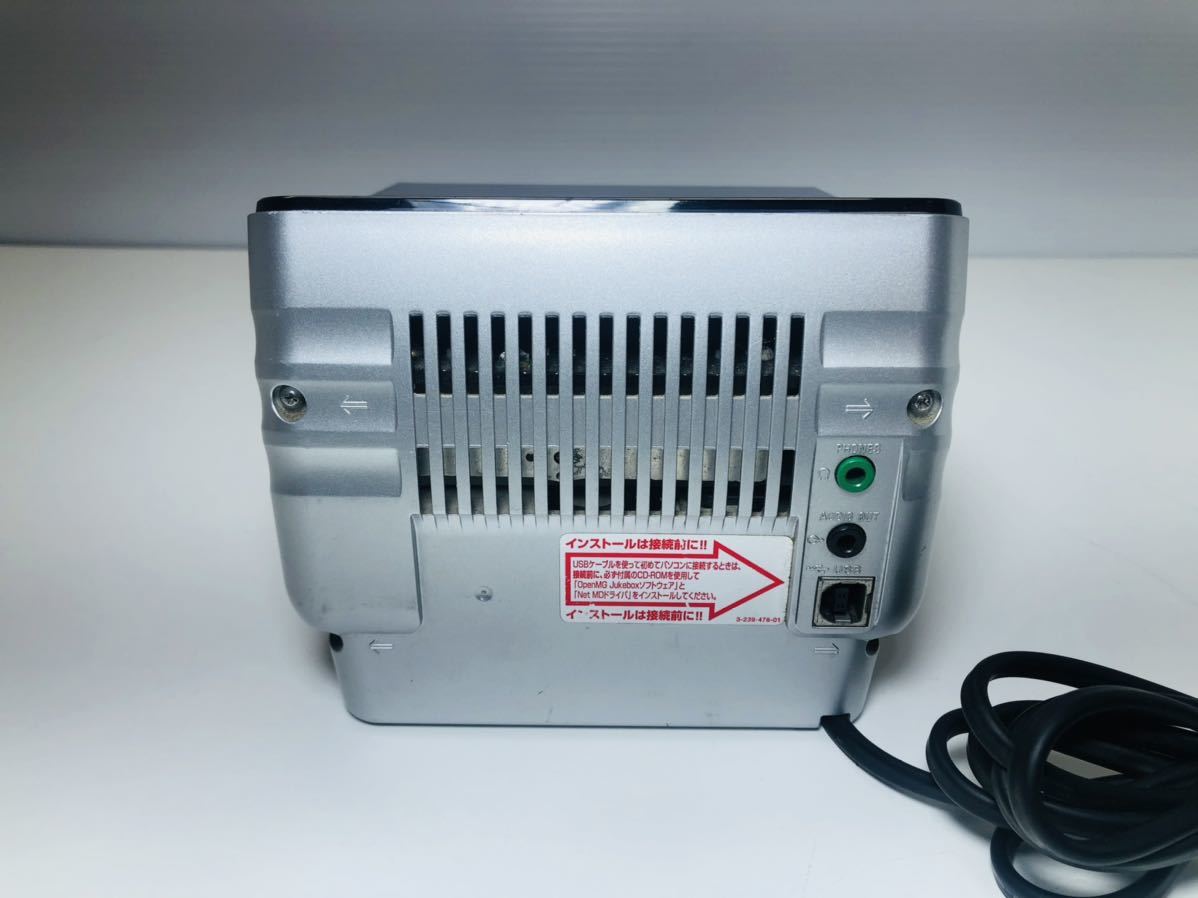

Outputs	3.5mm line out (analog-only), 3.5mm headphone, Speaker amplifier
Control	USB Type-B

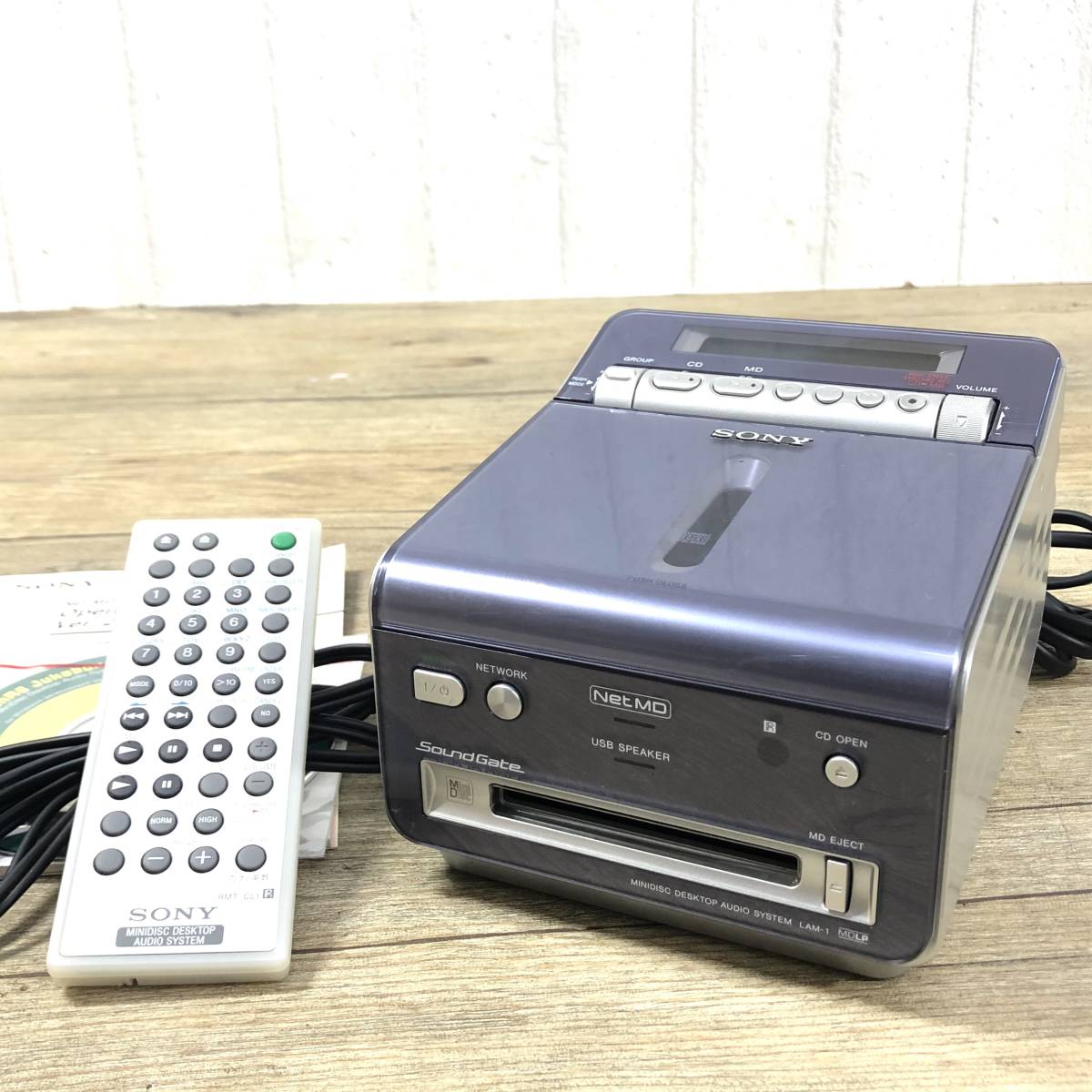

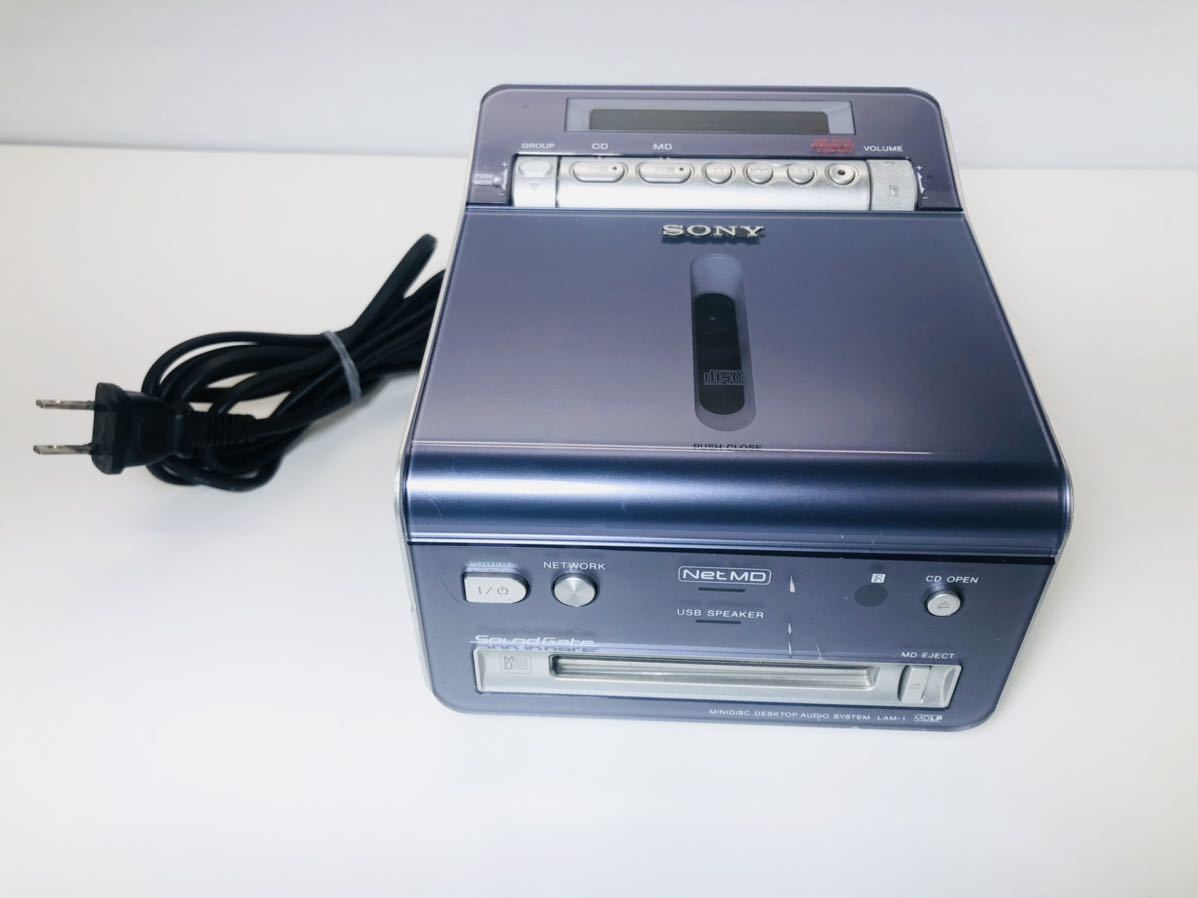

The only difference between the LAM-Z1 and the LAM-1 is that the Z1 comes bundled with speakers while the 1 does not.

Sony's first netMD bookshelf system. It was launched alongside the MZ-N1, CMT-C7NT, and MDS-NT1 as the first generation of netMD devices.

Can write discs through netMD using Sony's SonicStage or OpenMG software. Device playback can also be controlled using these programs. Can also record to MD from CD at 4x speed.

Has been tested to work with Web Minidisc Pro.

The RMT-CL1 remote for this model takes CR2025 batteries.

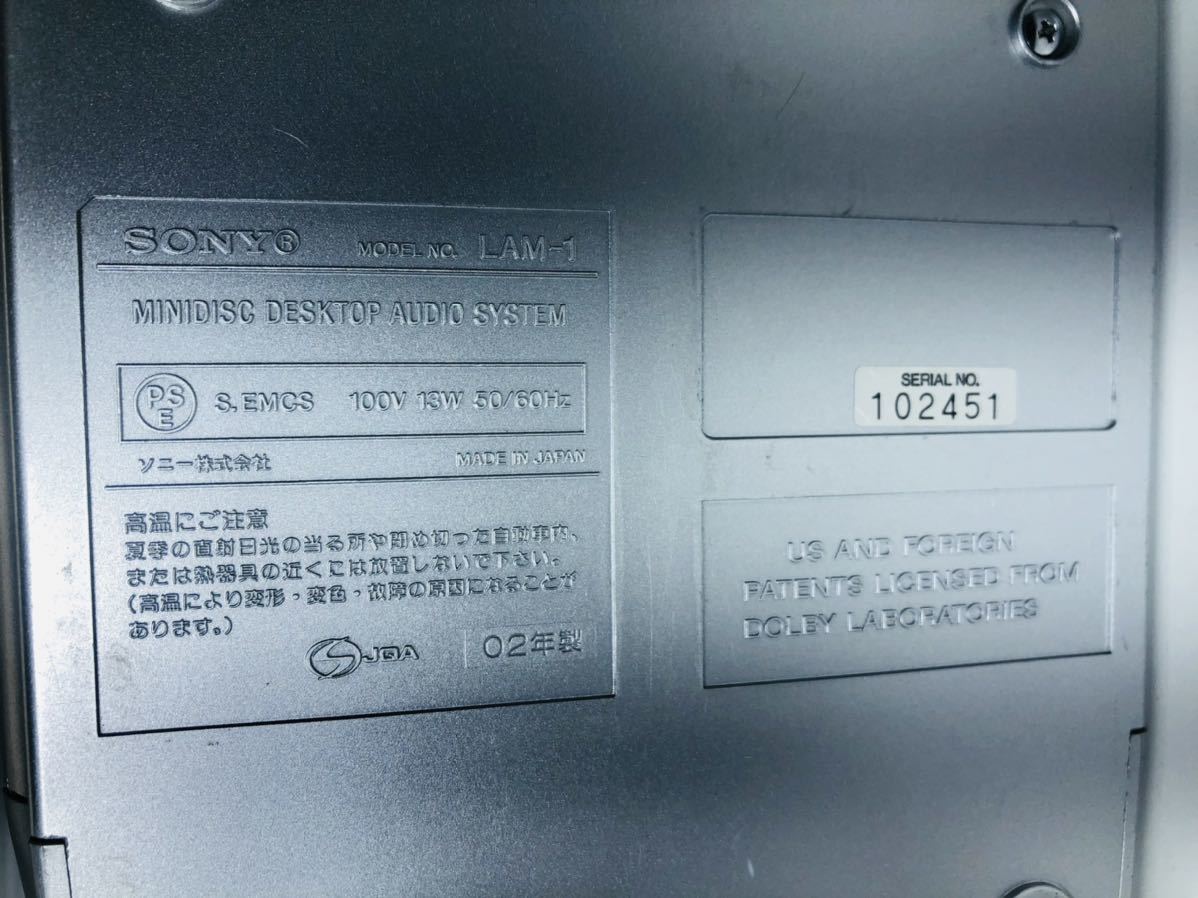

The LAM-1/LAM-Z1 does not support muiltiple input voltages and has been shown to be very unstable on American 120V 60Hz power. The use of a 100V power transformer is strongly recommended.

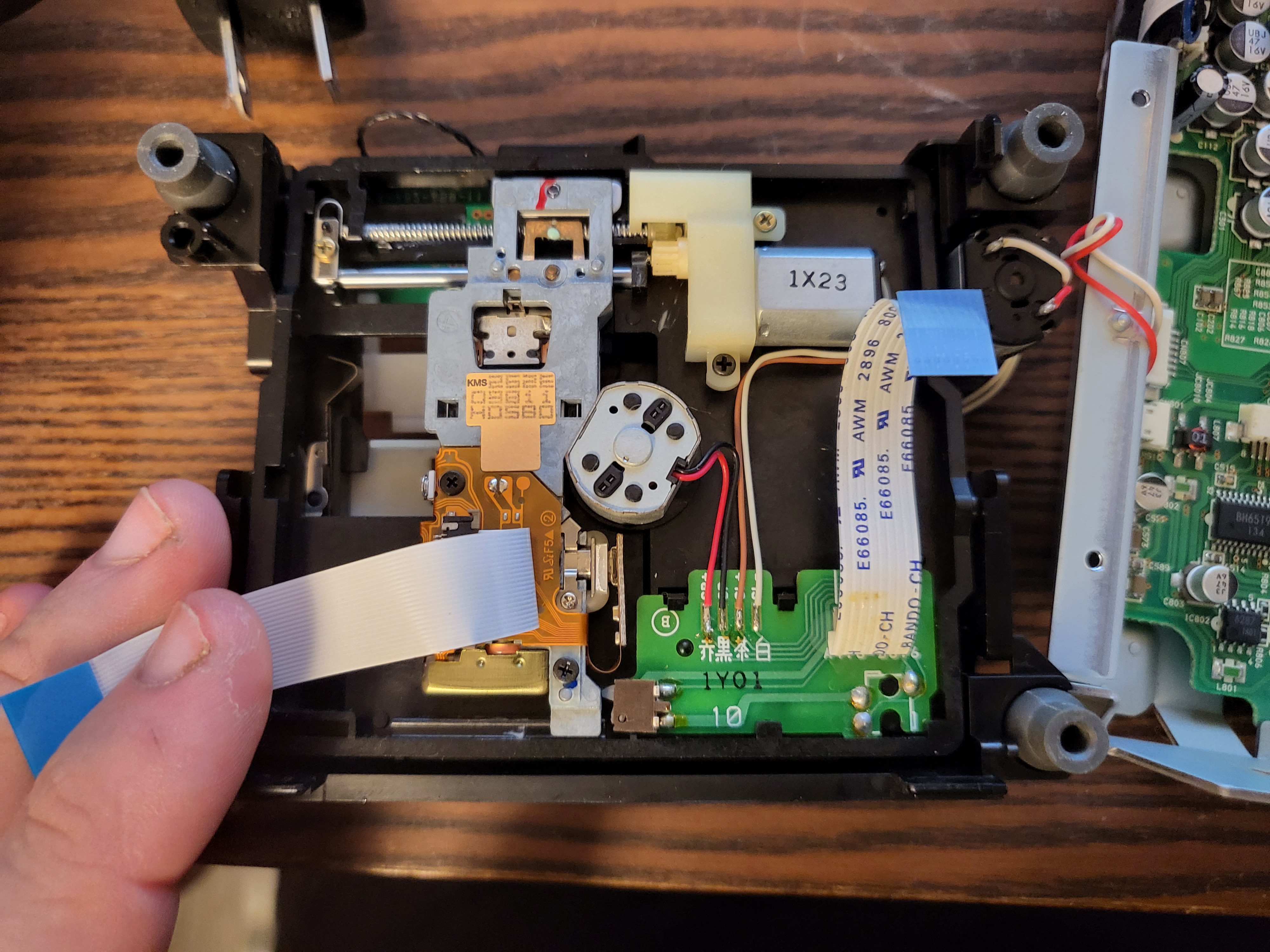

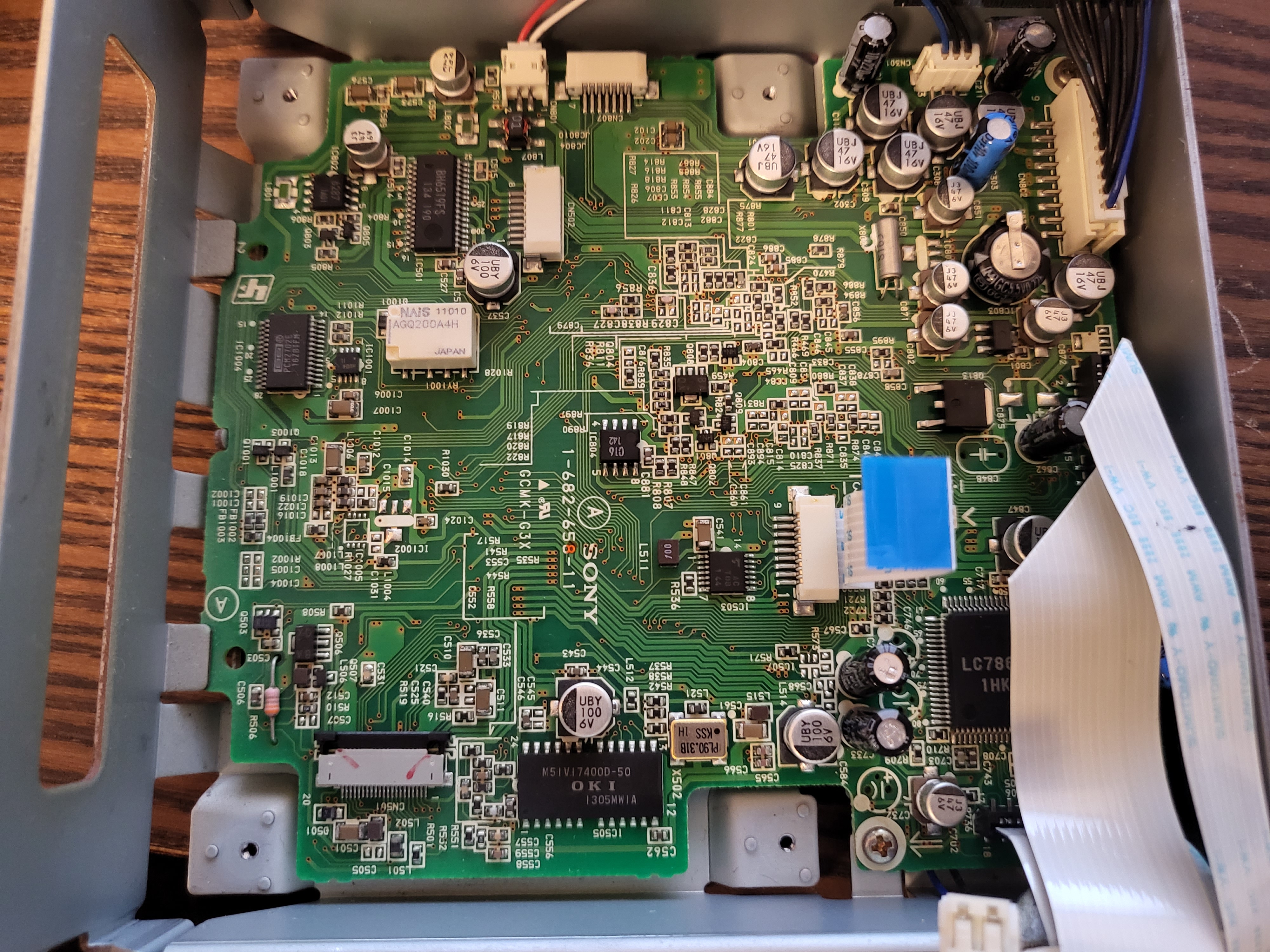

Optical Block: KMS-262E

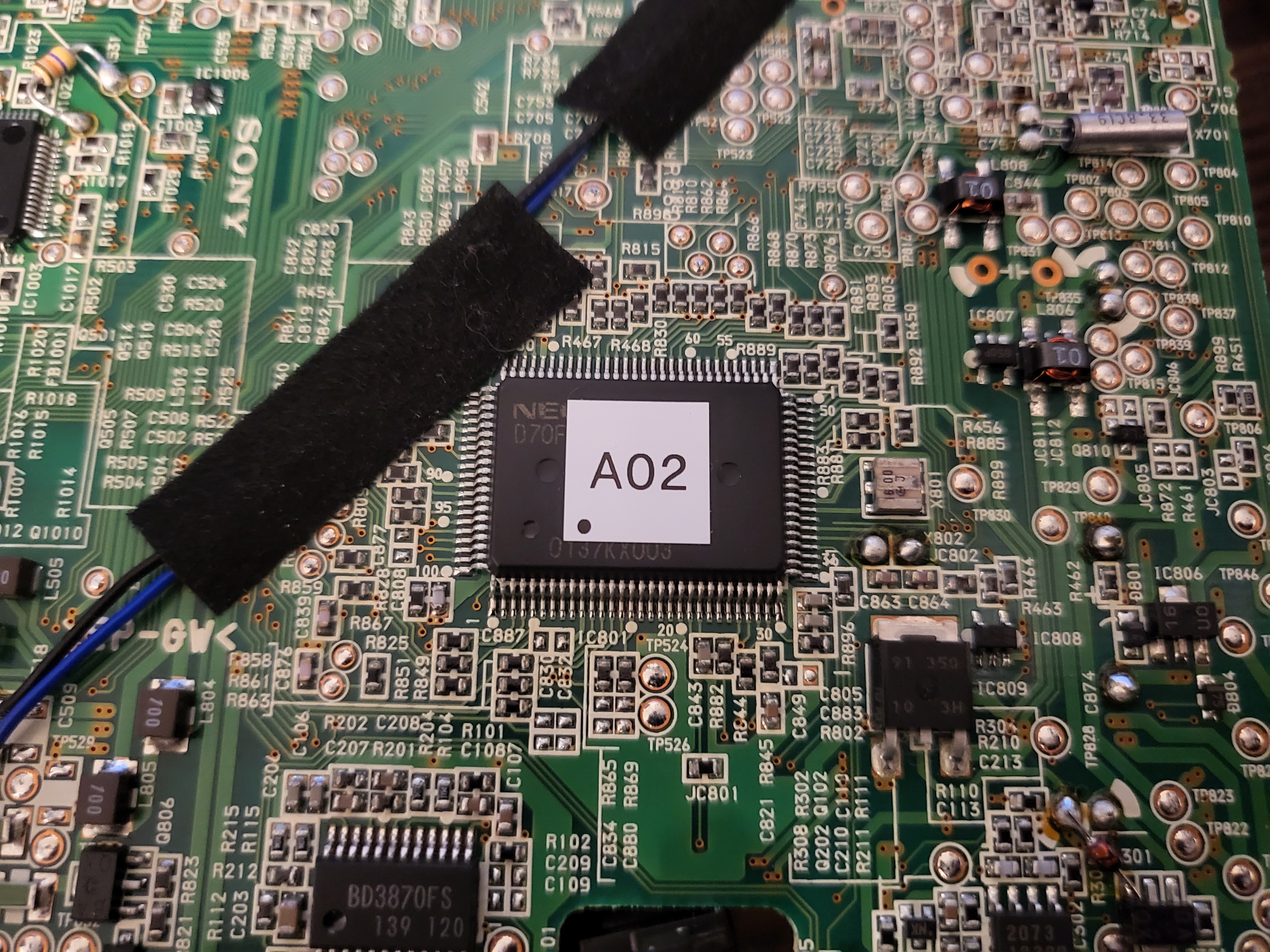

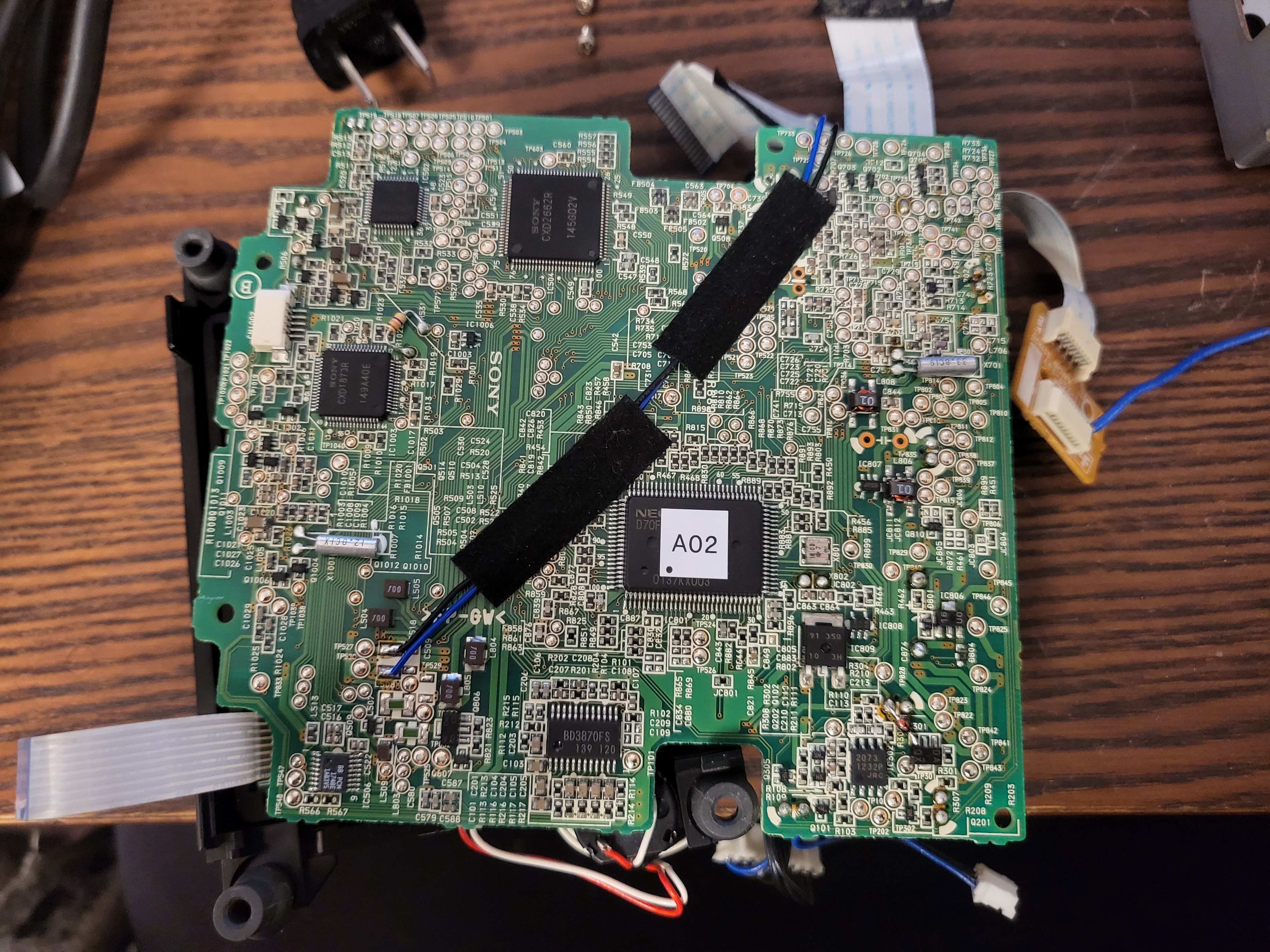

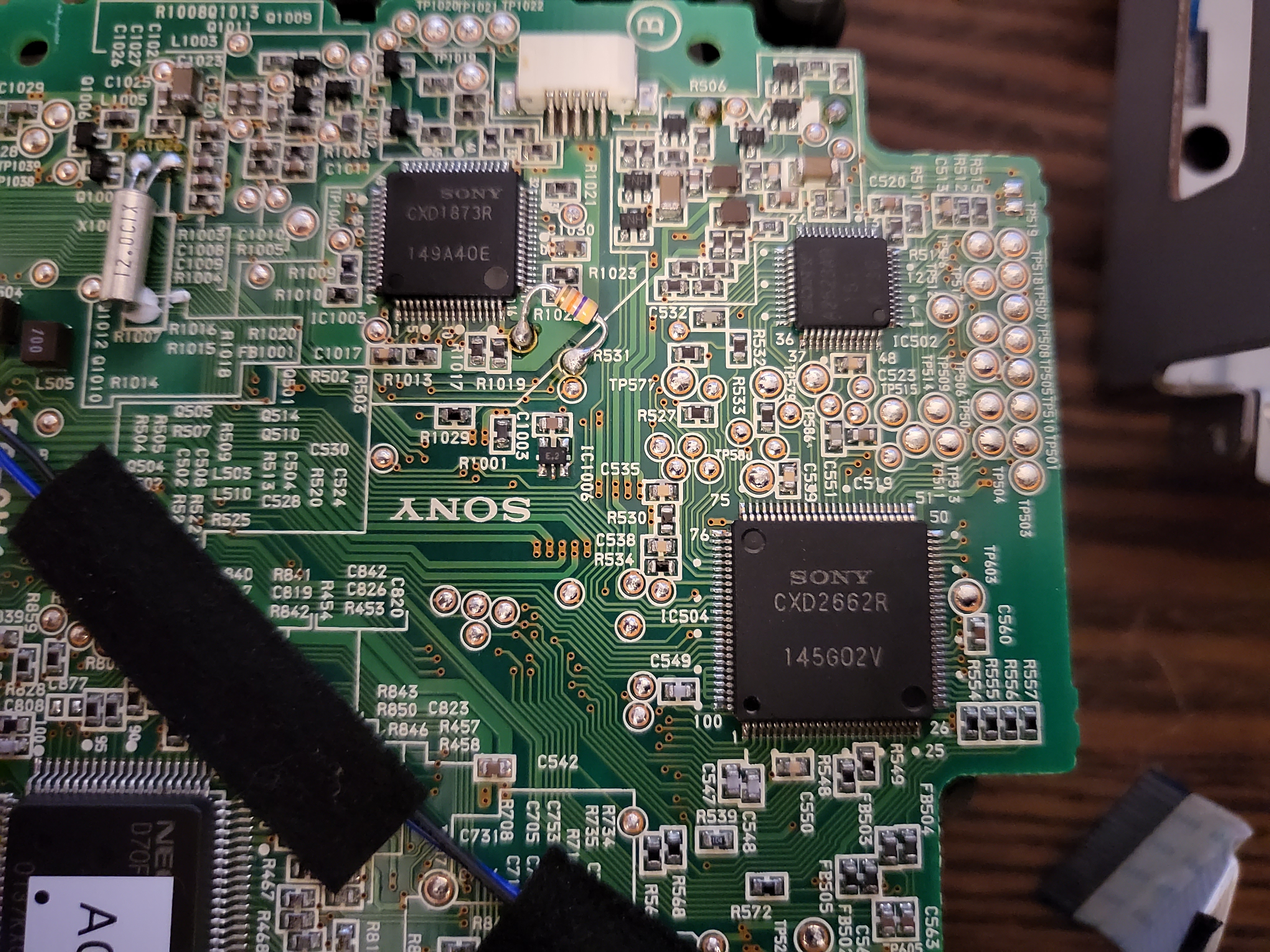

ATRAC IC: CXD2662R
