| Name | LAM-Z10 |
|---|---|
| Manufacturer | Sony |
| Released | 2002/11 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | Yes |
| Hi-MD | No |
| Radio | No |
| Dimensions | 86 × 207 × 198mm, Body (99 × 175 × 166mm Speaker) |
| Weight | 1.1kg (Body) 1.6kg (Speakers) |
| ATRAC ver | Type-S |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |

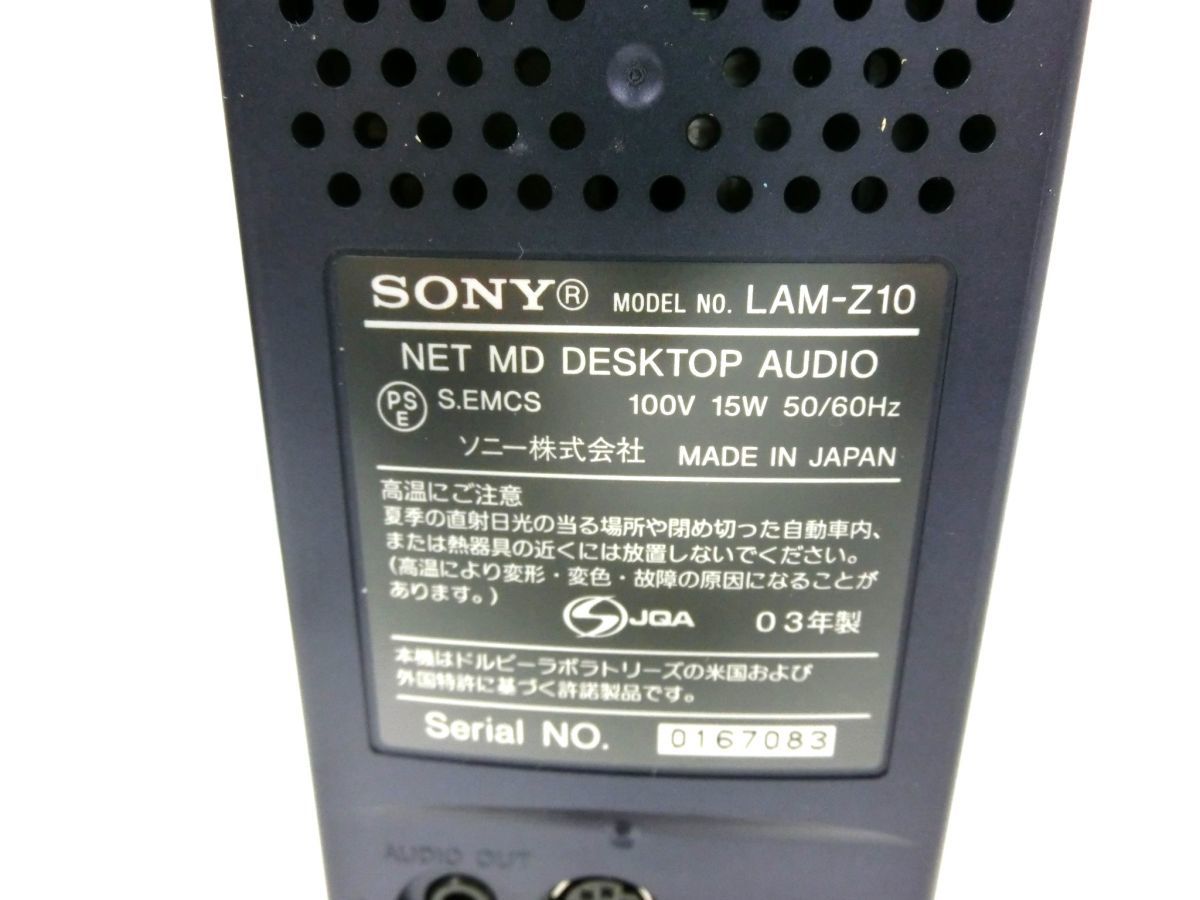

| Voltage | 100 |

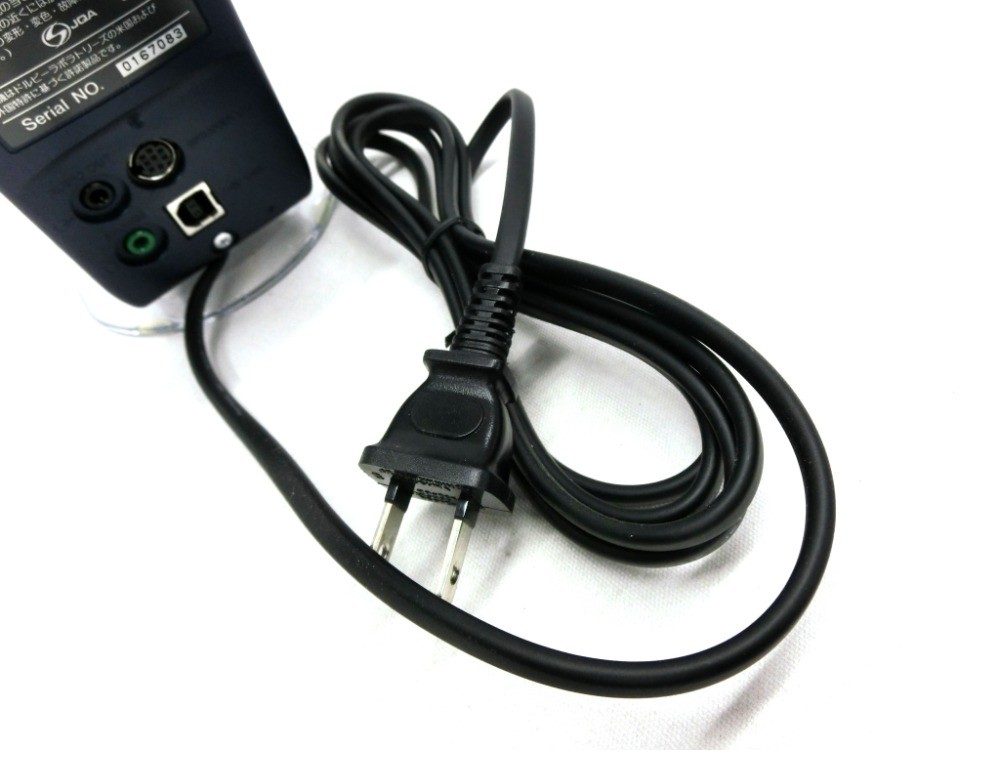

| Power cable | AC |
| Price (launch) | Not recorded |
| ¥39 800 | |
| - | |
| Inputs | CD |

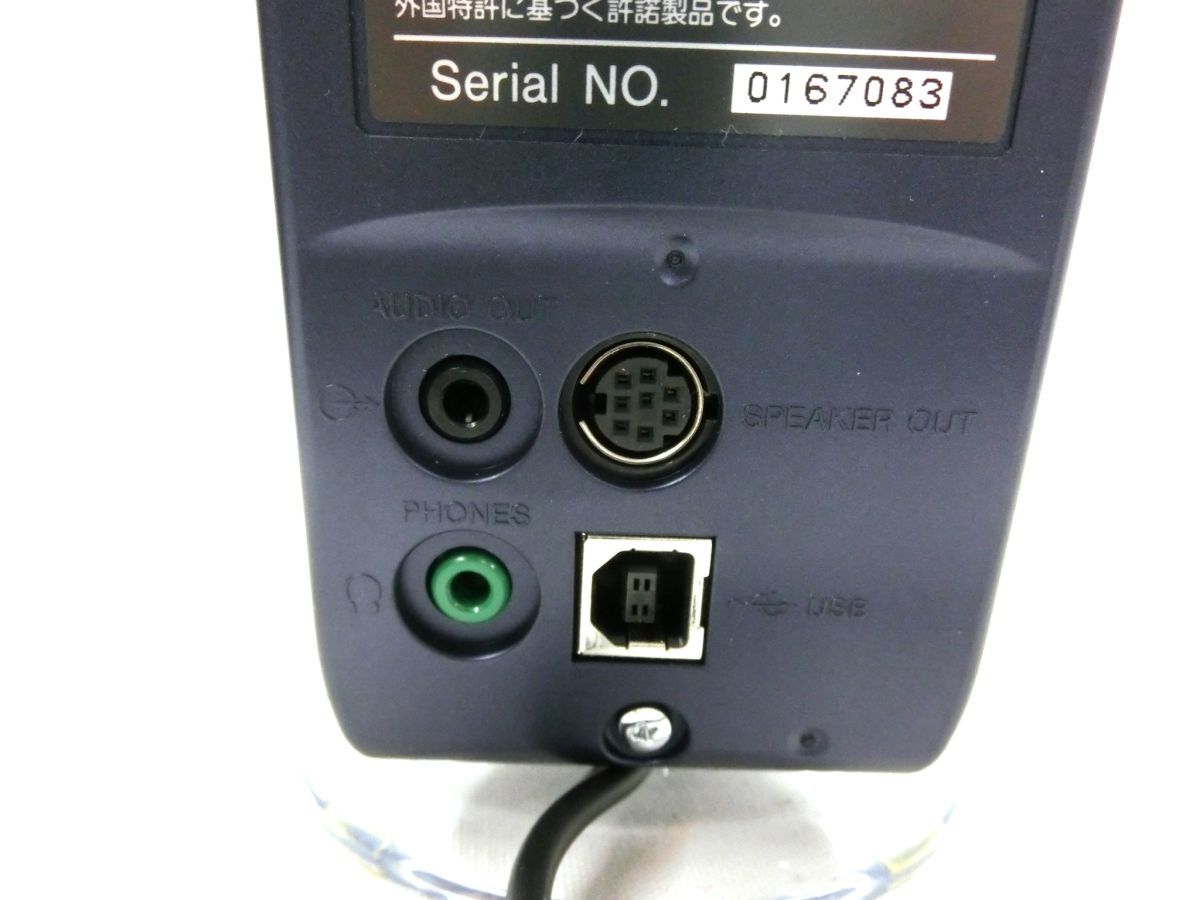

| Outputs | 3.5mm line out (analog-only), 3.5mm headphone, Speaker amplifier |
| Control | USB Type-B |

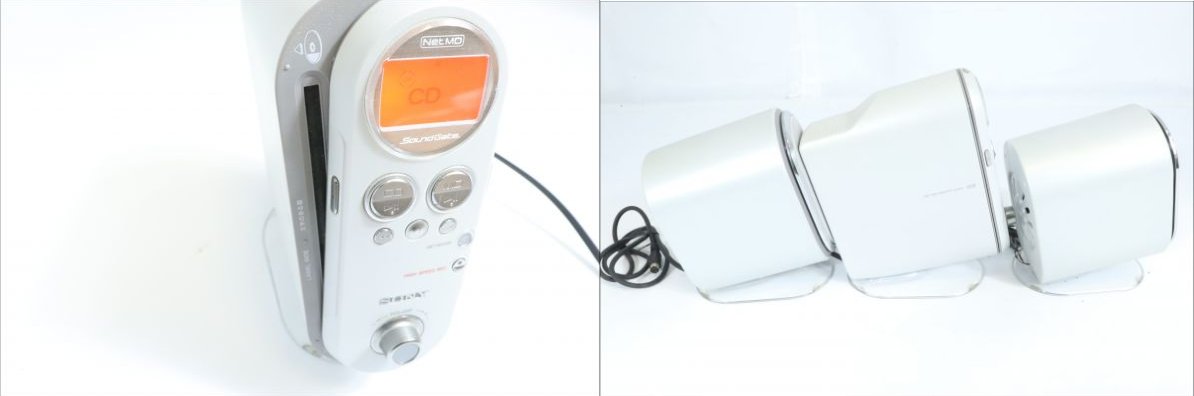

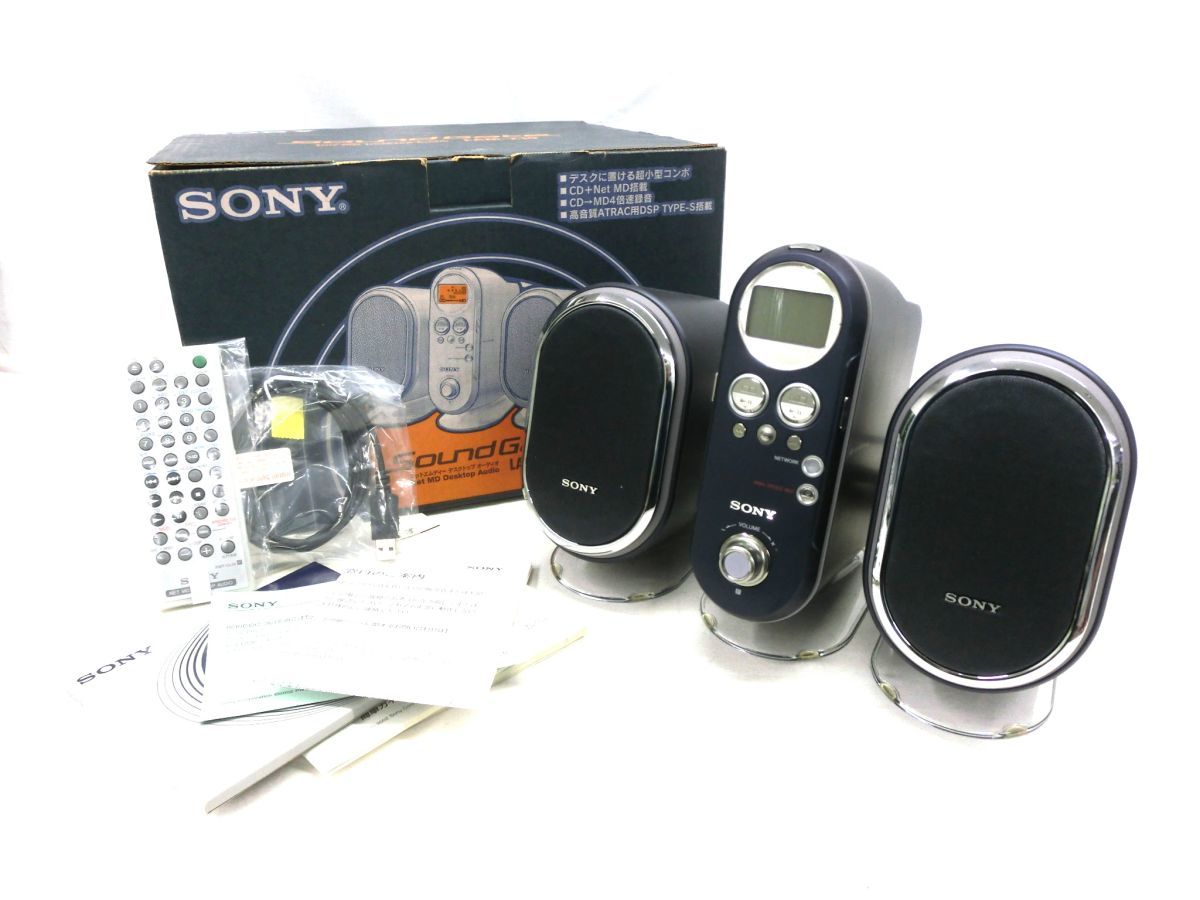

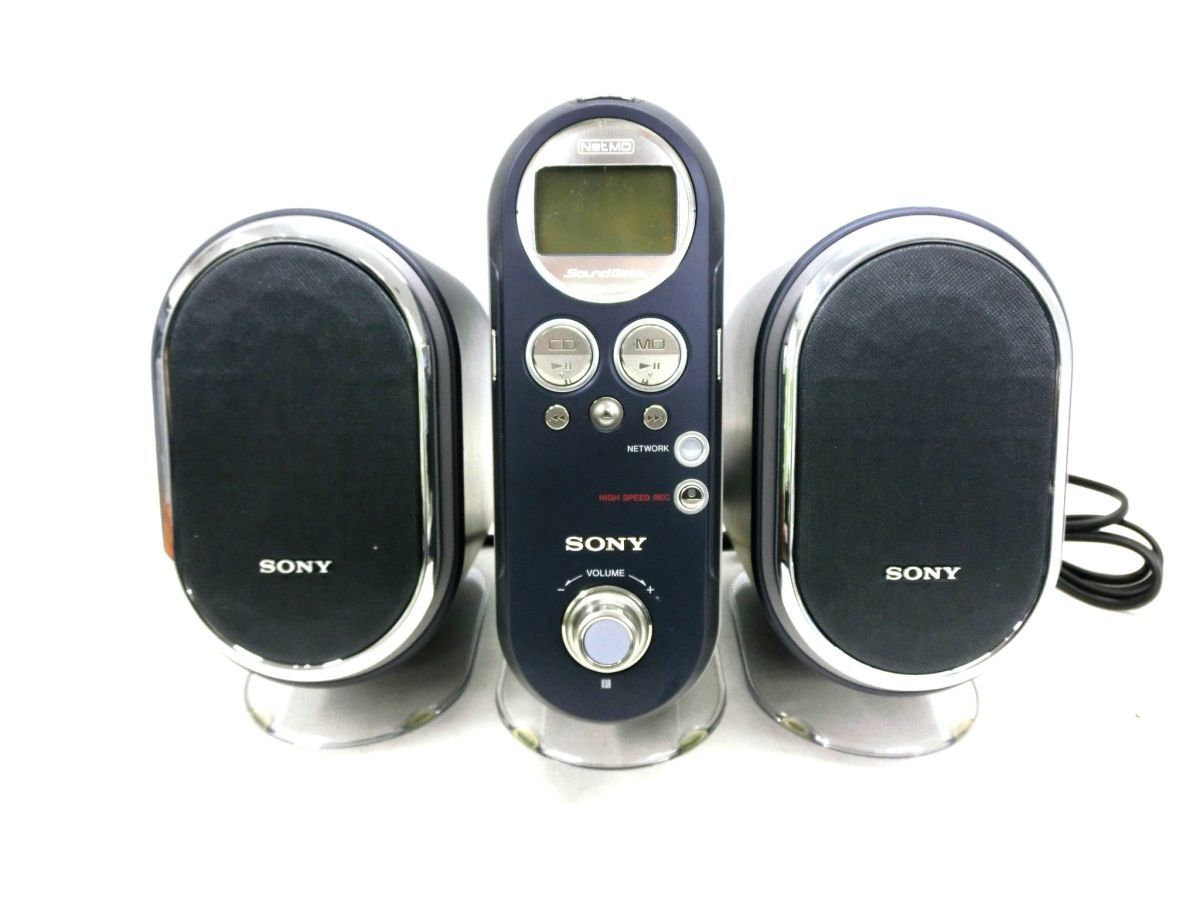

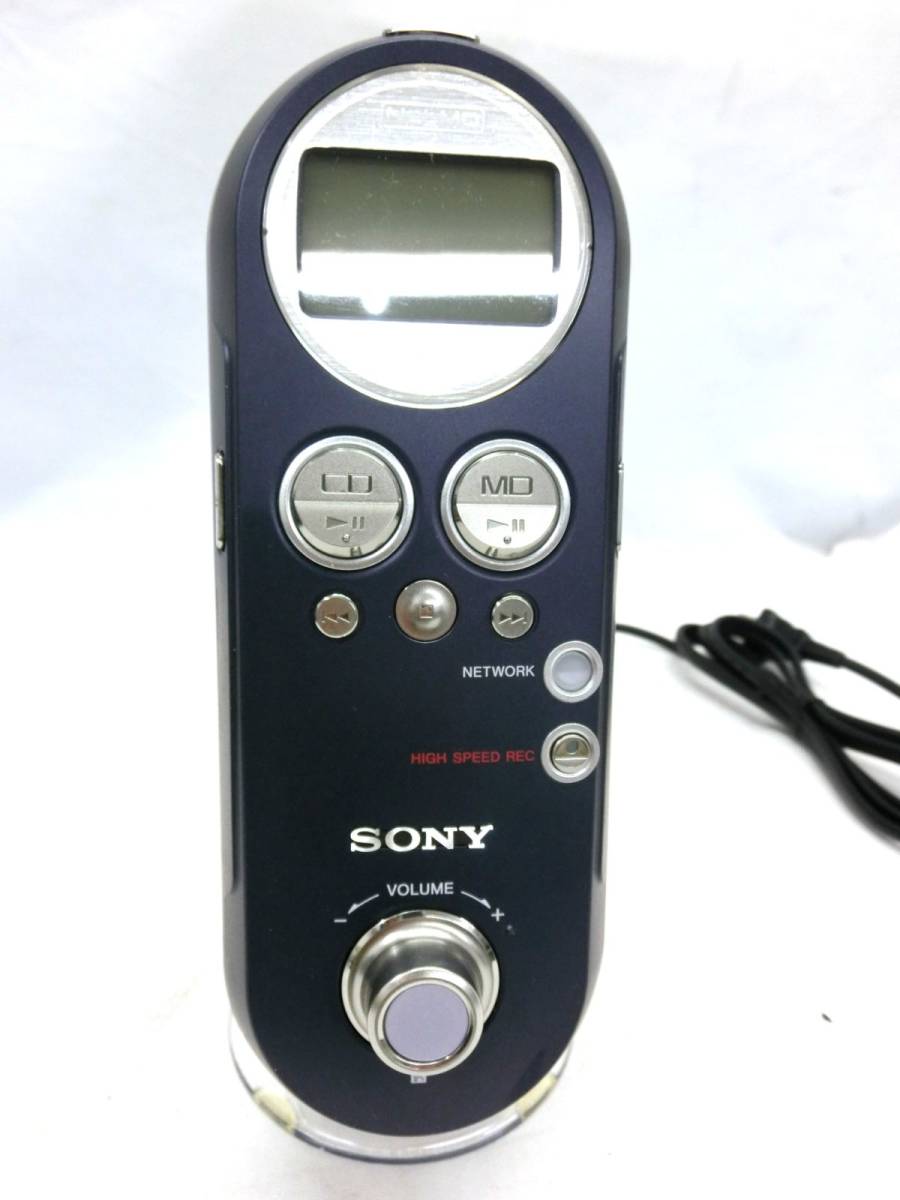

Sony CD/MD combo PC speaker bookshelf system. Works as PC speakers over USB, and will also work as a netMD recorder after switching modes. Can write discs through netMD using Sony's SonicStage or OpenMG software. Device playback can also be controlled using these programs. Can also record to MD from a CD directly at 4x speed.
The device has NO AUDIO INPUTS. Only way to write minidiscs is through netMD or a direct transfer from CD.

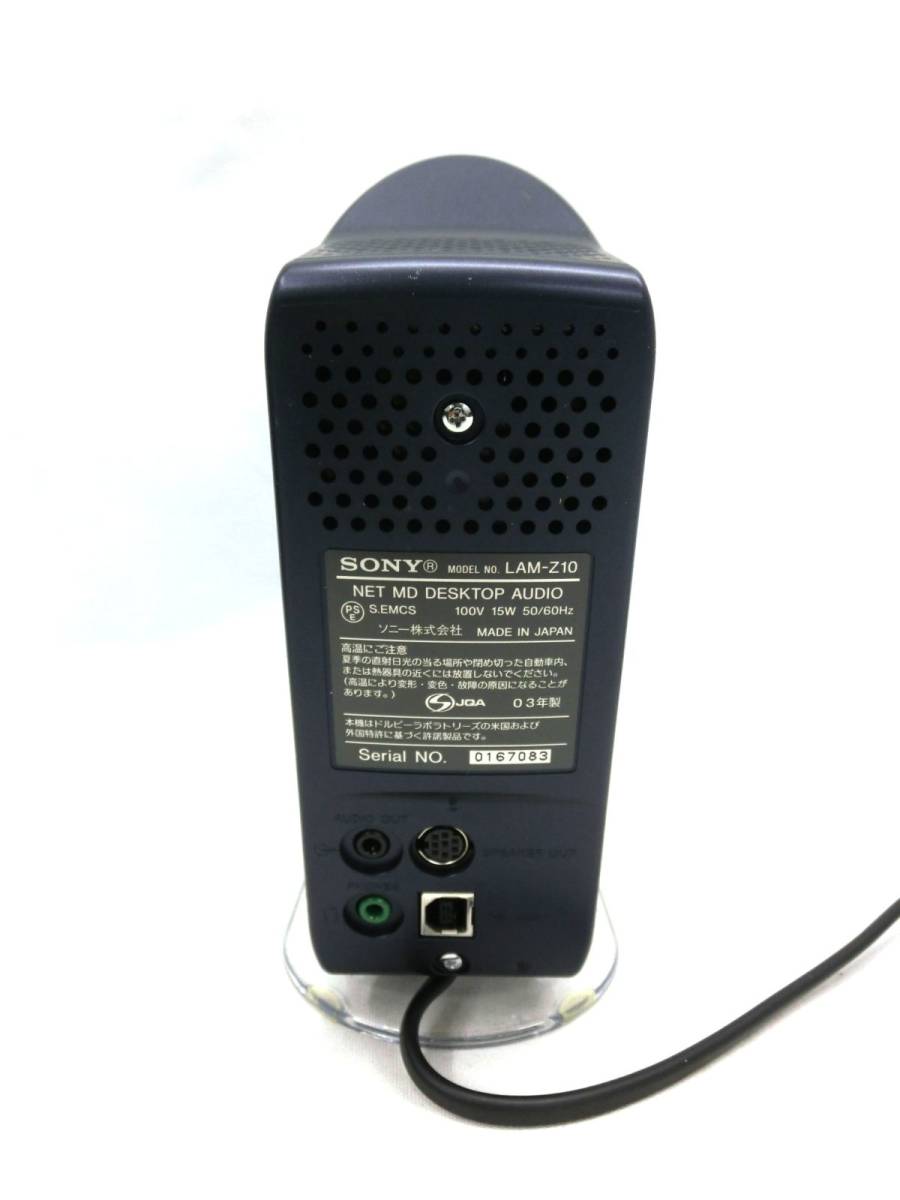

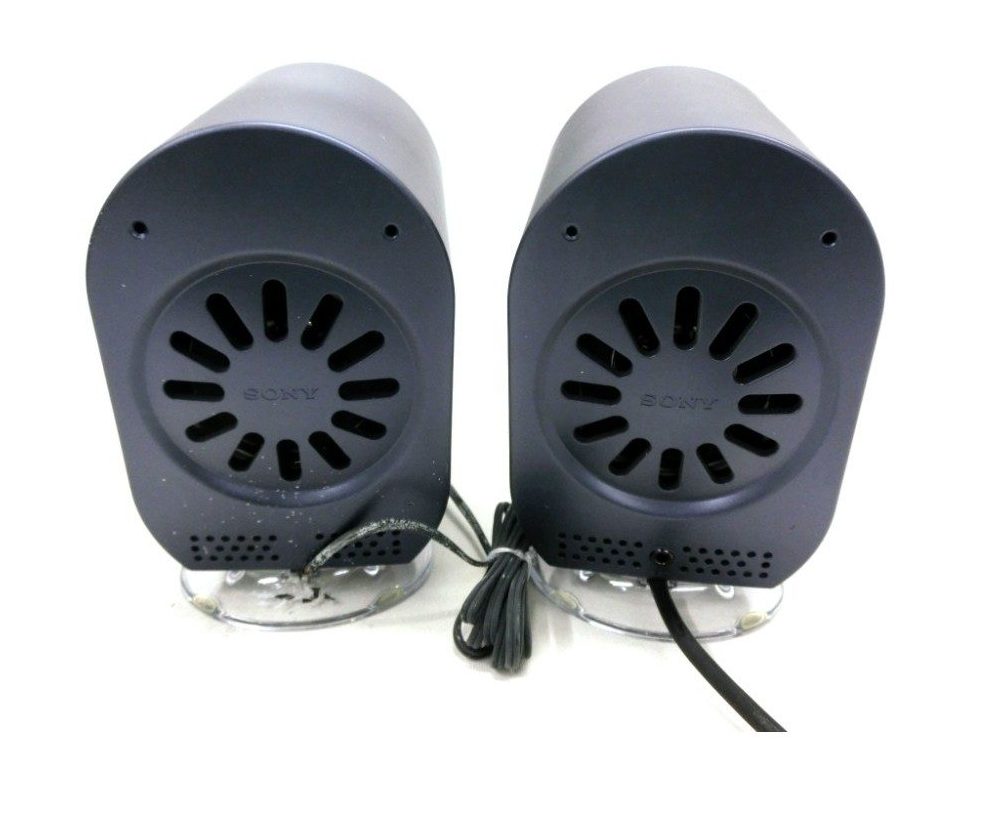

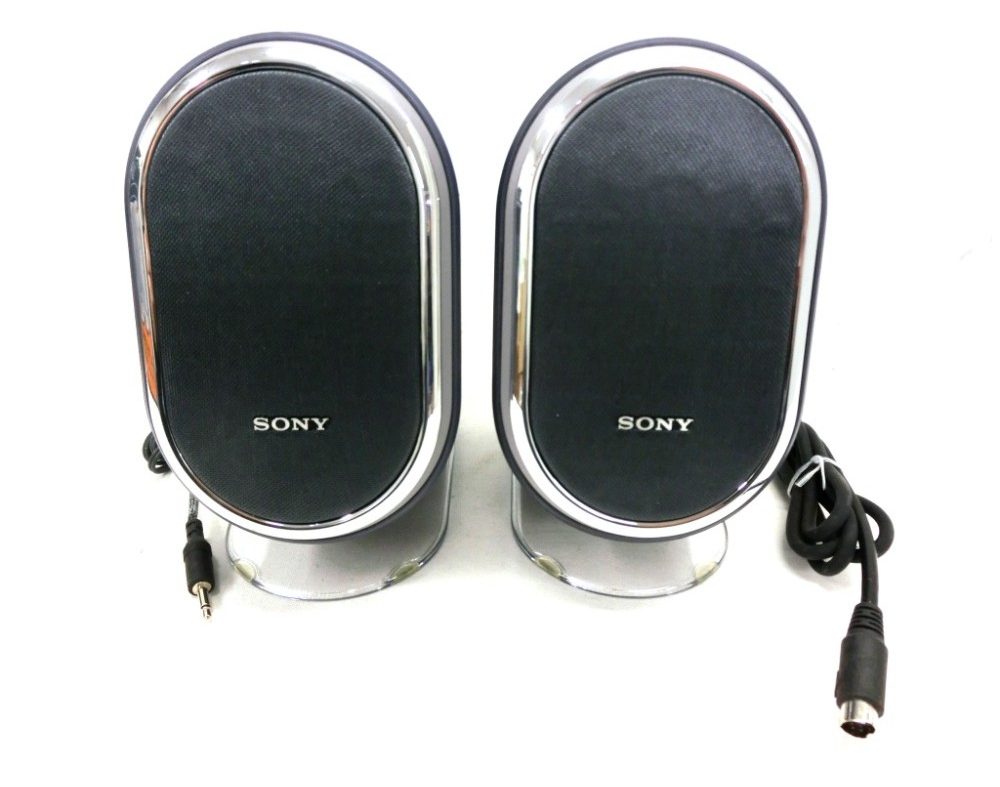

Note that the speaker connector is a proprietary mini-din connector.
The only difference between the LAM-10 and LAM-Z10 is that the LAM-10 is the main unit only.
Recently, support has been added for all LAM Series decks to web minidisc. You can also usePlatinum-MD v 1.2.0 or later to write discs (though it is quite buggy).
Optical Pick-up: KMS-262E
Content adapted from: av.watch LAM-Z10 Official Announcement LAM-Z10 Minidisc.org Page
Manuals
Repair

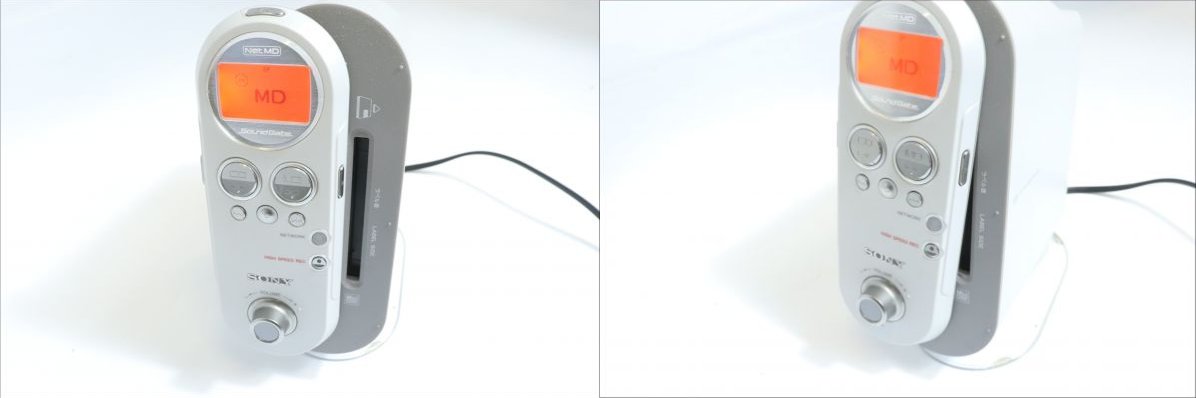

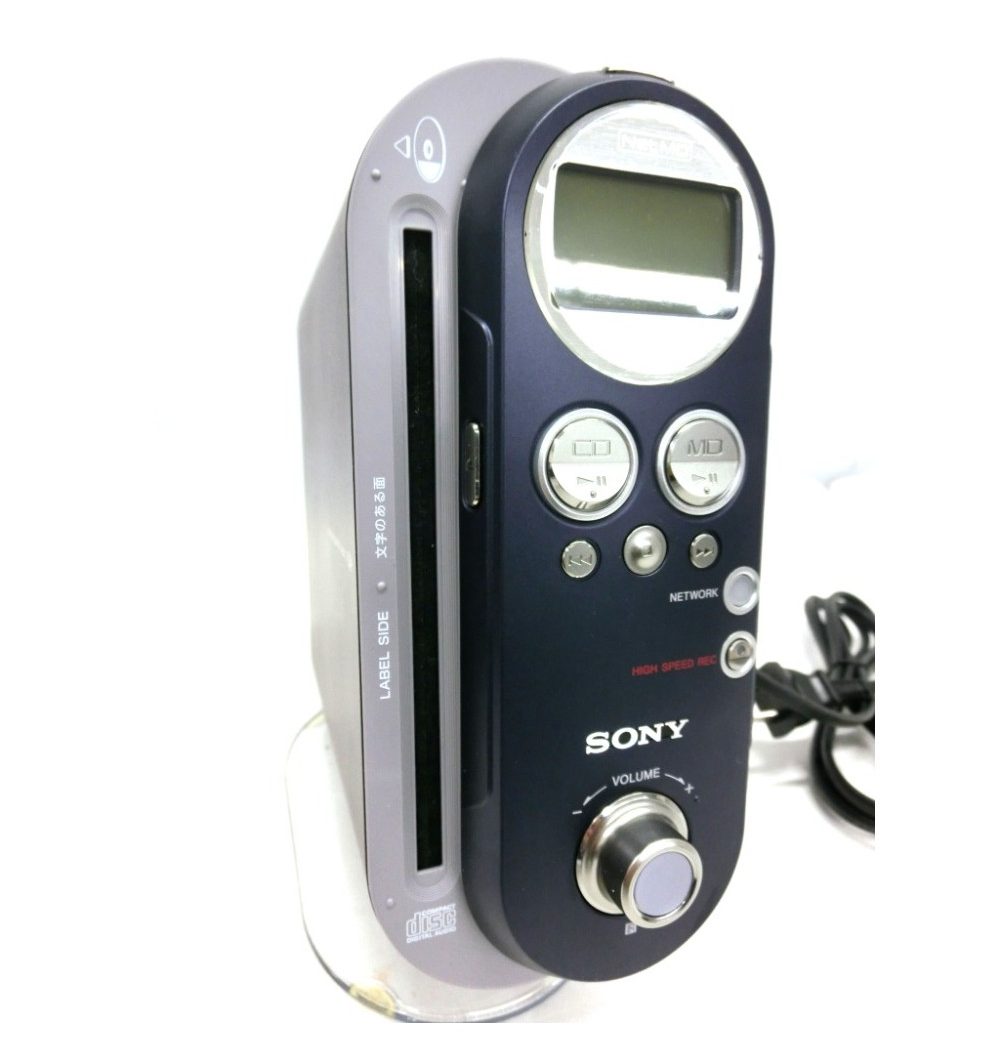

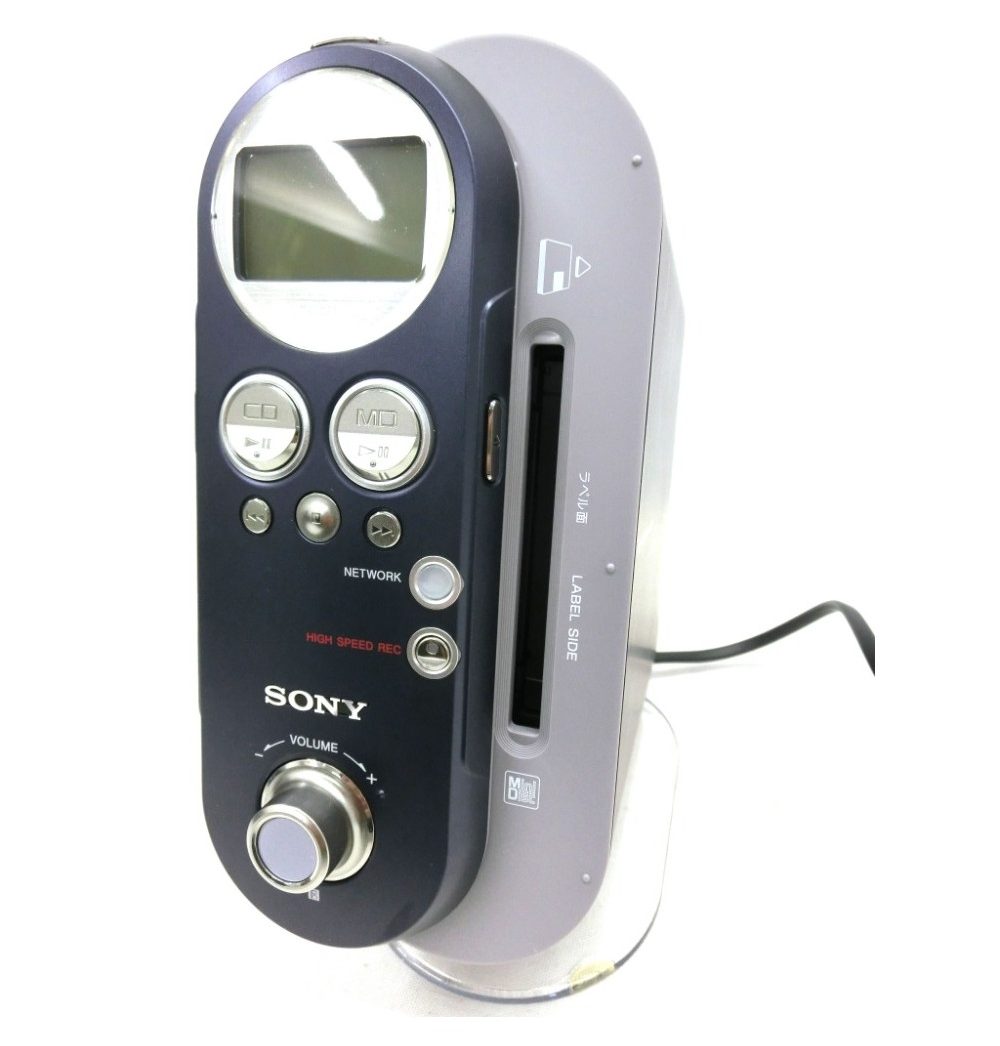

Sliding faceplate
It's fairly common for a plastic pinion gear to split and spin freely on the top of the drive shaft causing the front faceplate to only move sideways from the bottom when exposing the slots for the CD and MD drives. Although an exact replacement doesn't seem to be readily available, there's a possible alternative for sale from places like eBay and Aliexpress.
Replacement gear specs: Brass (original is plastic), 11 tooth, 5.2mm diameter, 0.4 module, 4mm height (original is 3mm).
Another approach, documented here (external site in Japanese), is to cut away part of the larger bottom gear and reuse that as it is the same dimensions as the top one.
If you wish to resin print your own replacement gears instructions can be found here
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
