| Name | NAS-M700HD |
|---|---|
| Manufacturer | Sony |
| Released | 2008/10 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 285 x 143 x 285mm main unit, 150 x 280 x 223mm speaker |
| Weight | 5.6kg main unit, 2.9kg speaker |
| ATRAC ver | Type-S |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥79 800 | |
| - | |

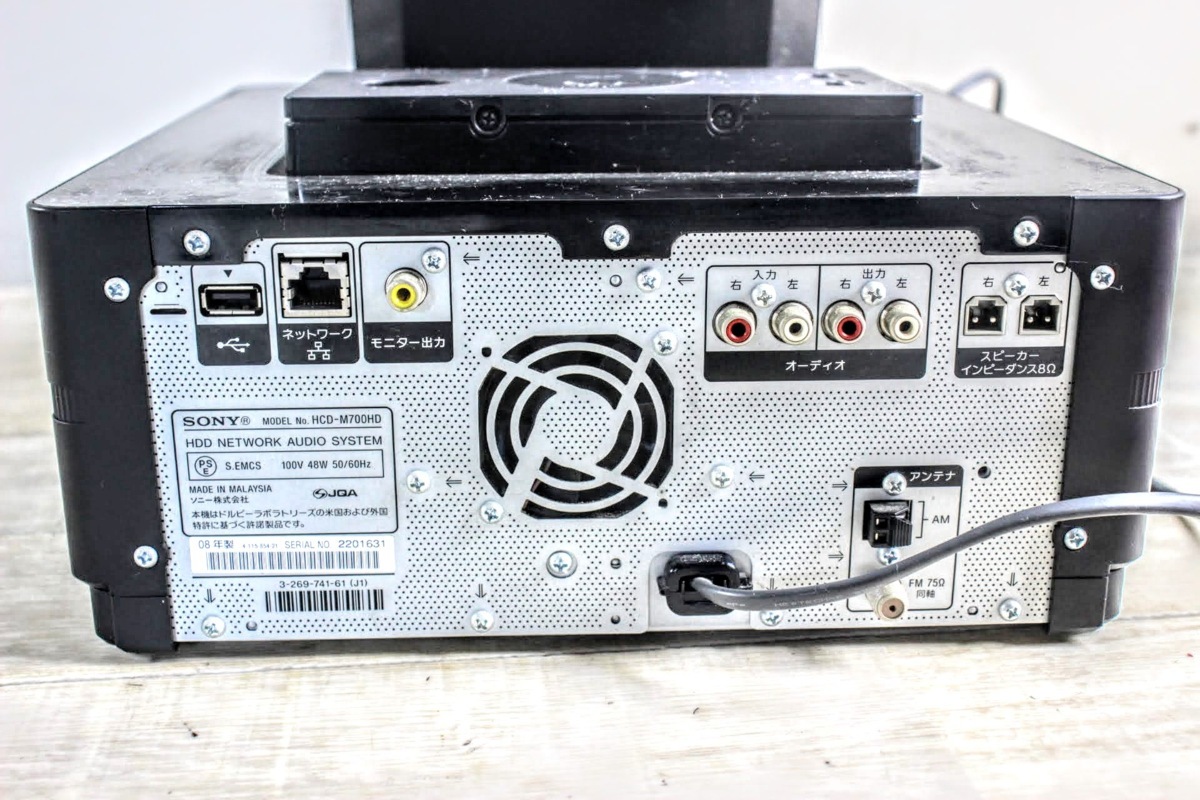

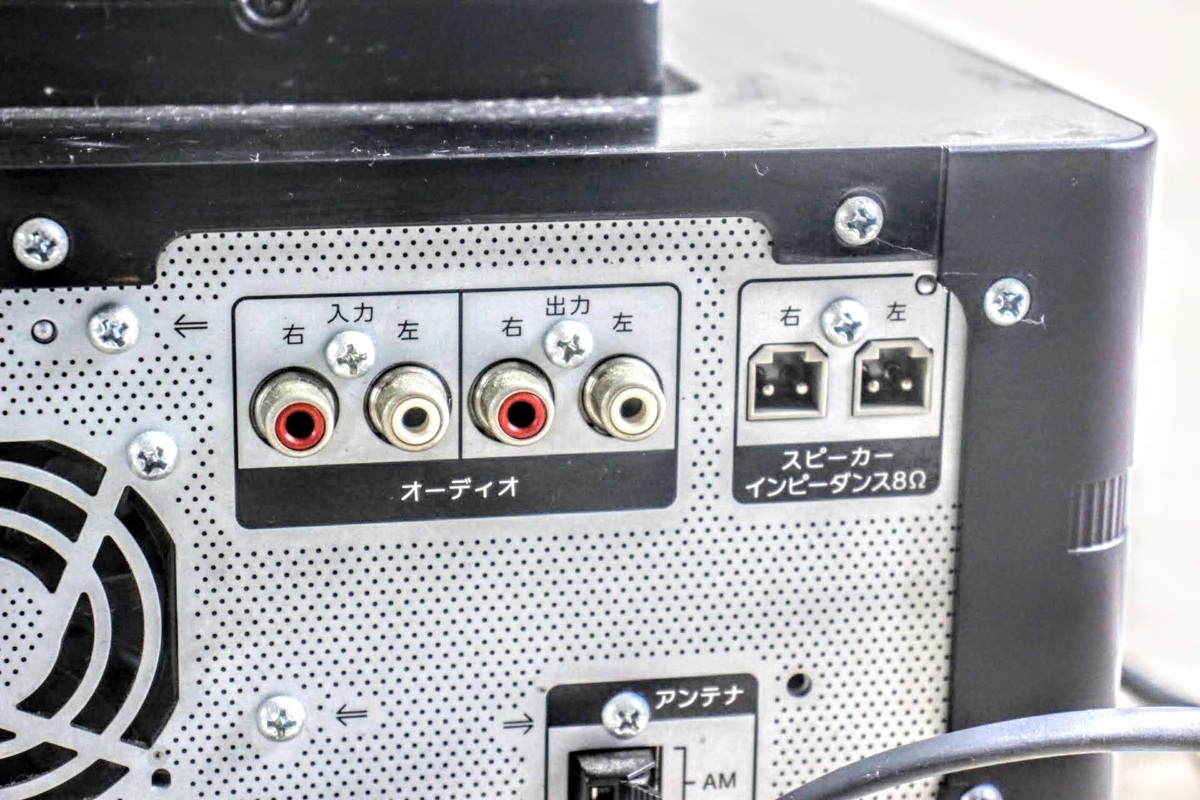

| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording |

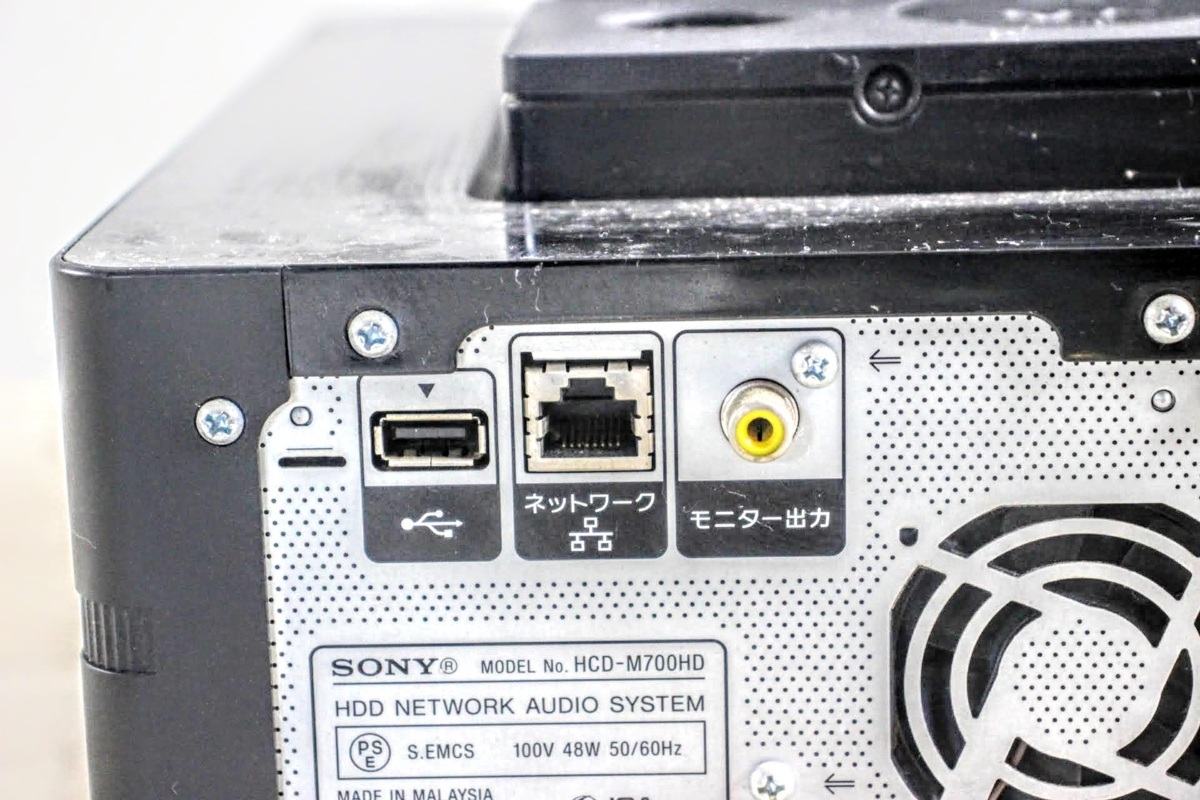

| Outputs | 3.5mm headphone, USB for Network Walkman |
| Control | RJ45 Ethernet, MemoryStick |
Part of the "Netjuke" family, it can import MD music to its 160GB hard drive via an internal analog circuit.

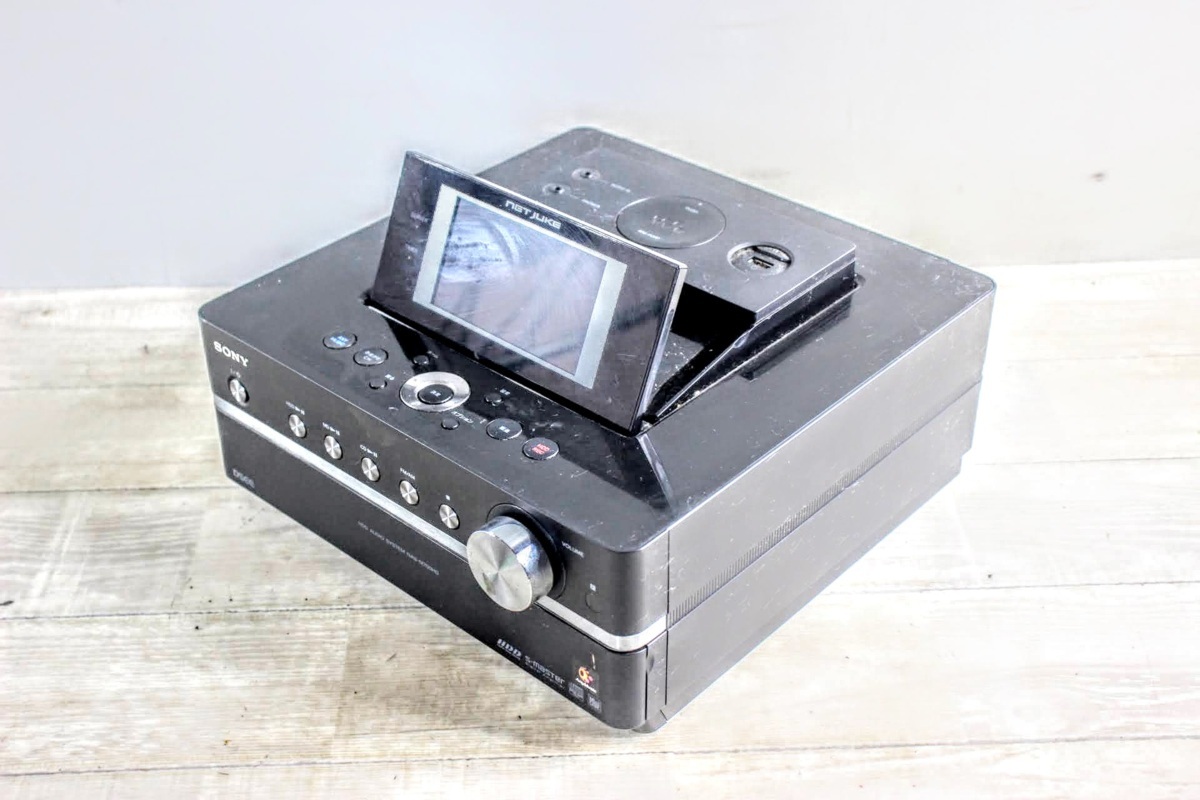

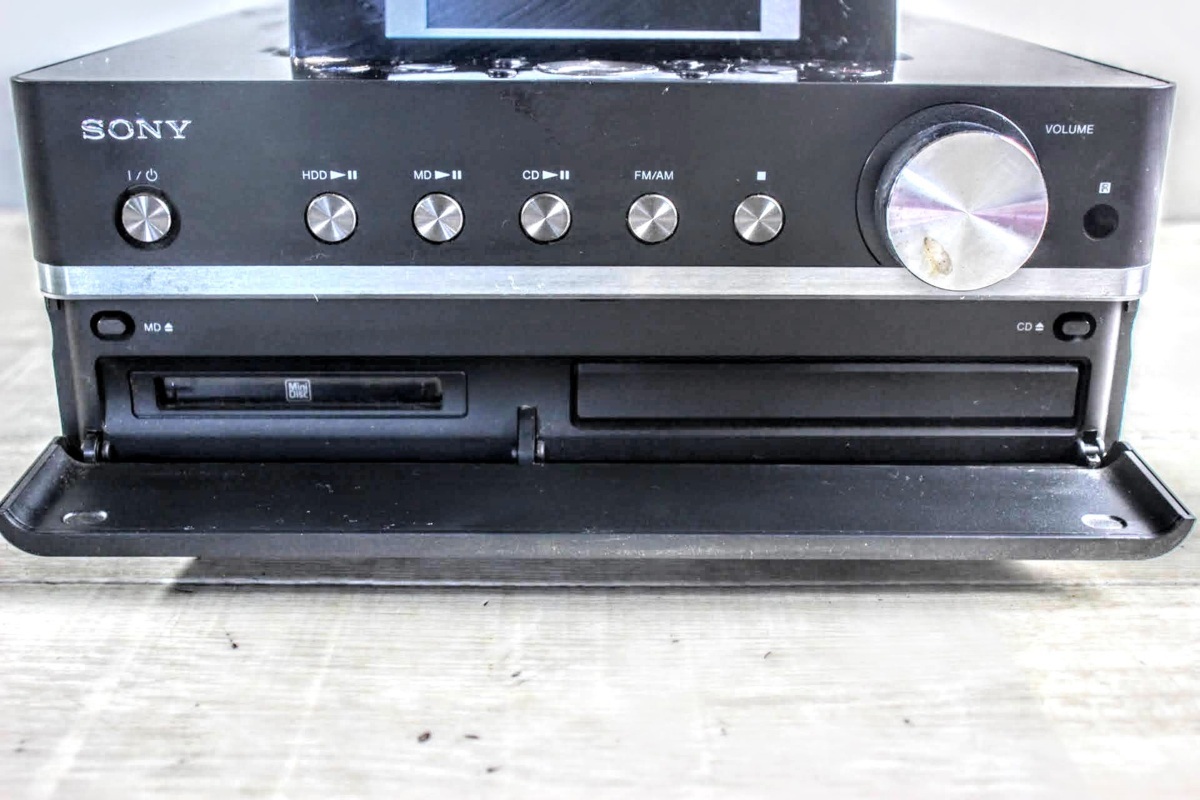

MD, CD, 160GB HDD, AM/FM Tuner device. Also has optional cassette and LP accessories. It has a memory stick slot for transfer of media, and a USB port to transfer music to Walkman devices.
It could also download music from the web, but the service is unlikely to still be functional. It could also set the dial tone of certain AU phones of the time.
Note: the majority of used listings say the MD unit does not work, its MD drive seems to be an unreliable one.
Content adapted from: Sony Specs Page, Kakaku Page(For Release Date) sonystyle page sonystyle page (MiniDisc Wiki mirror)
Manuals
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
