Sony NAS-M70HD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-03-09

Manufacturer
Sony
Model / source grouping
NAS-M70HD
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony NAS-M70HD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name NAS-M70HD
Manufacturer Sony
Released 2006/10
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes - 76-90Mhz
Dimensions 447mm×254mm×282mm
Weight 9900
ATRAC ver Type-S
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥79 800
-
Inputs 3.5mm line in (analog-only), RCA in, CD, Radio recording

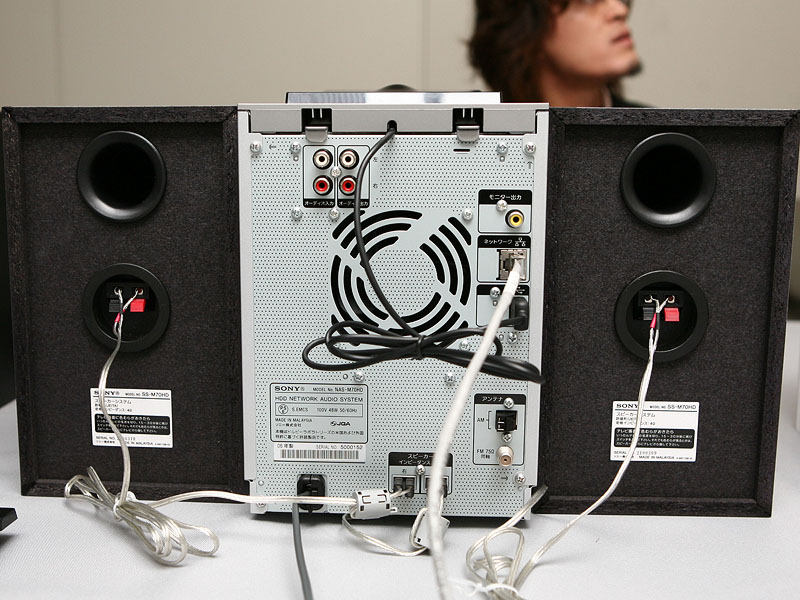

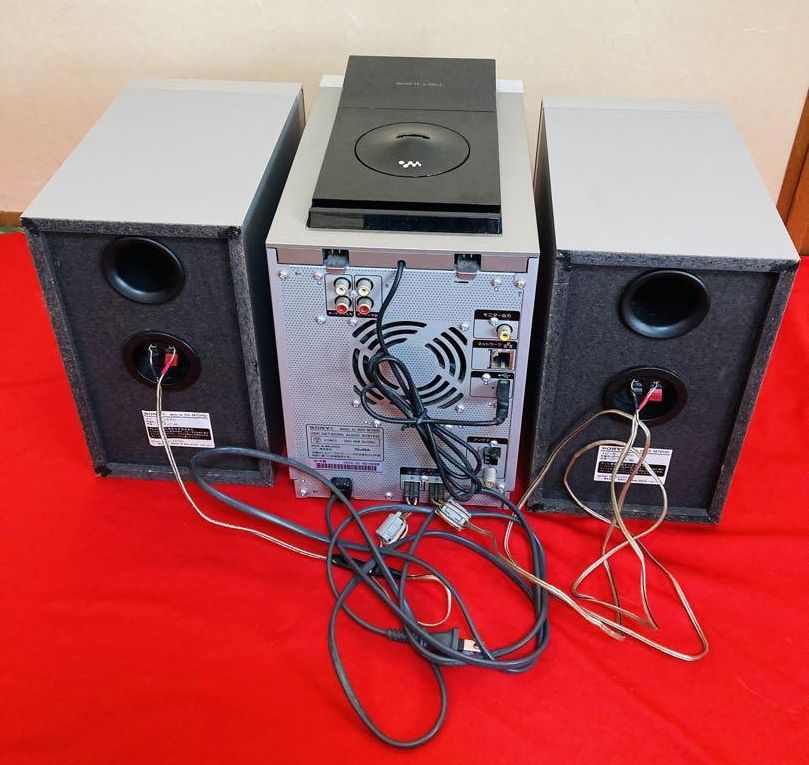

Outputs 3.5mm headphone, RCA out, Speaker amplifier, USB for Network Walkman
Control Not recorded

HDD capacity: 80GB

CD→HDD recording speed - Up to about 16x speed (linear PCM, monitor sound off)

MD→HDD recording speed - Up to about 20x speed (no digital recording conversion, in LP4 mode)

The playback function also uses Sony's unique 12-tone analysis technology, and is equipped with an ``Random Channel'' function that automatically selects playback songs by classifying stored songs into 25 channels based on melody and rhythm.

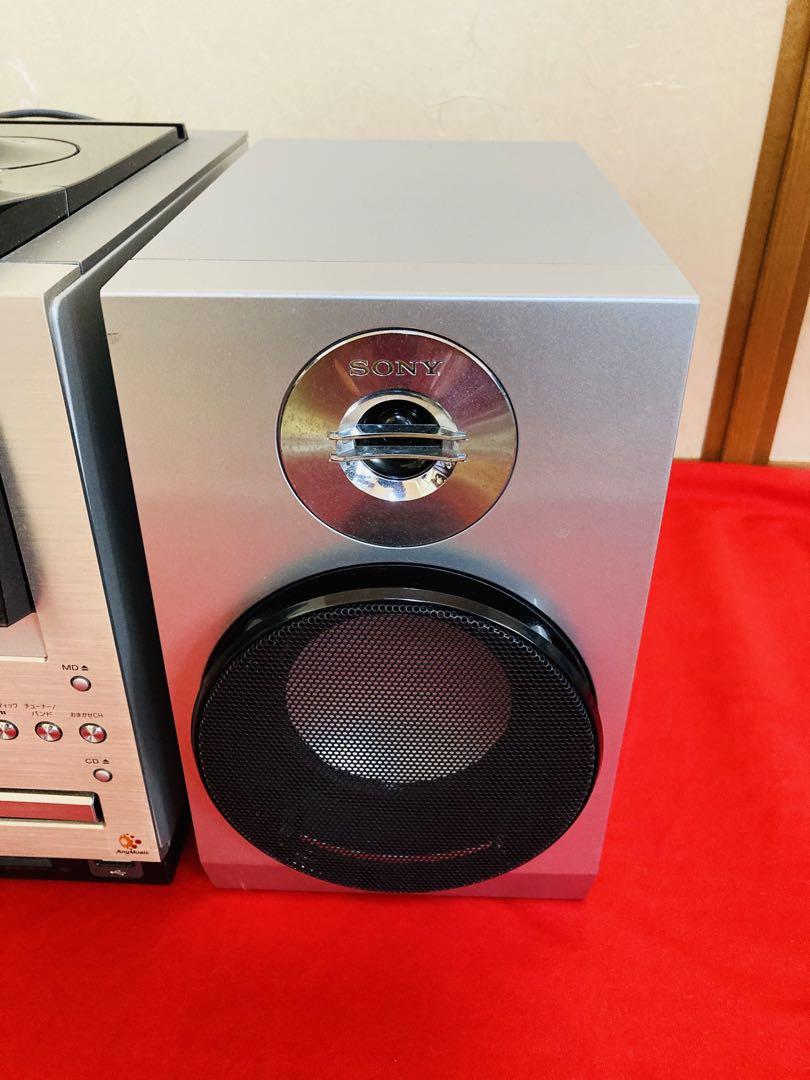

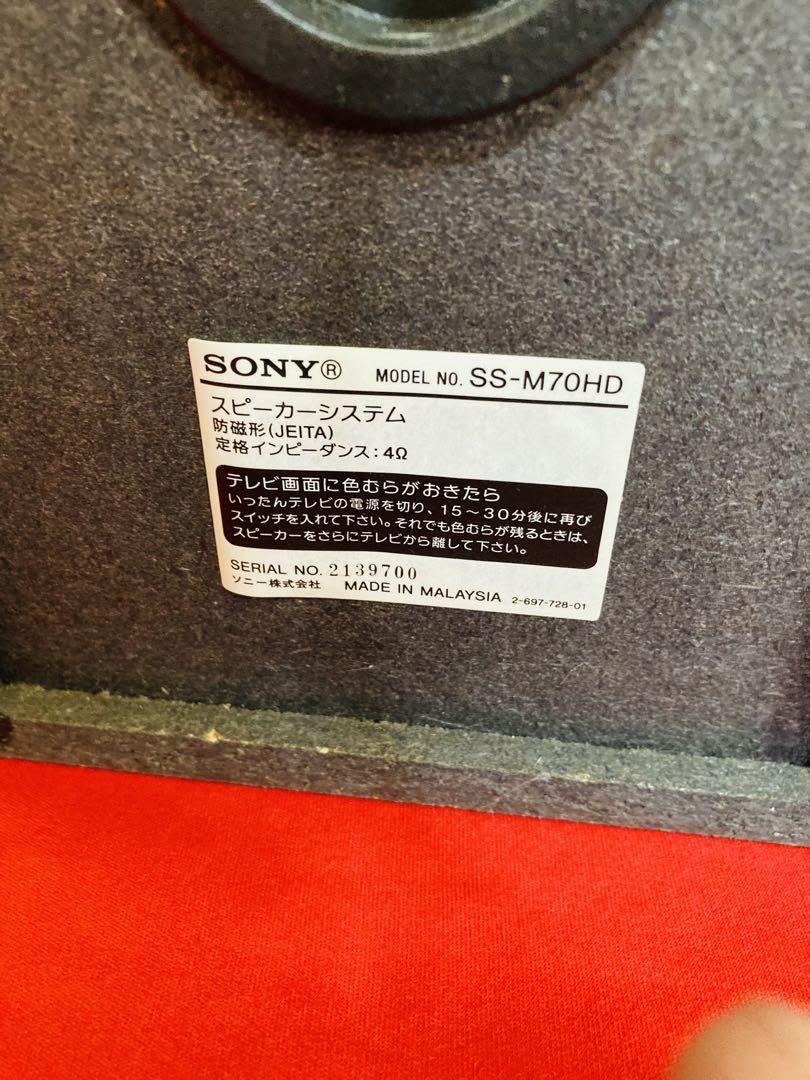

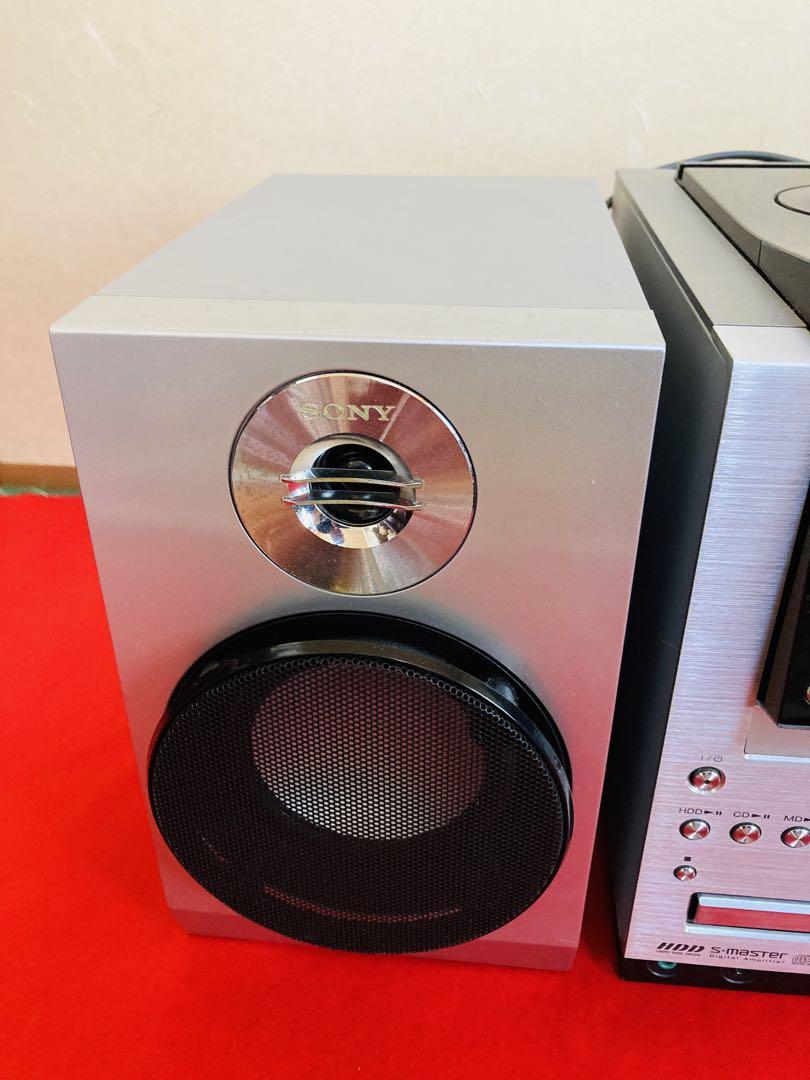

Speakers: W141 x H237 x D238mm
Impedance: 4 ohm
Weight: 2.2kg each

Content adapted from: Sony Press Release AV Watch Press Release AV.Watch 2 Sony Announcement Sony Announcement (MiniDisc Wiki mirror) SonyStyle (pricing) SonyStyle (pricing) (MiniDisc Wiki mirror)

Manuals

Repair

1.5GB compressed dump of the 80GB HD on archive.org

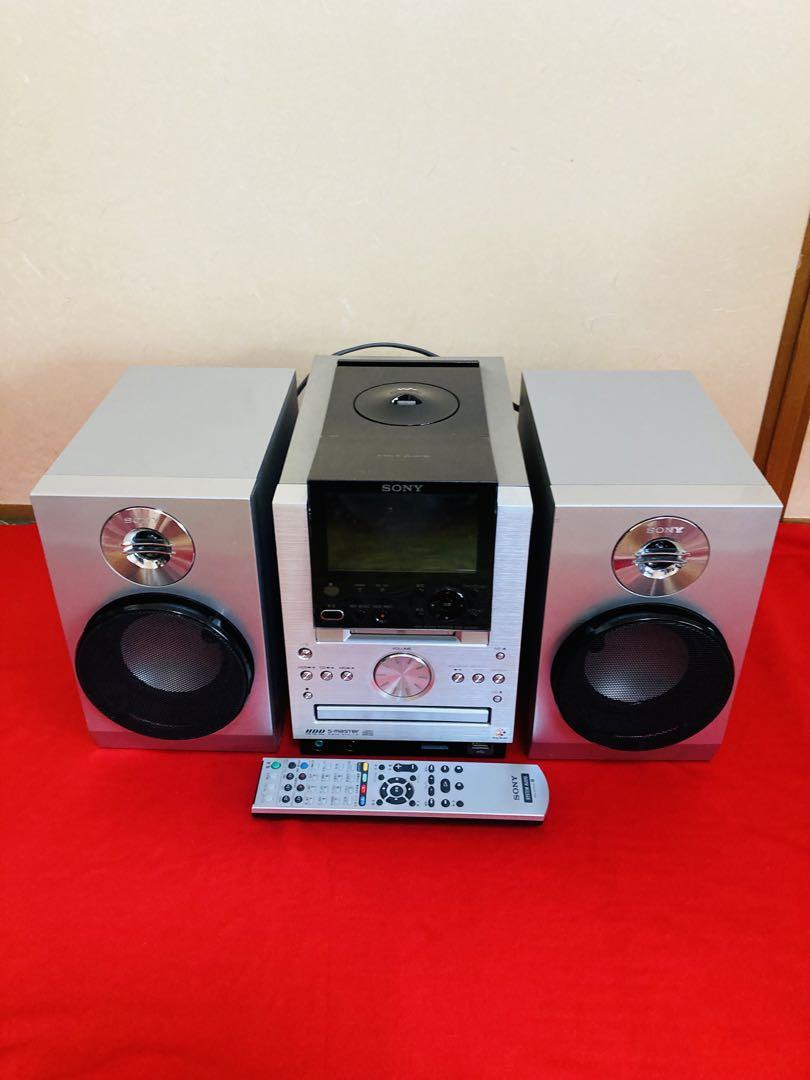

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
Manual
RegionJapan
