| Name | NAS-M7HD |
|---|---|
| Manufacturer | Sony |
| Released | 2005/11 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | Yes |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 155 x 246 x 278.3mm main unit, 140 x 246 x 190mm speaker |
| Weight | 4.9kg main unit, 2.3kg speaker |
| ATRAC ver | Type-S |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥80 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording |
| Outputs | 3.5mm headphone, RCA out |
| Control | USB Mini-B, RJ45 Ethernet, MemoryStick |

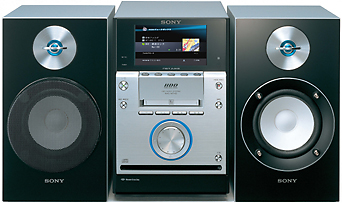

MD, CD, AM/FM Tuner, and HDD capable unit. HDD component can store, listen to, and easily "check-out" up to ~20000 songs.
It has a memory stick slot for transfer of media, and a USB port to transfer music to Walkman devices.
The internal 40GB Seagate HDD is formatted with an MBR partition table and four partitions: 128MB Linux swap 478MB XFS 1.22GB XFS 35.45GB XFS
Content adapted from: Sony Press Release Sony Product Page (archived) Sony Product Page (archived) (MiniDisc Wiki mirror) Sony ecat page Sony ecat page (MiniDisc Wiki mirror) av.watch announcement av.watch review Itmedia.co.jp
Manual
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Teardown
Additional specifications and references
| Web Md | Suspected supported |
|---|---|
| Manual | User manual |
| Region | Japan |
