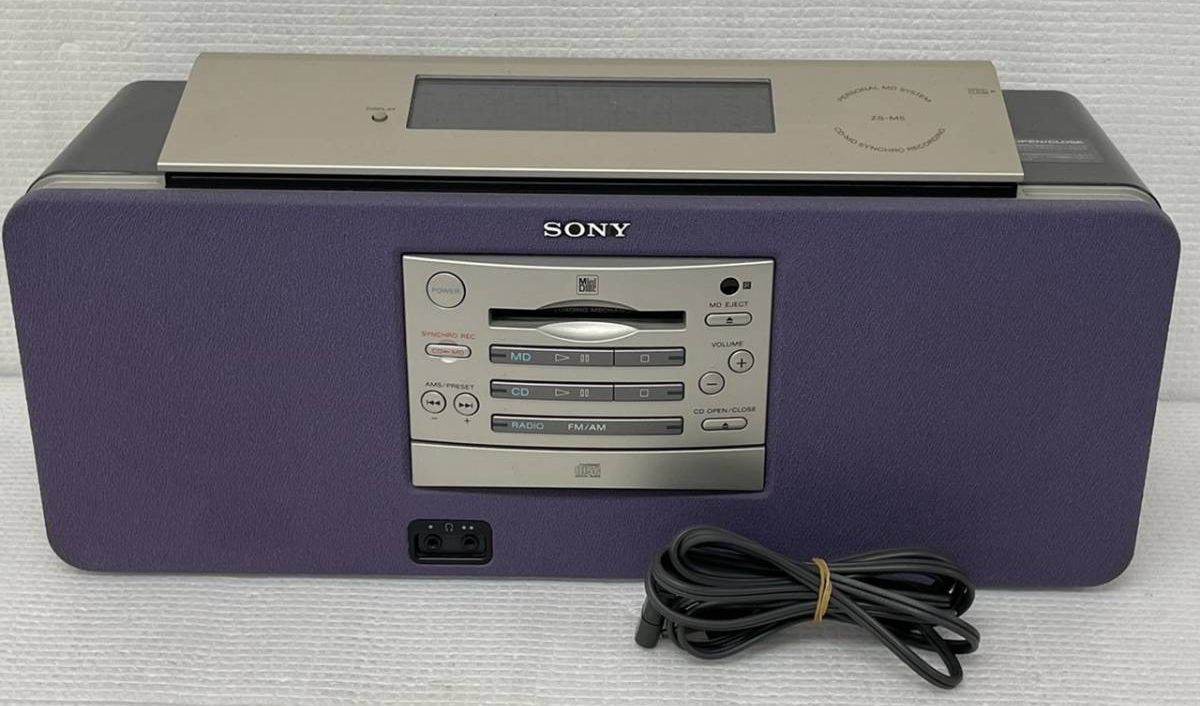

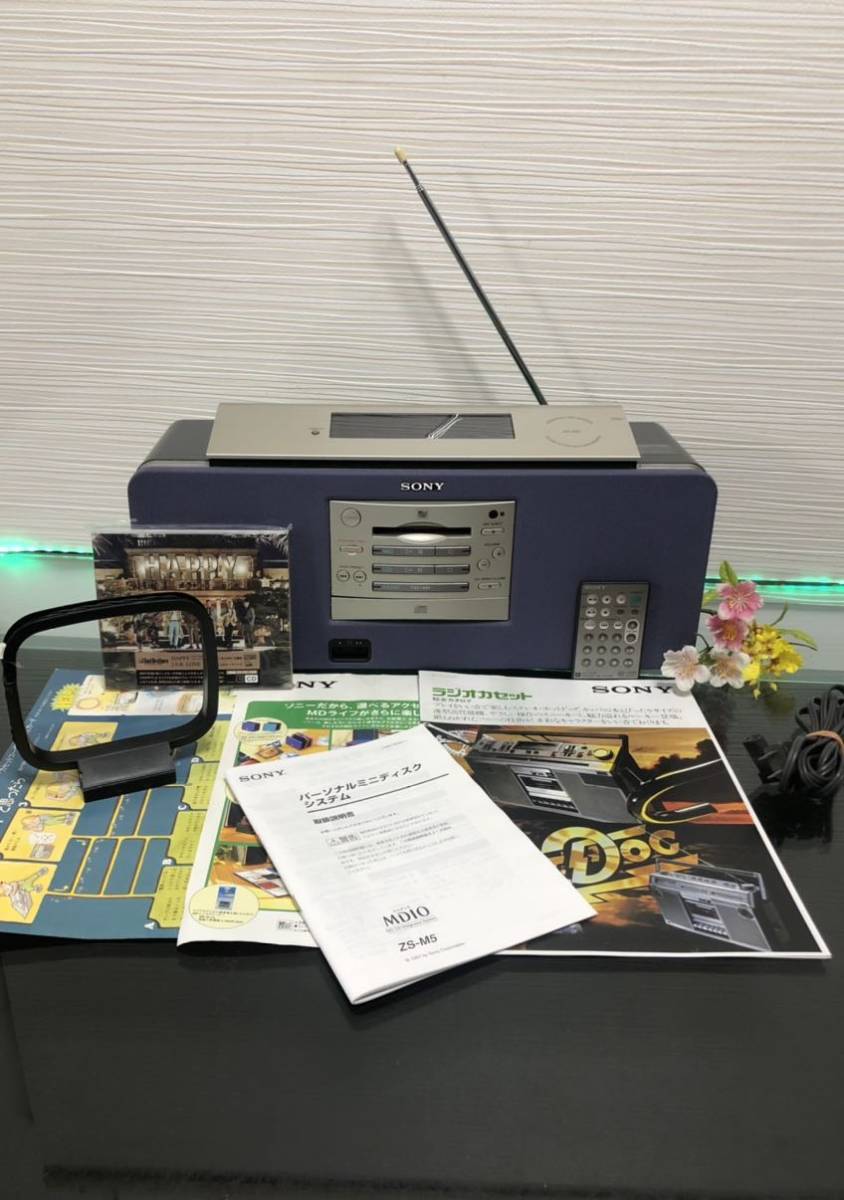

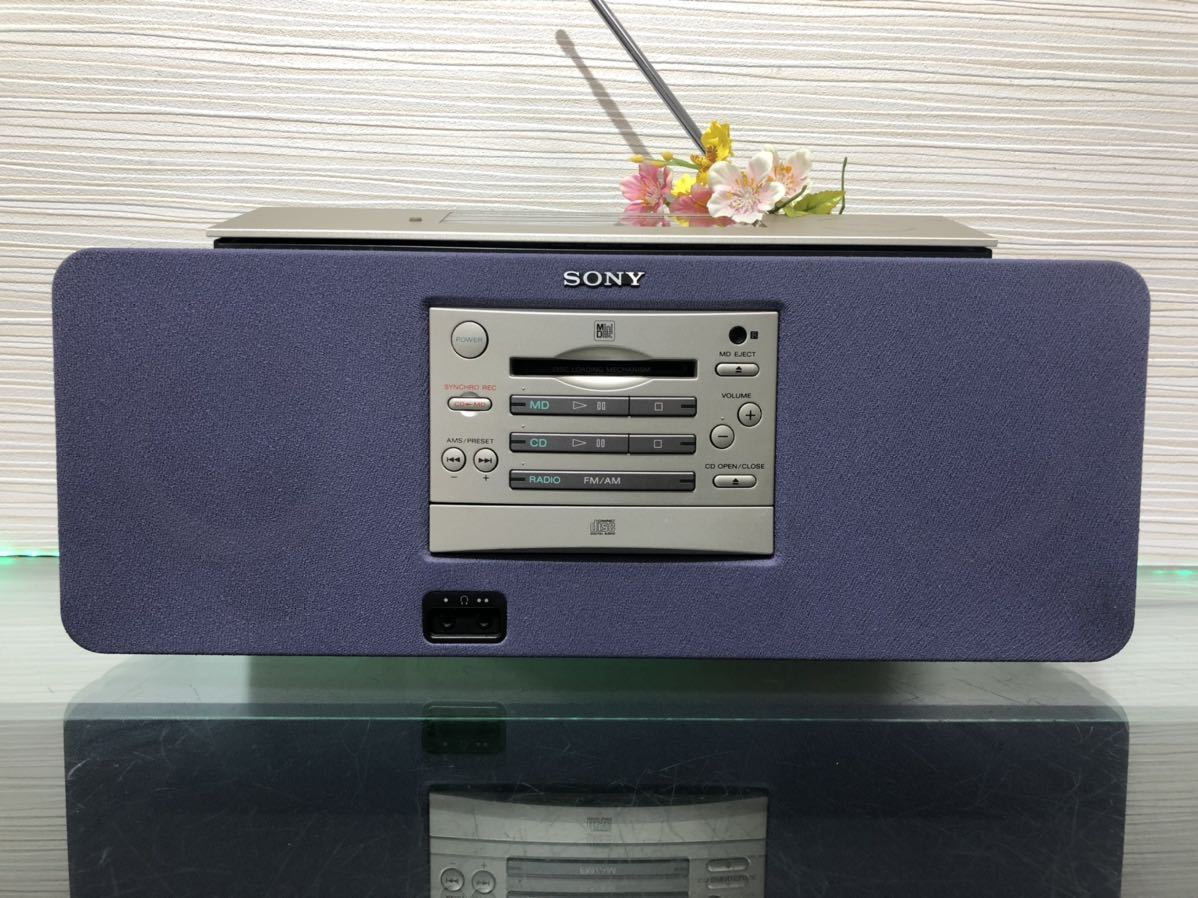

Sony ZS-M5

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-06-18

Manufacturer
Sony
Model / source grouping
ZS-M5
Device type
boombox
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony ZS-M5”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name ZS-M5
Manufacturer Sony
Released 1997/04
Device type boombox
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Not recorded

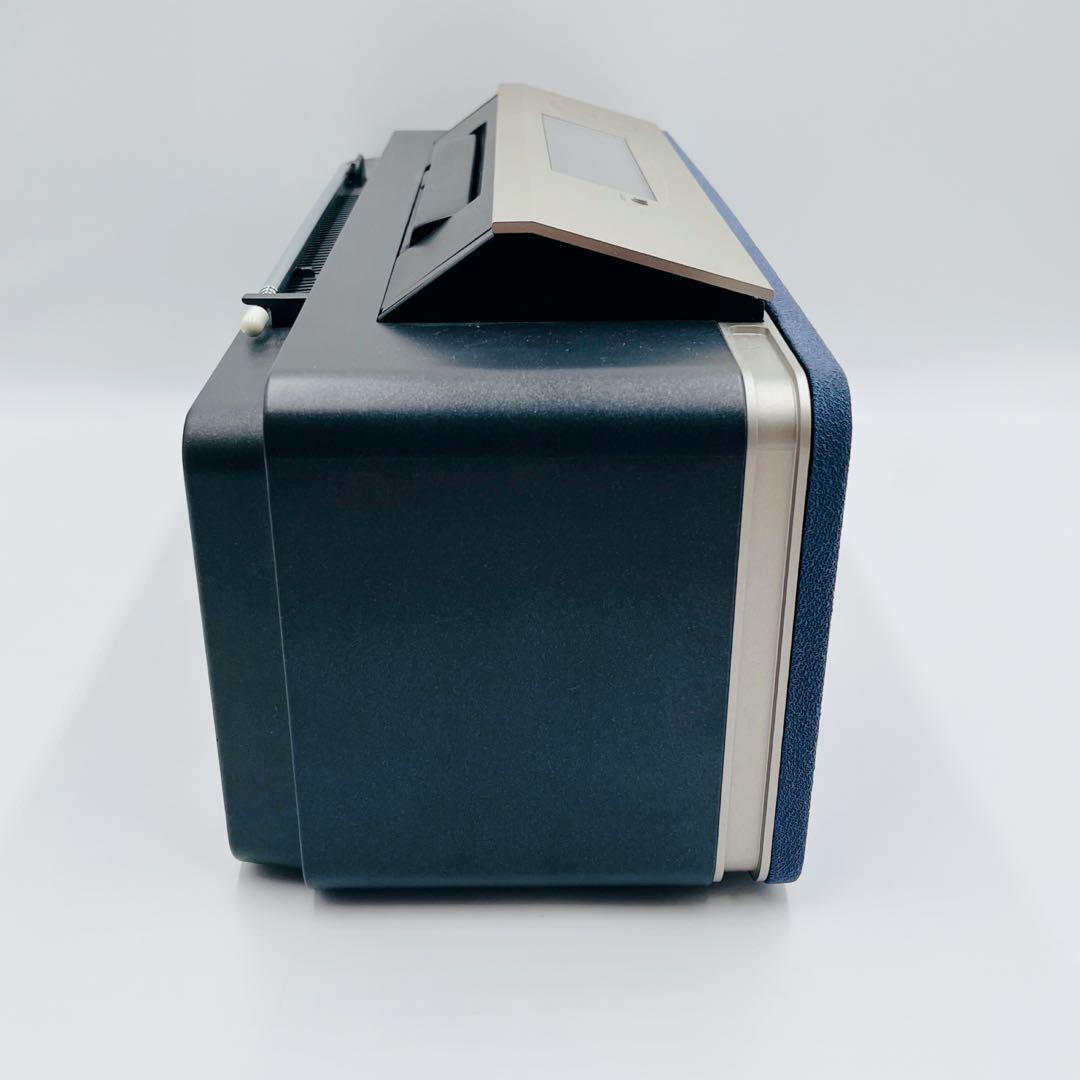

Dimensions 440 x 200 x 178mm
Weight 6200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100

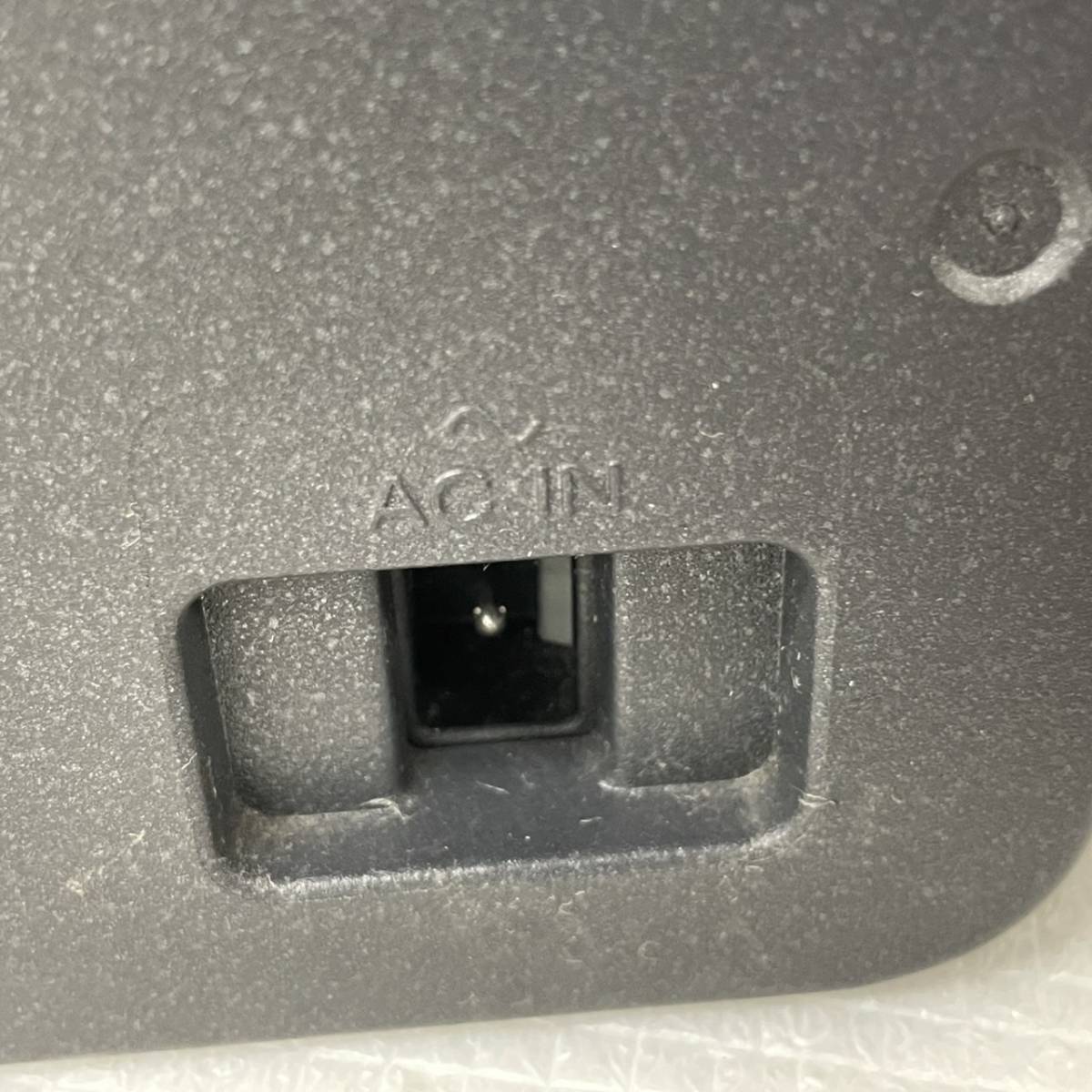

Power cable AC
Price (launch) Not recorded
¥62 000
-

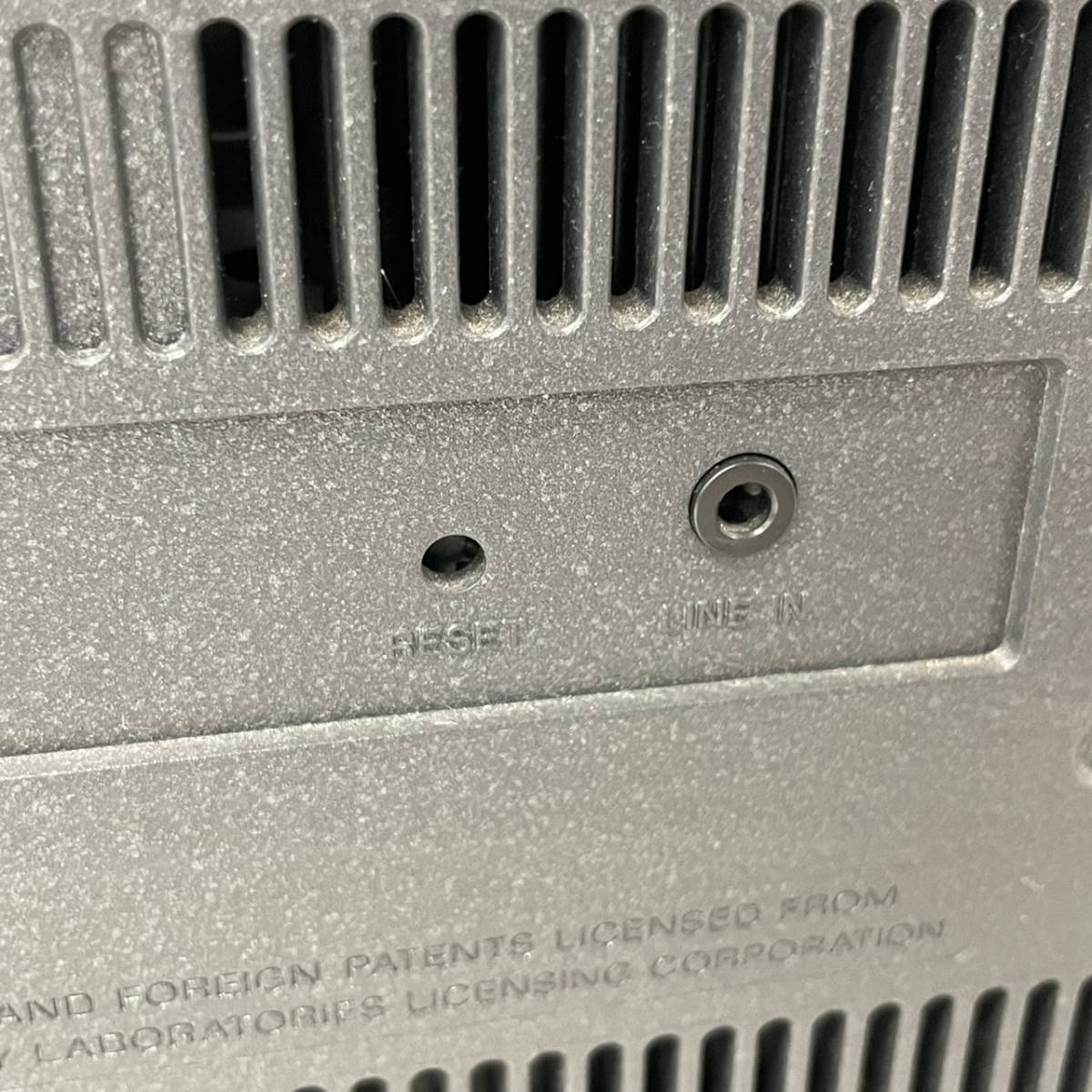

Inputs 3.5mm line in (analog-only), CD, Radio recording
Outputs 3.5mm headphone, Built-in speaker
Control Not recorded

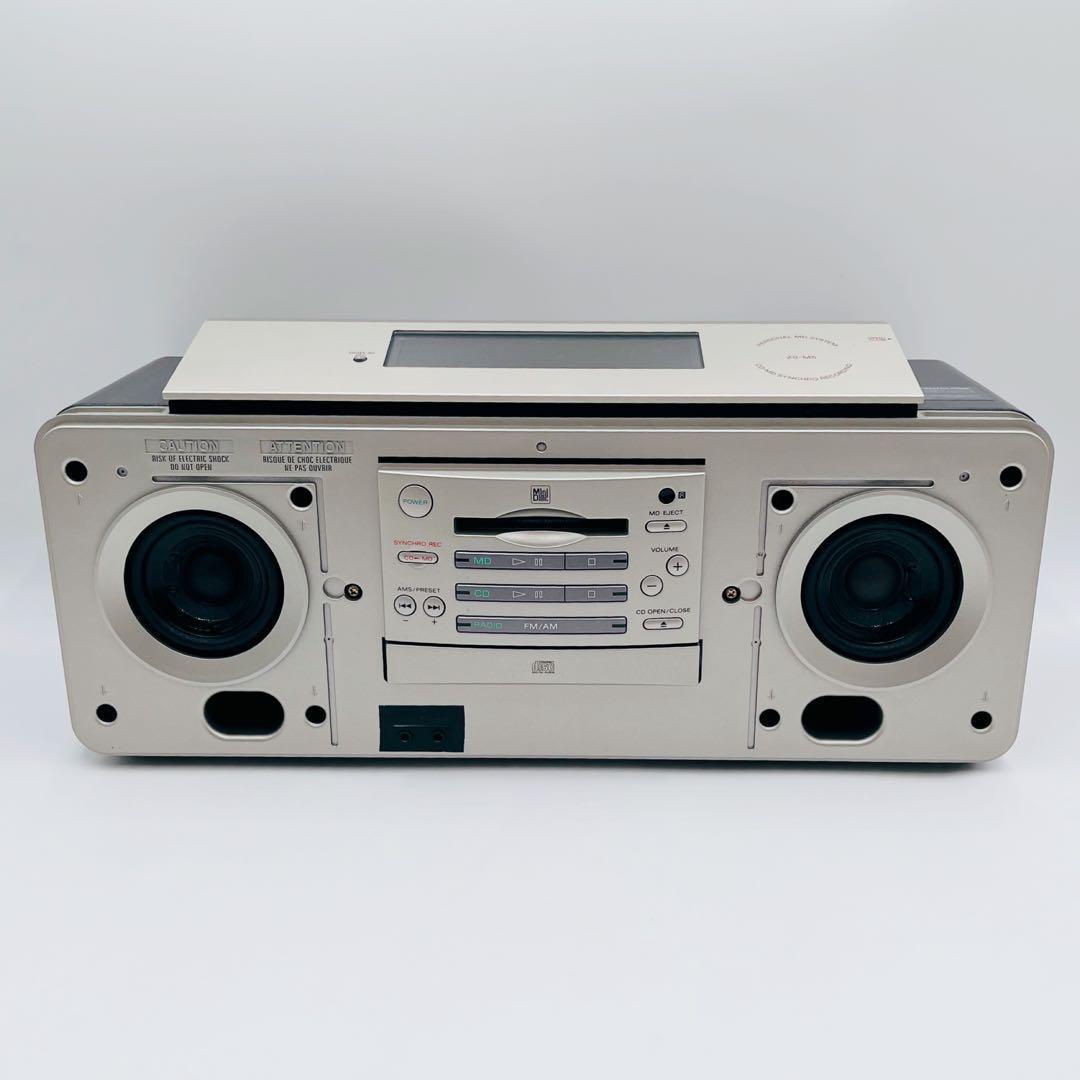

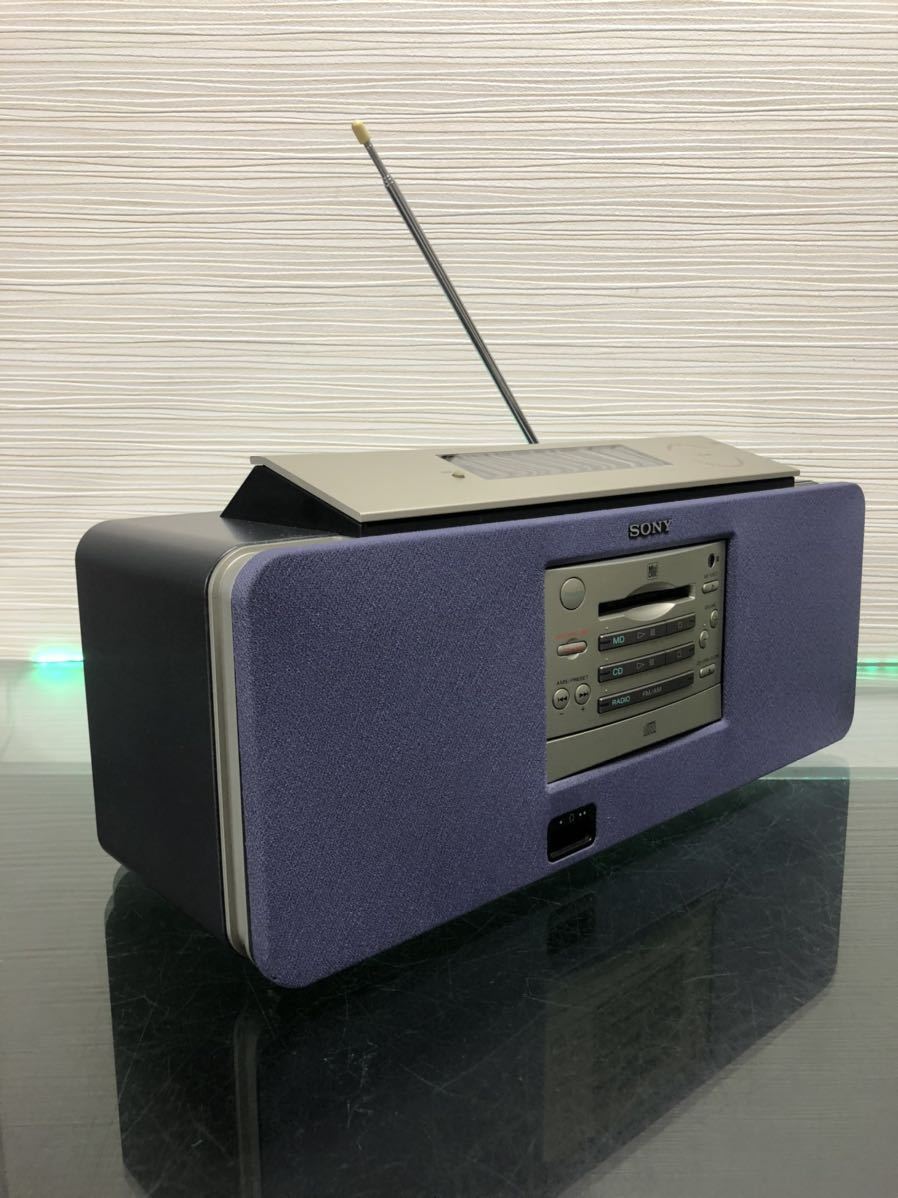

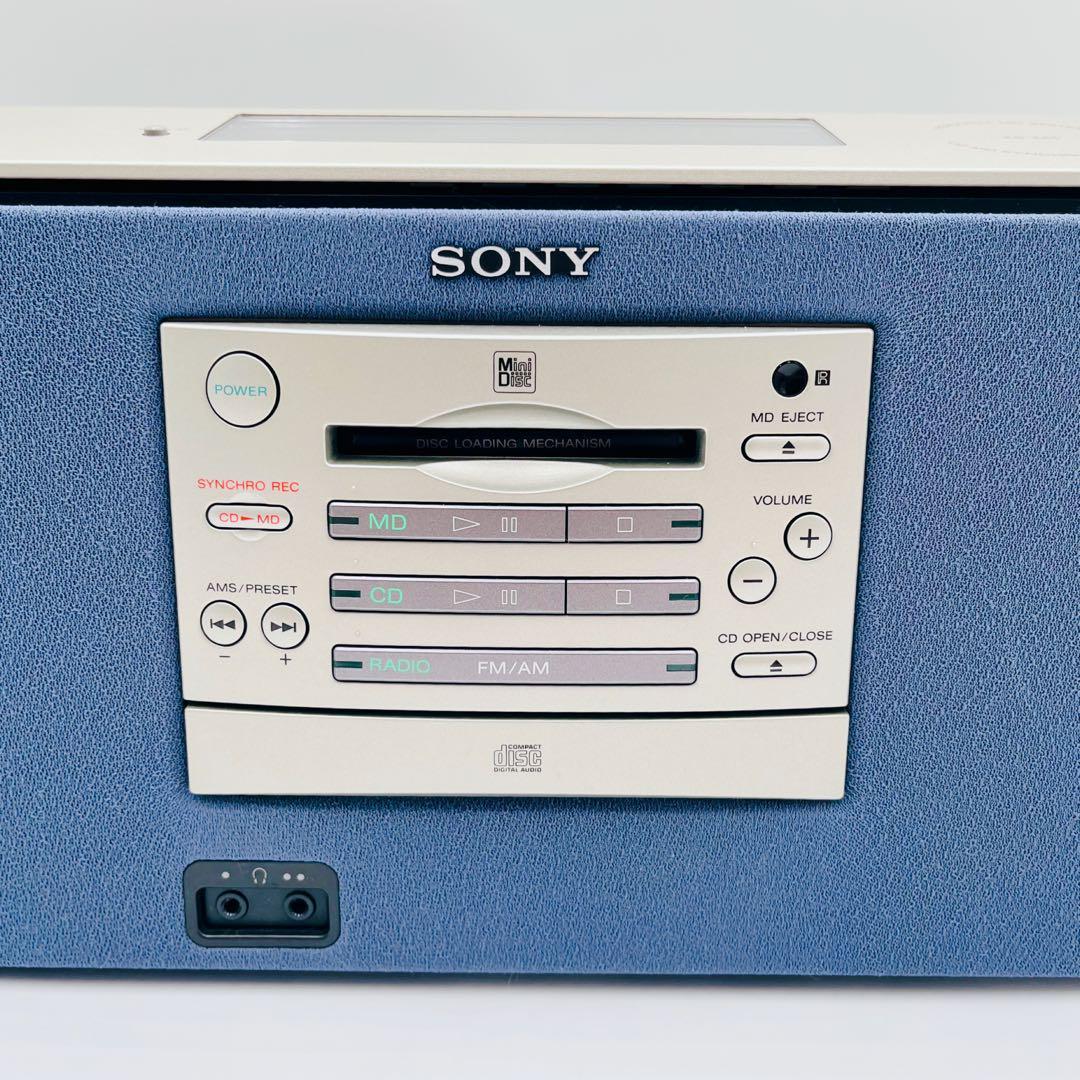

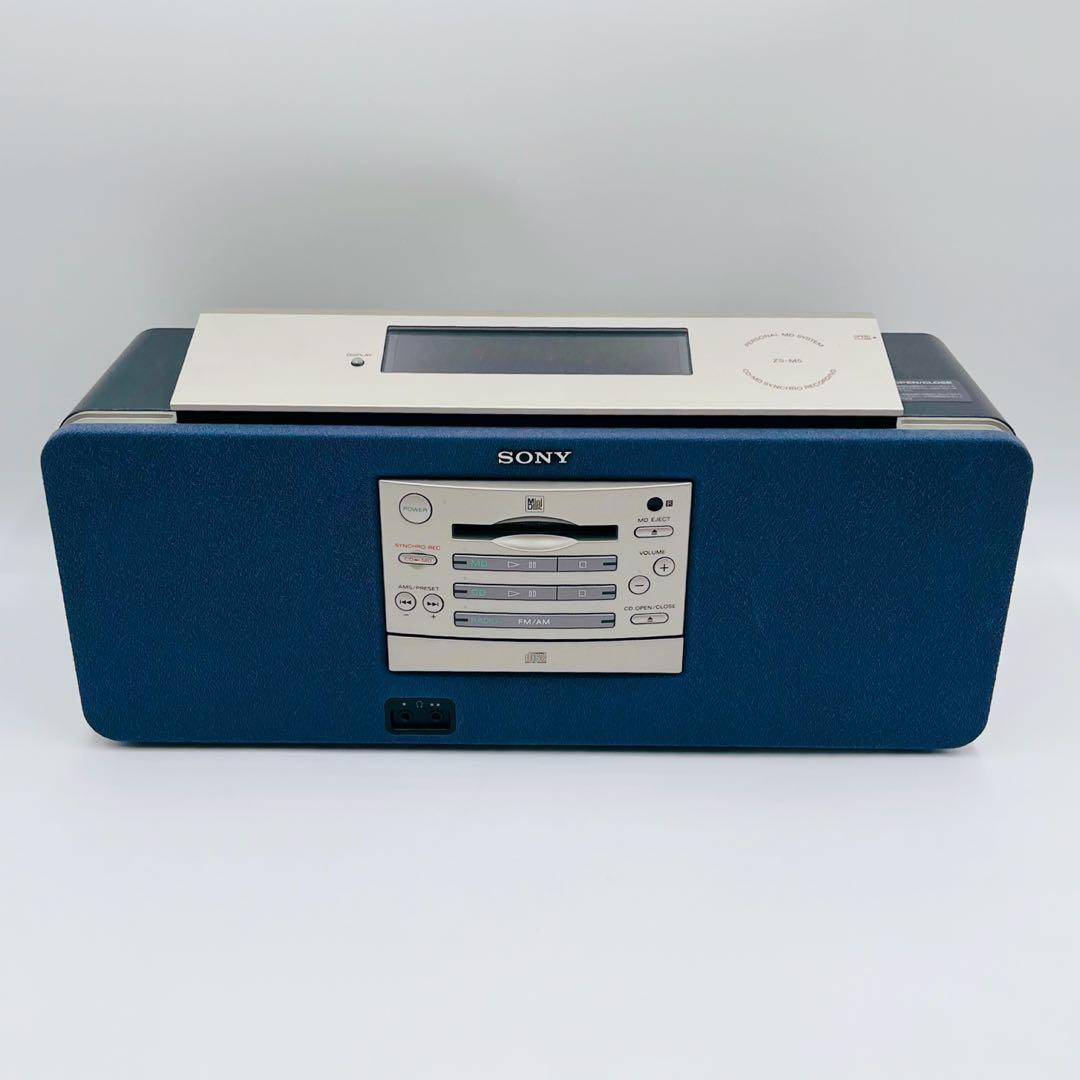

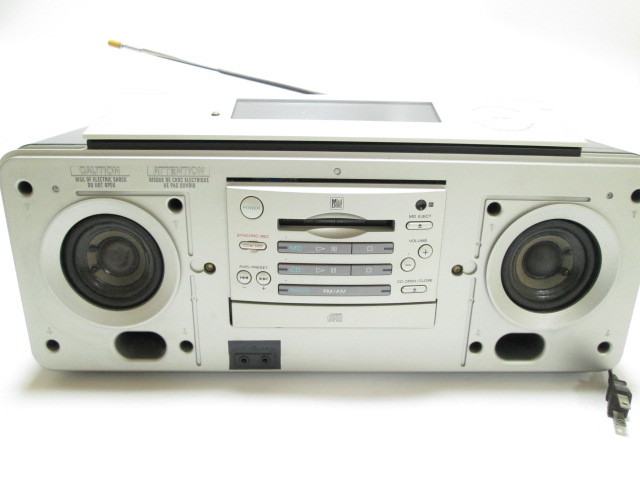

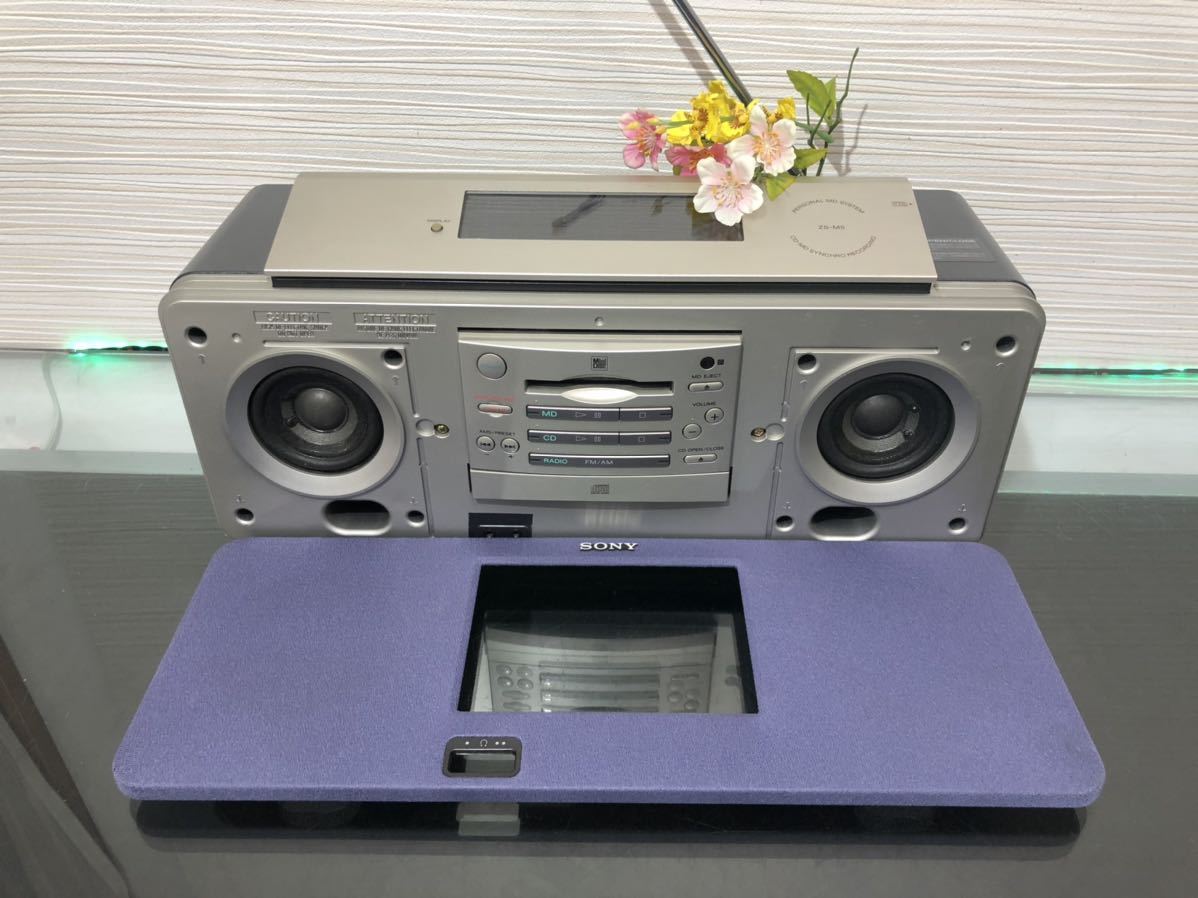

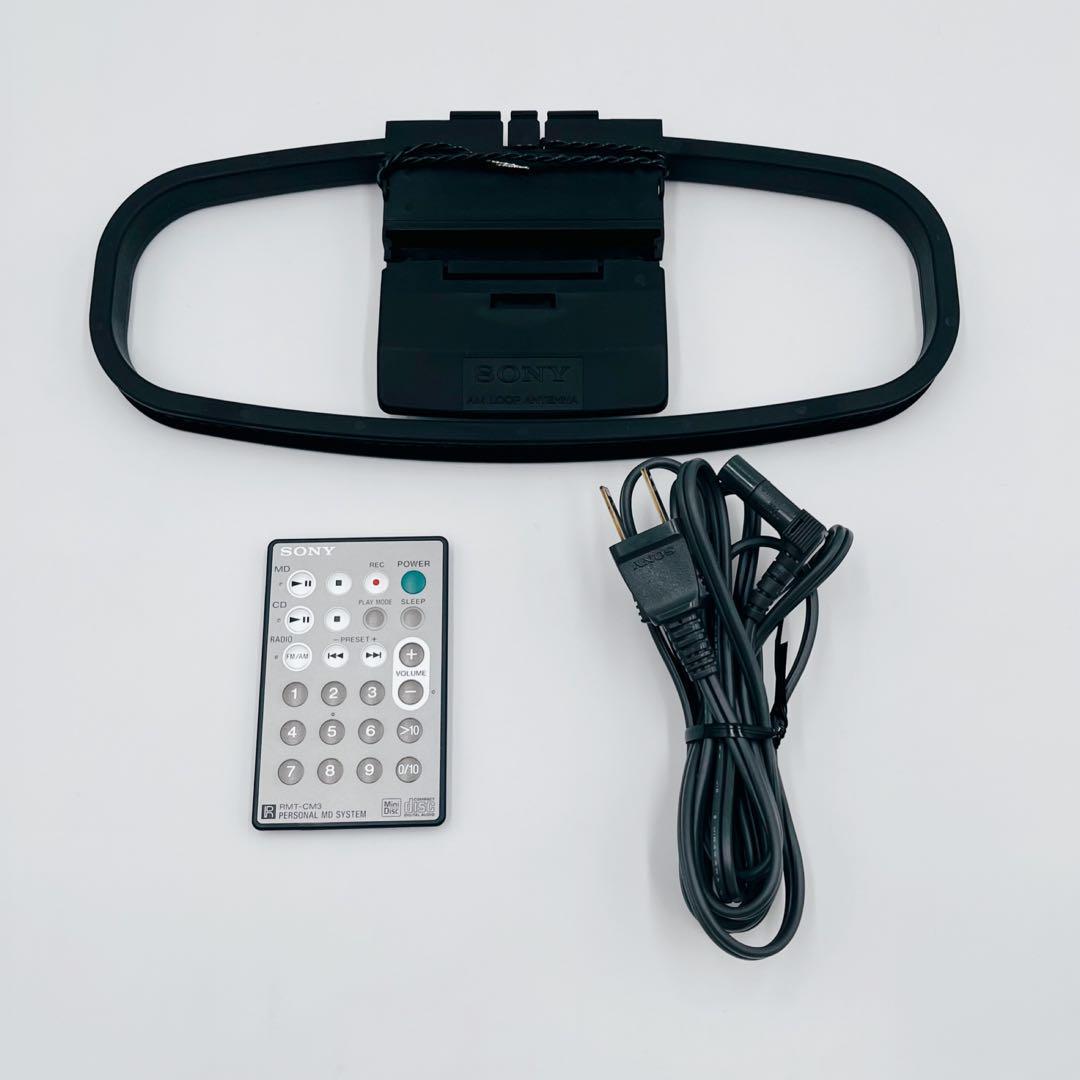

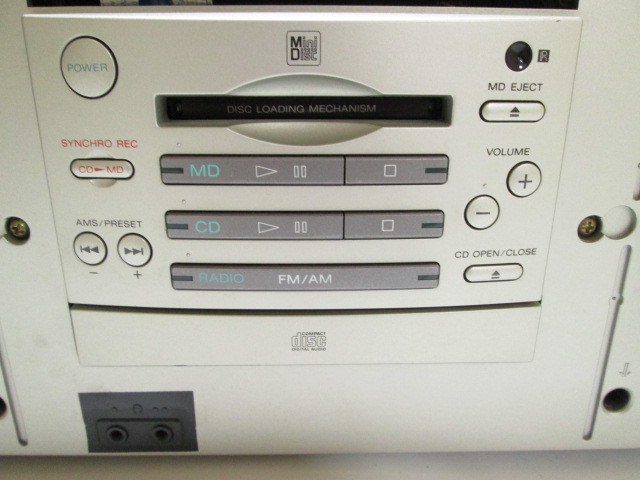

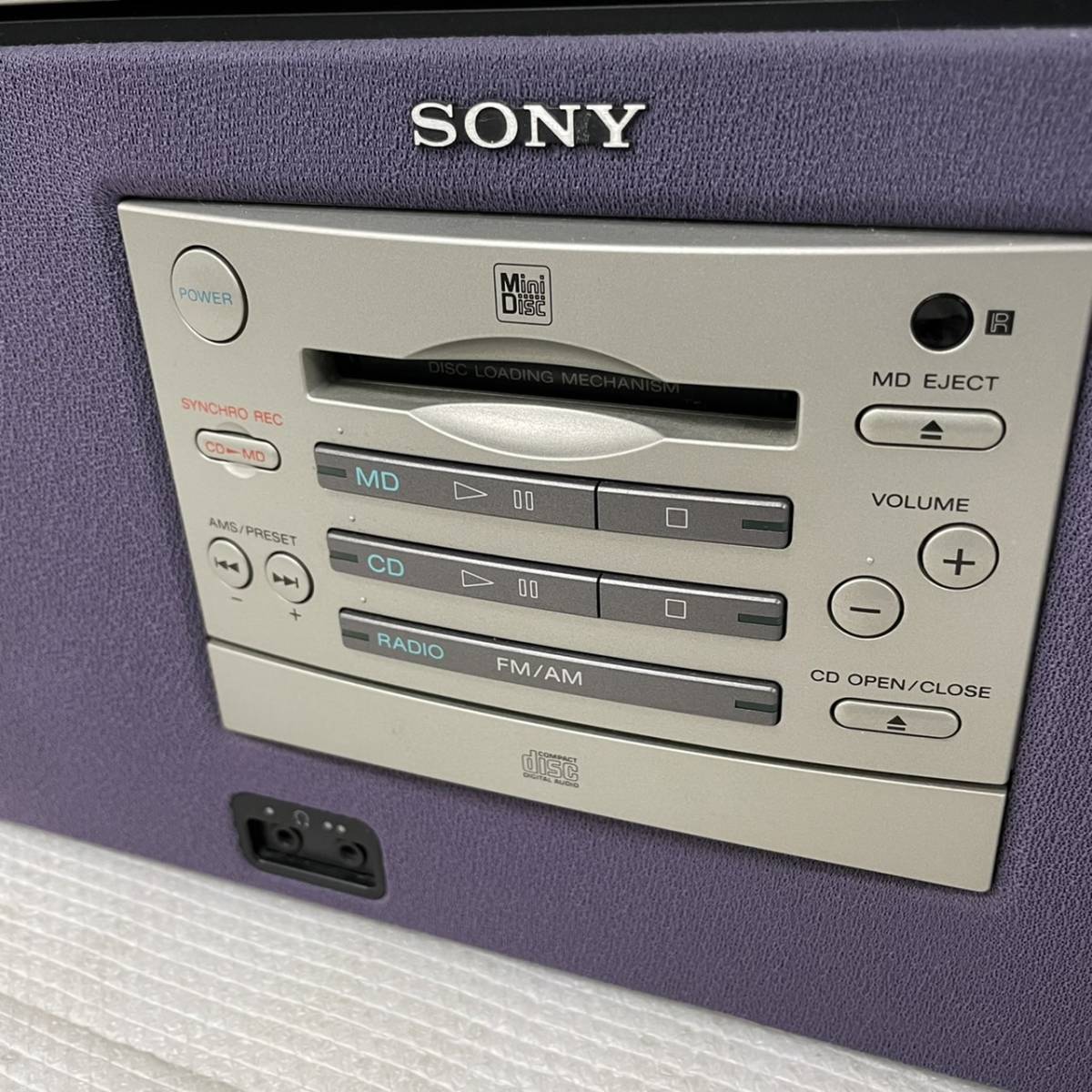

Features: Similar to ZS-M3: Radio/MD/CD boombox. CD→MD digital recording (one touch recording and edit (program) recording). CD: shuffle play, program play (up to 20 songs), 1/all repeat, music calendar. MD play mode: shuffle play, program play (up to 20 songs), 1/all repeat, music calendar. All normal editing functions done with separate divide/ combine/ move/ erase/ name buttons, katakana titling input. Tuner: 12 AM/FM presets, AM stereo/FM stereo/TV VHF mono (Japanese ch. 1-3), Auto station name display "A.B.I." (Japan only?). Timer: clock/timer, sleep function, timer/sleep sound power setting(?), timer start. Mega bass, full range 8cm cone speaker. 7w+7w, power consumption: 30w, 100VAC. Remote included.

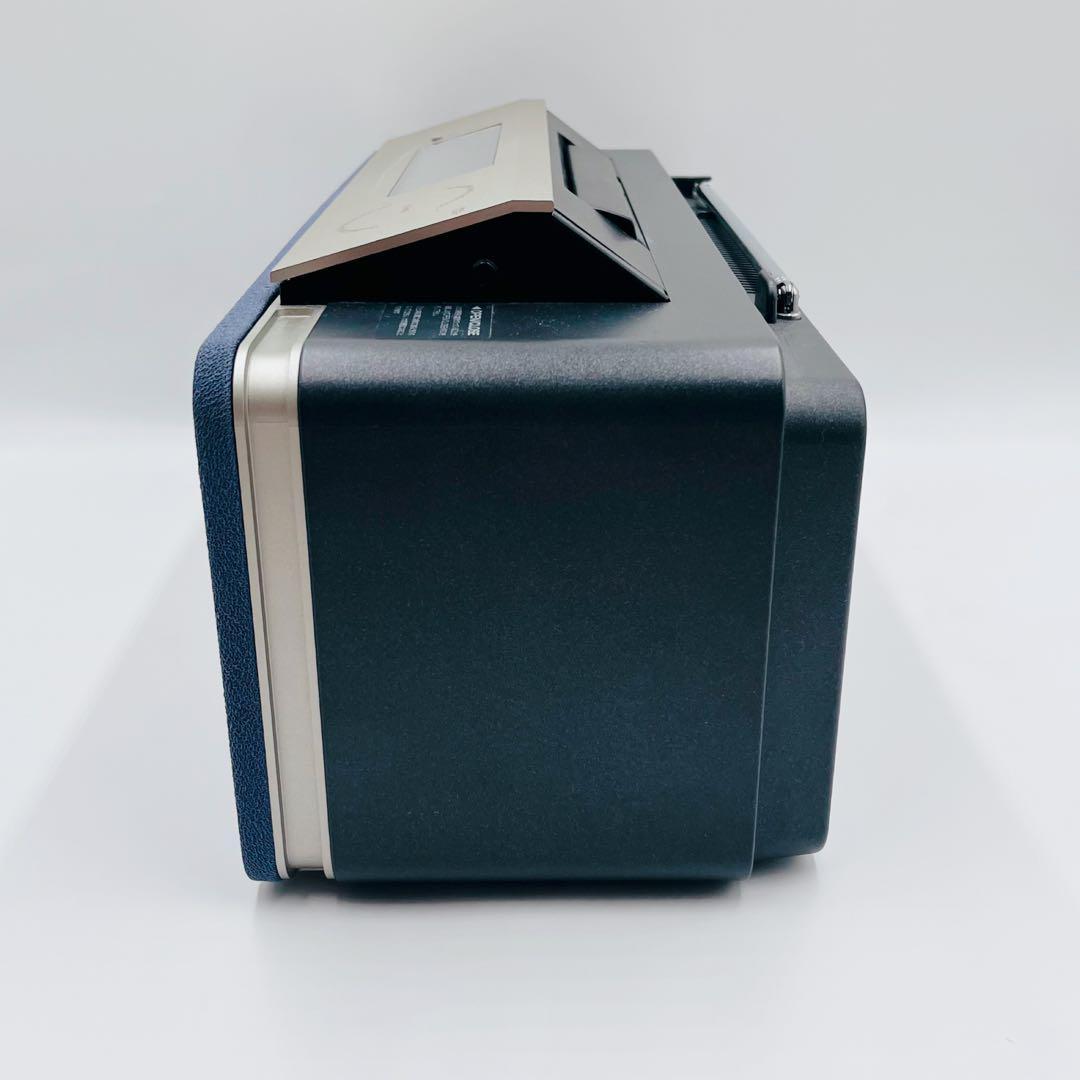

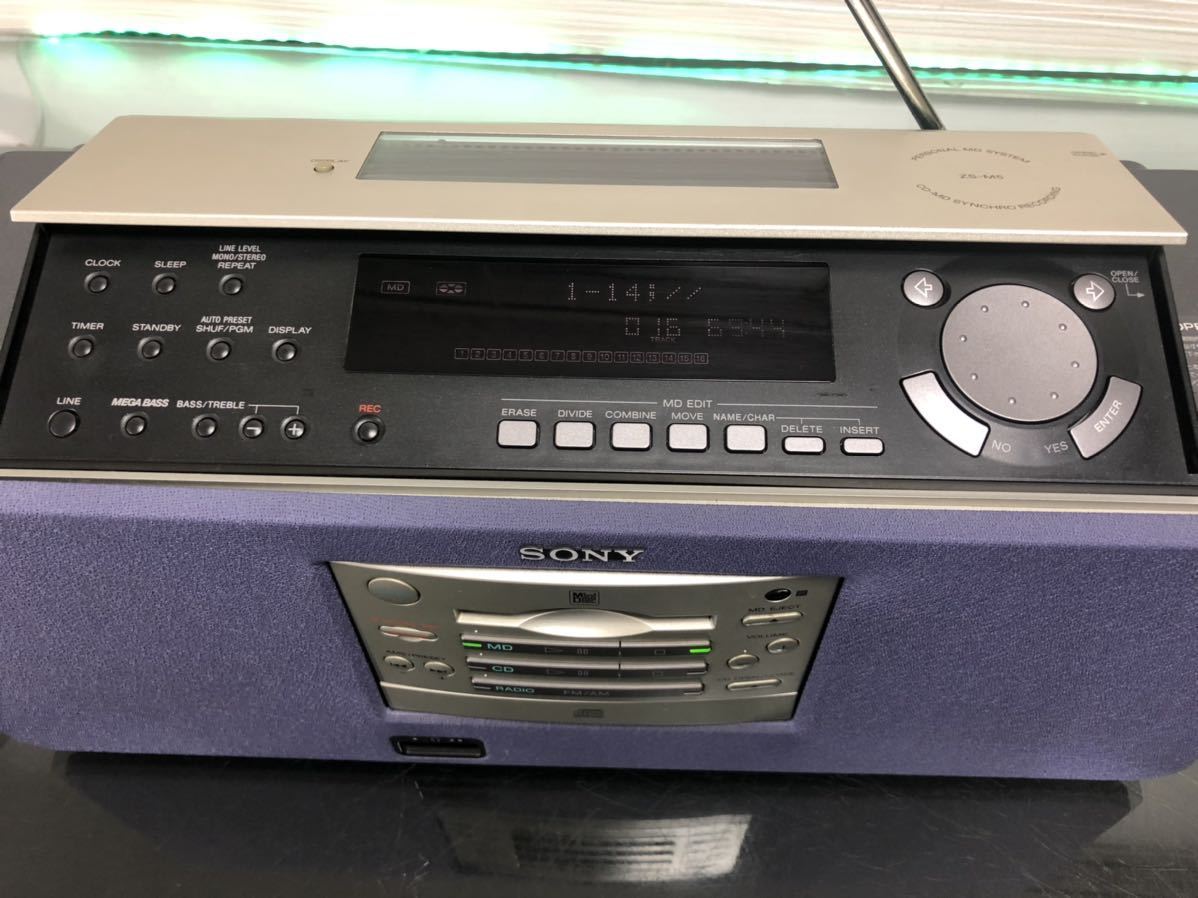

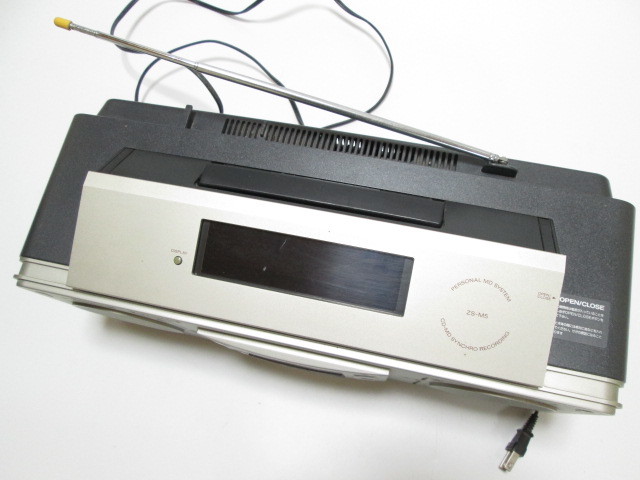

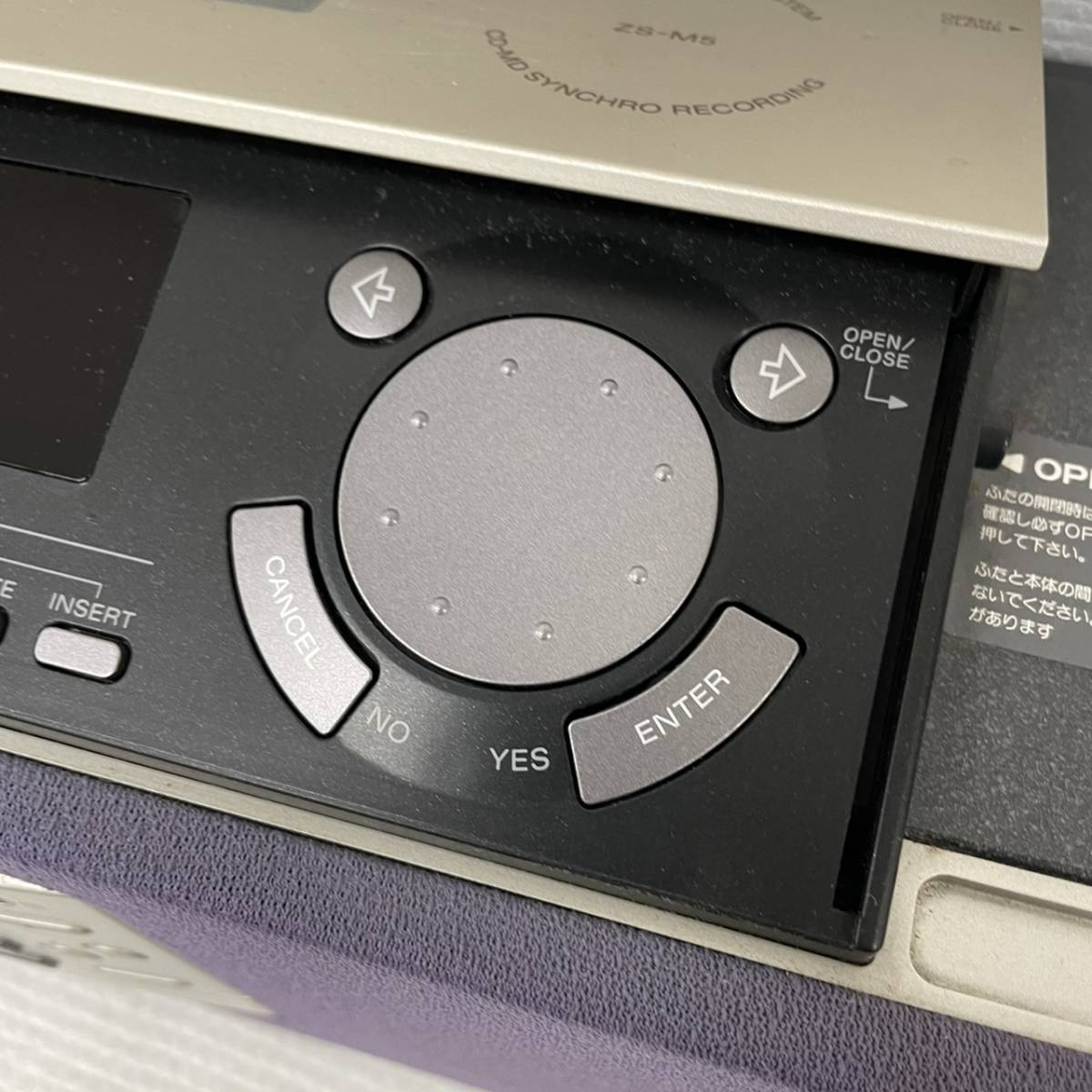

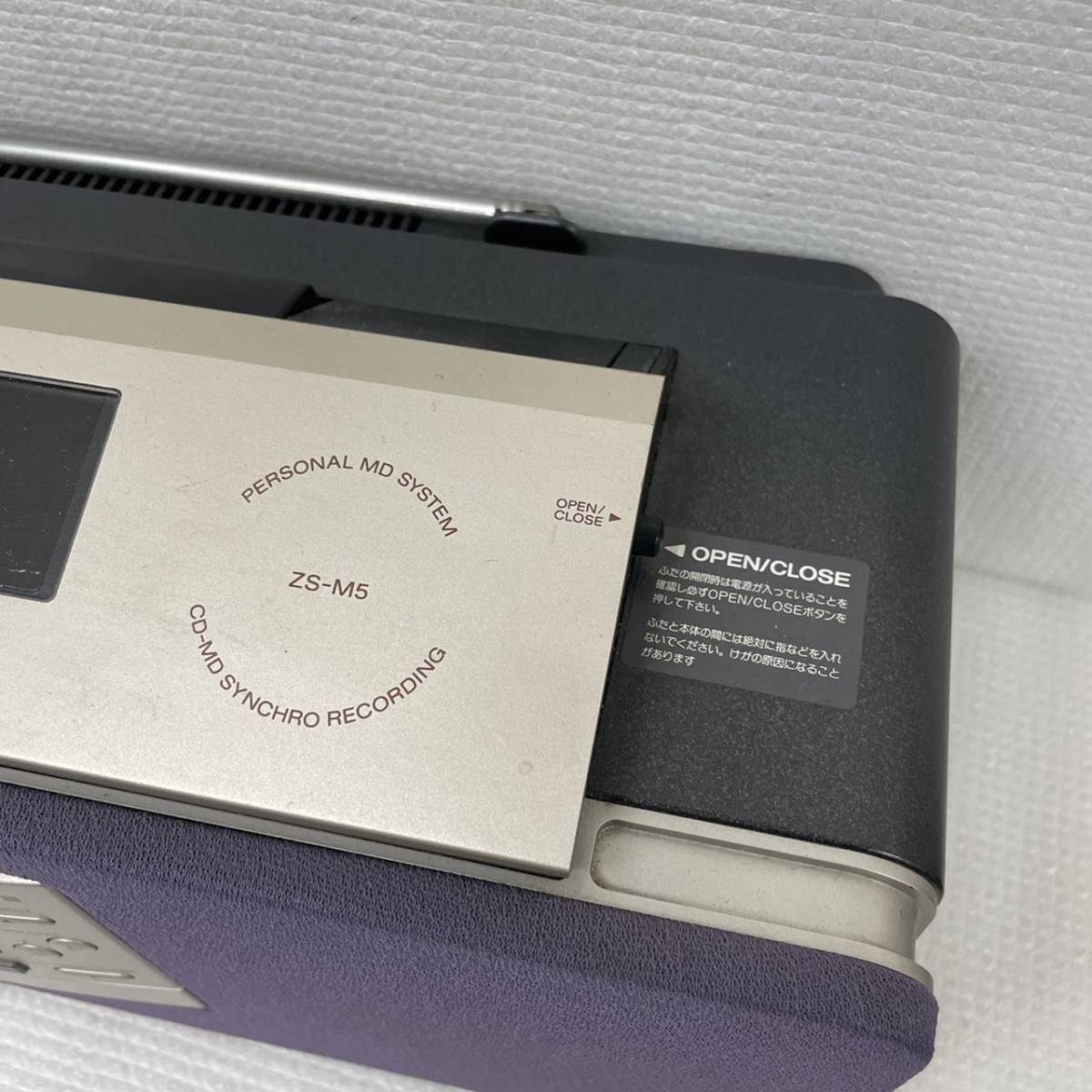

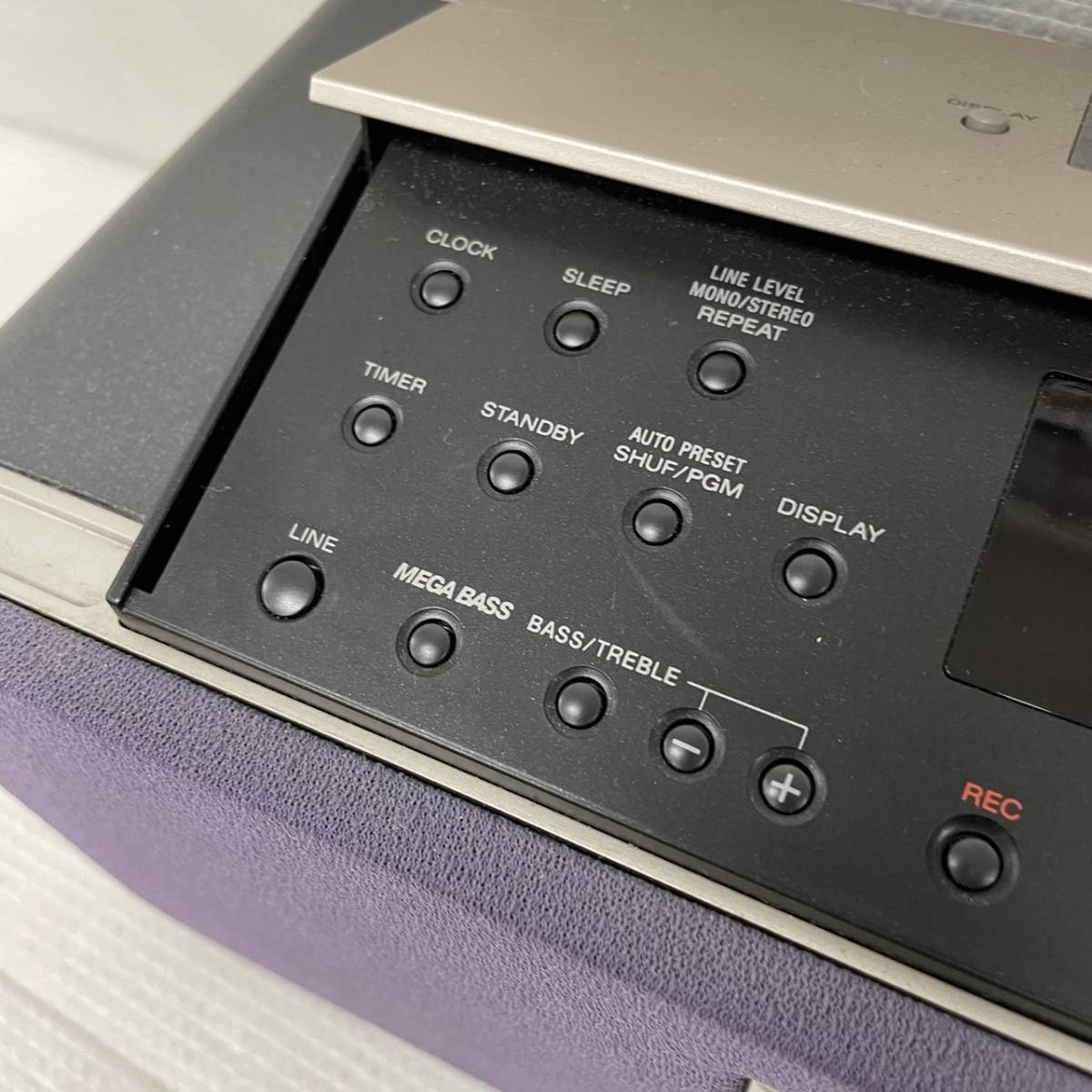

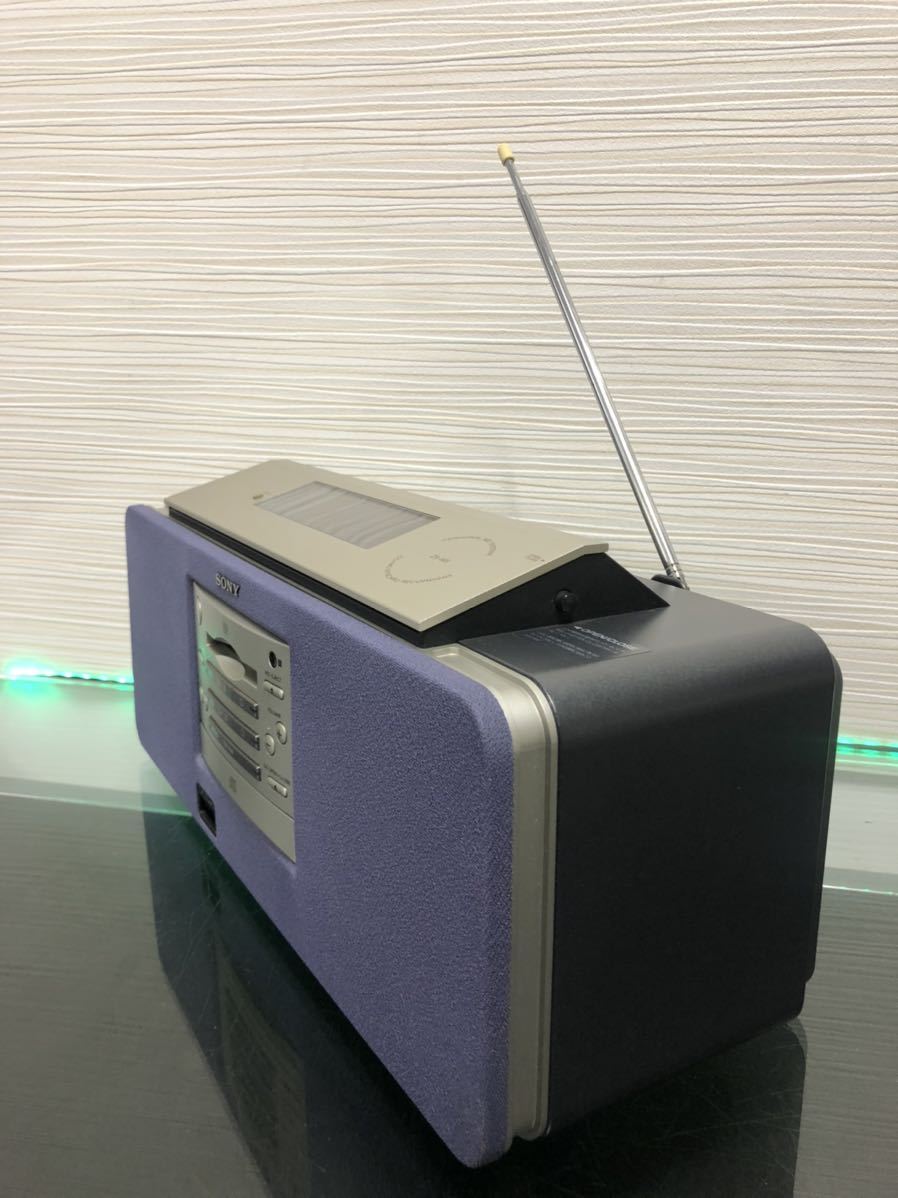

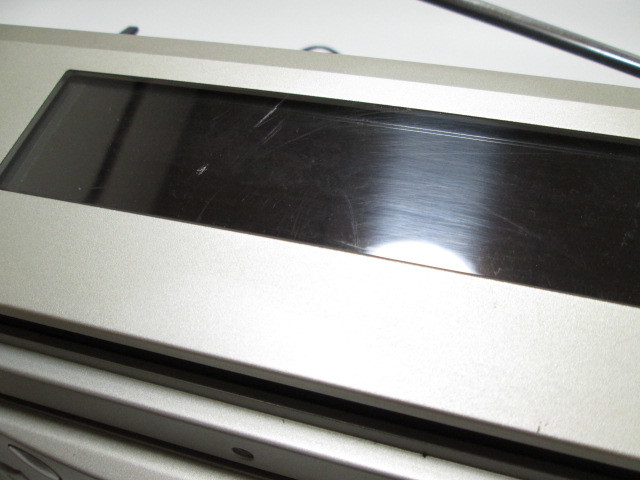

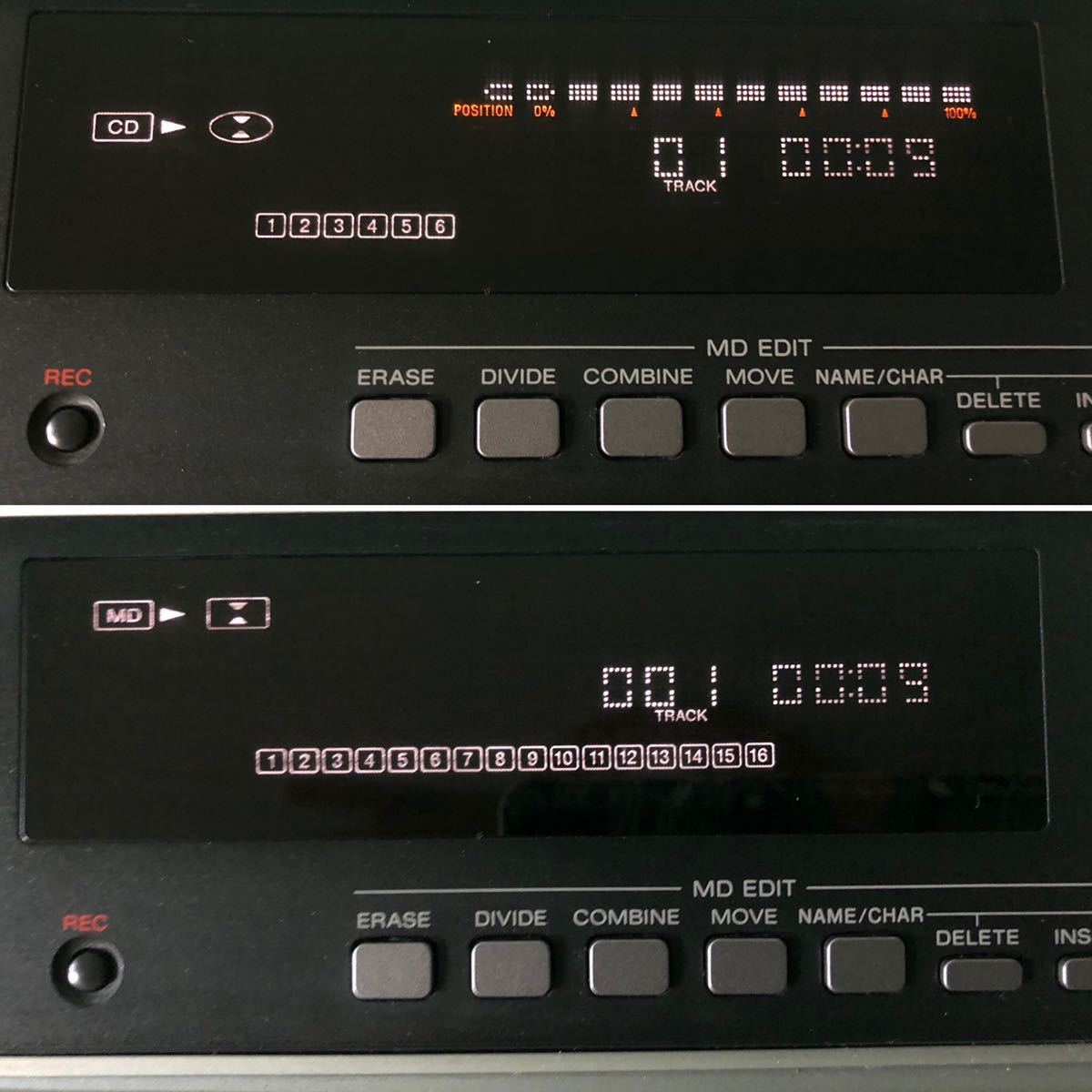

Features unique to ZS-M5: Electrically operated slide panel on top moves away to reveal editing buttons. When covered unit looks "smart". (Appears to be cleaned up and compactified version of ZS-M3, much more suitable for bedside use, etc., but no apparent functional differences, other than disappearance of mic input).

Specs: 20-20kHz +1/-2dB. FM/TV: 76-90MHz, AM: 531-1629kHz

Content adapted from: Sony Press Release Minidisc.org page

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)

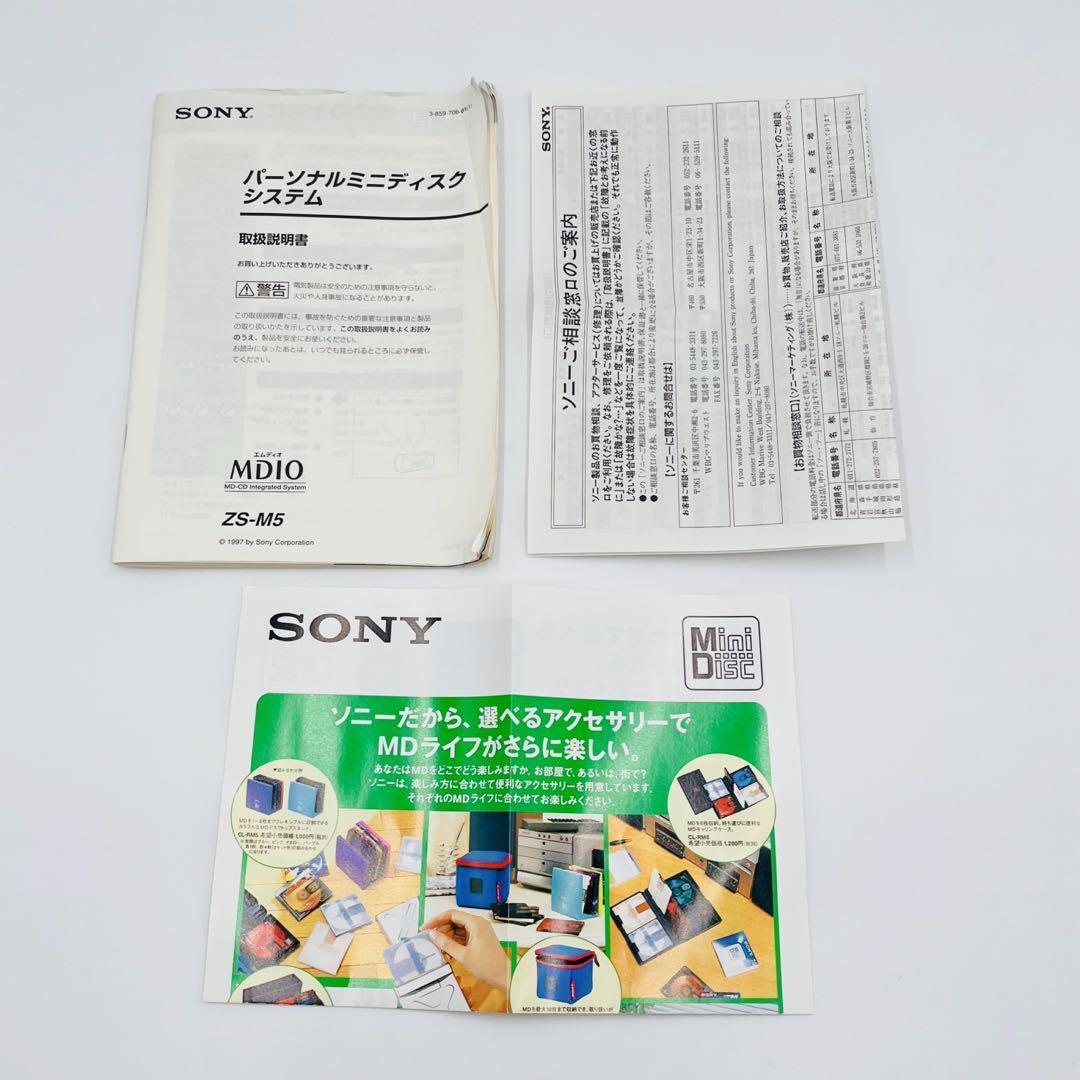

Manual
RegionJapan
