| Name | MDS-JE470 |
|---|---|
| Manufacturer | Sony |
| Released | 2001/04 |
| Device type | deck |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 430 x 95 x 285 mm |
| Weight | 3.0kg |
| ATRAC ver | Type-R |
| Power cable | AC |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

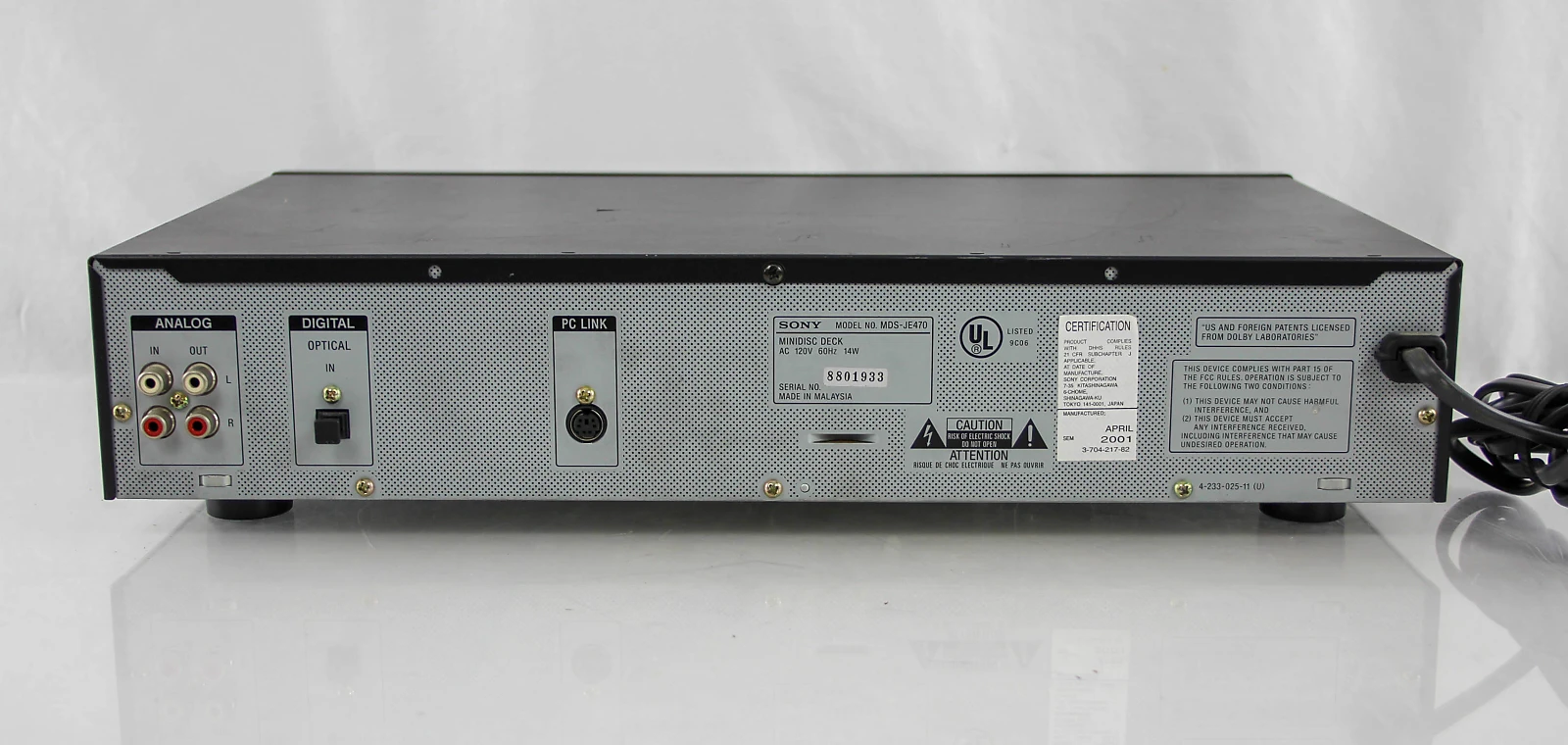

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out |
| Control | Not recorded |
Features: MDLP compatible, Sony ATRAC Type-R. New "E-line" design. Scale Factor edit allows digital adjusting of track volume levels. PC Link Kit (PCLK-MN10) connectable. 2-line display. Different from MDS-JE770: no pitch control, no date/time recording, no timer recording, no control A1 II port, no group mode functions, no PS/2 keyboard port. Remote control: RM-D47M. Internally nearly the same as the MDS-S50. Differences from previous MDS-JE440: 1) PC-Link connectivity.
Specs: SNR > 96dB, Freq. Resp.: 5-20khz +/-0.3dB (Sony Europe). Hybrid Pulse DAC, 24 bit ADC (so Sony Europe says).
MD Mechanism: MDM-7A
Optical Pick-up: KMS-260B/260E
ATRAC IC: CXD2662R
Content adapted from: Minidisc.org page
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Recorder | Recorder |
|---|---|
| Scms | Yes |
| Web Md | No (not NetMD) |
| Battery Page | |
| Sidecar | No |
| Voltage | |
| Remote Page | |
| Atrac Ic | CXD2656R / CXD2662R |
| Manual | User manual, Service manual, other |
| Region | Japan, US/Canada |
