| Name | MDS-JE700 |
|---|---|
| Manufacturer | Sony |
| Released | 1996/10 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 430 x 107.5 x 315 mm |
| Weight | 4.4Kg |
| ATRAC ver | 4 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥69 000 | |
| - | |

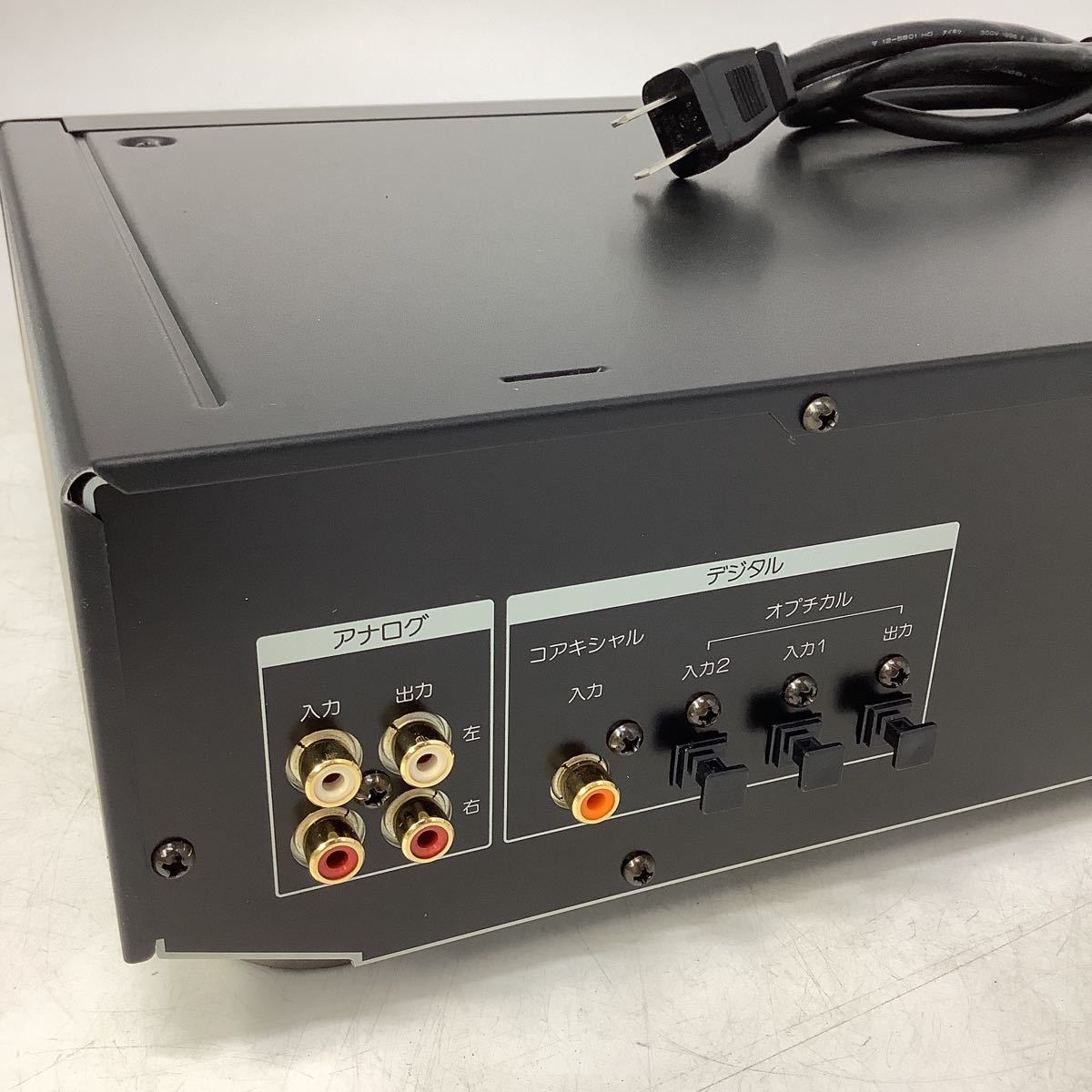

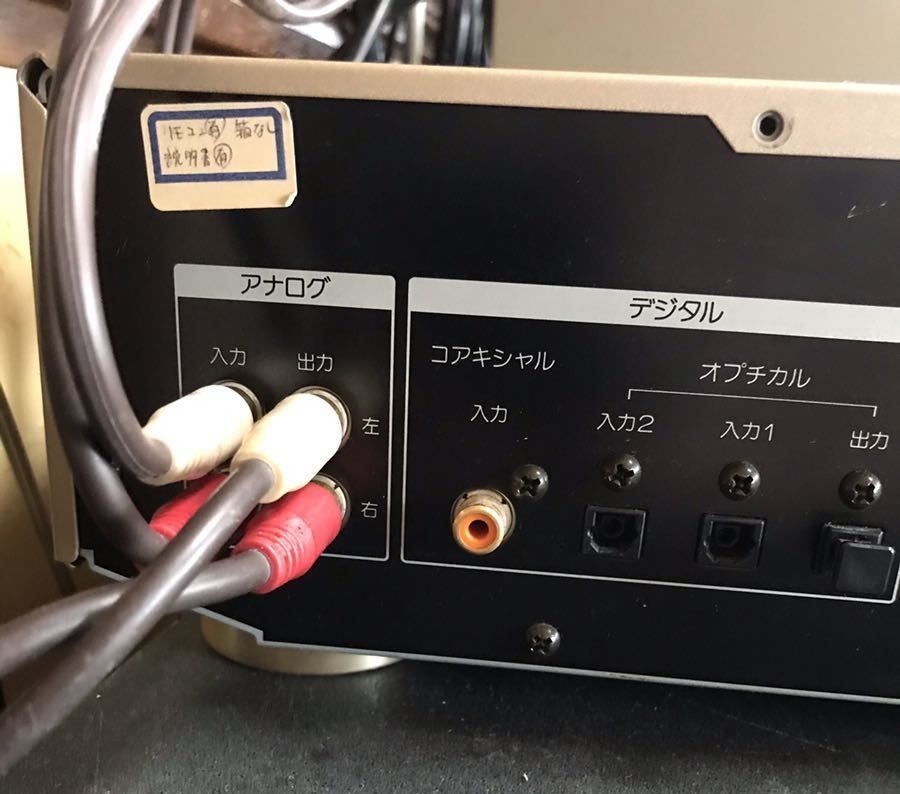

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

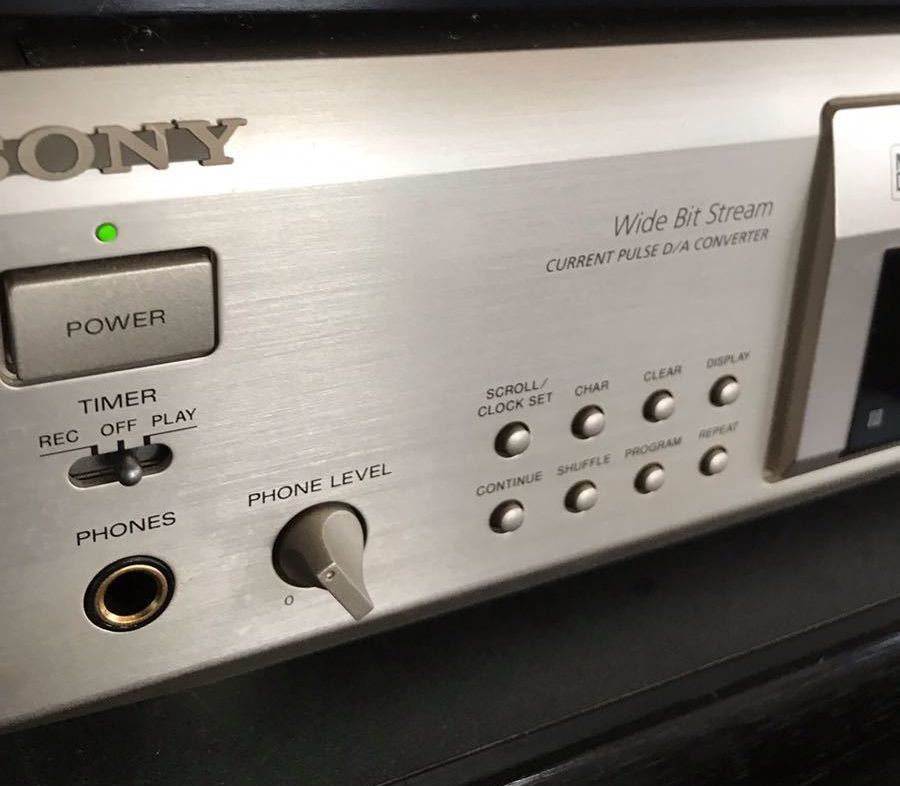

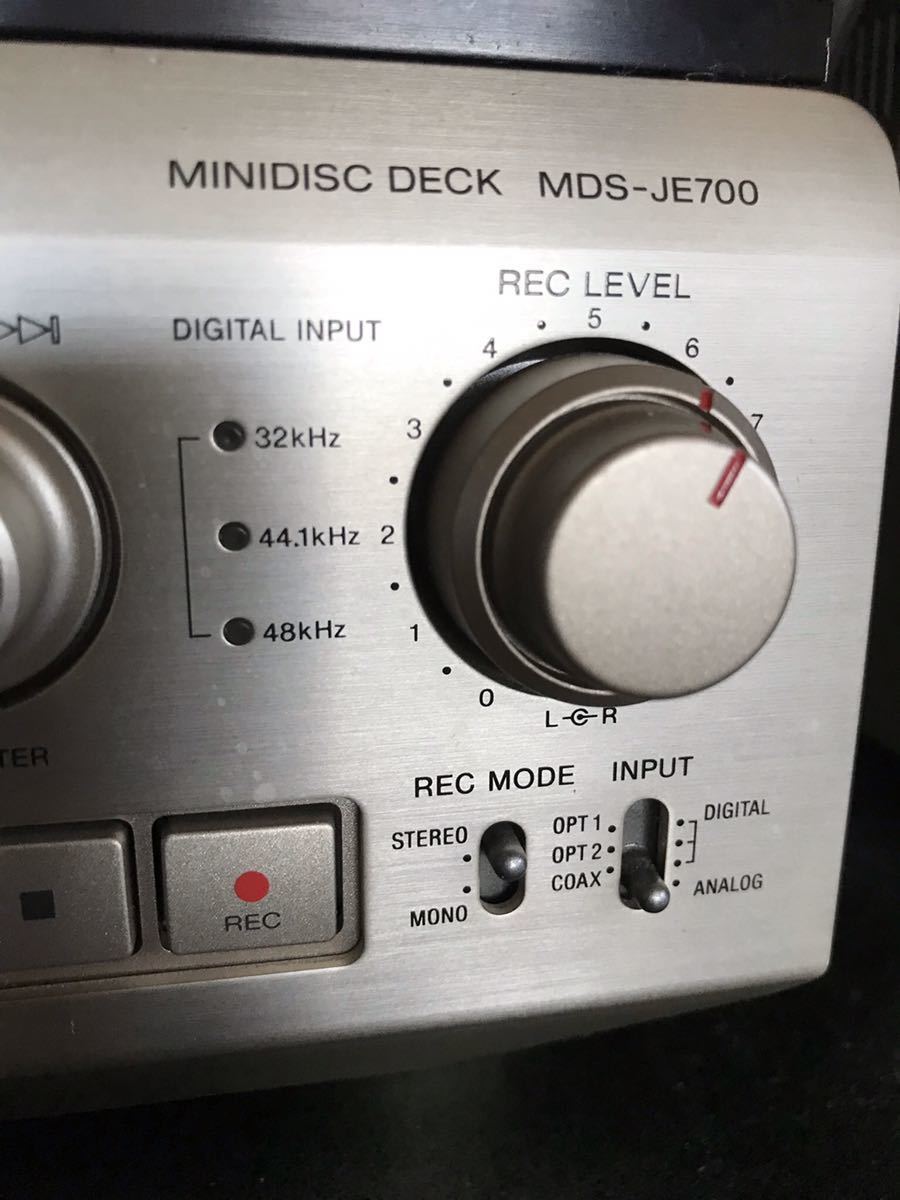

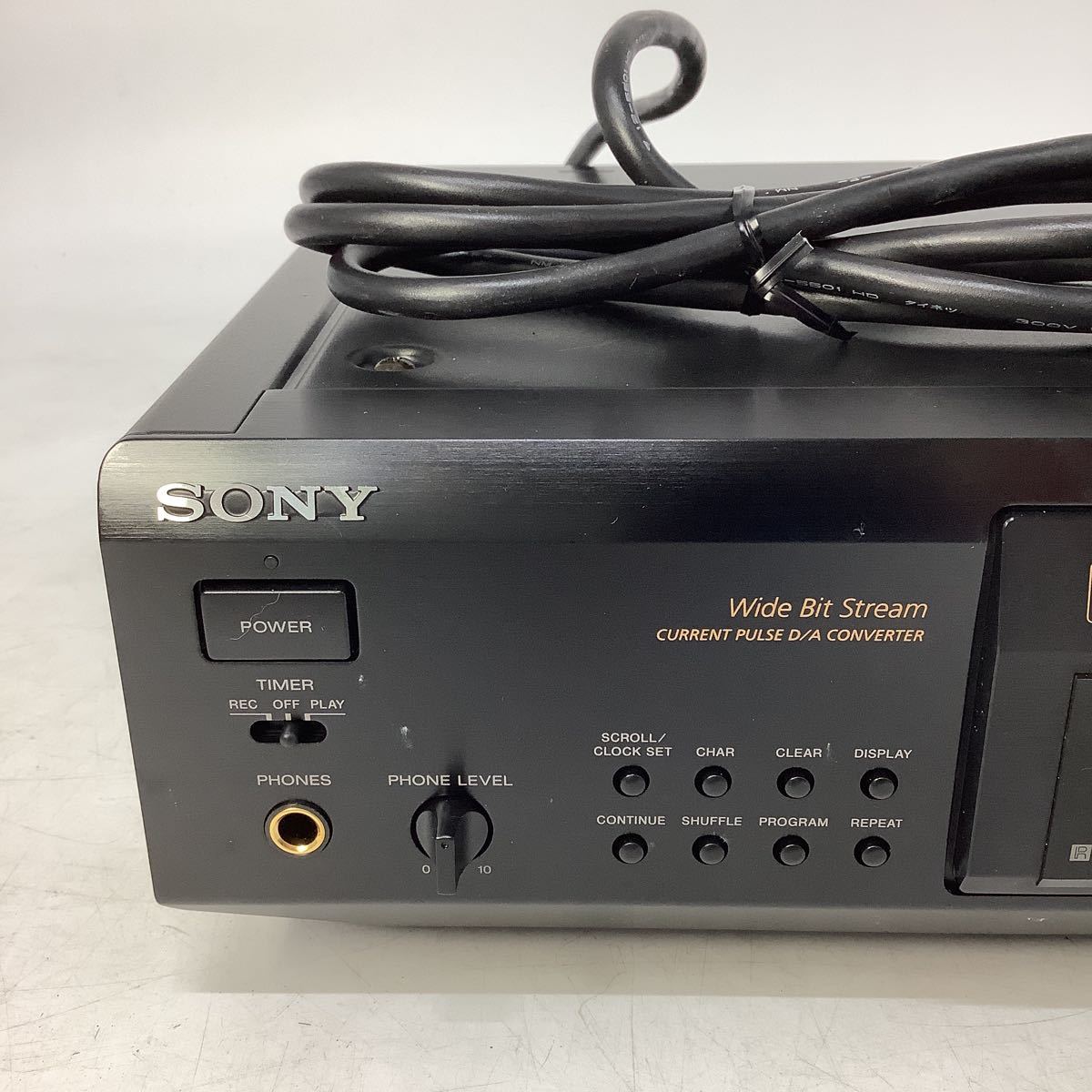

Features: ATRAC 4 (IC: CXD2650R, same as mds-je500). Current Pulse DAC. Sampling rate converter. 2 second "time machine" function. A-B erase. Separate L/R recording level controls. R-Core transformer. Available also in black. Remote controller: RM-D10M. Optional keyboard like controller/titler: RM-D10P. Essentially the same unit as the mds-j3000.
Specs: Freq resp: 5-20kHz +/-0.3dB, S/N: > 100dB (digital rec/play), > 94dB (analog rec/play), Dynamic Range: > 98dB (digital), > 94dB (analog), THD < .003% (digital), < .005% (analog), Wow/flutter: less than 0.001% W-Peak.
Model Name Using Similar Mechanism MDS-JE500
MD Mechanism Type MDM-3A
Optical Pick-up TypeKMS-260A/J1N
ATRAC Encoder/Decoder: CXD2650R (Digital Signal Processor, Digital Servo Signal Processor, EFM/ACIRC Encoder/Decoder, 2 MBIT DRAM)
Content adapted from: Minidisc.org Page
Manuals
Repair

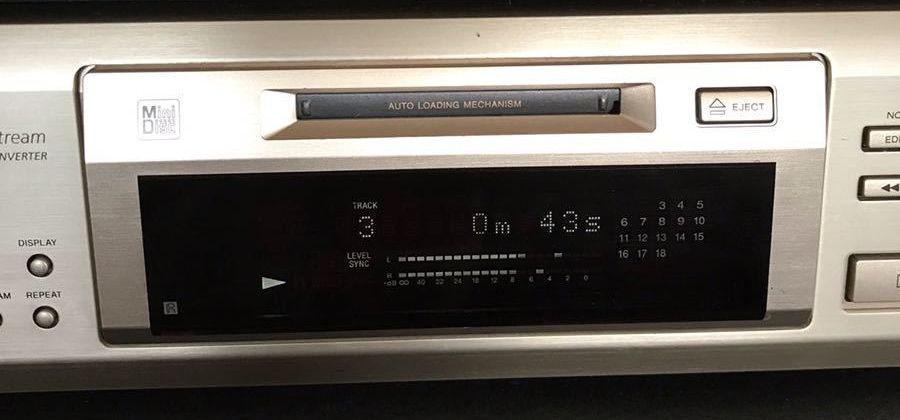

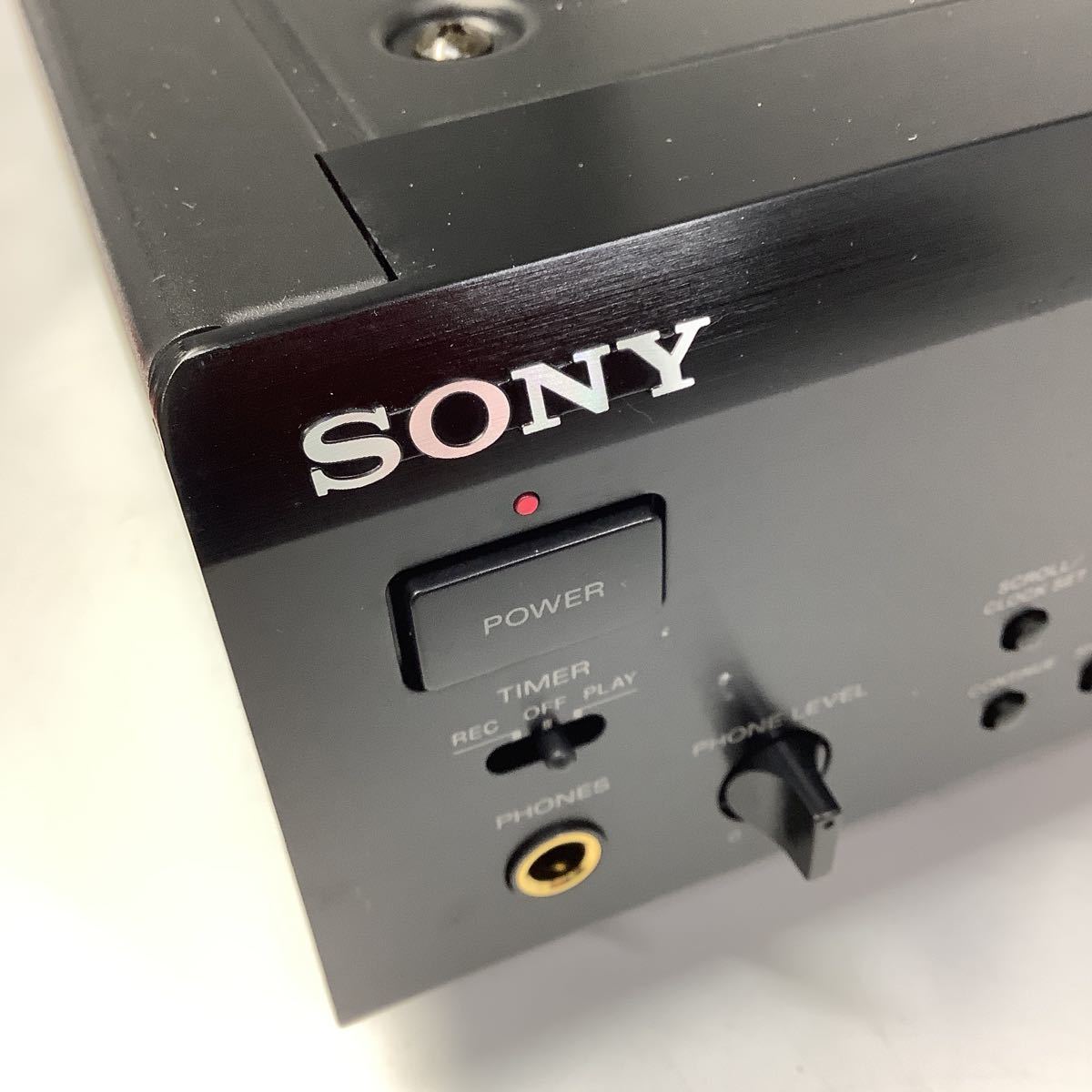

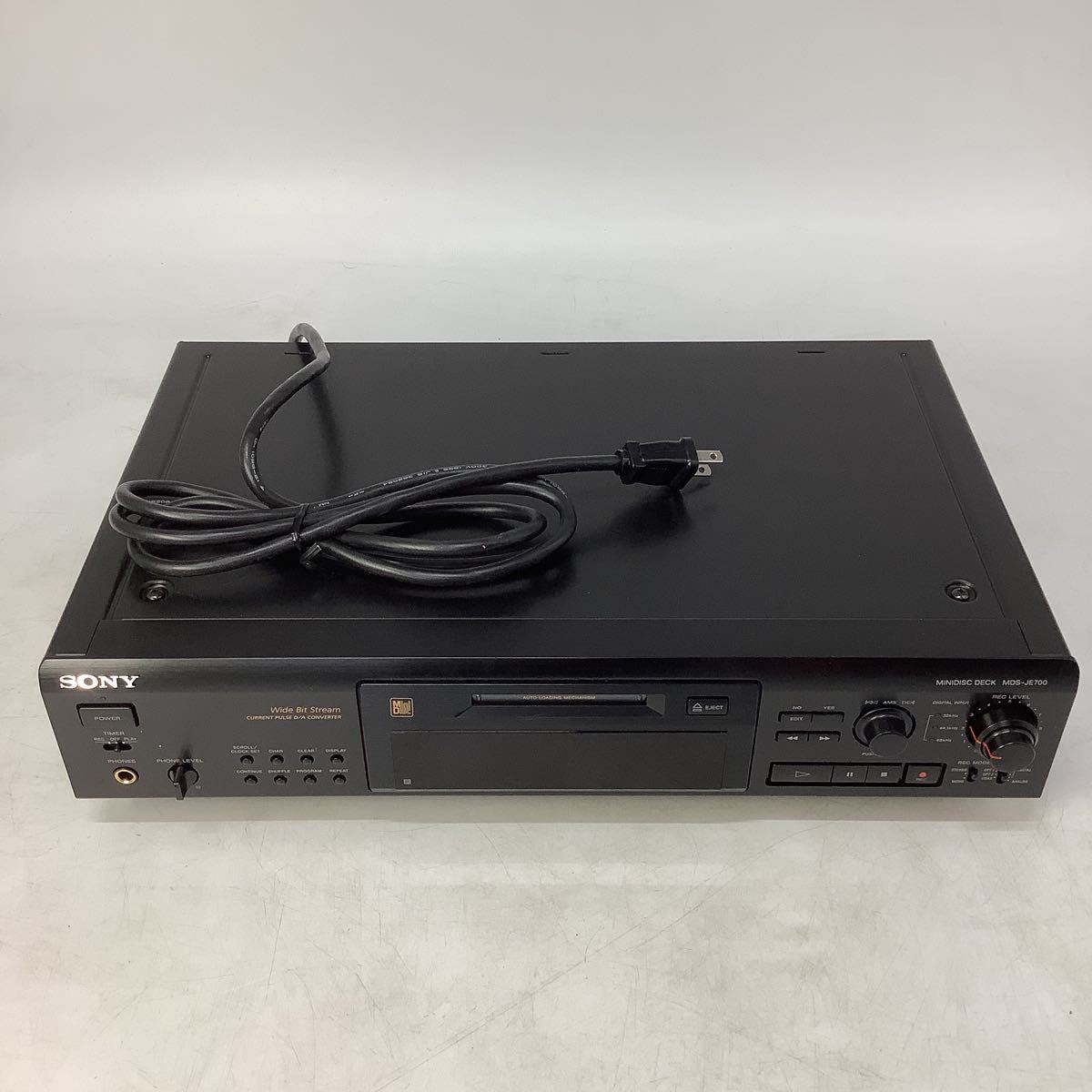

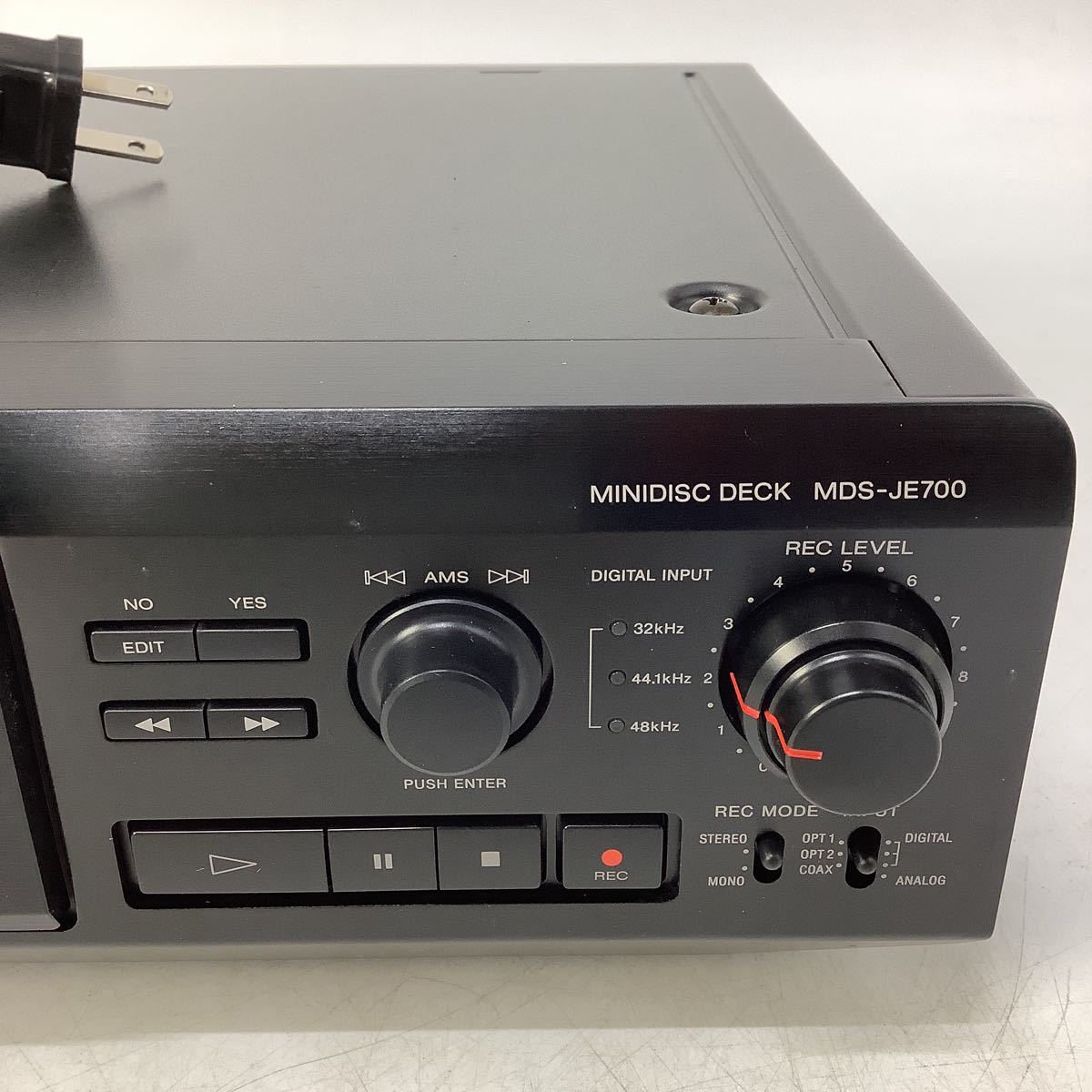

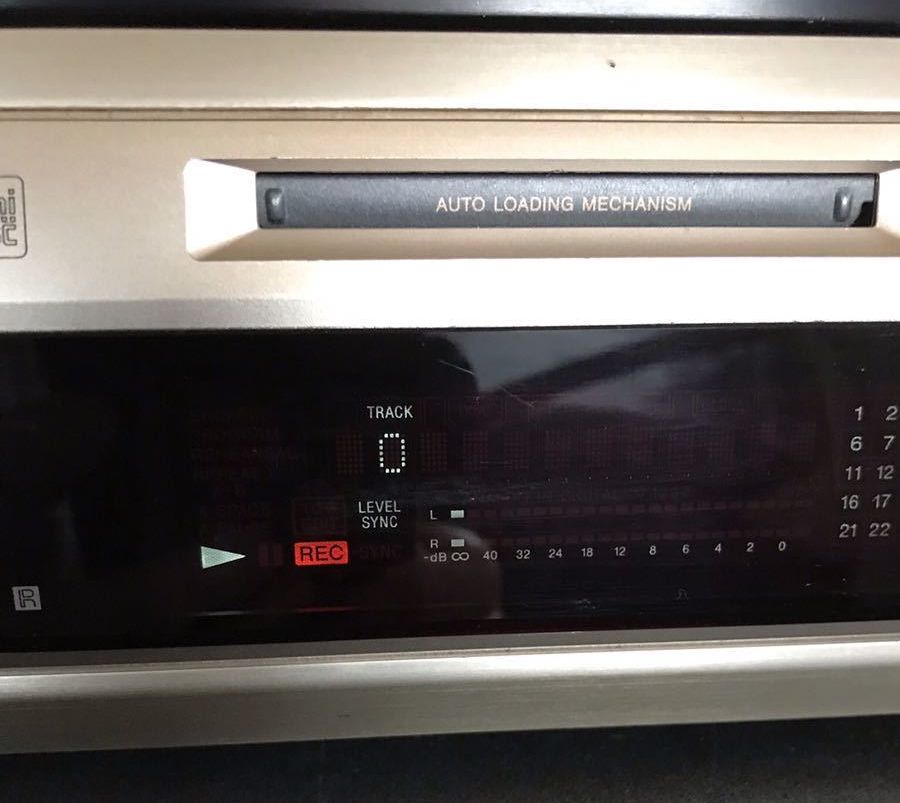

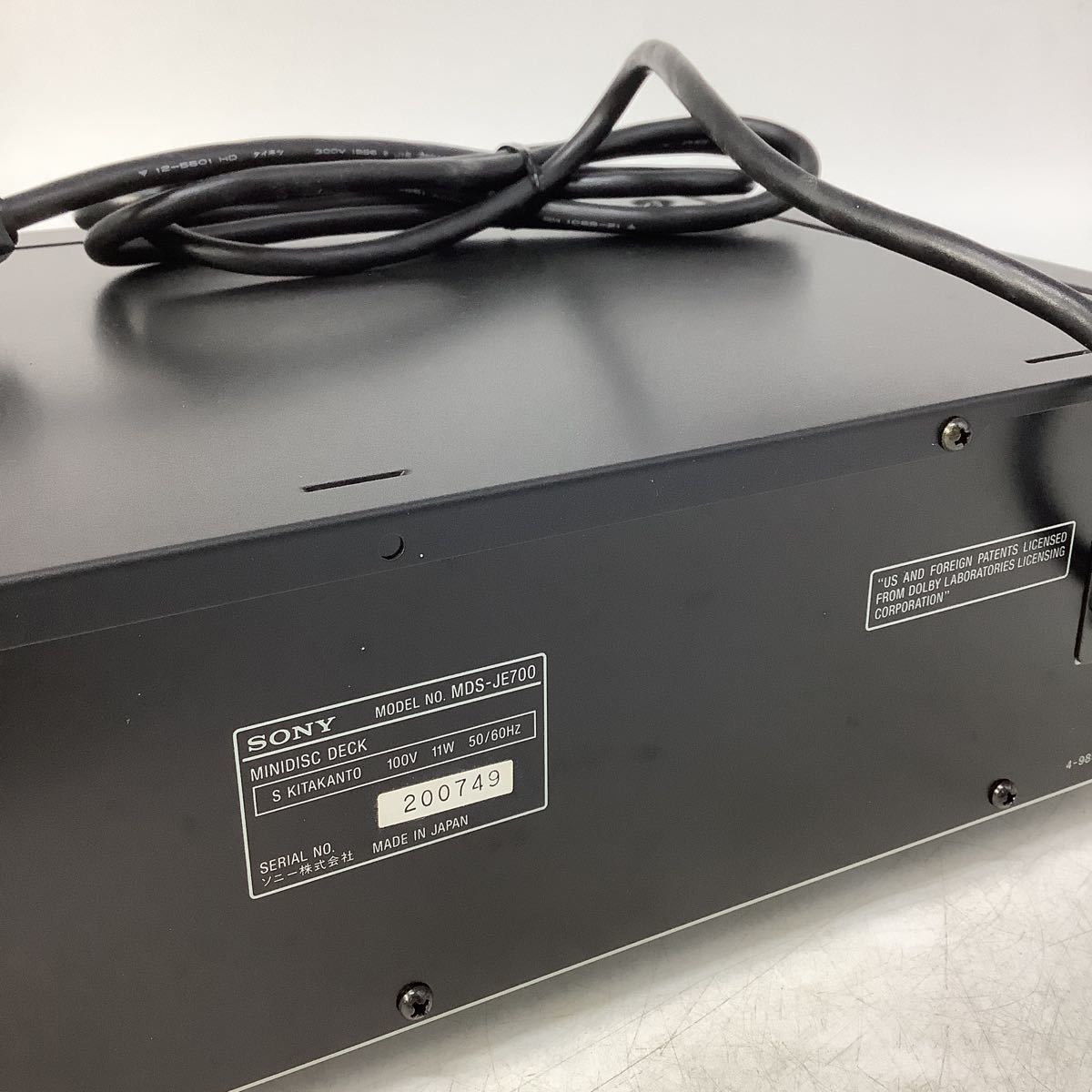

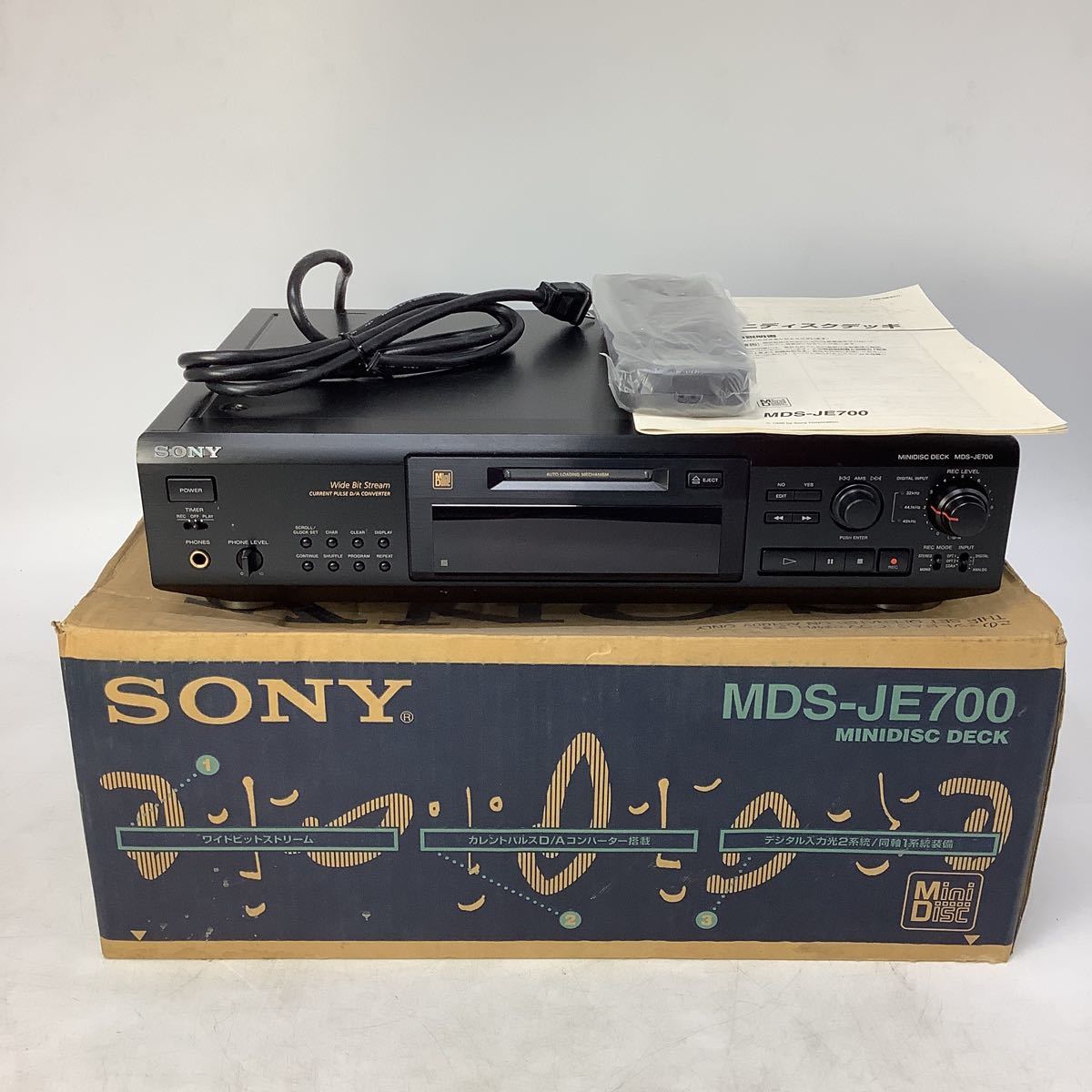

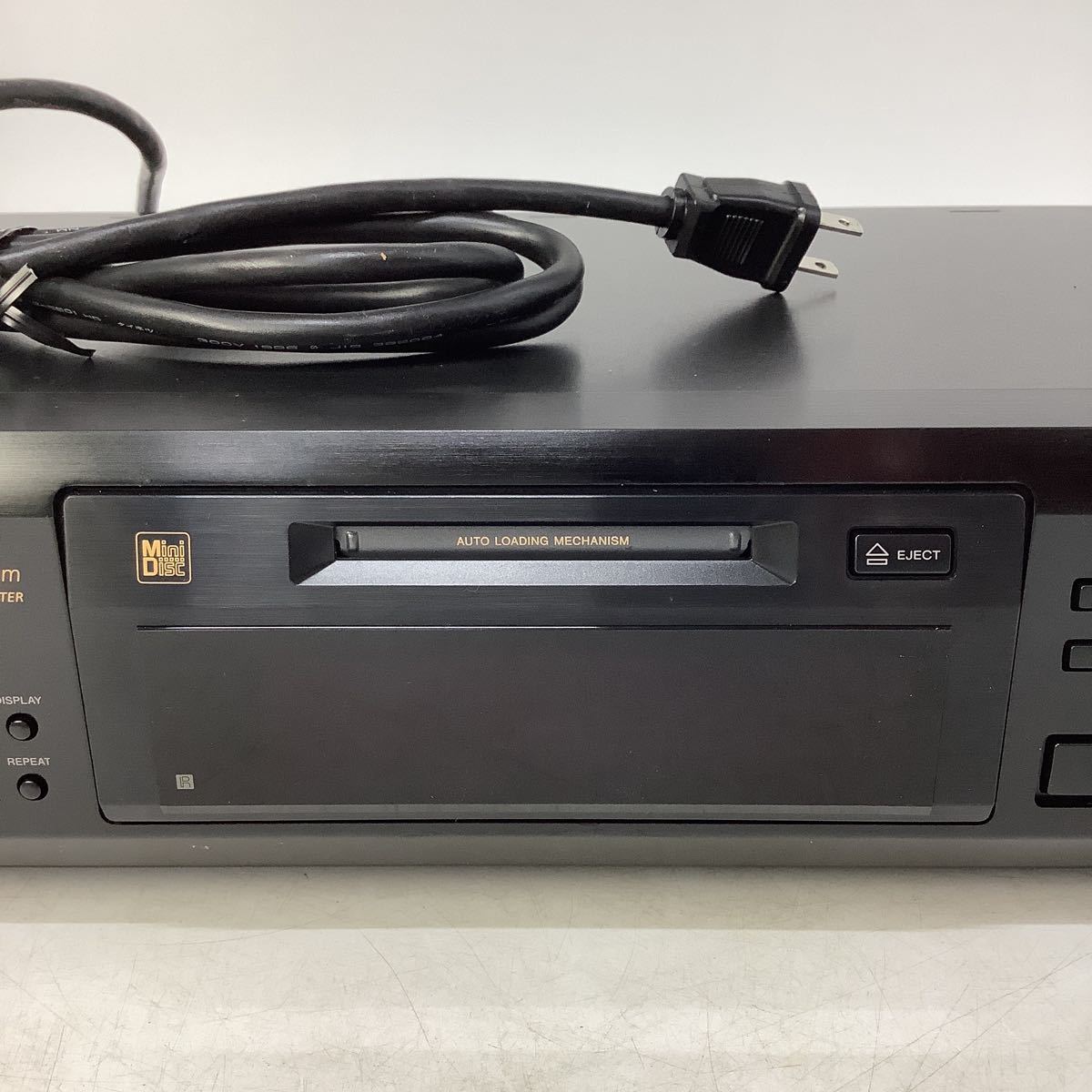

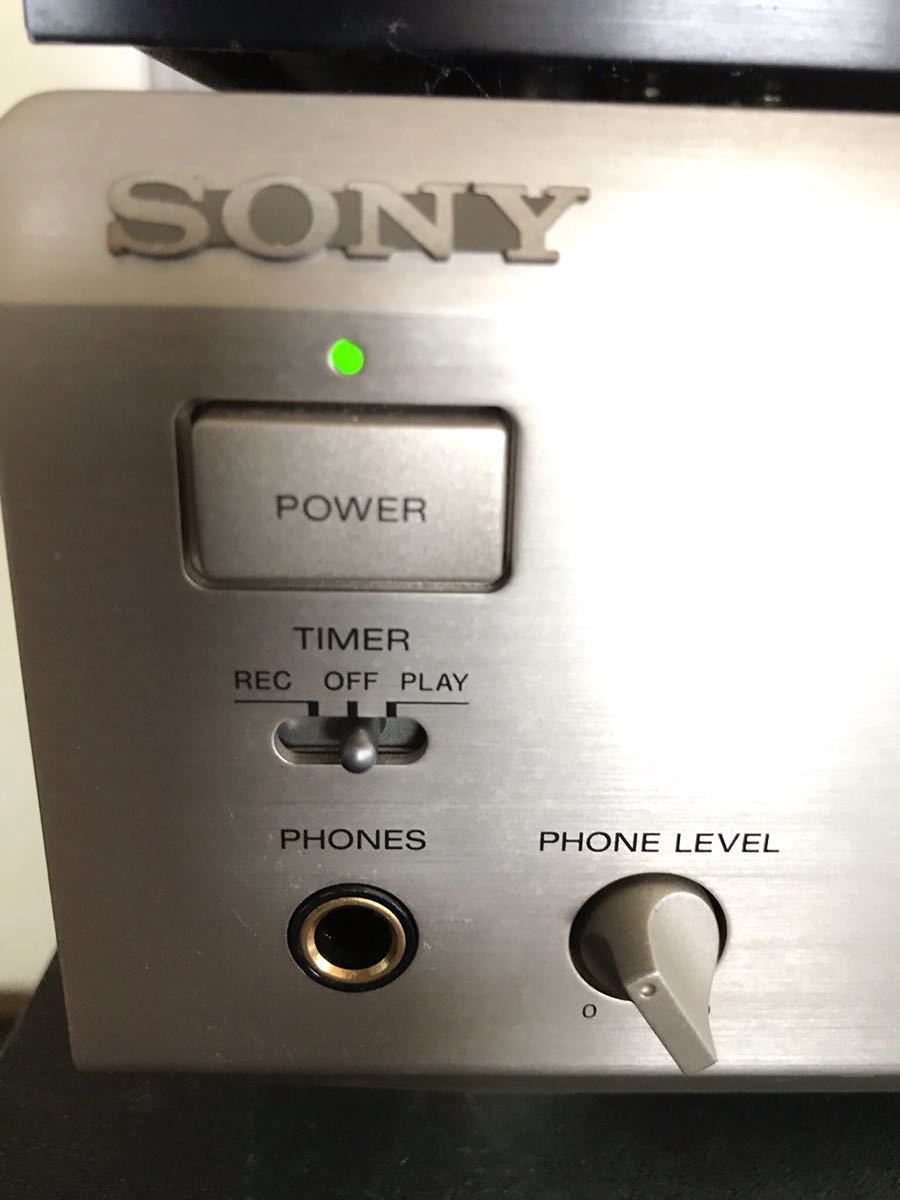

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Recorder | Recorder |
|---|---|
| Scms | Yes |
| Web Md | No (not NetMD) |
| Battery Page | |
| Sidecar | No |
| Voltage | 100 |
| Export | No |
| Remote Page | |
| Atrac Ic | CXD2650R / CXD2652/R/AR |
| Manual | User manual, Service manual |
| Region | Japan |
