| Name | MDS-JE770 |
|---|---|
| Manufacturer | Sony |
| Released | 2001/06 |
| Device type | deck |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 430 x 95 x 285mm |
| Weight | 3.1kg |
| ATRAC ver | Type-R |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥45 000 | |
| - | |

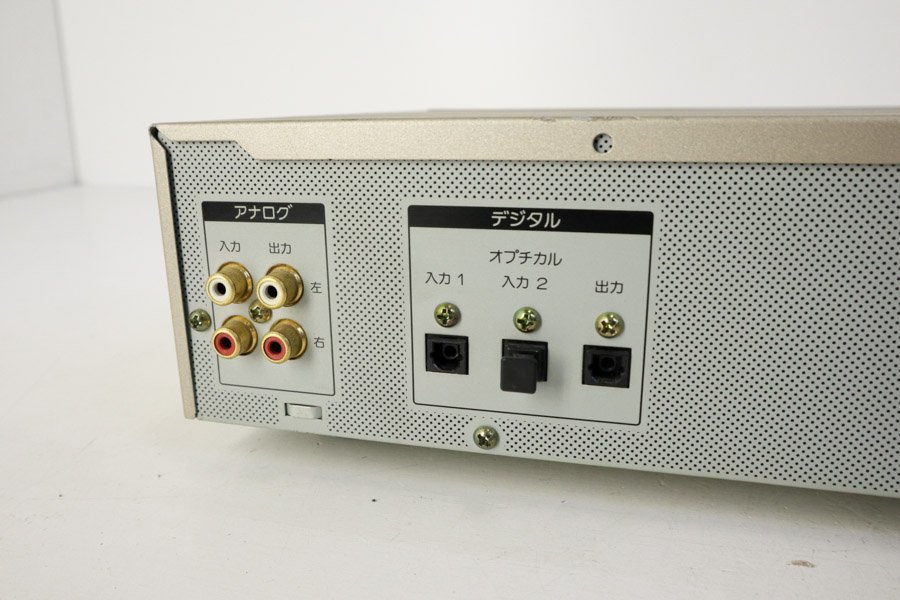

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | PS/2 keyboard |
Features:
- New "E-line" design.
- New "Group Function" allows for easier managing and organizing of songs on a MiniDisc. Songs can be grouped in up to 99 separate, titleable sets (such as by CD, genre, artist, etc.).
- Scale Factor edit allows digital adjusting of track volume levels.
- Can edit fade in/fade out for SP tracks.
- Keyboard input
- Timer record
- PC Link Kit ( PCLK-MN10) connectable.
- Sony ATRAC Type-R.
IR Remote: RM-D410E
Model Name Using Similar Mechanism: MDS-S50
MD Mechanism: MDM-7A
Optical Pick-up: KMS-260B/260E
ATRAC IC: CXD2662R
Content adapted from: Sony Press Release Minidisc.org MDS-JE770 page av.watch
Manuals

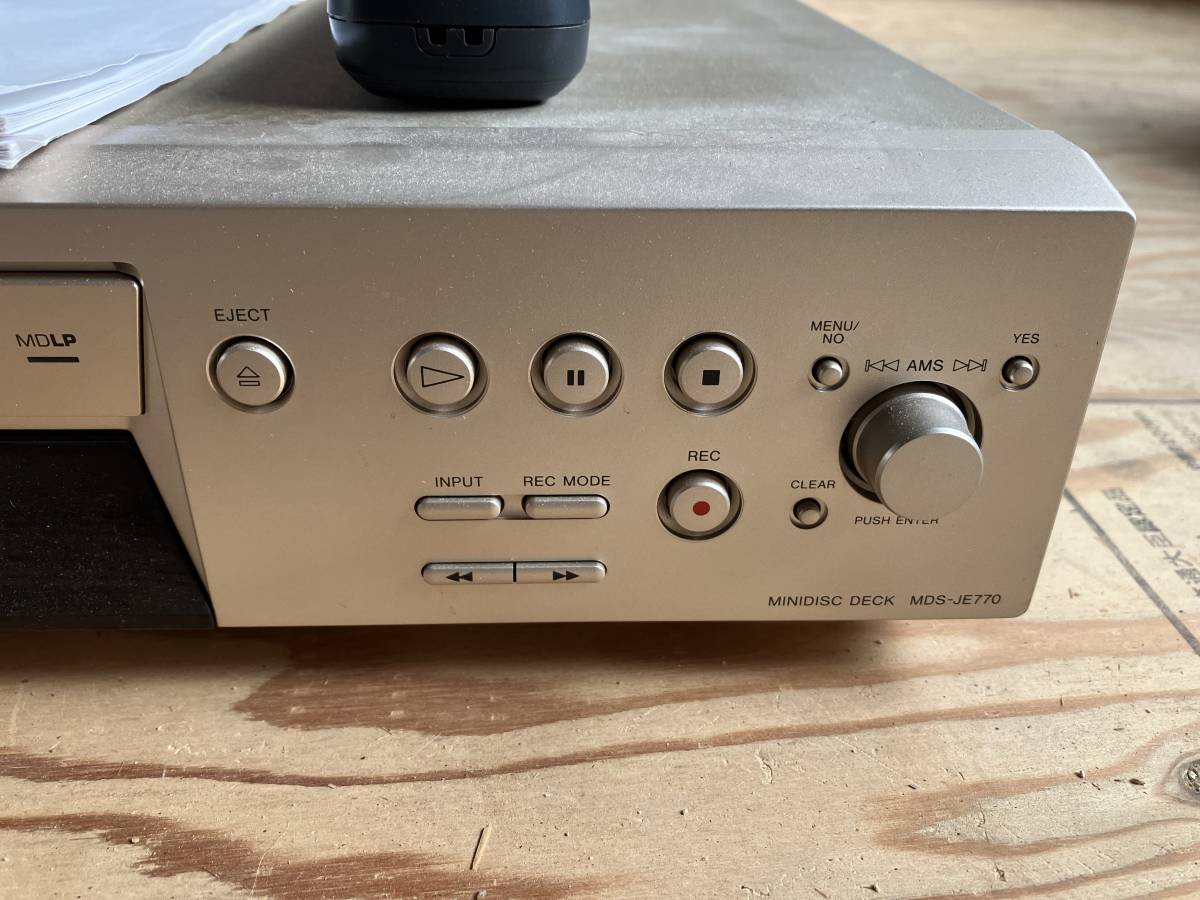

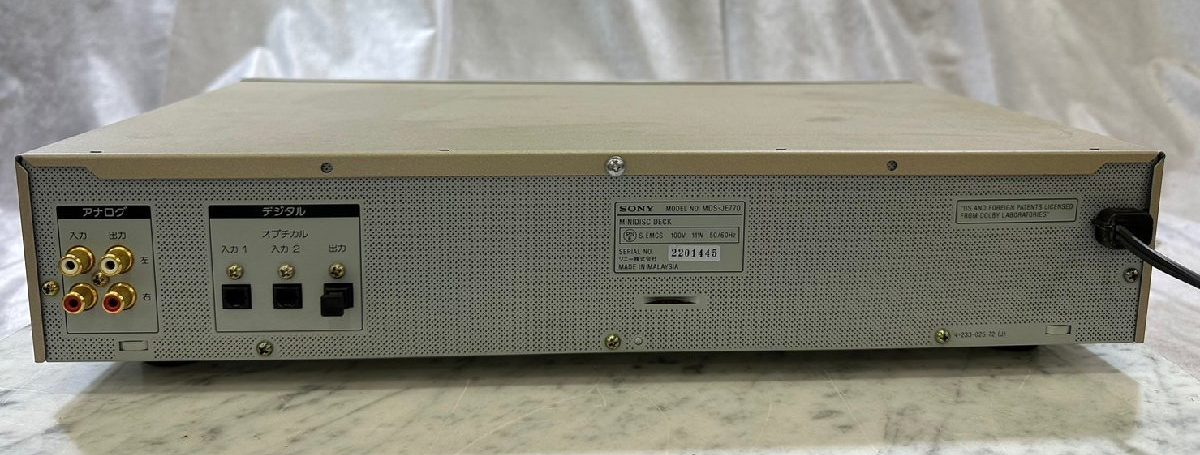

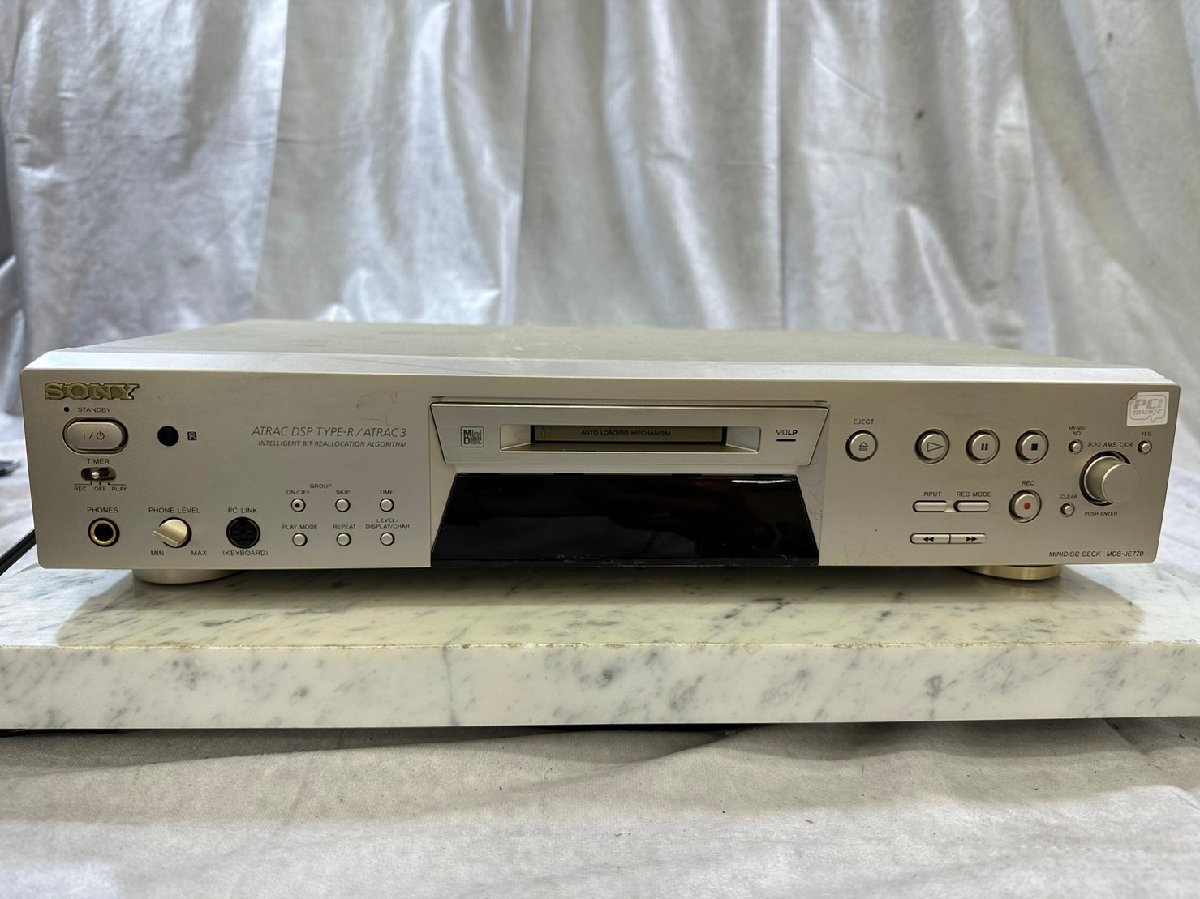

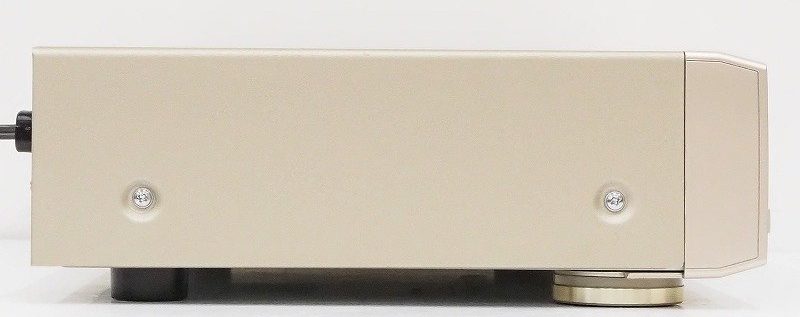

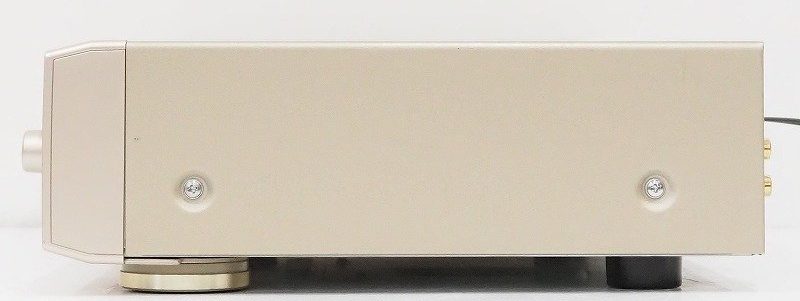

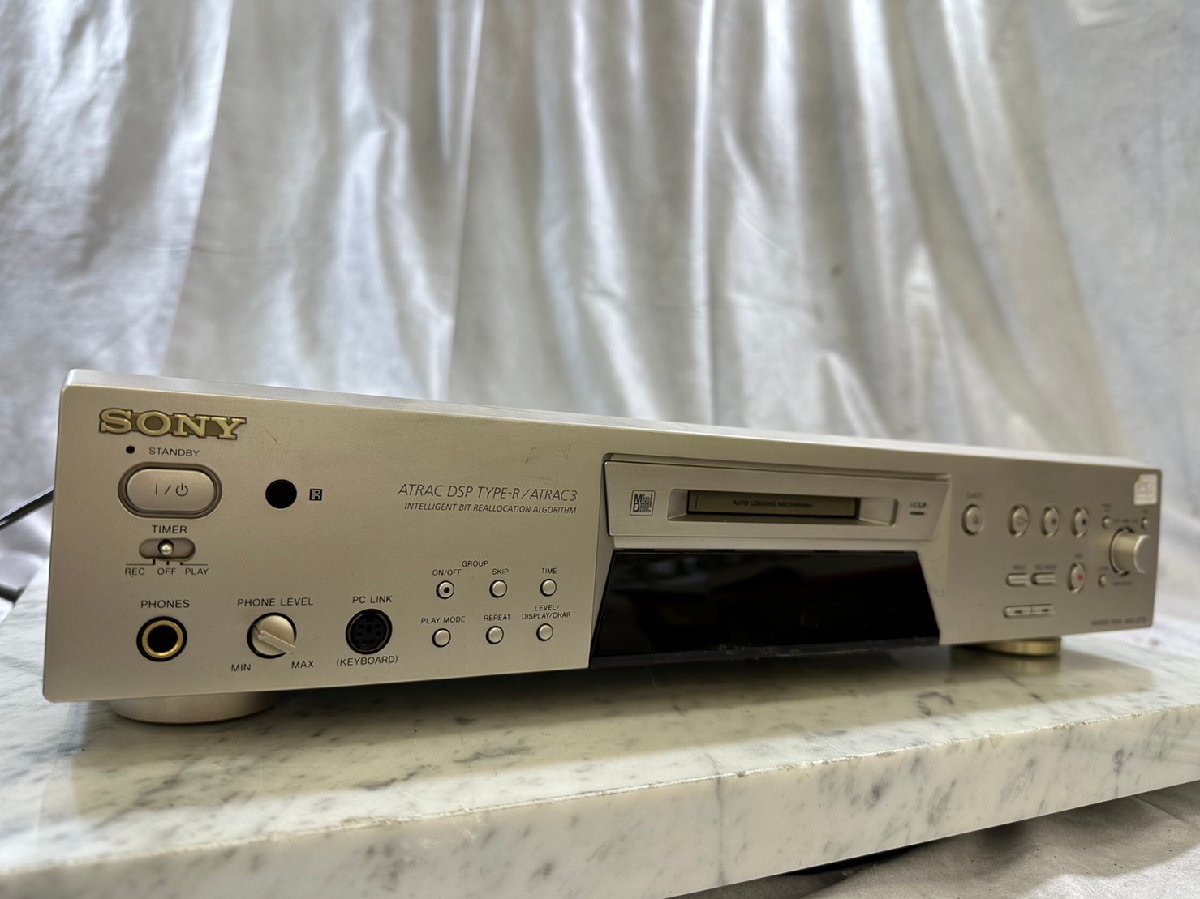

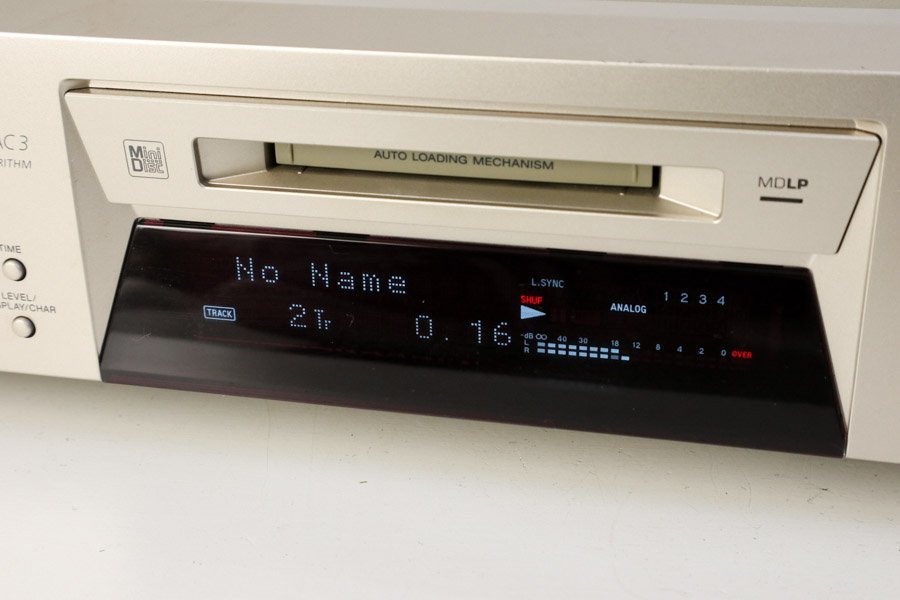

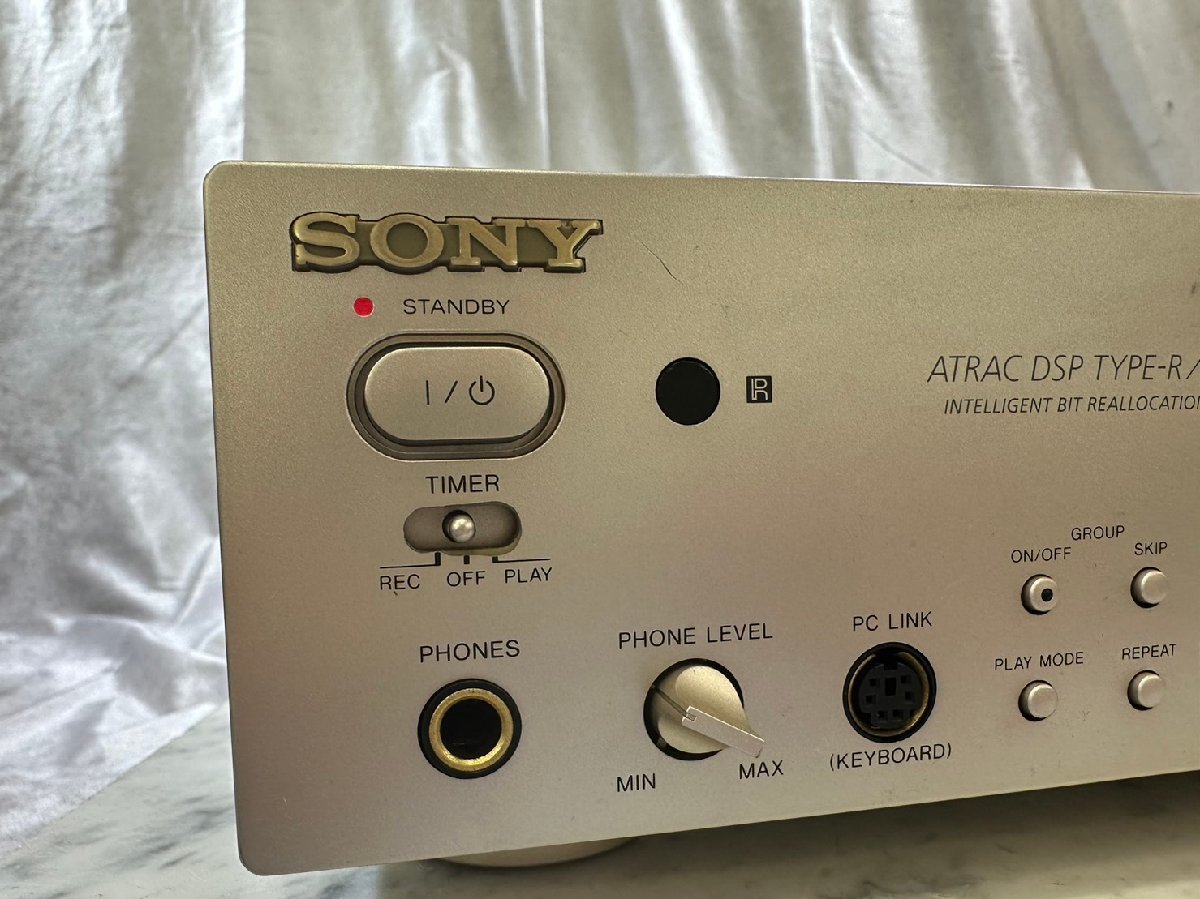

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Recorder | Recorder |
|---|---|
| Scms | Yes |
| Battery Page | |
| Sidecar | No |
| Voltage | 100 |
| Remote Page | |
| Atrac Ic | CXD2656R / CXD2662R |
| Manual | User manual, Service manual |
| Region | Japan |
