| Name | MDS-S1 |
|---|---|
| Manufacturer | Sony |
| Released | 1994/11 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 310 x 90 x 345mm |
| Weight | 3.5kg |
| ATRAC ver | 3 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥69 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | 3.5mm control |

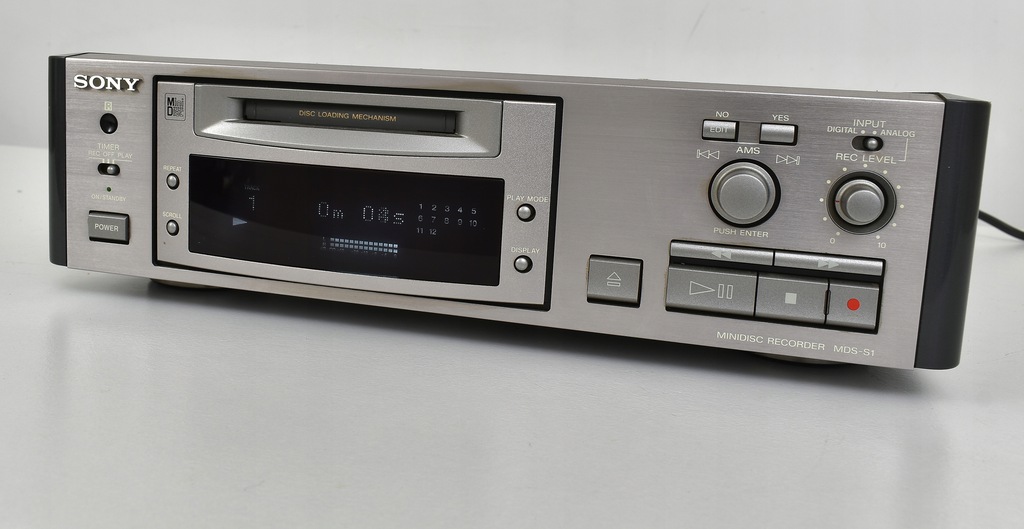

Compact deck from Sony's high end "La Scala" midi Component S series, S1 and S2.
Powers on with disk insert, and has an audio bus connector to link with other Component S system devices for automatic input and CD Synchro recording, CDP-S1. Watch the referenced video on YouTube
Can only playback mono discs, will not record them.

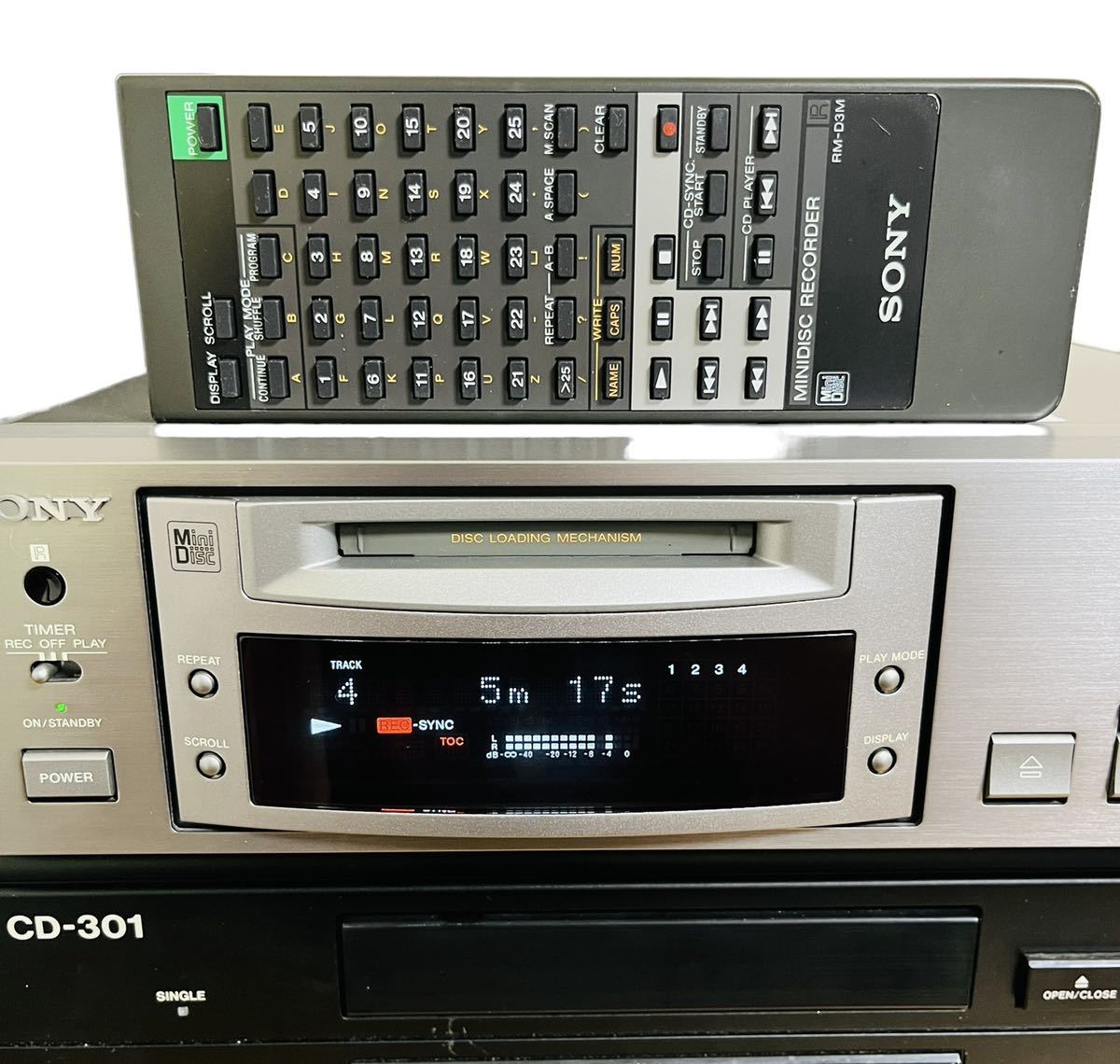

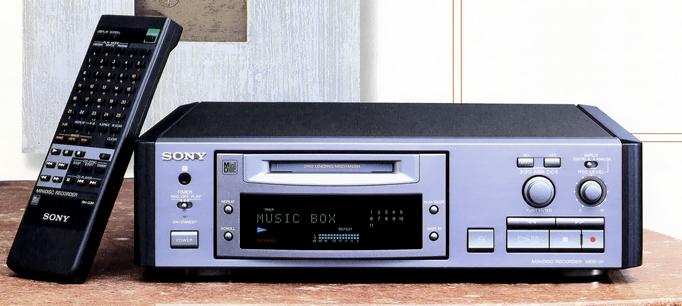

Came with RM-D3M Remote.
Model With Similar Mechanism: MDS-302
Mechanism Type: MDM-2A
Base Unit Type: MBU-2
Optical Pick-up Block: KMS-210A/J-N
ATRAC IC: CXD2536R
Content adapted from: Audio Heritage Page (Japanese)
Manuals

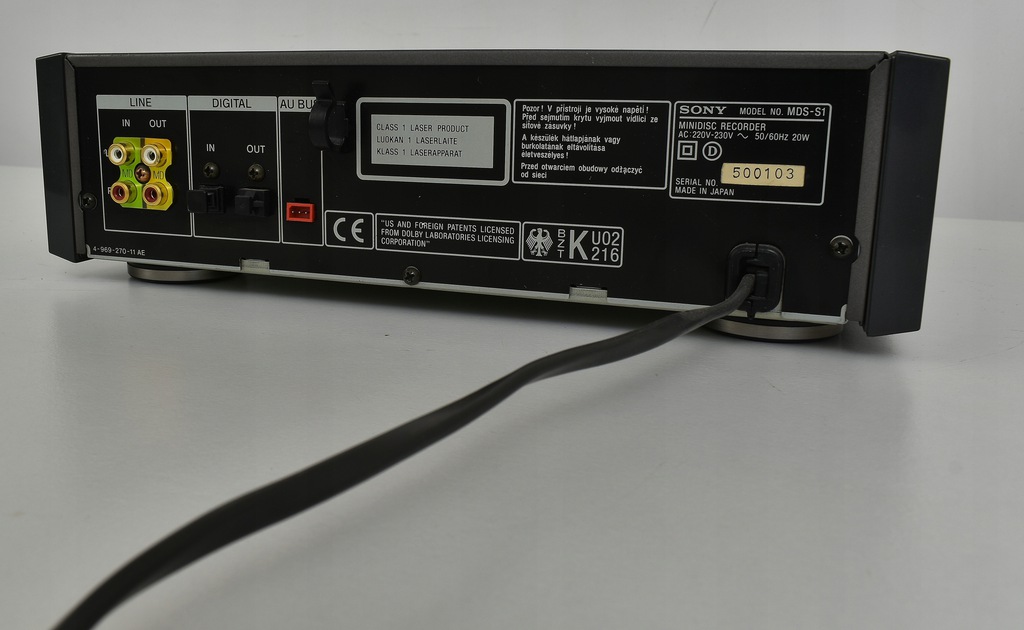

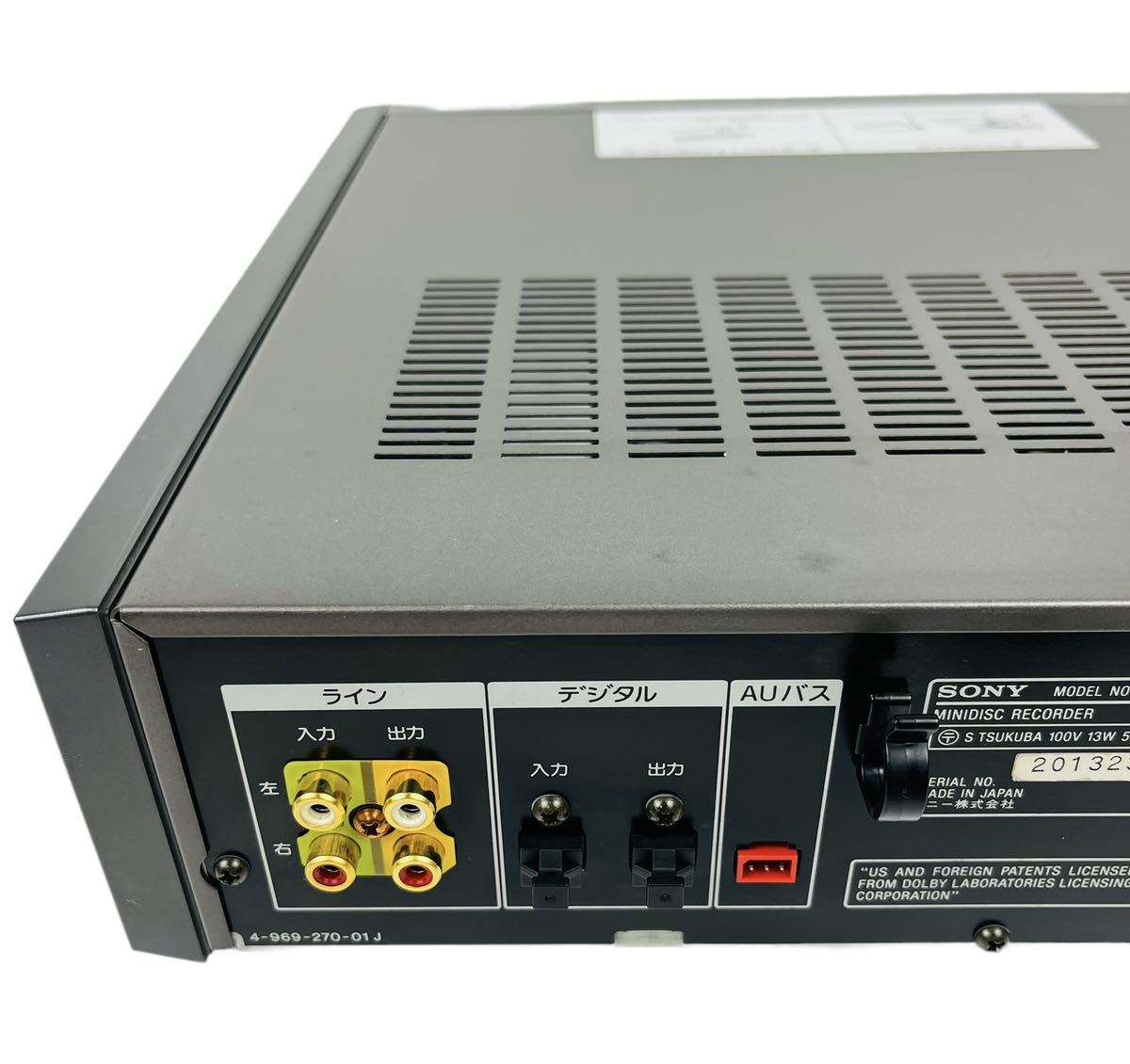

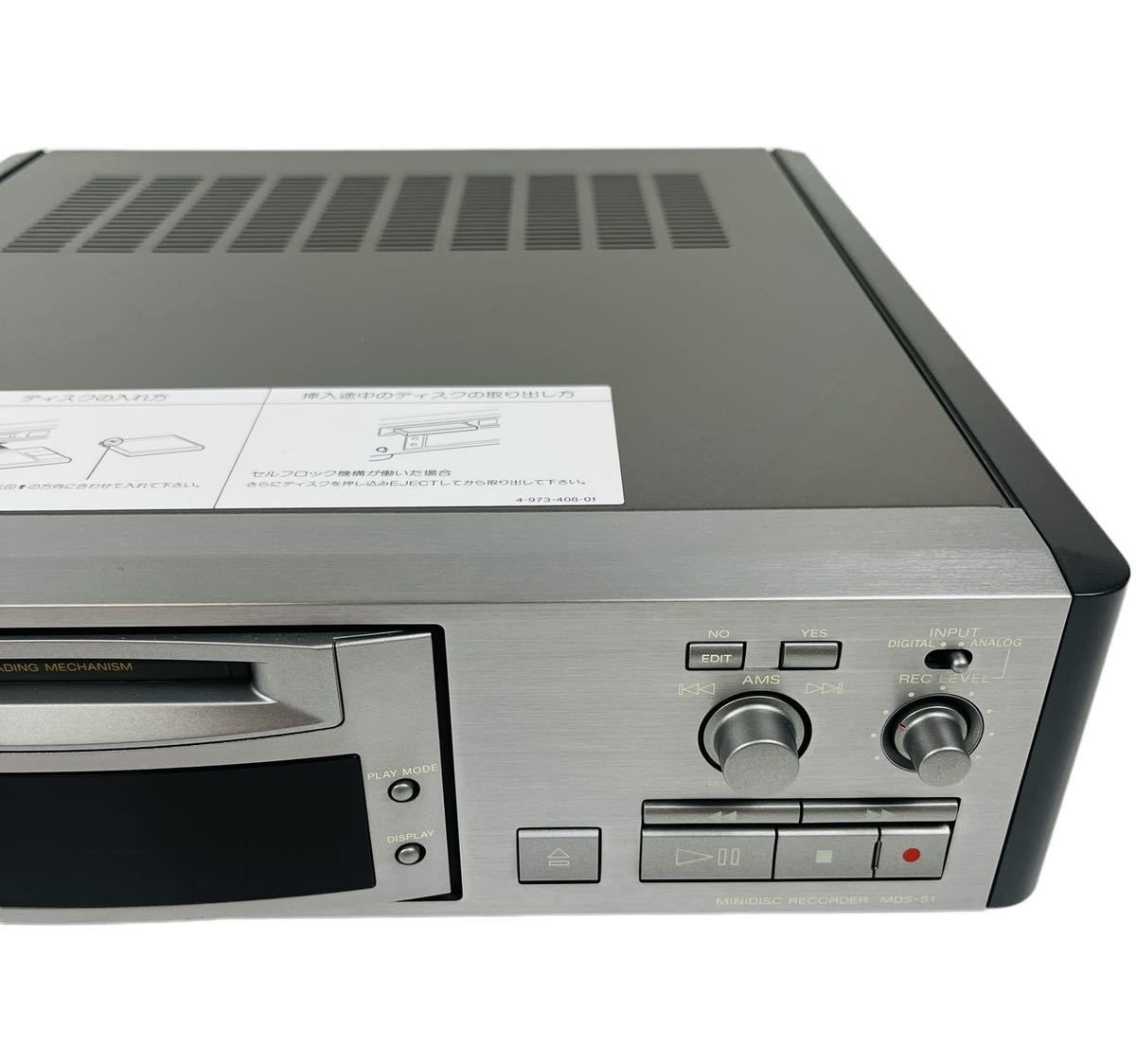

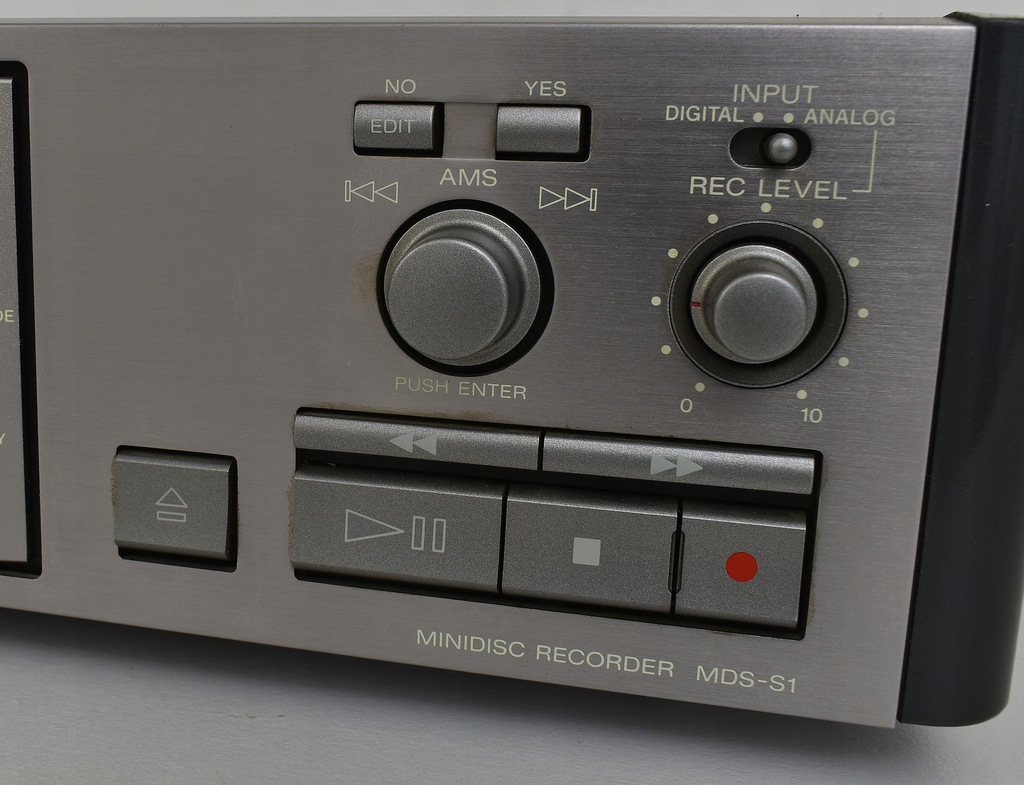

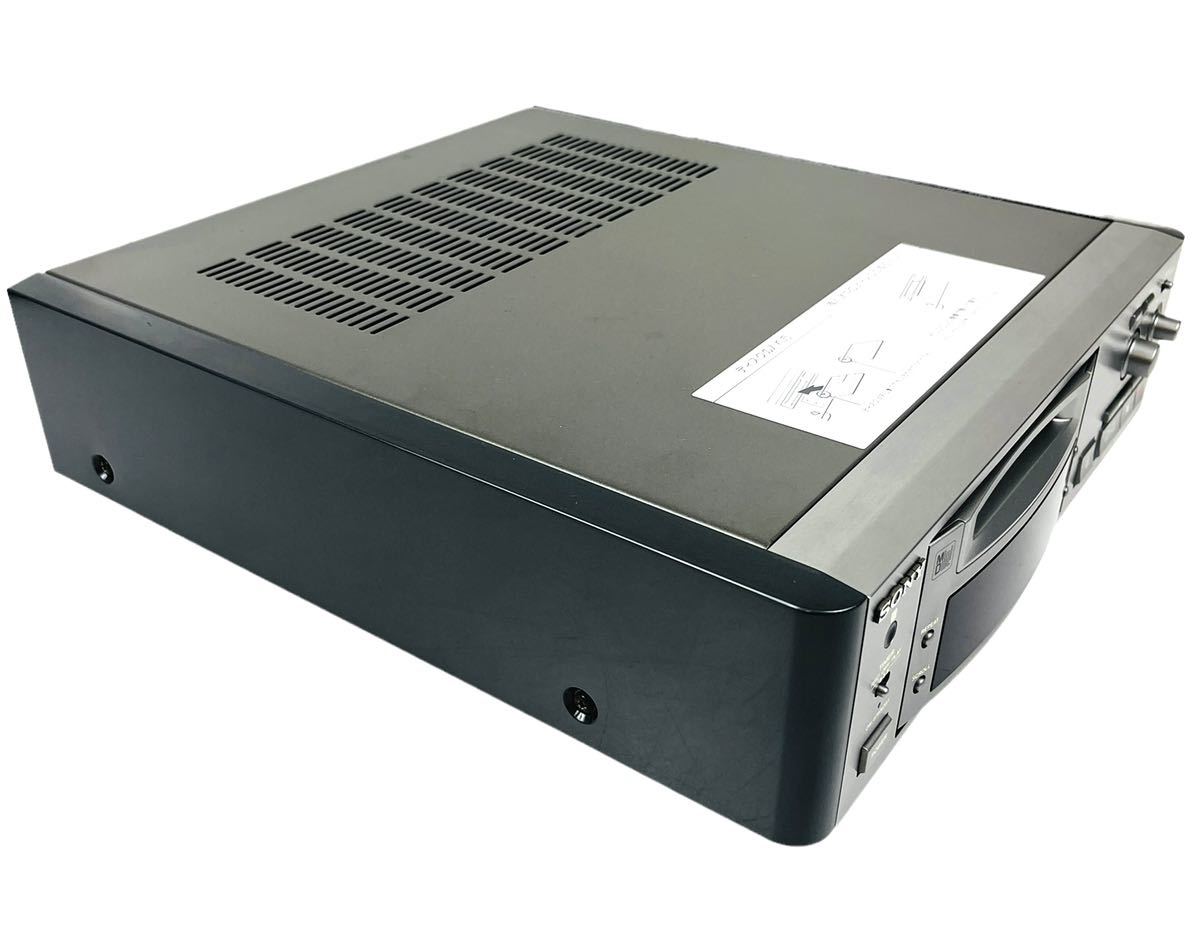

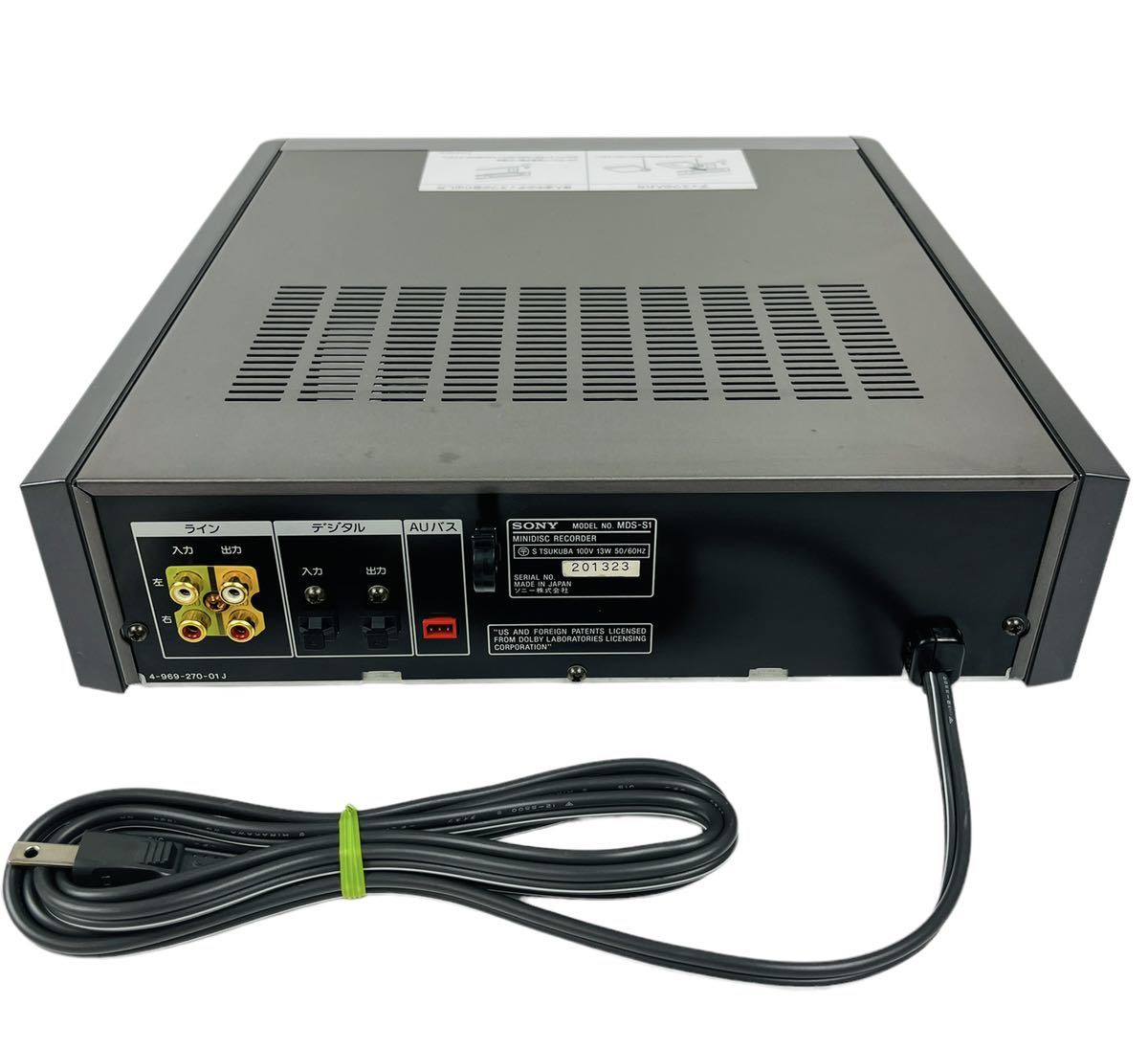

Photos
Watch the referenced video on YouTube
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Recorder | Recorder |
|---|---|
| Scms | Yes |
| Battery Page | |
| Sidecar | No |
| Voltage | 100 |
| Remote Page | |
| Atrac Ic | CXD2535 |
| Manual | Service manual |
| Region | Japan |
