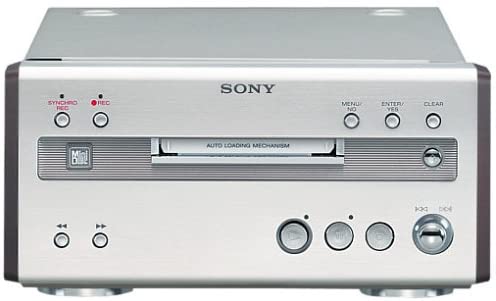

Sony MDS-SP55

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-06-30

Manufacturer
Sony
Model / source grouping
MDS-SP55
Device type
deck
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony MDS-SP55”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDS-SP55
Manufacturer Sony
Released 2000/01
Device type deck
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 202 × 101 × 298 mm (Integrated system size): W 734 x H 280.5 x D 280mm
Weight 1.7kg (total) 16.8kg
ATRAC ver 4.5
Power cable AC
Price (launch) Not recorded
Not recorded
-
Inputs Digital optical (TOSLINK)
Outputs 3.5mm headphone, Digital optical (TOSLINK)
Control Not recorded

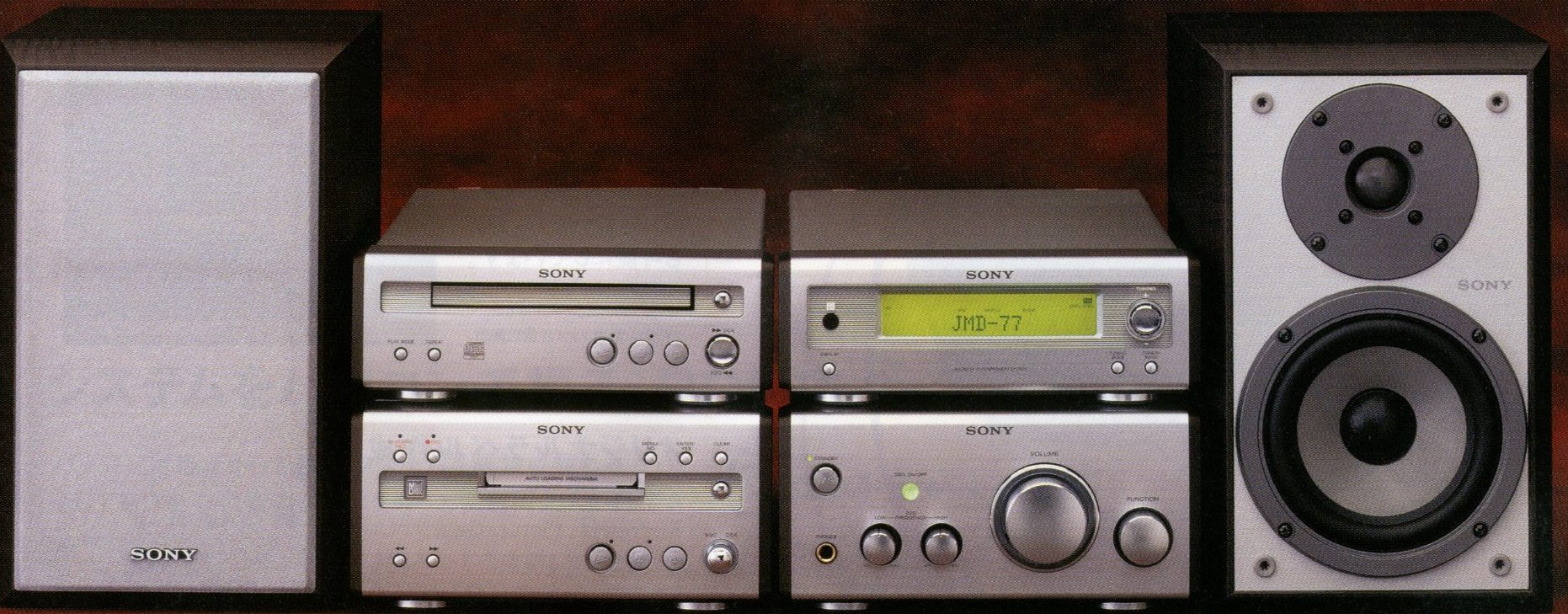

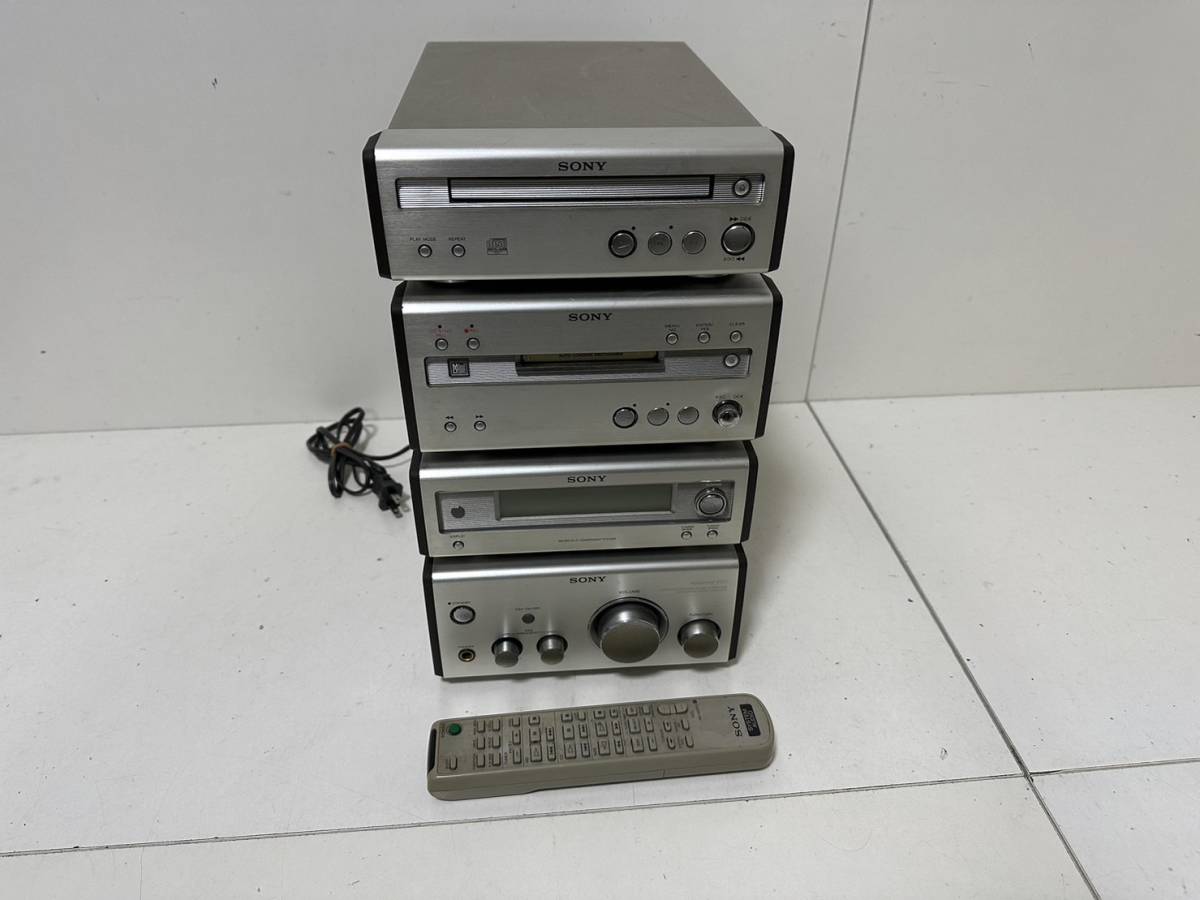

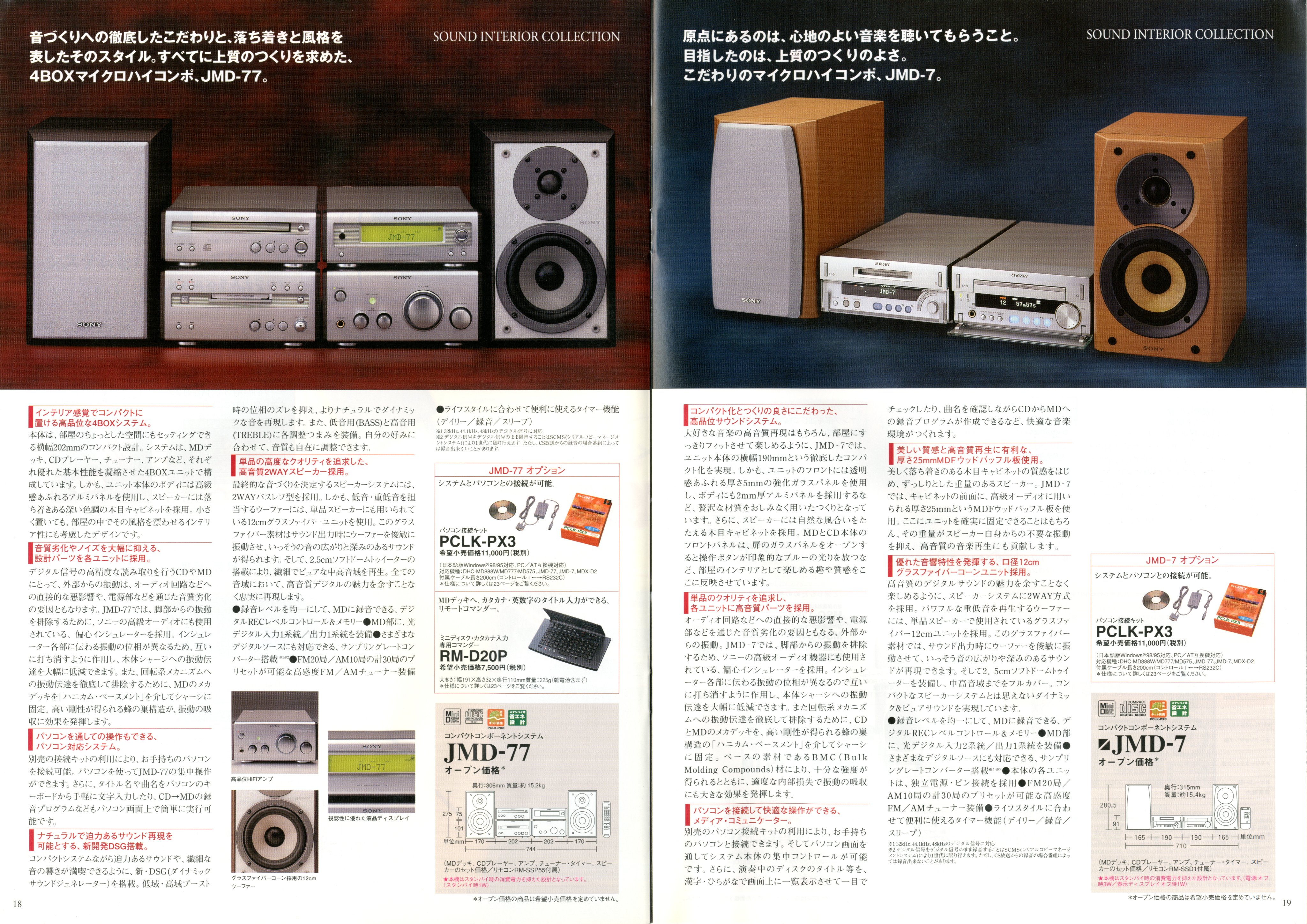

Part of the Sony JMD-77 component system. Possibly sold with other systems of the time.

  • TA-SP55 - Amp
  • MDS-SP55 - MD component
  • CDP-SP55 - CD Component
  • ST-SP55 - FM / AM Tuner
  • TC-TX33 - Cassette Deck

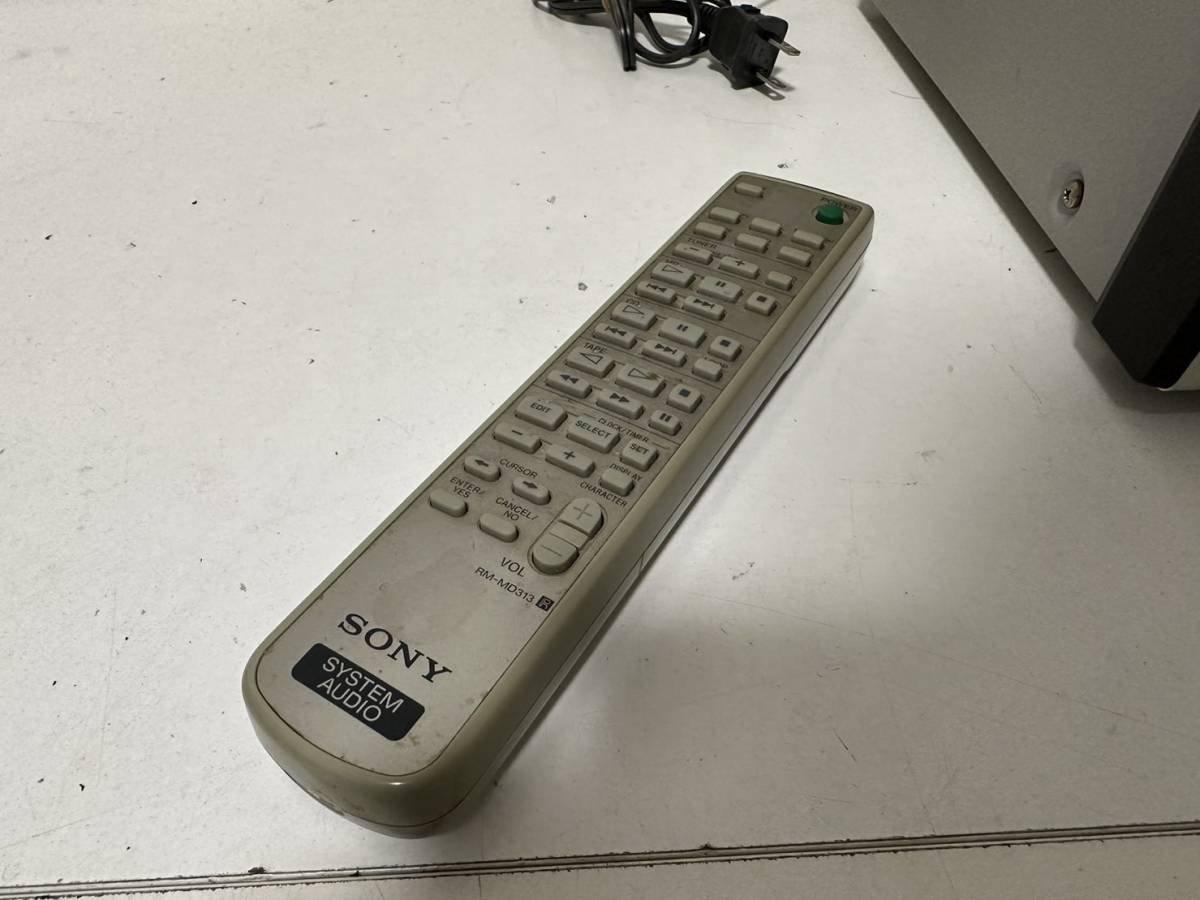

Remote control: RM-MD313 / RM-SSP55

Mechanism Type MDM-5A
Optical Pick-up Type KMS-260B/S1NP
Model Name Using Similar Mechanism MDS-JE330MD

Uses CXD2654R (ATRAC IO) and CXA2523AR (rf amp)

Content adapted from: all-specs.net PC.Watch.impress.co.jp Sony Product Park Sony Product Park (MiniDisc Wiki mirror)

Manuals

MDS-SP55 User Manual

MDS-SP55 Service Manual

Installation Instructions

Repair

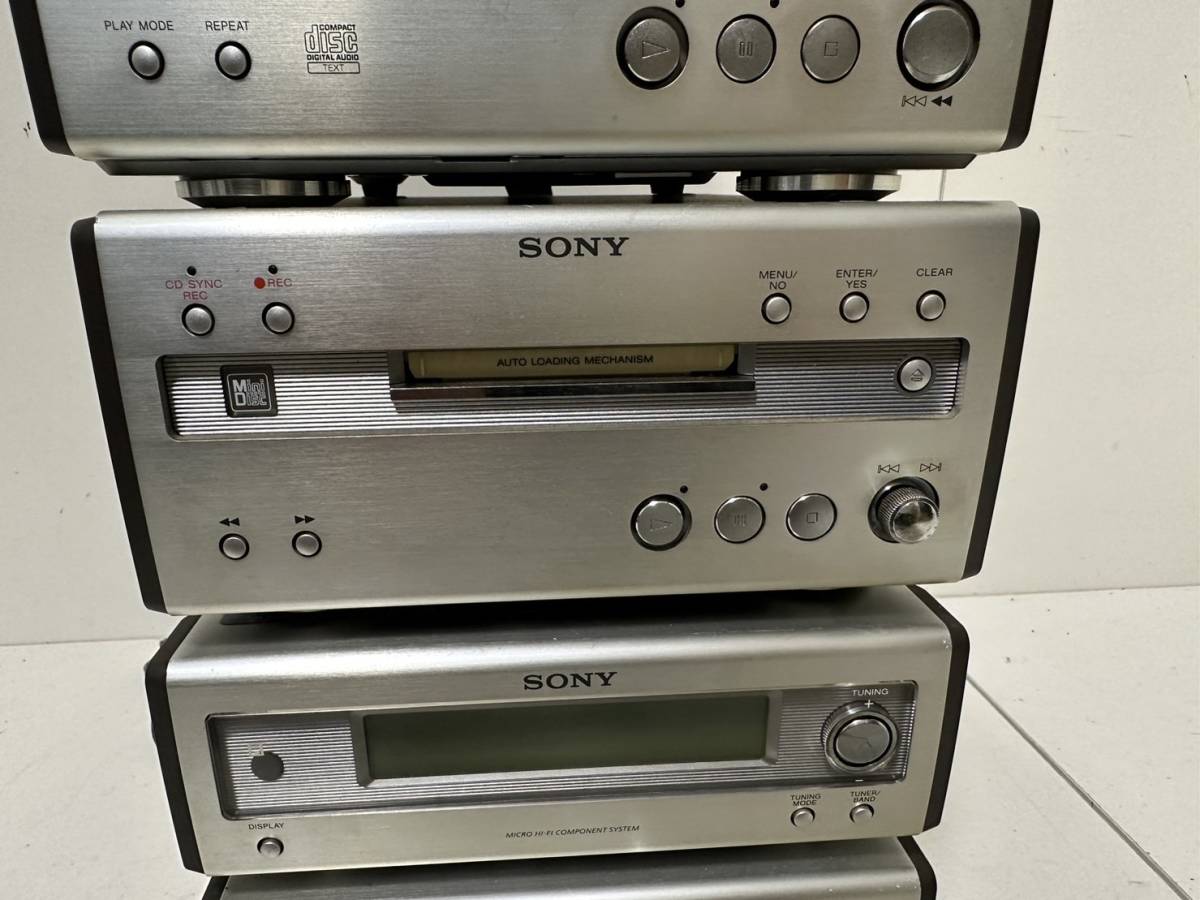

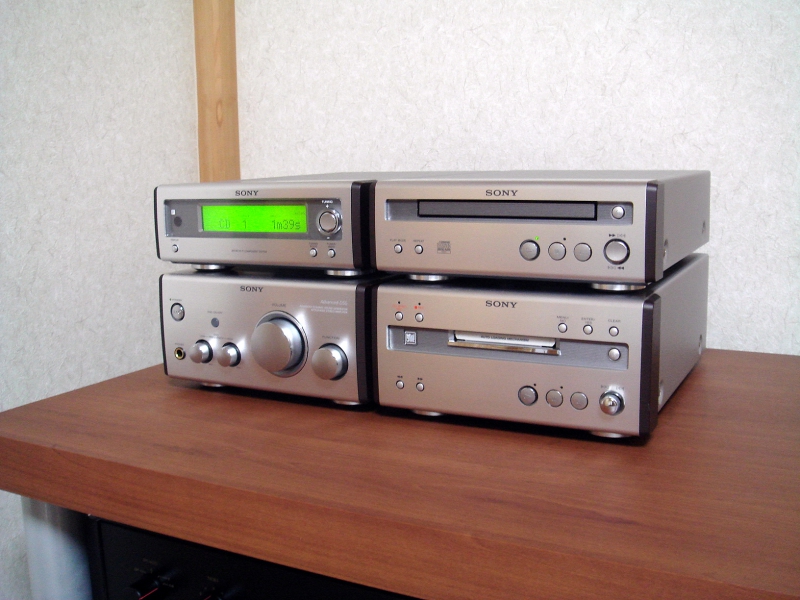

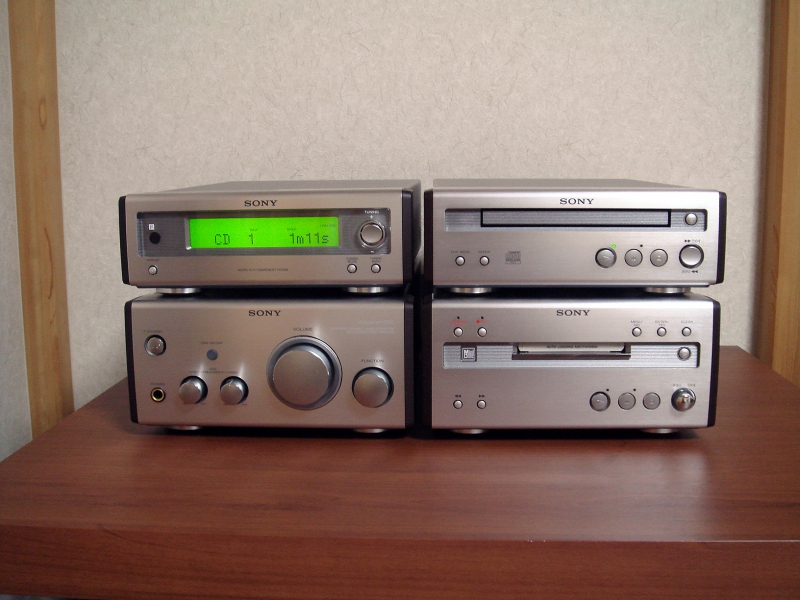

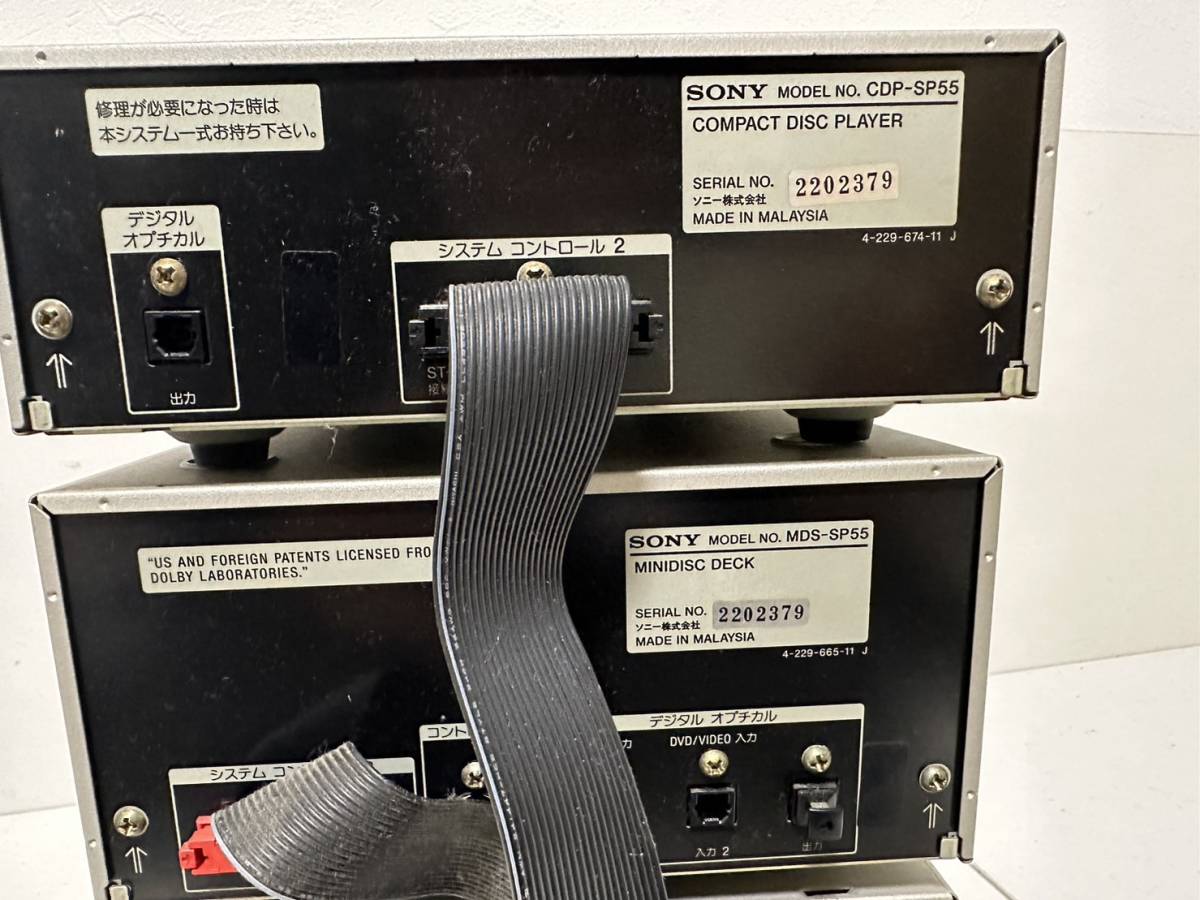

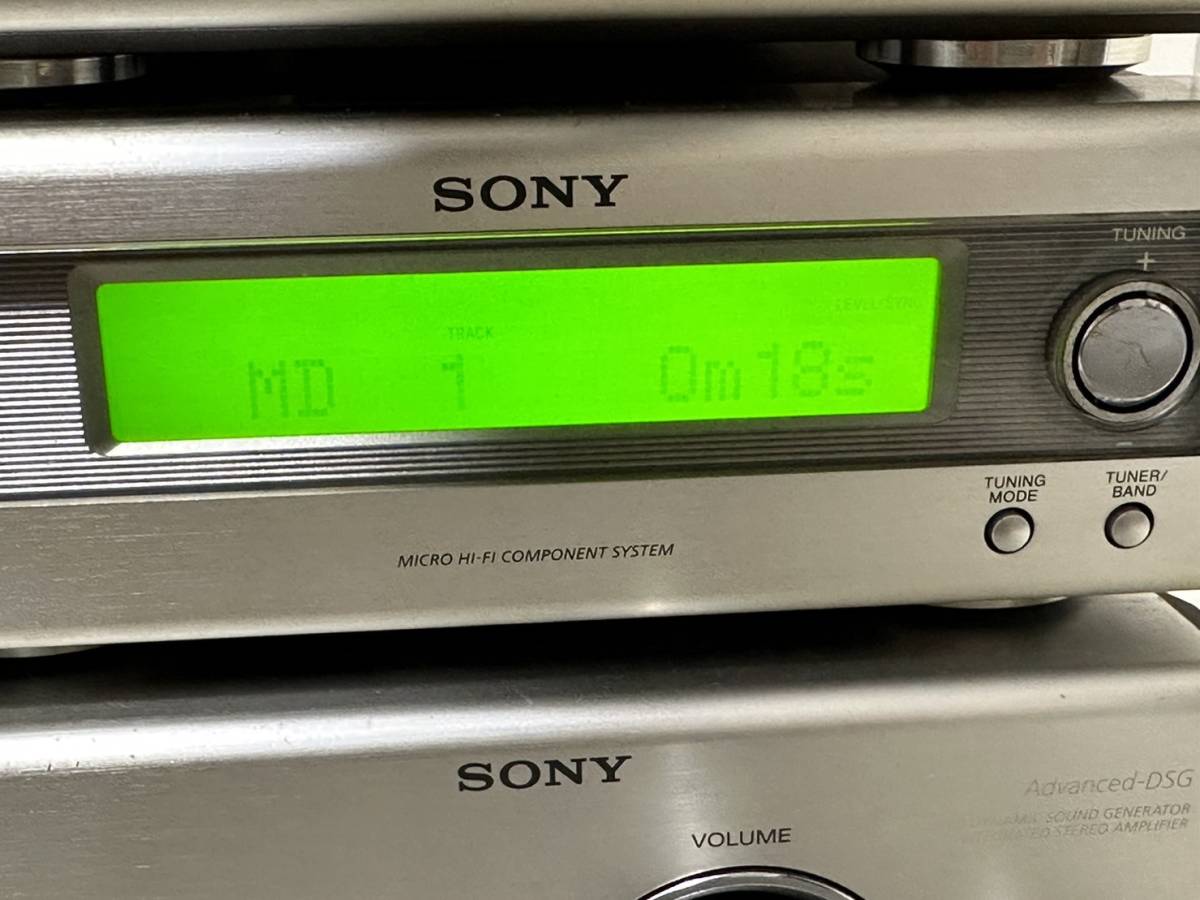

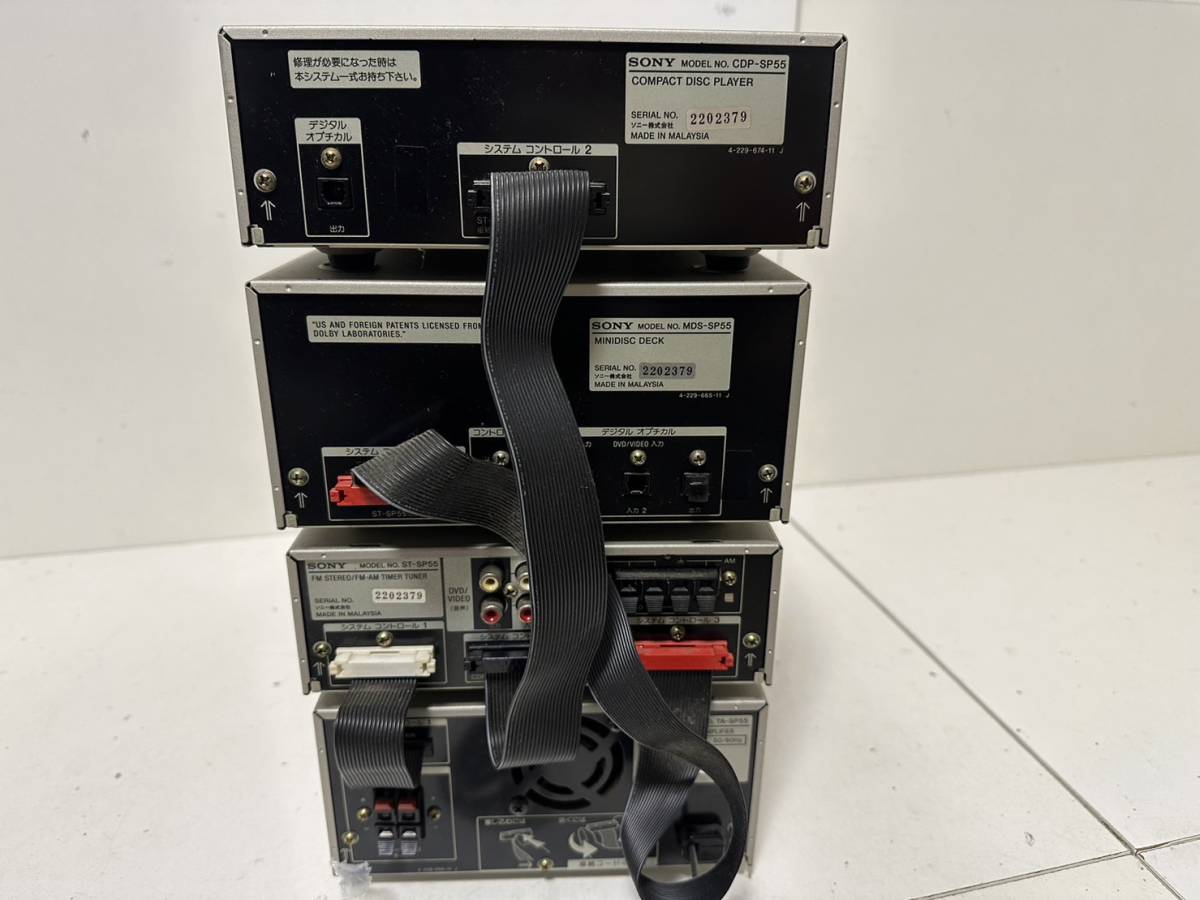

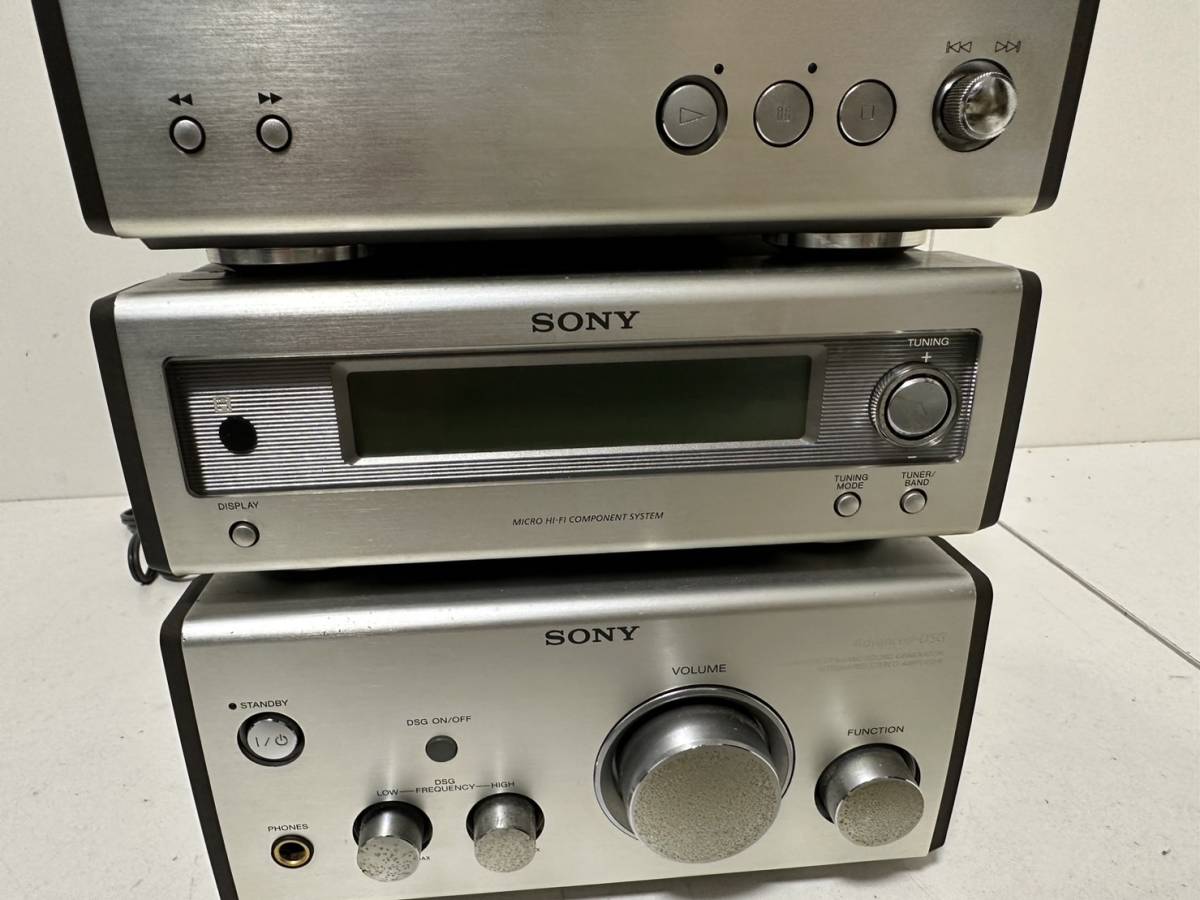

Photos

Referenced image — image unavailable in this snapshot Referenced image — image unavailable in this snapshot Referenced image — image unavailable in this snapshot Referenced image — image unavailable in this snapshot Referenced image — image unavailable in this snapshot Referenced image — image unavailable in this snapshot Referenced image — image unavailable in this snapshot Referenced image — image unavailable in this snapshot Referenced image — image unavailable in this snapshot

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
RecorderRecorder
ScmsYes
Web MdNo (not NetMD)
SidecarNo
Voltage100
ExportNo
ManualUser manual, Service manual
RegionJapan
