Sony MDH-10

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-10-02

Manufacturer
Sony
Model / source grouping
MDH-10
Device type
misc
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony MDH-10”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDH-10
Manufacturer Sony
Released 1995/07
Device type misc
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 86 x 31 x 131mm
Weight 340g
ATRAC ver Not recorded
Battery Not recorded LIP-12
Battery notes Not recorded
Sidecar (depr) 3xAA
Voltage Not recorded
Power cable Not recorded
Price (launch) $769
Not recorded
-
Inputs N/A

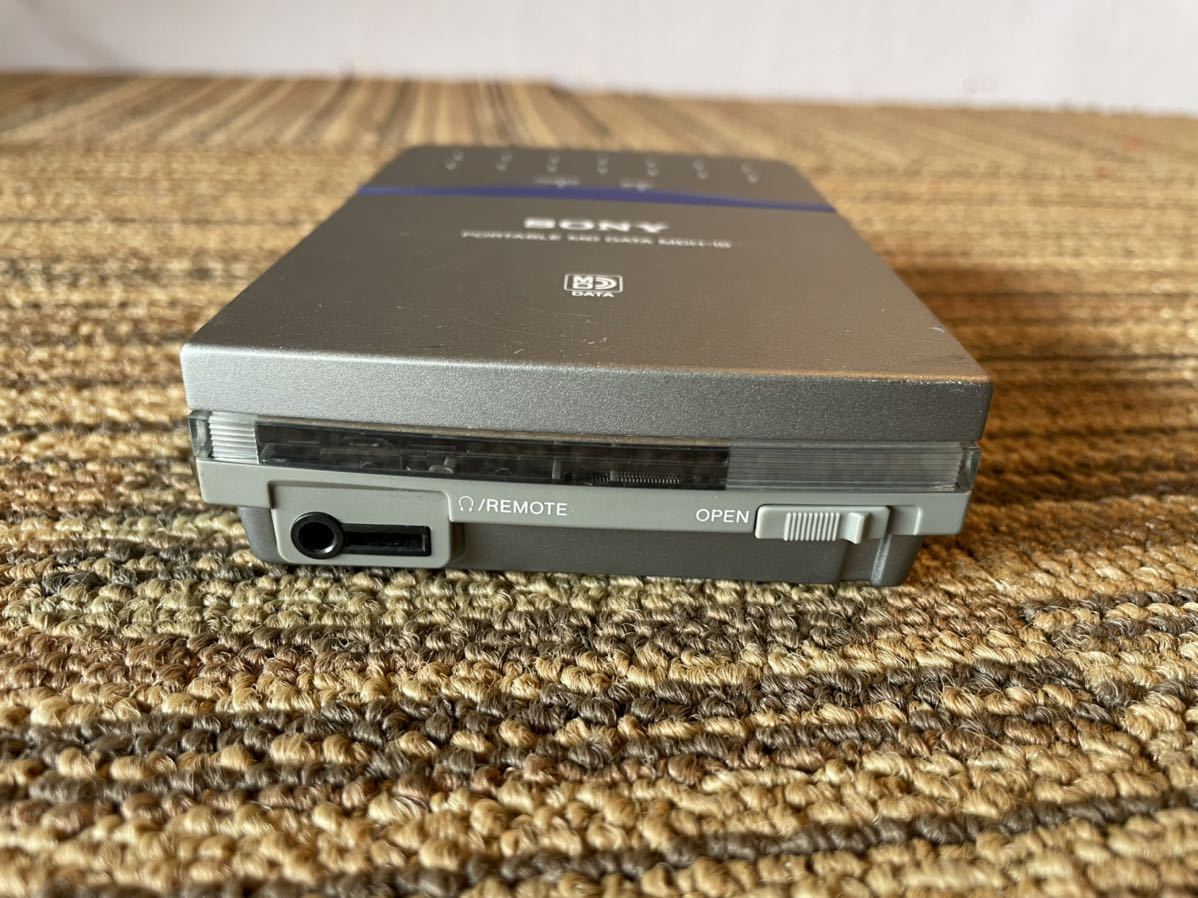

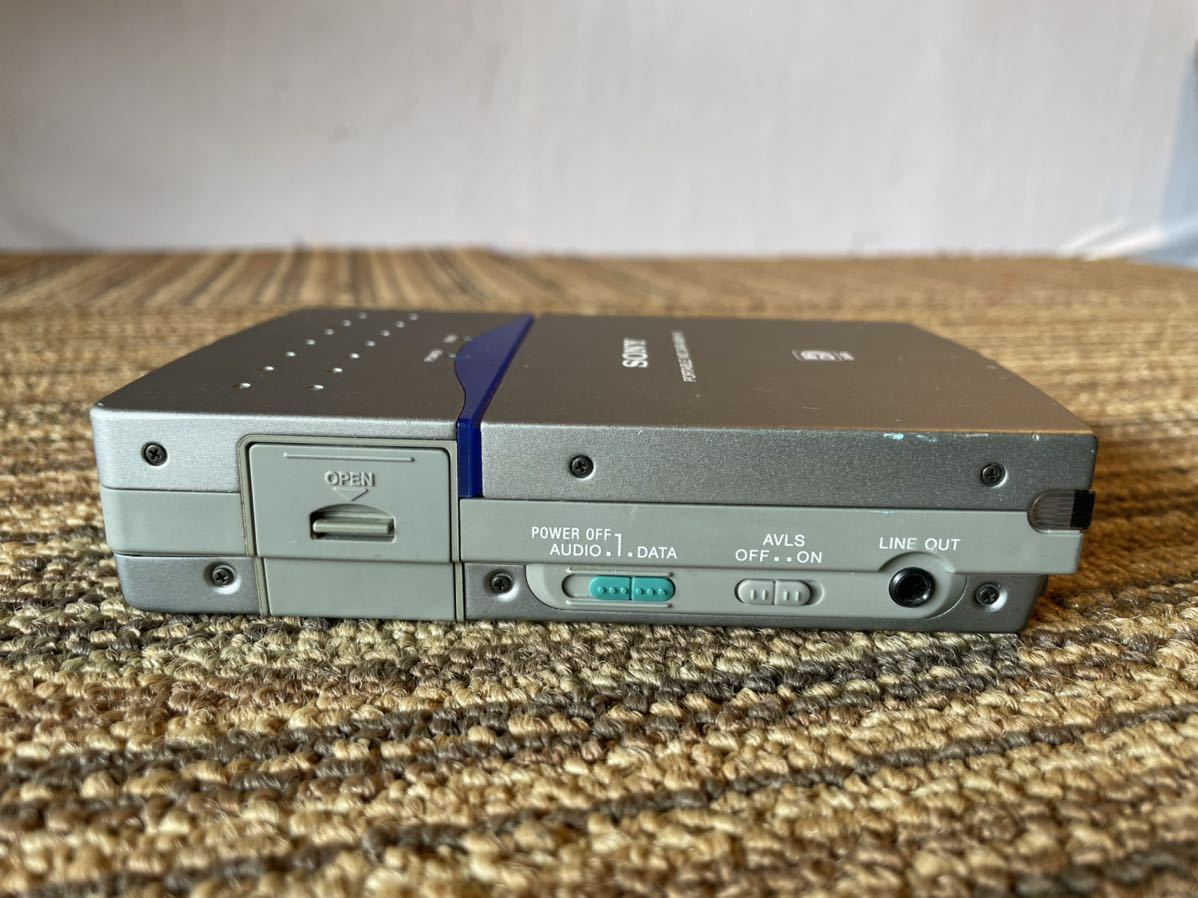

Outputs 3.5mm line out (analog-only), 3.5mm headphone
Control Remote (Sony), SCSI

Features: This is a computer peripheral designed for computer data storage. Uses special MD-Data discs (similar, but not identical to MD-Audio discs). Capacity: 140MB, transfer rate: 150KB/s continuous, 2.5MB/s burst, 320KB internal buffer, average seek < 500ms. LCD display on remote. Includes remote, headphones. Unit will play (but not record) audio MDs.

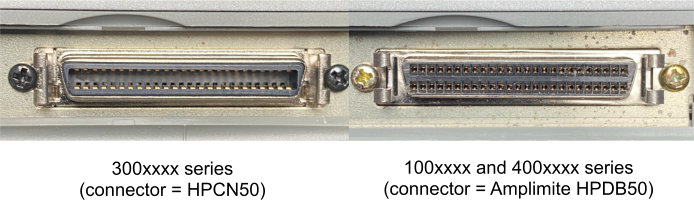

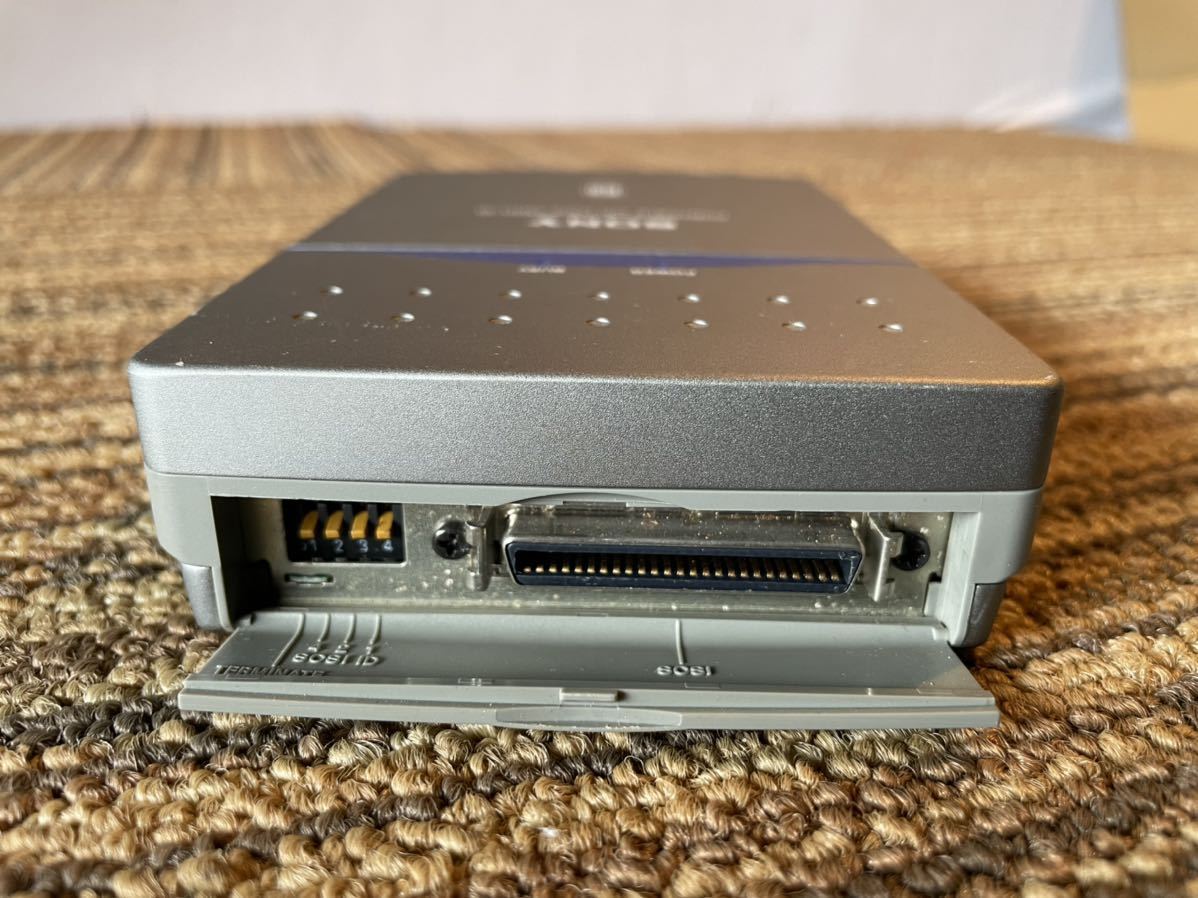

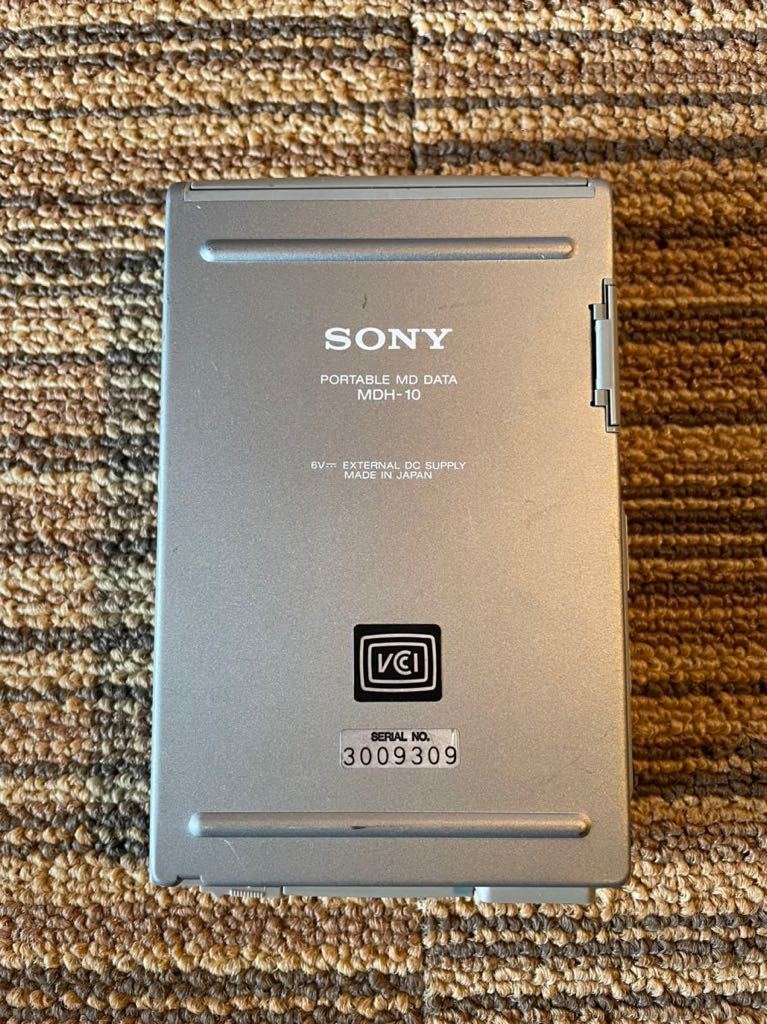

On a very limited review of some units (<10) there seems to have been at least three versions produced, having serial numbers starting 100xxxx, 300xxxx, or 400xxxx. They have different SCSI connectors on the back; at the time of review the 100xxxx and 400xxxx have Amplimite HPDB50 and the 300xxxx an HPCN50 (sometimes called micro-Centronics). The difference in SCSI connector may be dependent on the region in which they were originally sold (eg Japan or US/Canada/EU).

Exploring the Sony Product Park site shows there was a firmware upgrade offered that claimed to improve battery life by 80%.

Drivers: Archive.org

NEC PC9800 series DOSV machine common Windows95: two self extracting .exe's — unavailable in this snapshot

Optical pickup: KMS-190A

Content adapted from: Minidisc.org page, Sony Product Park Sony Product Park (MiniDisc Wiki mirror) Vintage Computer Forum

Manuals

User manual

Service Manual

Videos

Watch the referenced video on YouTube

Repair

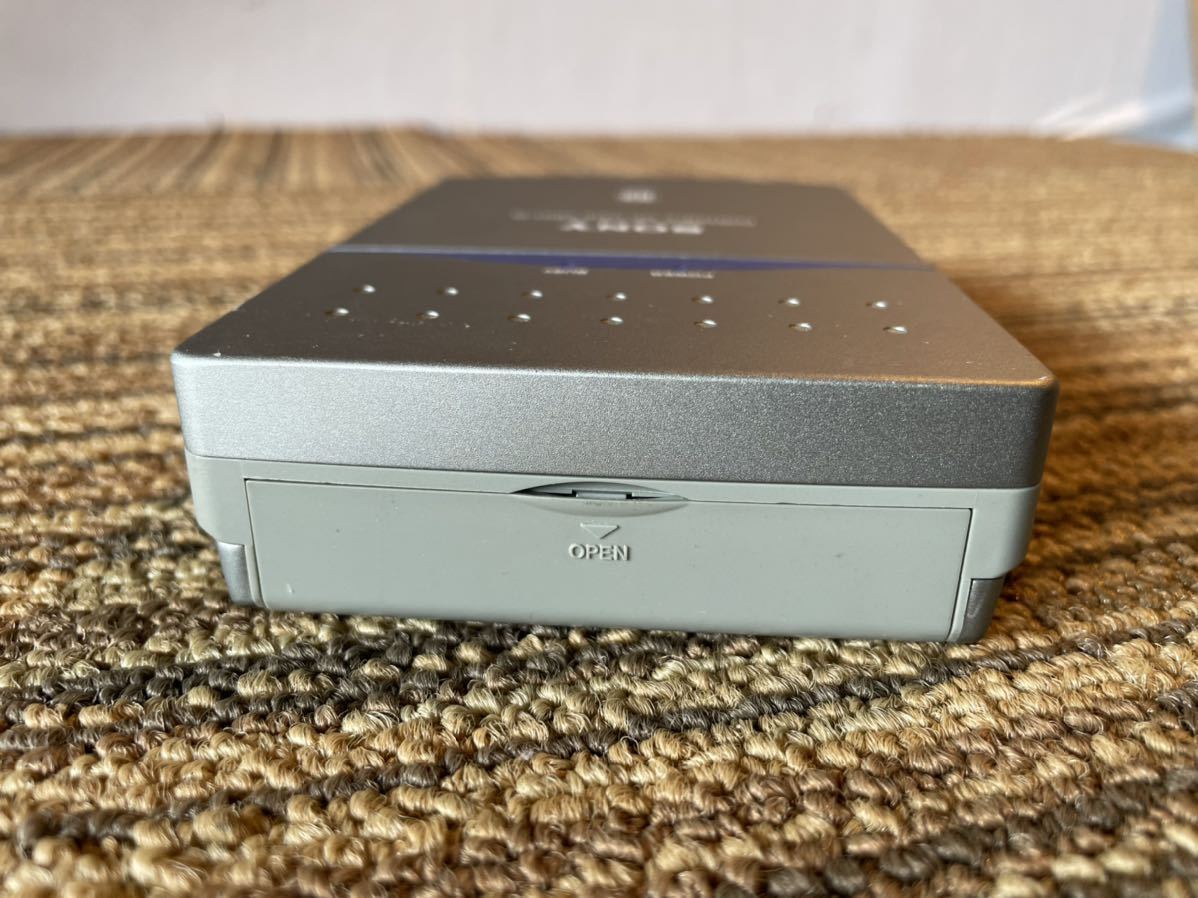

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Remote PageSony RM-MZE2MP
ManualUser manual, Service manual
RegionJapan, US/Canada, Europe
