| Name | MDM111-00 |
|---|---|
| Manufacturer | Sony |
| Released | 1994/10 |
| Device type | misc |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 15mm x 10mm x 2.5mm (PC form factor) |
| Weight | Not recorded |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | Not recorded |
| Power cable | N/A |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | Not recorded |
| Outputs | 3.5mm headphone, other |
| Control | SCSI |
This is an MD data drive, designed to fit in an internal 3.5 fascia space on a Windows PC. It needs a SCSI card installed and working in the PC before it can be used.
Although similar in concept to the MDH-10, the MDM111-00 main board layout is completely different to the MDH-10; not just in size but with different ICs.
Like the MDH-10, the MDM111-00 can play back audio MDs and there is a headphone jack and volume control wheel on the front faceplate. As standard, it cannot write audio data to audio minidiscs
Content adapted from: @@Source title@@
Manuals
There is a user manual for a 'kit' produced by Sony, which contained:
- An MD data drive
- A blank recordable MD Data disc
- A 3.5inch diskette with software
- A 50-pin internal SCSI cable (for IBM Thinkpad Dock I)
- An instruction manual
A service manual does not seem to be available on any of the download sites.
Repair
Photos

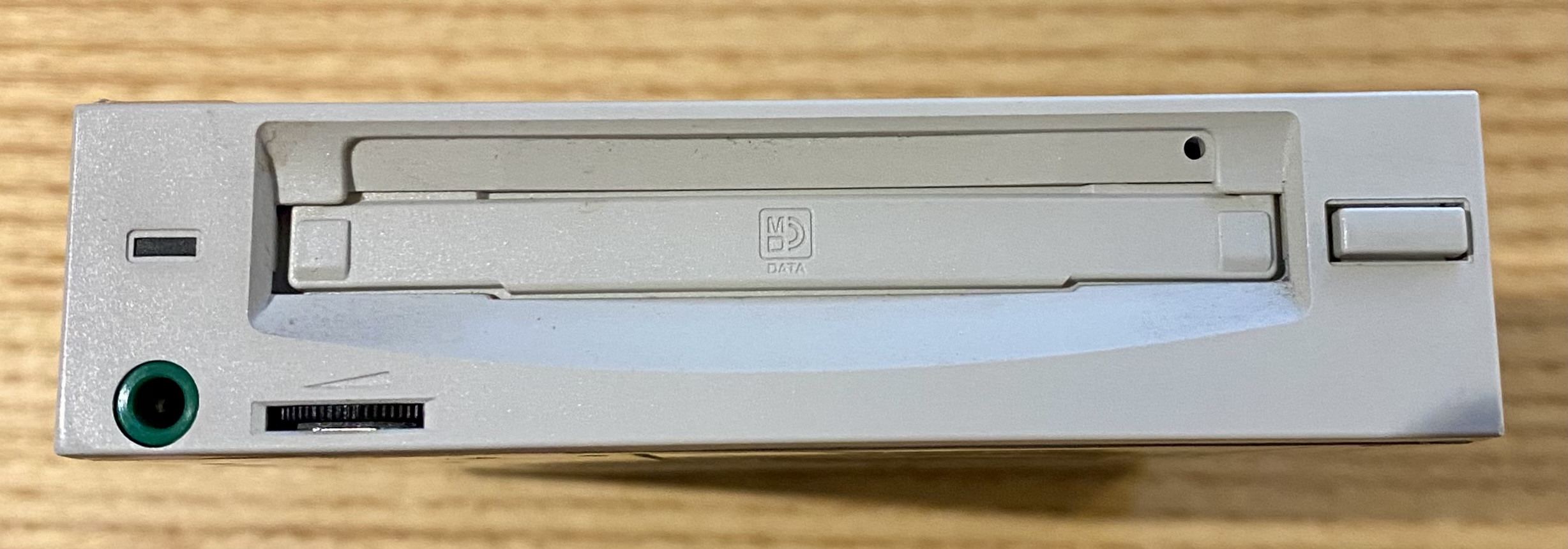

Front

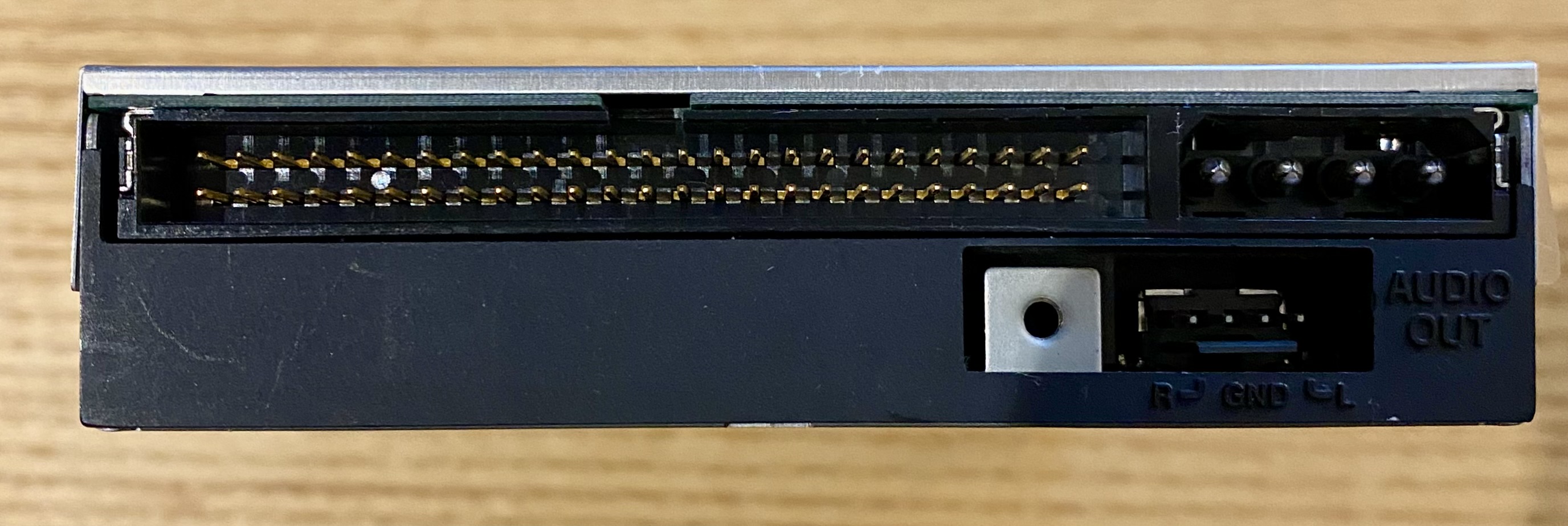

Rear

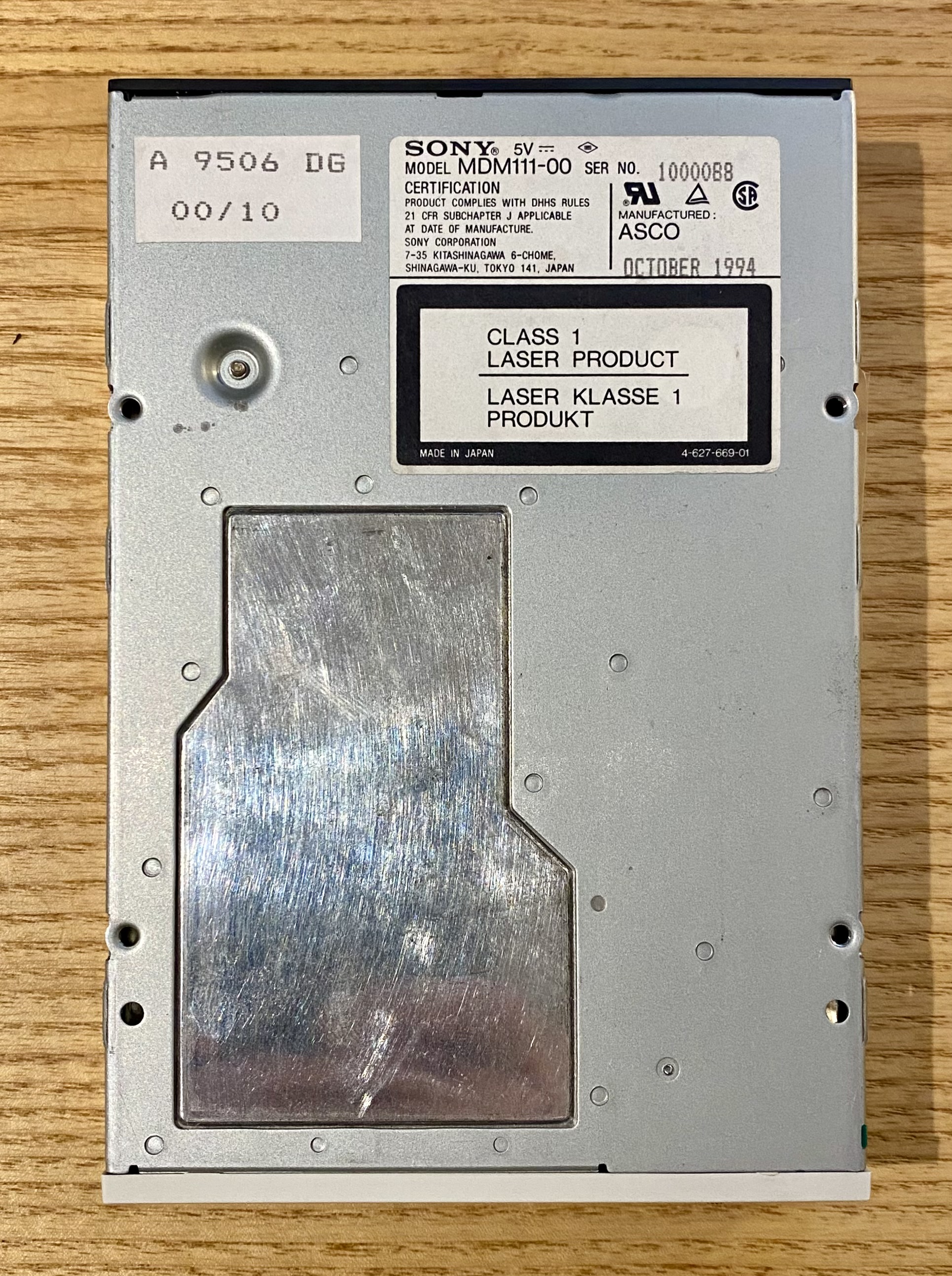

Top

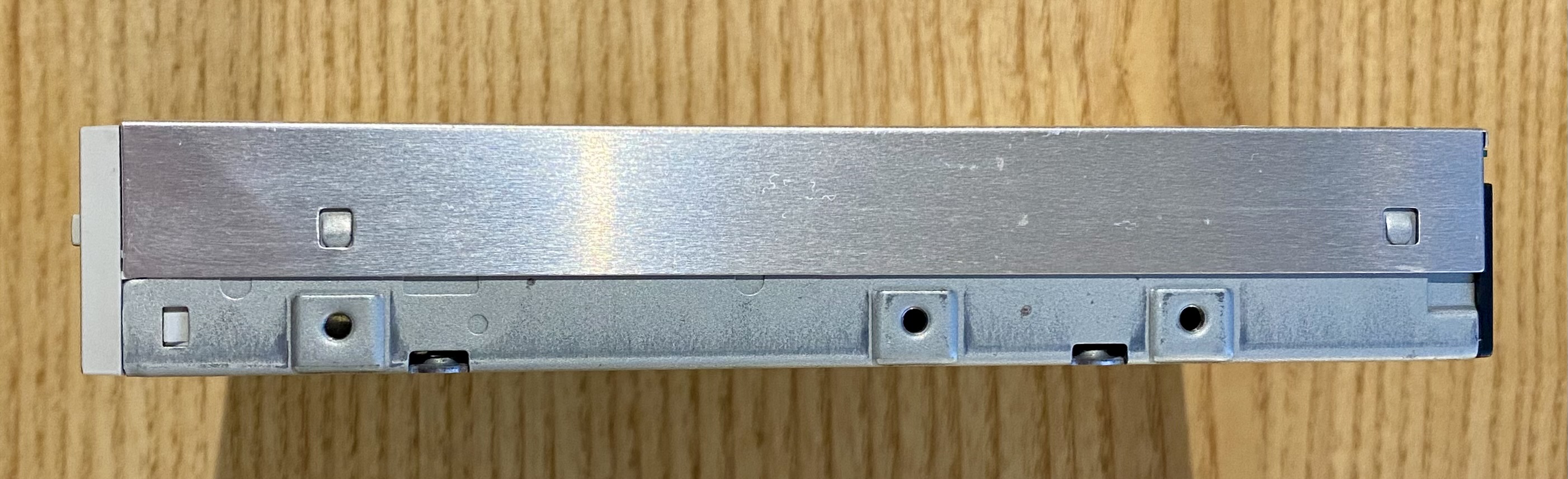

Left hand side

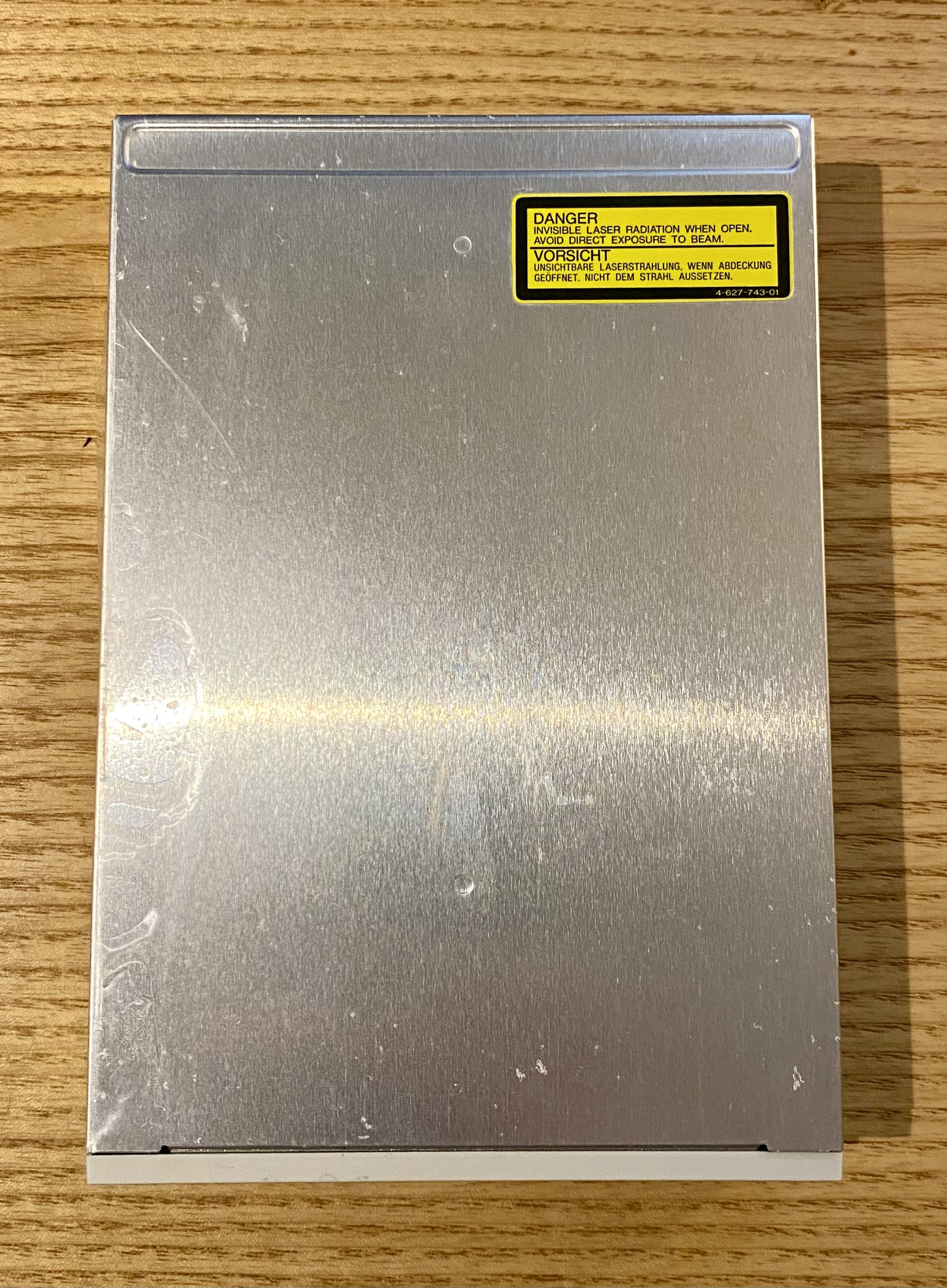

Underneath

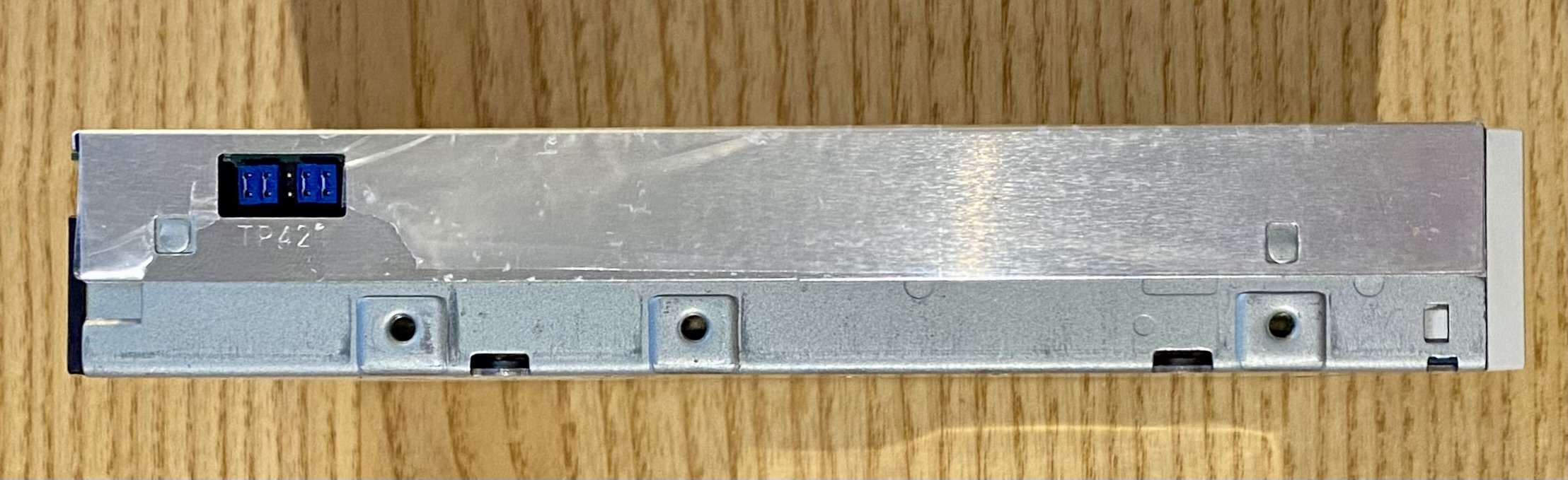

Right hand side

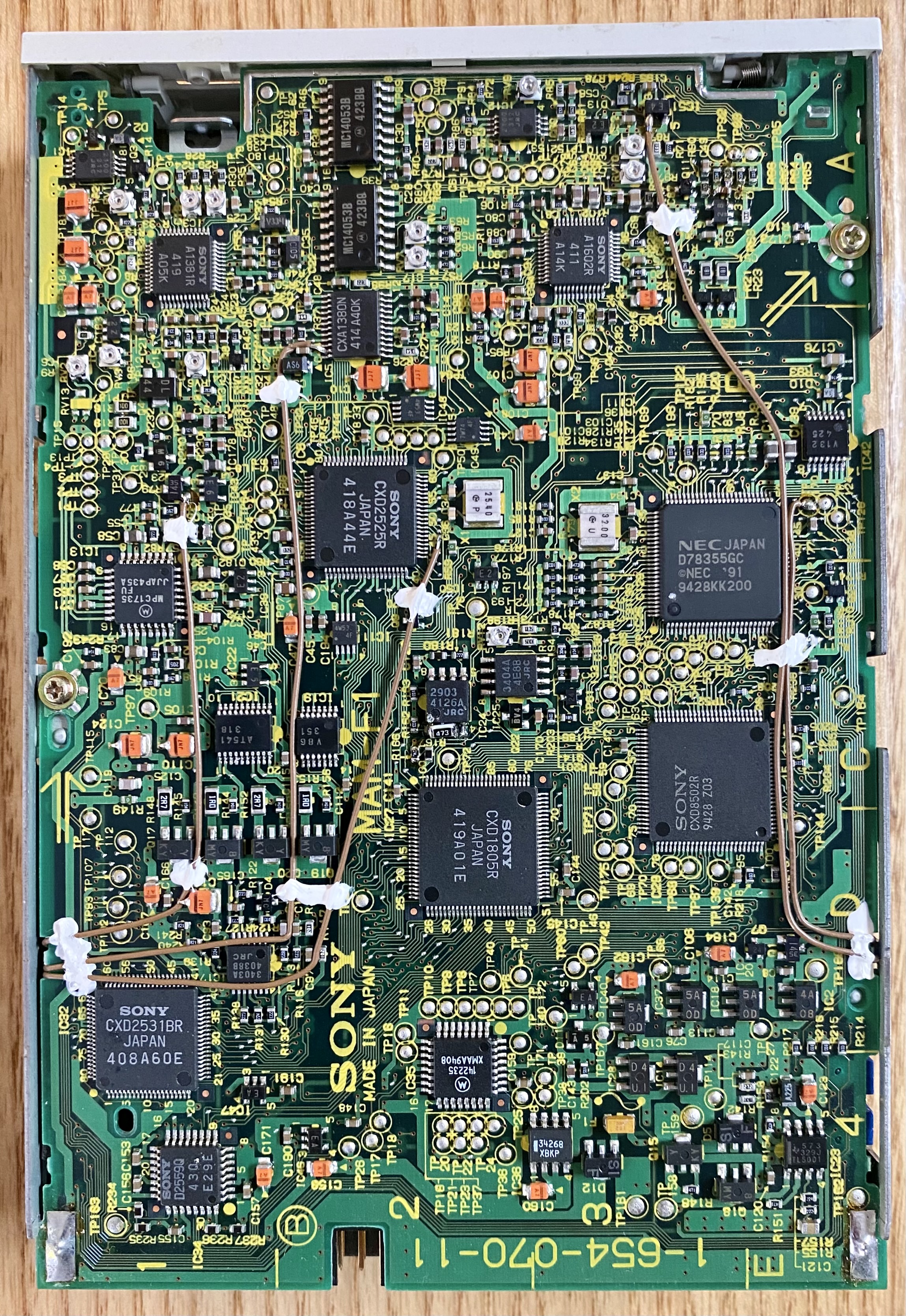

MDM111-00 main board (MAM-F1)

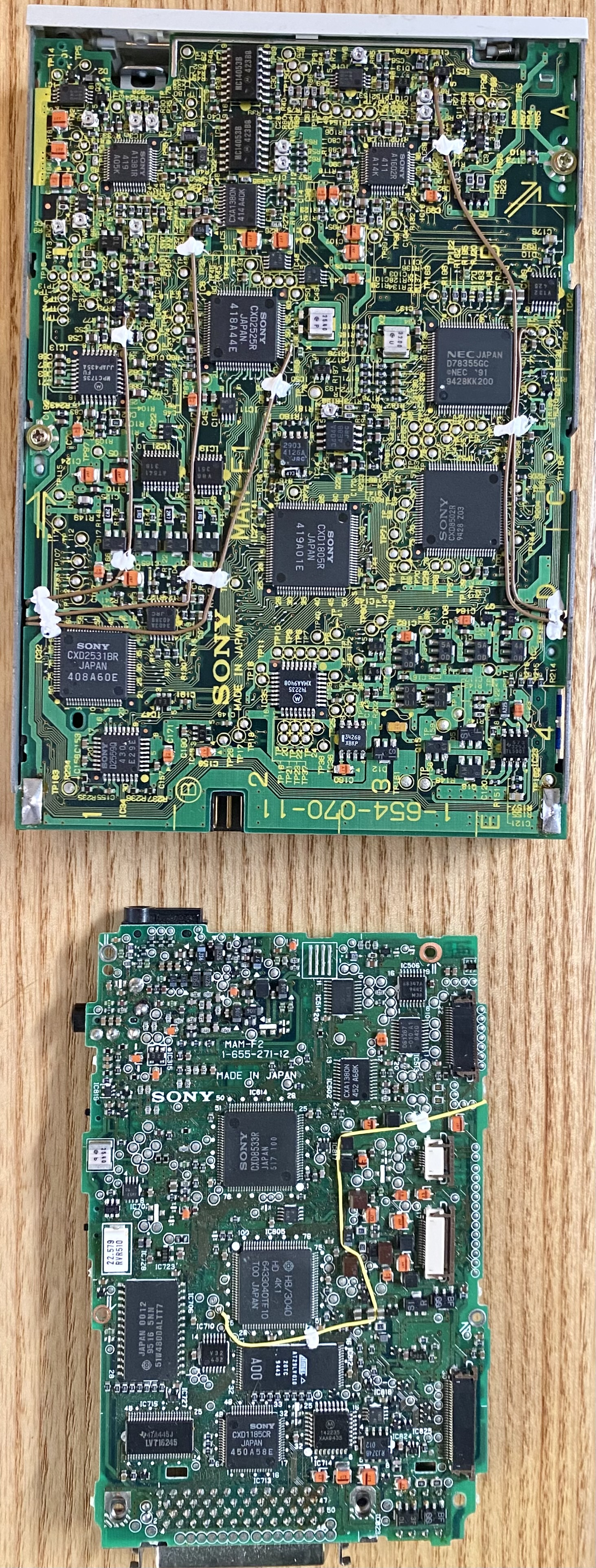

Larger MDM111 board compared to MDH-10 (MAM-F2)
(Photos courtesy imkidd57, Nassib Khayat)
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Export | No |
| Manual | User manual |
| Region | Japan, US/Canada, Europe, Asia |
