Sony Personal MD File "DATA EATA" PDF-5

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2026-02-19

Manufacturer
Sony
Model / source grouping
PDF-5
Device type
misc
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony Personal MD File "DATA EATA" PDF-5”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name PDF-5
Manufacturer Sony
Released 1995/12
Device type misc
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 308×255×56mm
Weight 2.6kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No

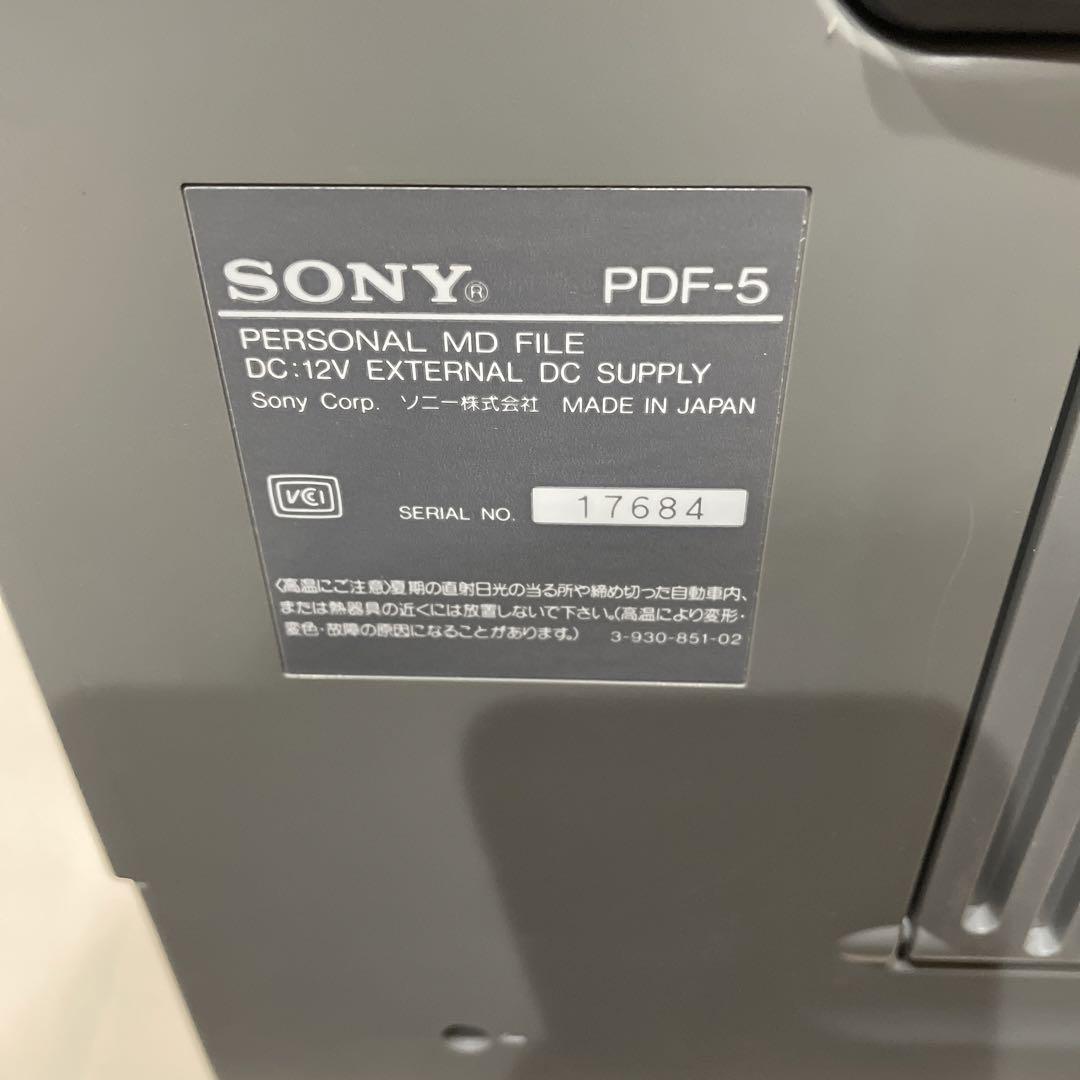

Voltage 12
Power cable Center positive
Price (launch) Not recorded
¥135 000
-
Inputs N/A
Outputs other
Control Not recorded

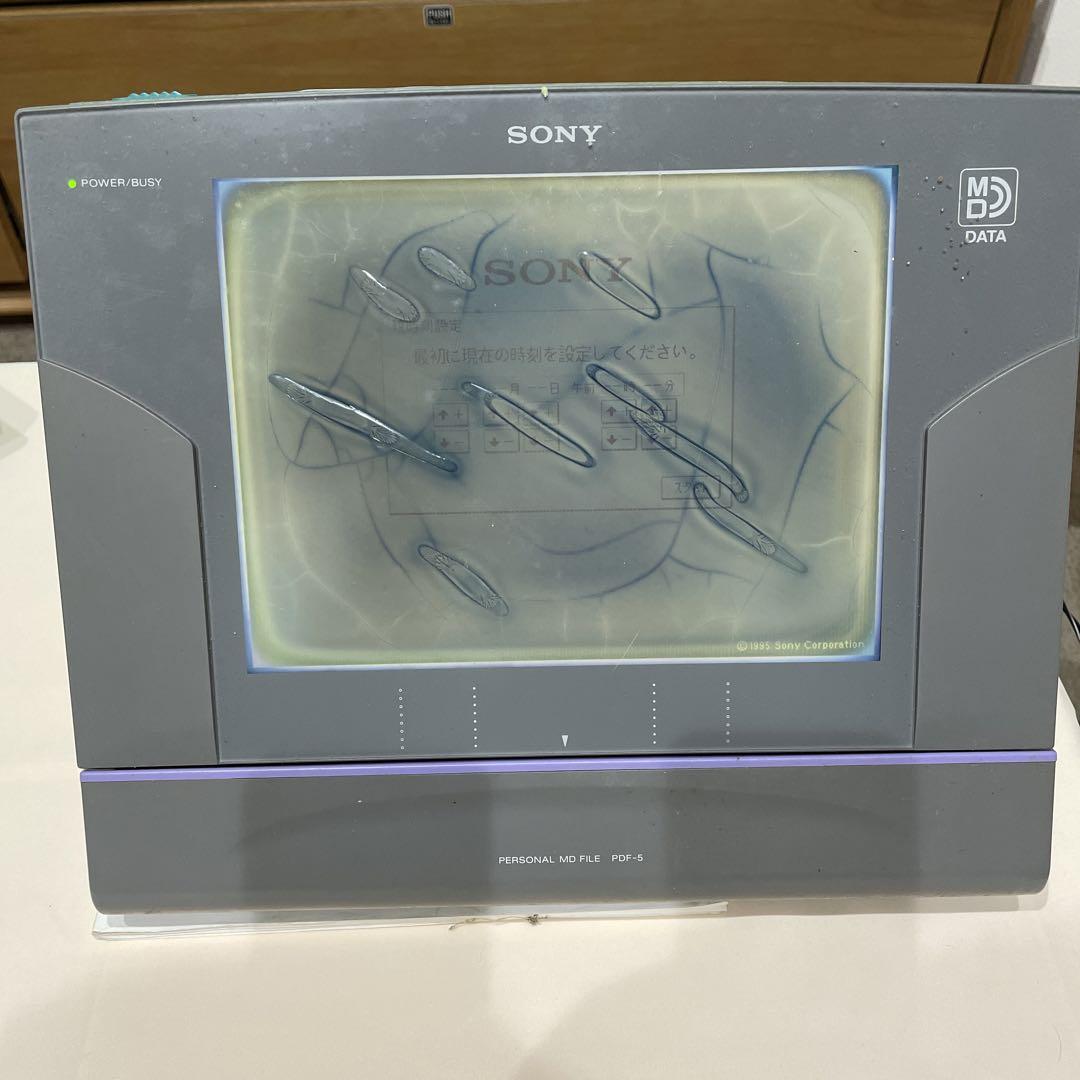

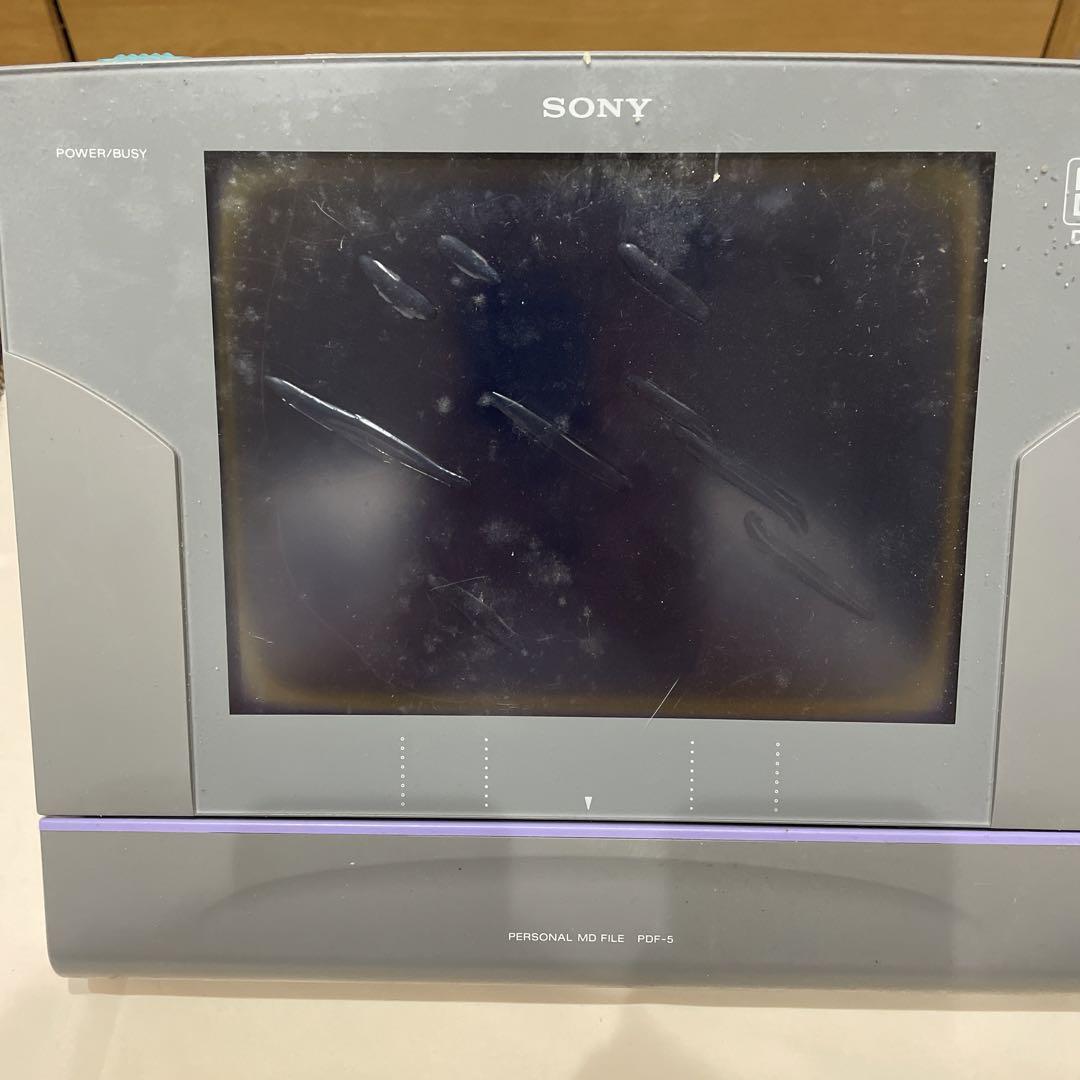

Combination of an MD Drive, scanner, and 9.5inch monochrome LCD touch capable display (states 8 levels of greyscale). The drive is an MD-Data drive, and can support up to 1000 A4 files on each disc. The scanner can scan a single A4 page in about 4 seconds. Scanned documents can be edited and searched (built-in OCR?), and the device can also be used as a memo pad.

Had a few optional accessories:

  • PDK-1 Printer Cable - allowed the device to connect to a "Centronics Parallel Compliant Printer (Amphenol 36 pin)"
  • PDN-1 Handy Scanner - External scanner for things hard to capture with the built in scanner (press release mentions curved surfaces, bindings, and postcards)
  • PDC-PDF5 Main Unit Storage Case
  • PDB-PDF5 Main Unit Storage Bag

—- Content adapted from: Sony Official Press Release

Notes

Device will not read/write/play non-Data MD discs.

  • "Pressed" CD-mode MD are detected immediately by sensor switch in drive.
  • Recordable MD are detected after reading MD TOC.

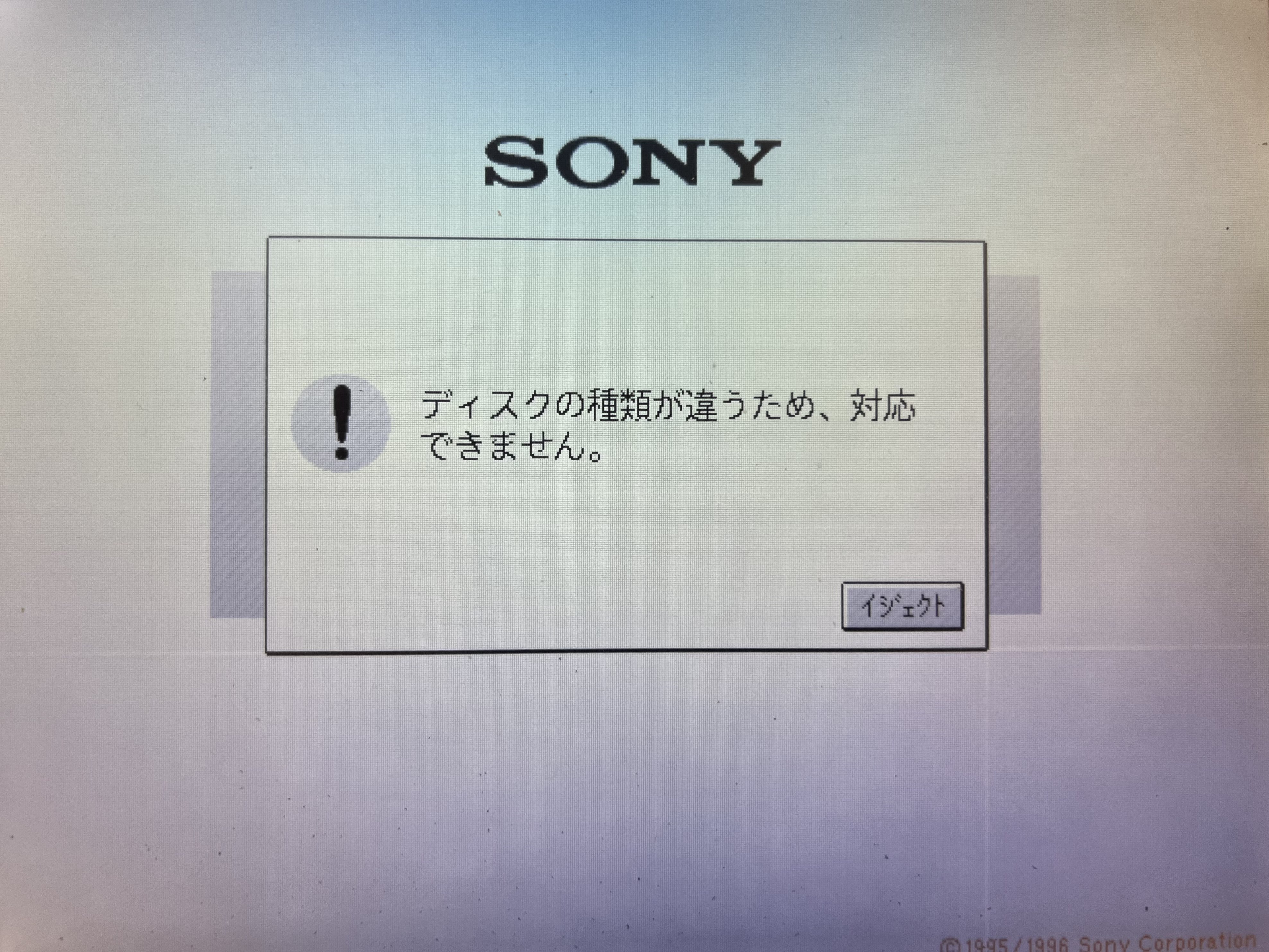

Any attempt to use non-Data MD will give the error: 「ディスクの種類が違うため、対応できません。」 Translated: "Unable to support the disc because it is a different type."

MDCon's Review by Defor

Manuals

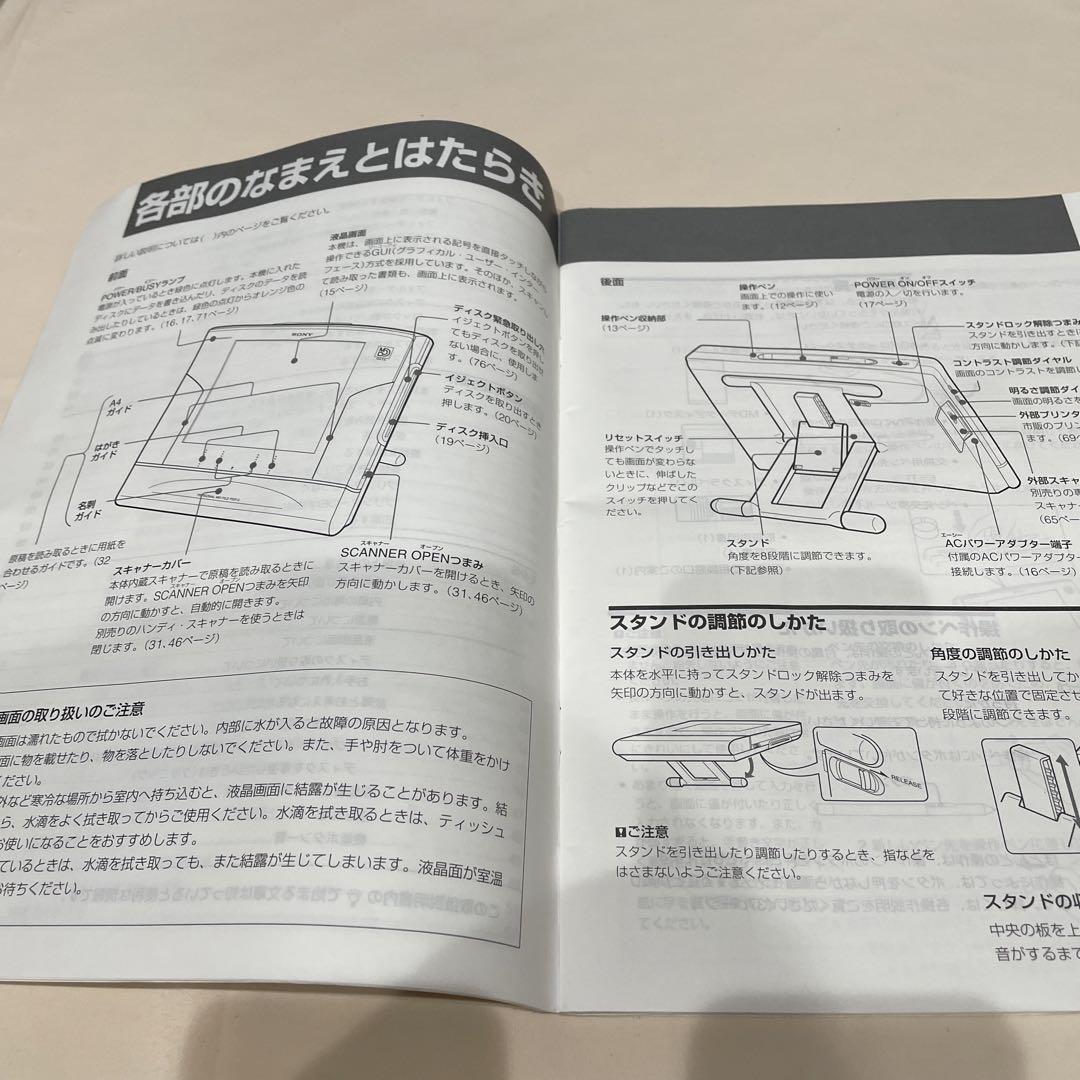

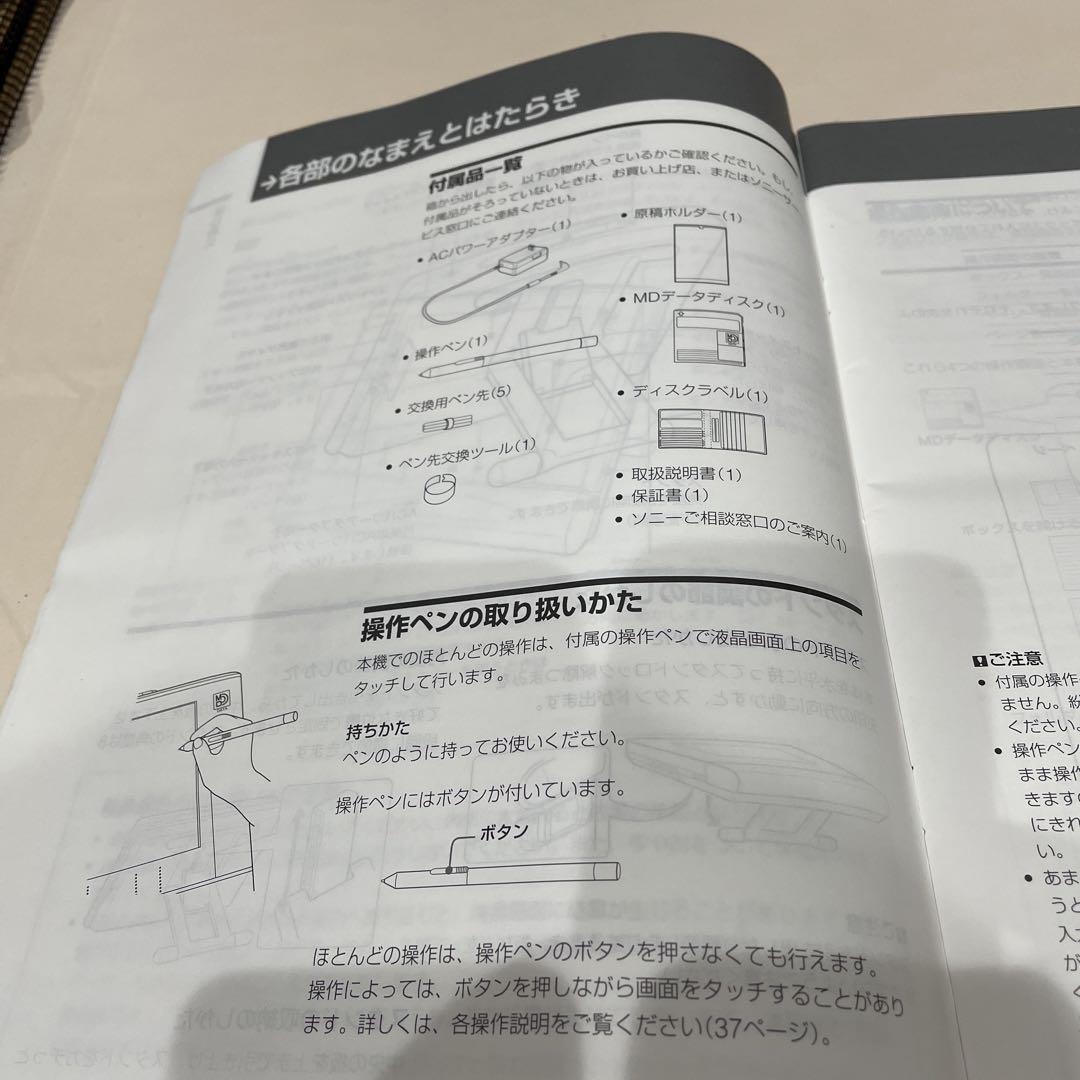

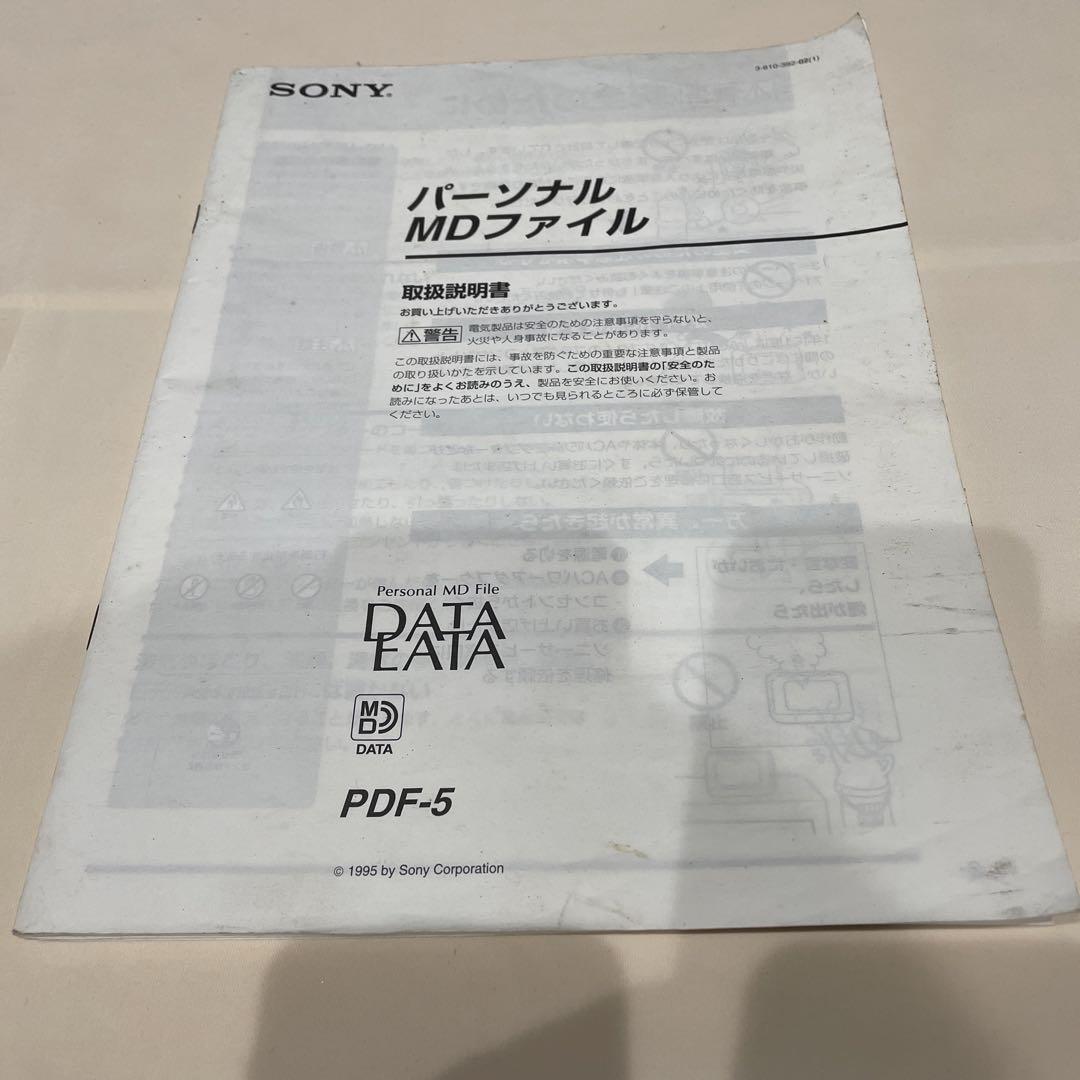

PDF-5 User Manual

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsNo
Web MdNo (not NetMD)
ExportNo
Remote Page
Mechanismmam-m1
ManualUser manual
RegionJapan
