Name	MZ-B10
Manufacturer	Sony
Released	2003/02
Device type	portable
Recorder	Recorder
MDLP	Yes
NetMD	No
Hi-MD	No
Radio	No
Dimensions	118.2 x 24.0 x 75.4mm
Weight	150g (190g w/ batteries)
ATRAC ver	Type-S
Battery	2x AA

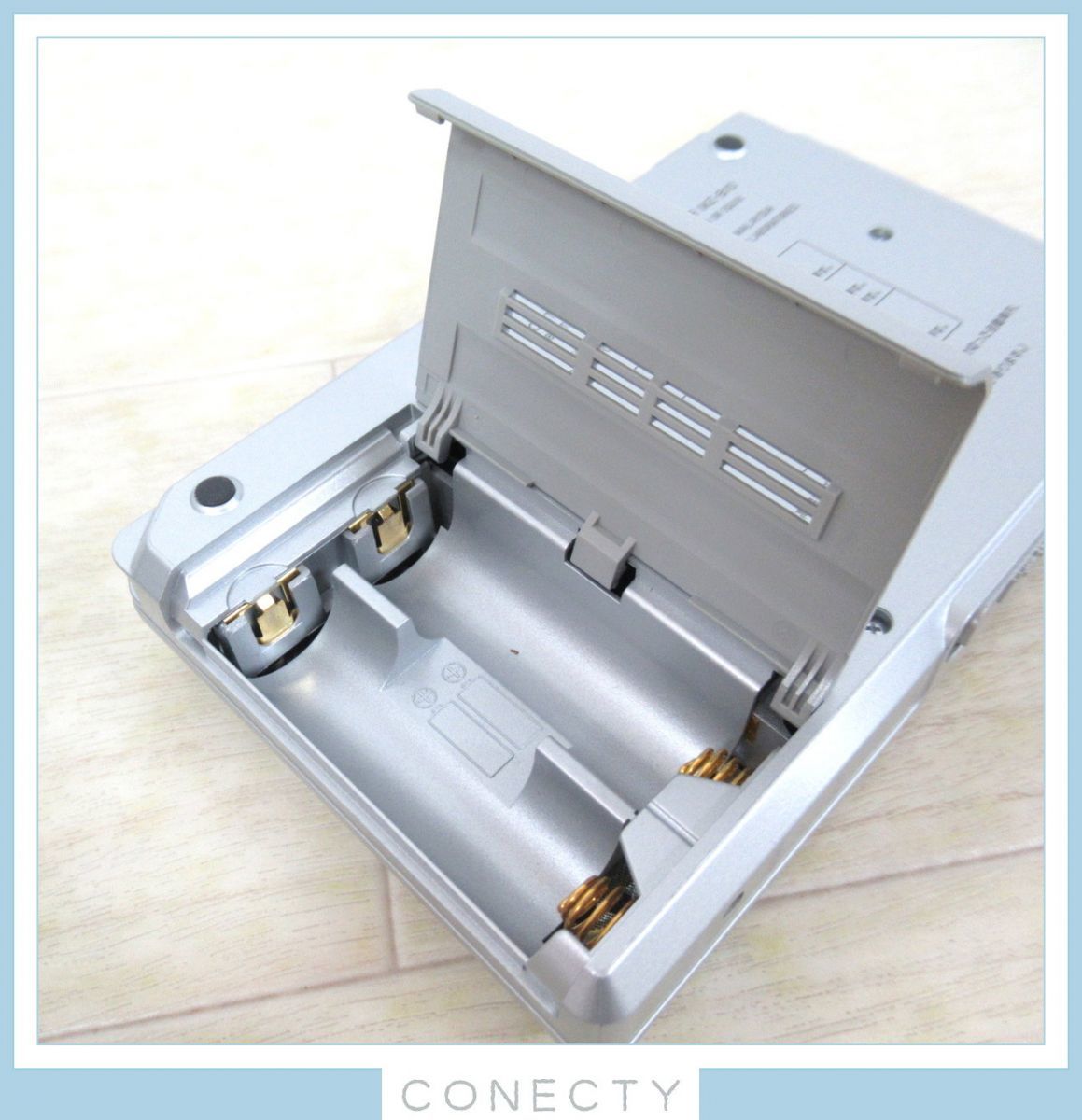

Battery notes	Wired in parallel (can run on a single AA)
Sidecar (depr)	No
Voltage	1.5
Power cable	Center positive
Price (launch)	$216.99
Price (launch)	¥20 400
-

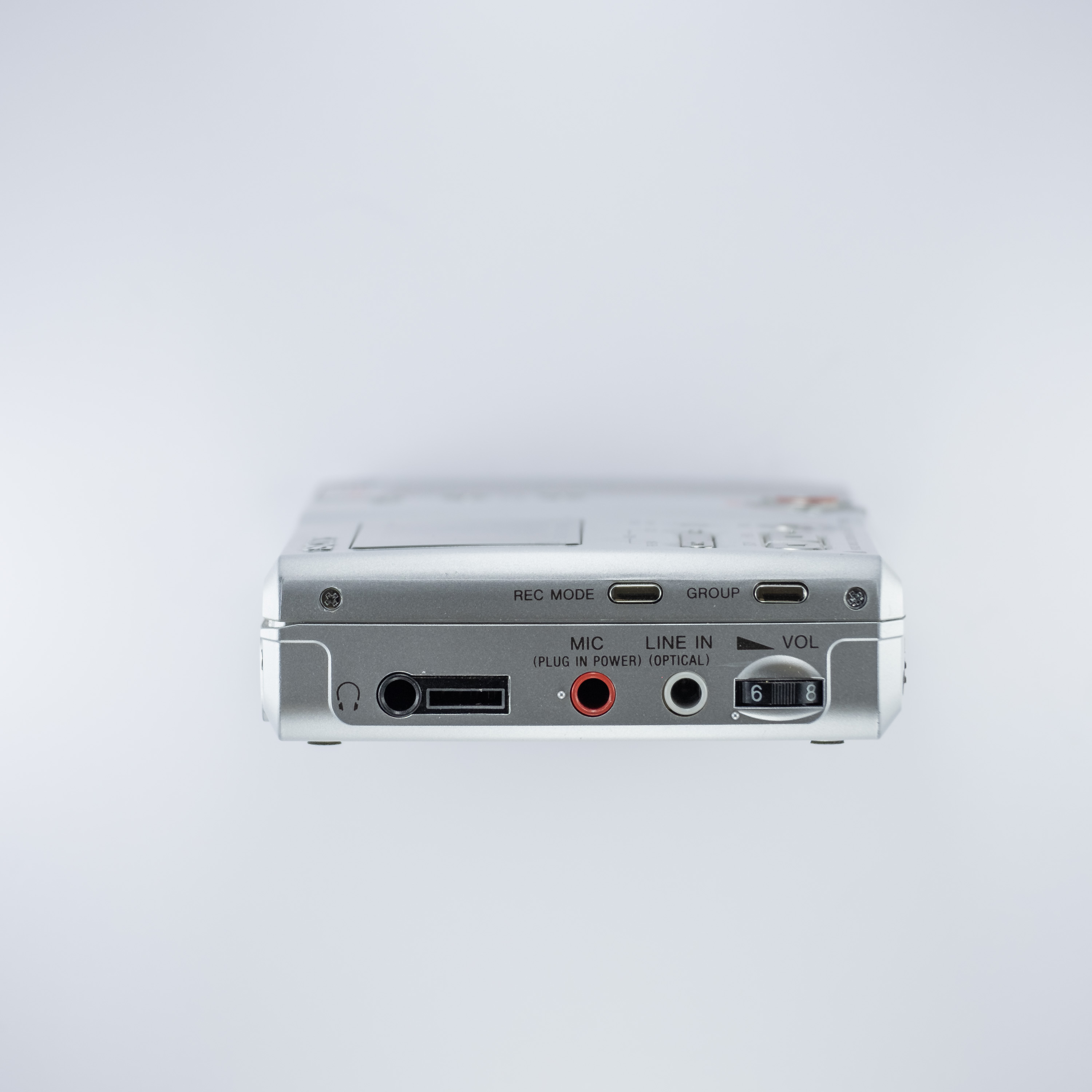

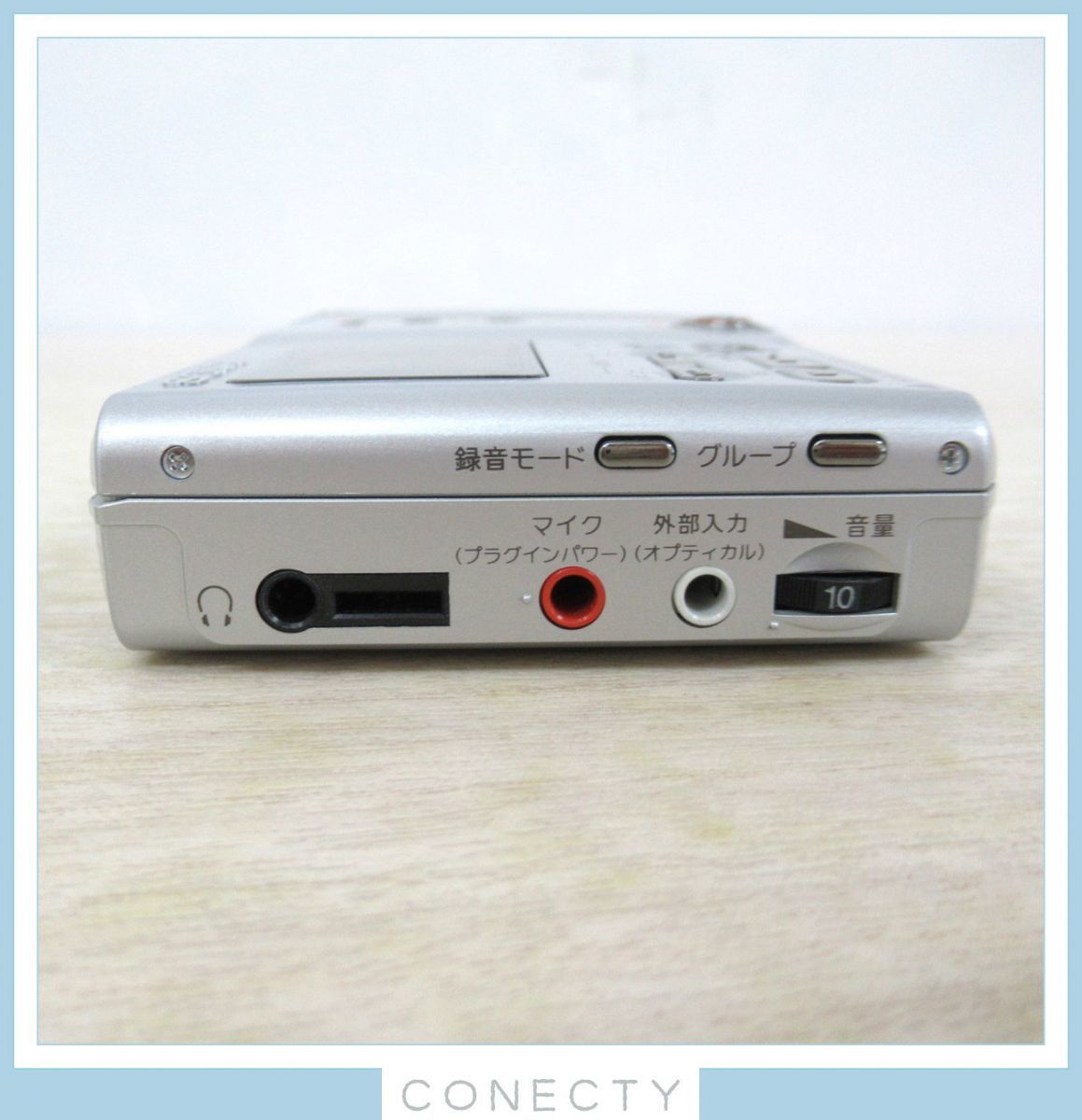

Inputs	3.5mm line in (optical multi), 3.5mm microphone, Built-in mic
Outputs	3.5mm line out (analog-only), Built-in speaker
Control	Remote (Sony)

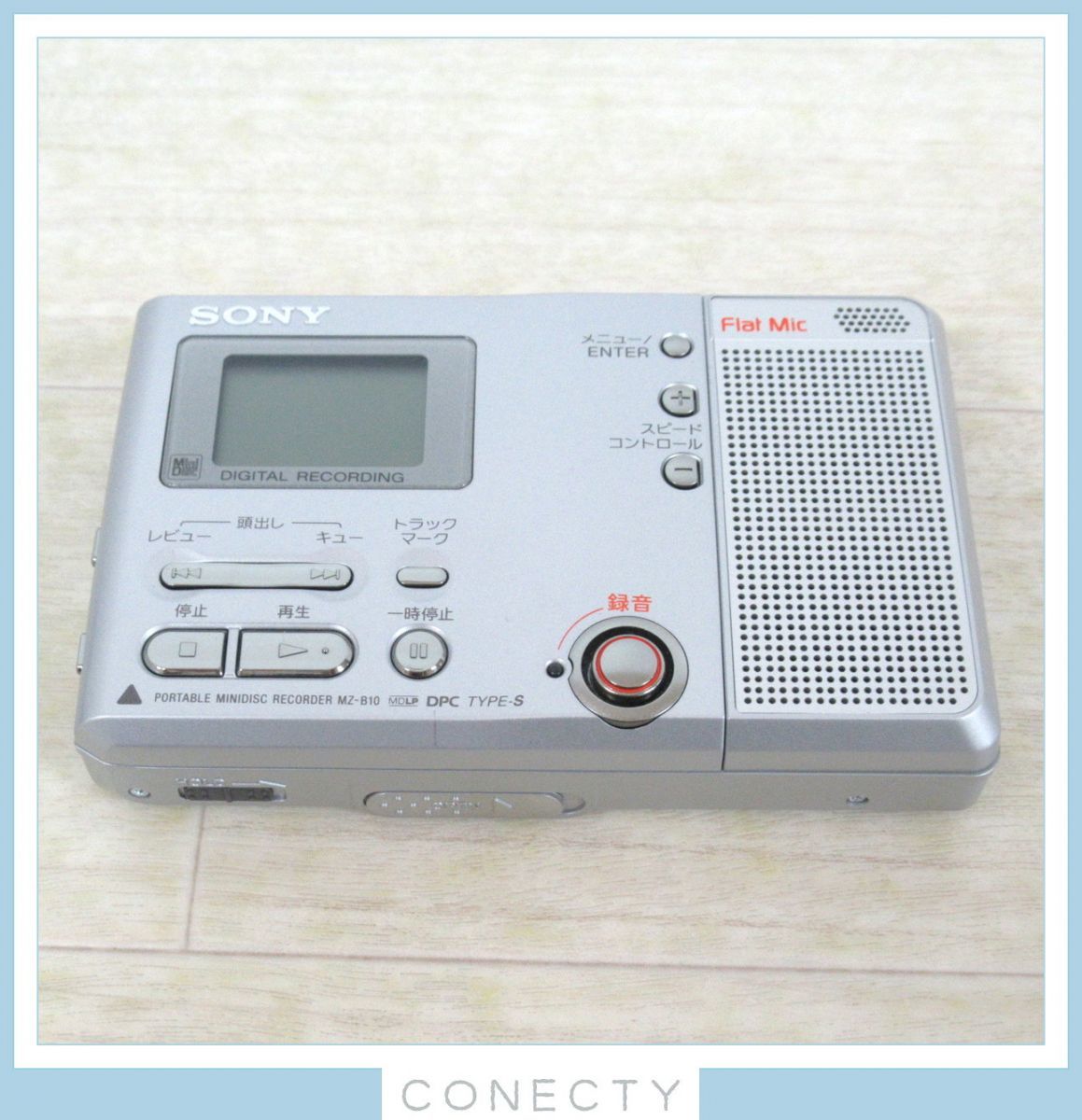

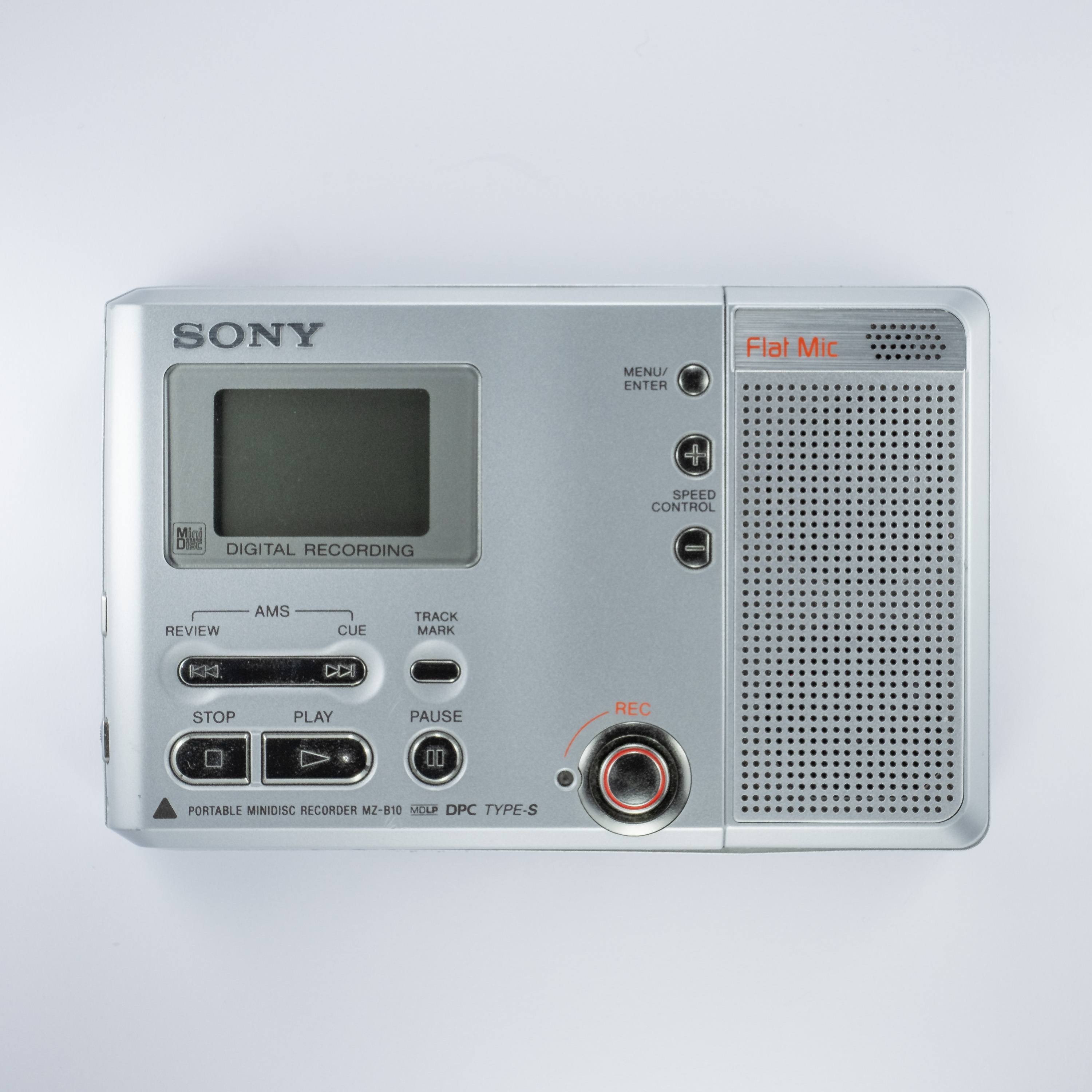

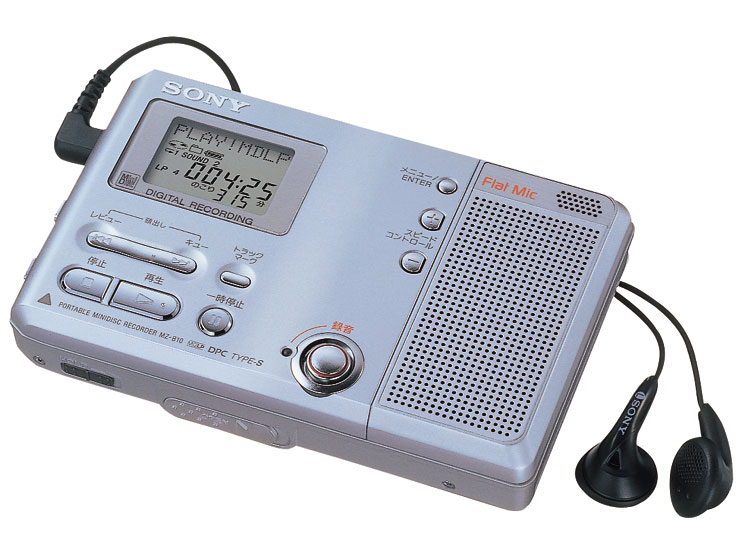

Dedicated voice recorder. Has track button on remote, voice activated recording, and built in microphone and speaker. This model supports Type-S recording, as well as synchro recording from an optical source. VERY long battery life (quoted at 20 hours of recording with both AAs and 100 hours of playback), which is probably helped by the fact that it is wired in parallel.

The MZ-B10 uses the same ATRAC IC (CXD2680-207GA) as many portable NetMD units, so if a breakout PCB could be made to connect to the correct place on the BGA chip, theoretically a USB IC and port could be added, allowing NetMD. Note the USB functionality may have been removed from the firmware.

ATRAC IC: CXD2680
