| Name | MZ-N510 |
|---|---|
| Manufacturer | Sony |
| Released | 2003/03 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | Yes |
| Hi-MD | No |
| Radio | No |
| Dimensions | 81.0 x 74.4 x 27.7 mm |
| Weight | 103g (body only) |
| ATRAC ver | Type-S |

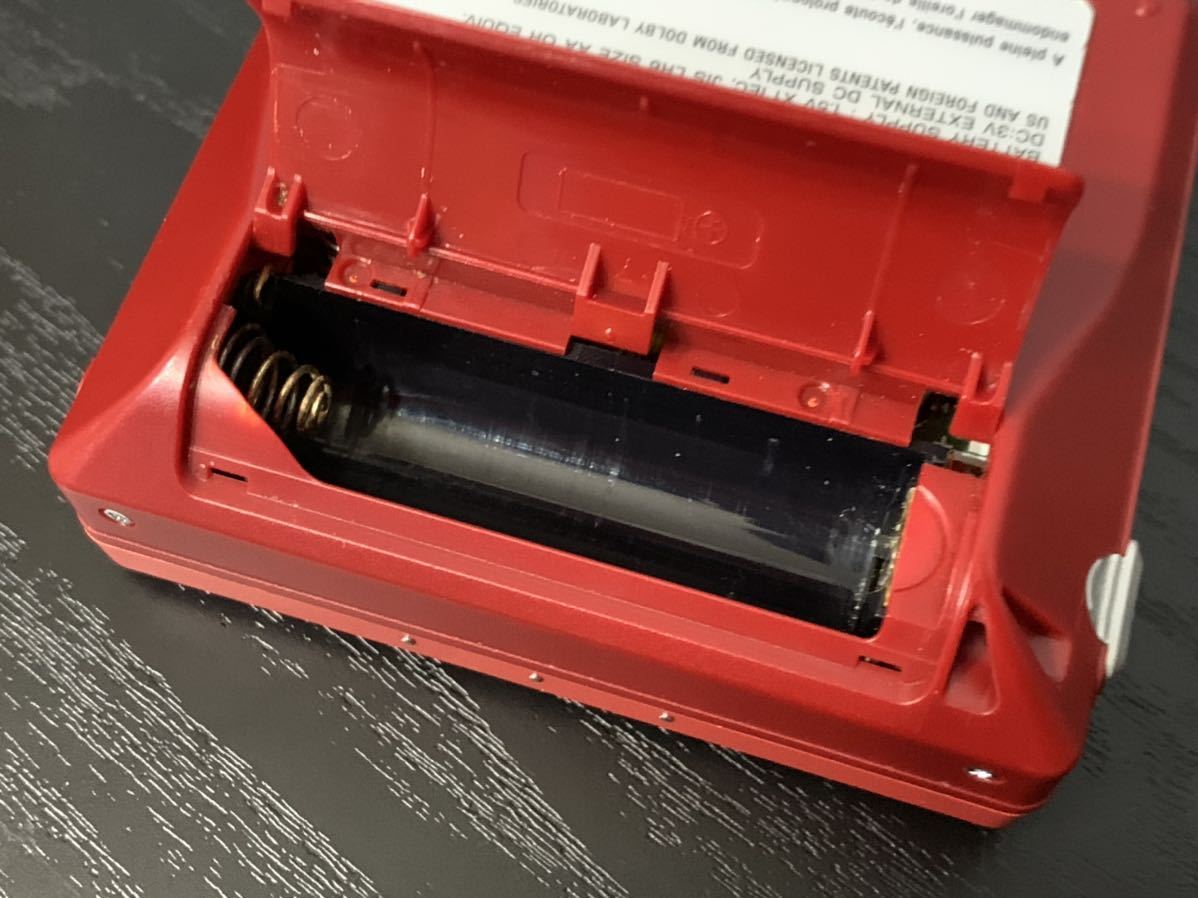

| Battery | Not recorded AA |
| Battery notes | Not recorded |
| Sidecar (depr) | No |

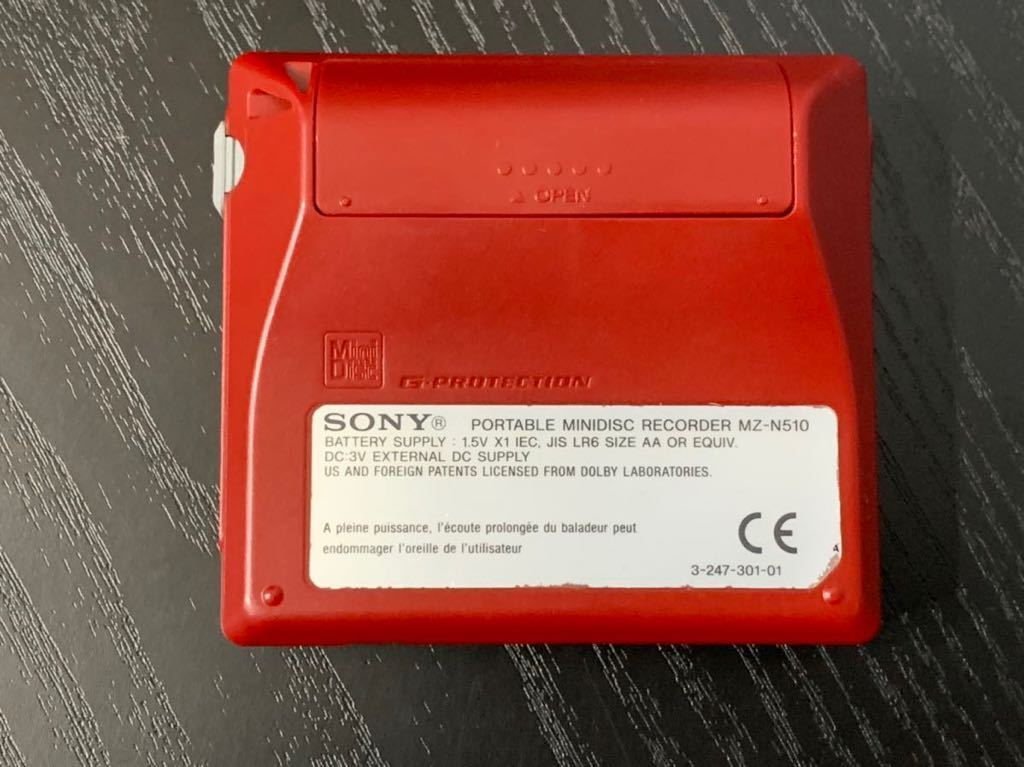

| Voltage | 1.5, 3 |

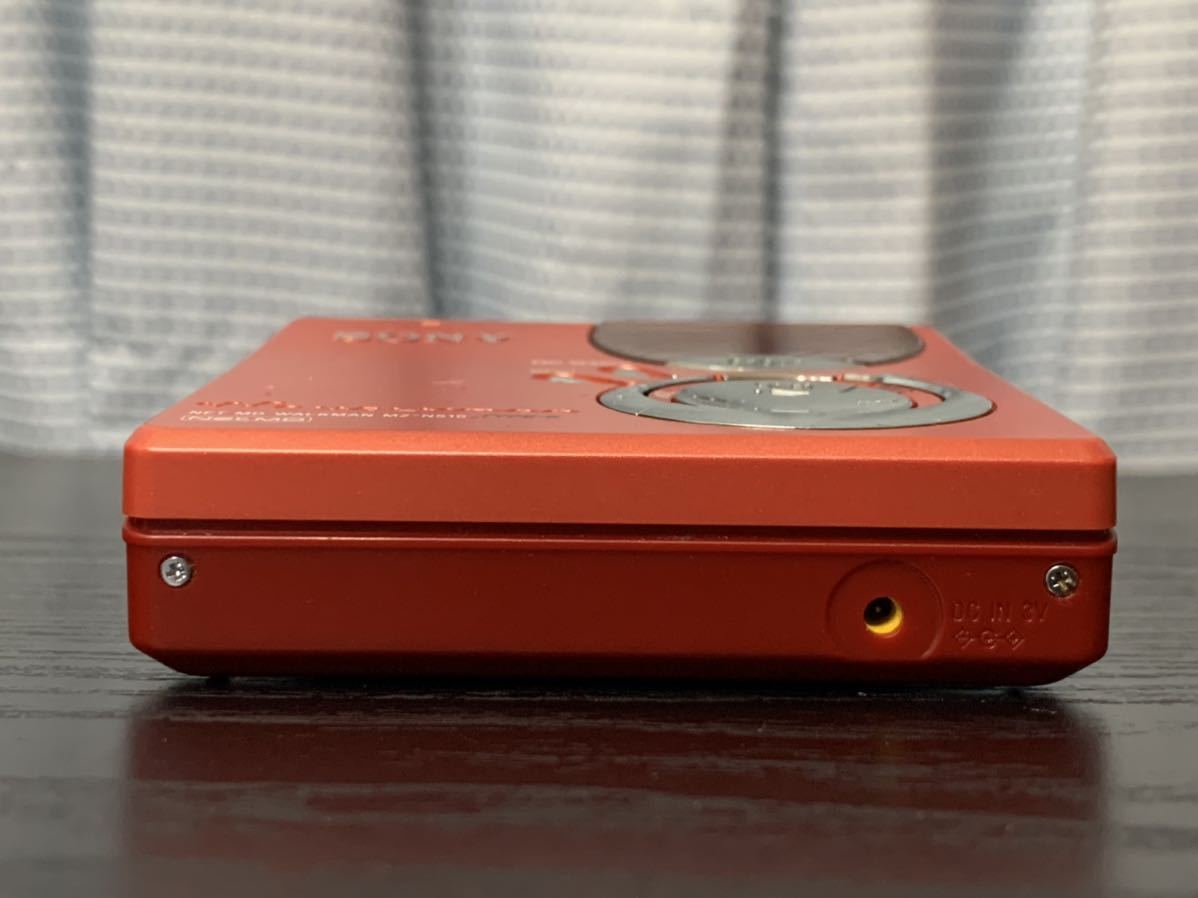

| Power cable | Center positive |
| Price (launch) | Not recorded |
| ¥17 500 | |
| - | |

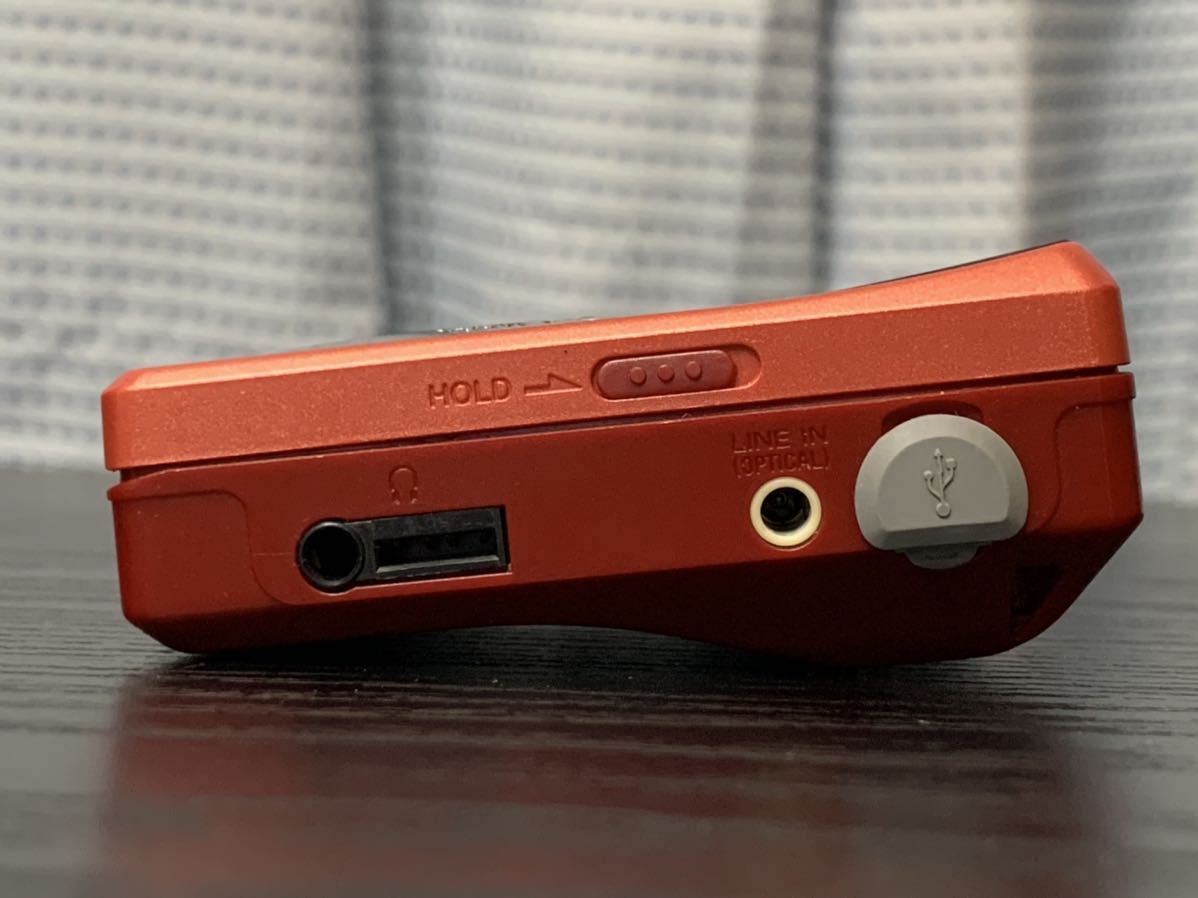

| Inputs | 3.5mm line in (optical multi) |
| Outputs | 3.5mm headphone |
| Control | Remote (Sony), USB Mini-B |

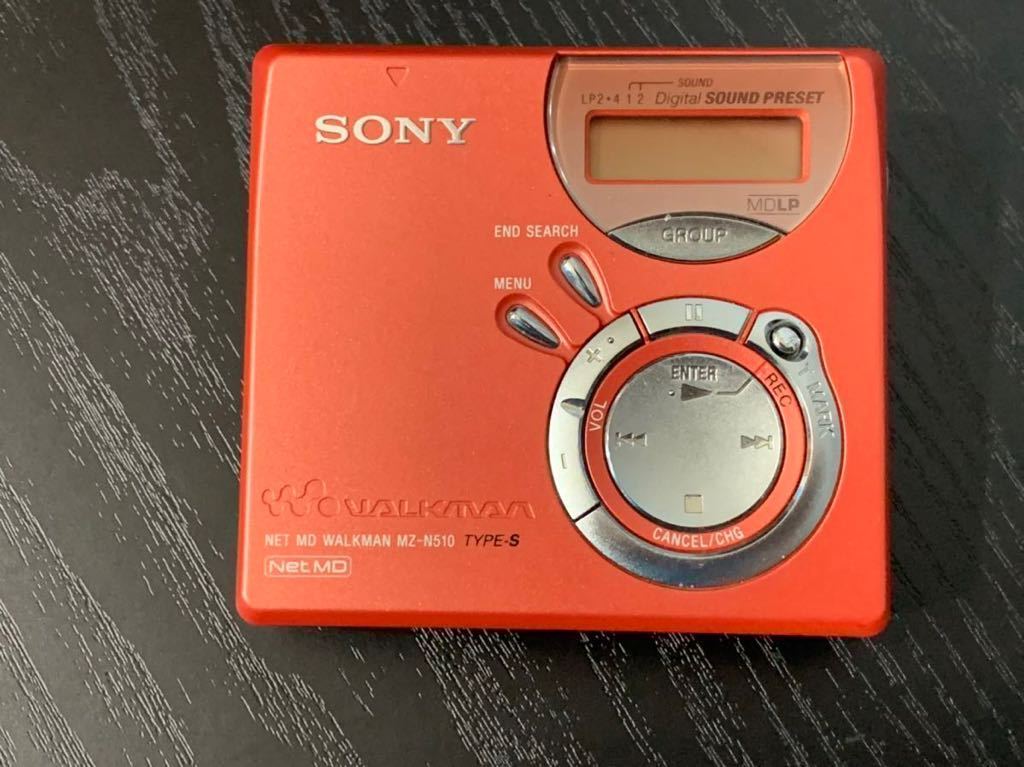

(MZ-N510CK) Entry-level NetMD recorder.
Features:
ATRAC Type-S
ATRAC IC: CXD2680 (CXD2680GA CXD2676)
No microphone input.
Group and Bookmark track function (see Sony glossary).
Recording level change and character input while recording.
Quick mode (!) according to Sonystyle Canada.

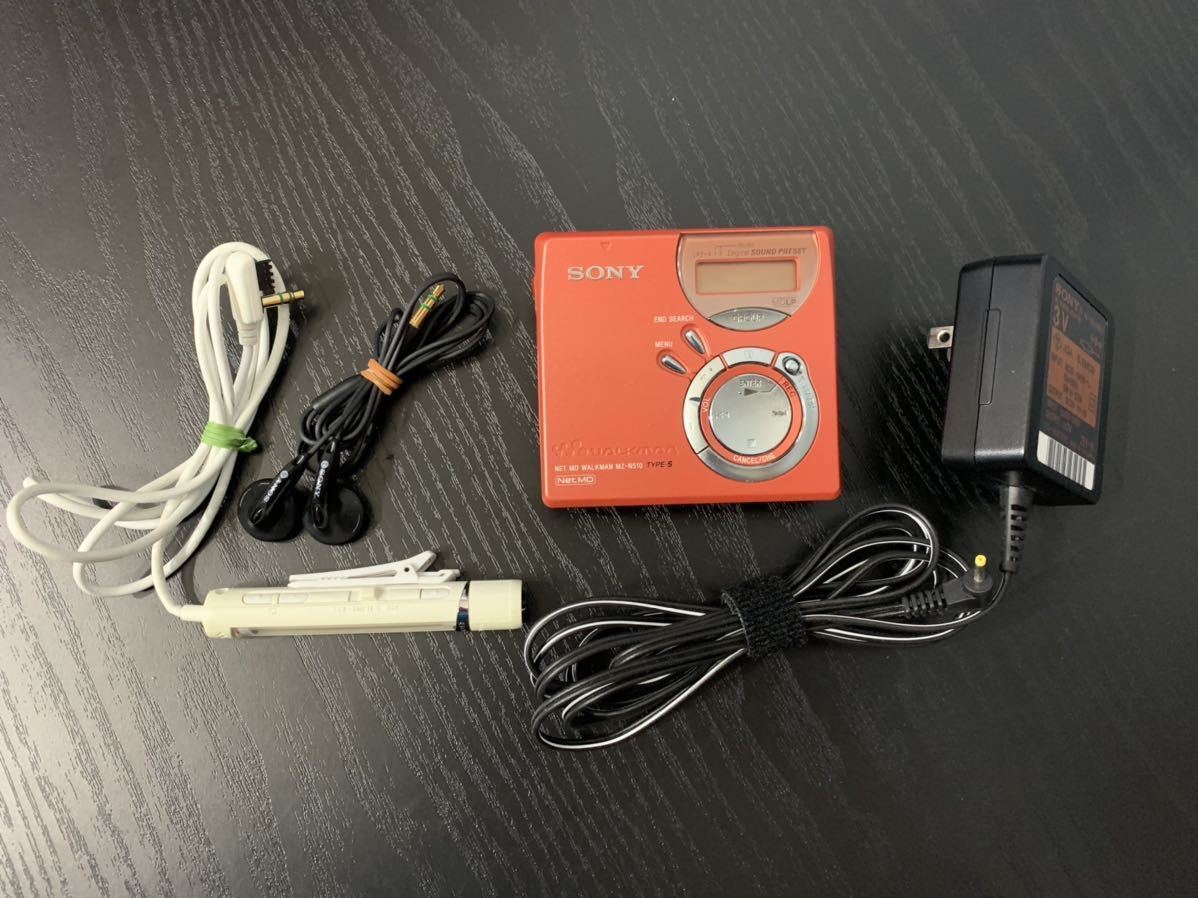

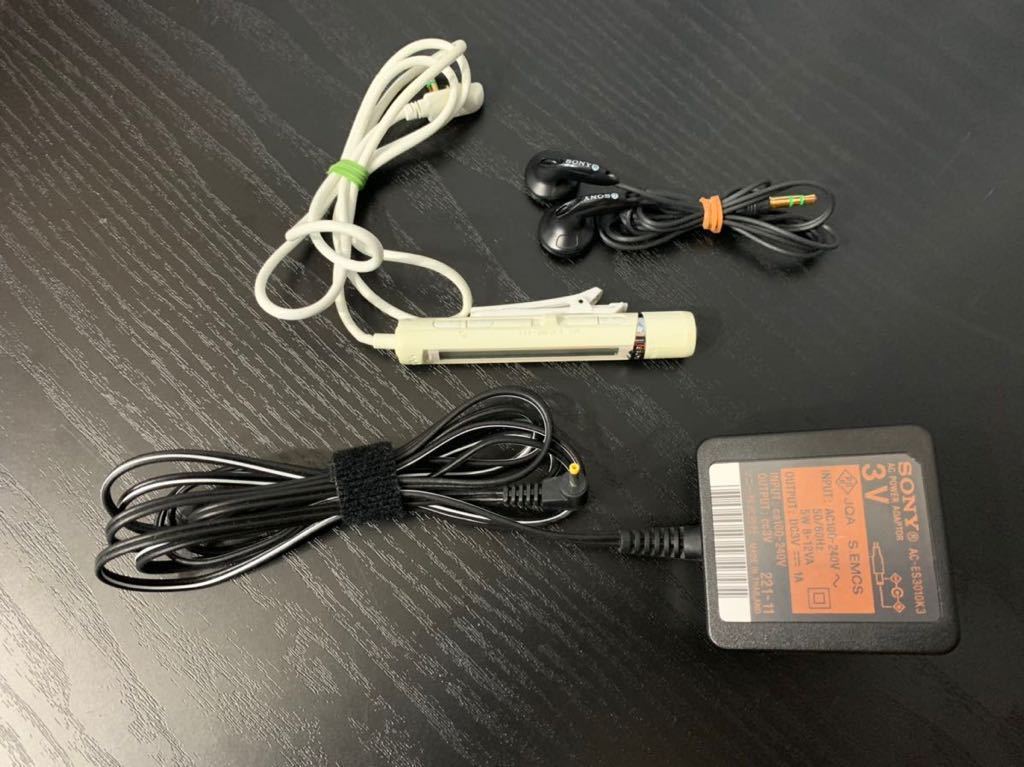

Non-LCD remote (RM-MC21)
"Quick mode" (shorter battery life: turns off the LCD, but leaves unit "on" for up to an hour with no user input – unit will respond almost immediately when a track is played or cued within that hour).
Line-level output can be enabled on the headphone jack (along with other features) through an EEPROM hack.
Search eBay for this model (Affiliate link)
The MiniDisc Wiki may receive a commission for this affiliate link.
Some content adapted from: MZ-N510 Minidisc.org Page
Manuals
Repair

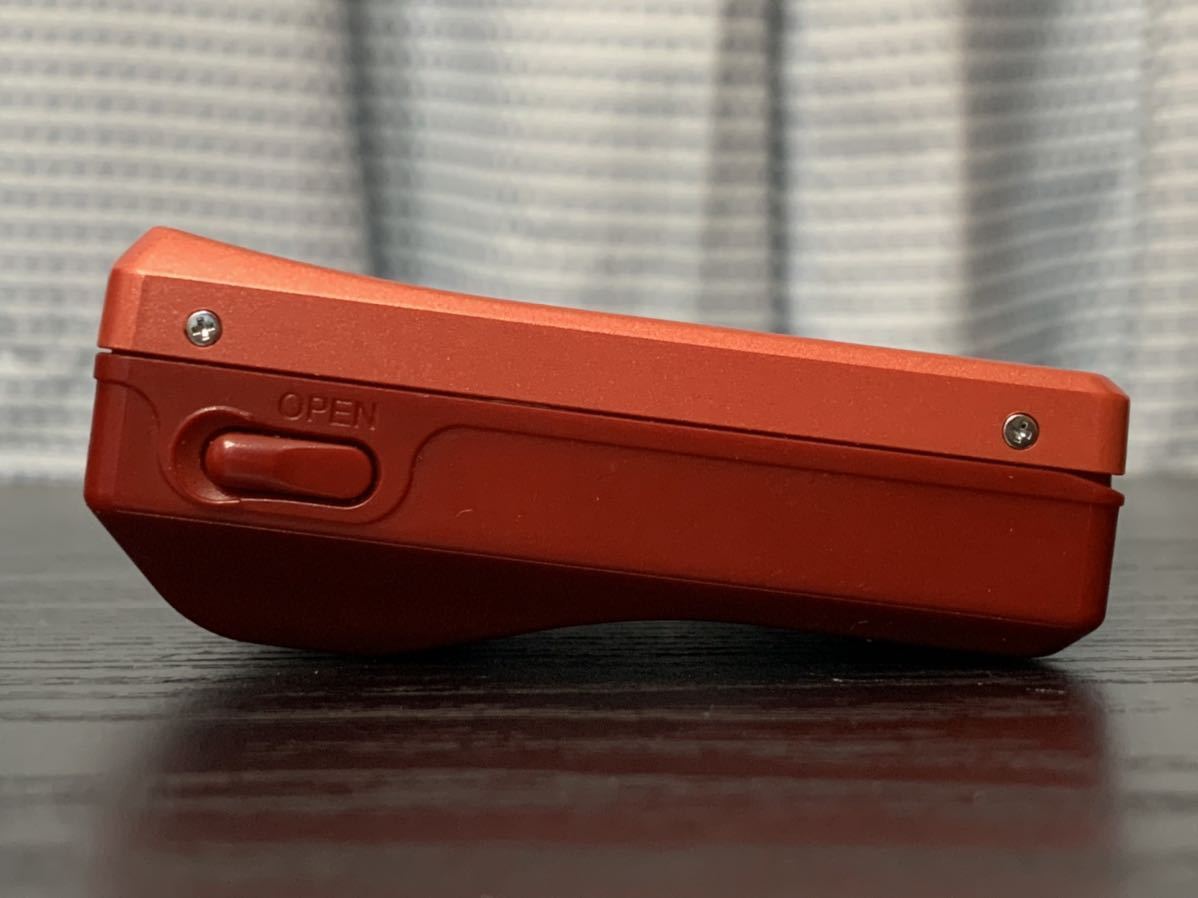

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | Supported (Type-S exploits) |
|---|---|
| Remote Page | |
| Atrac Ic | CXD2680 |
| Manual | User manual, Service manual |
| Region | Japan, US/Canada, Europe |
