| Name | MZ-NF810 |
|---|---|
| Manufacturer | Sony |
| Released | 2003/04 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | Yes |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 81w x 74.4h x 20d mm |
| Weight | 108g, 131g w/batt |
| ATRAC ver | Type-S |
| Battery | Not recorded "Gumstick" |
| Battery notes | Not recorded |

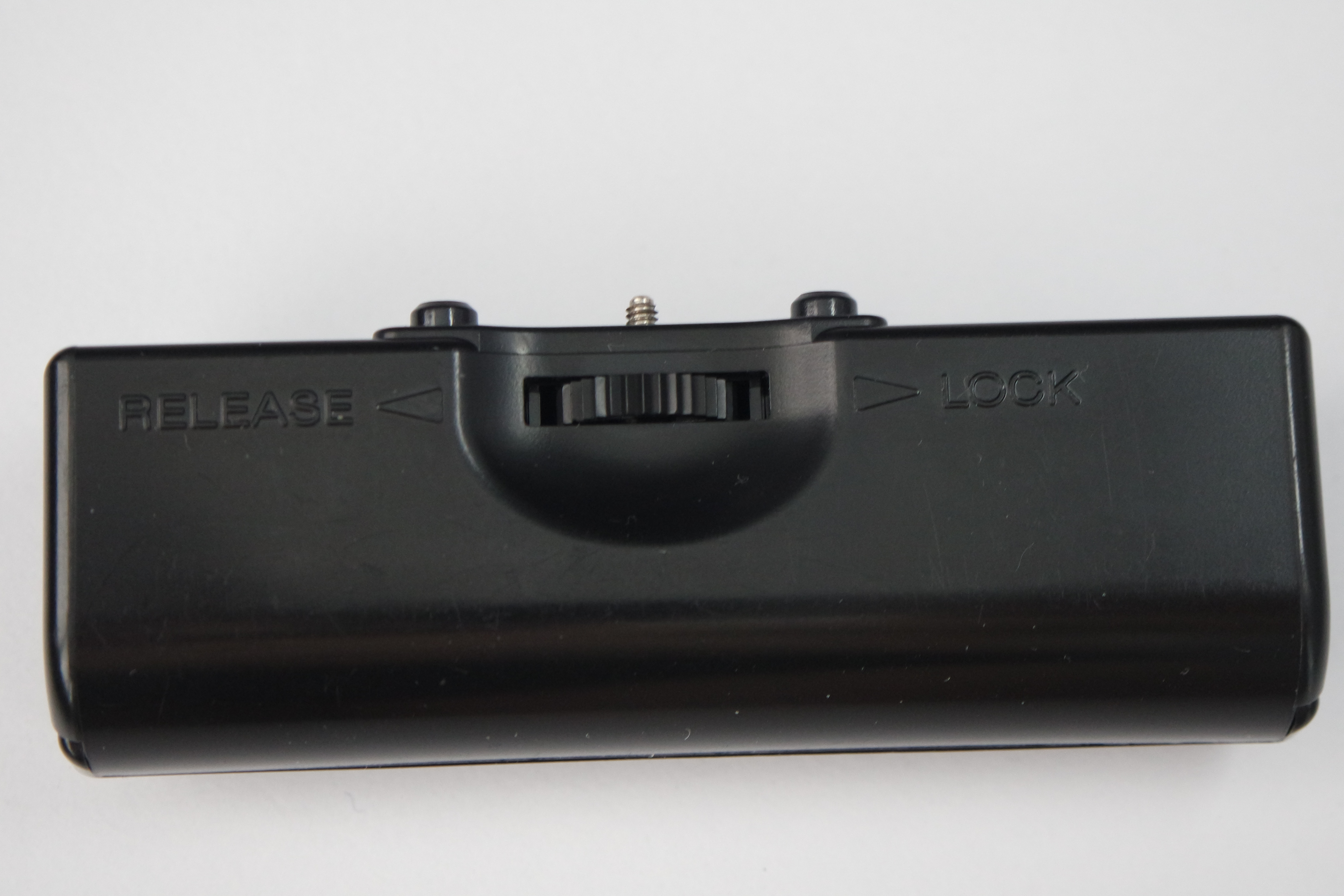

| Sidecar (depr) | 1xAA |
| Voltage | 3 |
| Power cable | Center positive |
| Price (launch) | $280 |
| ¥30 503 | |
| - | |

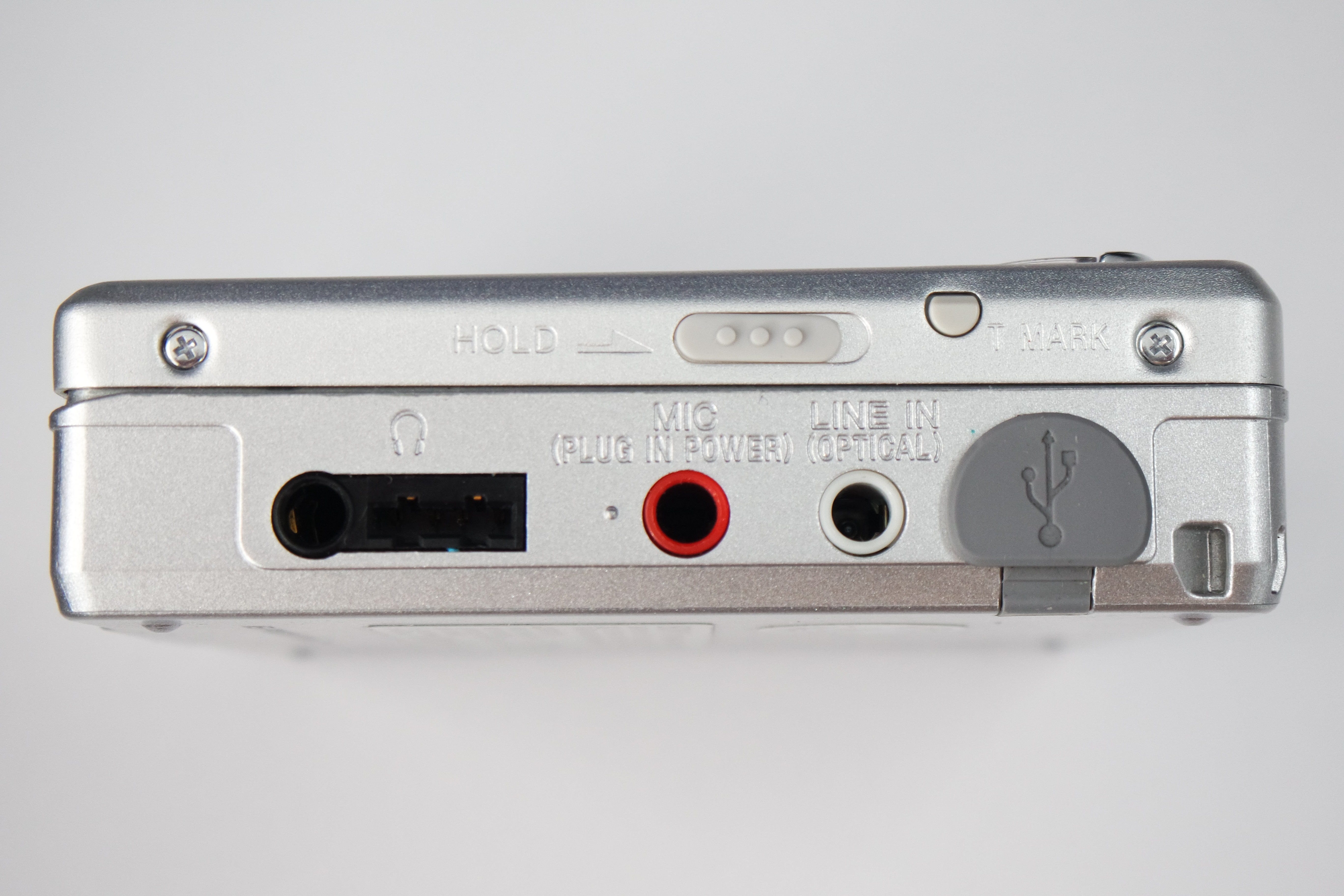

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | USB Mini-B |

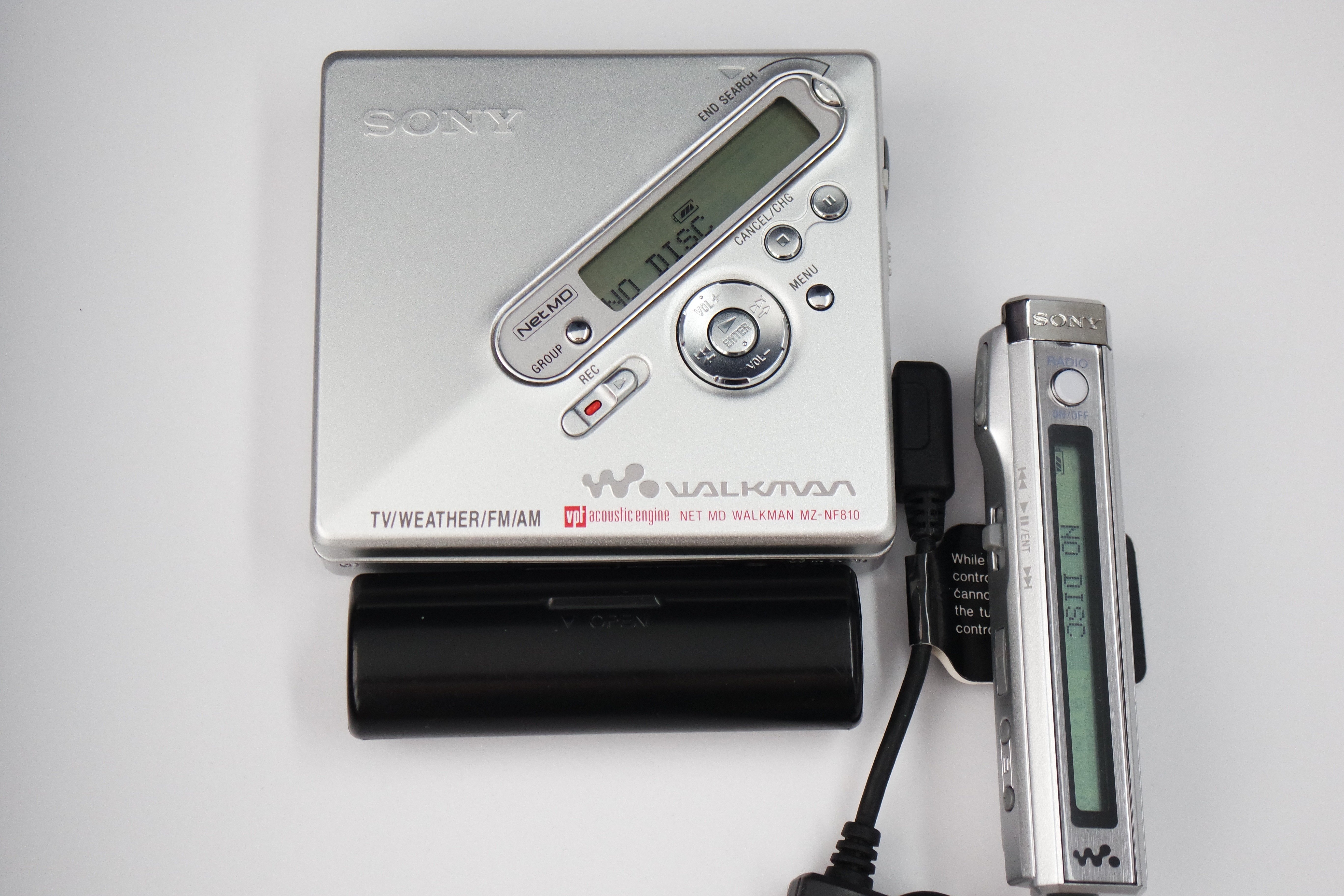

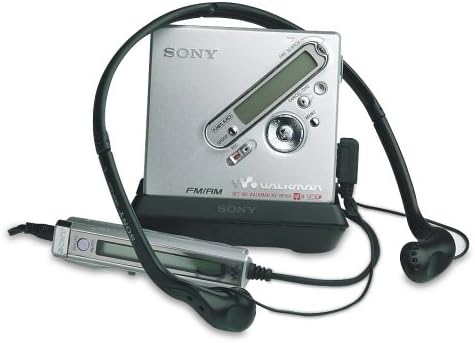

The same as the MZ-N710, but with a radio tuner remote, like the MZ-R700/MZ-G750 duo. Has a TV tuner (audio only), in addition to AM and FM. Confirmed 3V from manual.

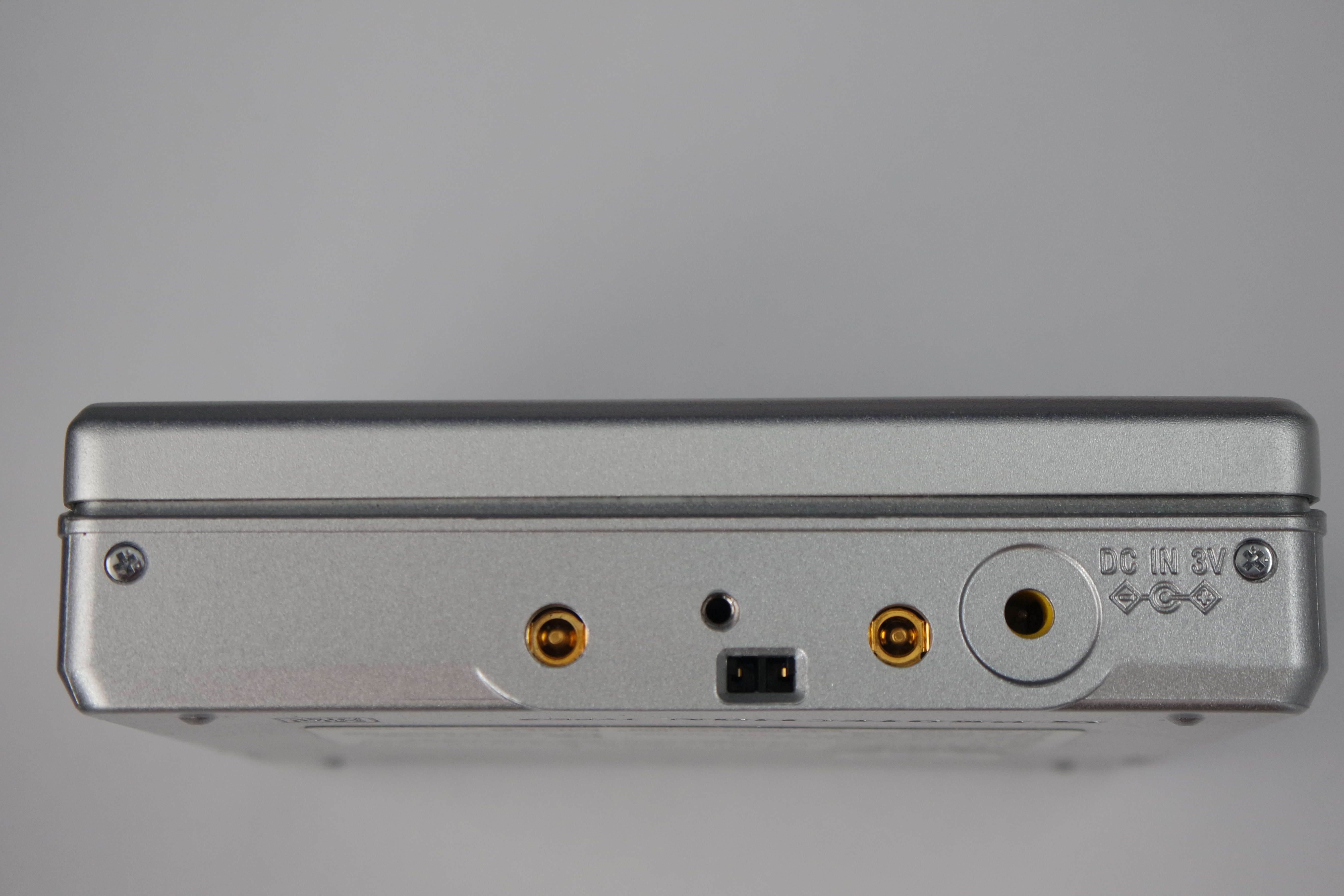

Can be charged directly via the DC input on the device or the included charging stand. Also has charging port (3V center-positive) and Mini-USB Type-B connection on the main body, located behind a rubber grommet.
ATRAC IC: CXD2680
Content adapted from: Minidisc.org page
European Import Note
If you are looking at MZ-N710s or MZ-NF810s, be aware that the European model may (confirmed on N710 but the NF810's manual is inconvlusive) have an unusually low headphone amp volume. The European model features a 1.2mW+1.2mW amplifier, compared to 2.0+2.0 in the European model of the N10, or 5mW+5mW in most North American and Japanese models.
Manuals

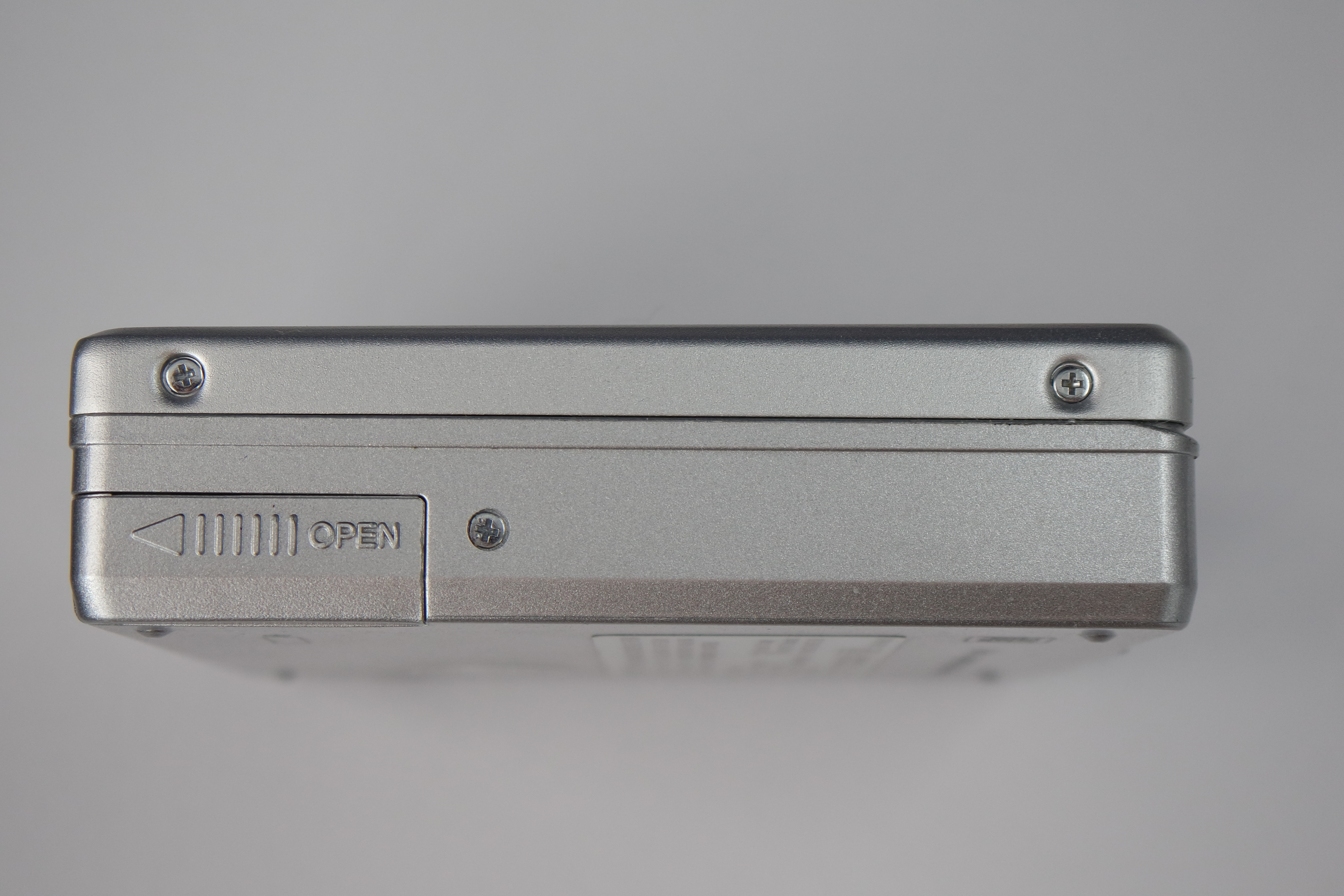

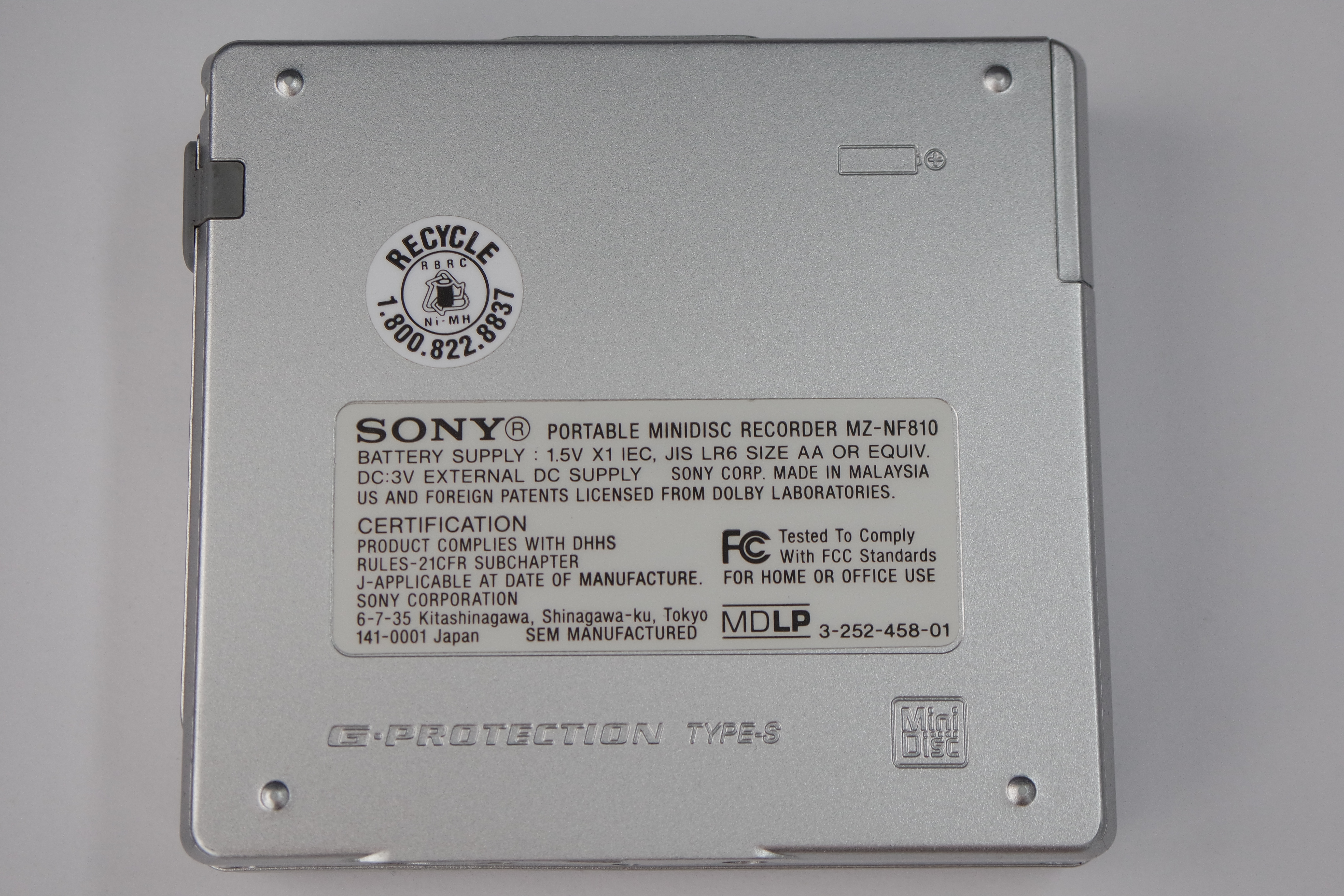

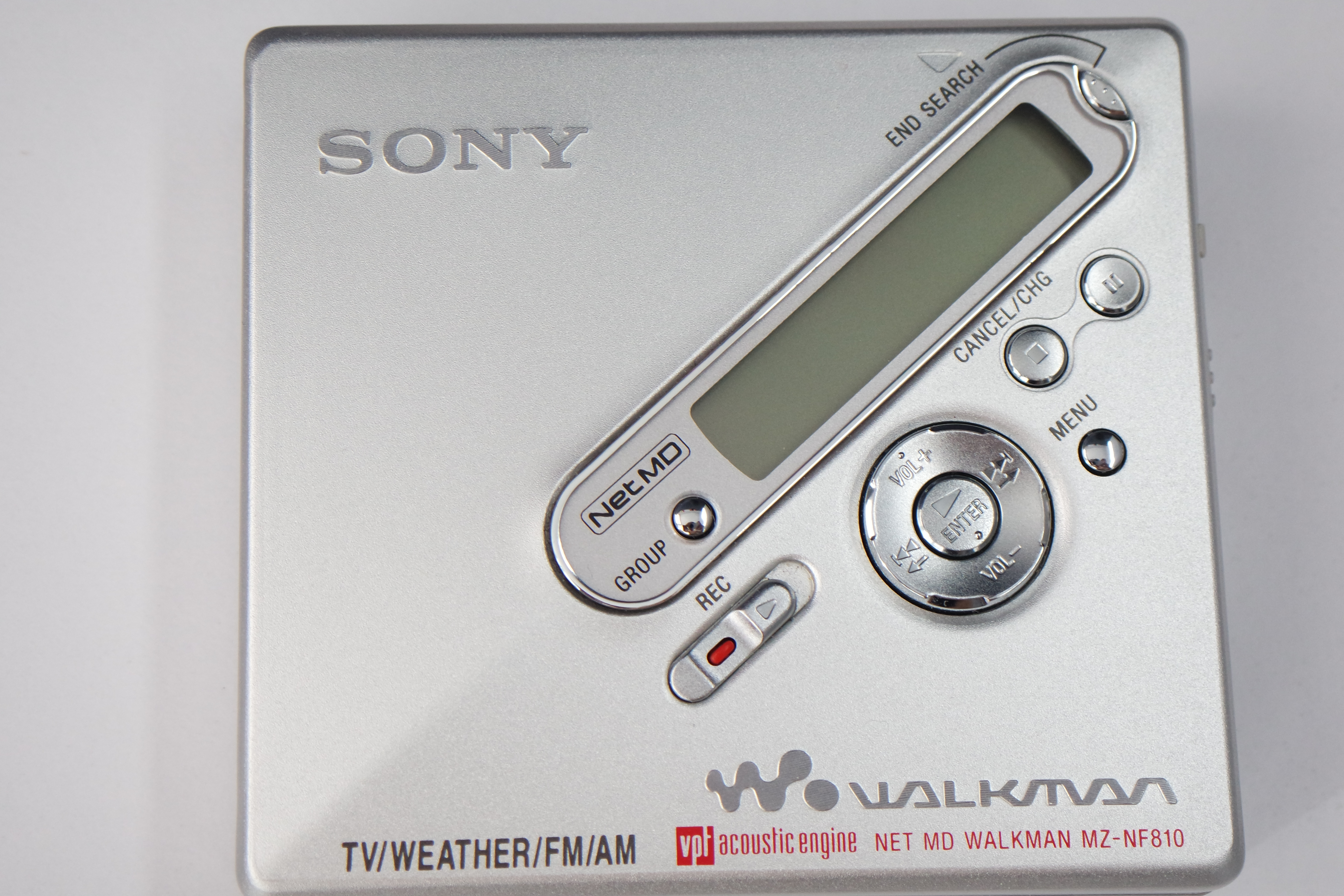

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | Supported (Type-S exploits) |
|---|---|
| Remote Page | |
| Atrac Ic | CXD2680 |
| Manual | |
| Region |
