| Name | MZ-NH700 / MZ-NHF800 |
|---|---|
| Manufacturer | Sony |
| Released | 2004/04 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | Yes |
| Hi-MD | Yes |
| Radio | Not recorded |
| Dimensions | 81.0 x 29.2 x 78.9mm |
| Weight | 113g Body Only (132g with Battery) |
| ATRAC ver | Hi-MD |
| Battery | Not recorded AA |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 3 |
| Power cable | Center positive |
| Price (launch) | $250 |
| Not recorded | |
| - | |

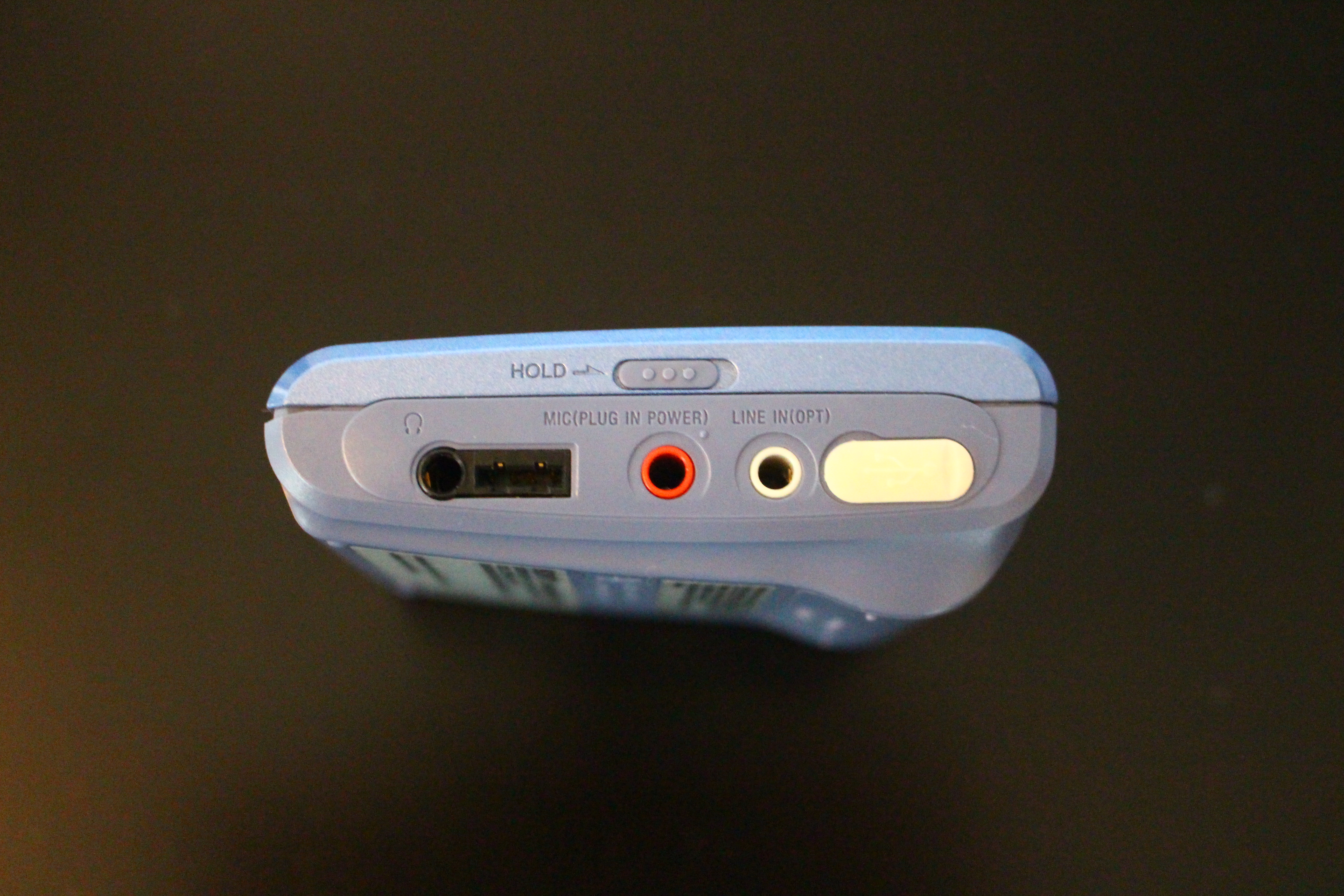

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | USB Mini-B |

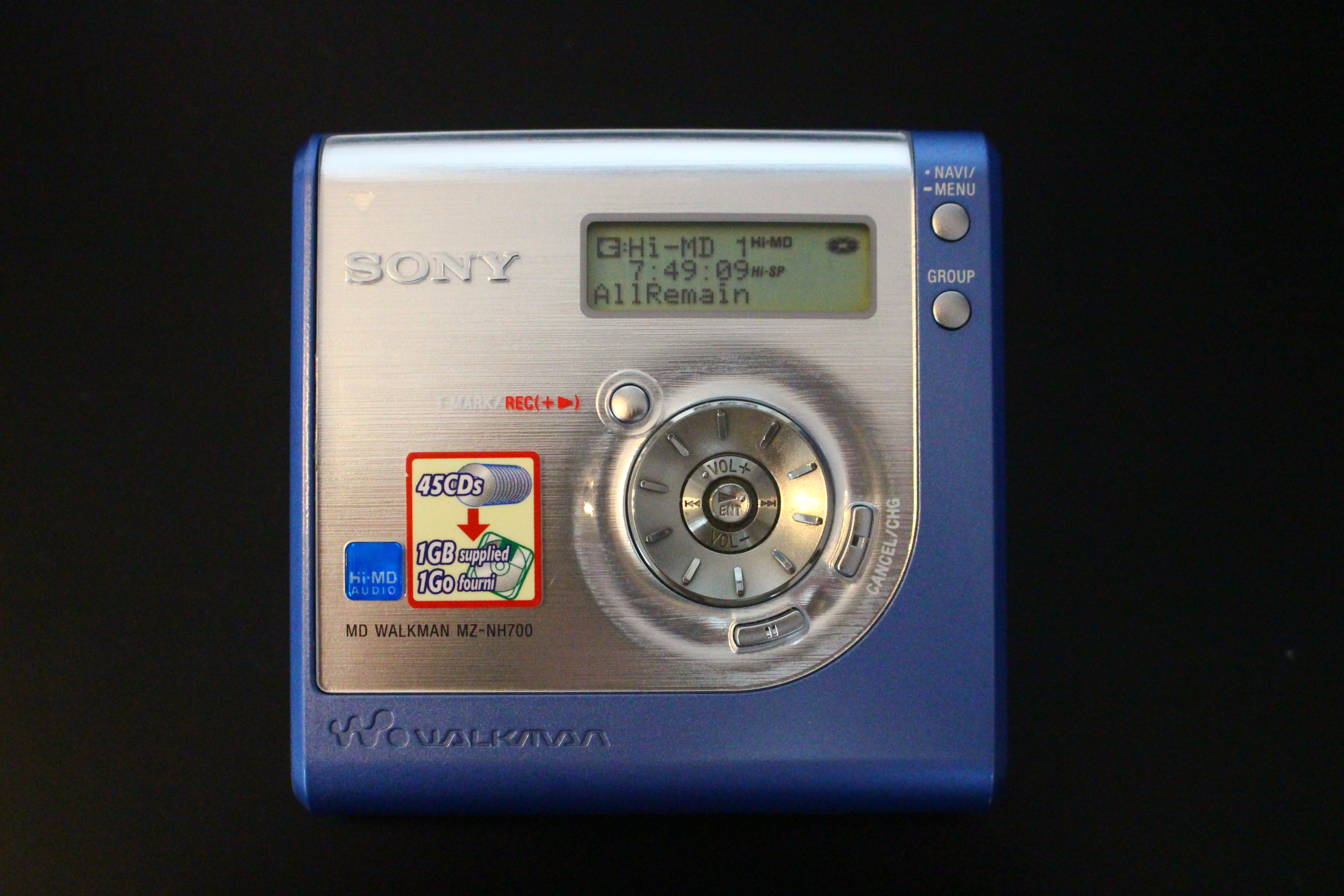

Cost reduced version of the already cost reduced MZ-NH900. The MZ-NH700 and MZ-NHF800 are seemingly identical except for the AM/FM tuner built into the remote of the MZ-NHF800. Like other AM/FM remote units, it is unable to record AM/FM radio from it's own remote. Exist in Blue and Silver.
Works with web/platinum MD when writing normal MD discs, SS must be used for Hi-MD discs.
Remote: RM-MC21 and RM-MC40ELK only. RM-MC39LT for NHF800
ATRAC IC: CXD2681
Content adapted from:MZ-NH700 Minidisc.org Page

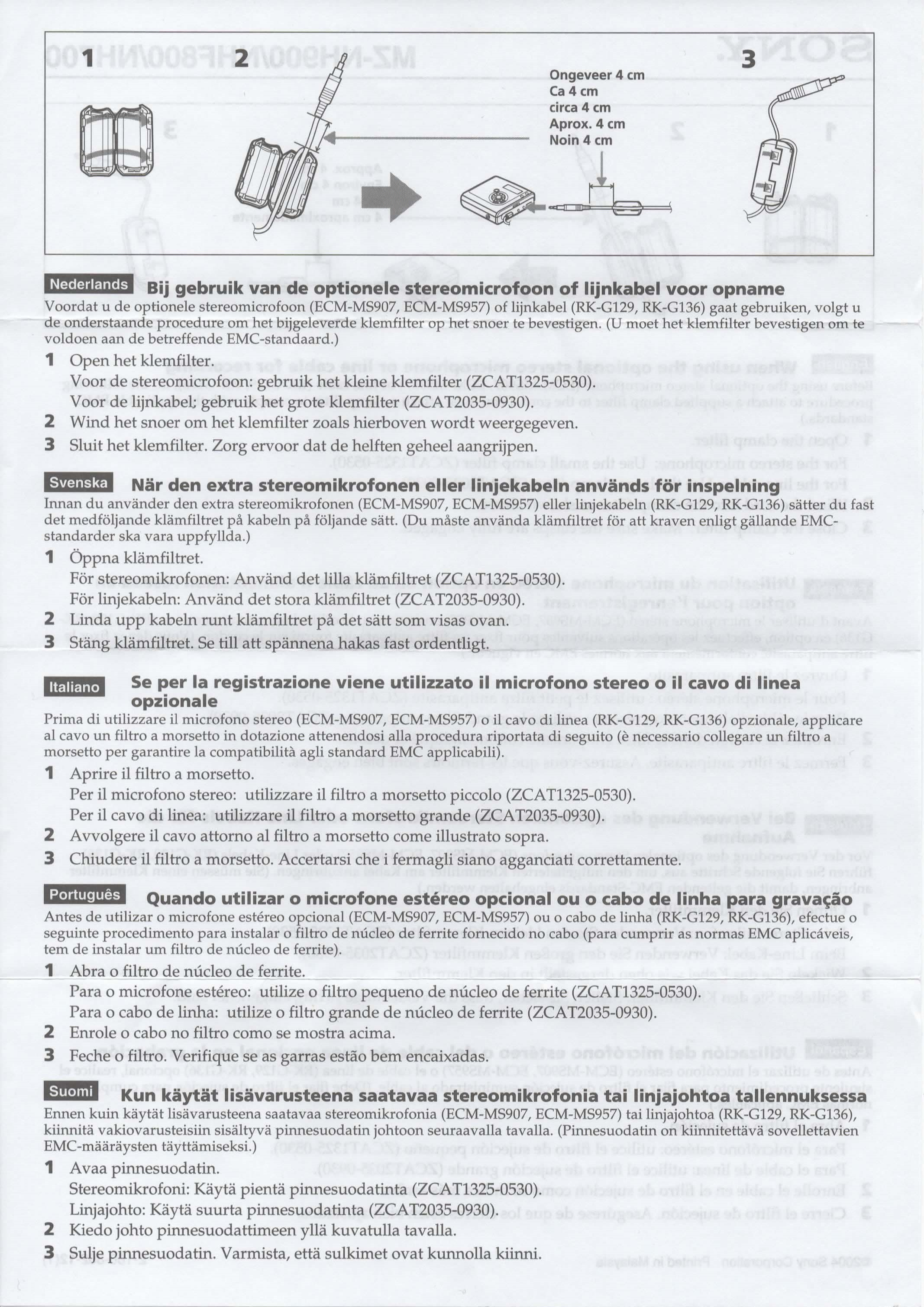

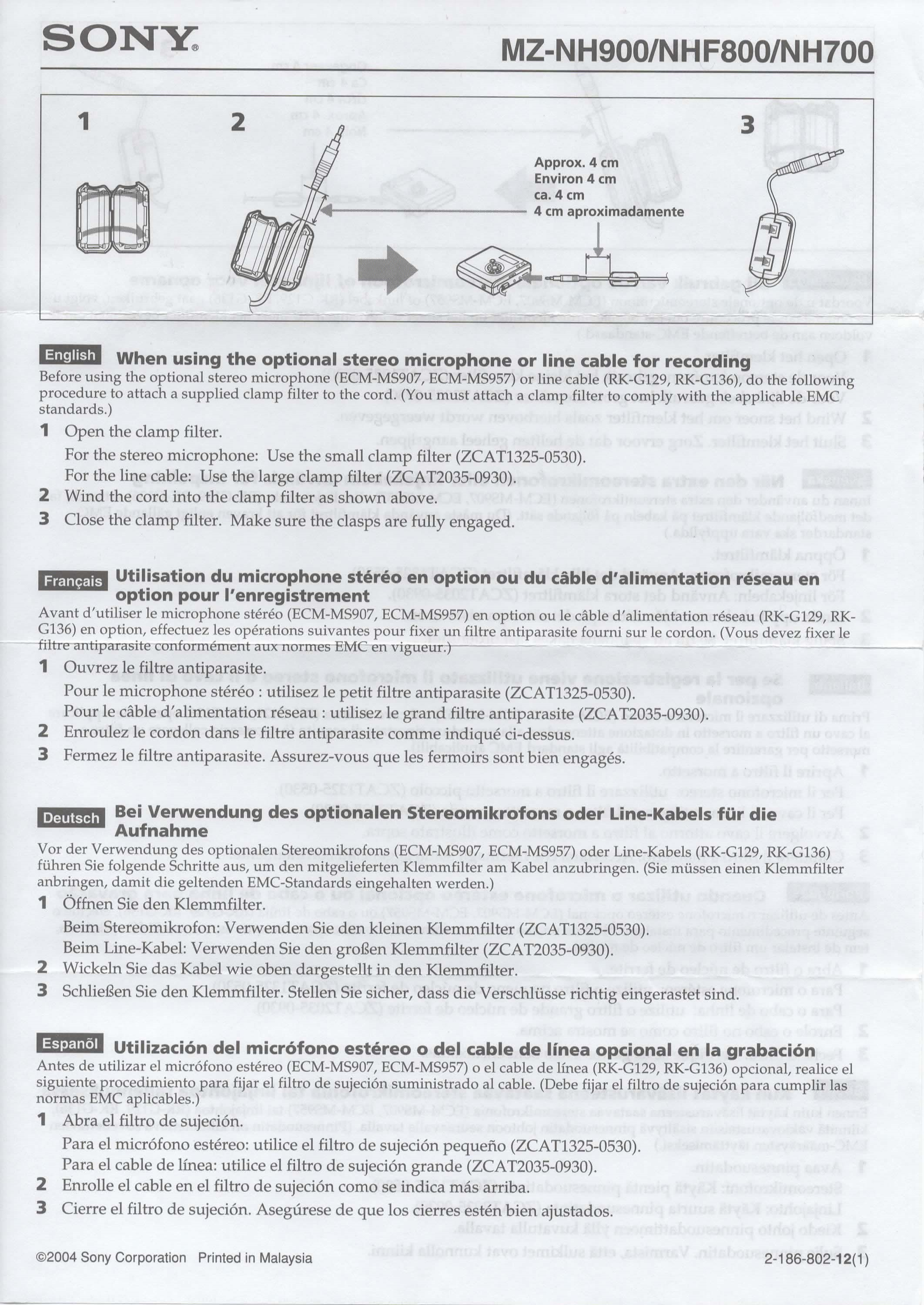

Manuals

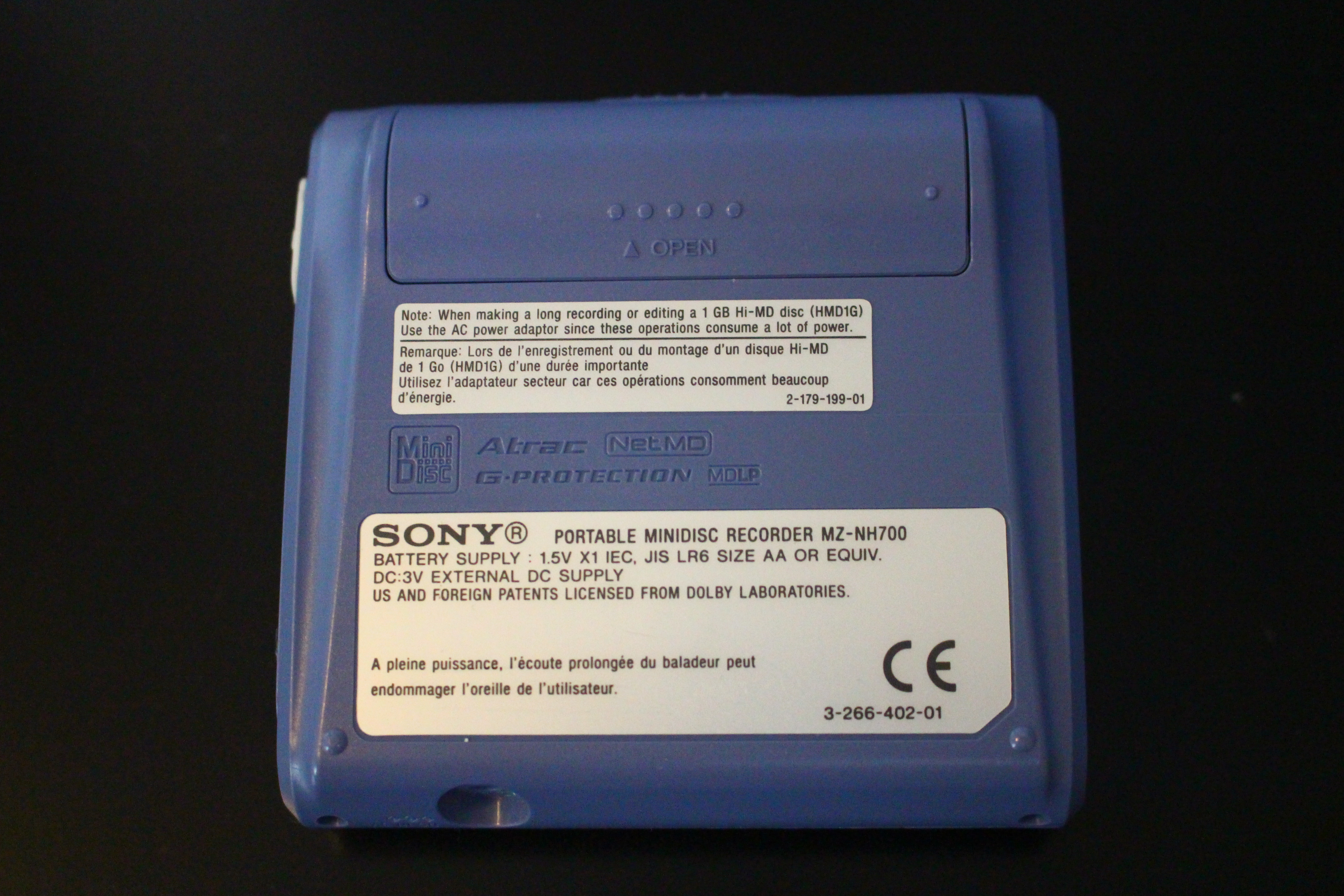

Photos
Additional specifications and references
| Remote Page | |
|---|---|
| Atrac Ic | CXD2681 |
| Manual | User manual, other |
| Region | Japan, US/Canada, Europe |
