| Name | MZ-R70 |
|---|---|
| Manufacturer | Sony |
| Released | 1999/09 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 78 x 76 x 18 mm| |
| Weight | 136g |
| ATRAC ver | 4 |
| Battery | Not recorded AA |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 3 |
| Power cable | Center positive |
| Price (launch) | $250 |
| Not recorded | |
| - | |

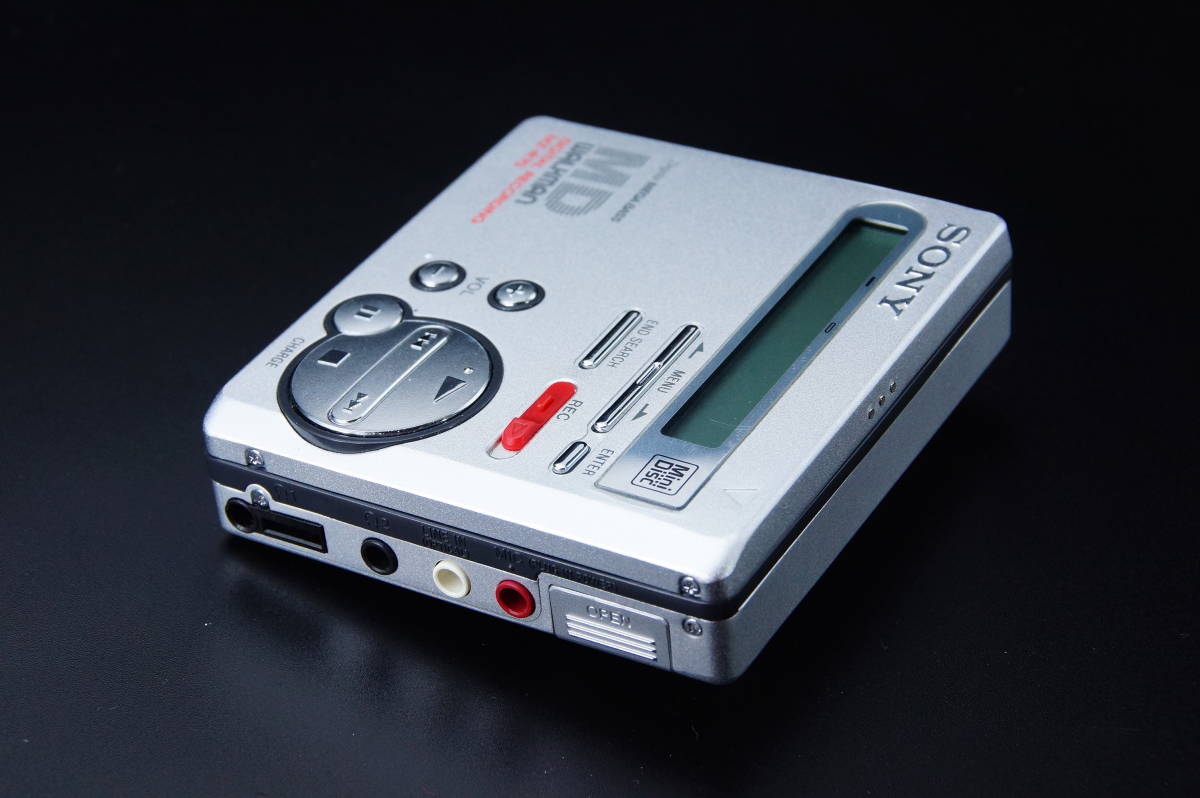

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | Remote (Sony) |

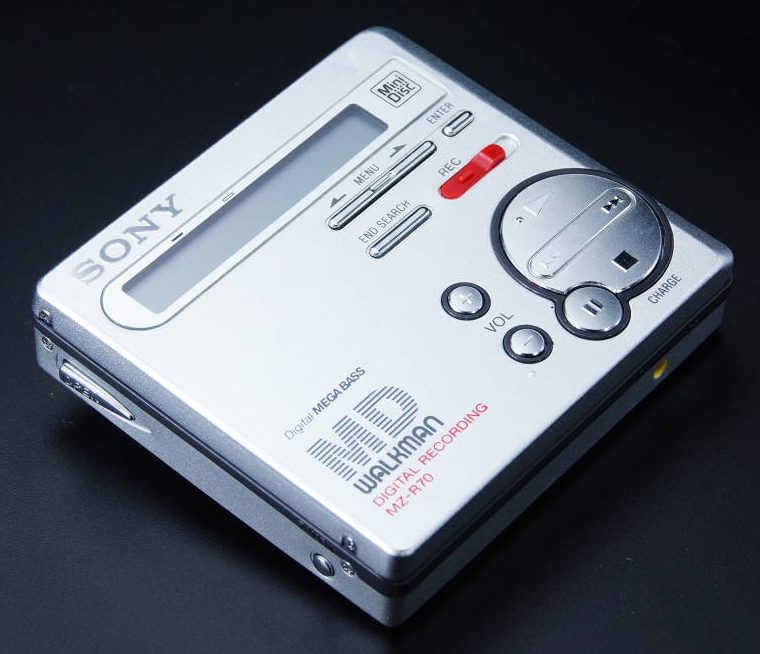

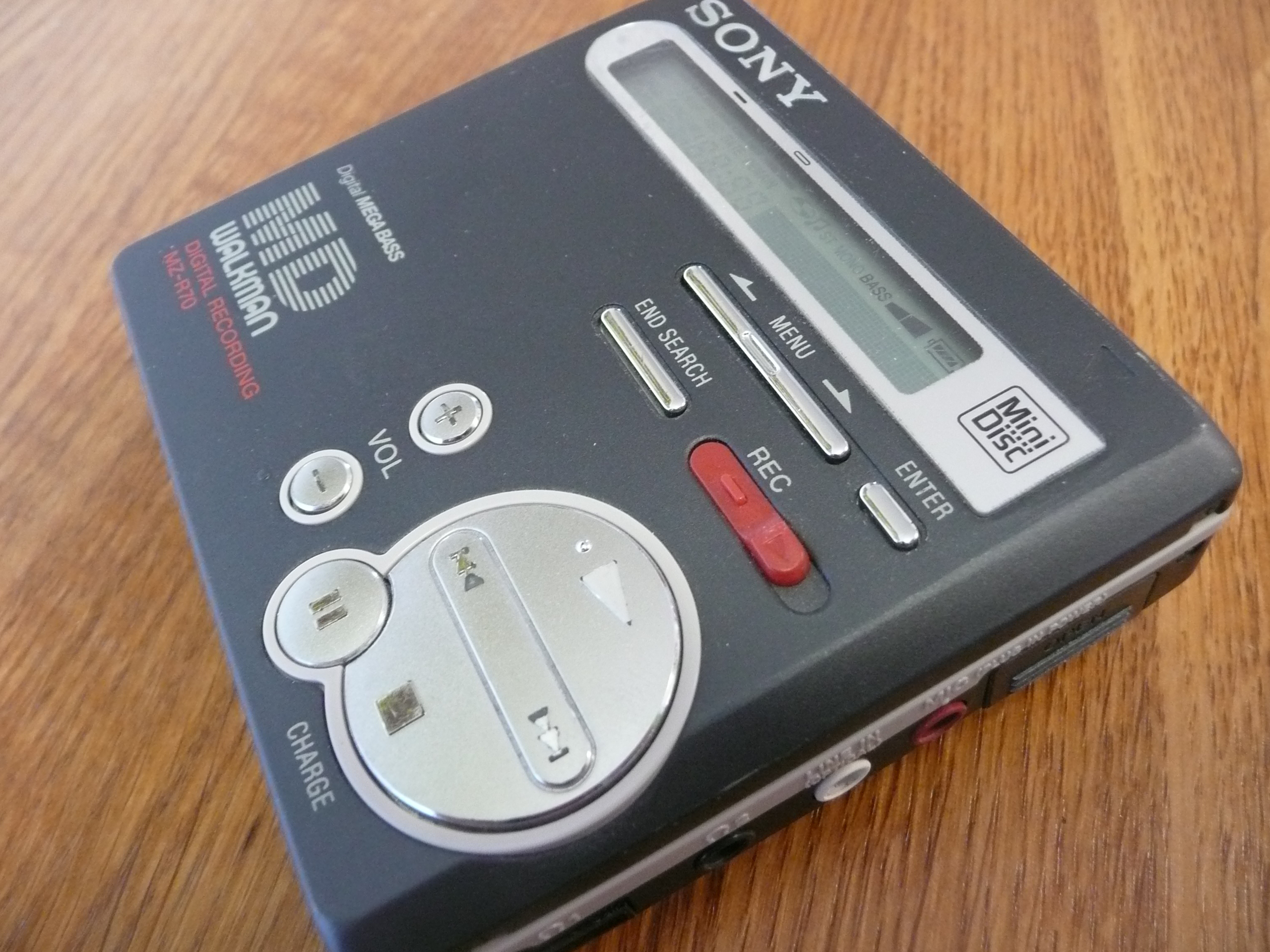

Offered in Black, Blue and Silver
Features:
- ATRAC 4 SP recording
- Magnesium outer shell
- 40 seconds of anti-skip protection

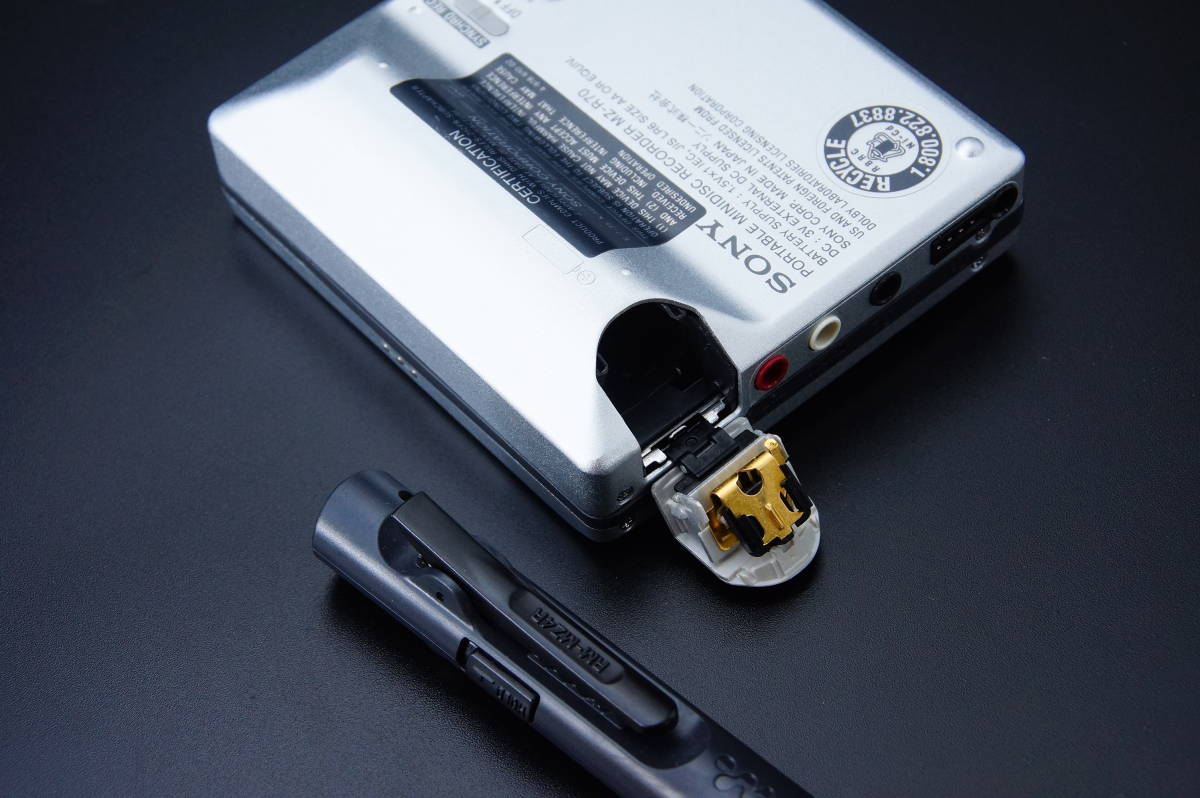

- Uses a single AA for power
- 2x headphone jacks (1 with a remote port, 1 without)
- Optical / Line - in
- Mic - in with Plug in power
- Digital Megabass
- Synchro recording
- You can name individual tracks as they are being recorded on device (new feature for this model)
- Easy track splitting and combining via the "T MARK" button
Unsupported:
- LP2 / LP4 / Hi-SP / PCM recording or playback - this is an SP ONLY device
- Hi-MD media - this device ONLY accepts standard MD media
- NetMD - this is a live recording ONLY device

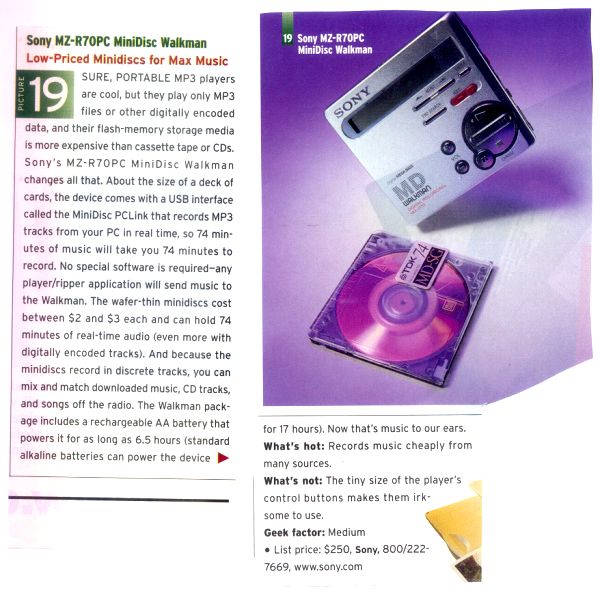

Digital PC Link Version: A new MZ-R70 bundle featuring the Digital PCLink (a Xitel MD-PORT DG2) called the MZ-R70DPC was announced September 20, 2000. The Digital PCLink is a USB soundcard with TOSLINK output, for recording audio from computers to minidisc.
Remotes:

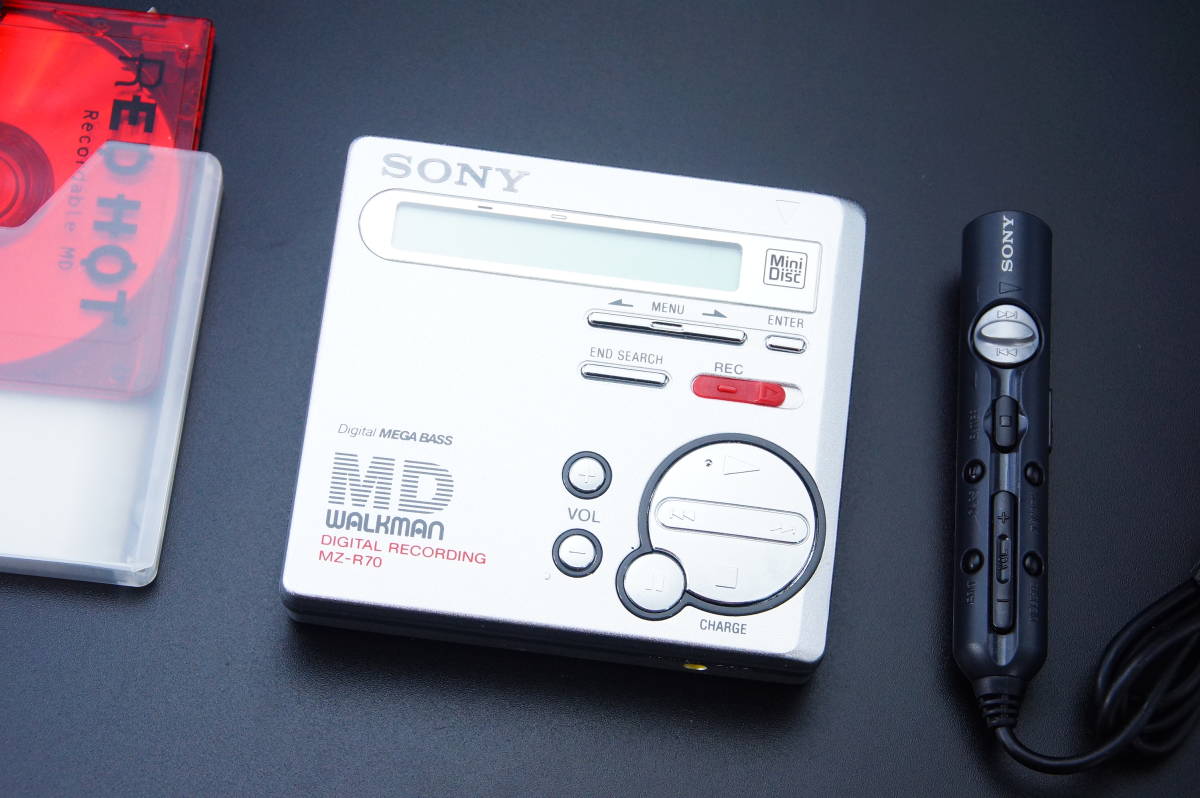

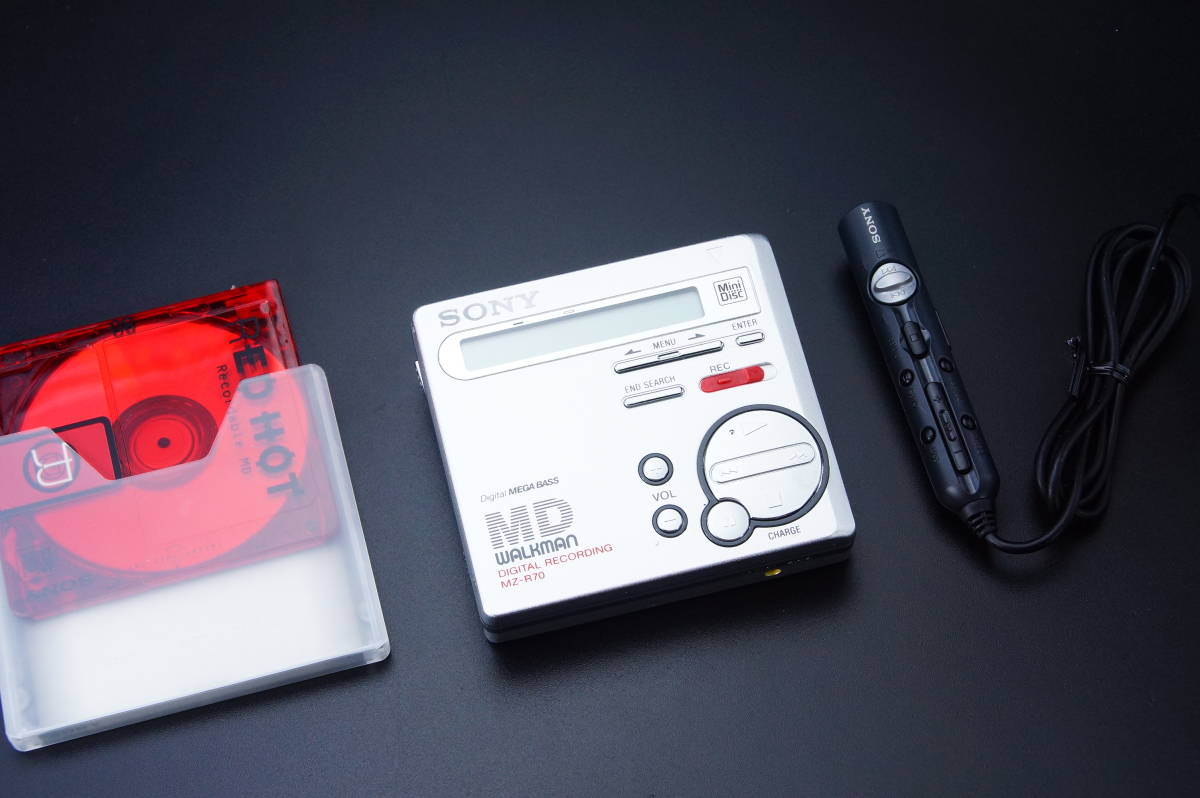

The in-line remote originally bundled with the unit (RM-MZ3R) is a basic remote with no display, similar to the one bundled with the MZ-R37. However, the unit supports remotes with a display (including backlit displays), but if the remote has separate play and next track controls, the next track button will act as a play button if the unit is paused or stopped.
User anecdotes have noted a very noisy spindle motor during recording and playback.
