| Name | MZ-R701 |
|---|---|
| Manufacturer | Sony |
| Released | 2002/05 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 81 × 28.1 × 74.4 mm |
| Weight | 118g |
| ATRAC ver | Type-R |
| Battery | Not recorded AA |
| Battery notes | Not recorded |
| Sidecar (depr) | Other |
| Voltage | 1.5, 3 |
| Power cable | Center positive |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

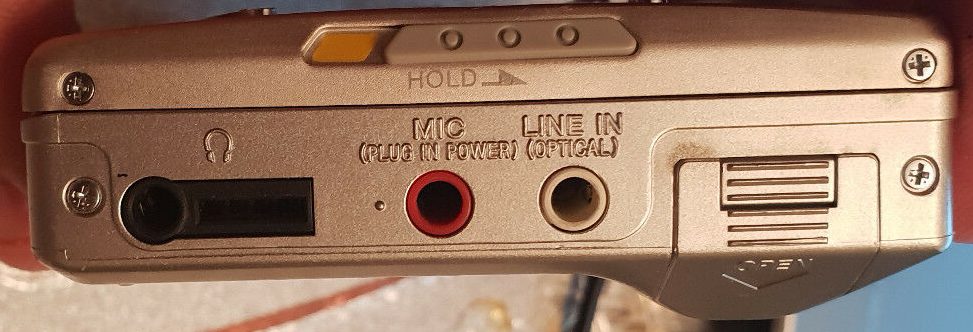

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | Not recorded |
Manuals
Photos
Submit more by editing the page!
Additional specifications and references
| Scms | Yes |
|---|---|
| Manual | User manual, Service manual |
| Region | Europe |
