Sony DKR-700\DKR-700P

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-11-21

Manufacturer
Sony
Model / source grouping
DKR-700
Device type
misc
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony DKR-700\DKR-700P”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DKR-700
Manufacturer Sony
Released 1996/01
Device type misc
Recorder Not recorded
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 211 x 128.5 x 385.4 mm
Weight 7kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100, 100-110, 120, 100-230, 230
Power cable Not recorded
Price (launch) Not recorded
¥450 000
-

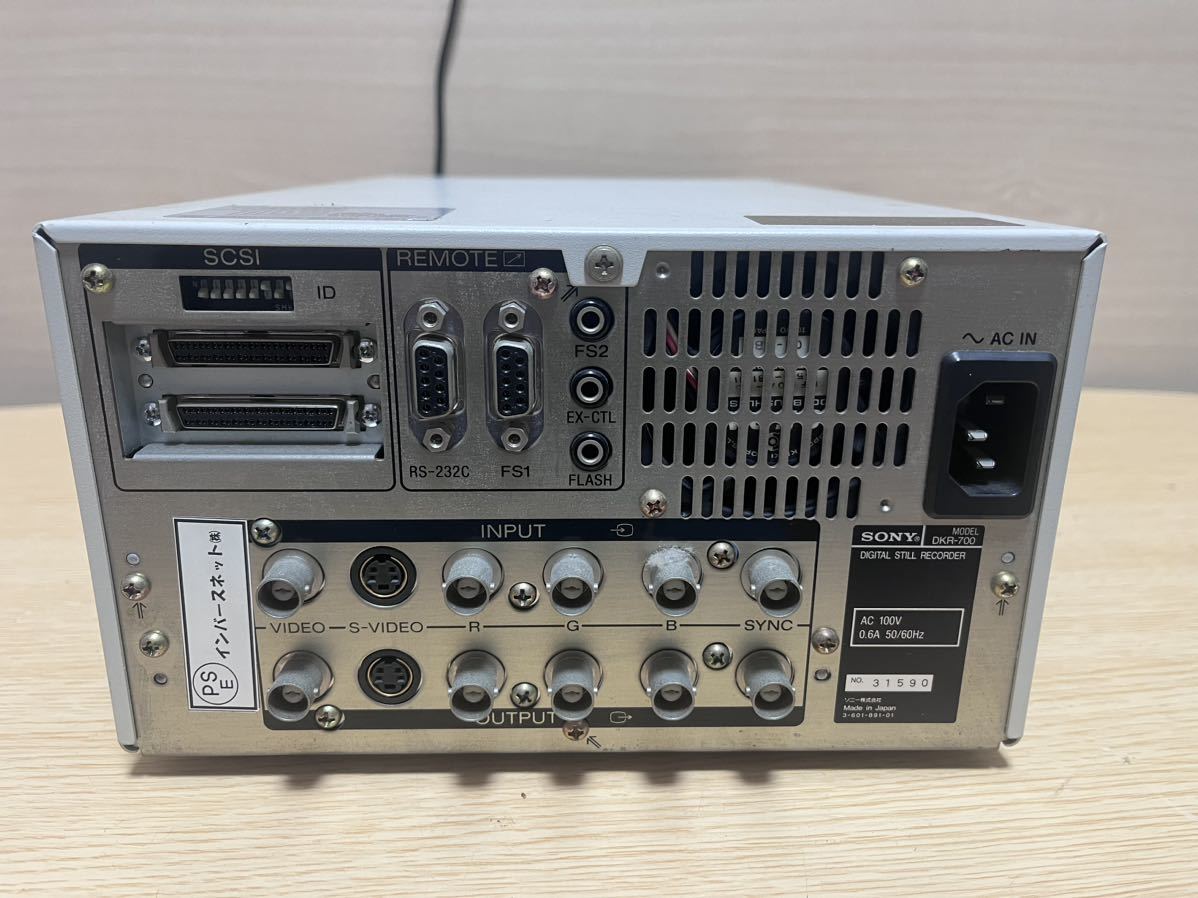

Inputs RCA in
Outputs RCA out
Control RS-232 serial, SCSI

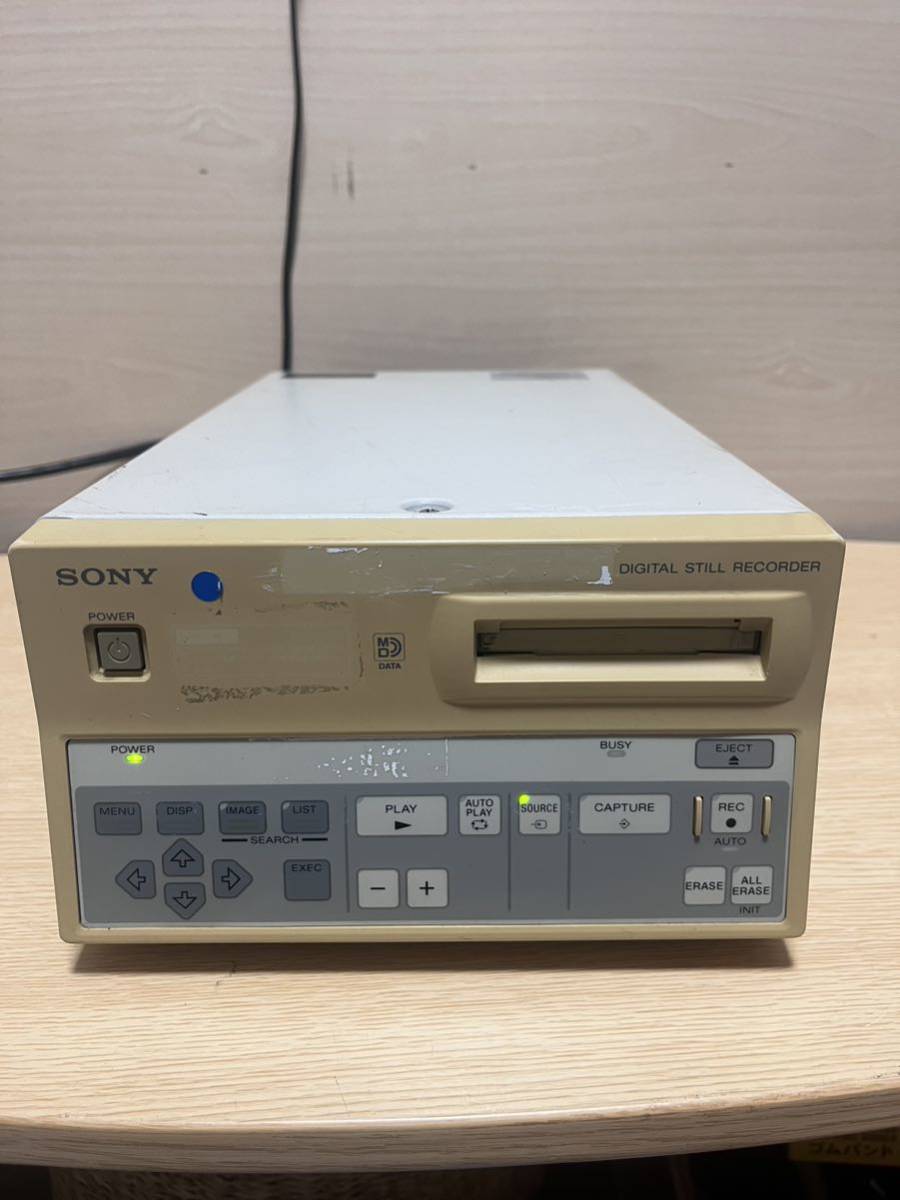

The DKR-700 is a still image recorder. It uses MD Data discs and it can store 100 to 1000 images depending on the resolution. It can capture color and black and white images on a standard NTSC monitor. Both models capture the image in TIF and JPEG formats.

There appears to be slight variation between the DKR-700 and DKR-700P, as the latter model has a switch on the side to switch between 220V, 230V, or 240V. Video for the DKR-700 is NTSC, whereas the DKR-700P is PAL. This results in the image resolution being slightly different. DKR-700 is 656x496 and DKR-700P is 768x592 for standard quality.

Specs:

  • Equipped with RS-232C interface.
  • Equipped with a quick playback function that plays back one image in 0.5 seconds.
  • Storage: TIF Fine Mode 100 images, JPEG Standard Mode 500 images, JPEG Quick Mode: 700-1000 images
  • Video (composite), S video, RGB
  • SCSI 2

Content adapted from: Sony Product Release Page Sony Product Release Page (MiniDisc Wiki mirror)

Manuals

DKR-700 User Manual ENG / FR

Repair

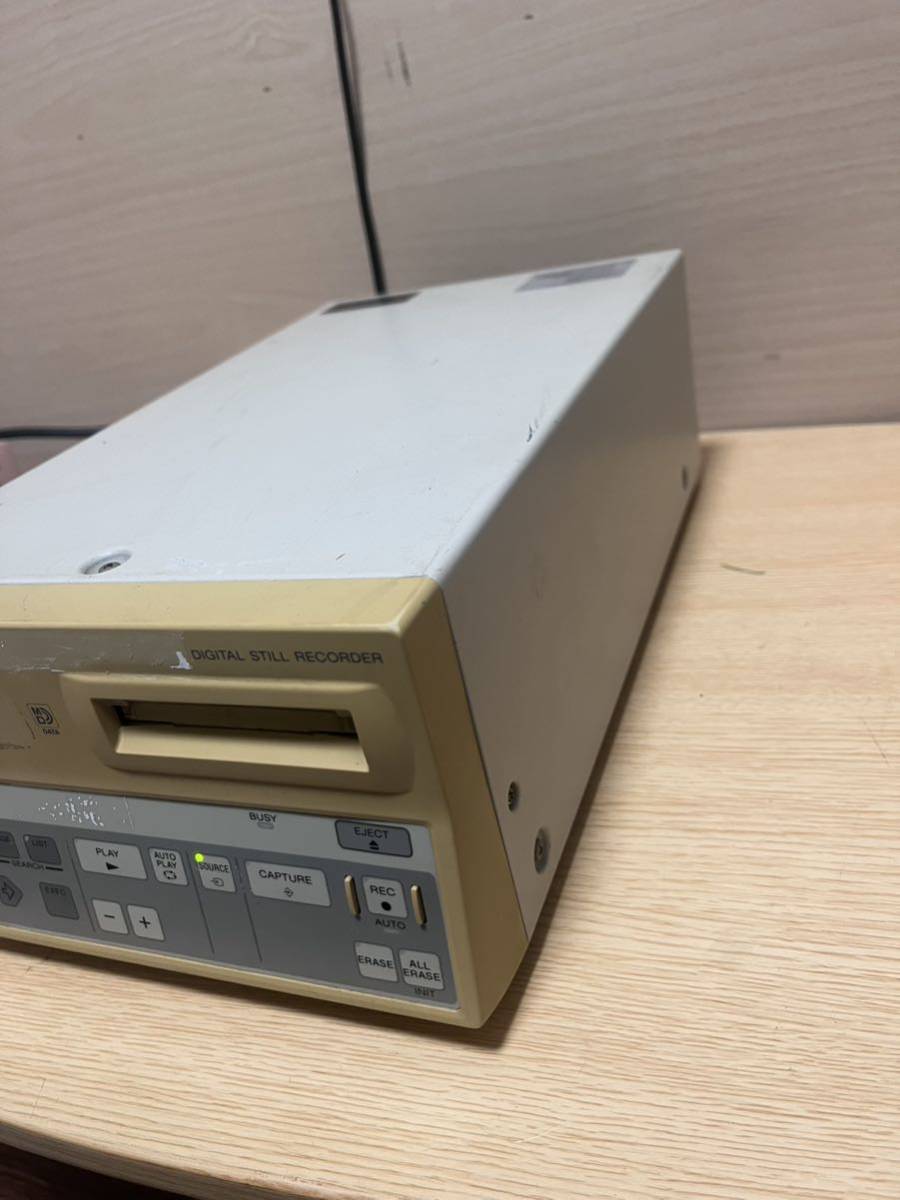

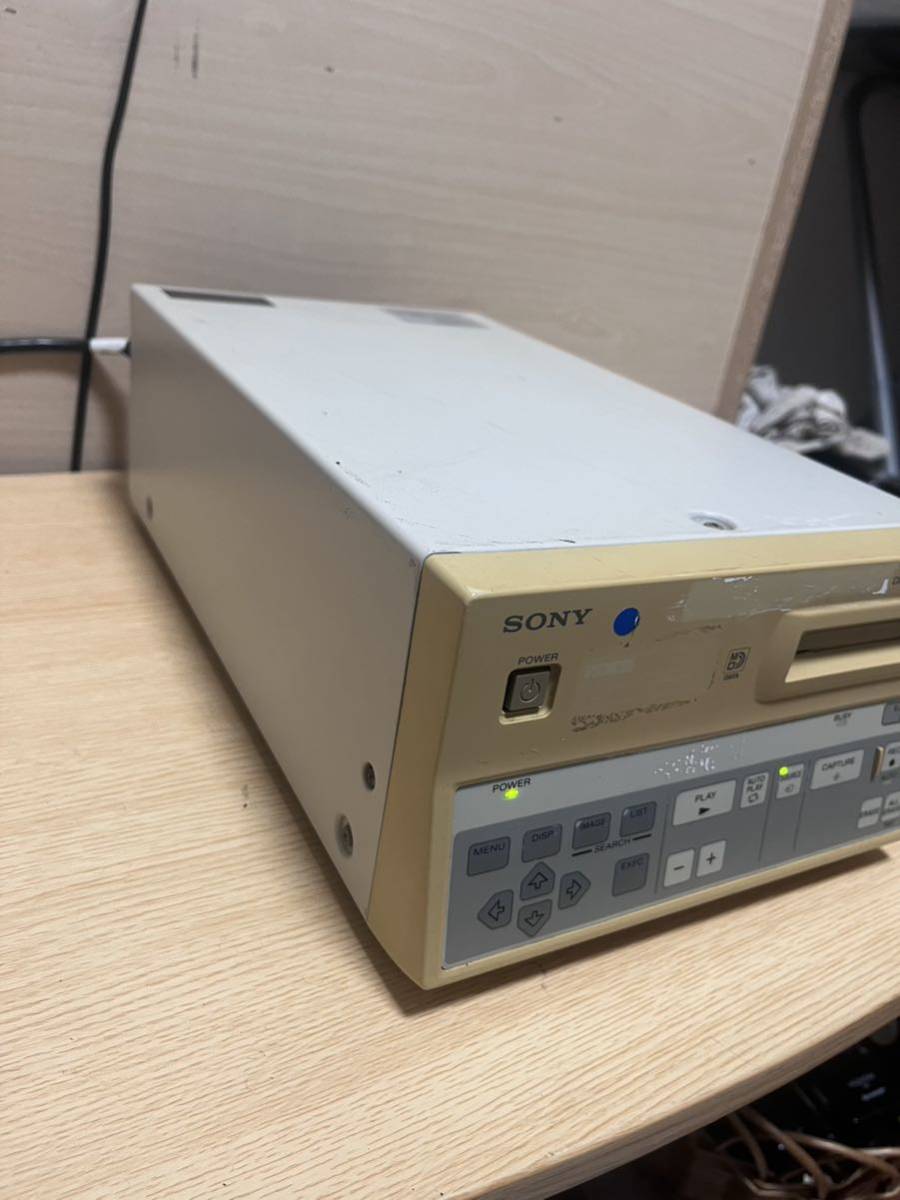

Photos

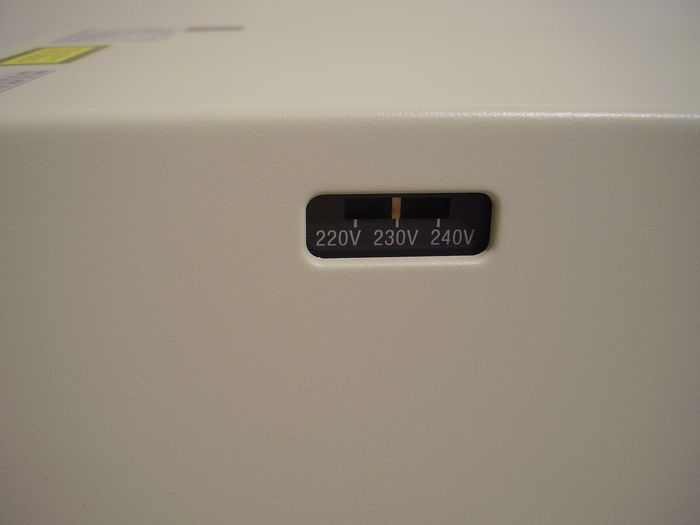

DKR-700P Voltage Switch

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan, US/Canada, Europe
