| Name | MD-10 |
|---|---|
| Manufacturer | TEAC |
| Released | 1997/08 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 442 x 100 x 363mm |
| Weight | 6.8Kg |
| ATRAC ver | 3.5 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | Not recorded |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥95 000 | |
| - | |

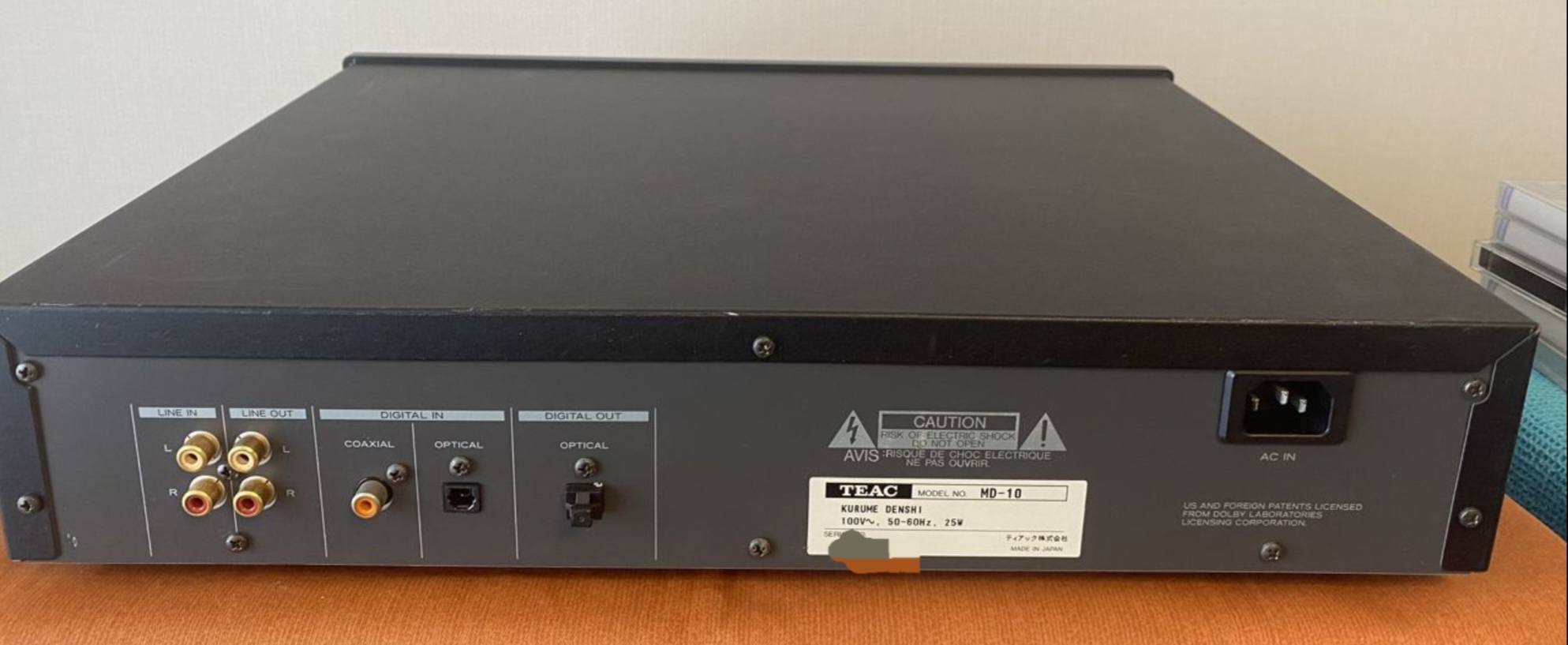

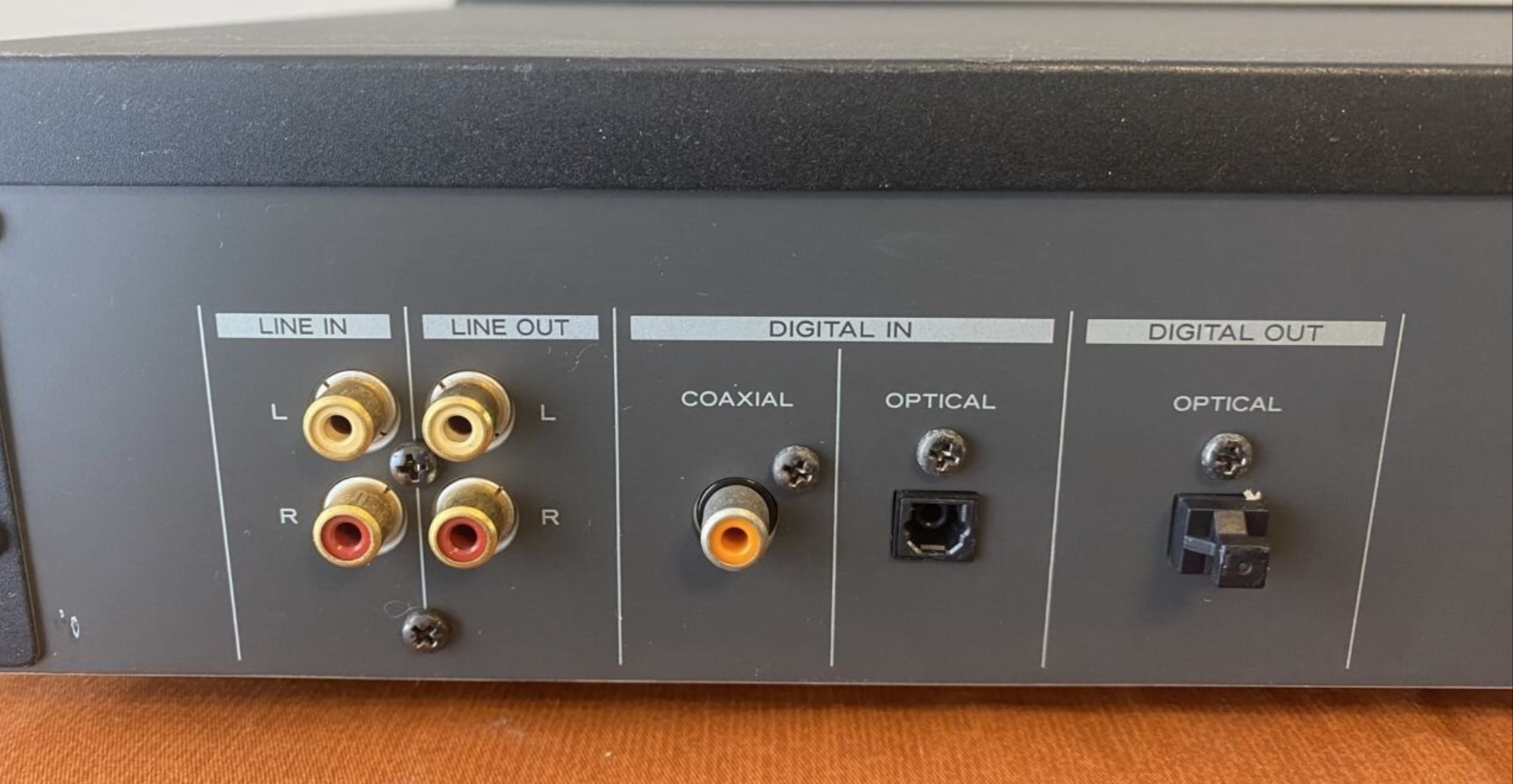

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | PS/2 keyboard |

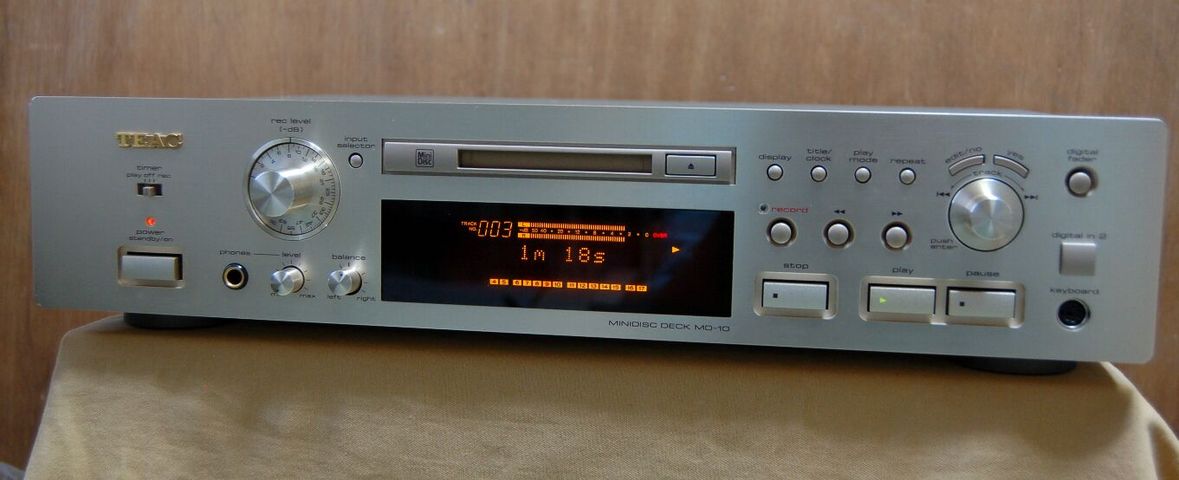

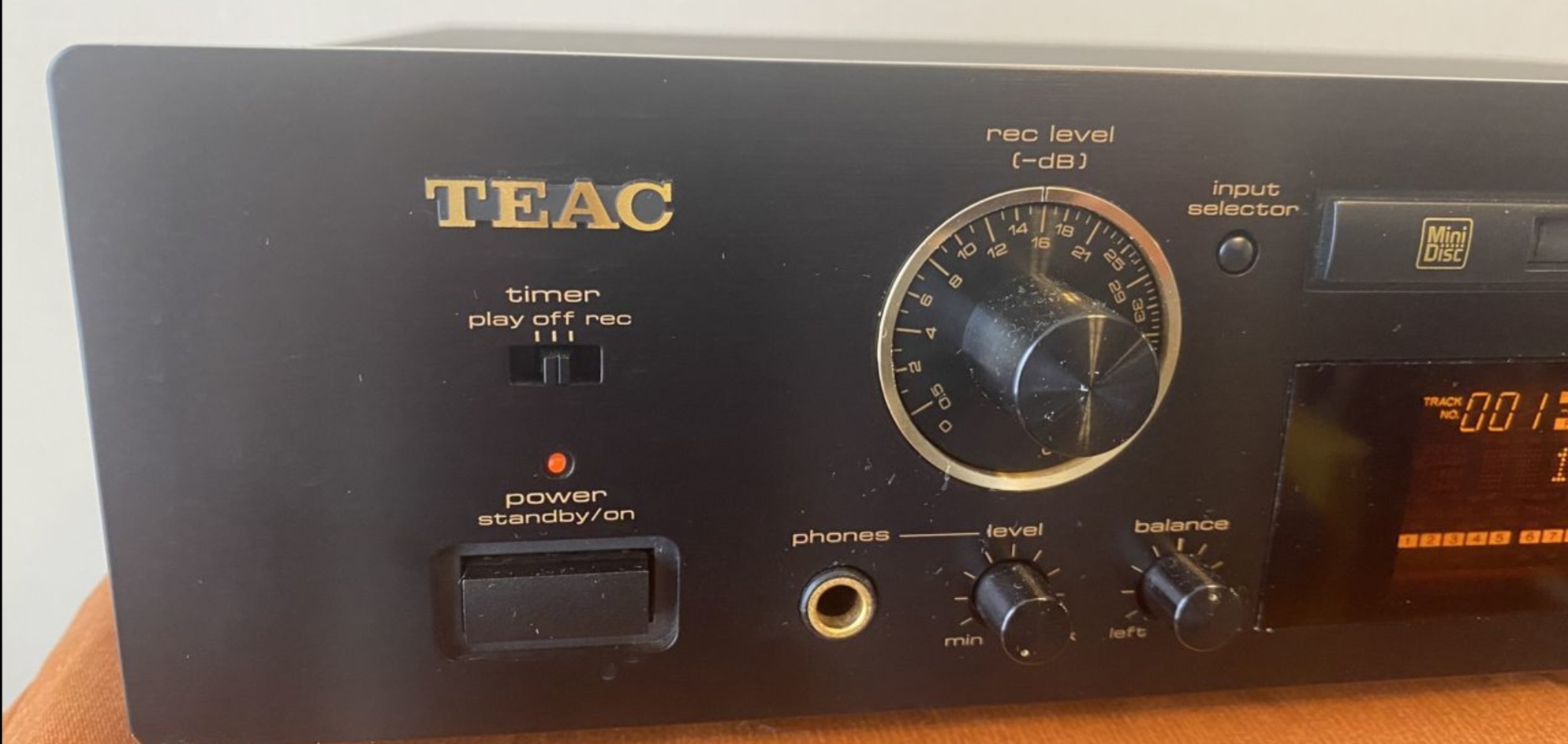

Features: Sample rate conversion facility, digital level control (with large, nicely calibrated analog knob), front panel keyboard connection for easy input and editing titles, digital optical input on the front panel, digital auto-fader, Multifunction jog dial for easy operation, Useful editing functions, Sturdy front panel and highly rigid chassis, convenient synchro recording, large multi-function fluorescent display provides a wide variety of information.
Specs: SNR > 98dB (EIAJ), Freq. Resp. 10Hz-20kHz +/-0.5dB, AC Power consumption: 25W, 1 bit D/A and A/D converters.

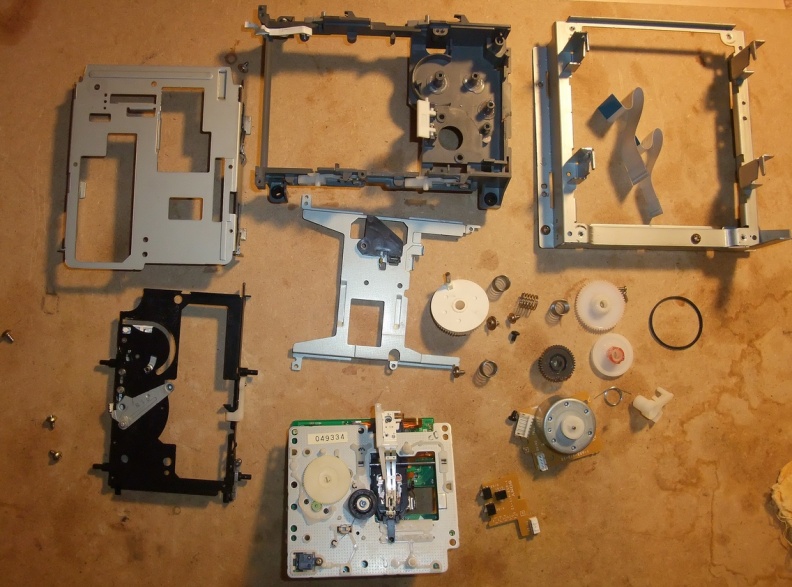

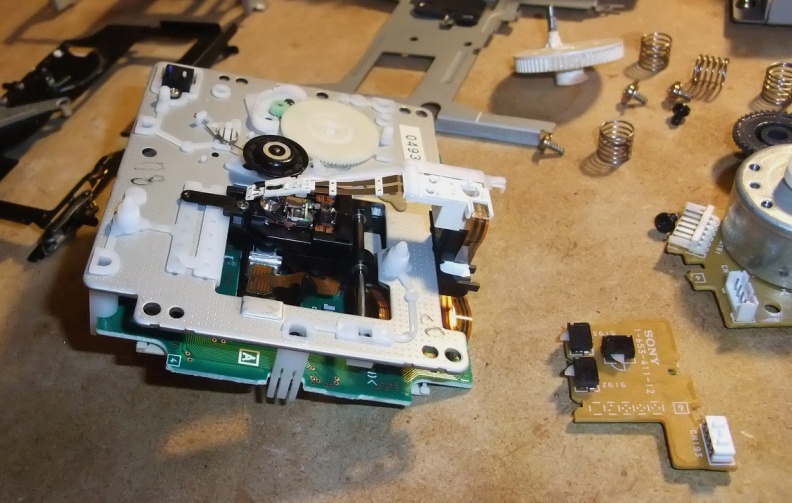

MD Mechanism Type: similar to MDM-2C as in JA3ES, but with differences
Base Unit Type: MBU-2B
Optical Pick-up: KMS-210A/J-N
Content adapted from: Minidisc.org Page, Teac Australia (Archived), Livedoor Expand blog (Japanese)
Manuals

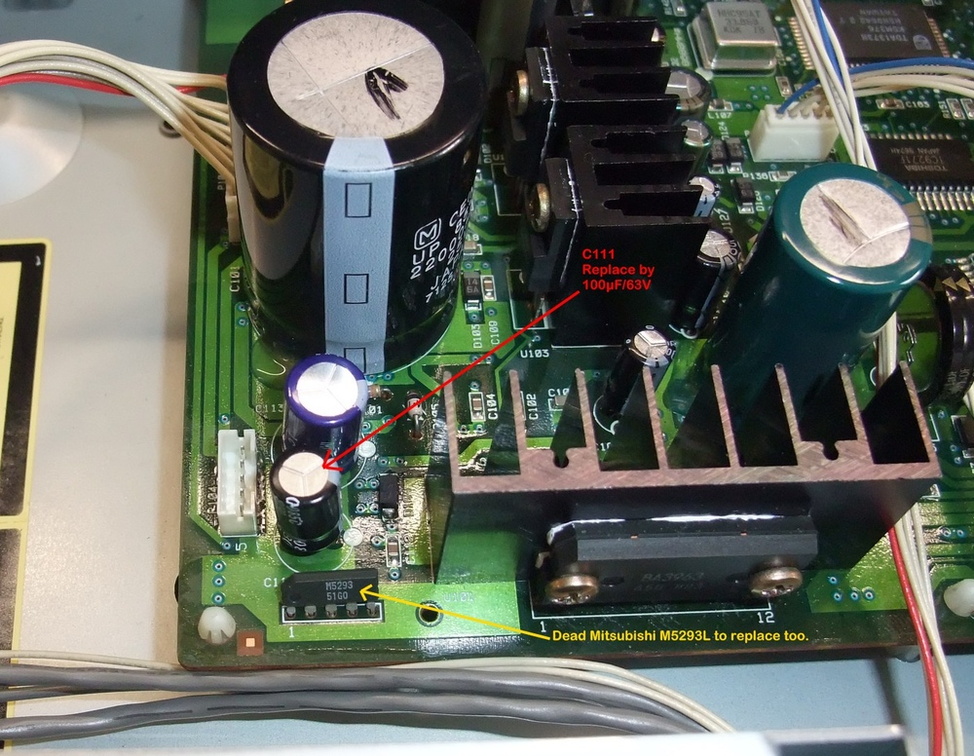

Repair

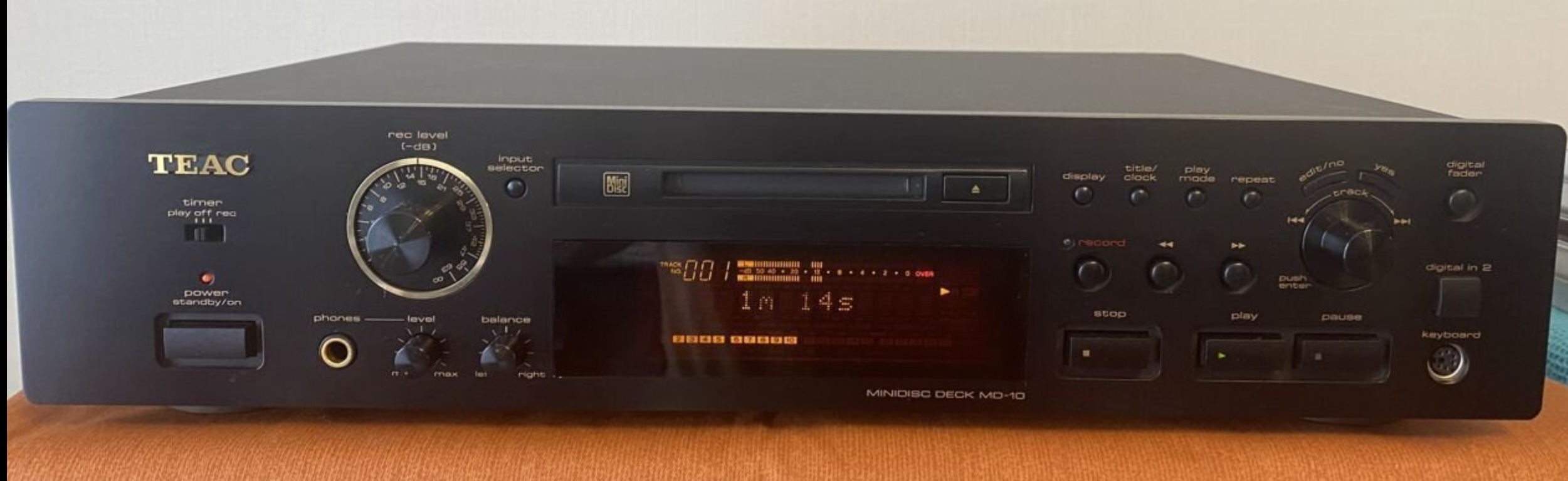

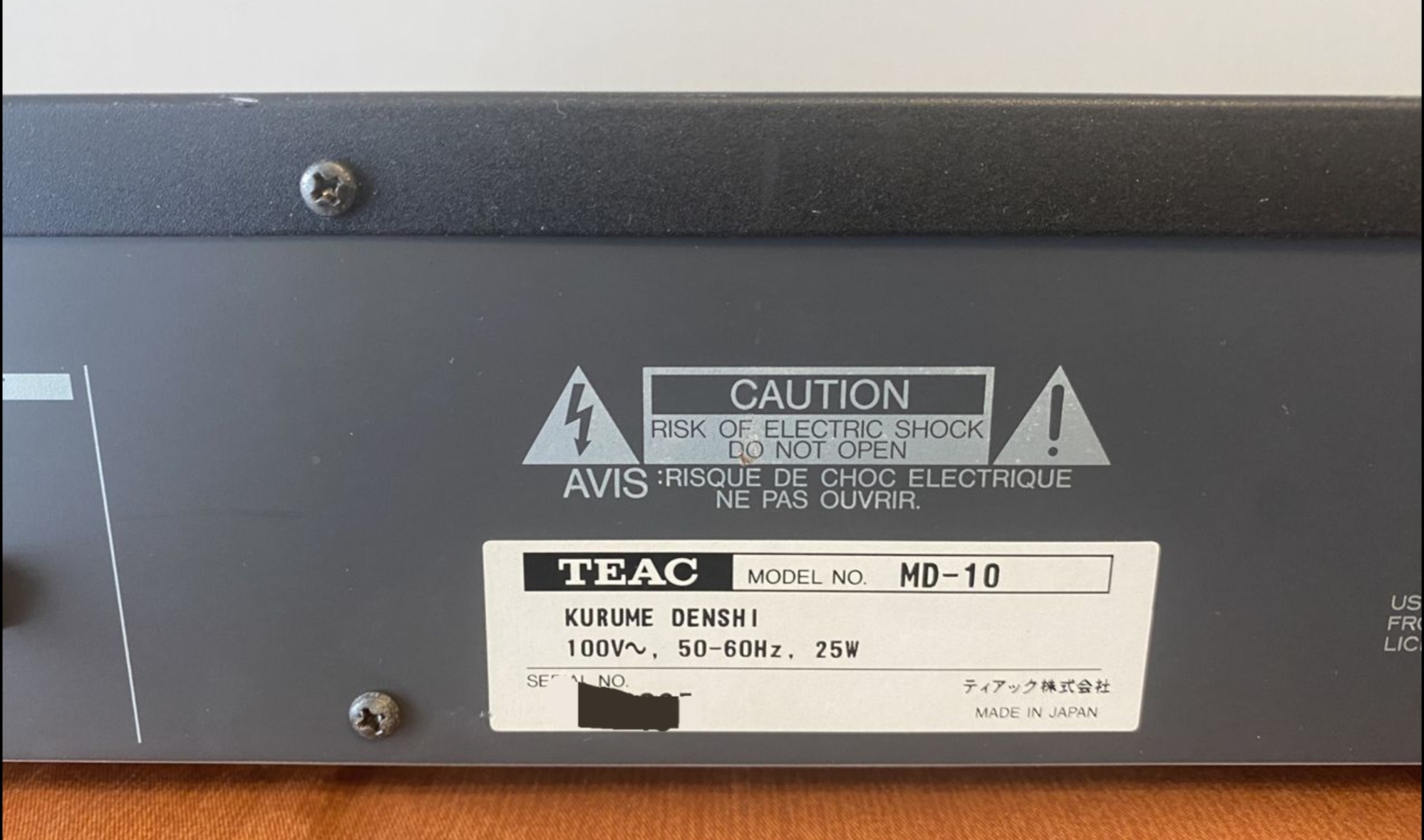

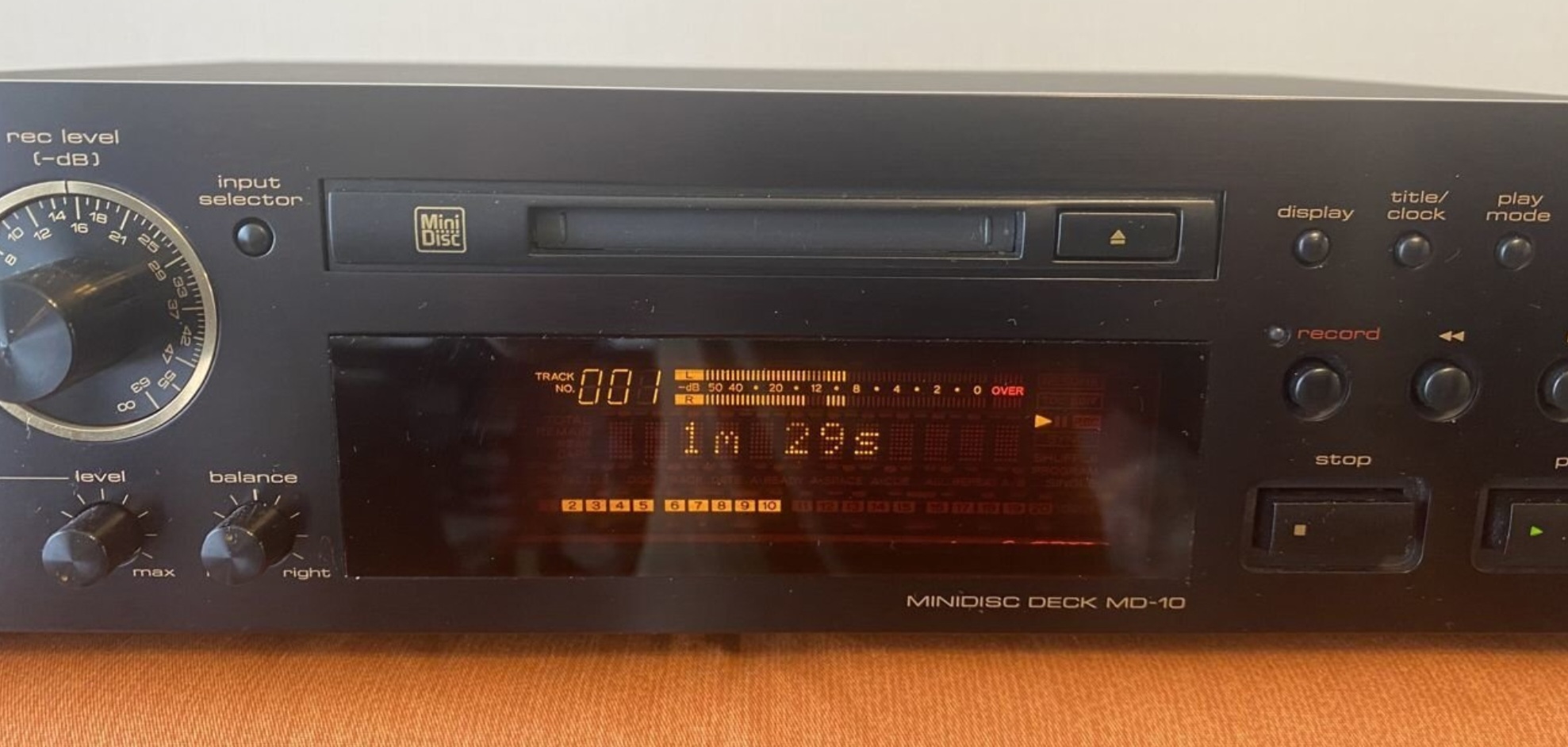

Photos
