TEAC MD-5mkII

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-11-23

Manufacturer
TEAC
Model / source grouping
MD-5MKII
Device type
deck
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “TEAC MD-5mkII”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MD-5MKII
Manufacturer TEAC
Released 2001/03
Device type deck
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio No
Dimensions 100H x 435W x 310D mm
Weight 4.5Kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No

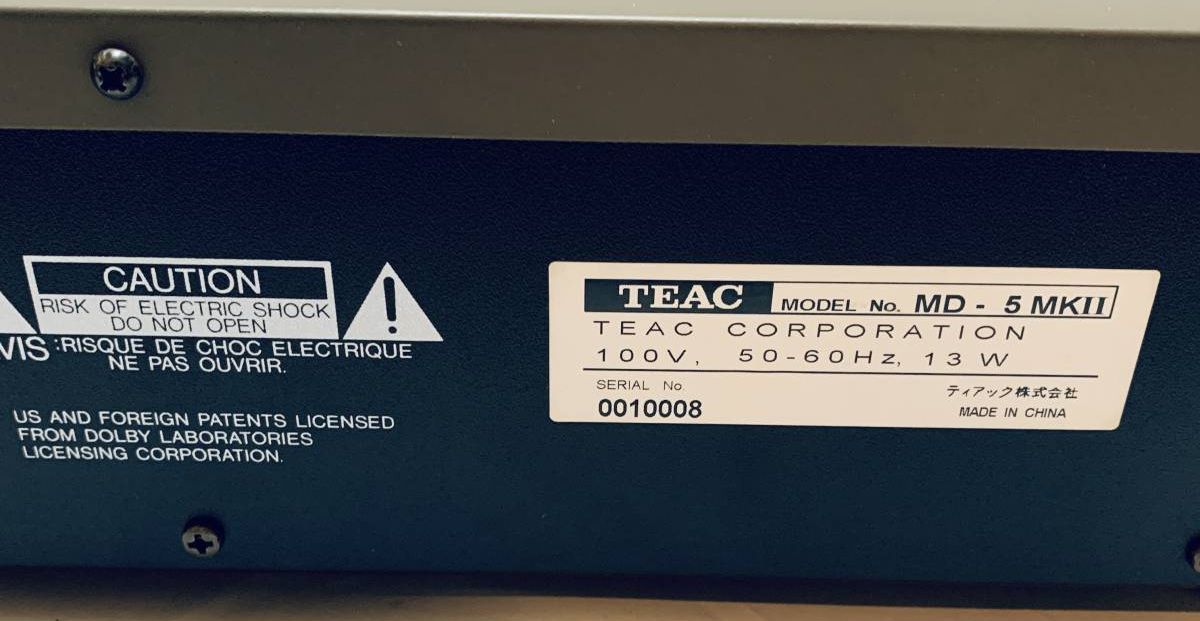

Voltage 100
Power cable AC
Price (launch) Not recorded
¥50 000
-

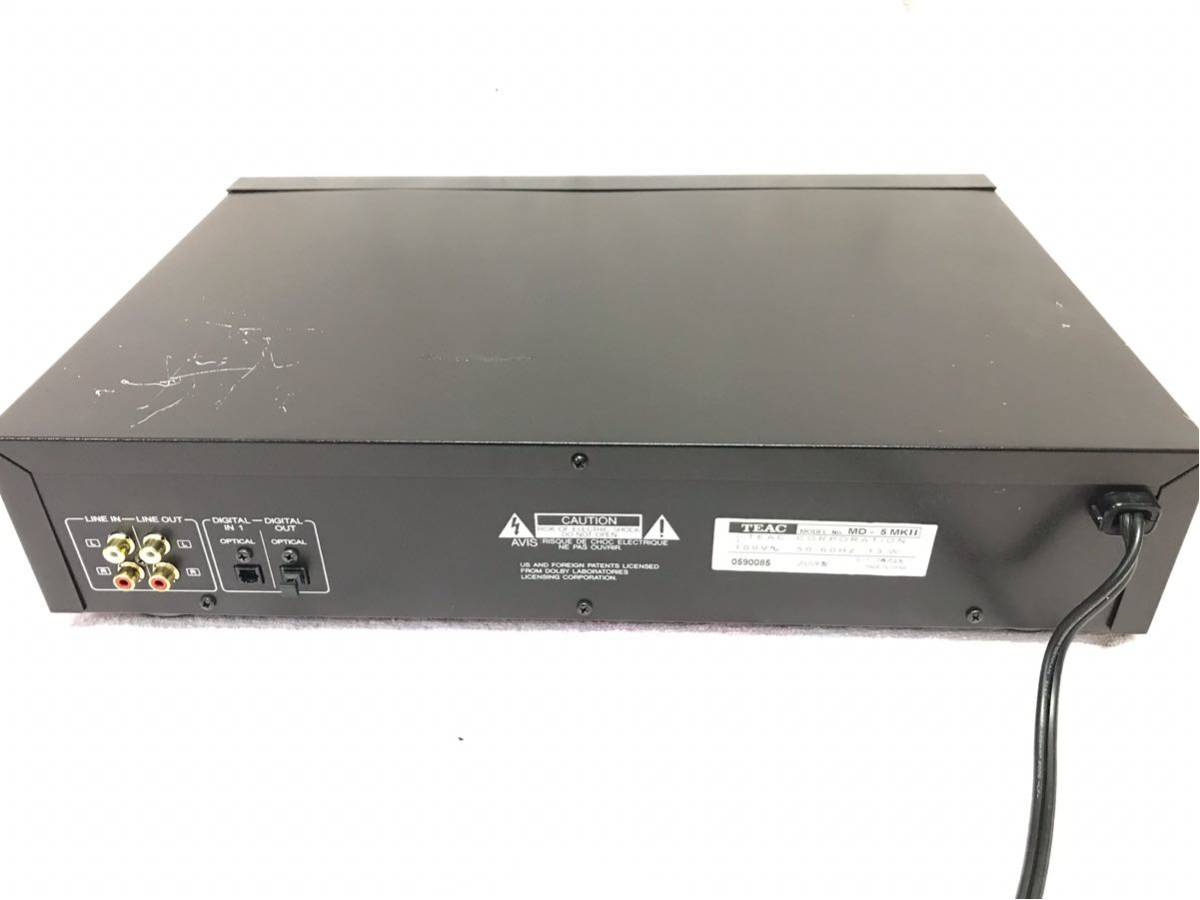

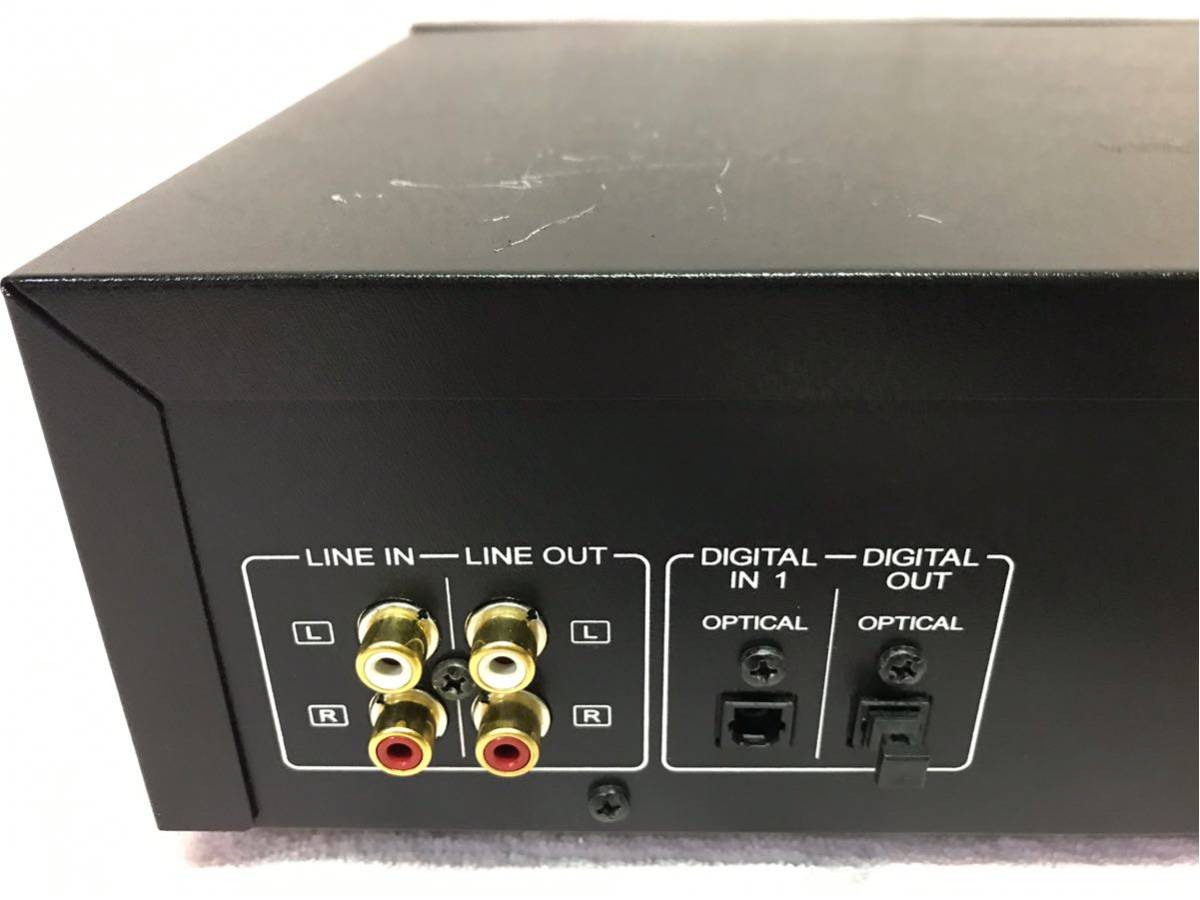

Inputs RCA in, Digital optical (TOSLINK)
Outputs 1/4 inch headphone, RCA out, Digital optical (TOSLINK)
Control PS/2 keyboard

Teac MD-5MK2 / MD-5 MK2 / MD-5 MKⅡ (alternate spellings)

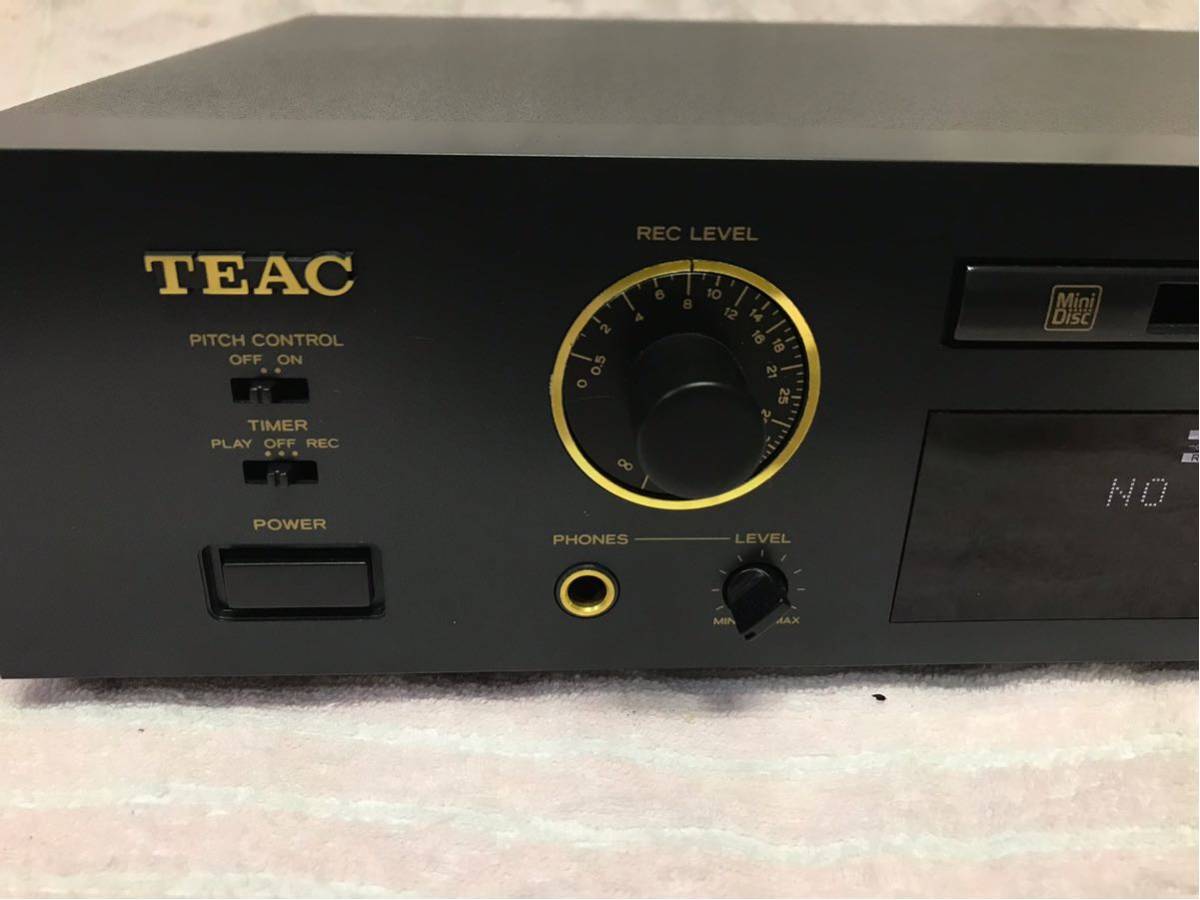

Features: MDLP compatible. Digital recording volume control, PS2 connector for using a standard PC keyboard for title input, pitch control (+/- 12% in 0.1% increments).

Content adapted from: Teac Product page Teac Product page (MiniDisc Wiki mirror) Minidisc.org Page tukipie.net

Manuals

Teac MD-5MKII Japanese Manual

Repair

(repair links go here)

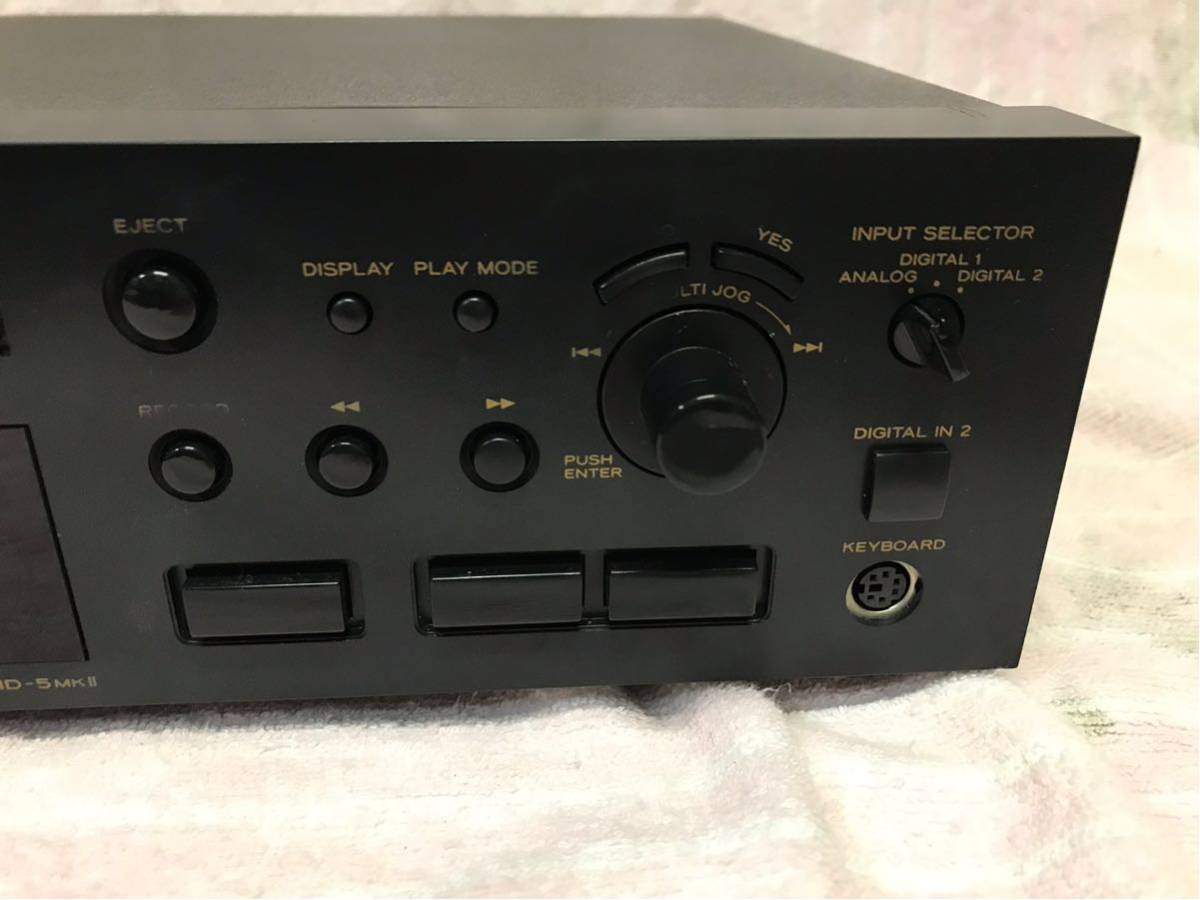

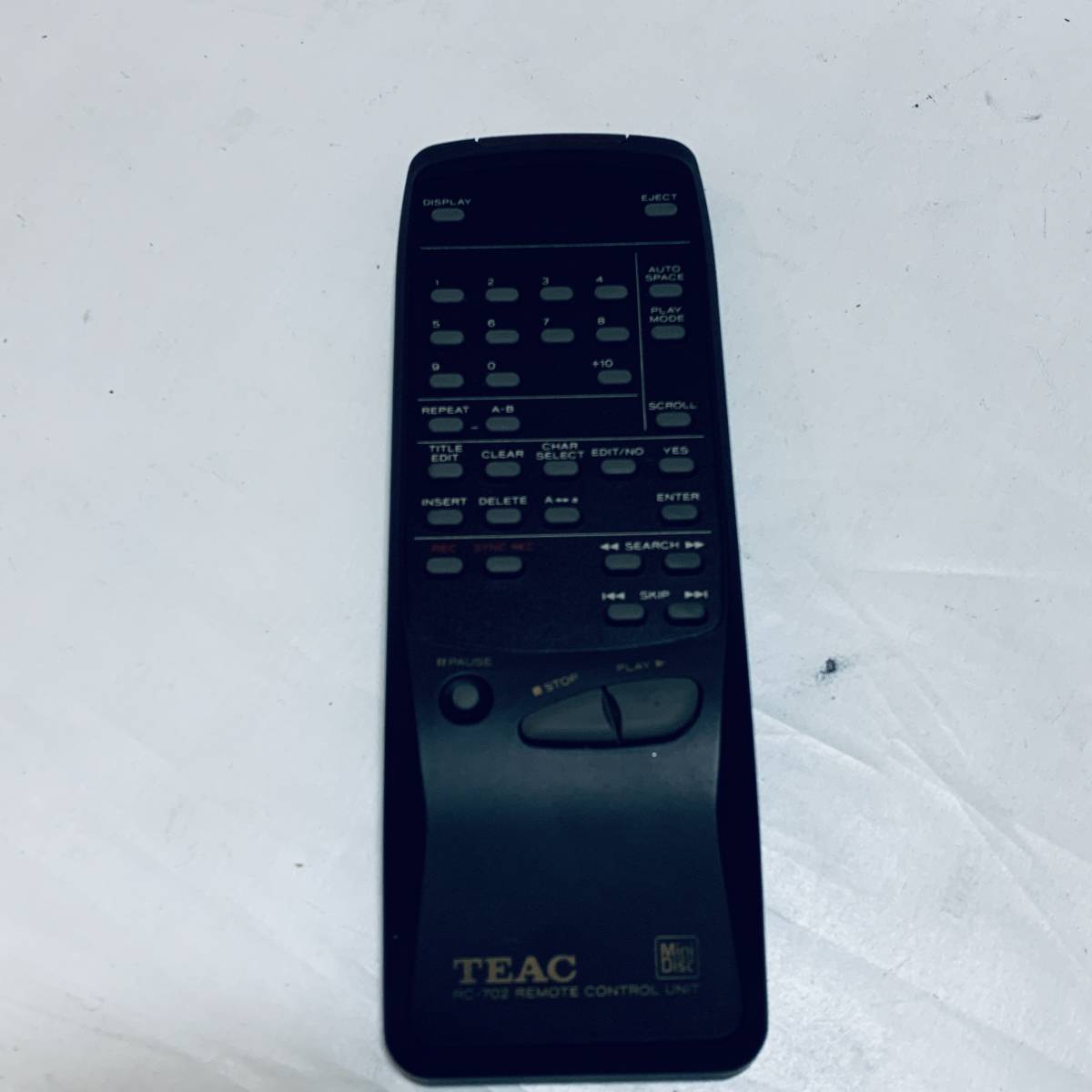

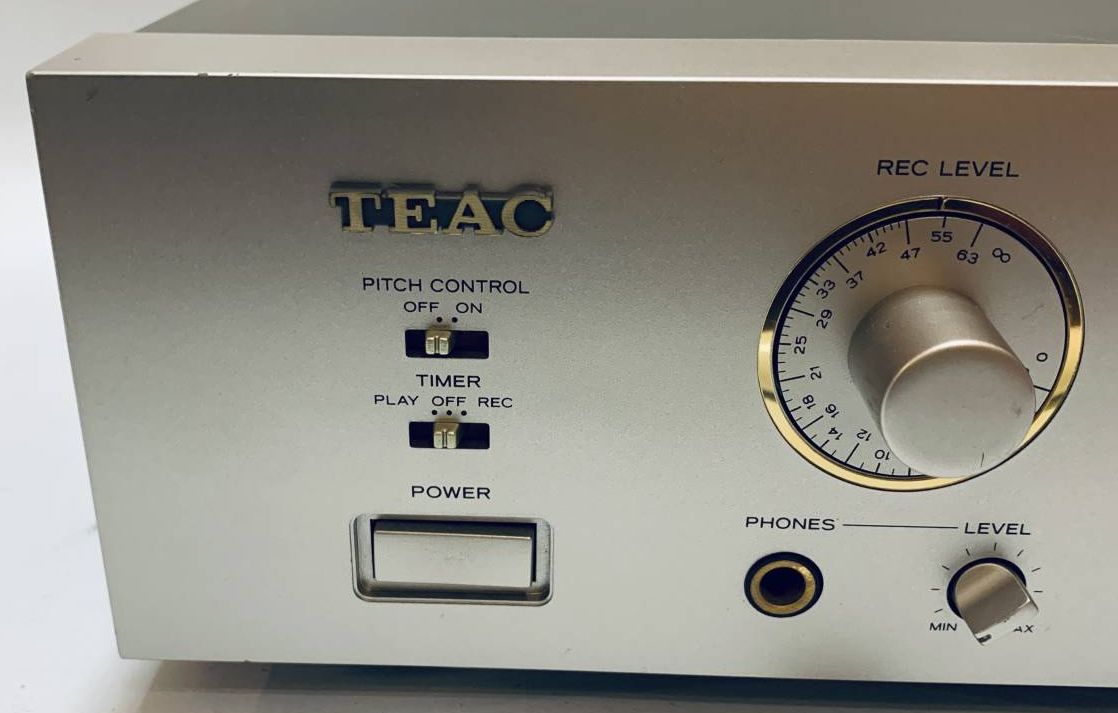

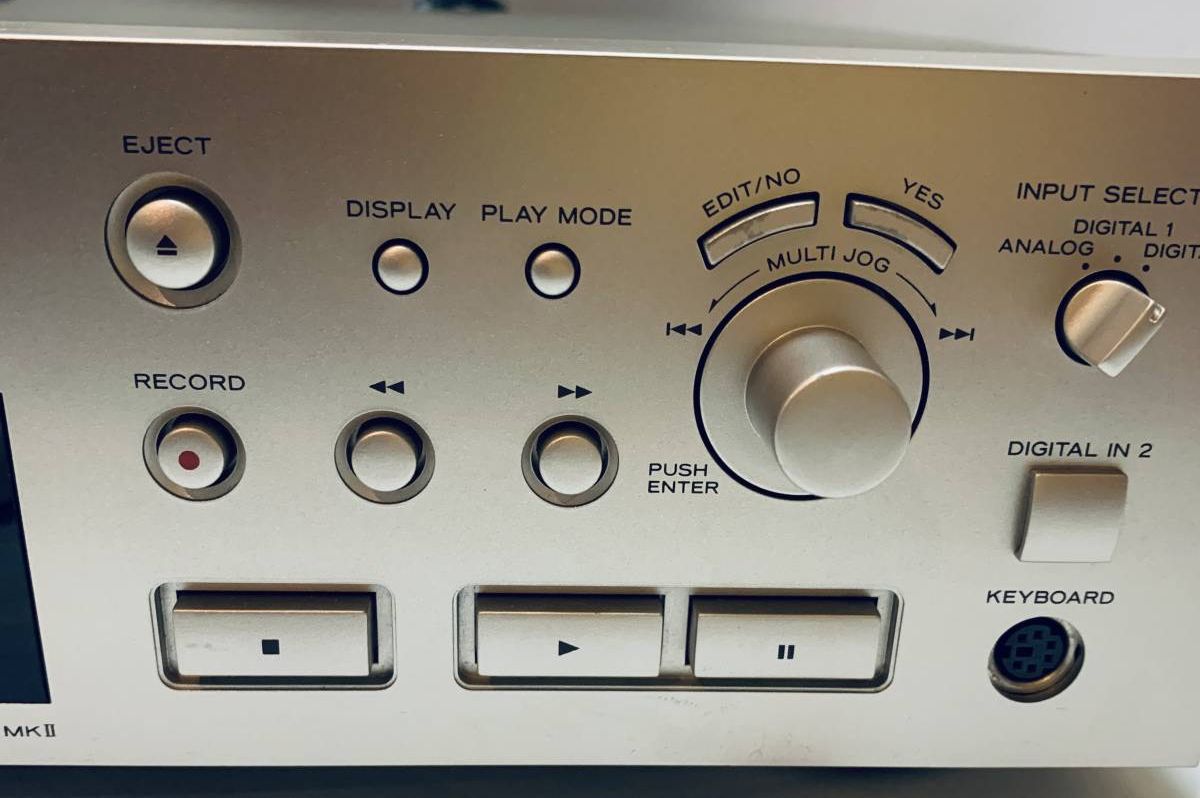

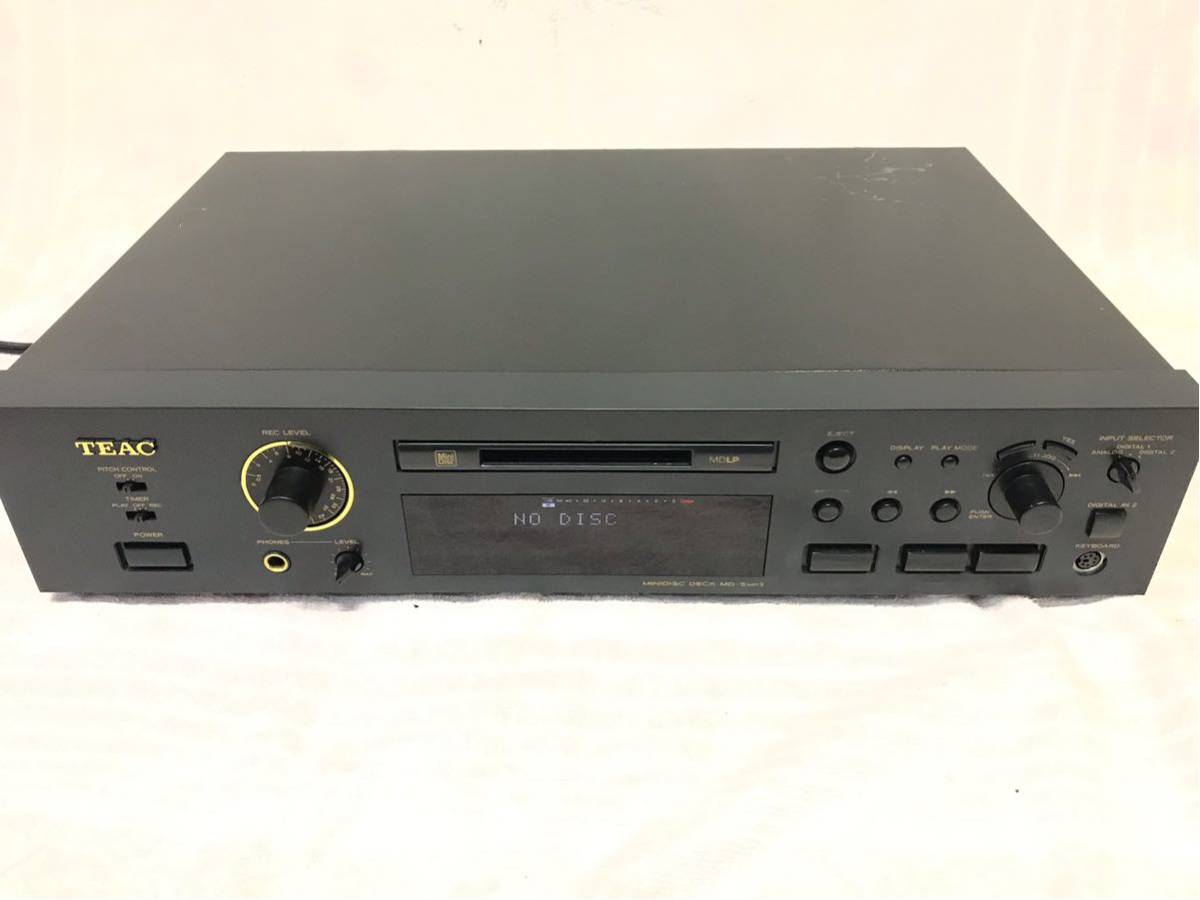

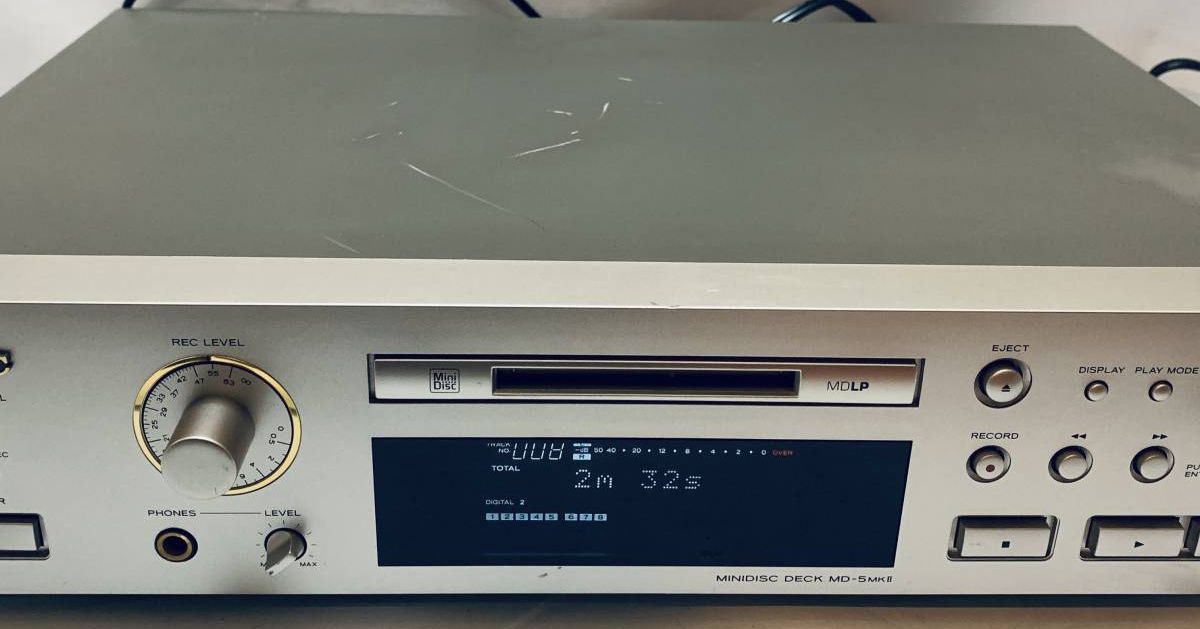

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
