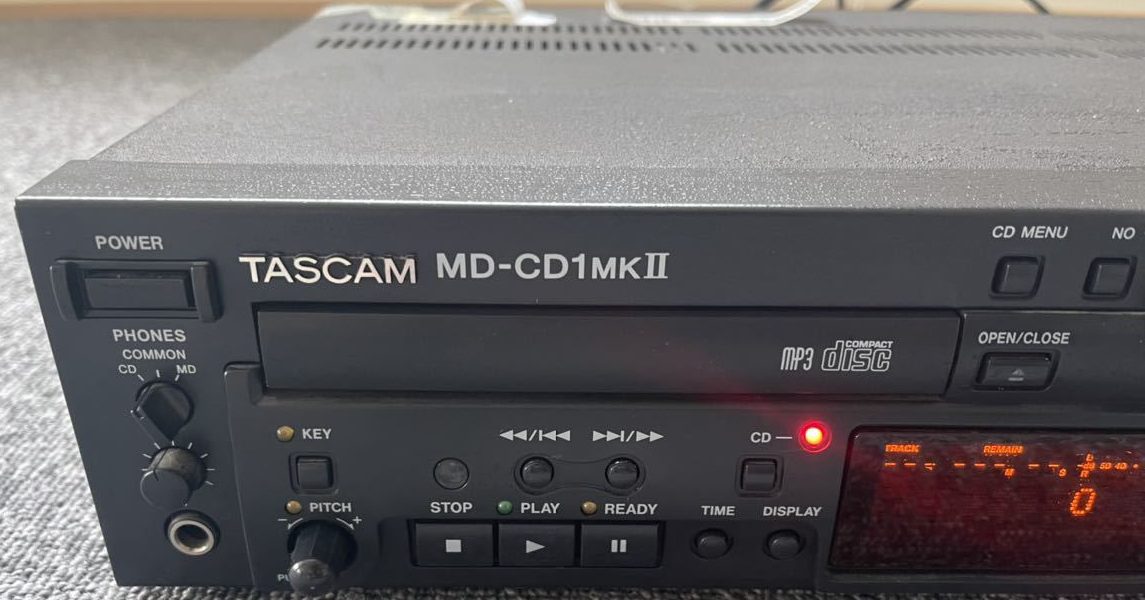

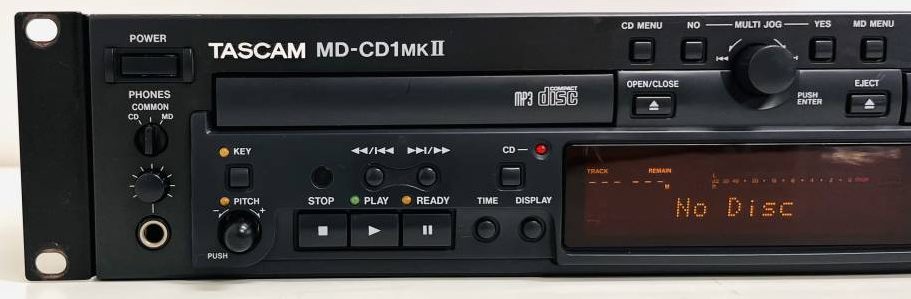

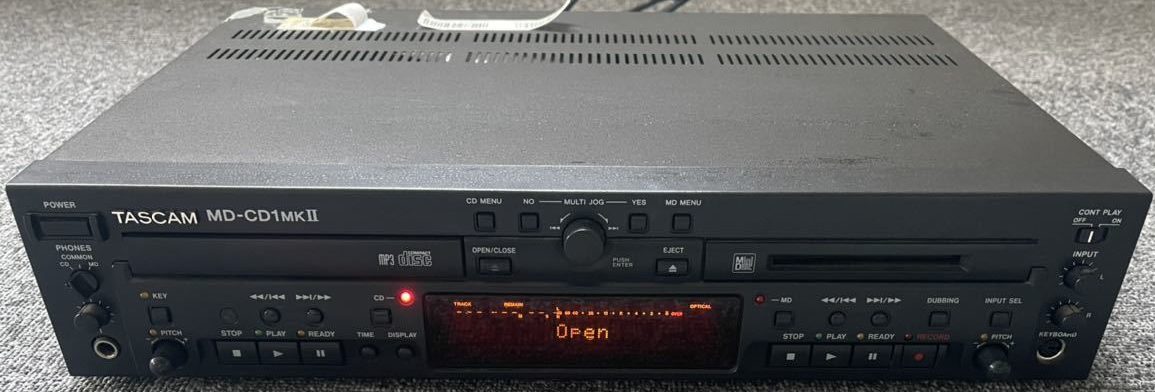

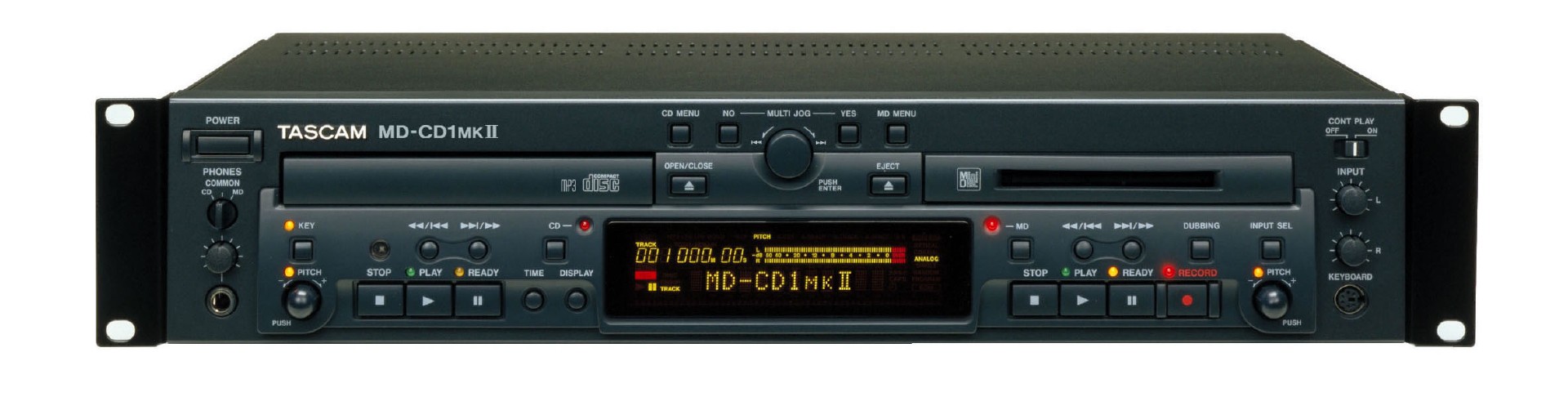

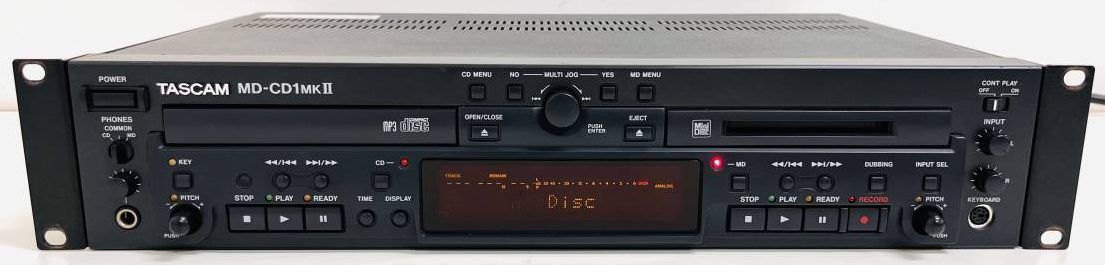

TASCAM MD-CD1MKII

TASCAM MD-CD1MKII / MD-CD1MK2

Combined Features:

• COMMON output for CD and MD output (priority can be set)
• Headphone output with selectable source (MD, CD, or common)
• Dubbing from CD to MD (whole disc or track by track):
• 4 x: in SP mode
• 2 x: in MONO / LP2 / LP4 mode
• 1 x: from MP3 or WAV discs and when CD's pitch control/key control on
• Continuous playback between MD and CD (no limitation)
• Independent operation of MD and CD
• Auto title input from CD-text and ID3 tag

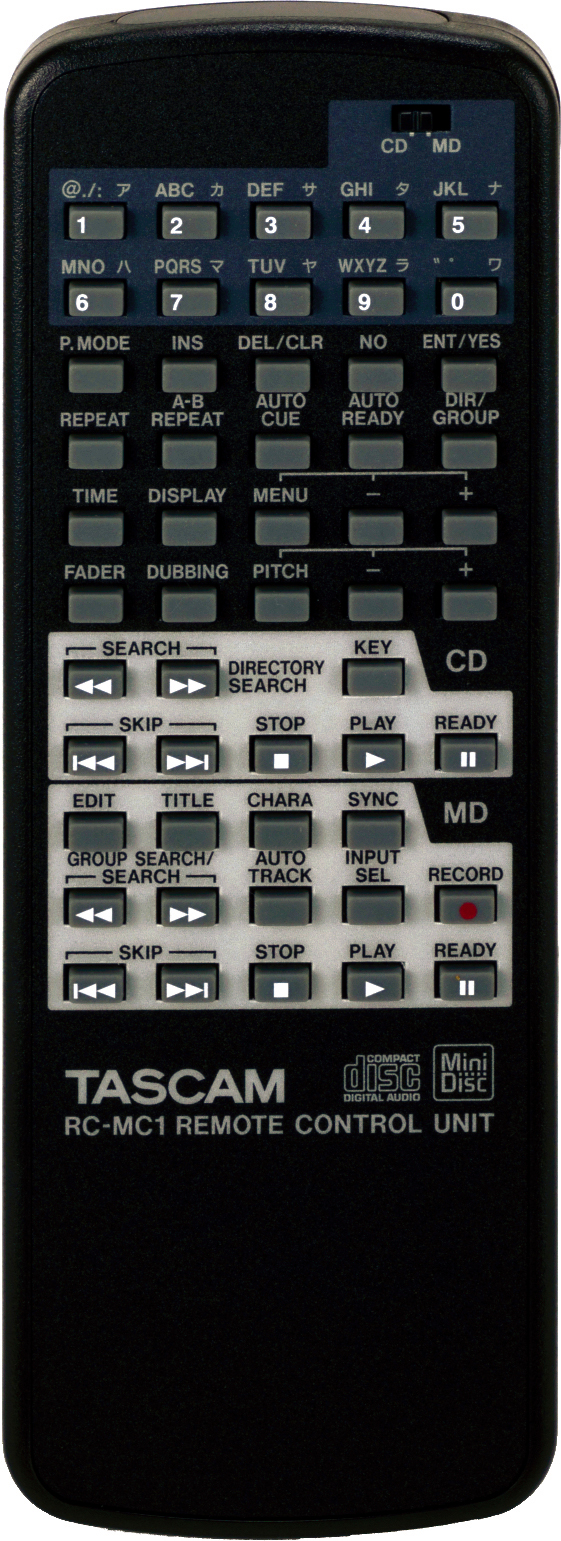

• Wireless remote controller
• RS-232C serial remote control
• LA-MC1 optional balanced I/O card
• 2U rack mount size

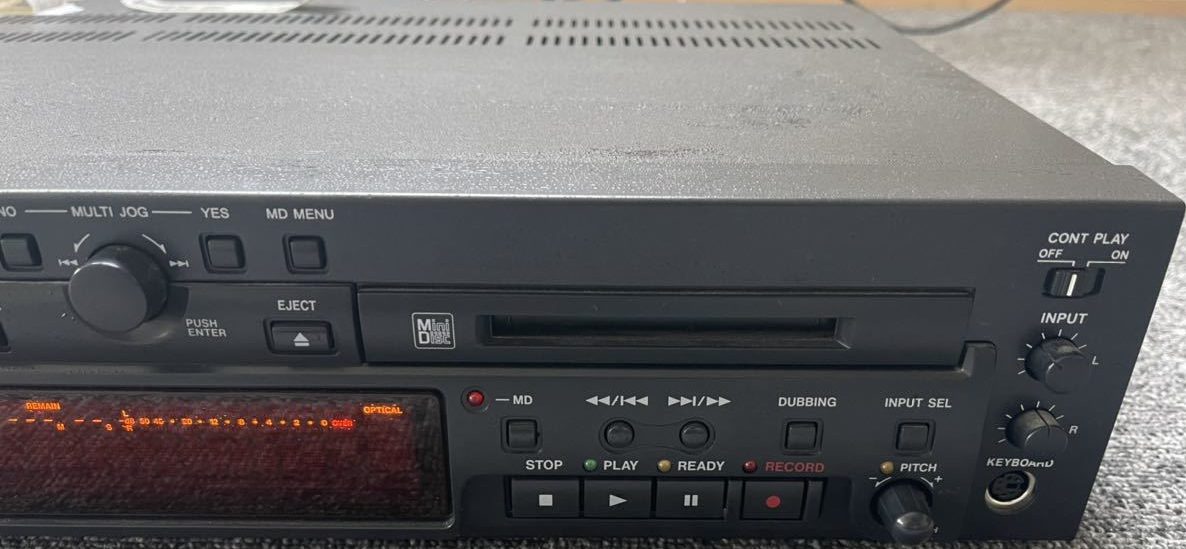

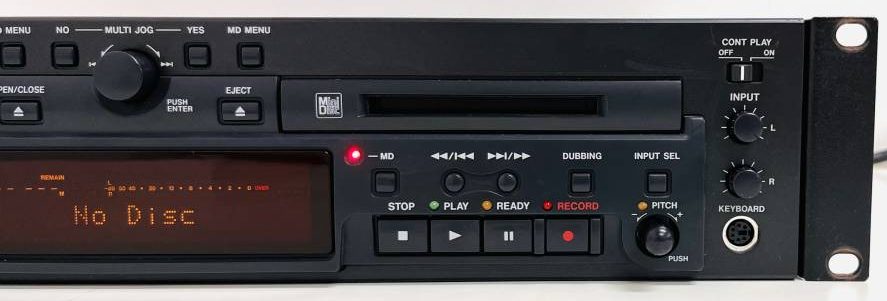

MiniDisc Features:

• Supports SP (stereo) / MONO / LP2 / LP4 modes
• Recording in different mode (ST/MONO/LP2/LP4) in the disc and playback the disc which contain the different mode of the song is possible
• Edit functions: erase, divide, combine, move, title
• Grouping function and group playback
• Overwrite
• Auto track increment with input audio level and track information data from S/PDIF input
• Manual Track increment by pressing the record button during recording
• Sync recording by input audio signal
• Input monitor
• Digital volume on input (-infinity, -54 to +18 dB)
• Fade in and out recording (1 to 30 seconds in 1 second steps)
• Pre recording (off, 1 to 6 seconds in 1 seconds steps)
• Various playback modes: all / single / program (up to 25 tracks) / random / group
• Various repeat modes: all / signle / program (up to 25 tracks) / random / A-B
• Auto cue
• Auto ready
• EOM (End of message) for indicate the end of track or disc (1 to 99 seconds in 1 second steps)
• Time search by numeric keys on remote controller
• Power on play
• Time display mode: track elapsed / track remain / disc elapsed / disc remain

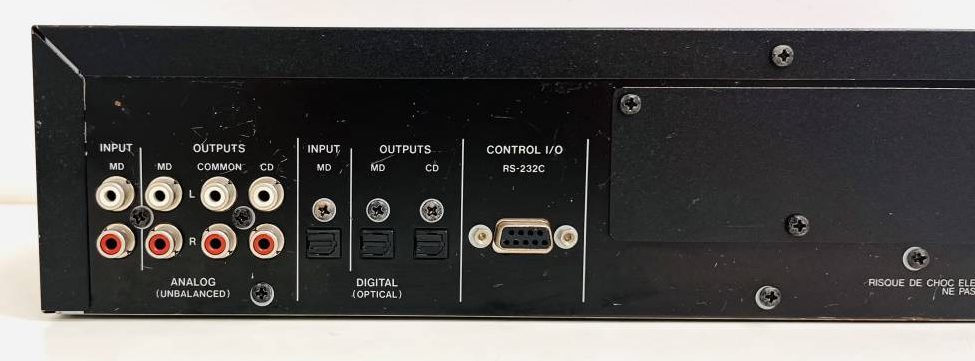

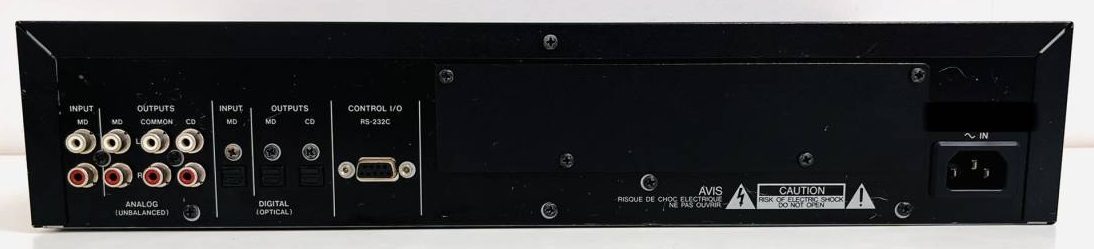

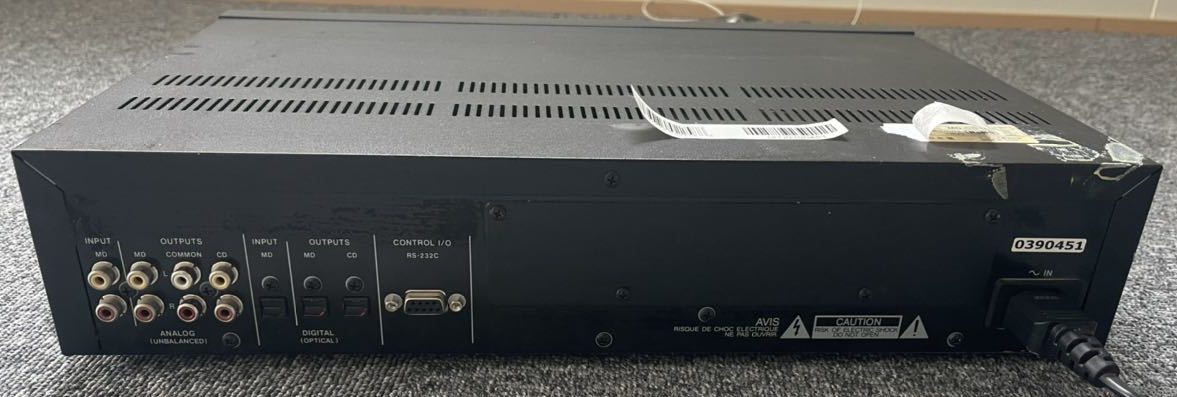

• RCA unbalanced analog input and output
• S/PDIF optical digital input and output (SCMS)
• S/PDIF coaxial digital input and output (SCMS)
• Remote control, editing, and title input by PS/2 keyboard

CD Features:

• Applicable discs: audio CD / CD-R / CD-RW / CD-ROM (MP3/WAV)
• CD-text display (Stop: Disc title, Play: Track title)
• ID3 tag display (Song title)
• -50 to +16% pitch control with selectable steps (0.1 to 1%) for audio CD
• +/-6 semi-tone key control in semi-tone steps for audio CD
• Key control without affecting playback speed
• Various playback modes: all / single / program (up to 99 tracks) / random
• Various repeat modes: all / signle / program (up to 99 tracks) / random / A-B
• Auto cue (-72 to -24 dB in 6 dB steps)
• Auto ready
• Digital volume on output (-infinity, -54 to +18 dB)
• Fade in/out playback (1 to 30 seconds in 1 second steps)
• EOM (End of message) for indicate the end of track or disc (1 to 99 seconds in 1 second steps)
• Time search by numeric keys on remote controller
• Power on play
• Time display mode: track elapsed / track remain / disc elapsed / disc remain (When playing the MP3 file or WAV file: track elapsed)
• Directory play mode for MP3 discs or WAV discs
• RCA unbalanced analog output
• S/PDIF optical digital output
• S/PDIF coaxial digital output
• Remote control by PS/2 keyboard

Content adapted from: Tascam Product Spec Page
