| Name | MD-H500i |
|---|---|
| Manufacturer | TEAC |
| Released | 1999/01 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | Width 285 x H 103 x D 340 mm |
| Weight | 3.7kg |
| ATRAC ver | 4 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100, 100-110, 120, 100-230, 230 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥75 000 | |
| - | |

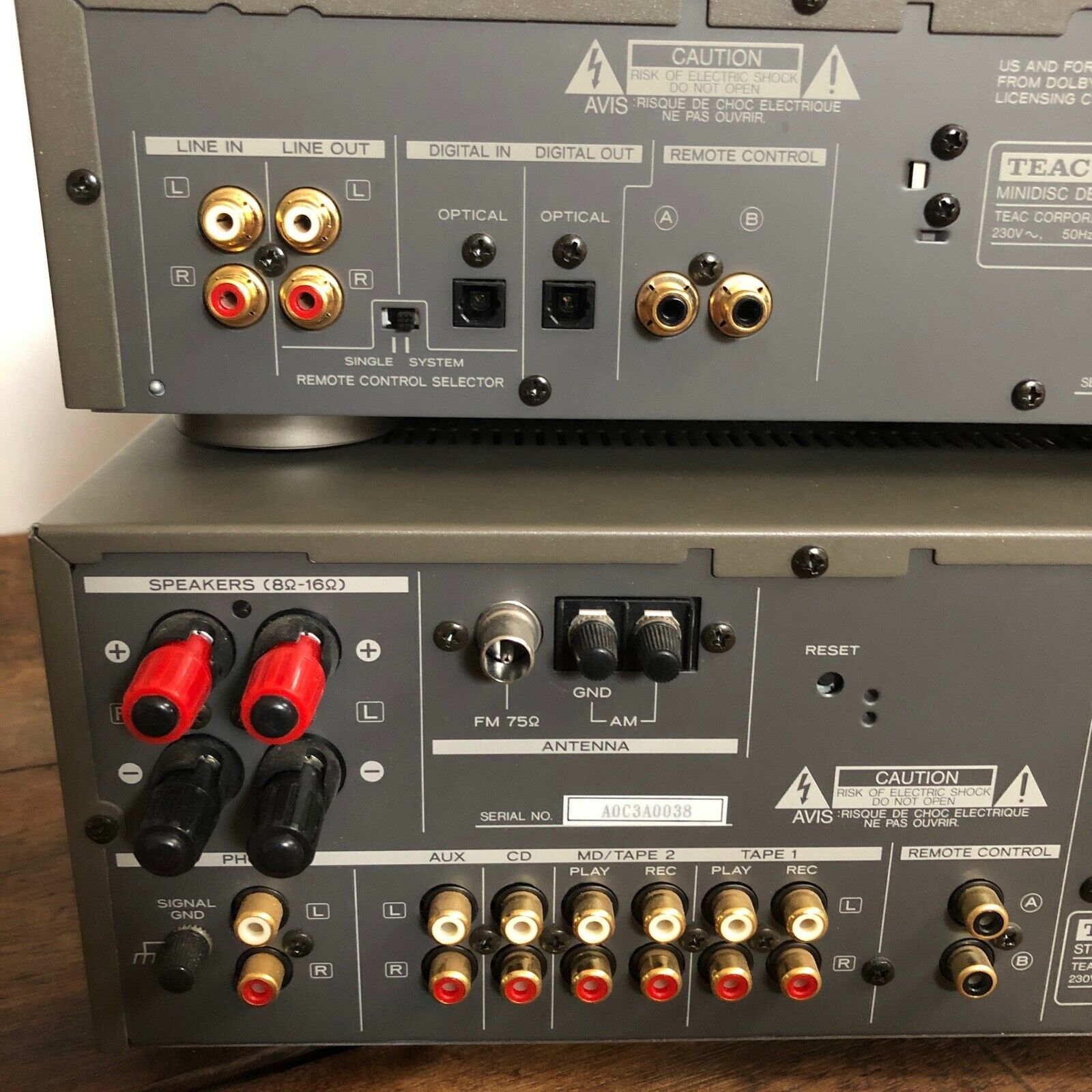

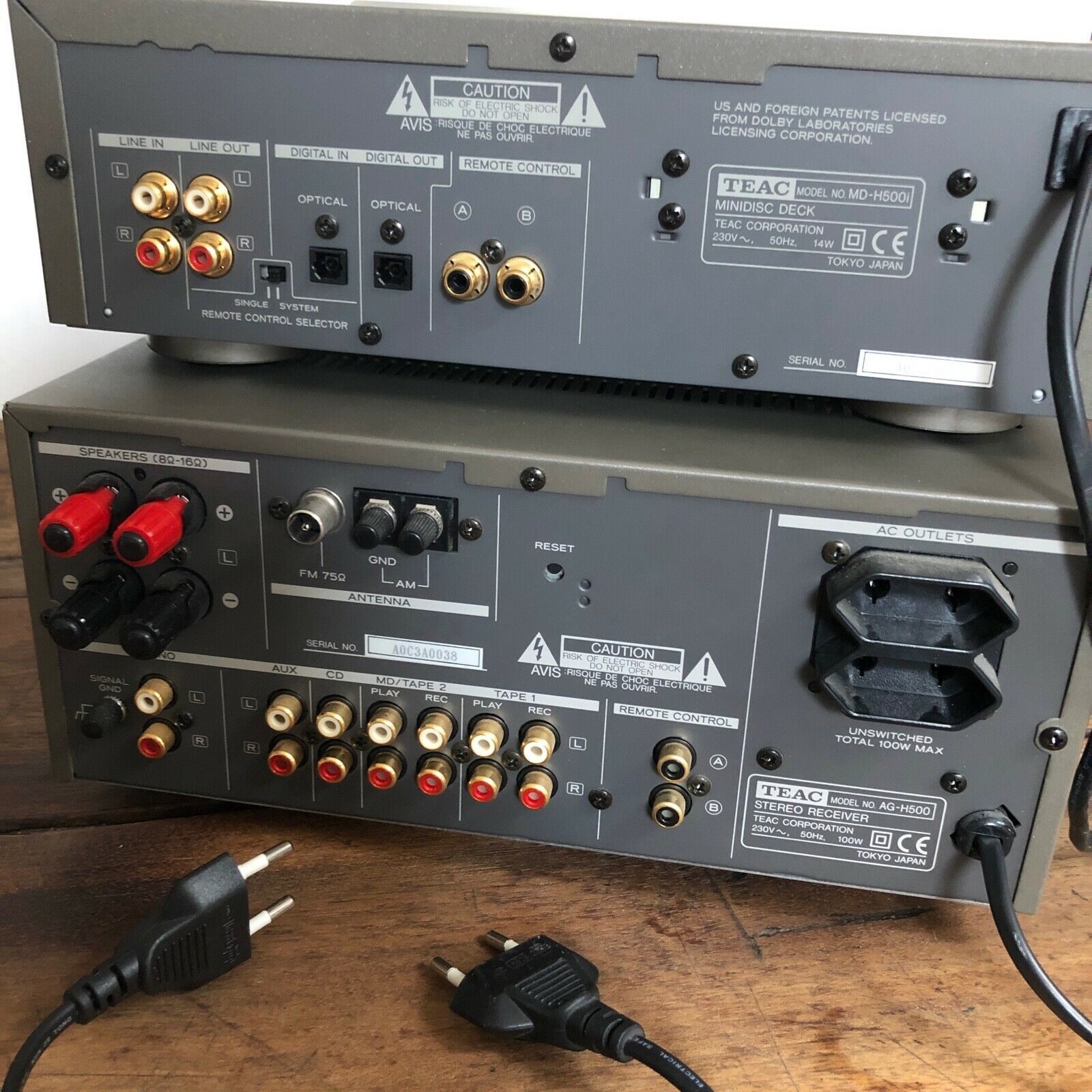

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

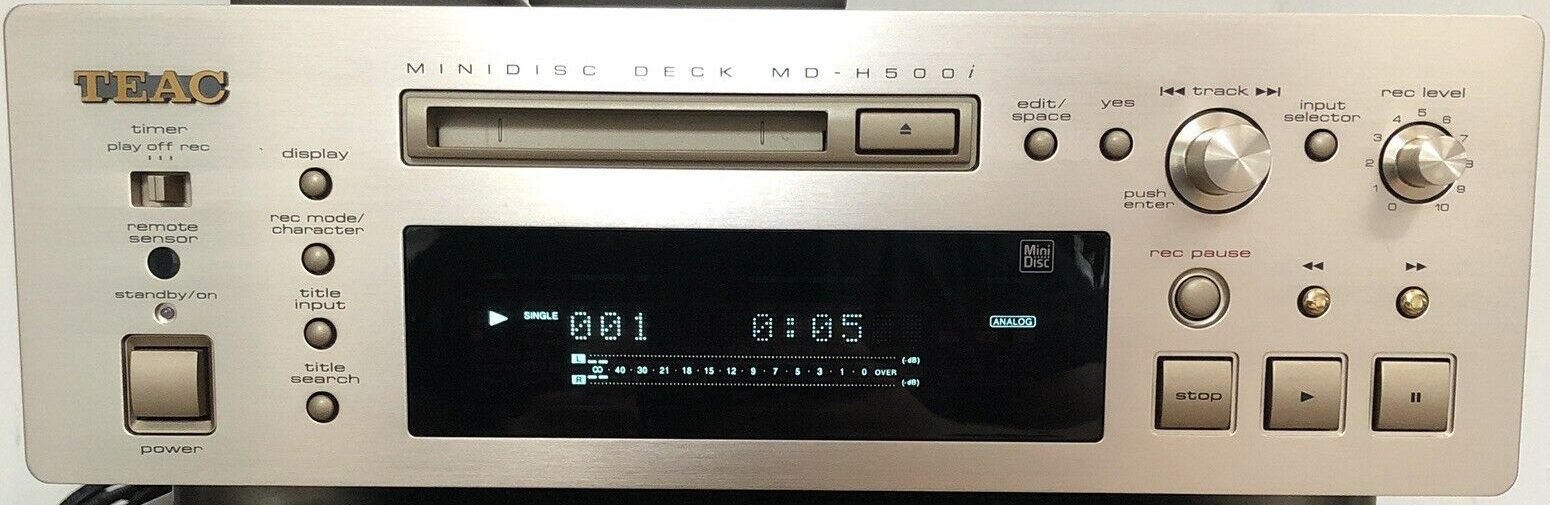

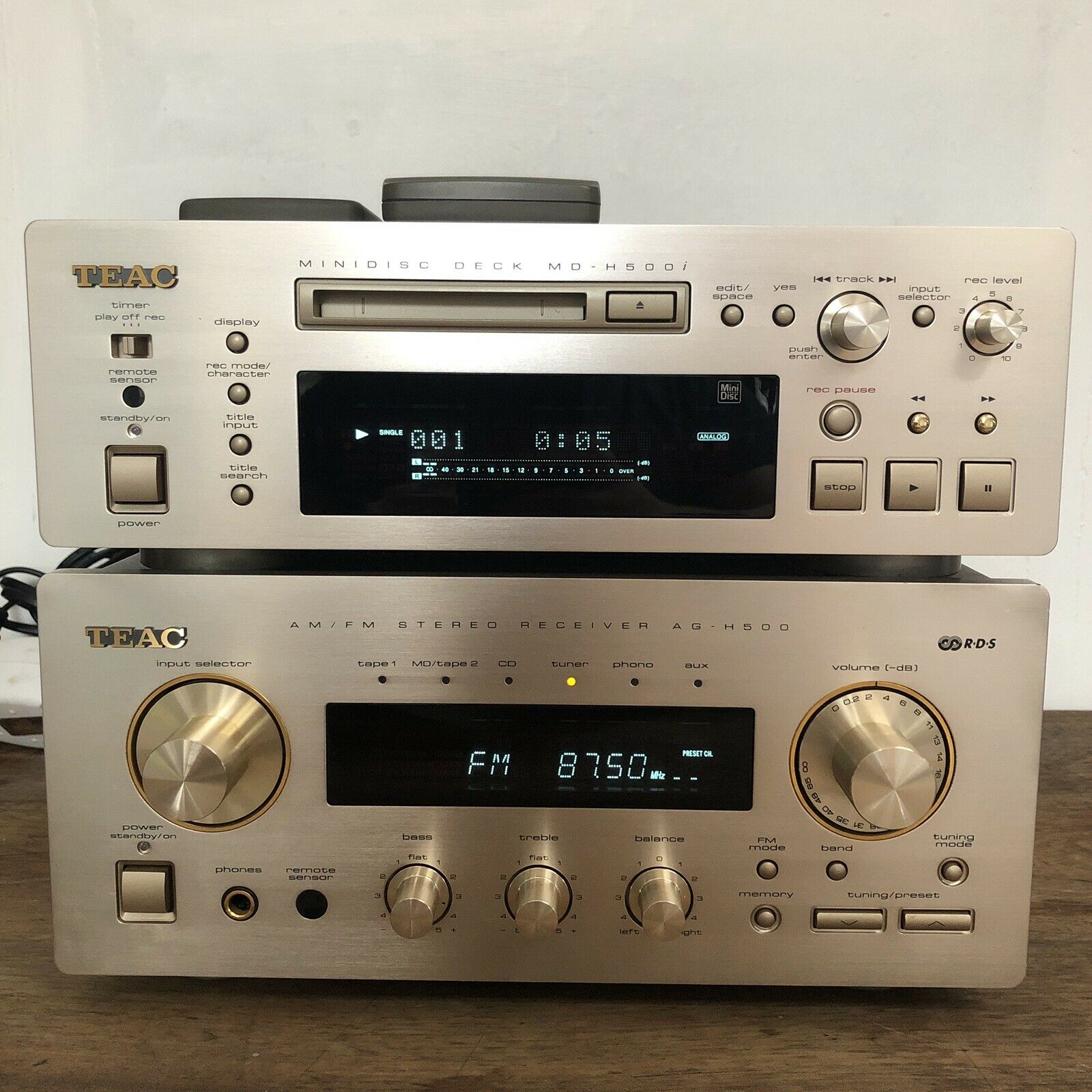

Updated version of the MD-H500 and part of the Reference 500 series by TEAC. Main visual changes were a new display panel and slightly different button layout on left side of the deck. It was significantly lighter and lost the built in clock. Some changes to the specifications, mostly in relation to frequency response and signal-to-noise ratio also suggest revised internals although it is not MDLP capable. It also had a different remote control too.

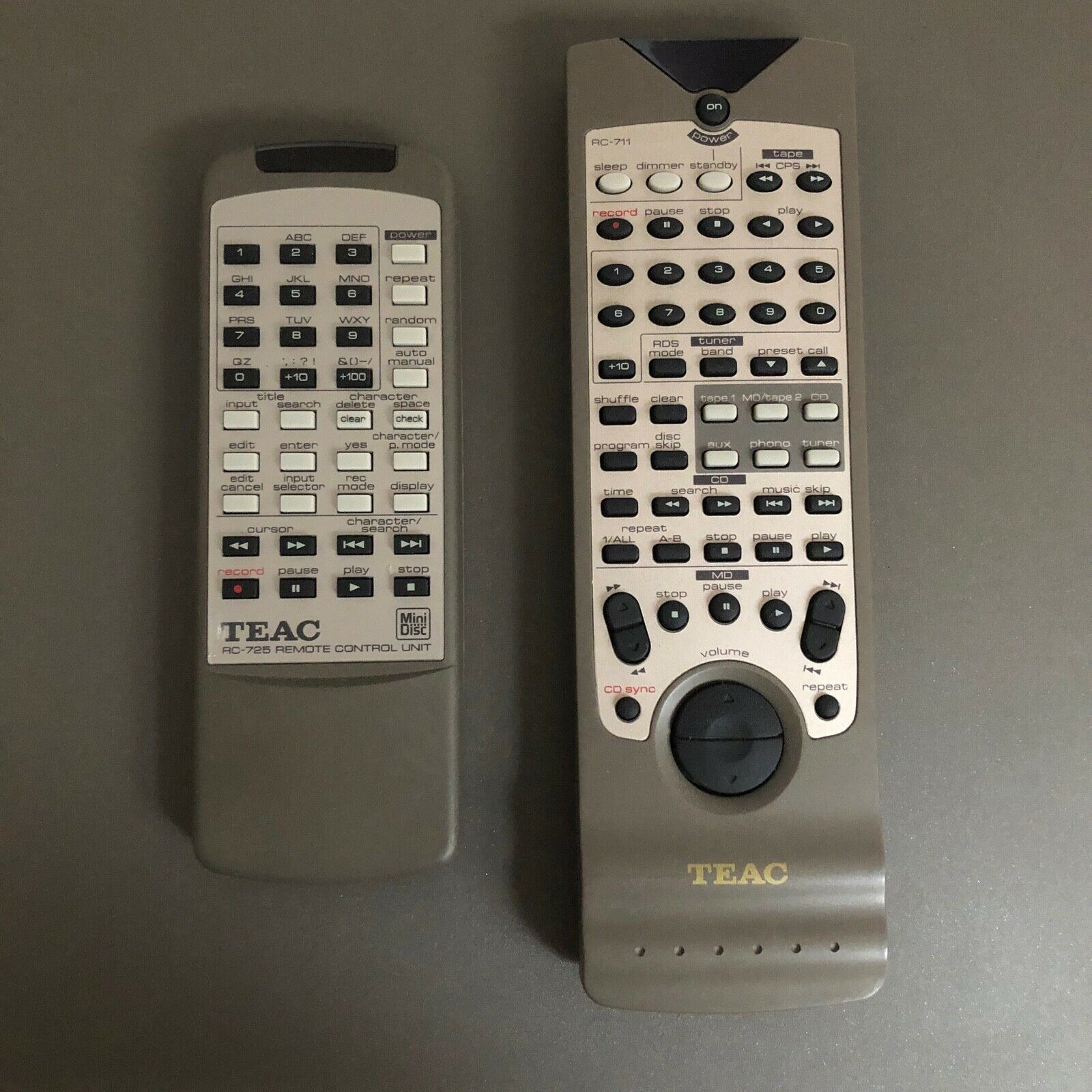

Like its predecessor it could be controlled using a dedicated remote control (RC-725) but when linked to an amp from the same range it can be controlled as part of an overall integrated system using the RC-711. The RC-711 has limited MD controls so the RC-725 is required to access the full range of features.
- Frequency Response: 20Hz-20kHz +/-1dB
- Sampling Frequency: 44.1kHz
- Signal-to-noise ratio (playback mode): More than 92 dB
- Dynamic Range (playback mode): More than 90 dB
- Analogue input sensitivity / input impedance: 500 mV / 22 kOhms or more
- Analogue output level / output impedance: 2.0 V / Less than 300 Ohms
- Digital input: Optical (wave length 666 nm) -15dBm ~-21dBm
- Power Consumption: 14w
- Remote control: RC-725
Content adapted from: audio-heritage.jp
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Export | No |
| Remote Page | |
| Pickup | KMS-260A |
| Atrac Ic | CXD2650R / CXD2652/R/AR |
| Manual | User manual, Service manual |
| Region | Japan, US/Canada, Europe |
