TASCAM MD-301 / MD-301MkII
| Name | MD-301 |
|---|---|
| Manufacturer | TASCAM |
| Released | 1997/01 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 482x88x290mm |
| Weight | 4.8kg |
| ATRAC ver | 4 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100, 100-110 |
| Power cable | AC |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

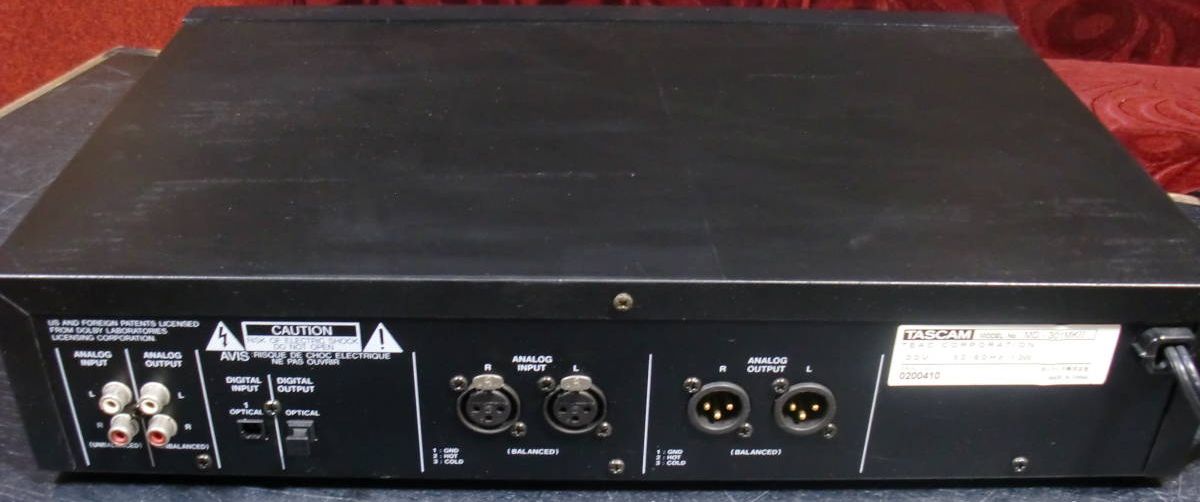

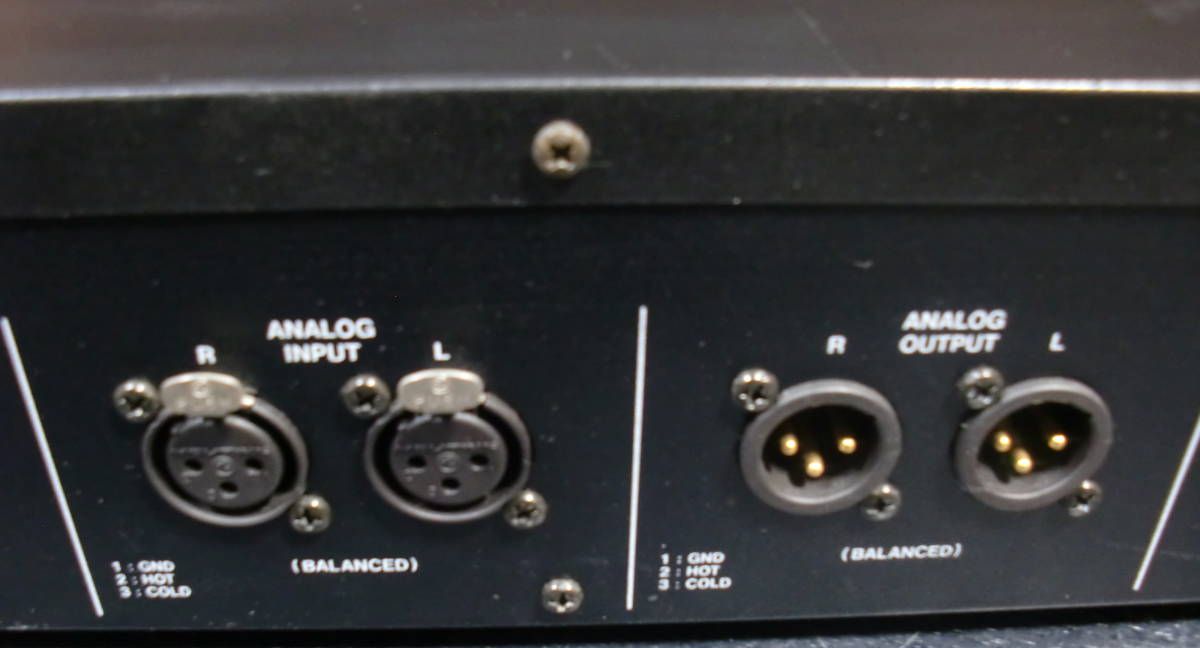

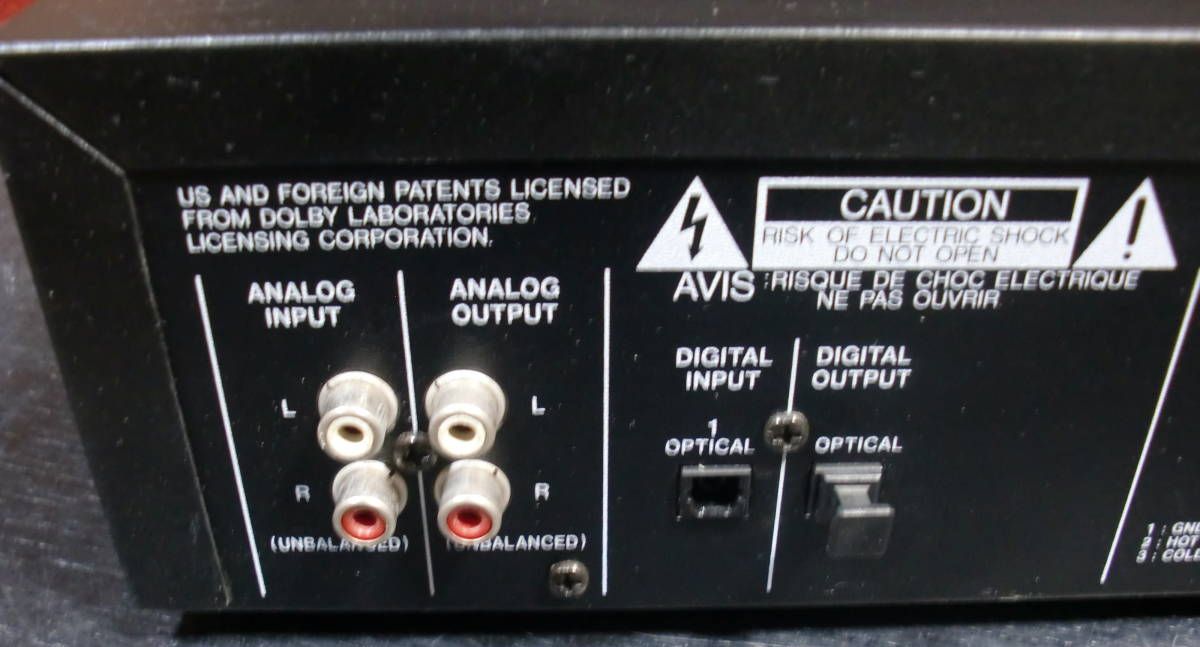

| Inputs | RCA in, XLR in, Digital optical (TOSLINK) |
| Outputs | 1/4 inch headphone, RCA out, XLR out, Digital optical (TOSLINK) |
| Control | PS/2 keyboard |

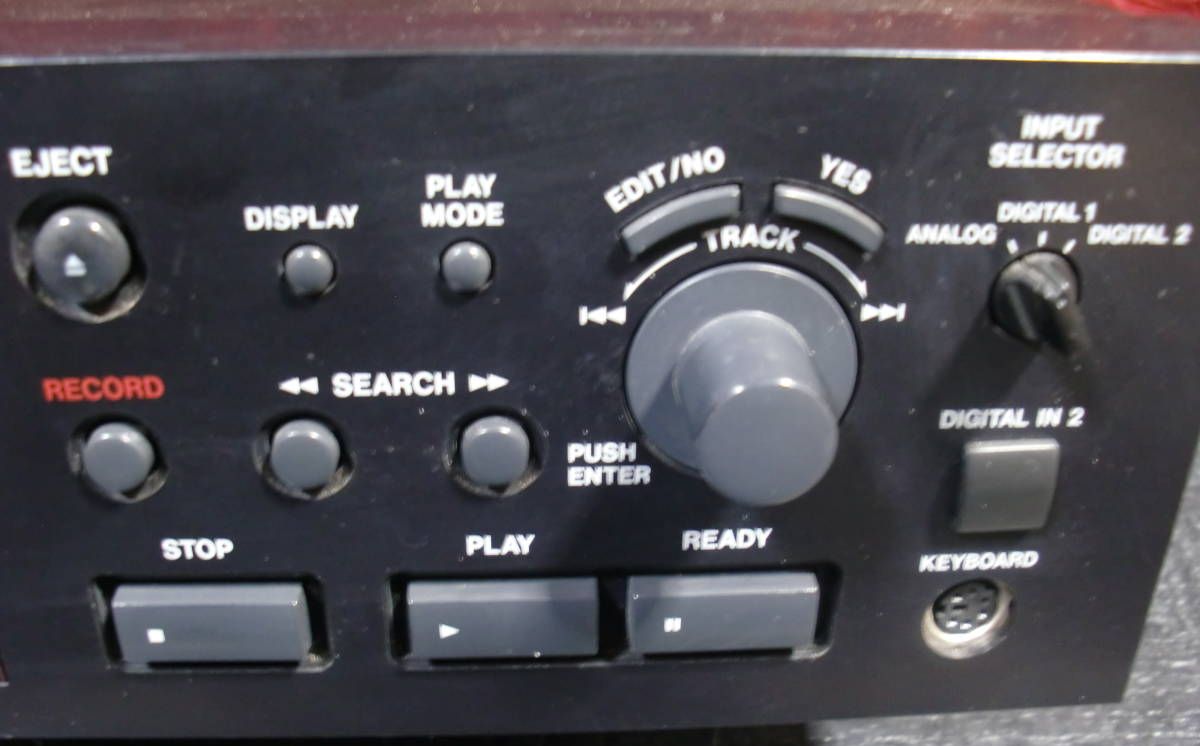

Features: Programmable Fade in/out. Repeat, program and shuffle play modes. Sampling rate converter. Timer record/play. RC-3 wireless remote. PS/2 Keyboard jack. Front panel optical input jack
Update:

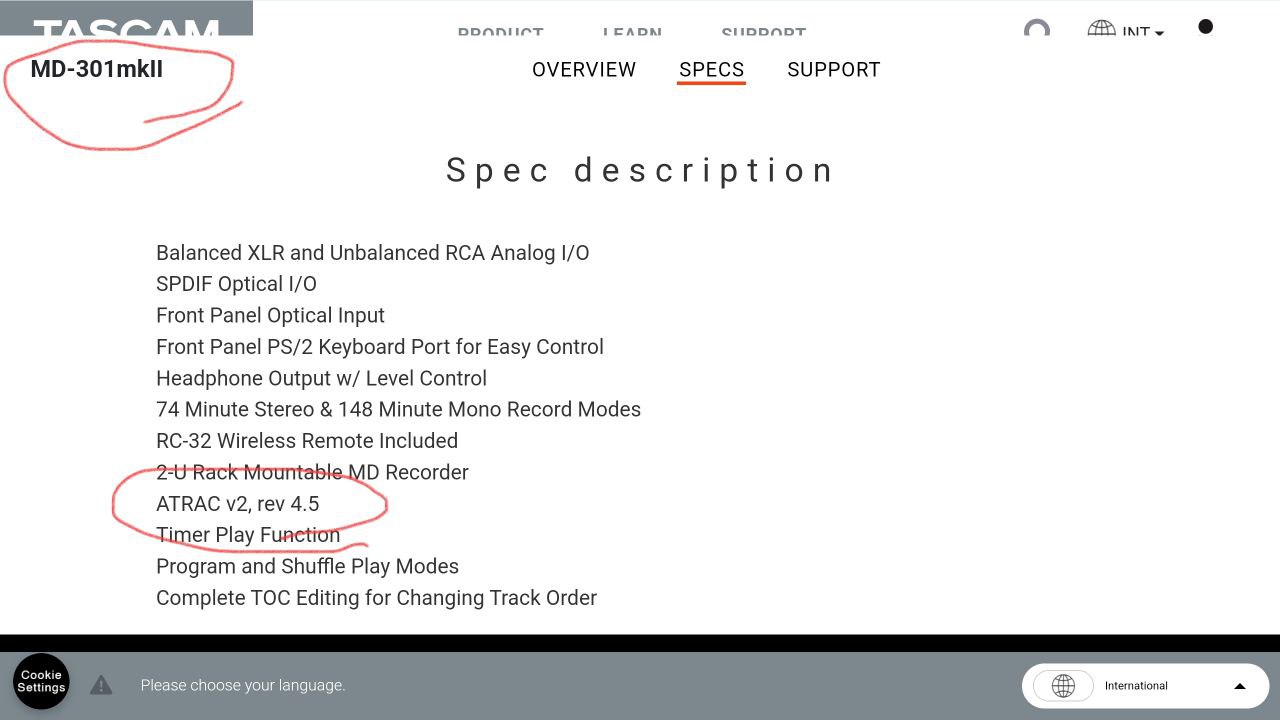

Tascam declared the MD-301mkII has ATRAC 4.5

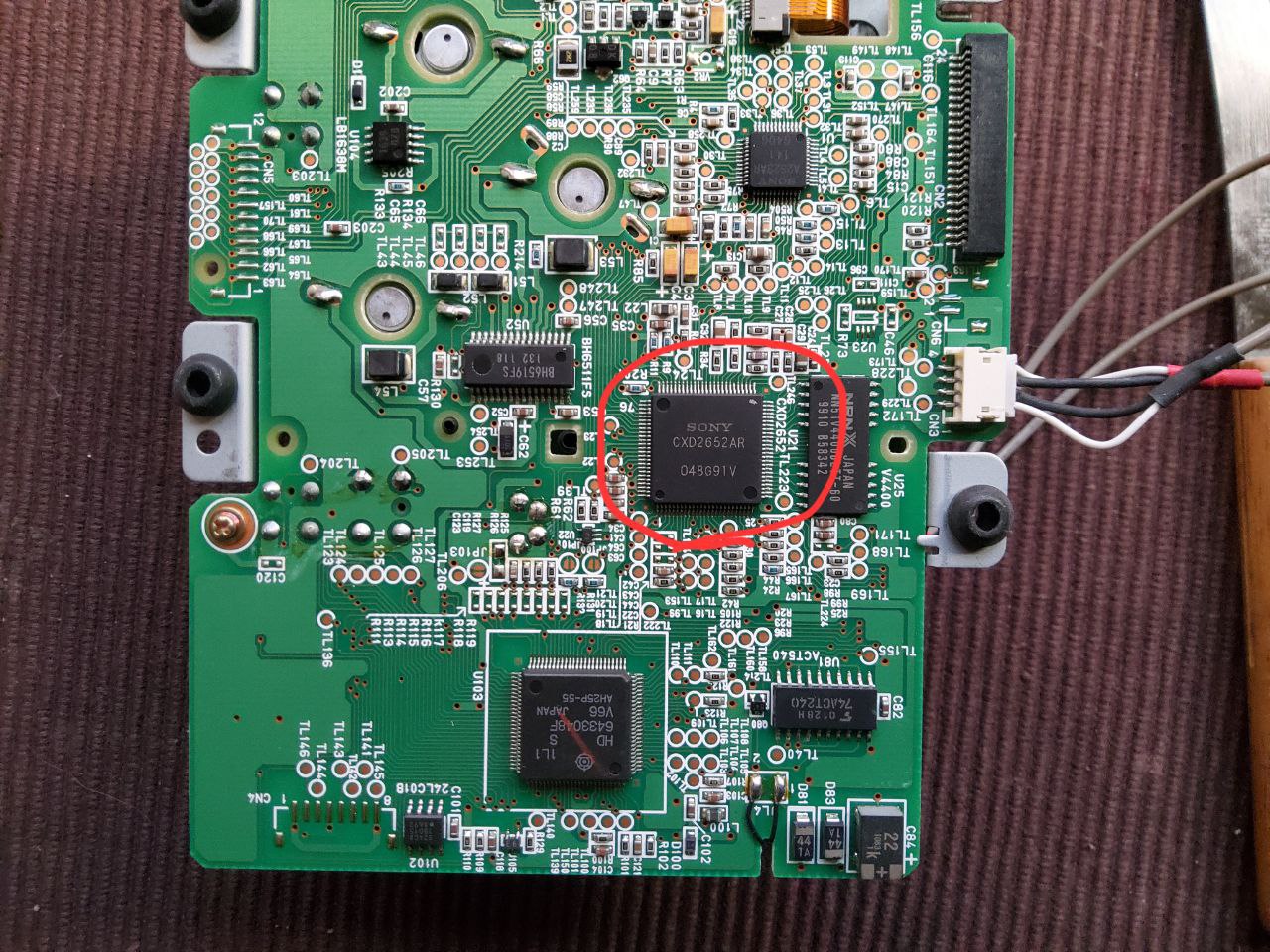

That's not true, most of sold MD-301mkII still use old ATRAC 4.0 drive with CXD2652AR.

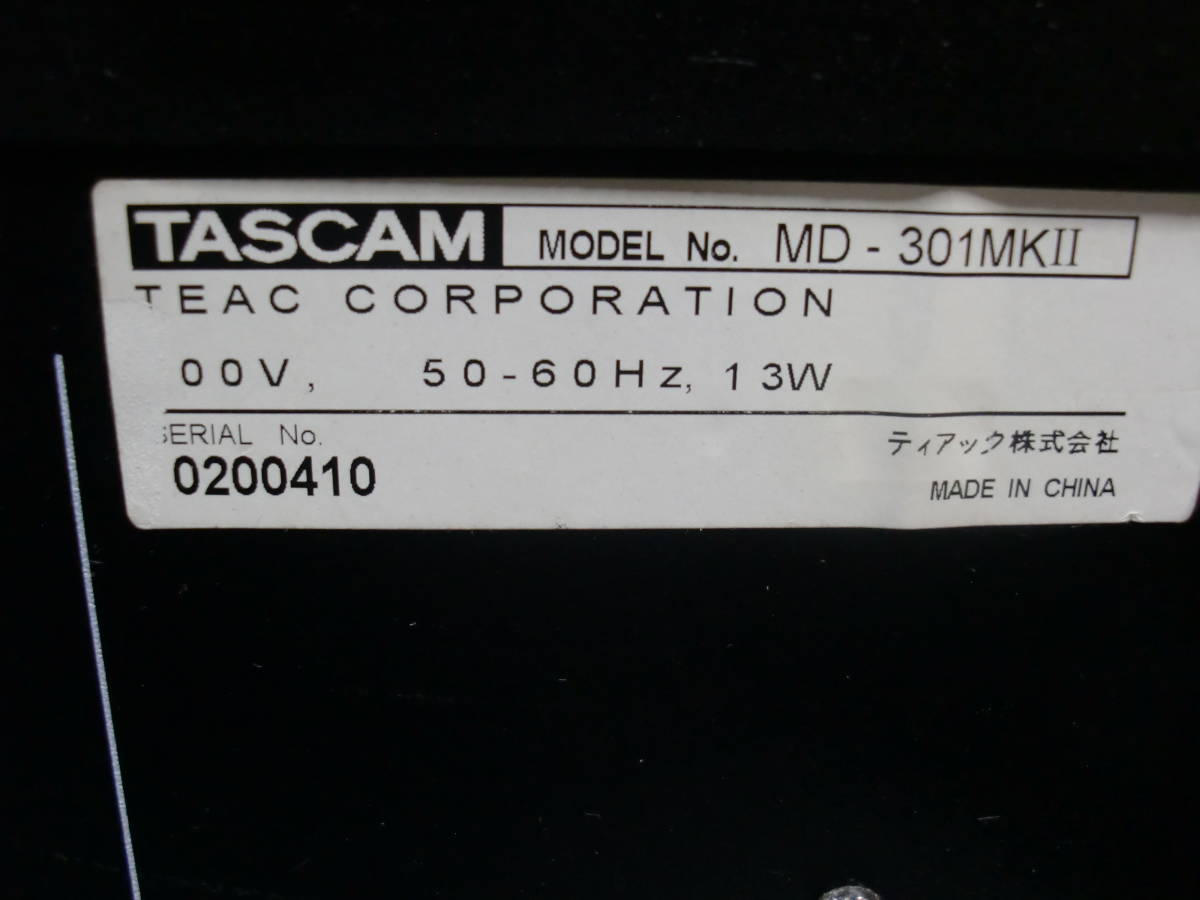

Only initially Teac Japan manufactured limited series of the device have Sony Atrac 4.5. Most MD-301MkII, Chinese manufactured, do have the old Sony Atrac 4.0.
KMS-260A
Specs: Freq. Resp. 20-20kHz +/- 1dB. S/N: > 98dB (playback), Dynamic range: > 90dB (1kHz, -60dB), Channel Separation: > 90dB (1kHz). THD: < 0.008% Headphone amp: 35mW+35mW into 33 ohms.
Content adapted from: Minidisc.org Page, Tascam product page (Archived), Tascam brochure (archived)
