Name	MD-CD1BMK3
Manufacturer	TASCAM
Released	2011/04
Device type	pro
Recorder	Recorder
MDLP	Yes
NetMD	No
Hi-MD	No
Radio	No
Dimensions	483 x 94 x 308
Weight	5500
ATRAC ver	Sharp 8
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	Not recorded
Voltage	100
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	¥125 000
-

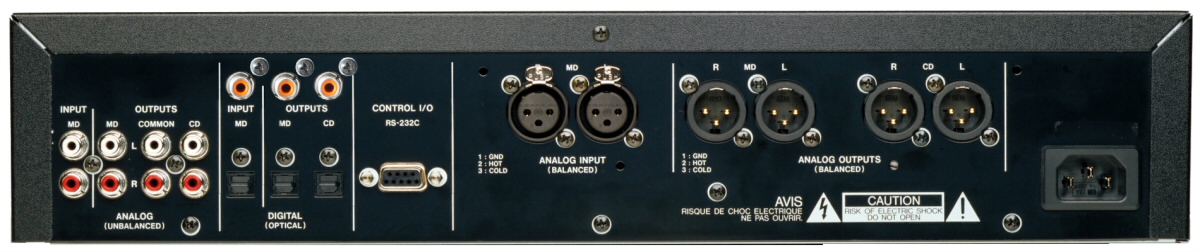

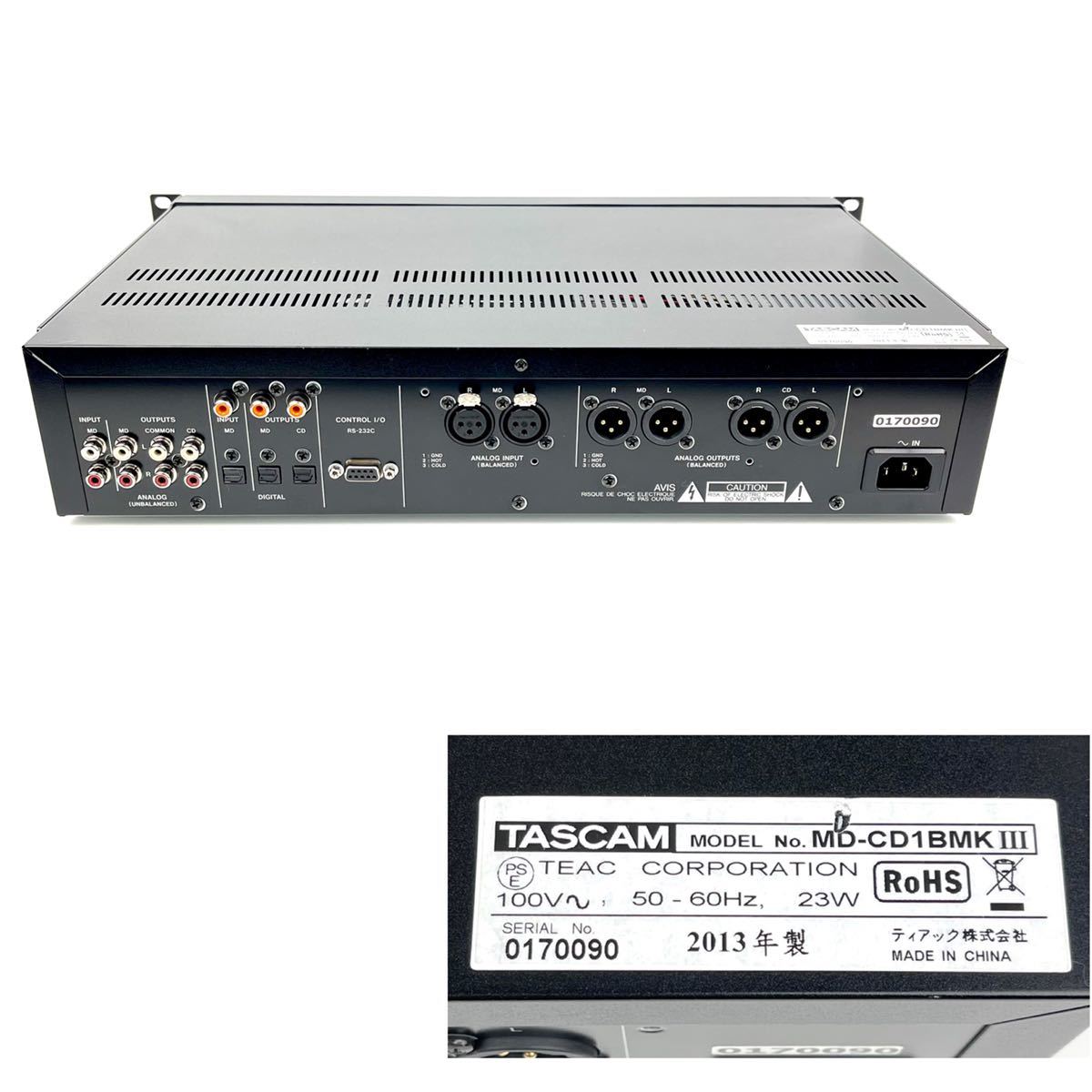

Inputs	RCA in, XLR in, Digital optical (TOSLINK), Digital coaxial, CD
Outputs	RCA out, XLR out, Digital optical (TOSLINK), Digital coaxial

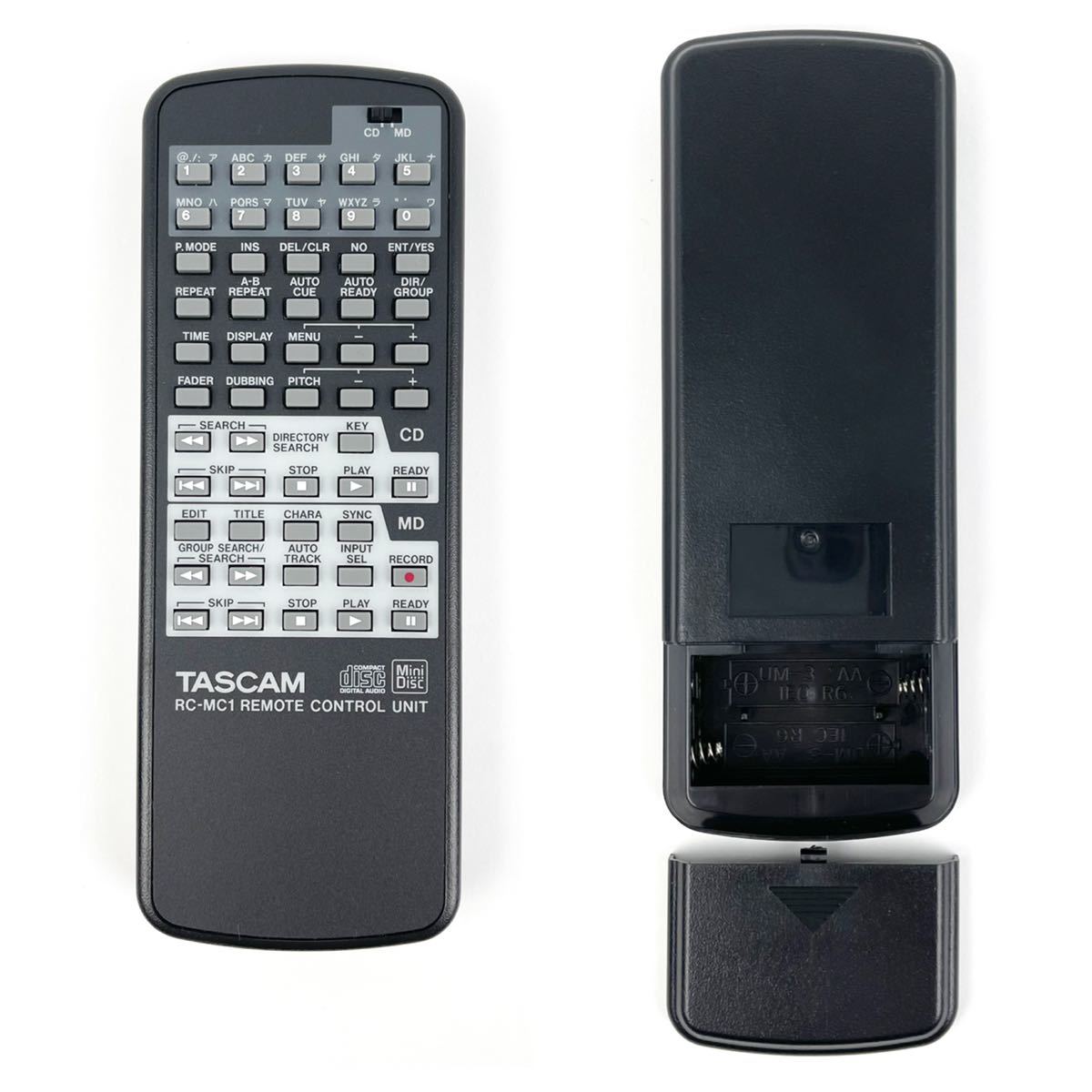

Control	PS/2 keyboard, RS-232 serial

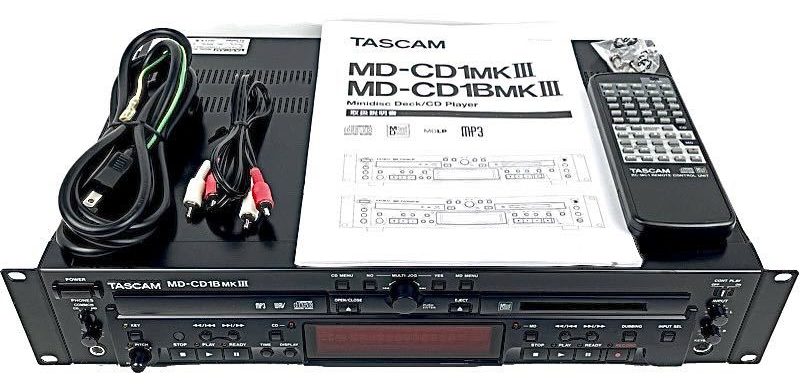

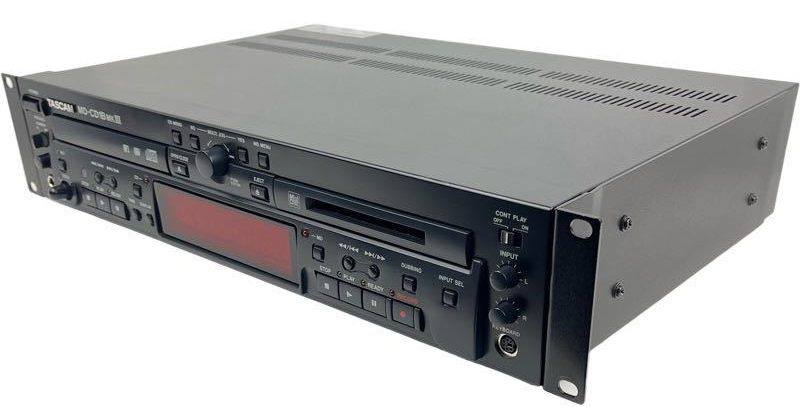

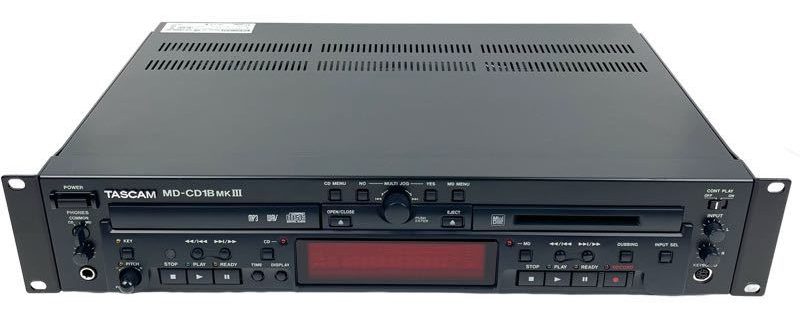

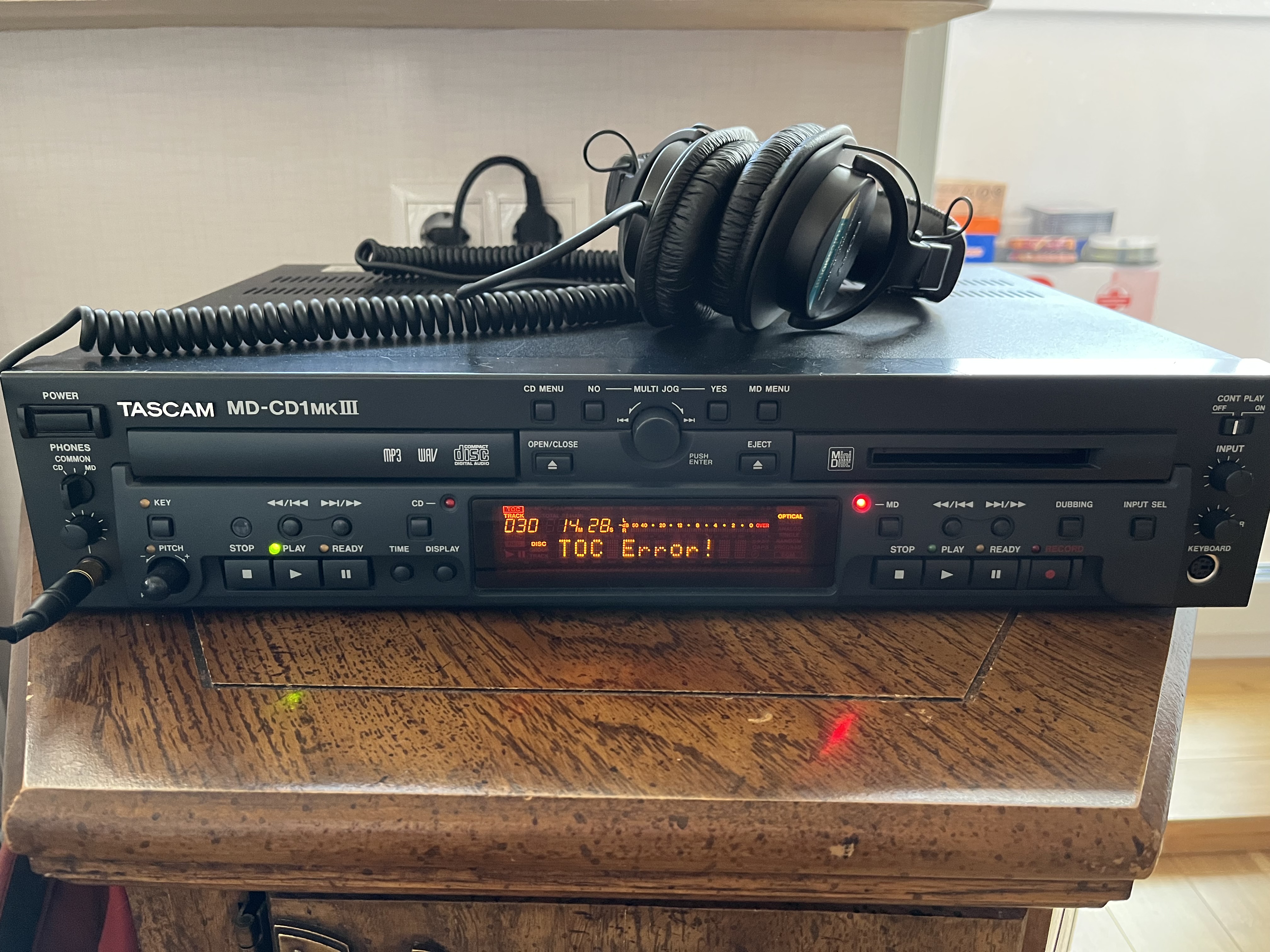

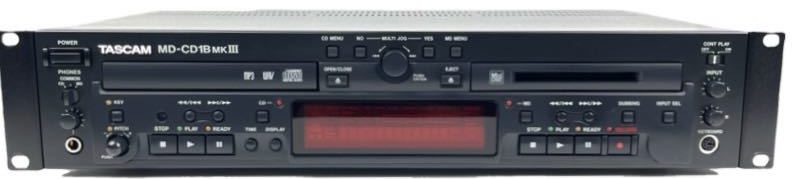

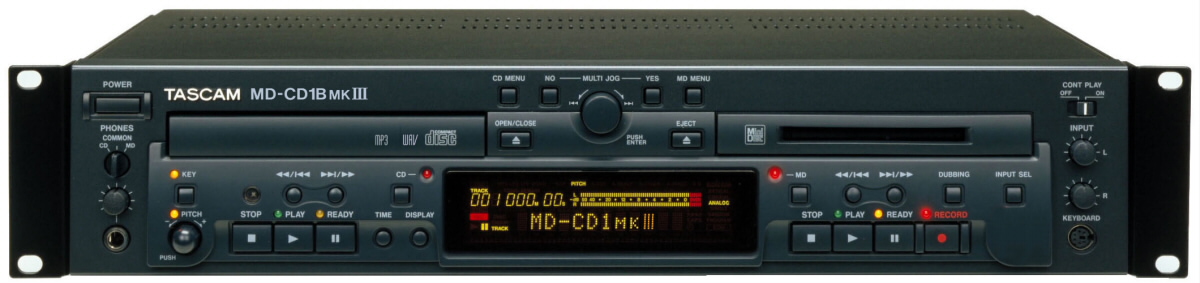

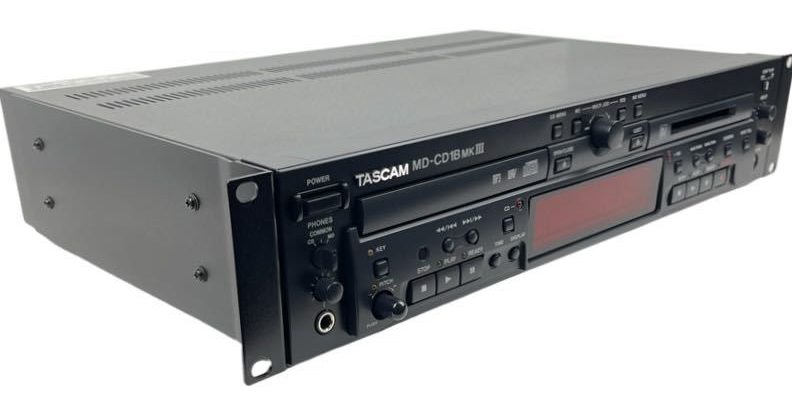

Tascam MD-CD1BMK3 / MD-CD1MK3. Alternately spelled MD-CD1BMKIII / MD-CD1MKIII.

The "MD-CD1BMKIII" is the successor to the standard MD-CD1BMKII commercial MD / CD multifunction device equipped with various functions required in the field while achieving a space saving of 2U.

In addition to being able to operate the CD player and MD recorder independently and use them at the same time, it is possible to make full use of the advantages of being a combo unit, such as continuous playback and up to 4x speed dubbing from CD to MD.

The CD player section can play not only audio CDs but also WAV files and MP3 files. It also supports CD-R / CD-RW discs. The pitch control from -50% to + 16% can be changed with the dedicated knob

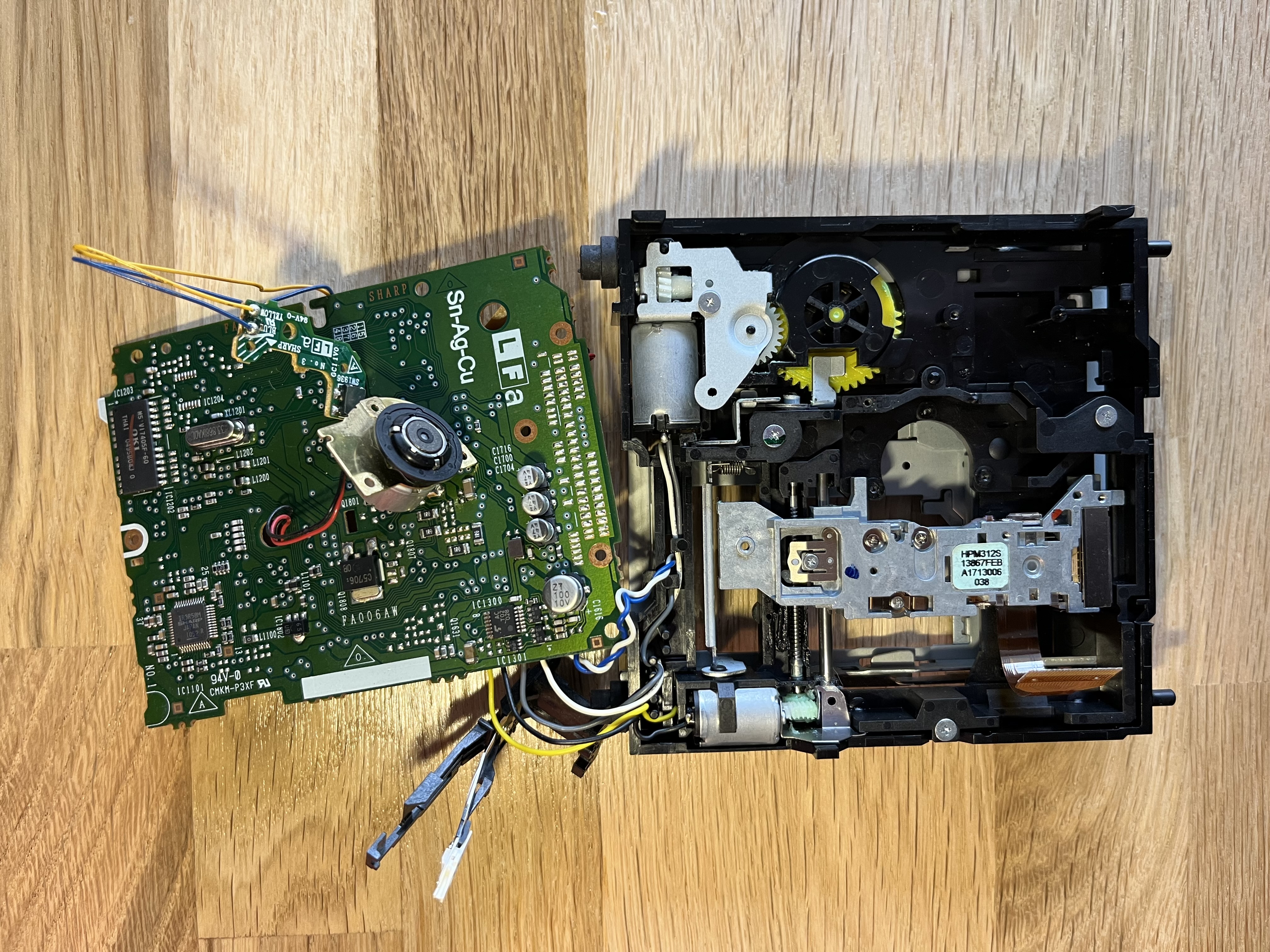

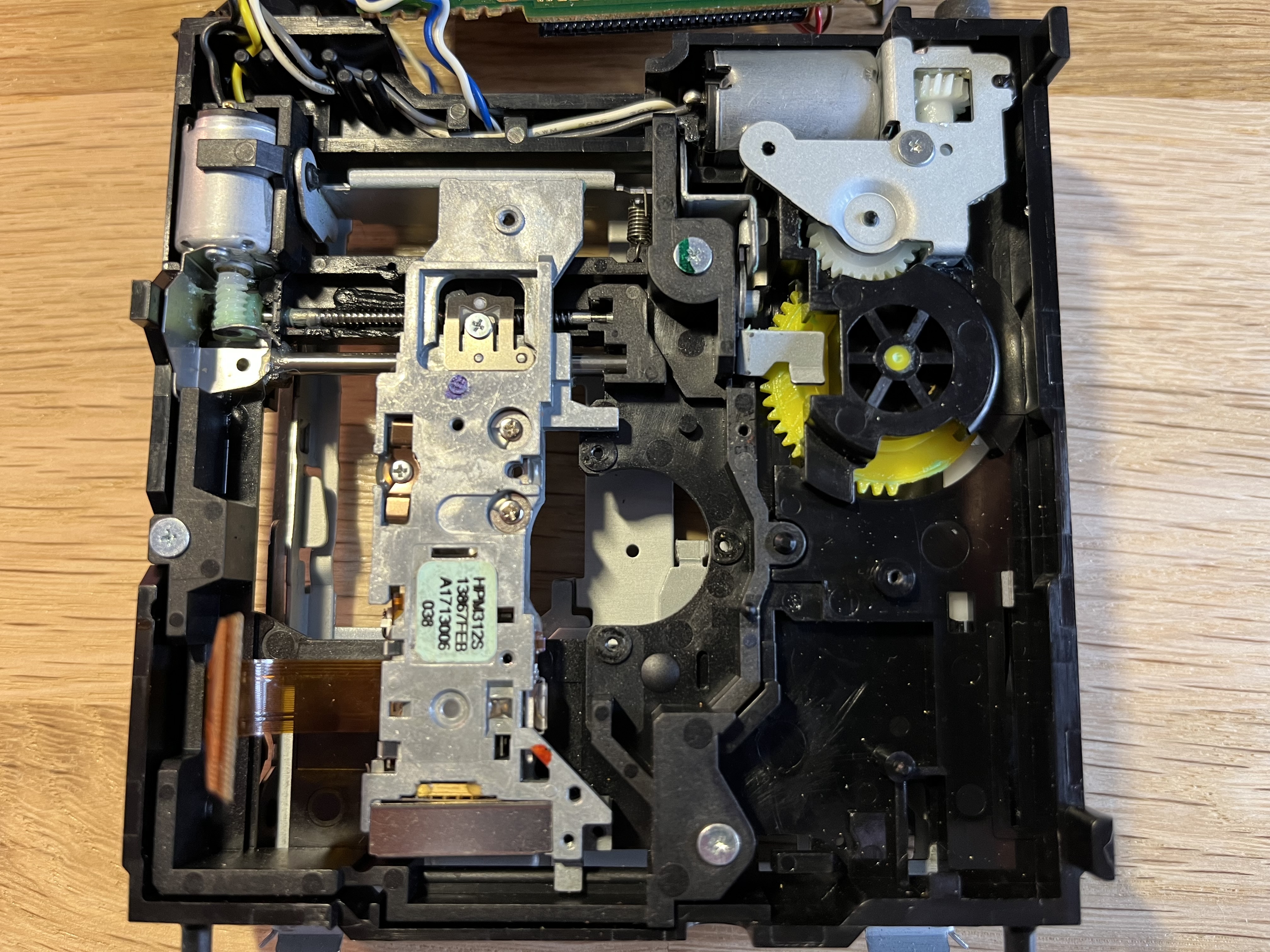

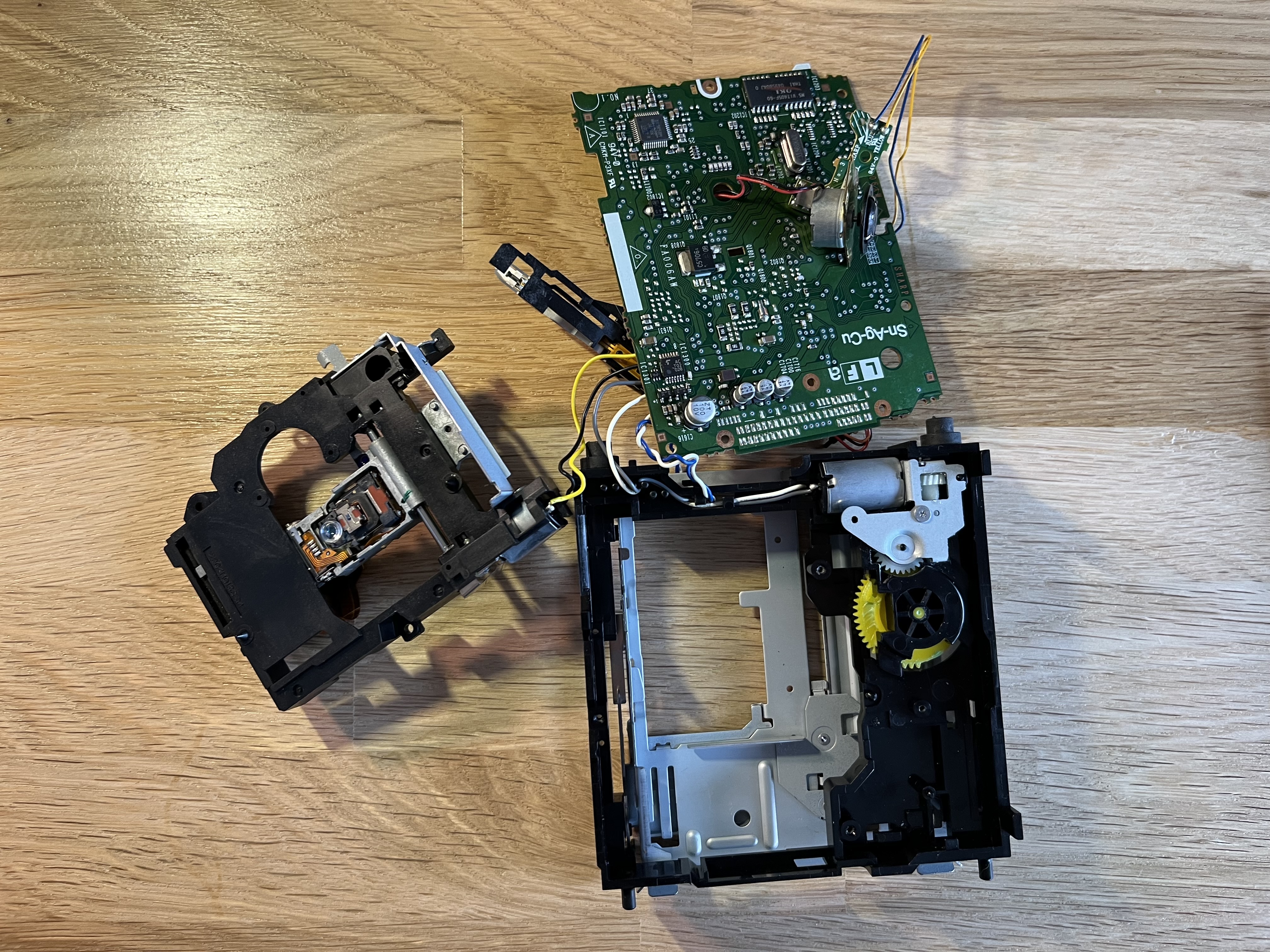

MiniDisc drive: MDM16QP

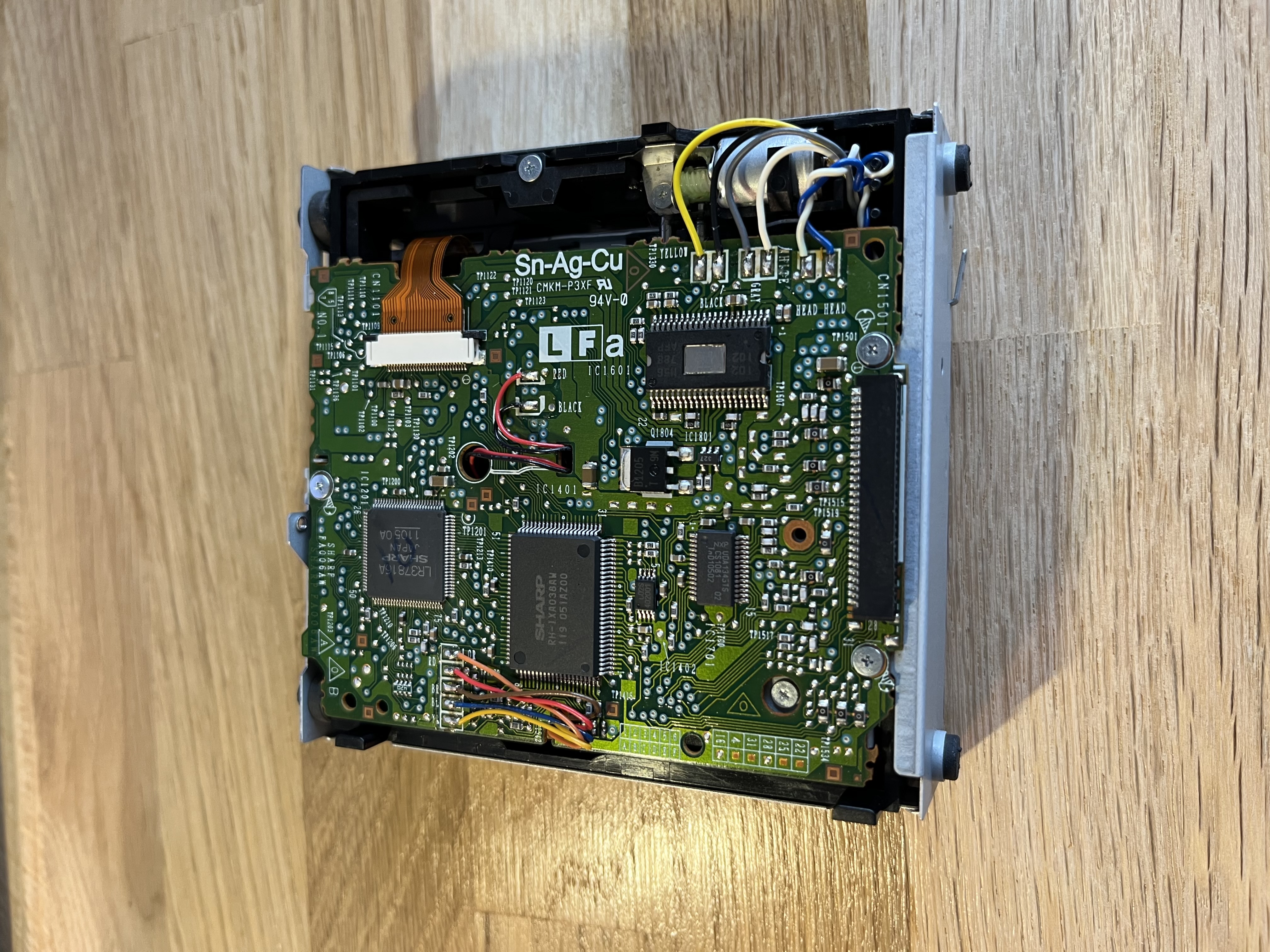

ATRAC chip: SHARP LR37816A

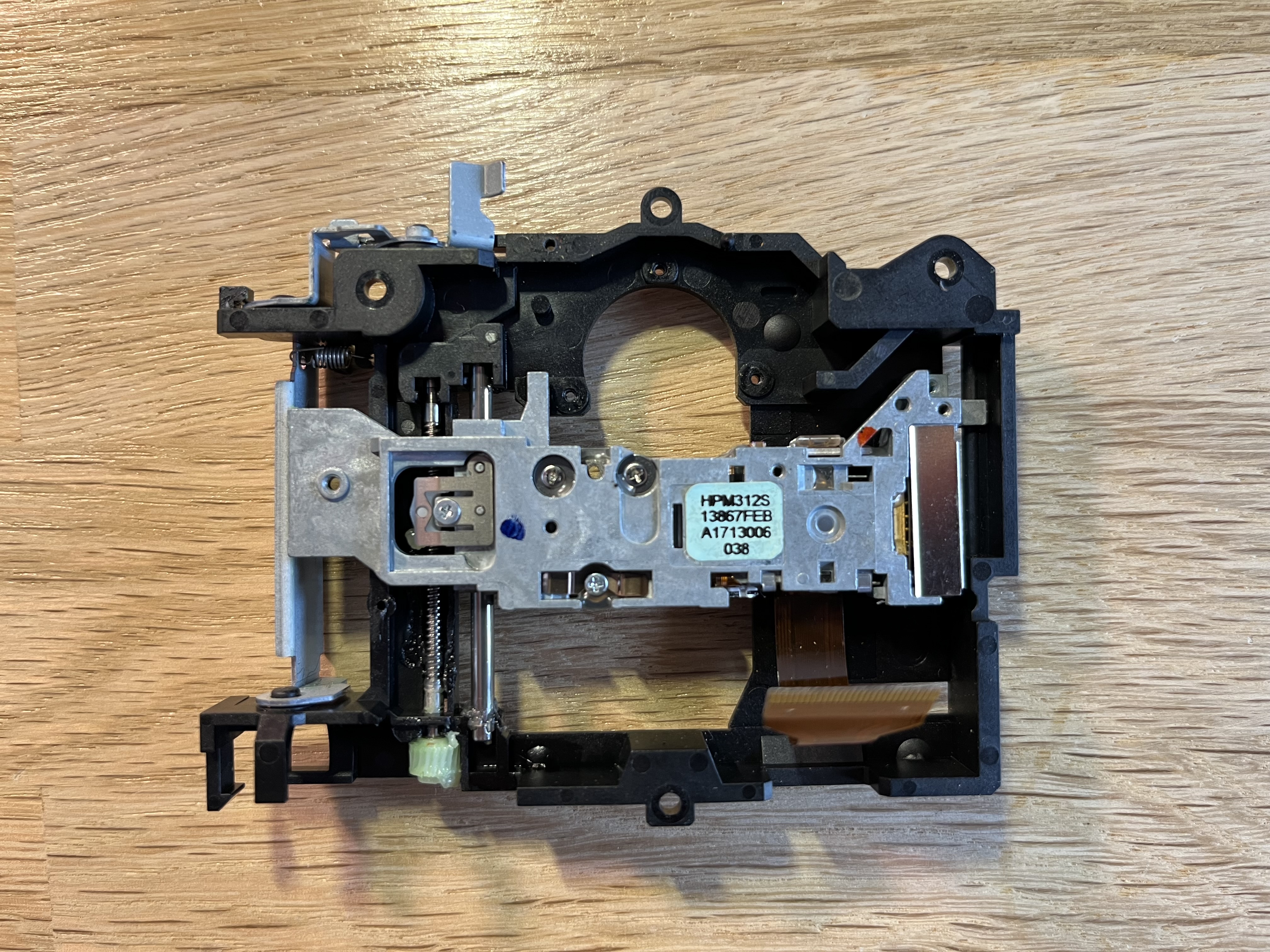

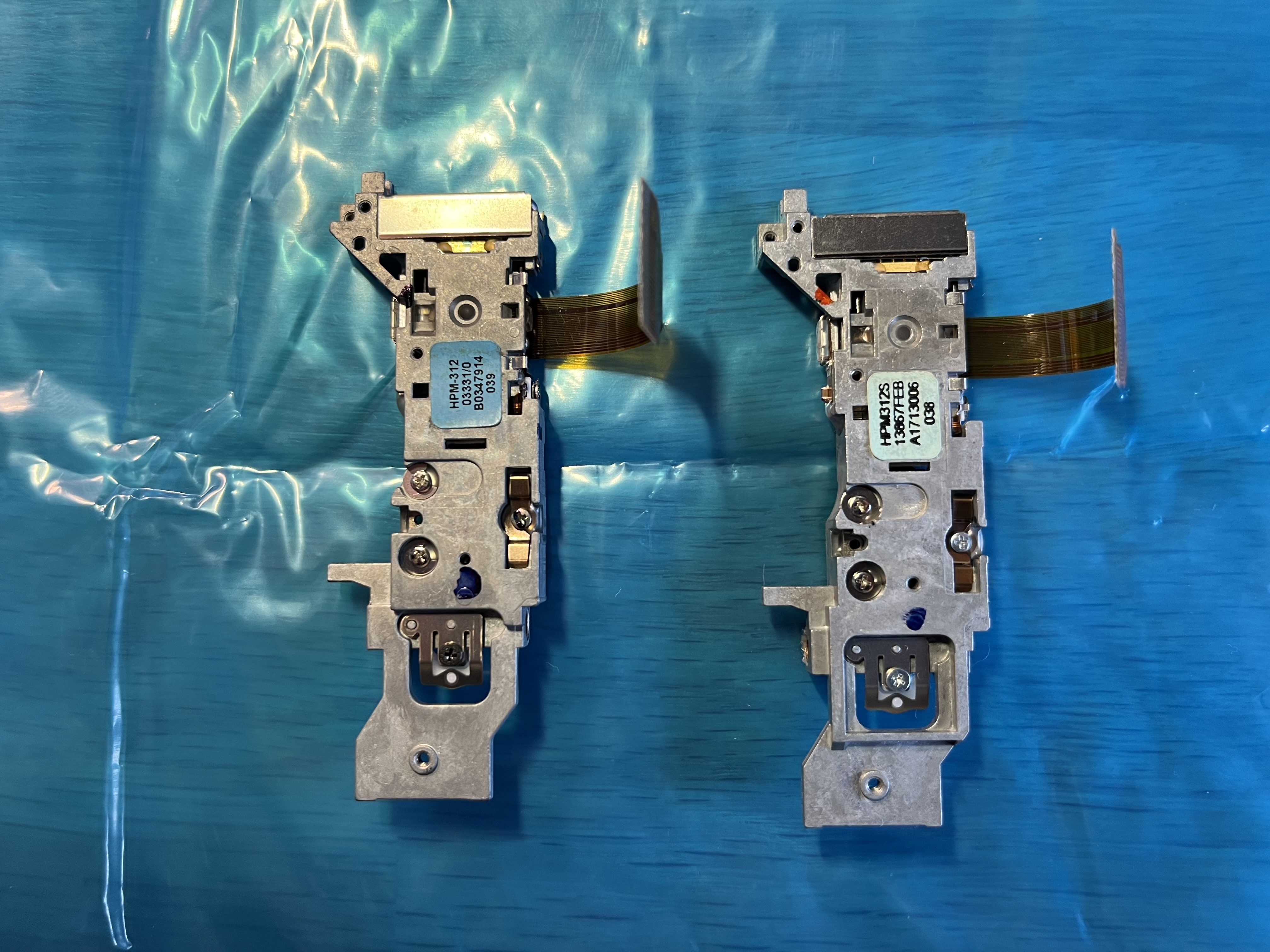

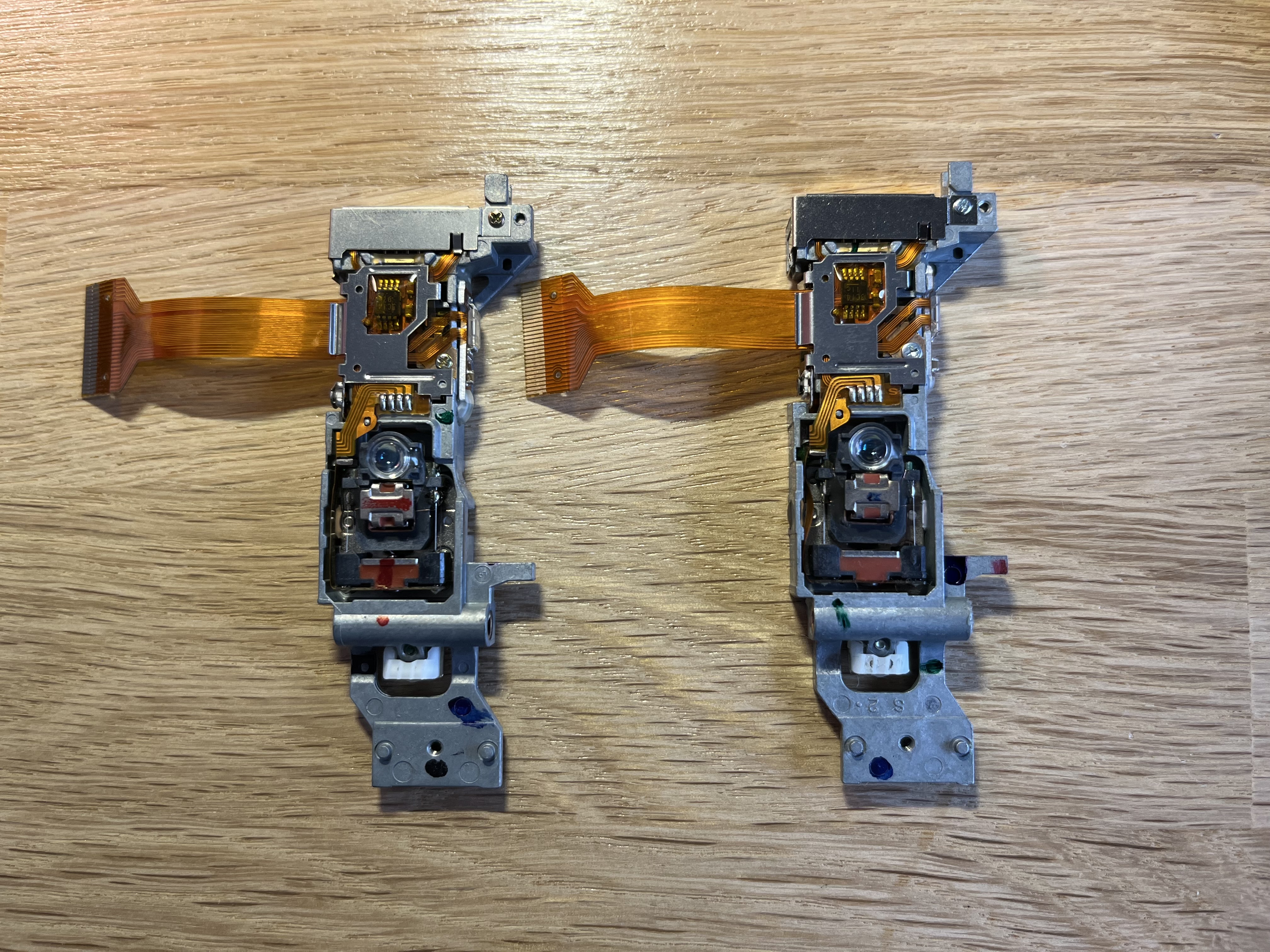

MD Optical block: HPM-312S, HPM-312 can be used

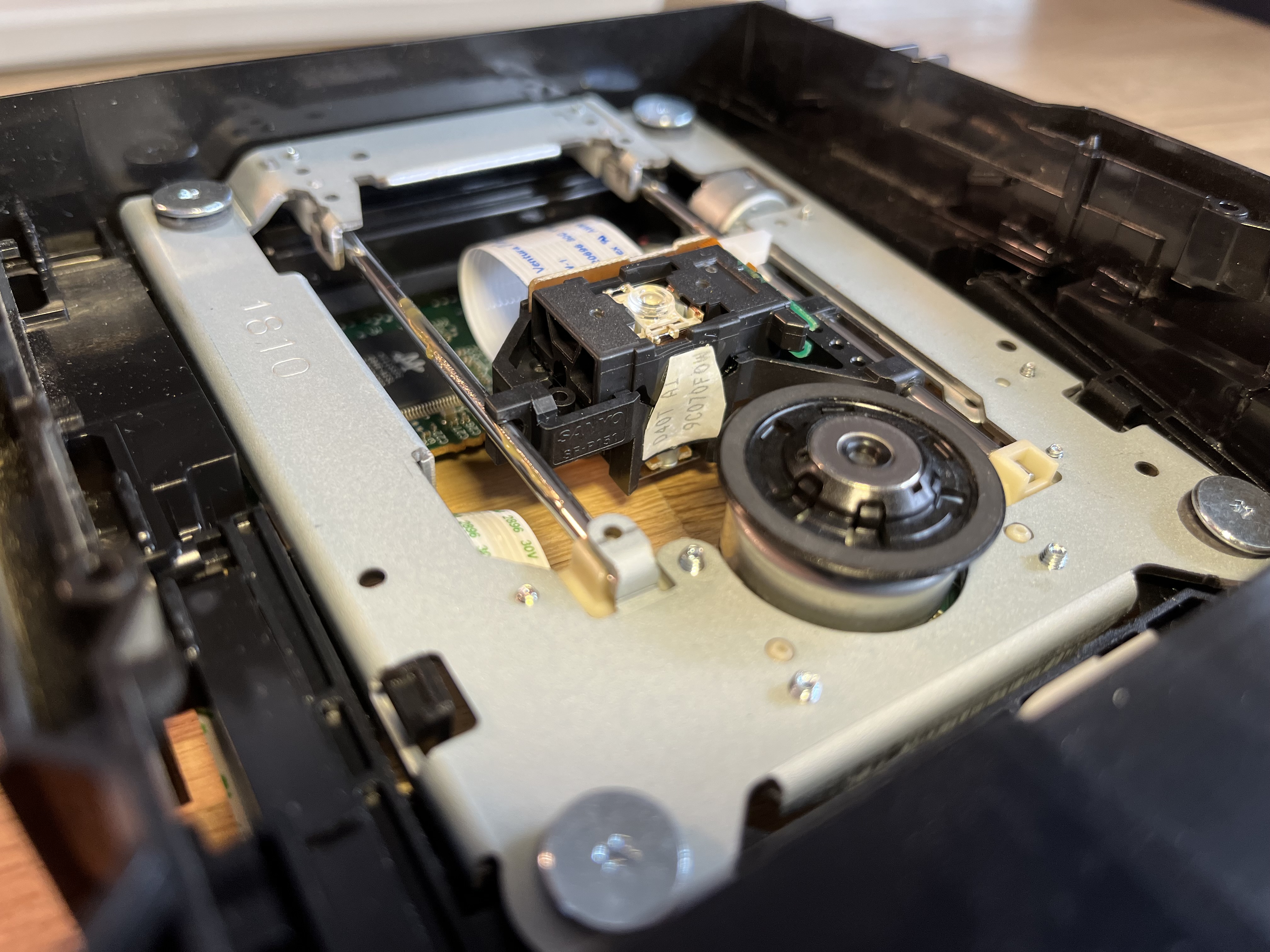

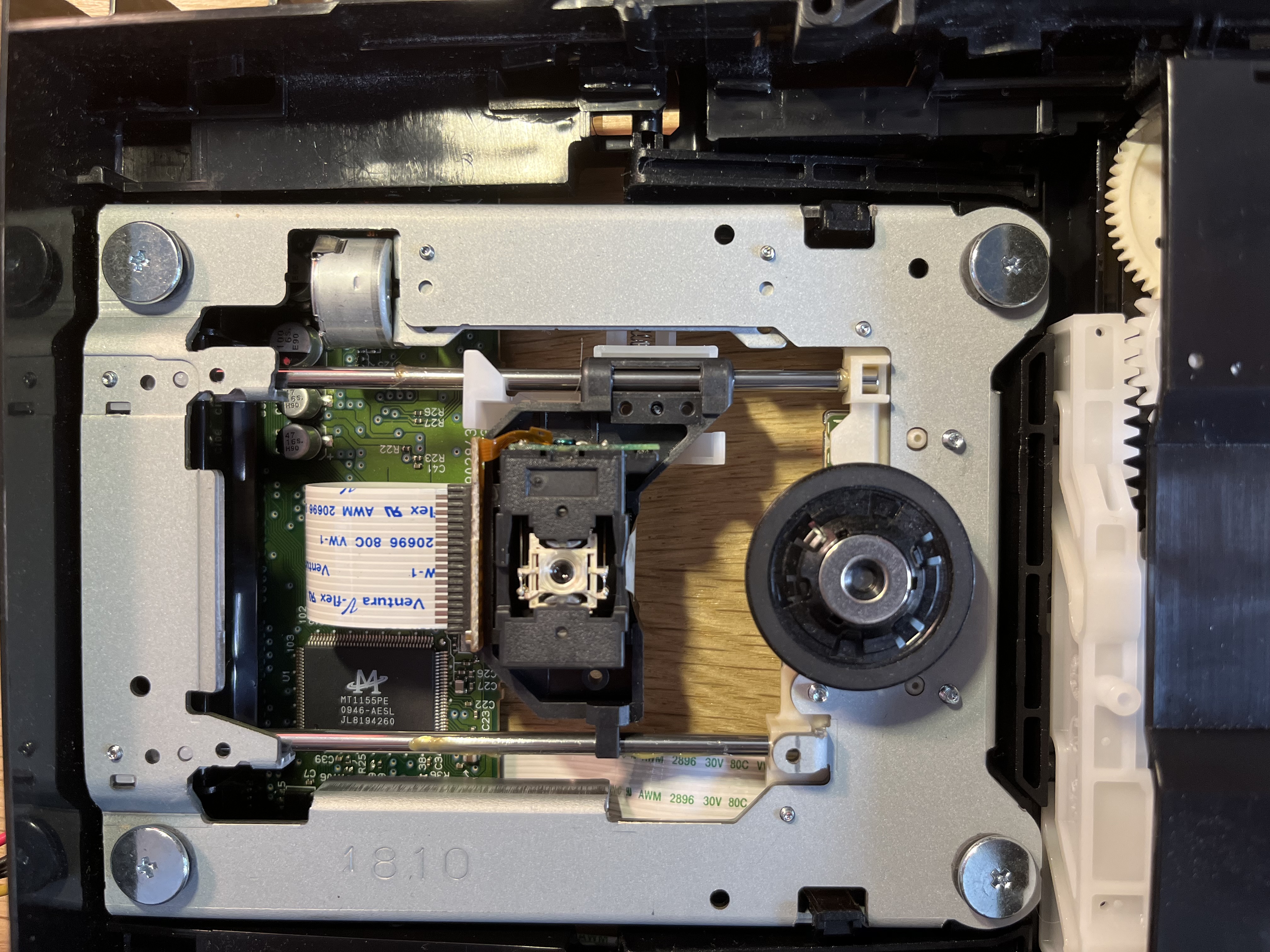

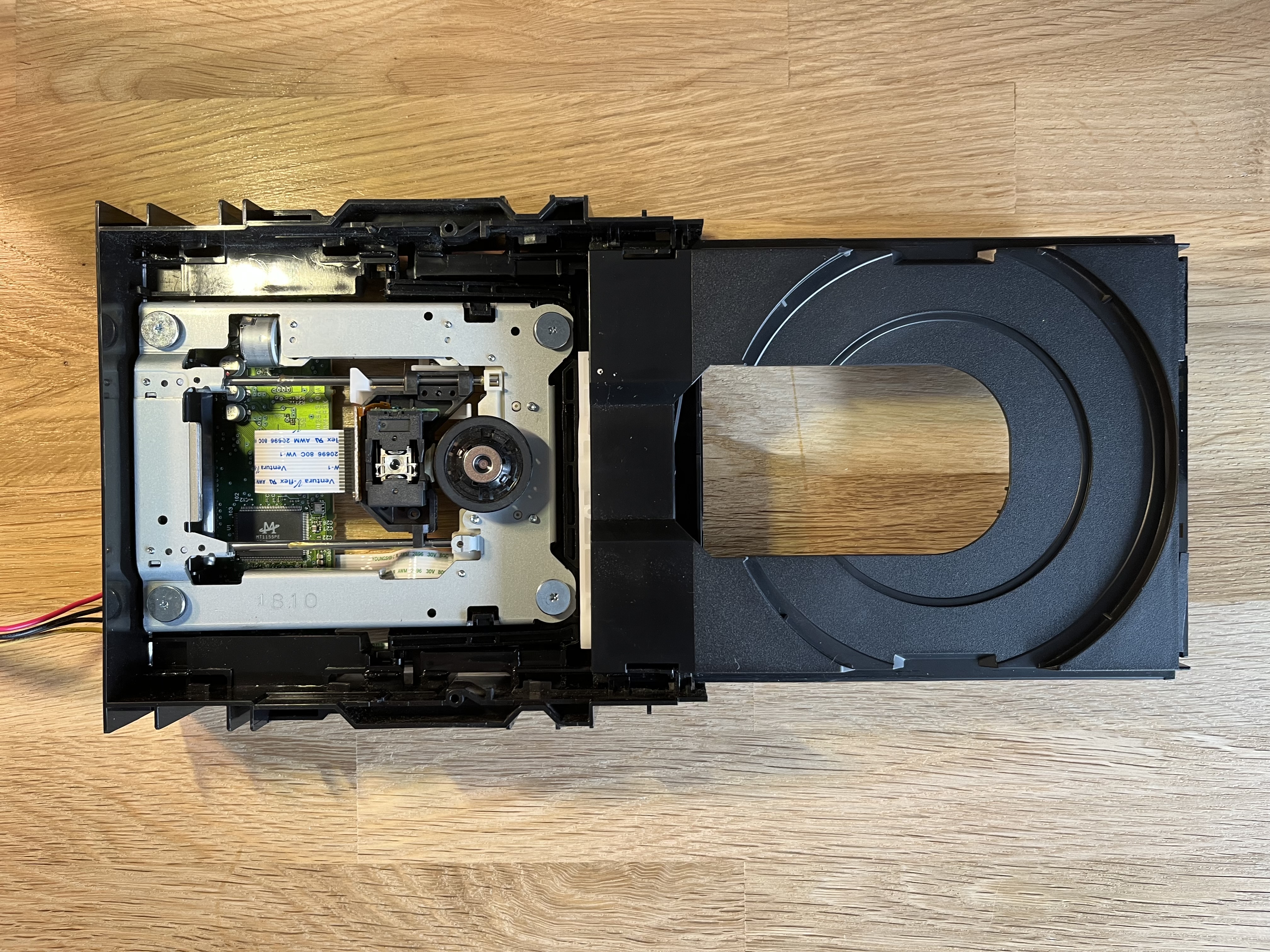

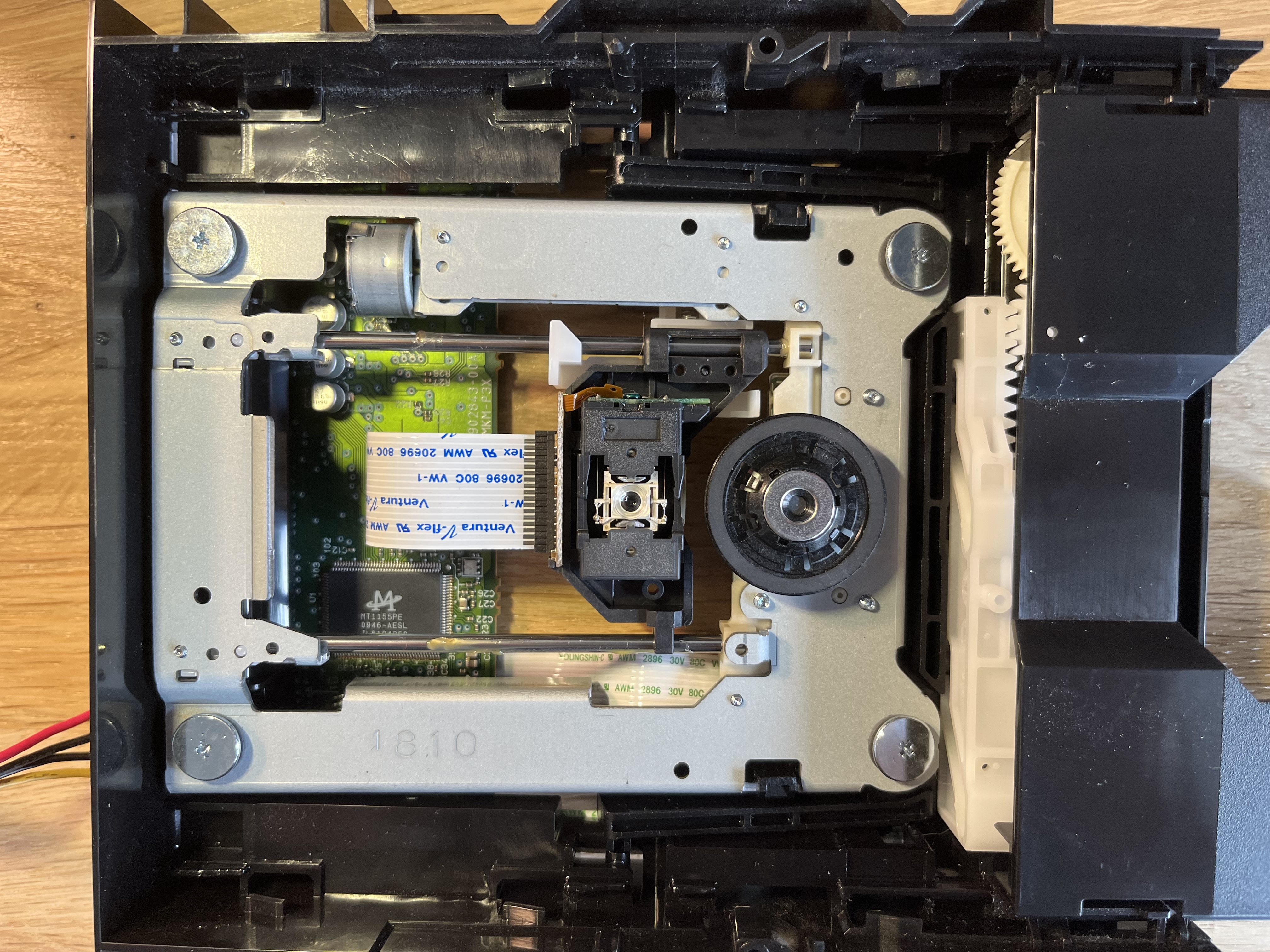

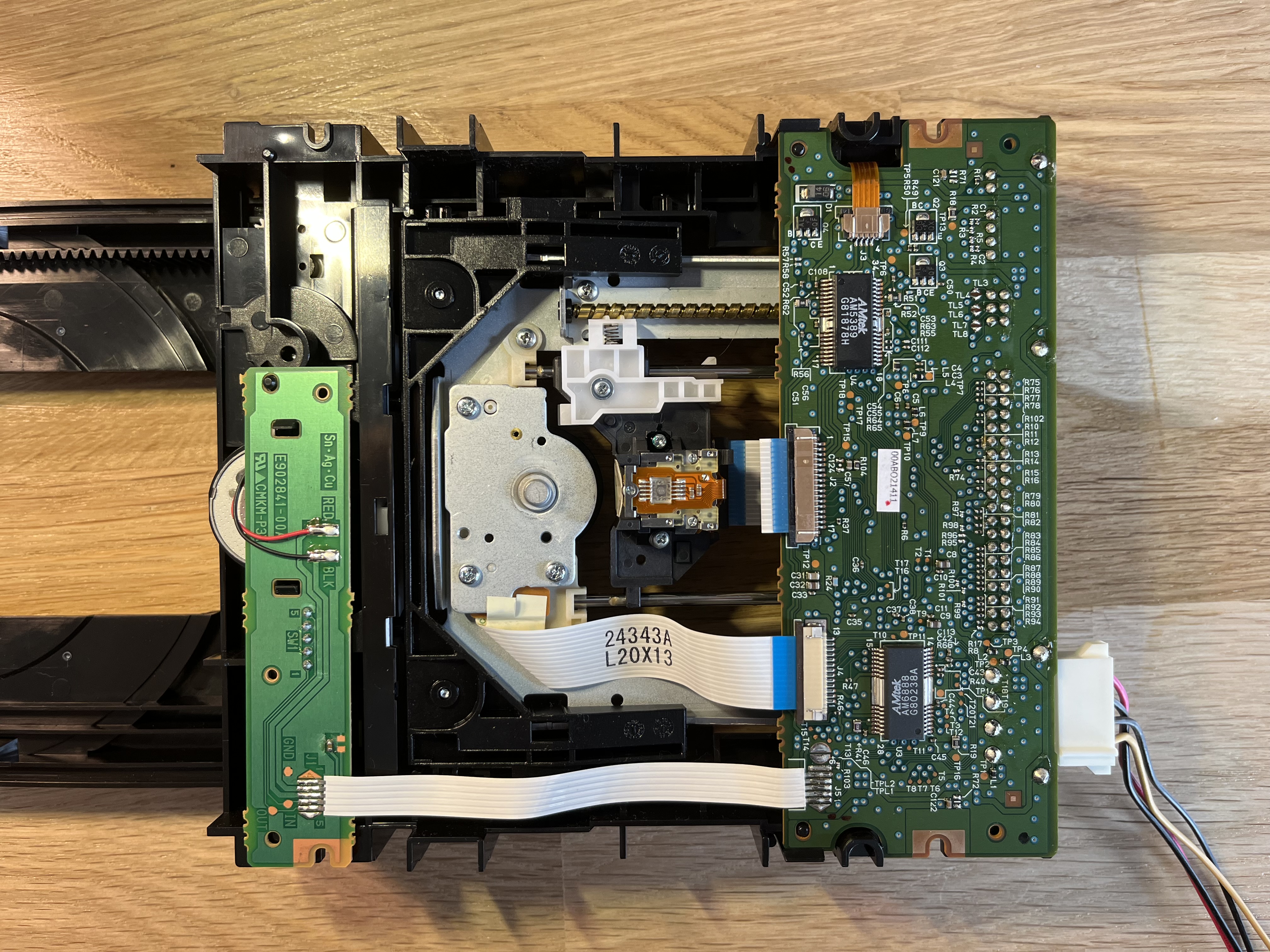

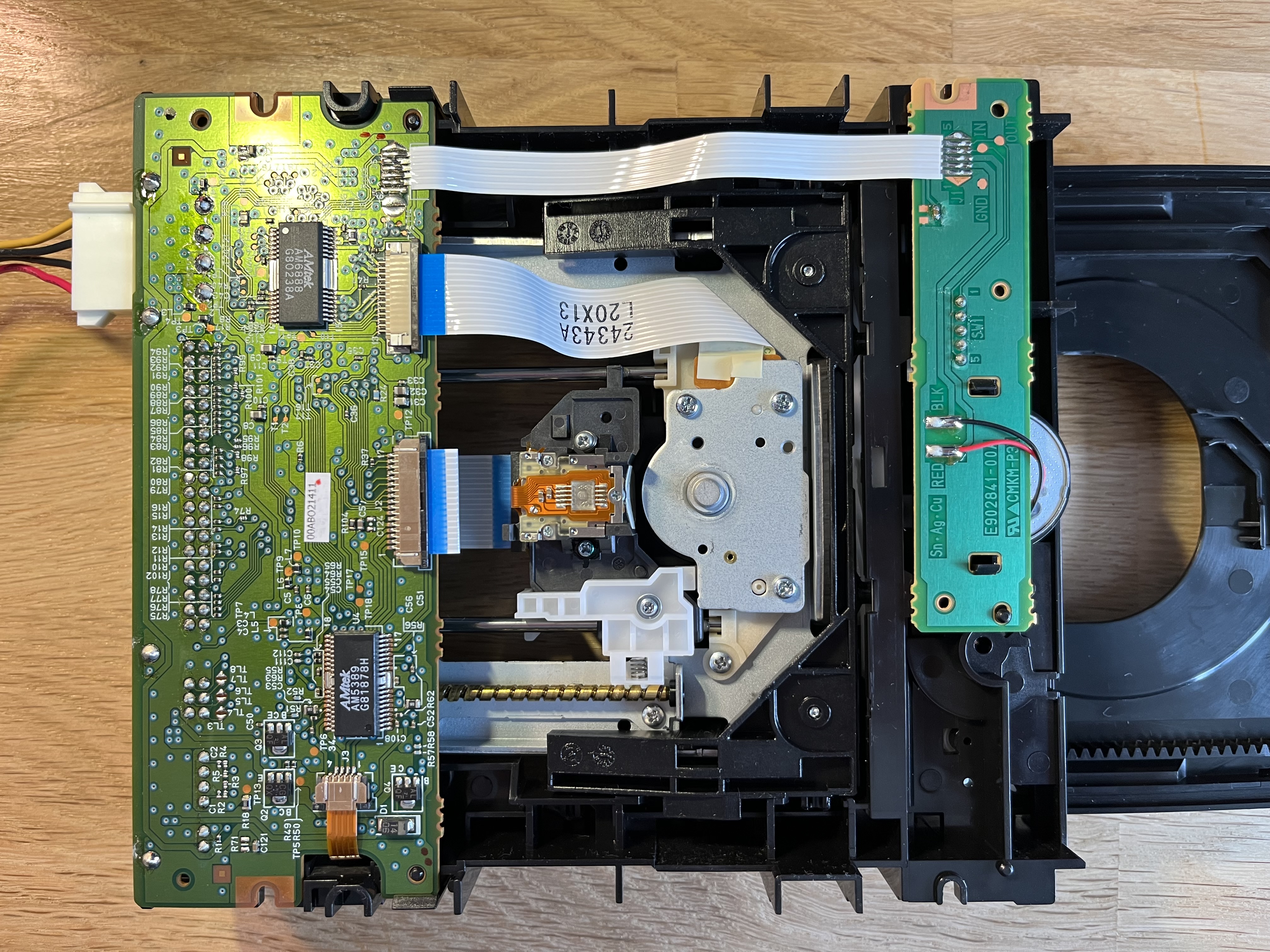

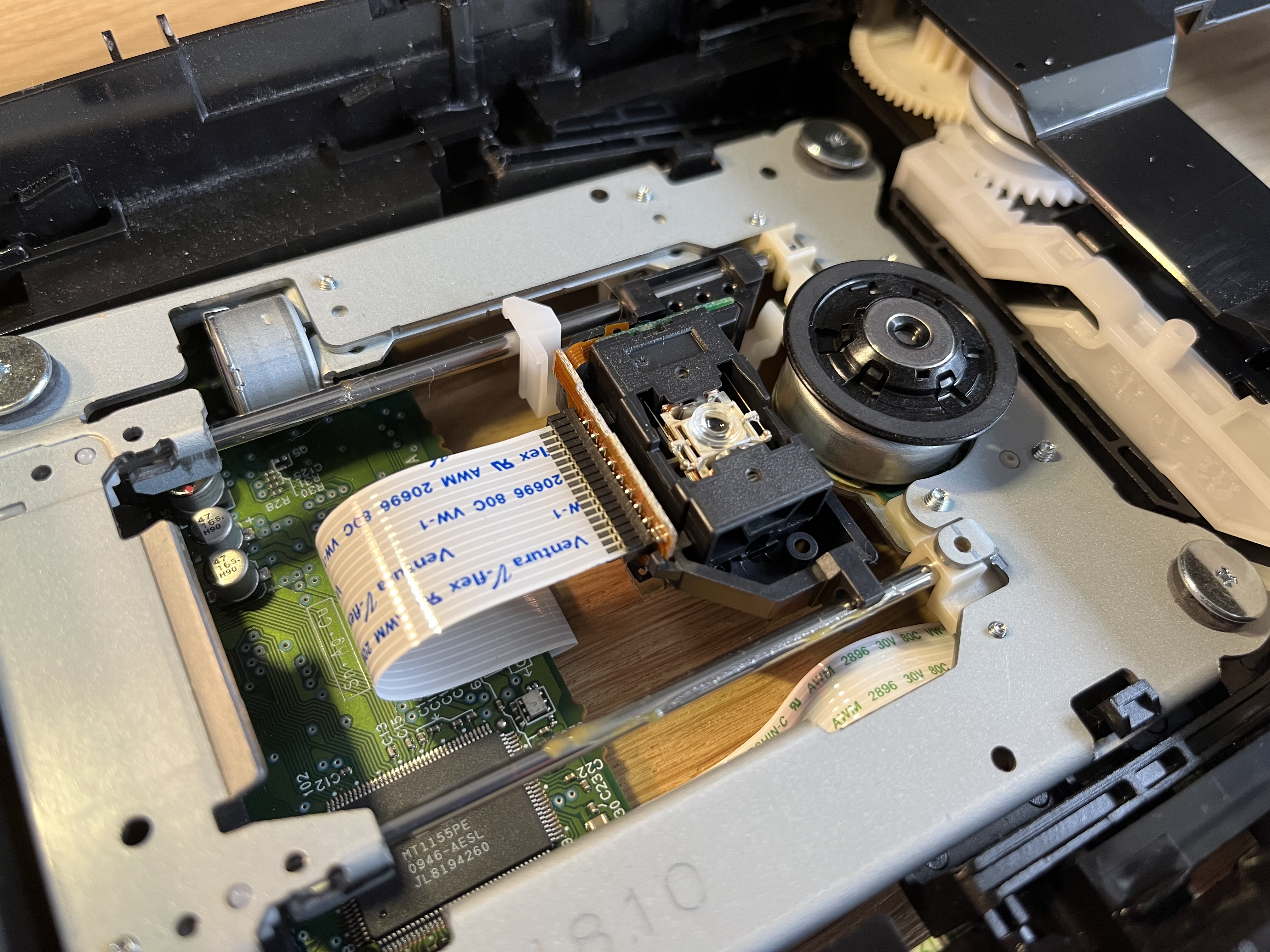

CD unit: TEAC CD-5010A
CD Laser pickup: Sanyo SF-P151 17-pin
