| Name | KD-M545 |
|---|---|
| Manufacturer | JVC |
| Released | 2005/09 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | (W)178mm X (H)50mm X (D)167mm |
| Weight | 1300 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥29 400 | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |

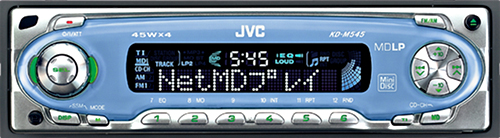

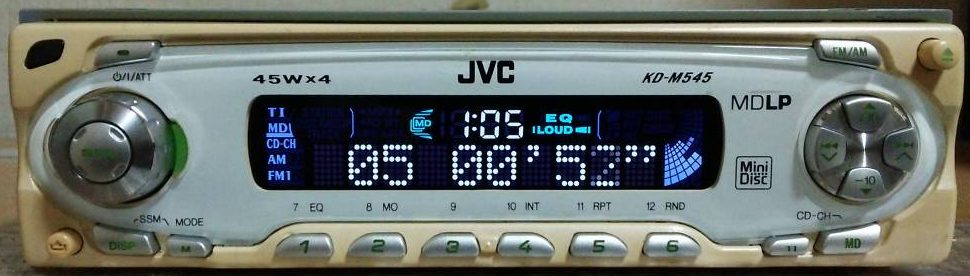

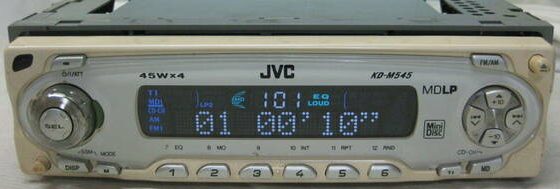

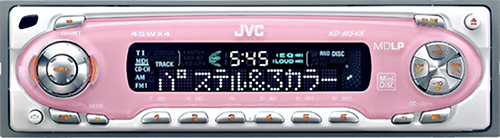

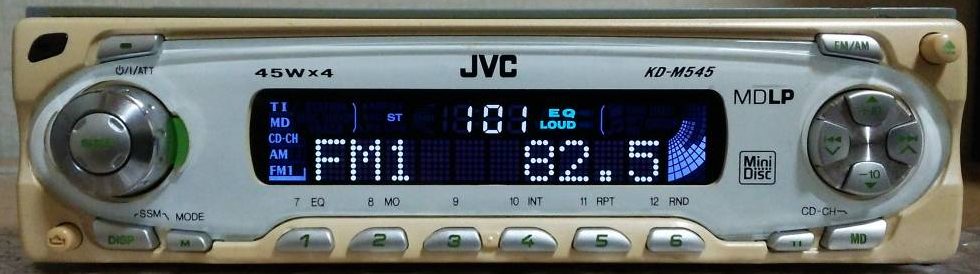

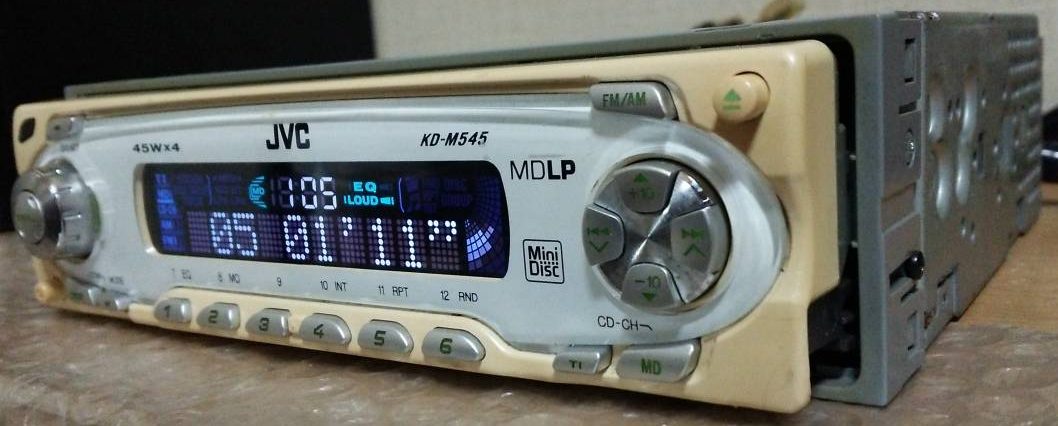

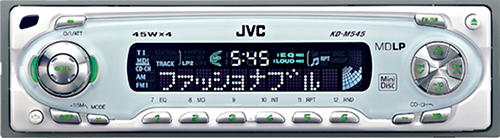

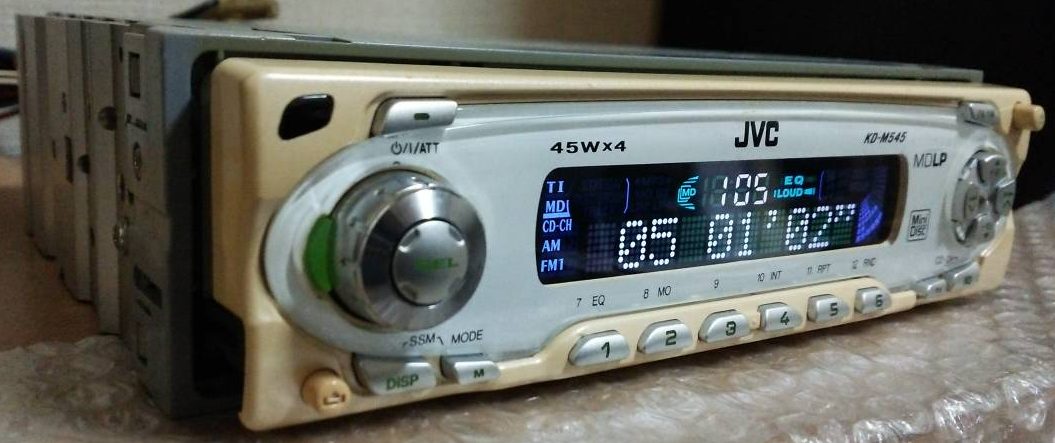

JVC KD-M545 offered in -P (pink) /-A (blue) / -W (white)
- Equipped with a "high-quality condenser" that realizes a sound full of speed
- Uses a rotary volume that allows quick volume adjustment
- Three color variations that can be selected according to the interior of the car interior
- Equipped with "6 pattern CEQ" that allows you to choose your favorite sound quality according to your mood
- Equipped with "24bit ATRAC" that realizes high sound quality by increasing signal processing capacity. (When playing MD SP mode)
- Total power 45W×4
—- Content adapted from: Victor Press Release Victor Press Release (MiniDisc Wiki mirror) jvc product page Product Page 2 Product Page 2 (MiniDisc Wiki mirror) av.watch kakaku.com JVC car audio catalog spring 2007
Manuals
Repair

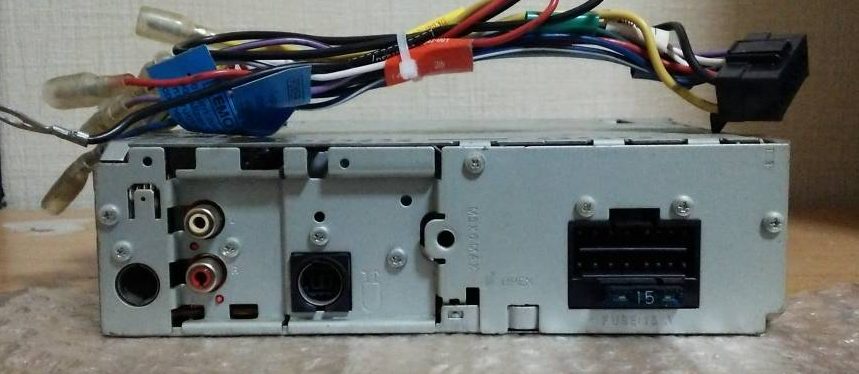

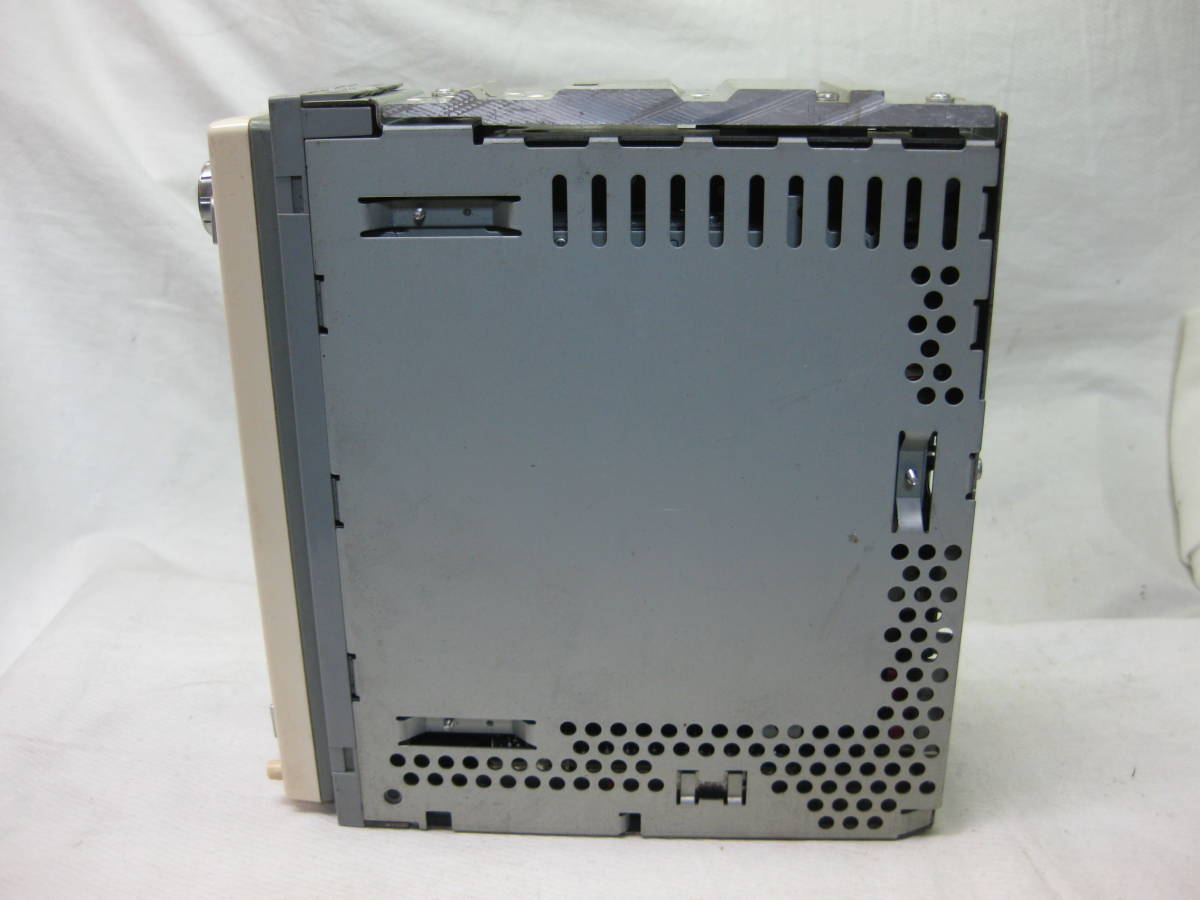

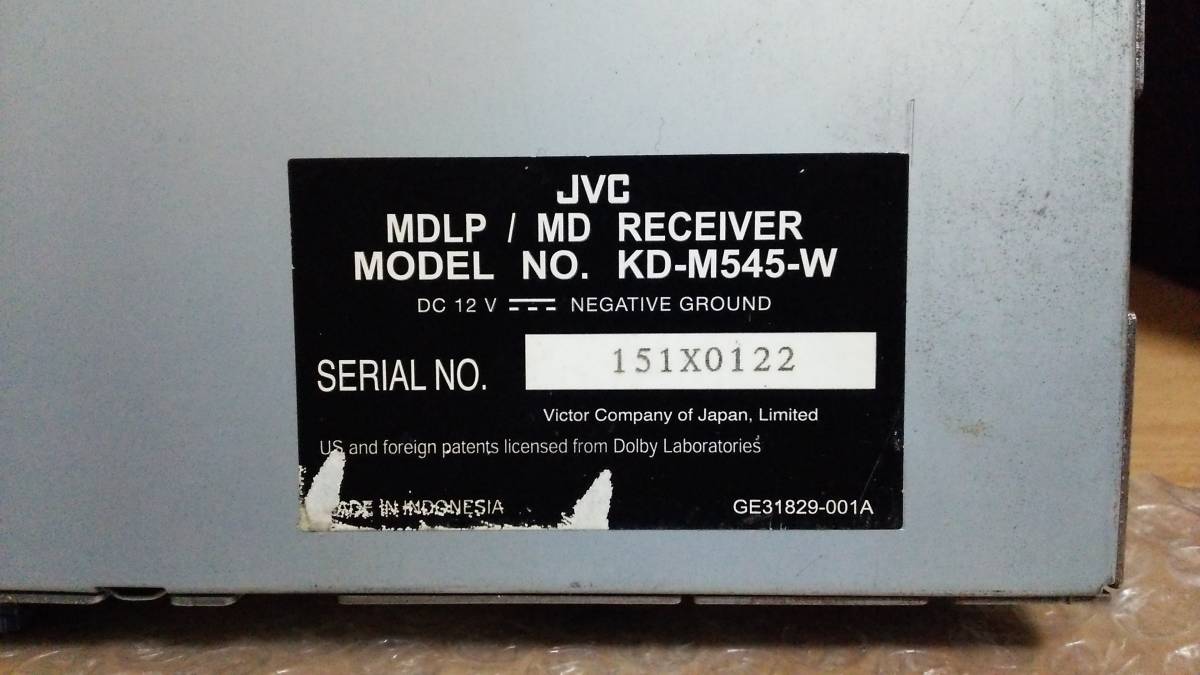

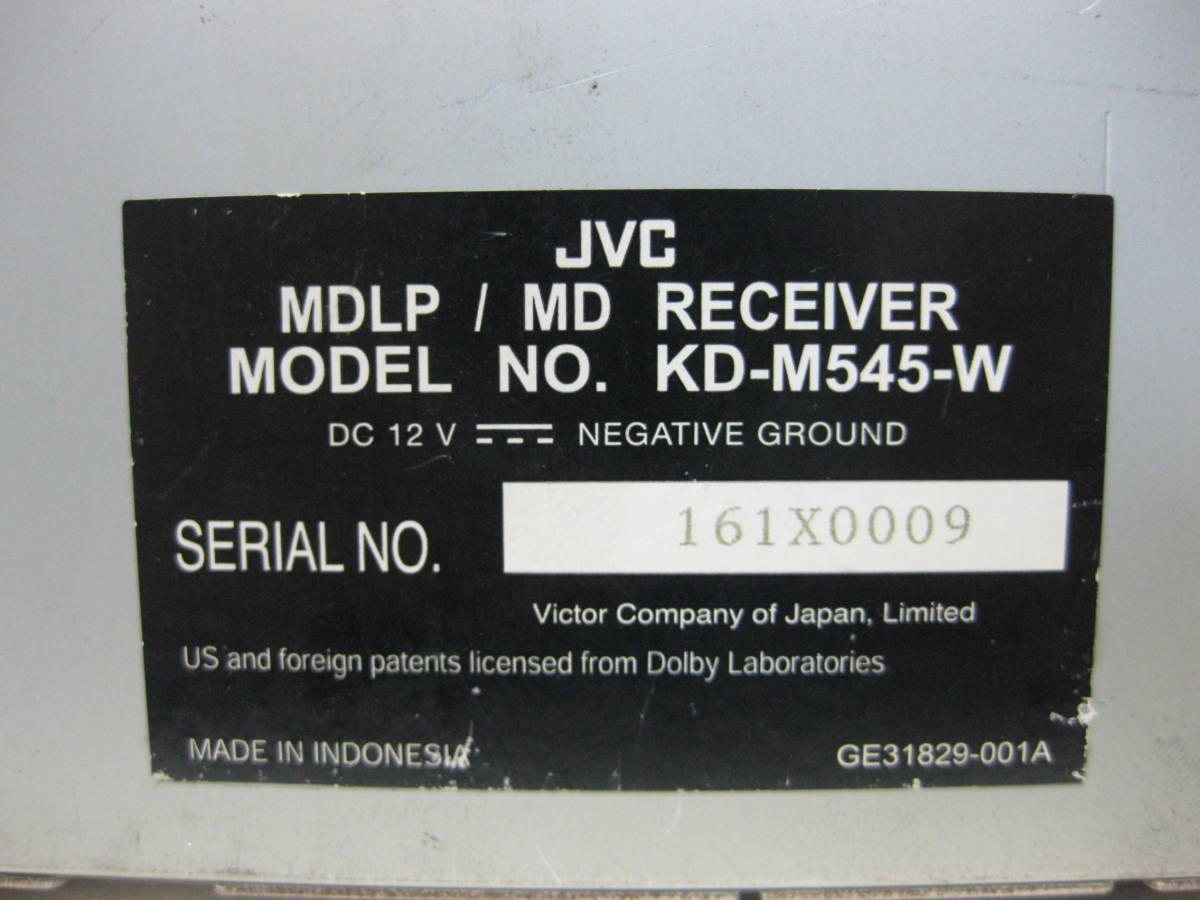

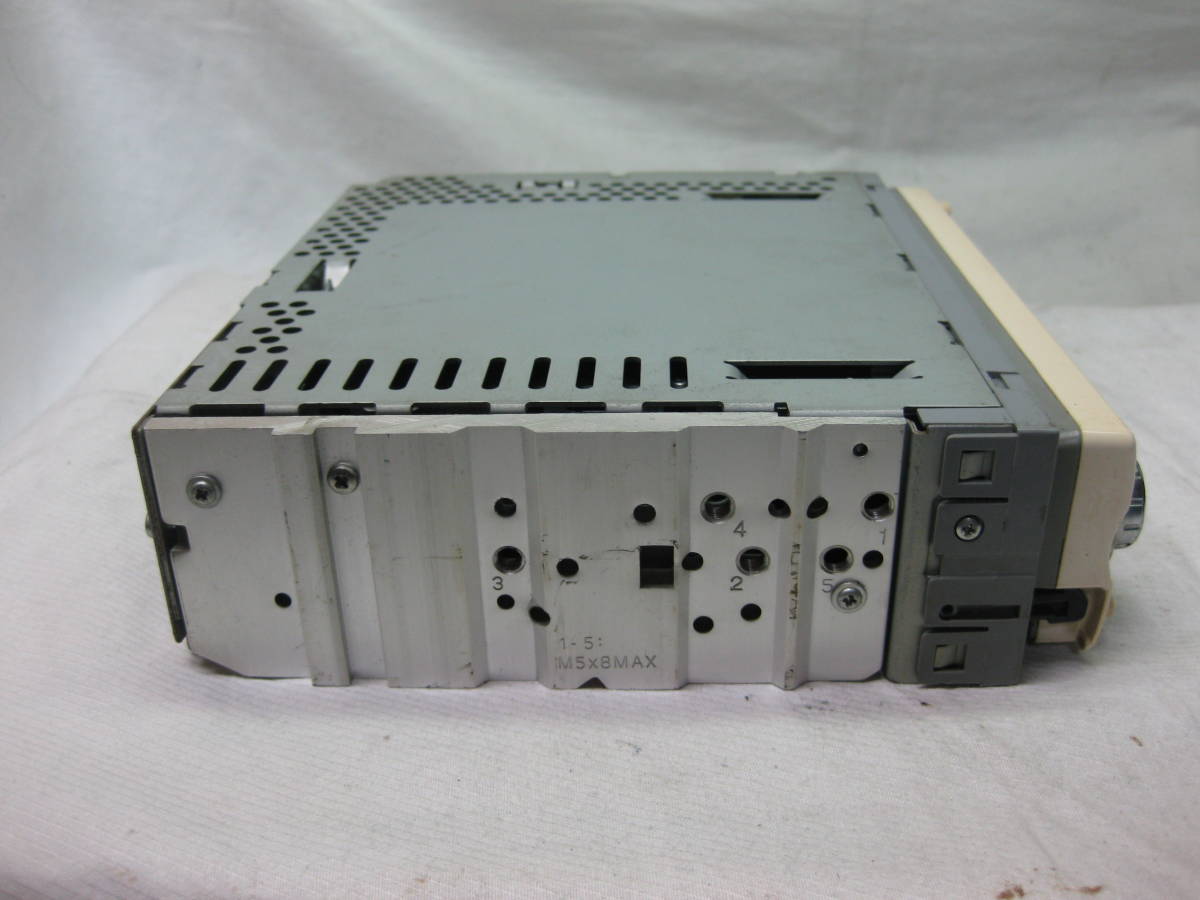

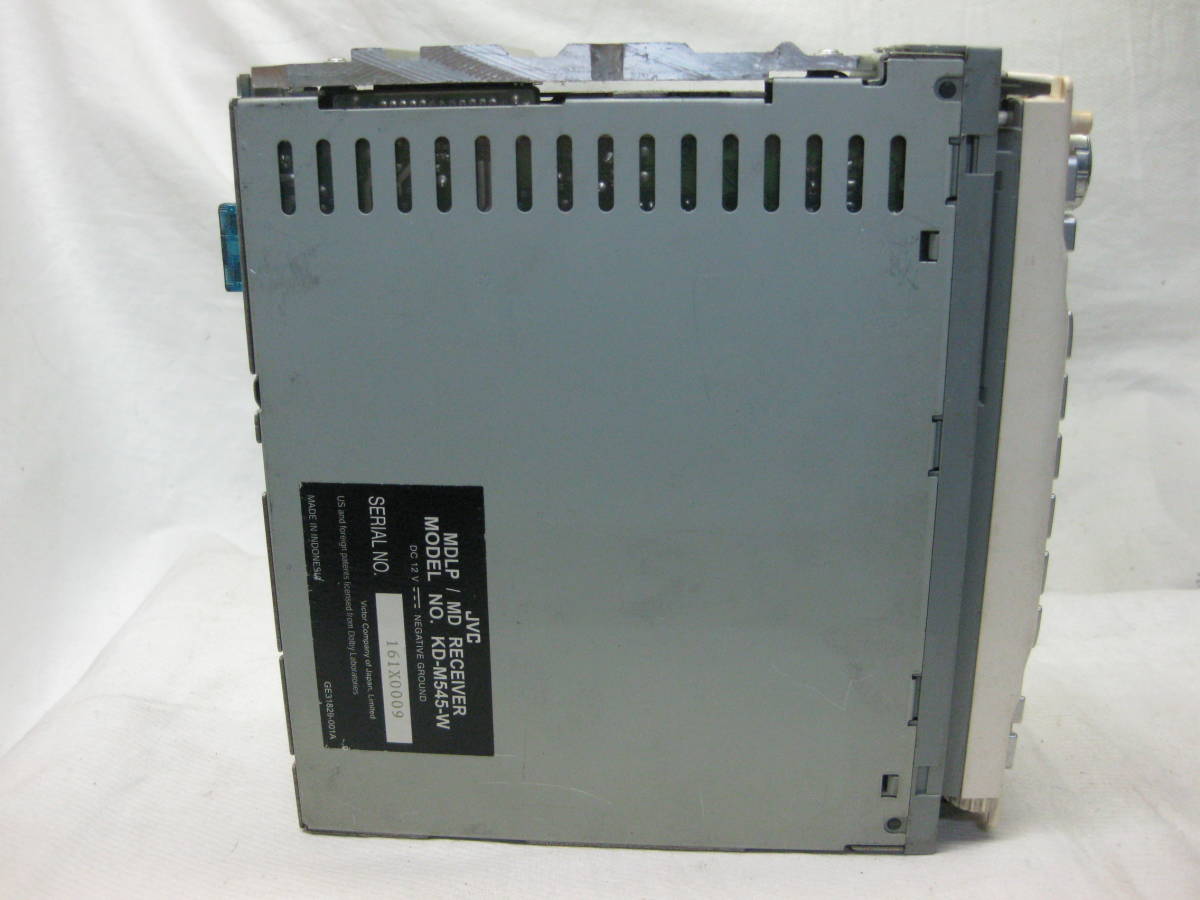

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
