JVC KD-MD303

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-06-27

Manufacturer
JVC
Model / source grouping
KD-MD303
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “JVC KD-MD303”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name KD-MD303
Manufacturer JVC
Released 2002/04
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 1-Din 178x50x169 mm
Weight 1200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥33 500
-
Inputs Not recorded
Outputs RCA out
Control Not recorded

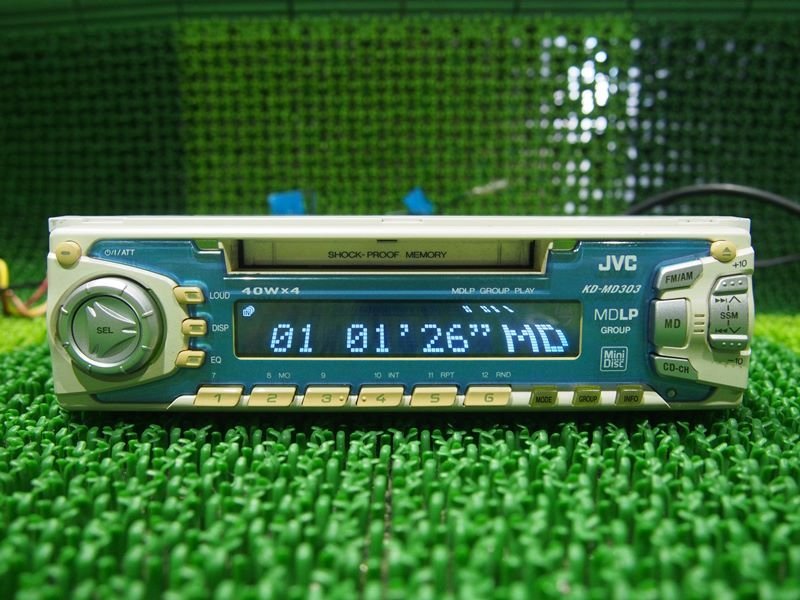

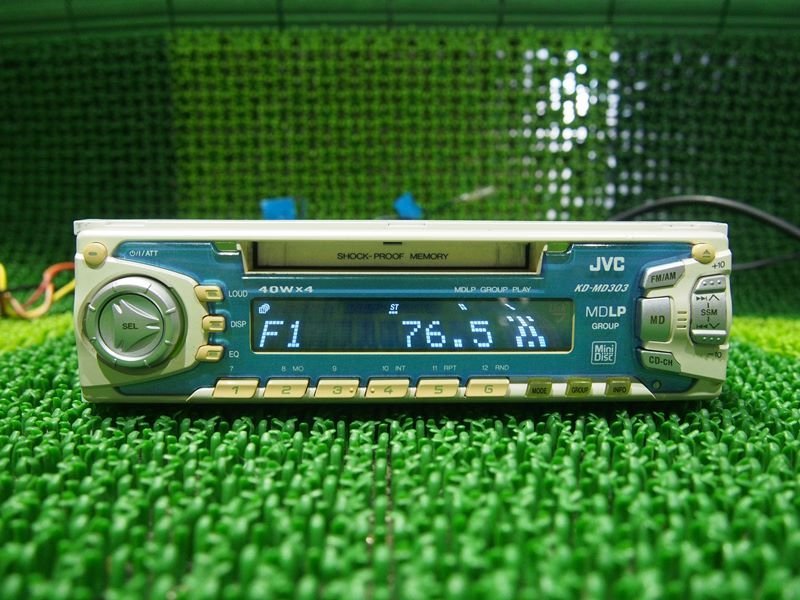

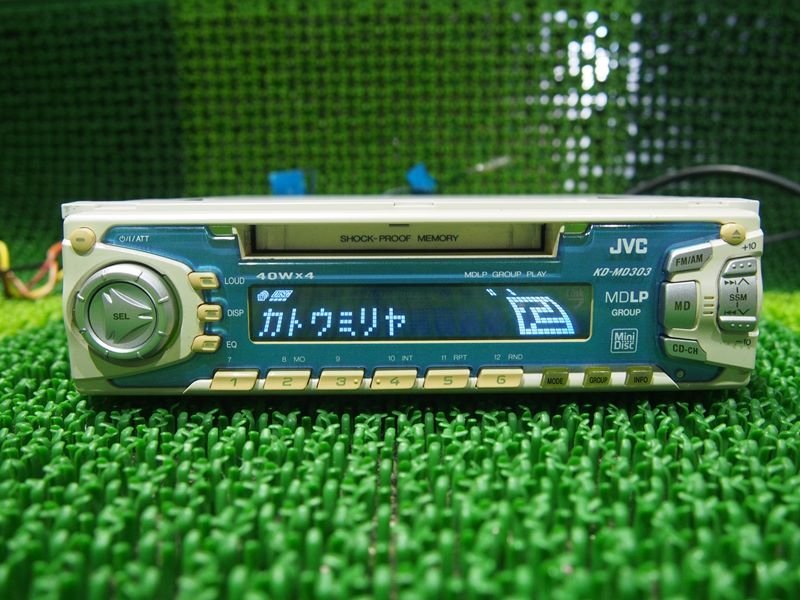

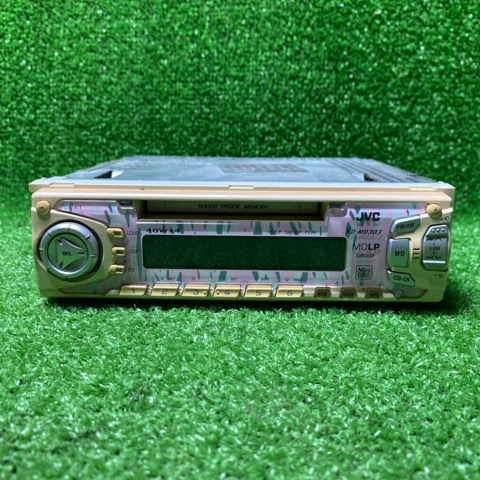

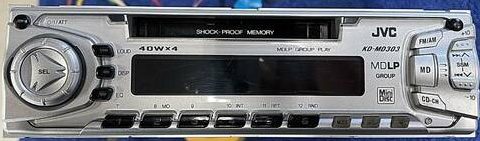

JVC KD-MD303. Available in -A (Urban Blue) -G (Alumina Green) - P (Flare Pink) -Y (Fine Yellow)

"KD-MD303" is a 1DIN size MD receiver that supports MDLP playback. The ATRAC DSP is equipped with a 24-bit one. It also supports the MDLP group function, and is equipped with a "direct group access function" that allows you to select up to 12 groups using the number keys. In addition, "direct source switching" of the rotating volume is adopted to improve operability.

【Main Specifications】

  • MD part frequency characteristic: 20Hz～20,000Hz
  • SN ratio of MD part: 93dB
  • MD part dynamic range: 92dB
  • FM reception frequency: 76MHz-90MHz (FM12 station preset)
  • AM reception frequency: 522kHz to 1,629kHz (AM12 station preset)
  • Input / output terminal: Front stereo mini input x 1, BUS input (DIN) x 1
  • Maximum output: 40W x 4

Supports Aux input with JVC KS-U57 (sold separately)

ATRAC Chip: CXD2667R

Content adapted from: JVC Press Release JVC Press Release (MiniDisc Wiki mirror) av.watch Kakaku.com

Manuals

JVC KD-MD303 User Manual JP

JVC KD-MD303 Service Manual JP

Repair

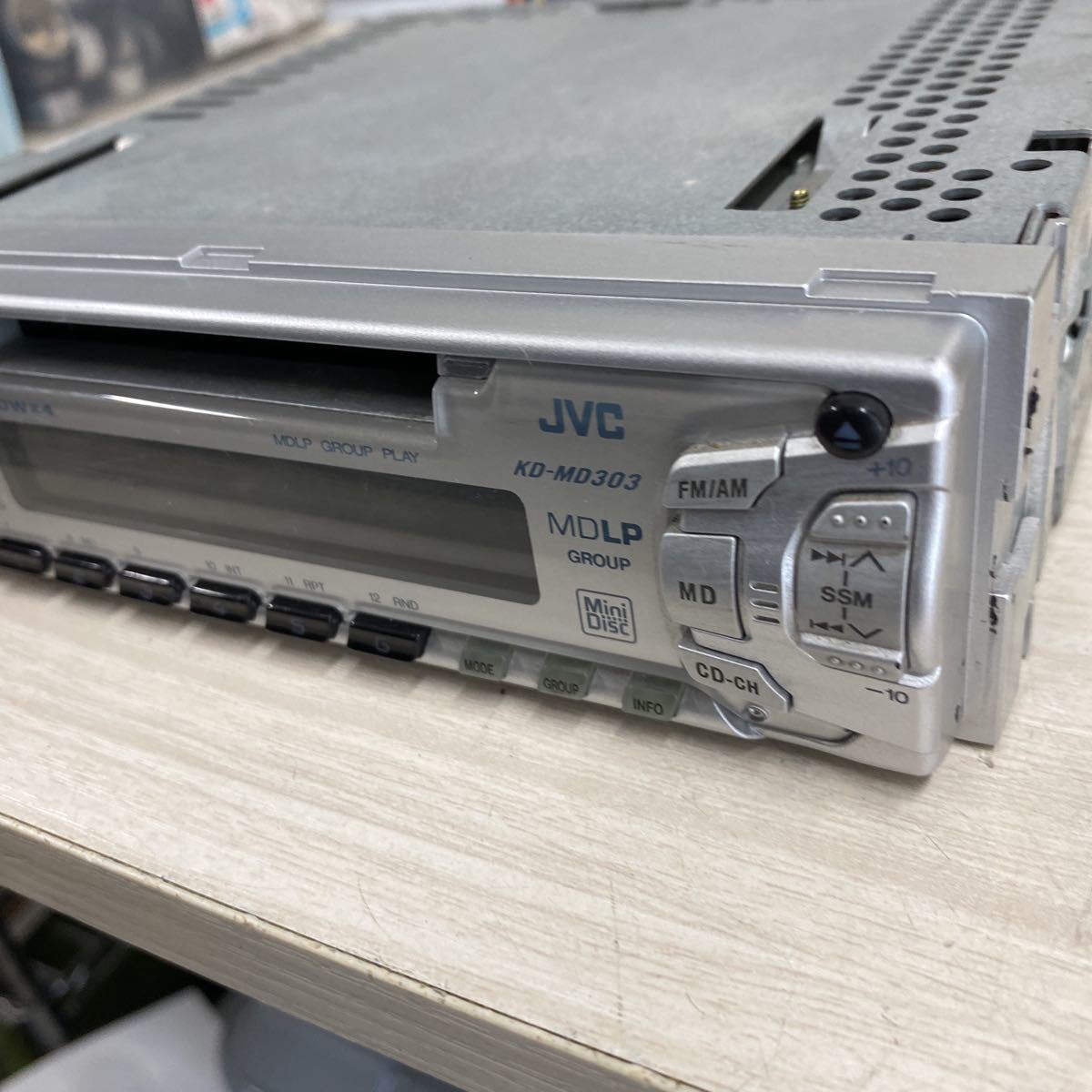

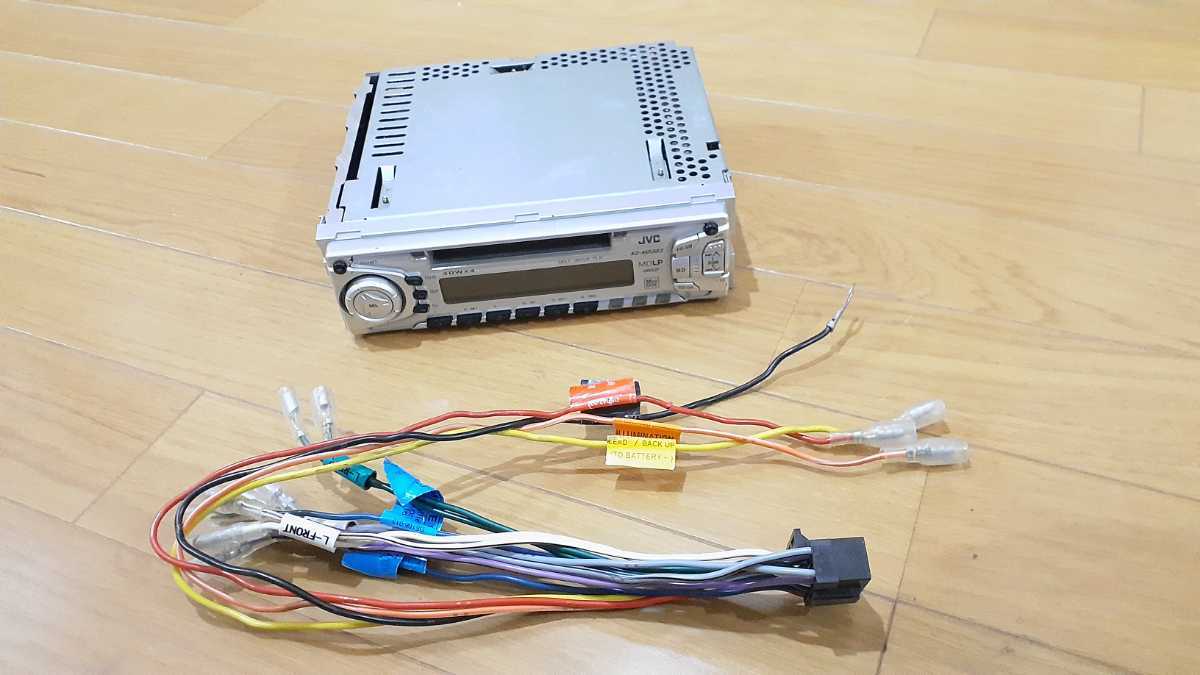

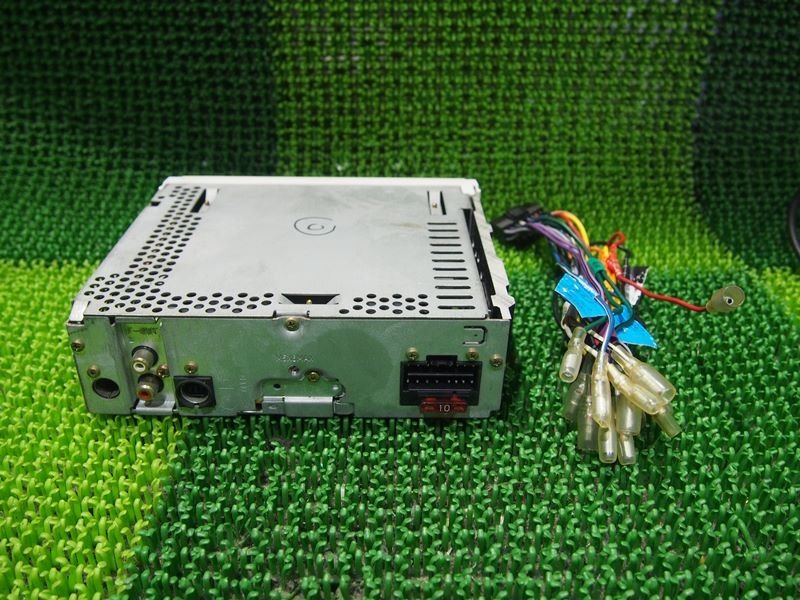

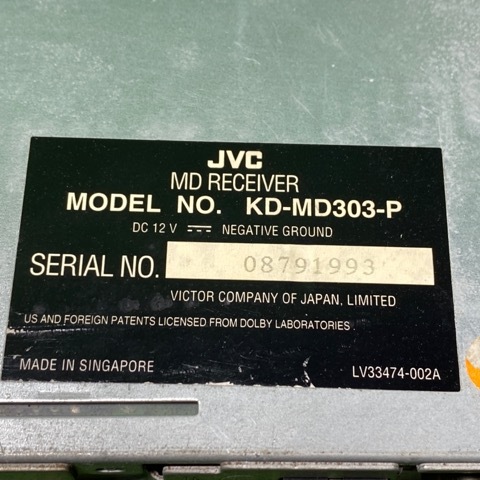

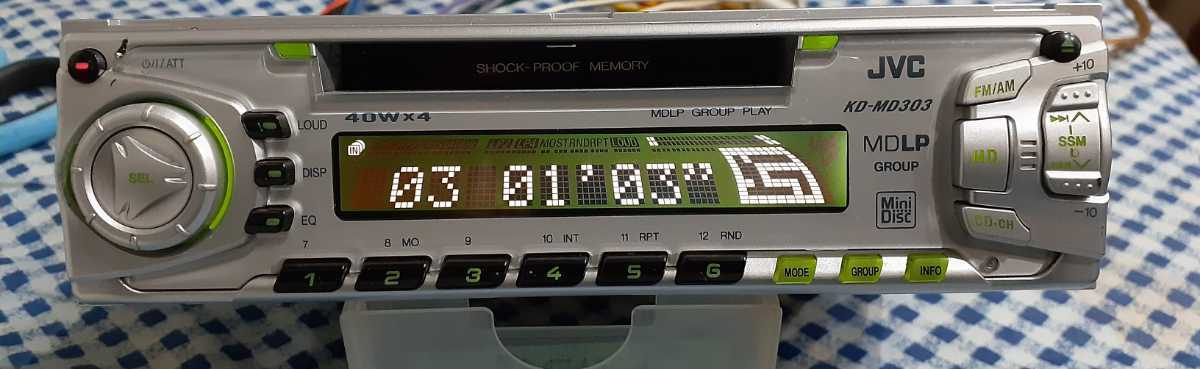

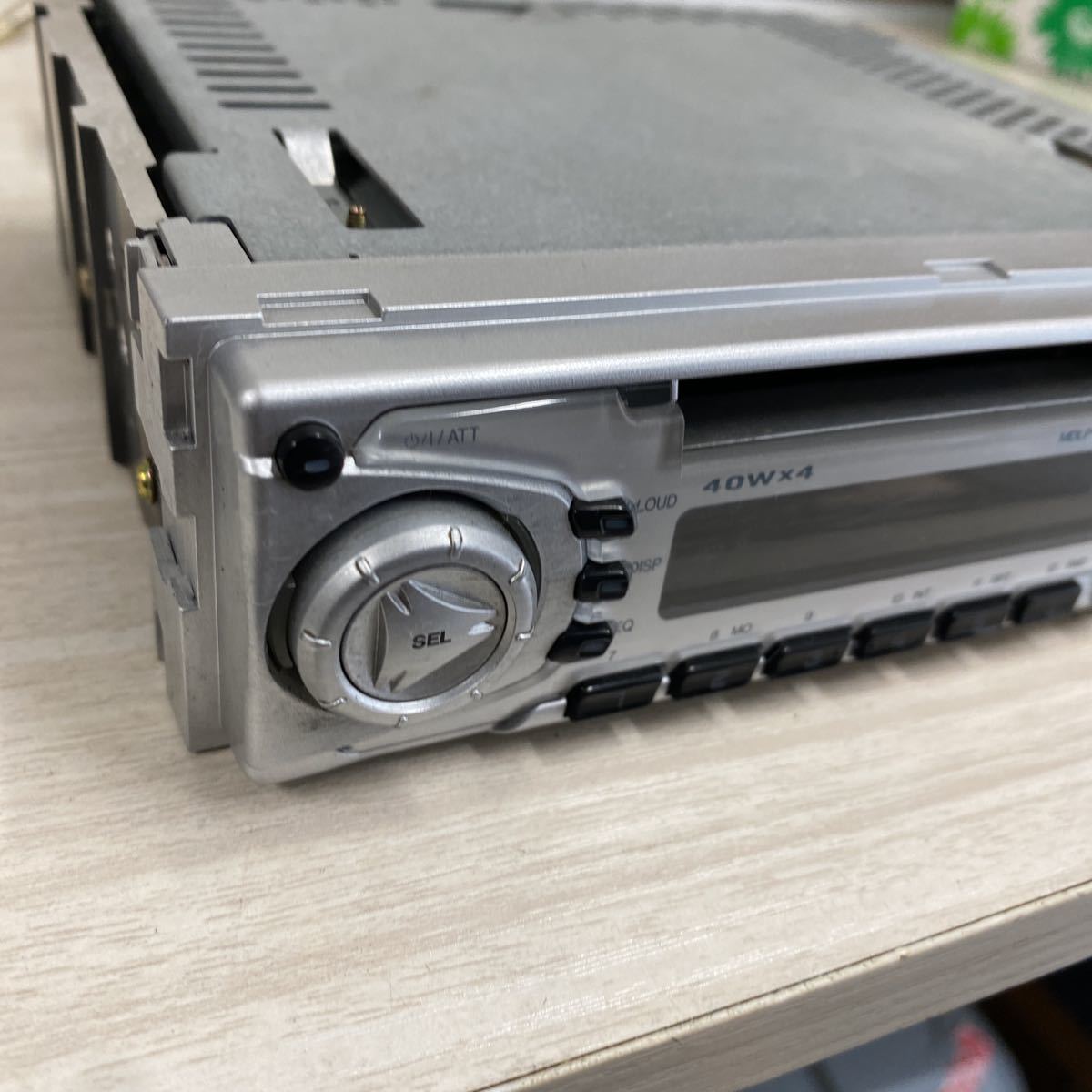

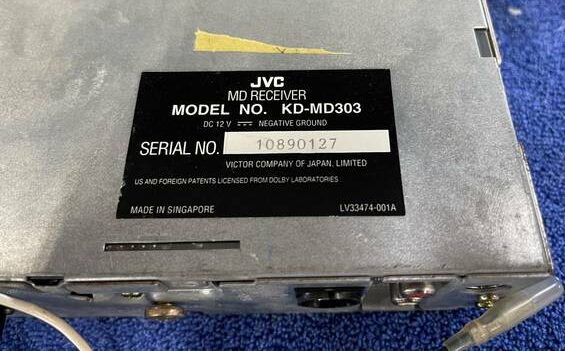

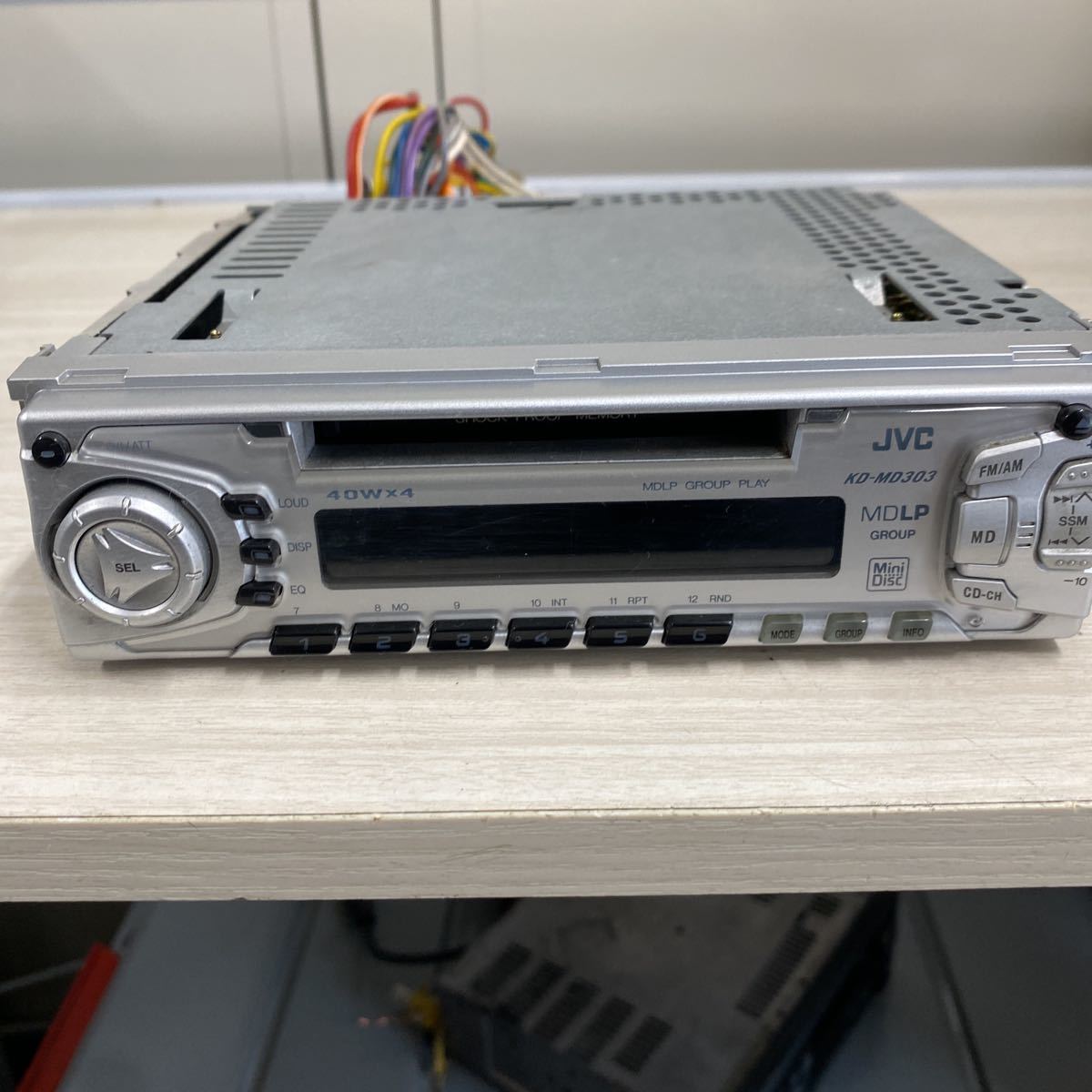

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual, Service manual
RegionJapan
