| Name | KD-MX3000 |
|---|---|
| Manufacturer | JVC |
| Released | 1998/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 1-DIN (W) 178 × (H) 50 × (D) 185mm |
| Weight | 1800 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥78 000 | |
| - | |
| Inputs | RCA in, CD |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |

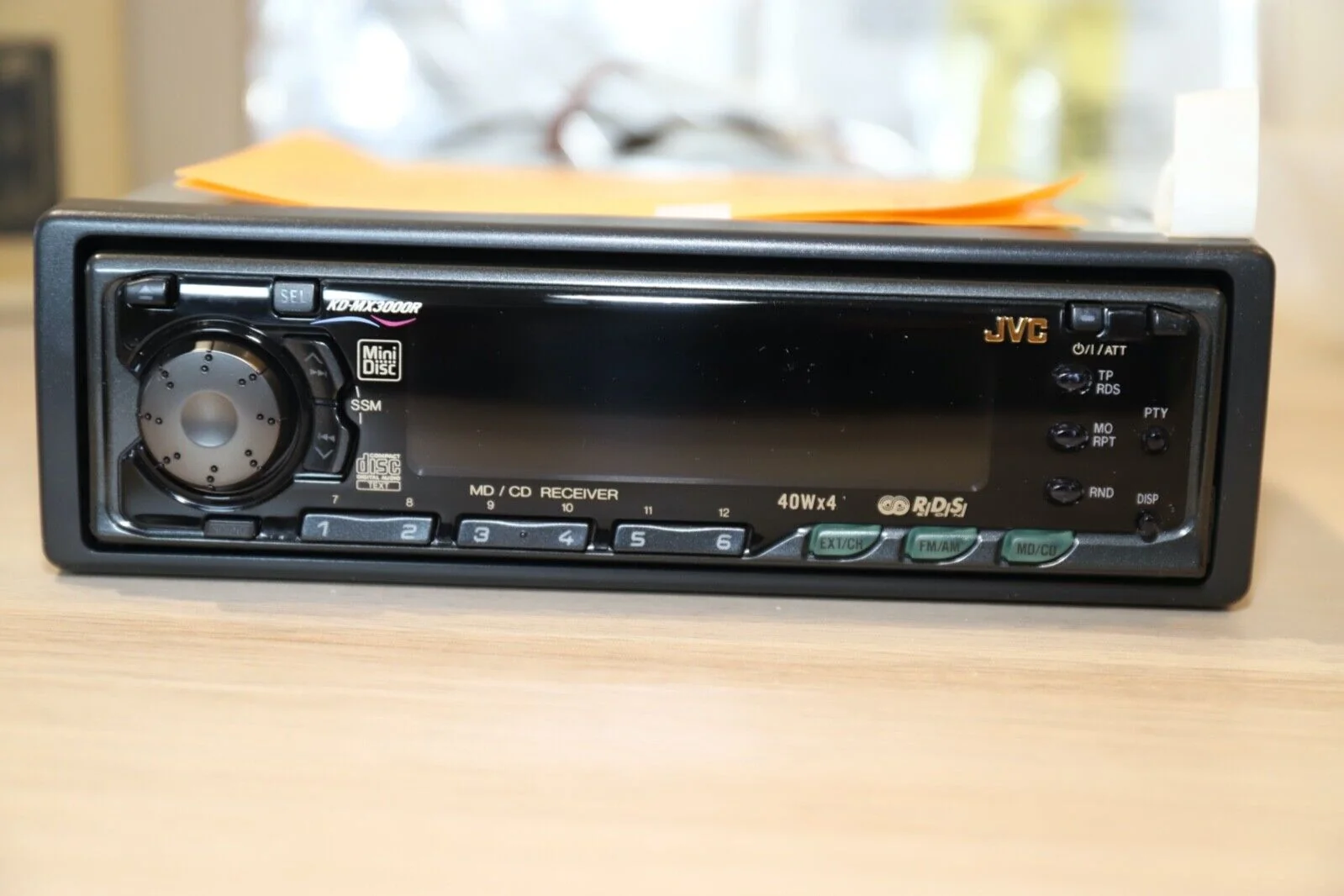

A KD-MX3000R RDS equipped version was released as well.
Features:

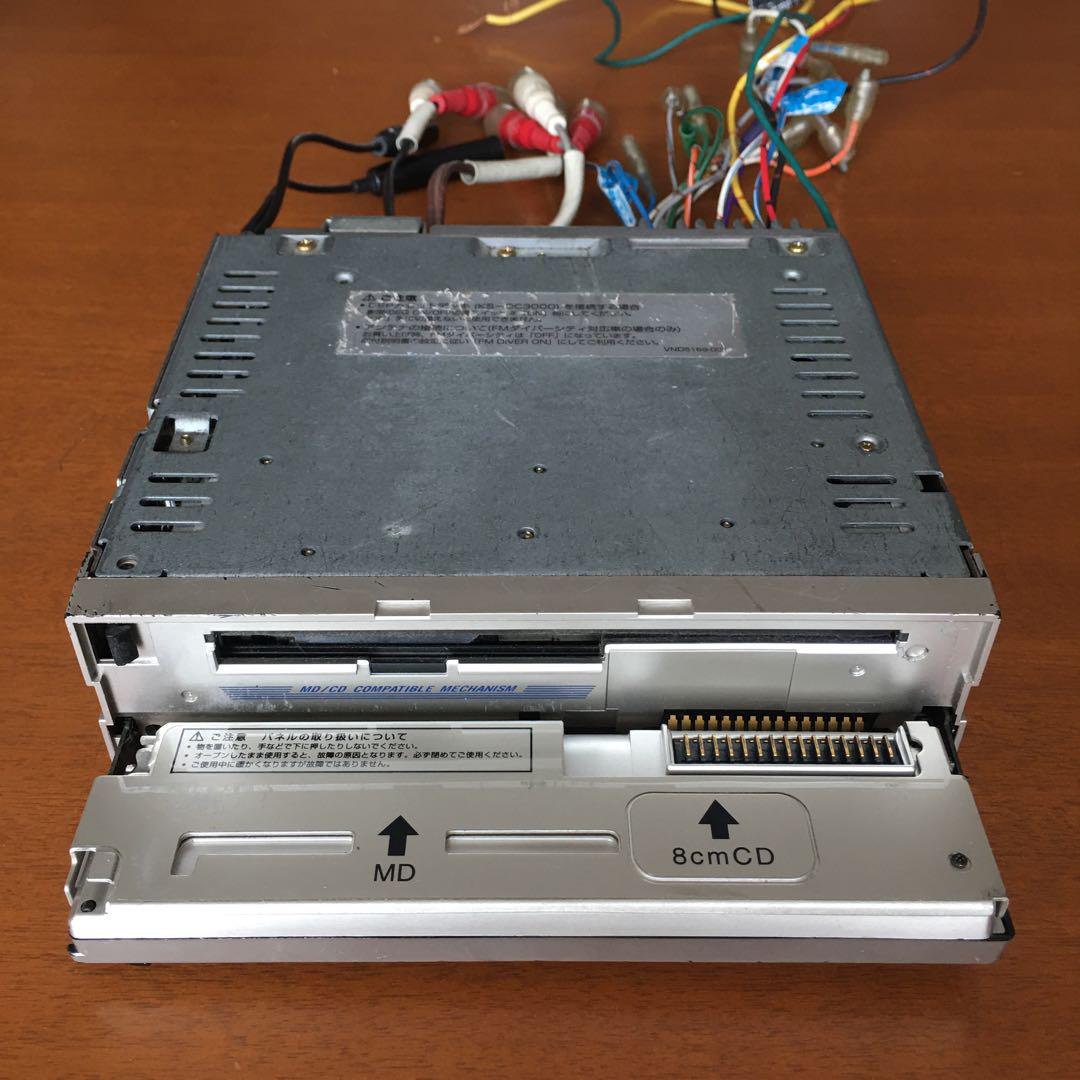

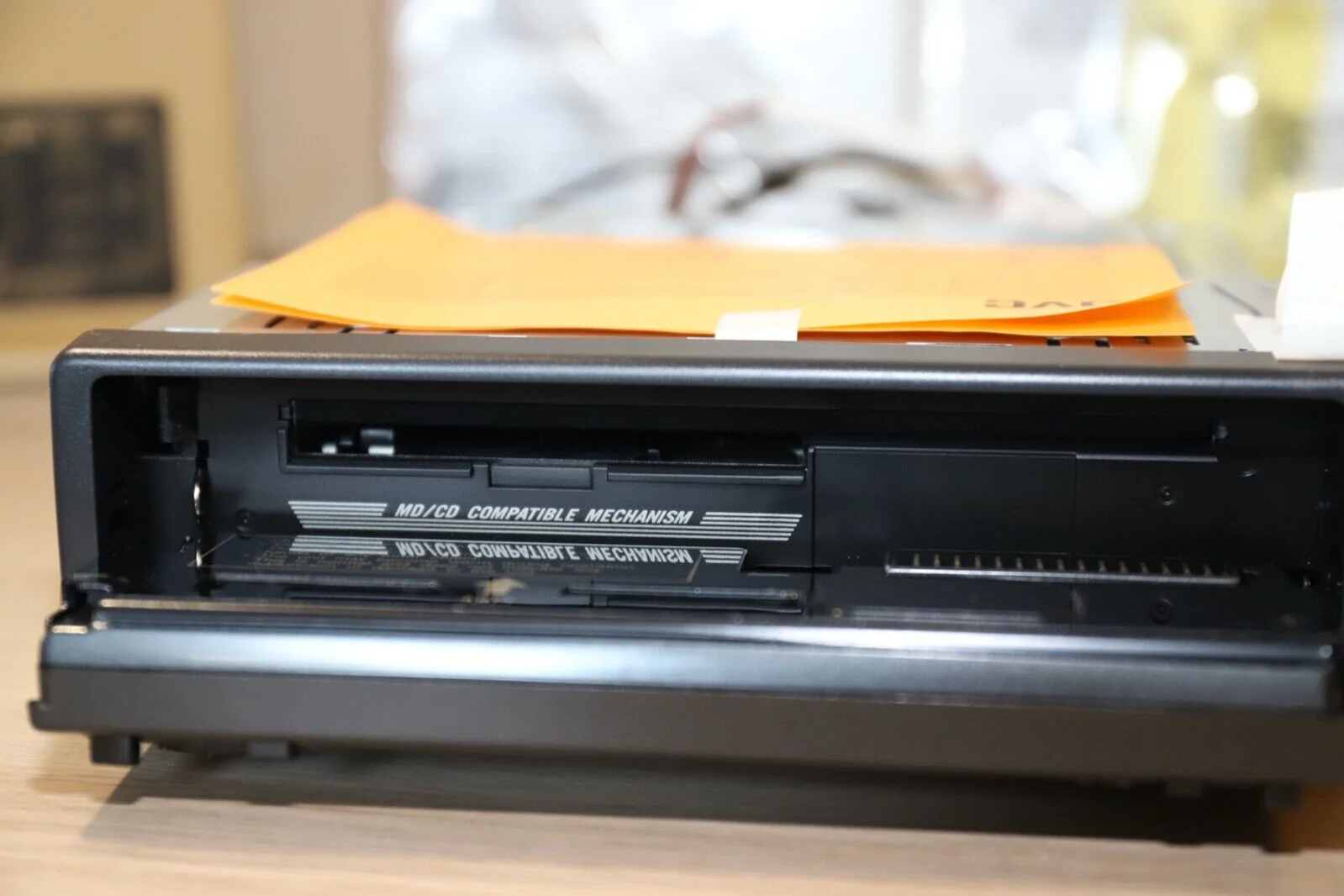

- Unit accepts either a CD or MD in the same slot. (World's first such "MC1 mechanism")
- Equipped with CD changer control function and "LINE-IN terminal" capable of AV expansion
- 1 bit DAC.
- 10 second shock memory for MD.
- CD and radio station naming function with rotary encoder.
- Auto Cruise mode adjusts volume level to accommodate changes in vehicle speed.
- CFL backlight (with cooling fan) and LCD contrast control.
- Can control CD changer with CD text capability.
- Compatible with 8 cm CDs
- Compatible with FM diversity antenna
Specs: Amp: 40W x 4
Content adapted from: JVC Press Release JVC Press Release (MiniDisc Wiki mirror) Minidisc.org page JVC Product Page

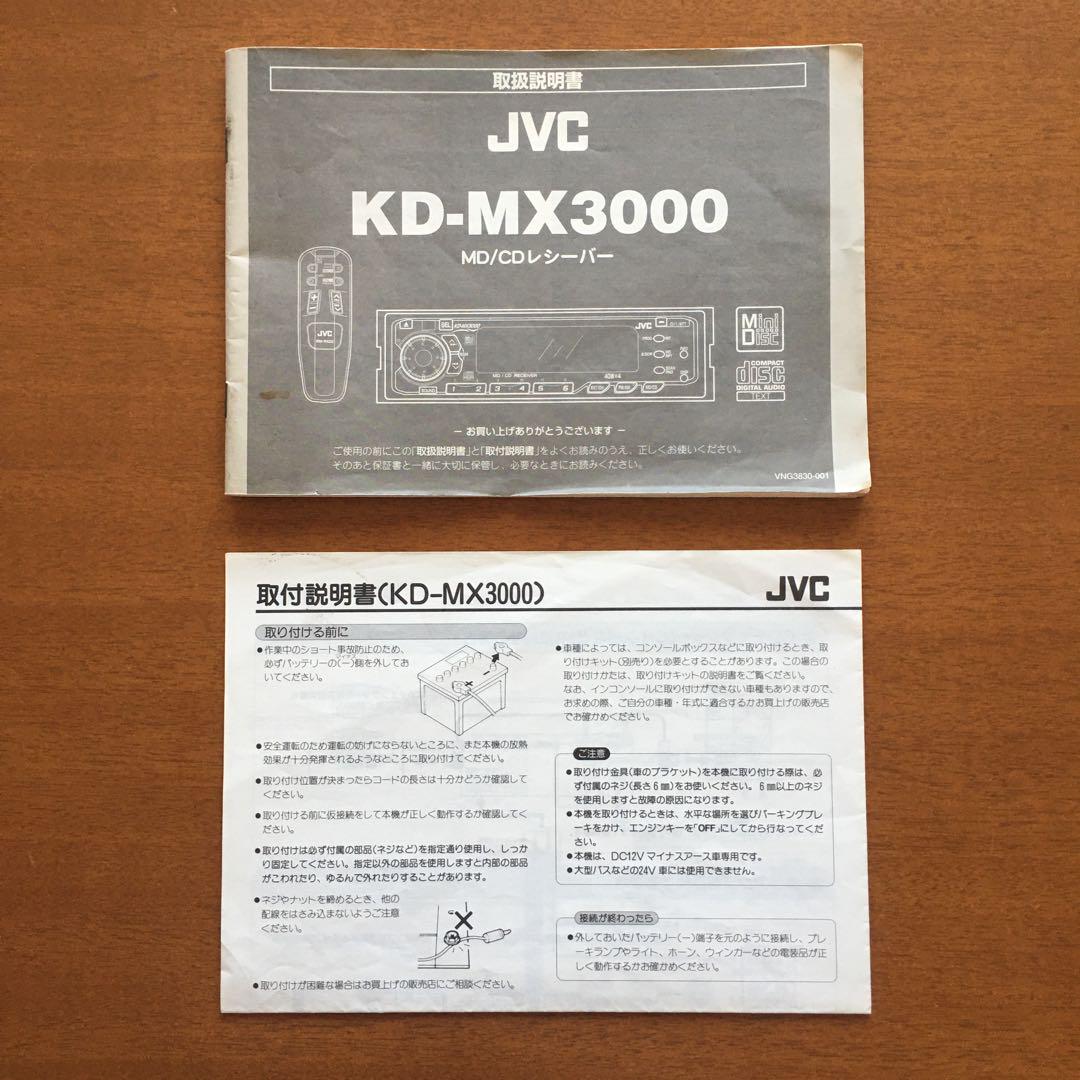

Manuals
Repair

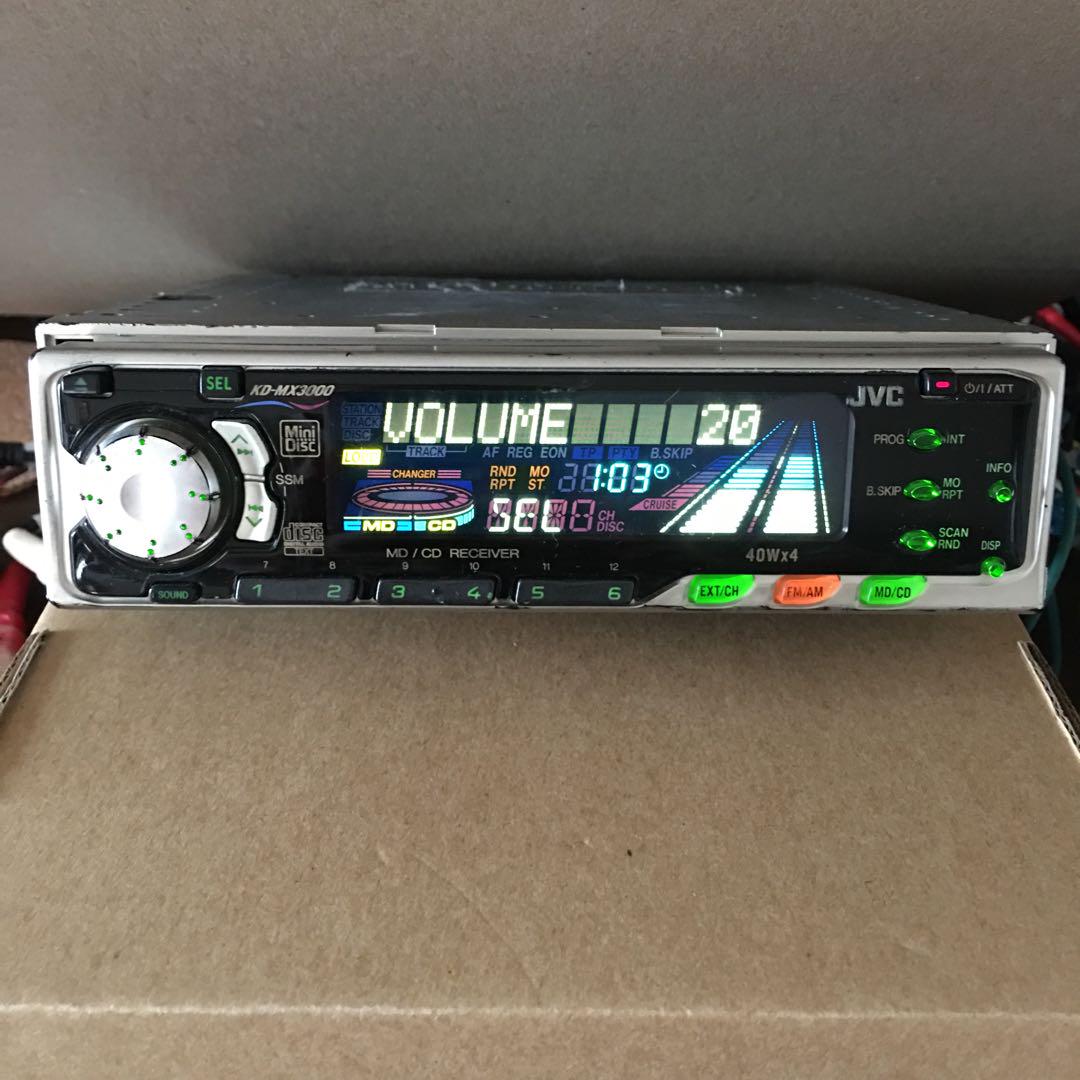

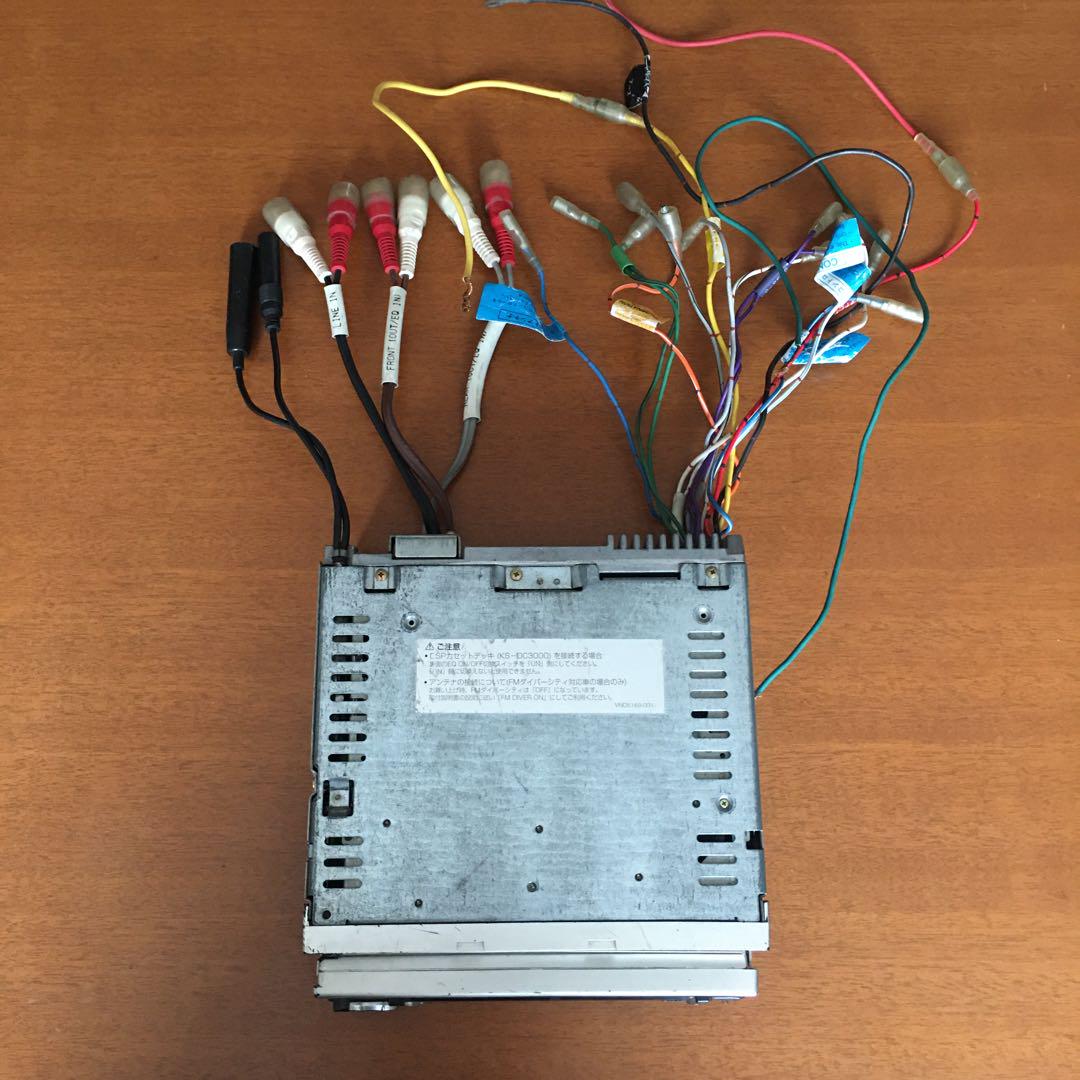

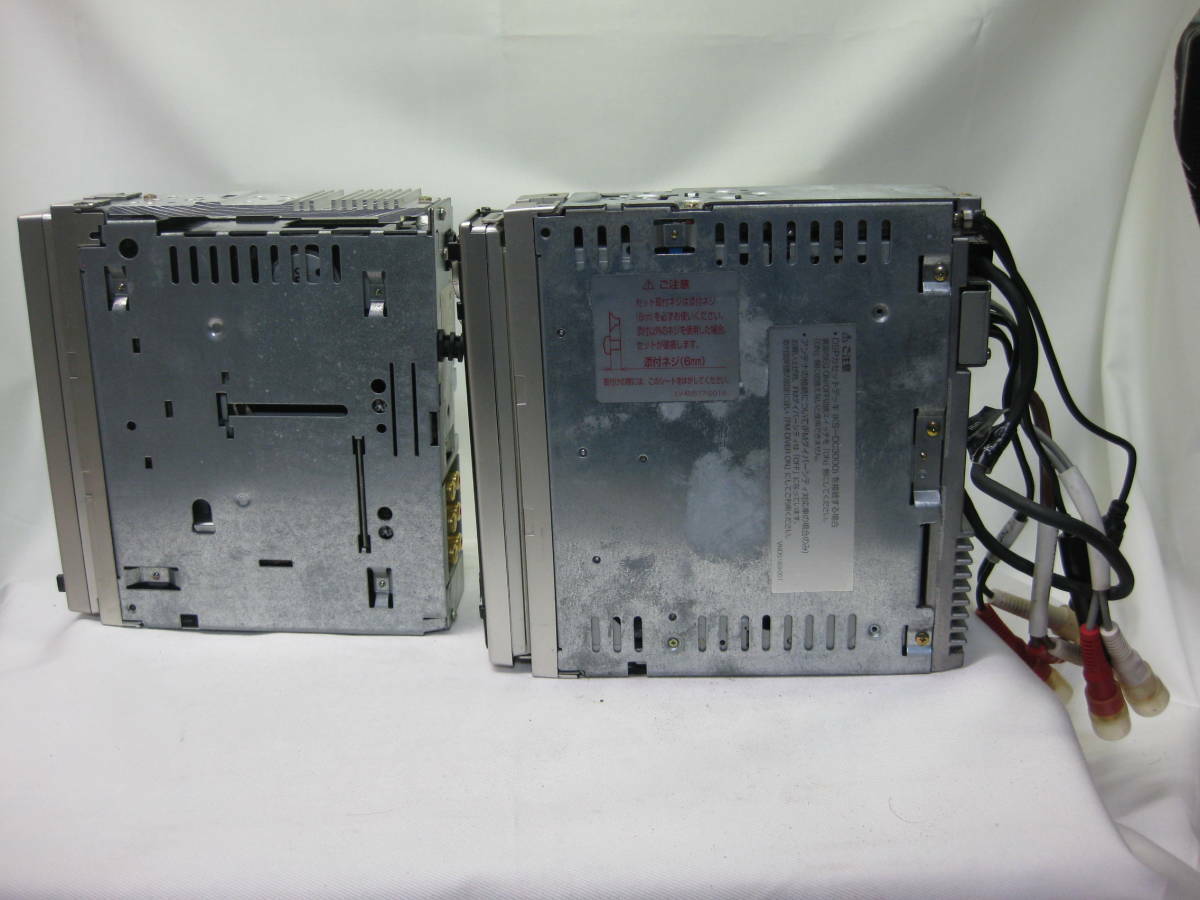

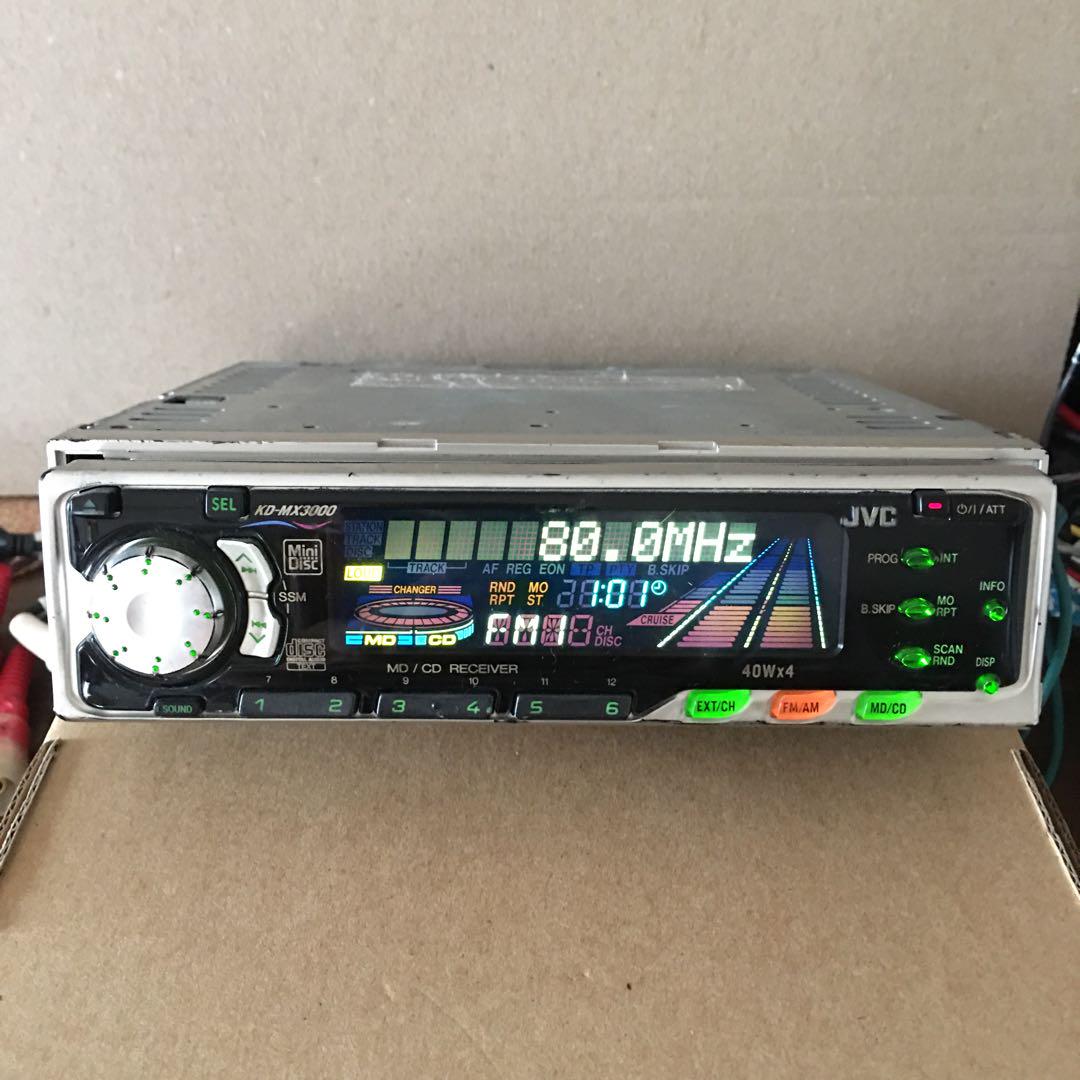

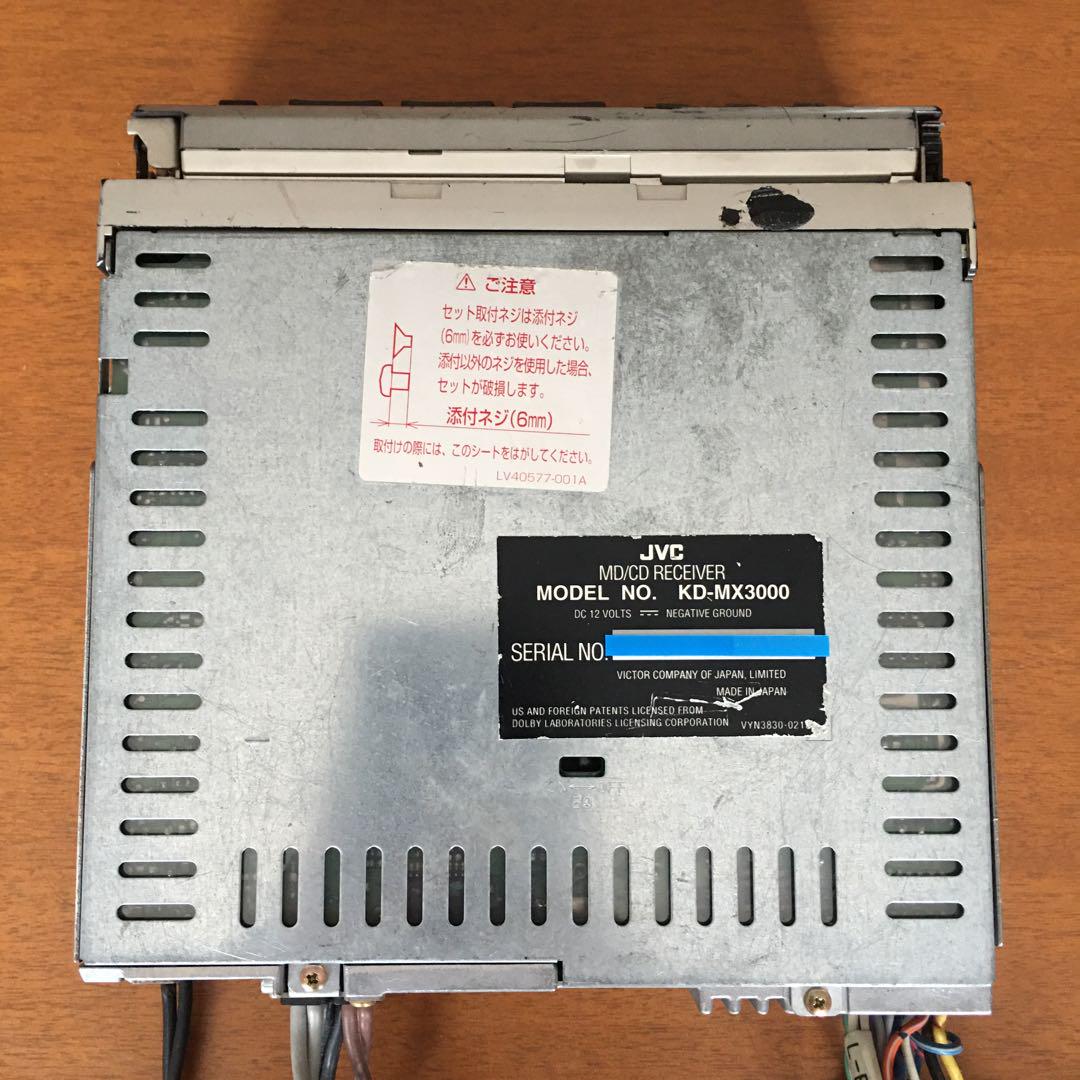

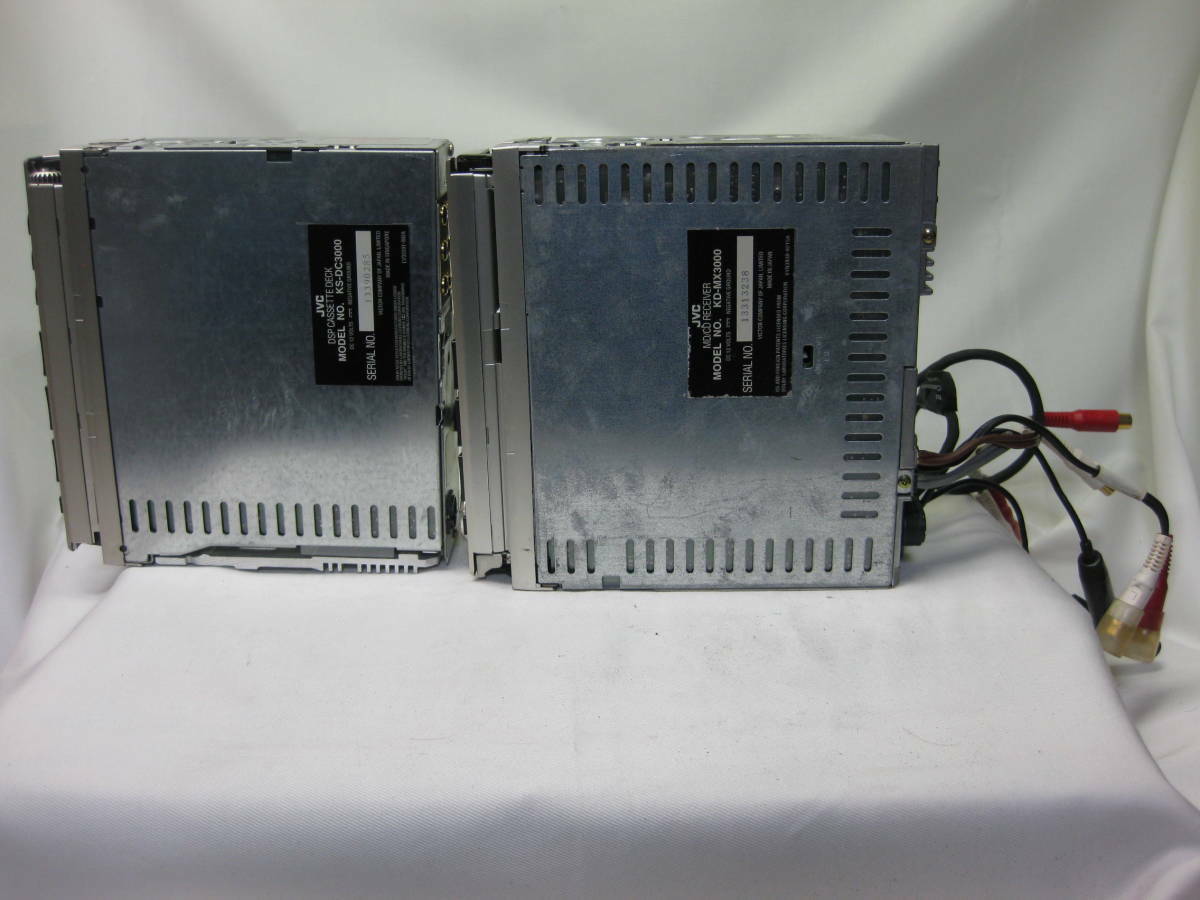

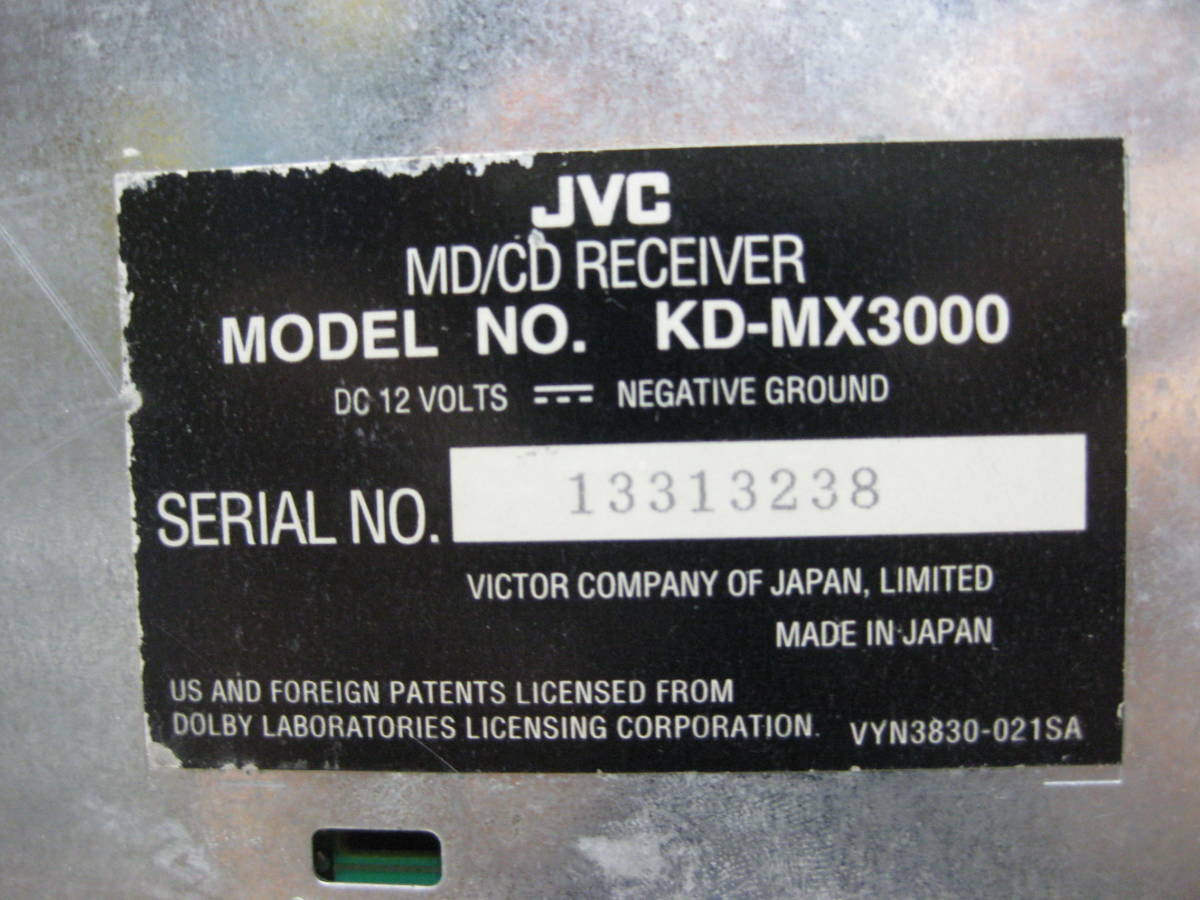

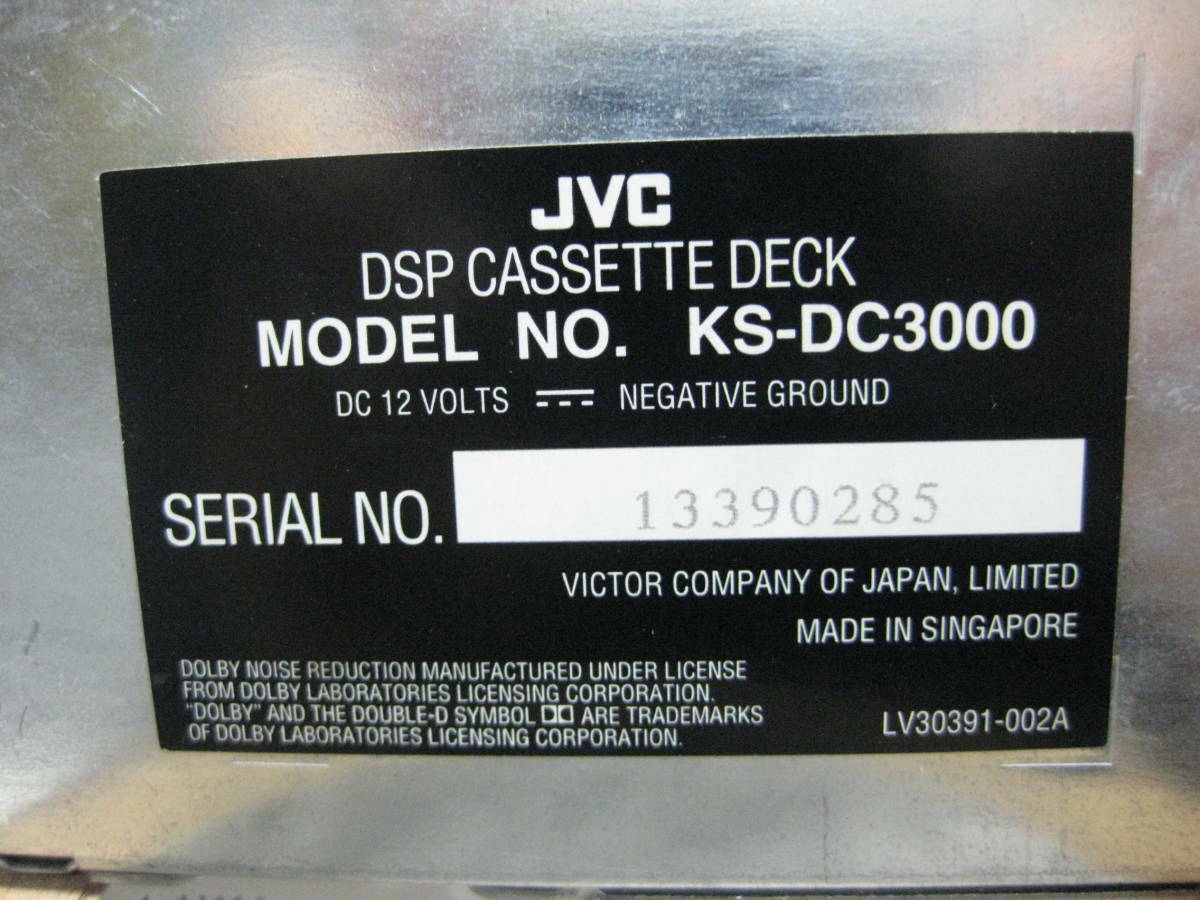

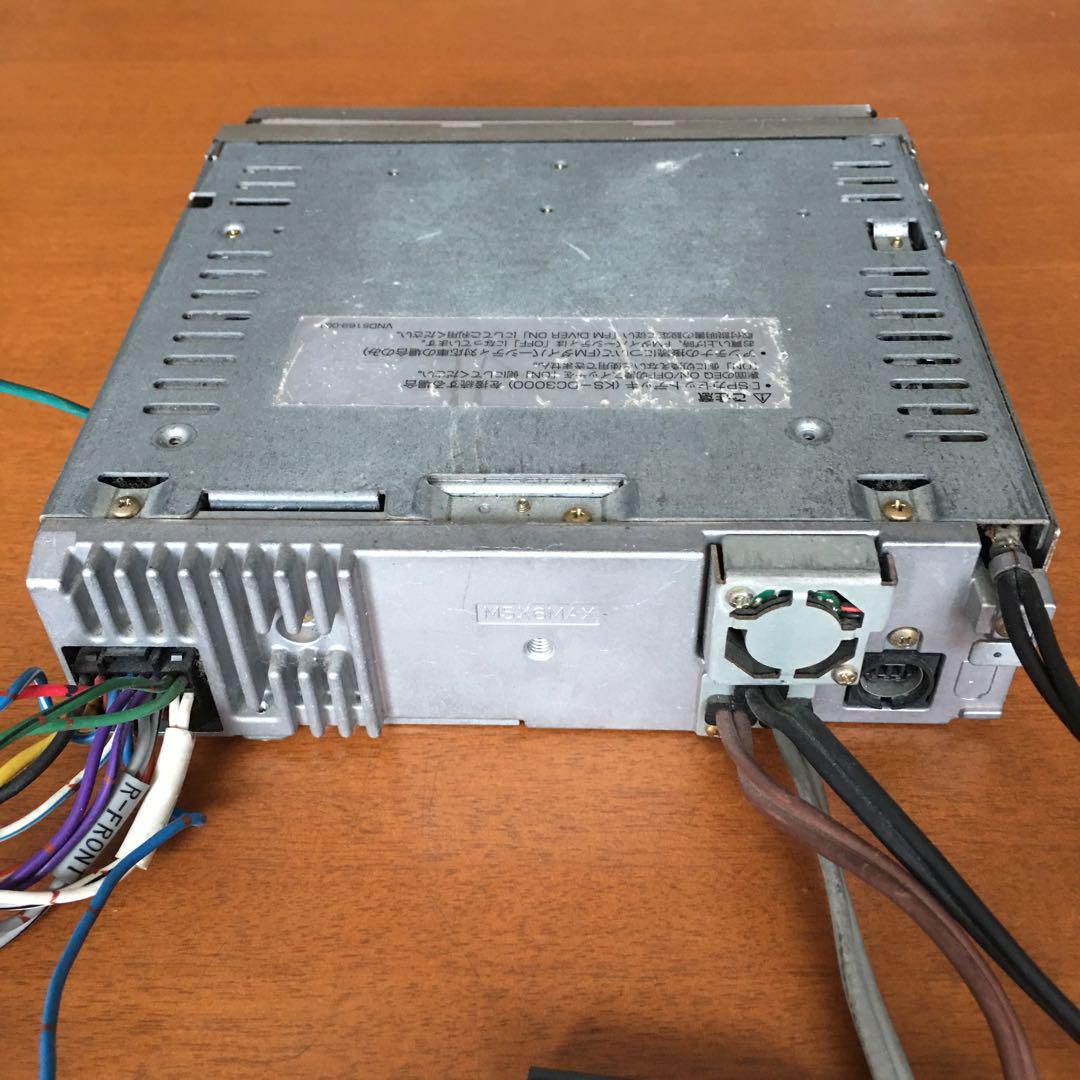

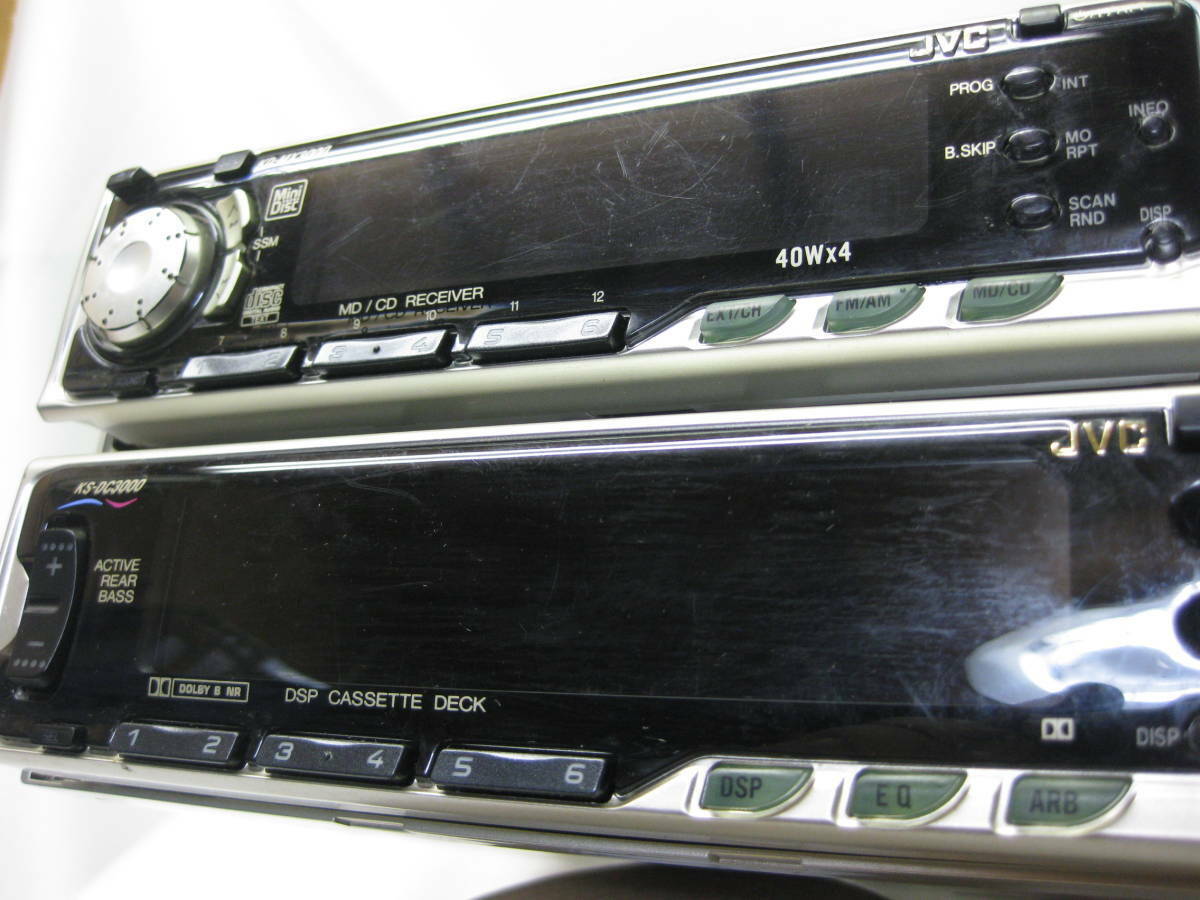

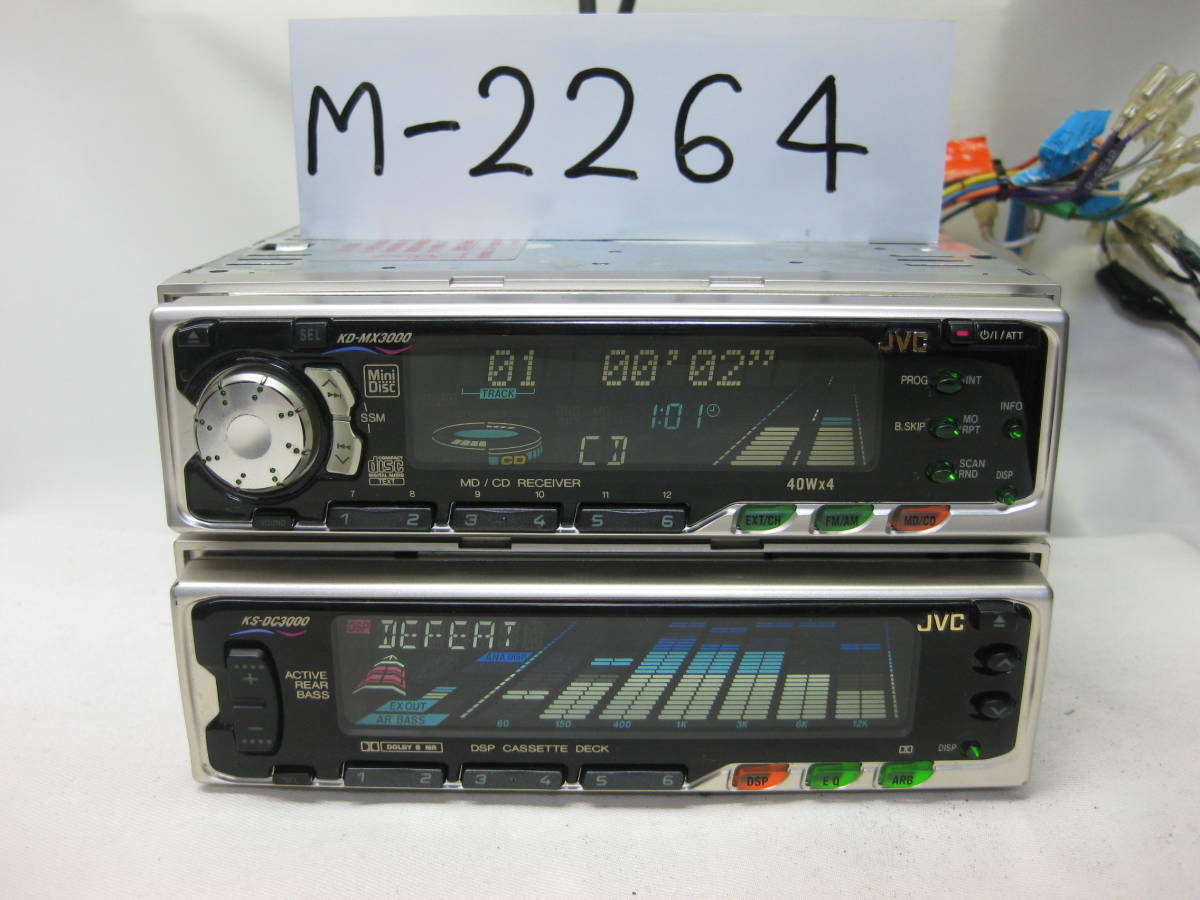

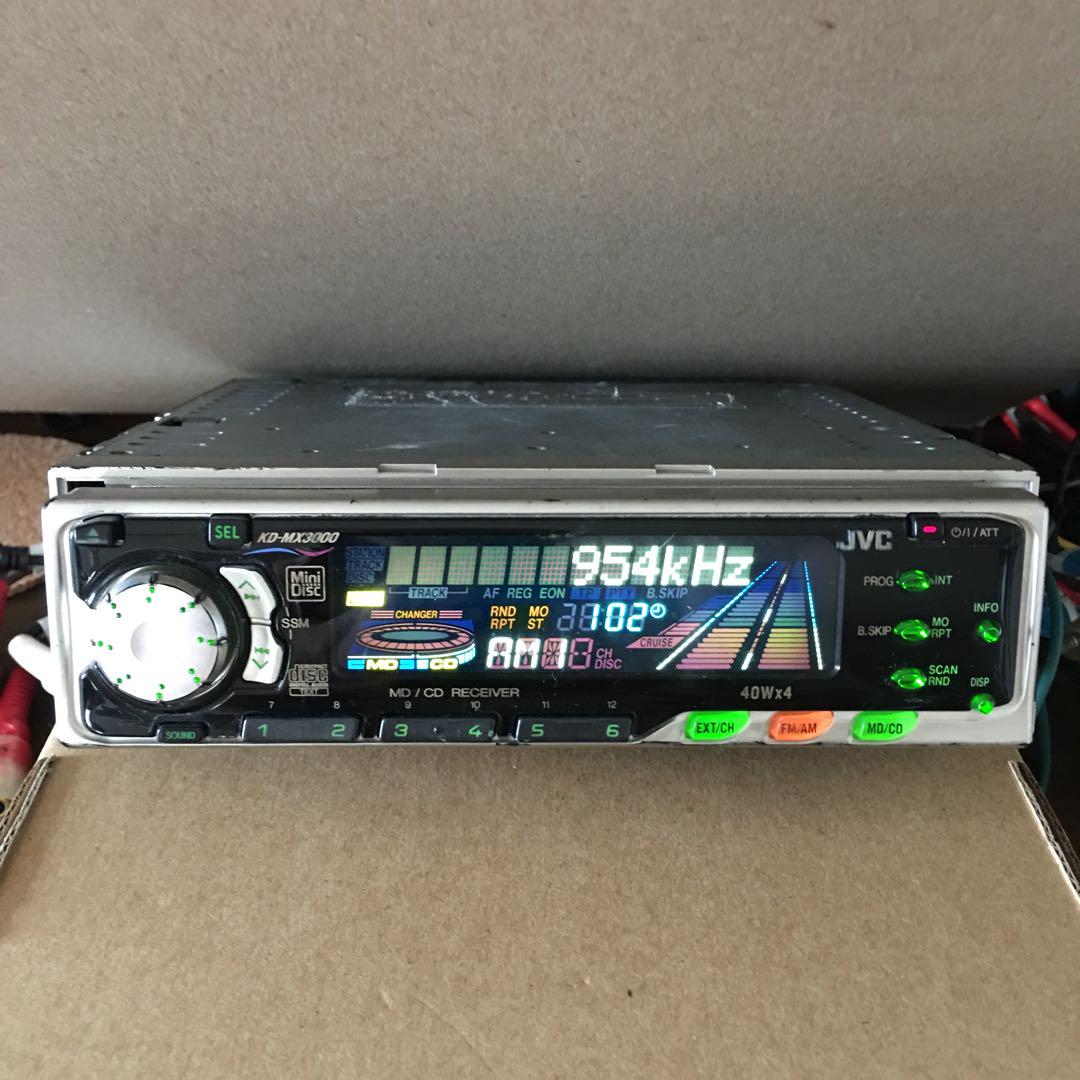

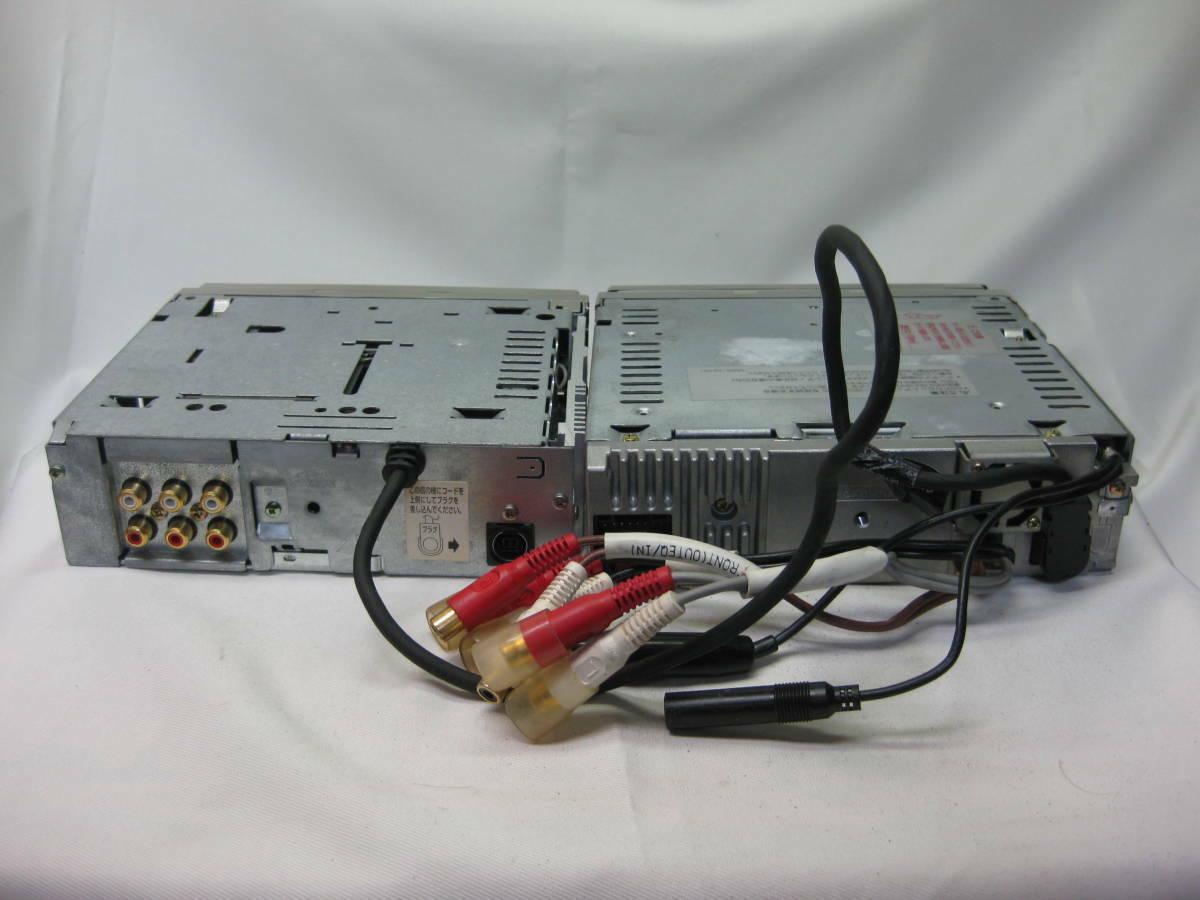

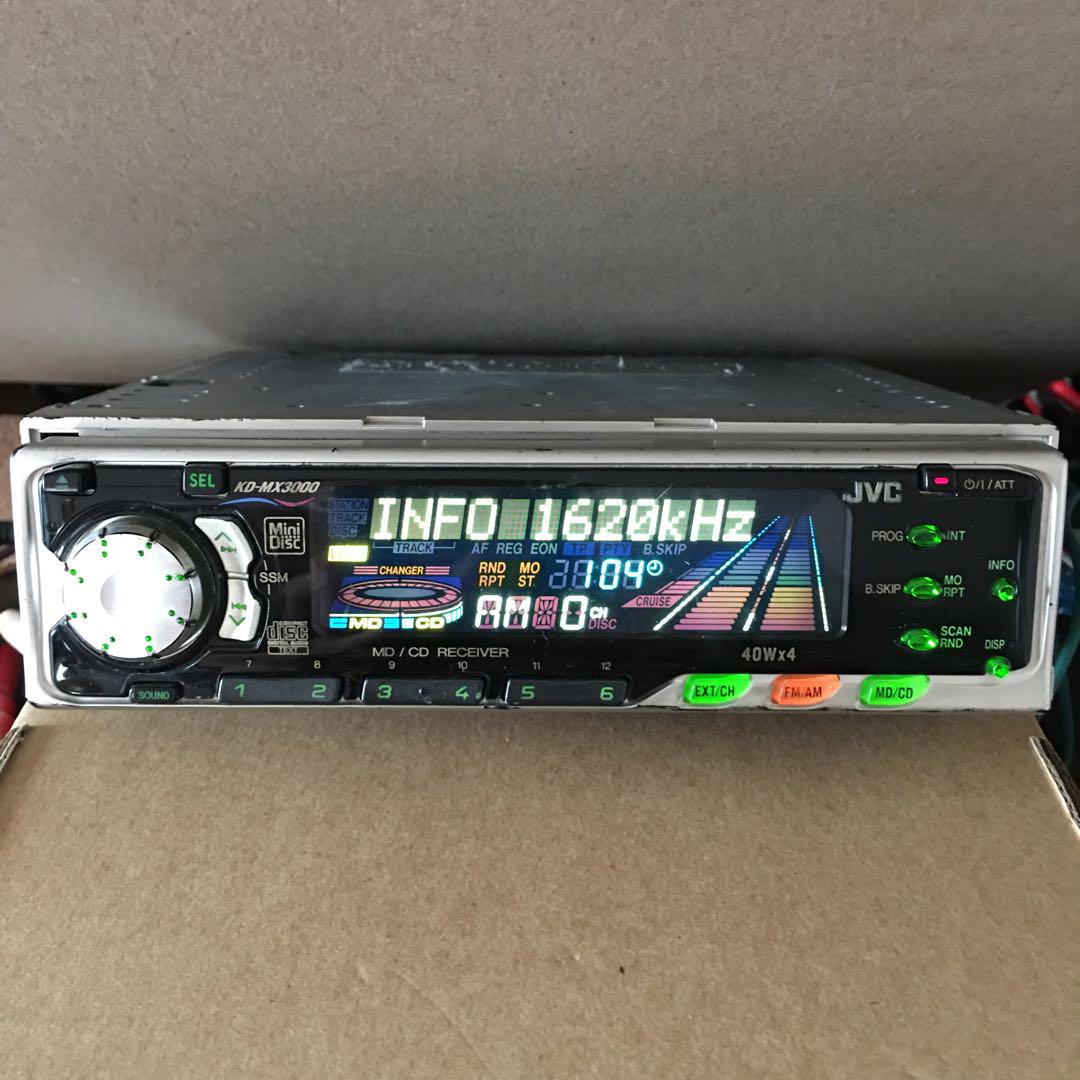

Photos

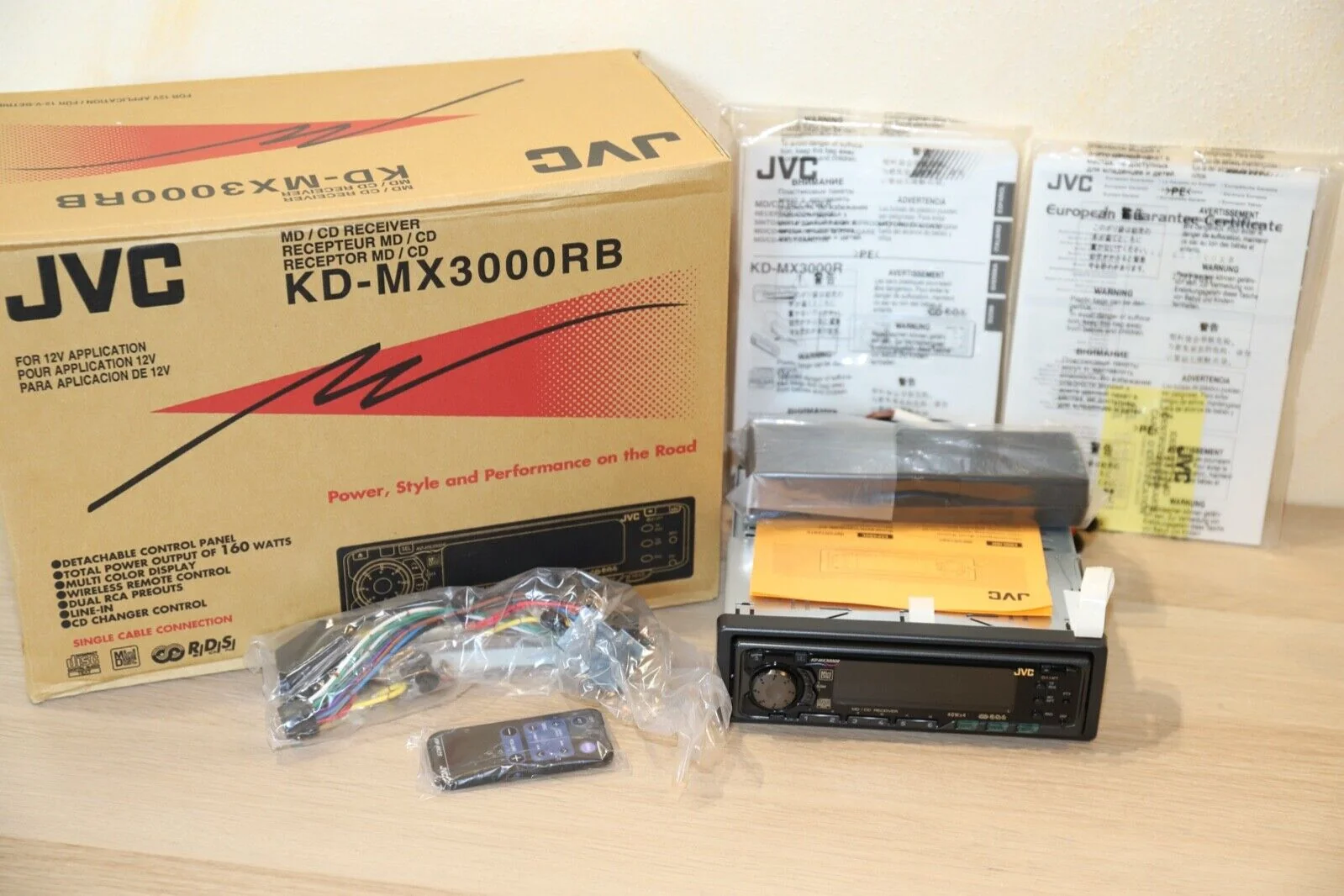

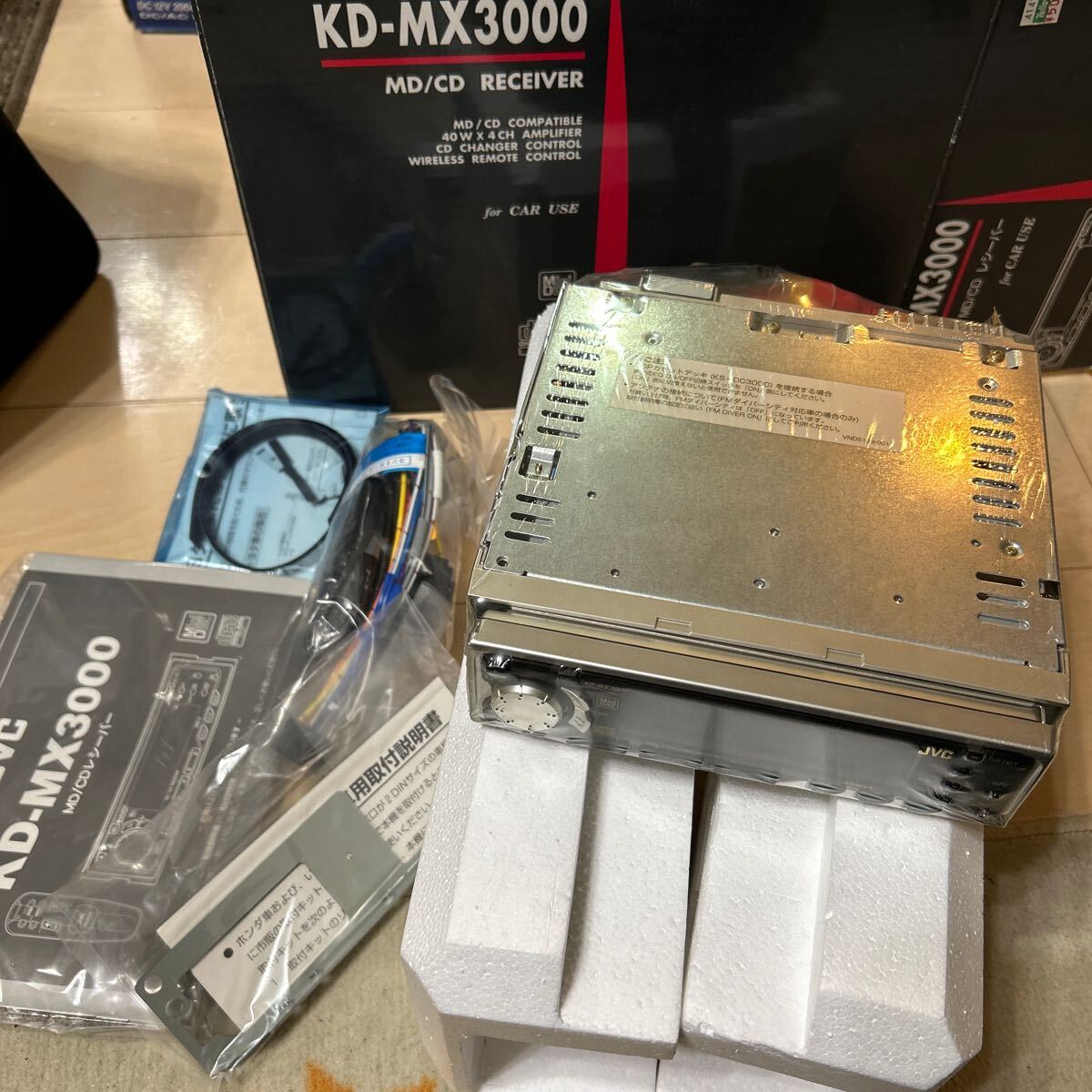

JDM packaging:
