JVC KW-MC35

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-08-08

Manufacturer
JVC
Model / source grouping
KW-MC35
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “JVC KW-MC35”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name KW-MC35
Manufacturer JVC
Released 2004/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din (W) 178 mm × (H) 100 mm × (D) 169 mm
Weight 2100
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥44 100
-
Inputs 3.5mm line in (analog-only)
Outputs RCA out
Control Not recorded

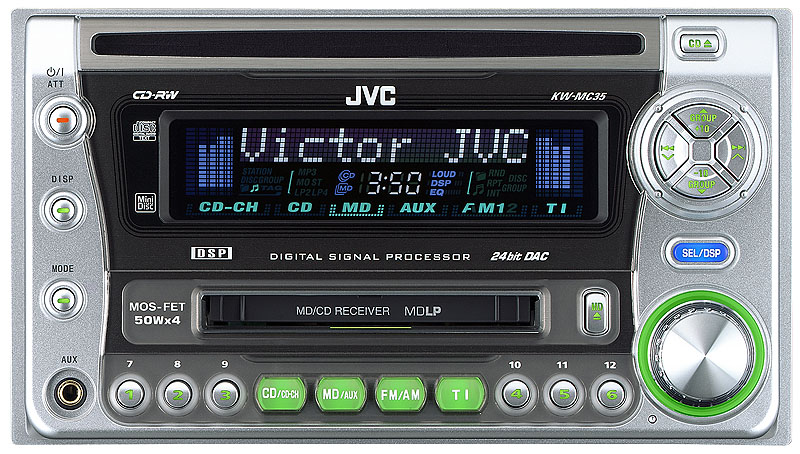

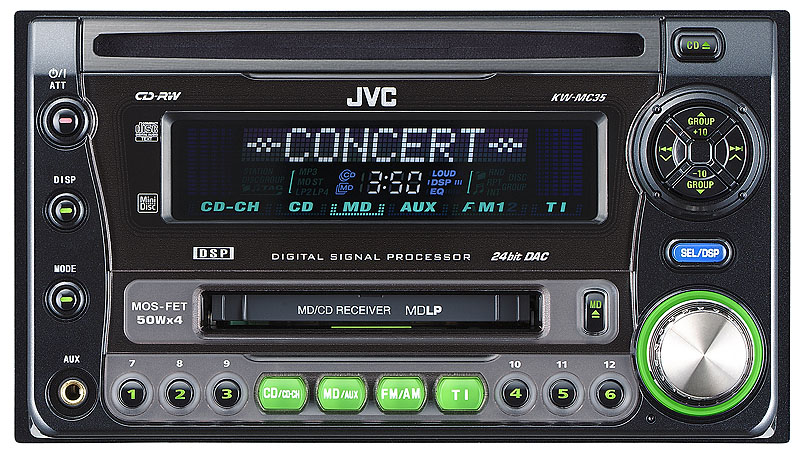

JVC KW-MC35. Available in KW-MC35-S (silver) and KW-MC35-B (black)

  • We have improved operability by adopting a high-brightness LED that is easy to catch the eye around the frequently used source key, SEL key, and volume key.
  • Equipped with "24bit DAC" that realizes high-quality sound reproduction (CD part).
  • "Amplifier gain control" that can switch the maximum output of the built-in amplifier in two stages according to the allowable input of the speaker.

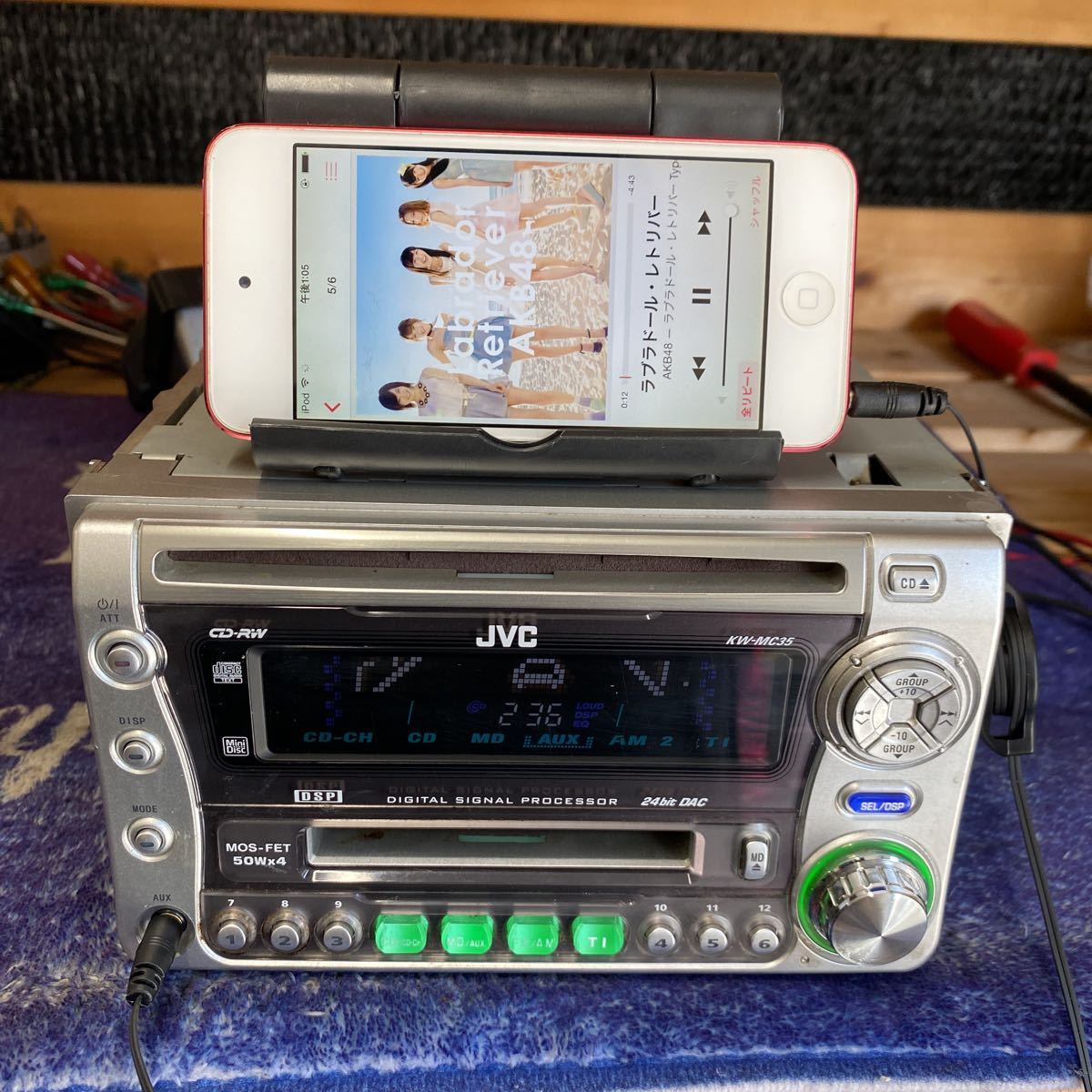

  • Equipped with an AUX input terminal on the front panel that is convenient for connecting mobile devices.
  • Equipped with a "power flash" that blinks the power button after the engine is stopped.
  • Built-in MOS-FET 50W x 4ch high power amplifier that allows you to enjoy powerful sound with high efficiency and little distortion.

Content adapted from: AV Watch Press Release JVC Press Release JVC Product Page

Manuals

JVC KW-MC35 User Manual JP

Repair

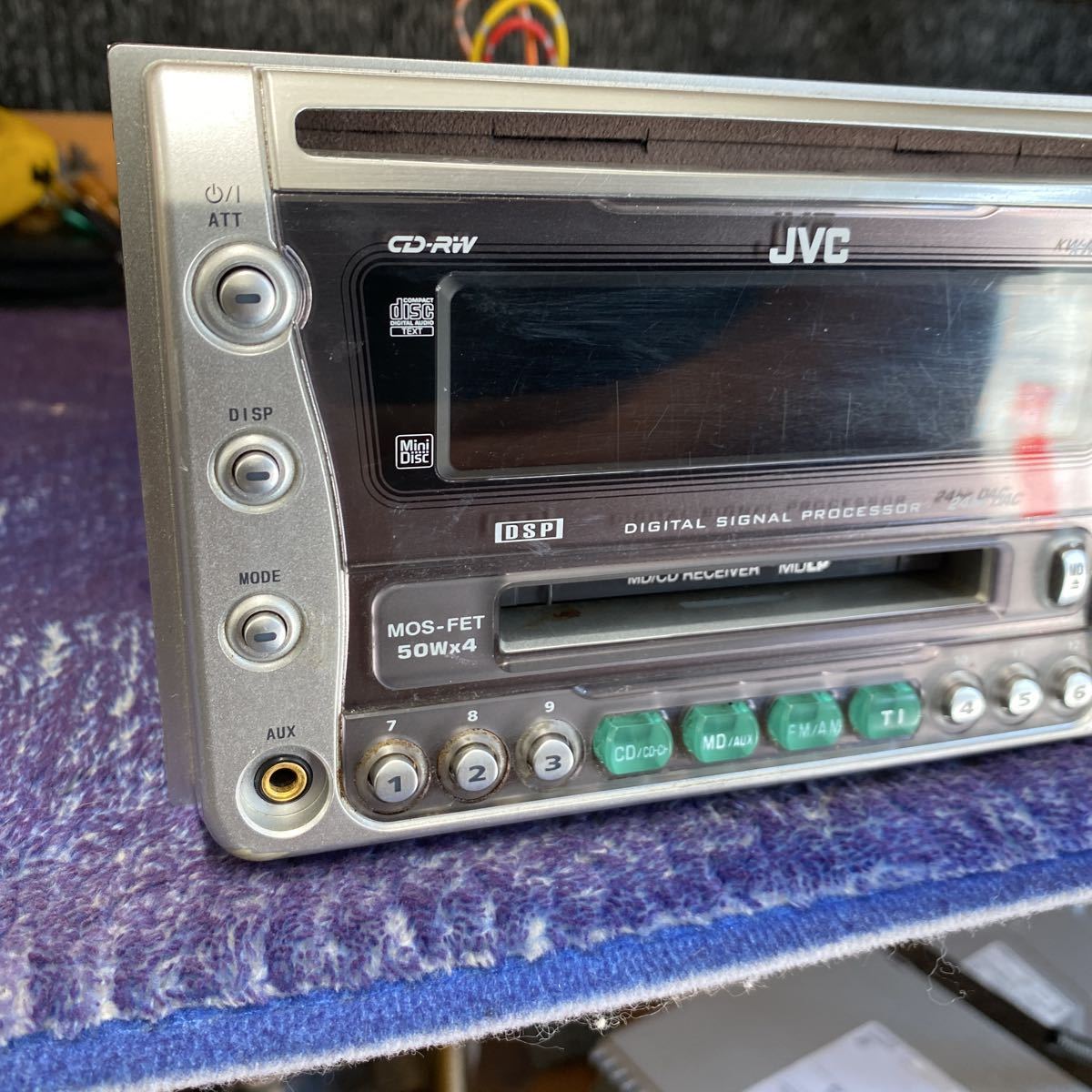

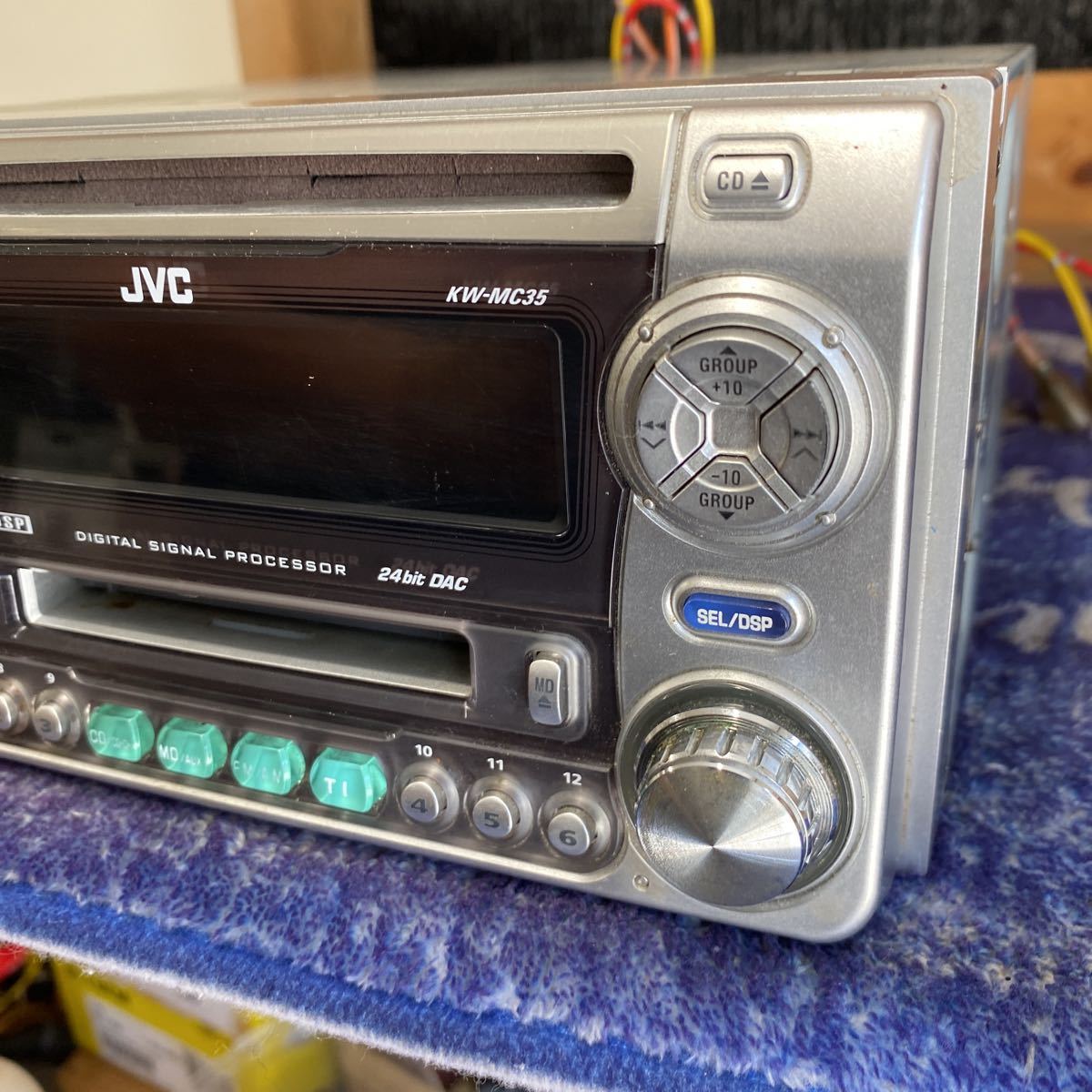

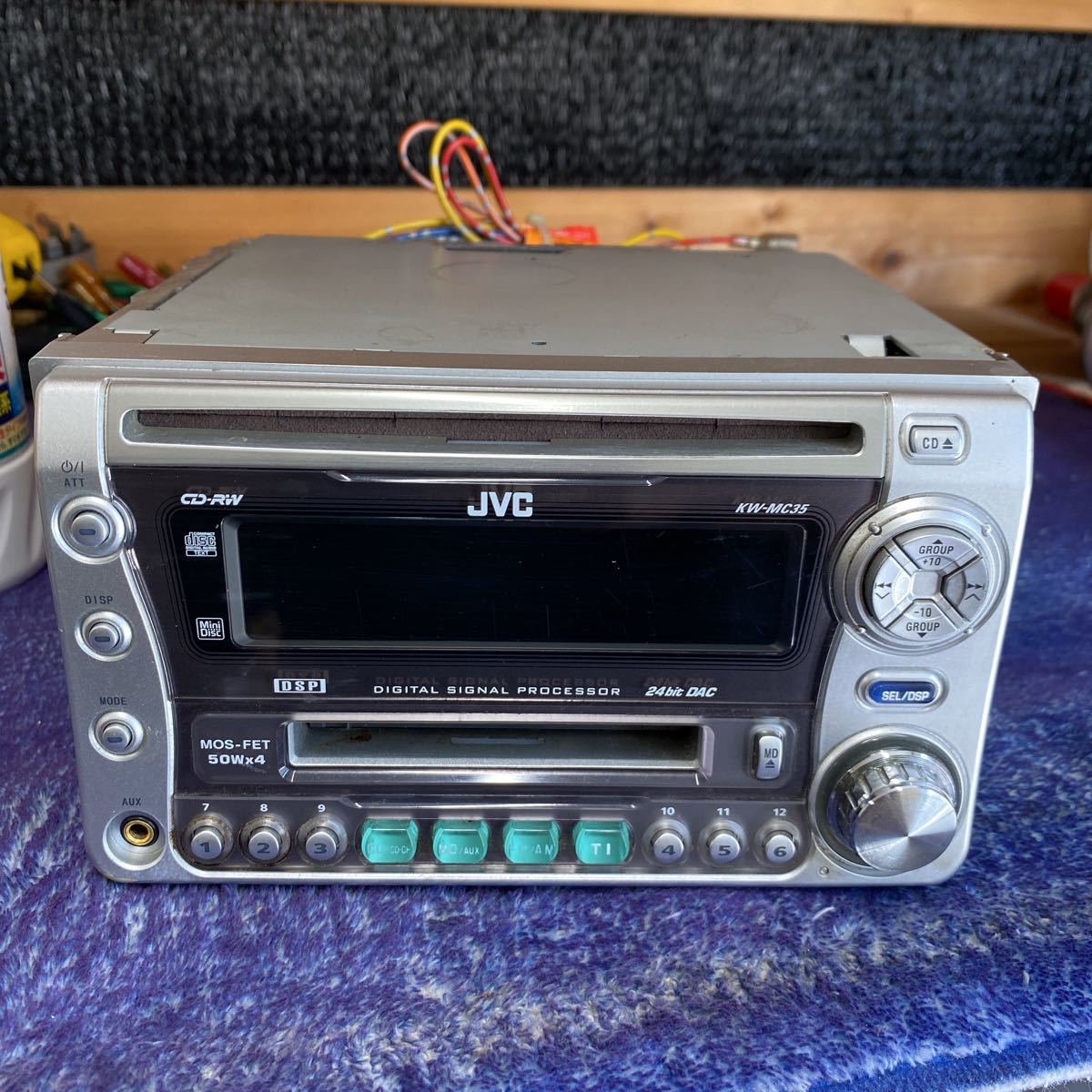

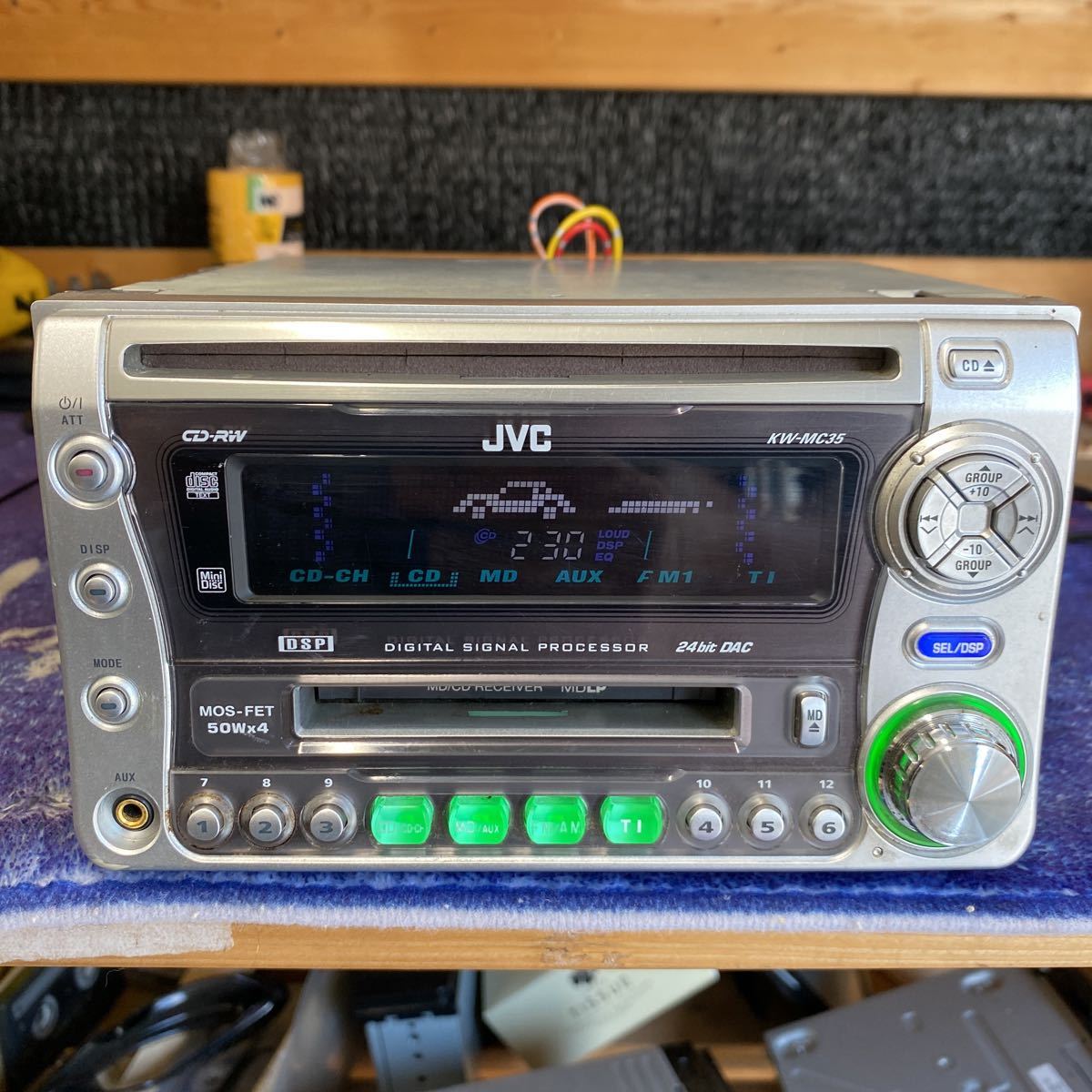

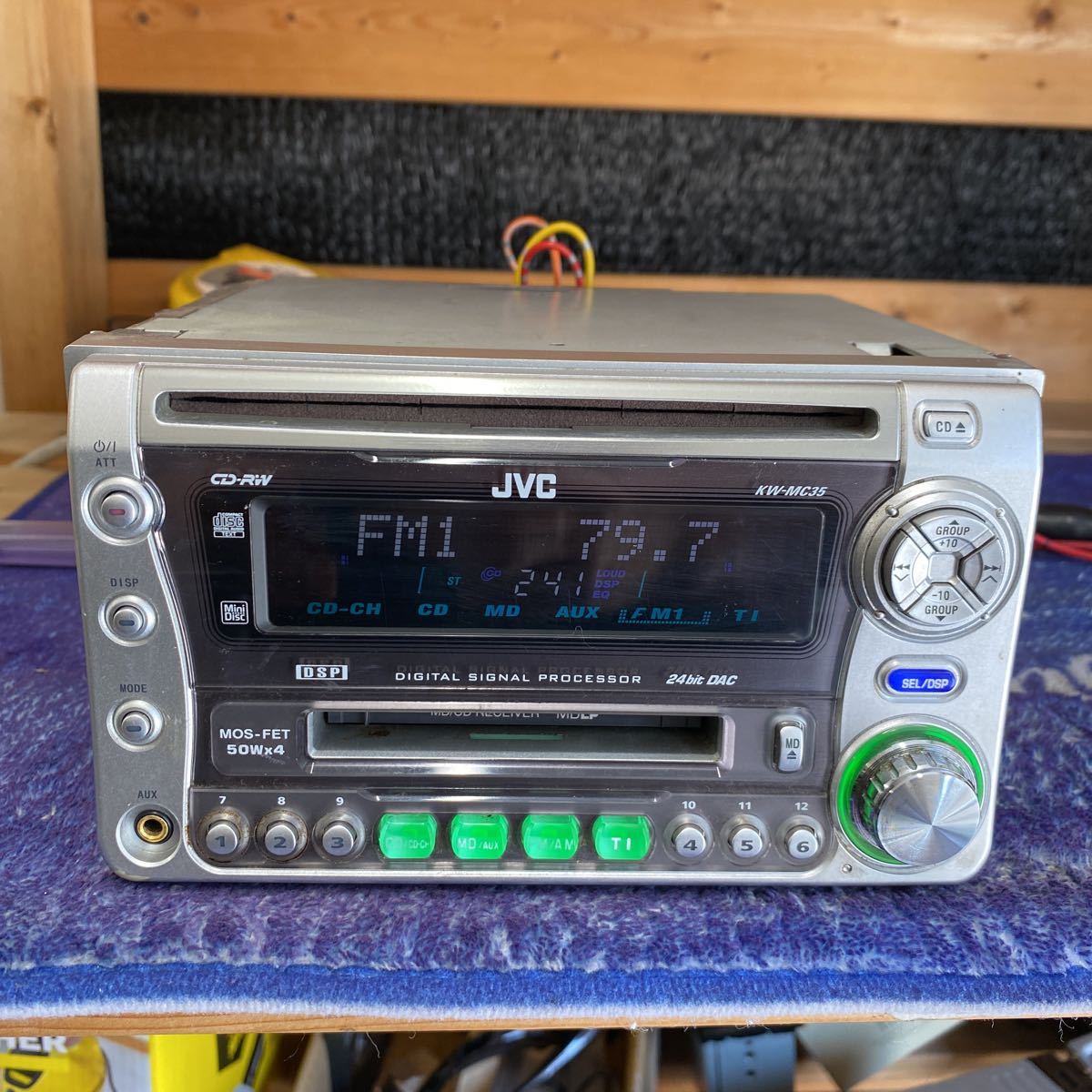

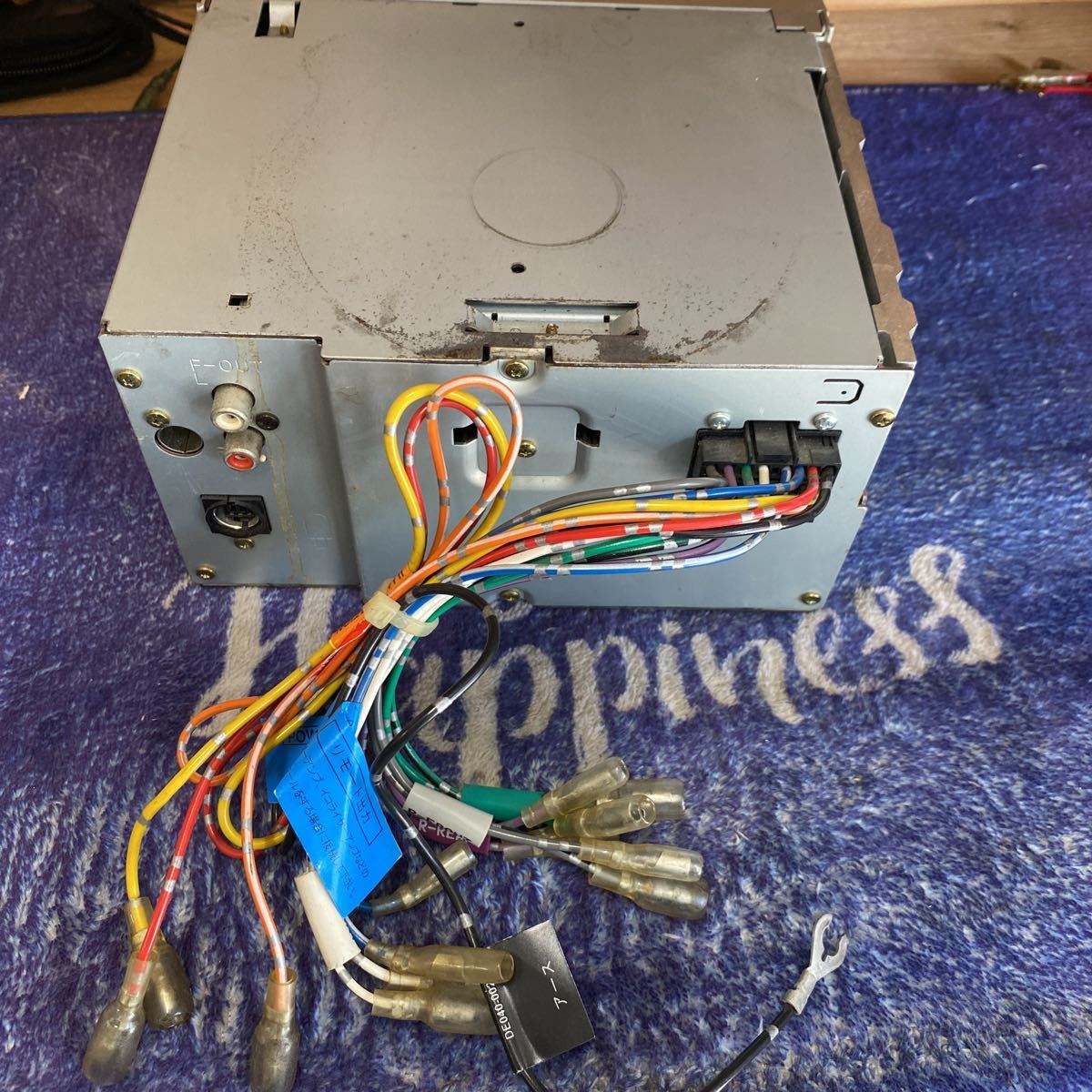

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
