JVC KW-MC36

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-19

Manufacturer
JVC
Model / source grouping
KW-MC36
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “JVC KW-MC36”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name KW-MC36
Manufacturer JVC
Released 2005/06
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din (W) 178 mm x (H) 100 mm x (D) 169 mm
Weight 2100
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥38 850
-
Inputs 3.5mm line in (analog-only), CD
Outputs RCA out
Control Not recorded

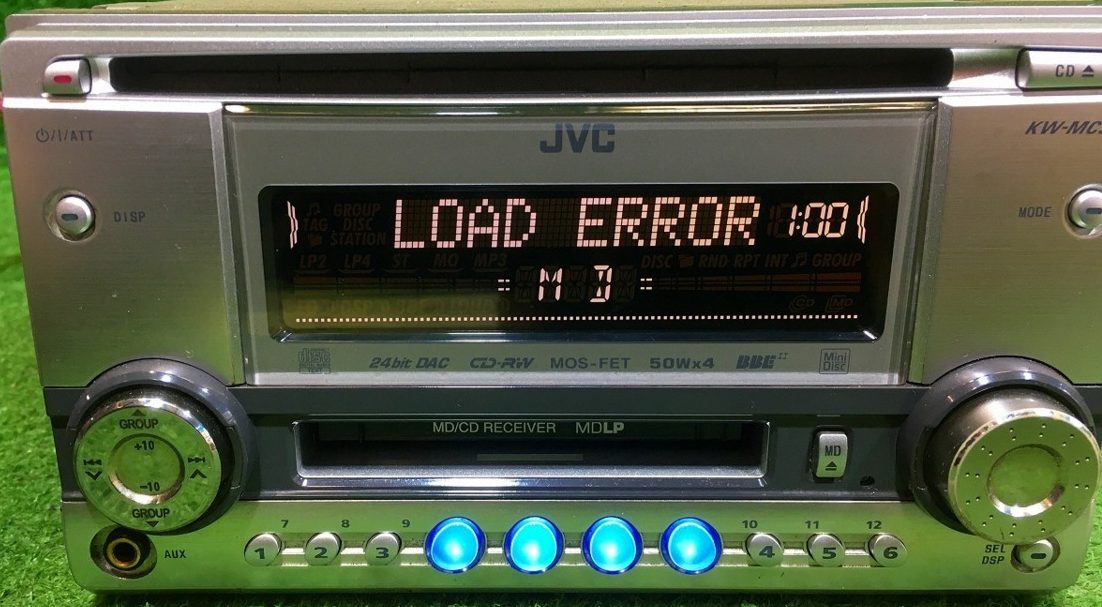

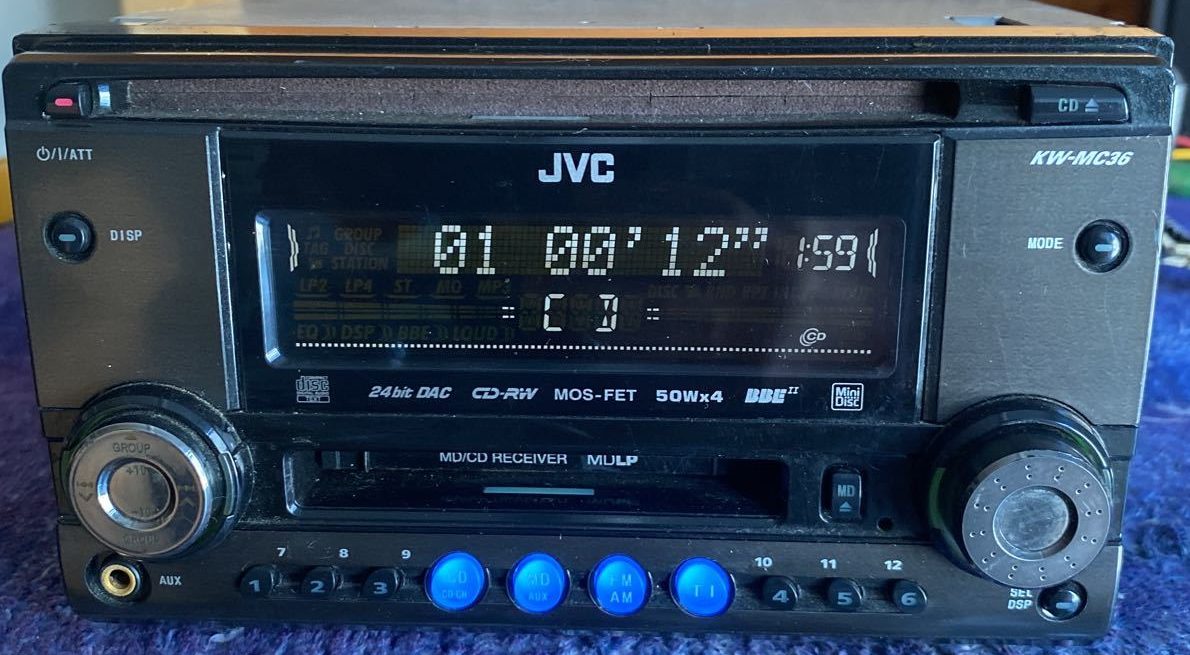

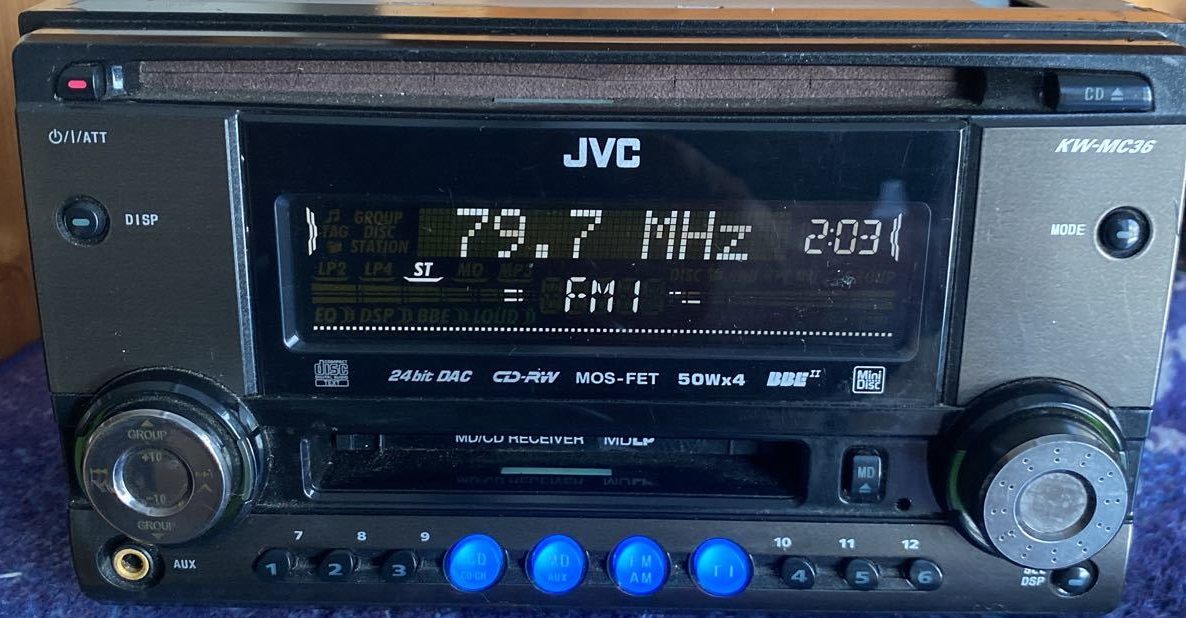

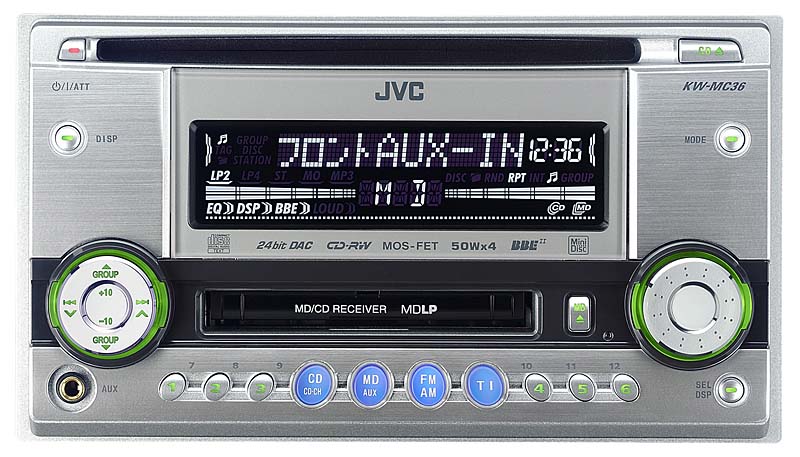

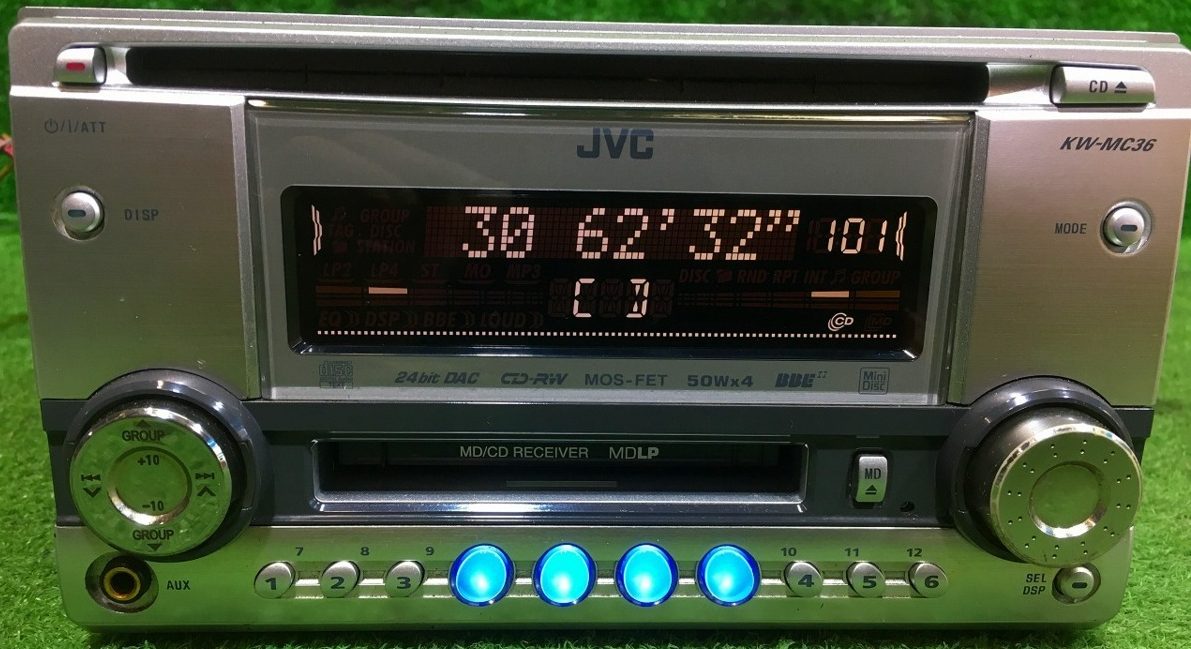

JVC KW-MC36. Offered in -S (silver) and -B (black)

A 2DIN size unit with a built-in CD, MD deck, FM / AM tuner, and MOS-FET amplifier with a maximum output of 50W x 4ch. A 24-bit DAC is installed in the CD section.

As a sound field / sound quality adjustment function, 6 patterns of DSP and 6 patterns of customizable equalizer can be used. In addition, it also has a "BBE Sound Processor II" that reproduces a crisp sound.

24-bit ATRAC is used for signal processing of the MD section (during SP mode playback). It also supports Net MD, MDLP, and MD group playback.

In addition, a "power flash" that blinks the power button after the engine is stopped to prevent theft, an "amplifier gain control" function that switches the output of the built-in amplifier according to the allowable input of the speaker, and a mobile phone connected to a hands-free system, etc. You can also use the "muting" function that temporarily mutes the volume of the audio when using the telephone or when the car navigation system is voice-guided.

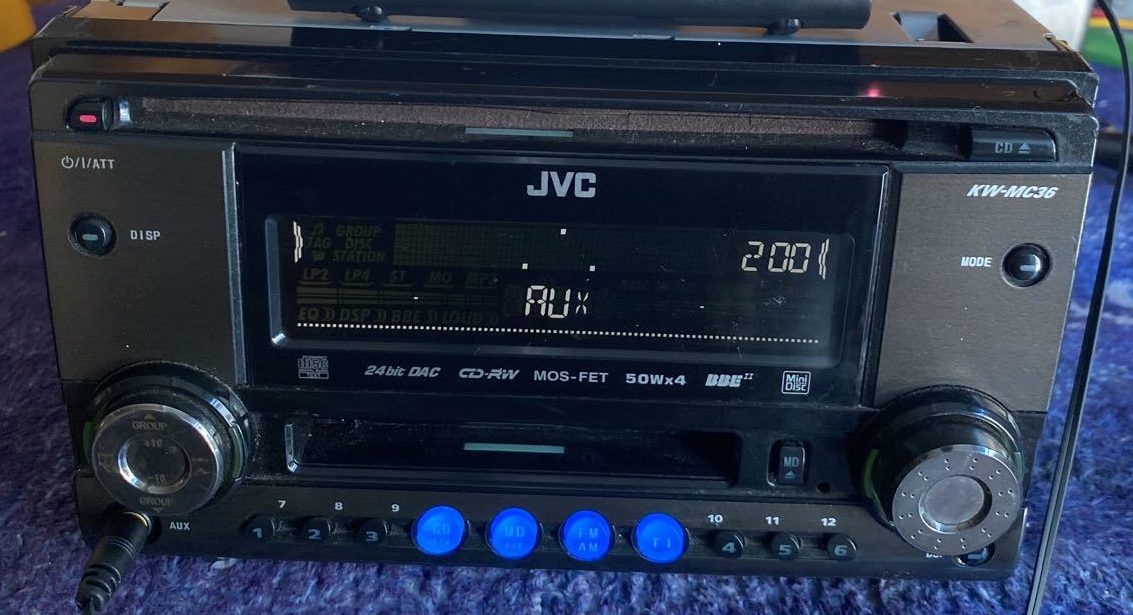

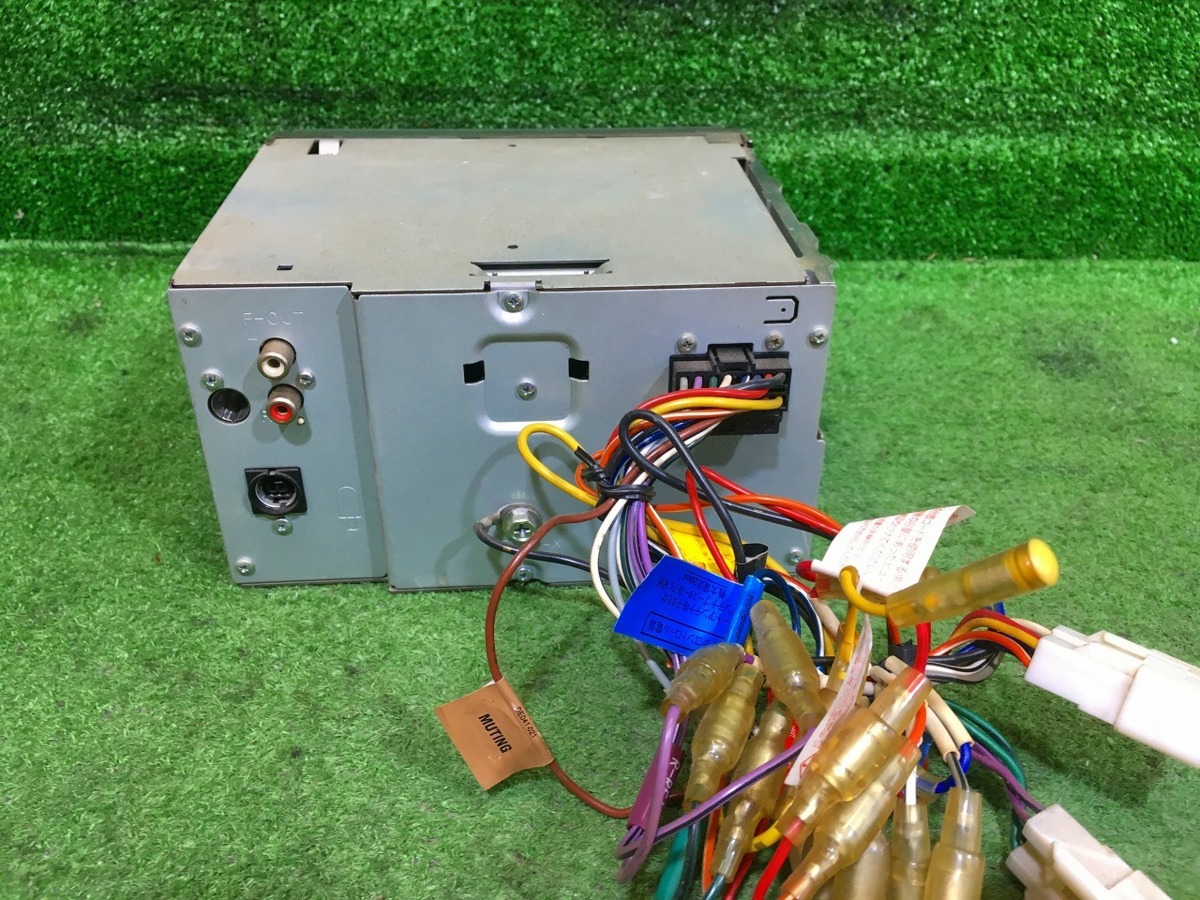

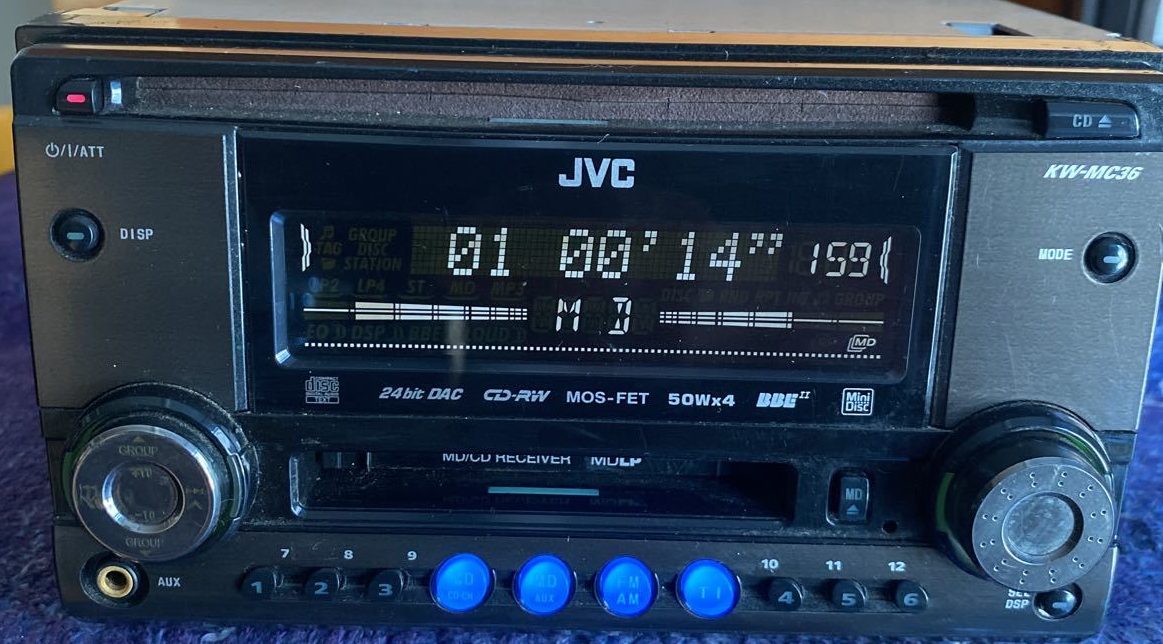

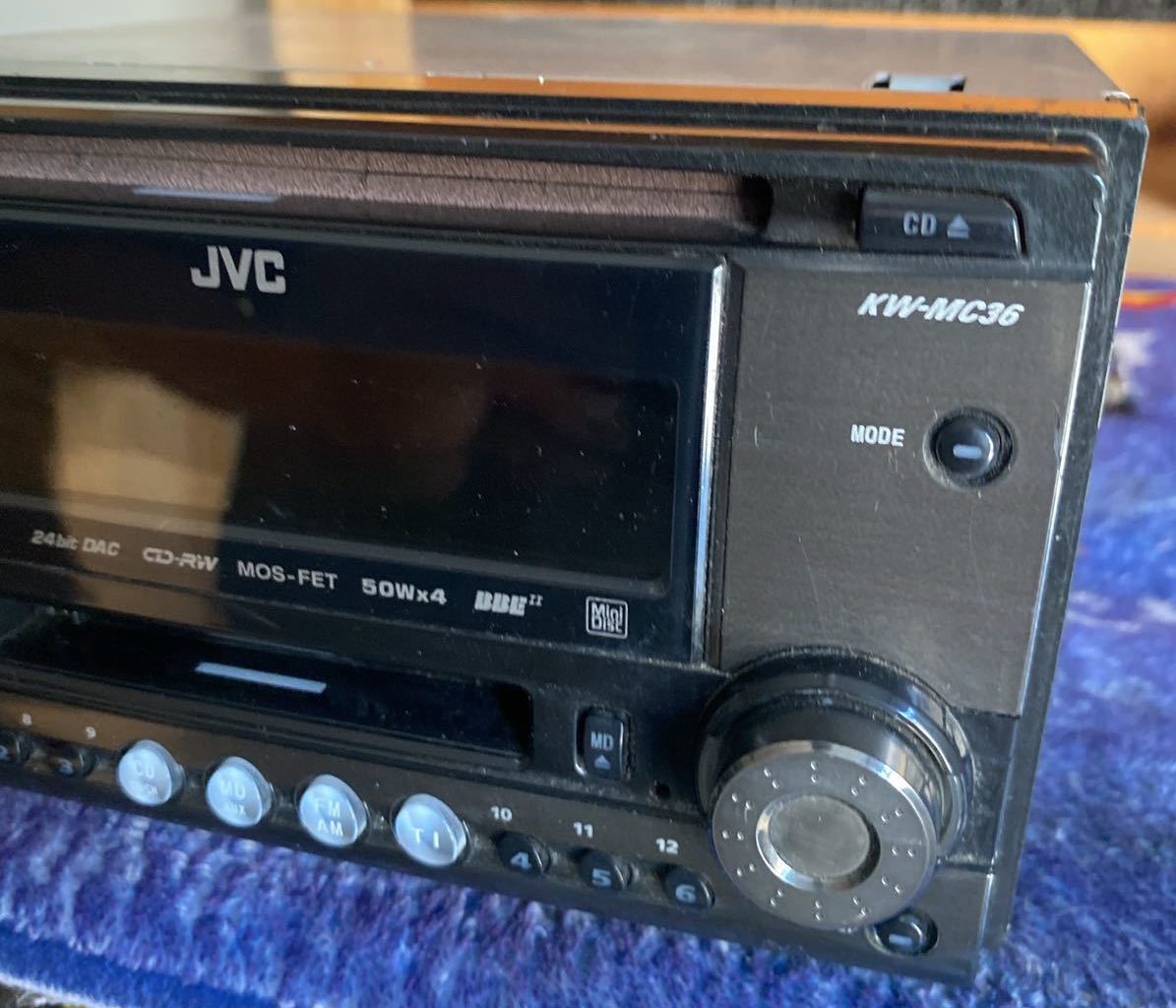

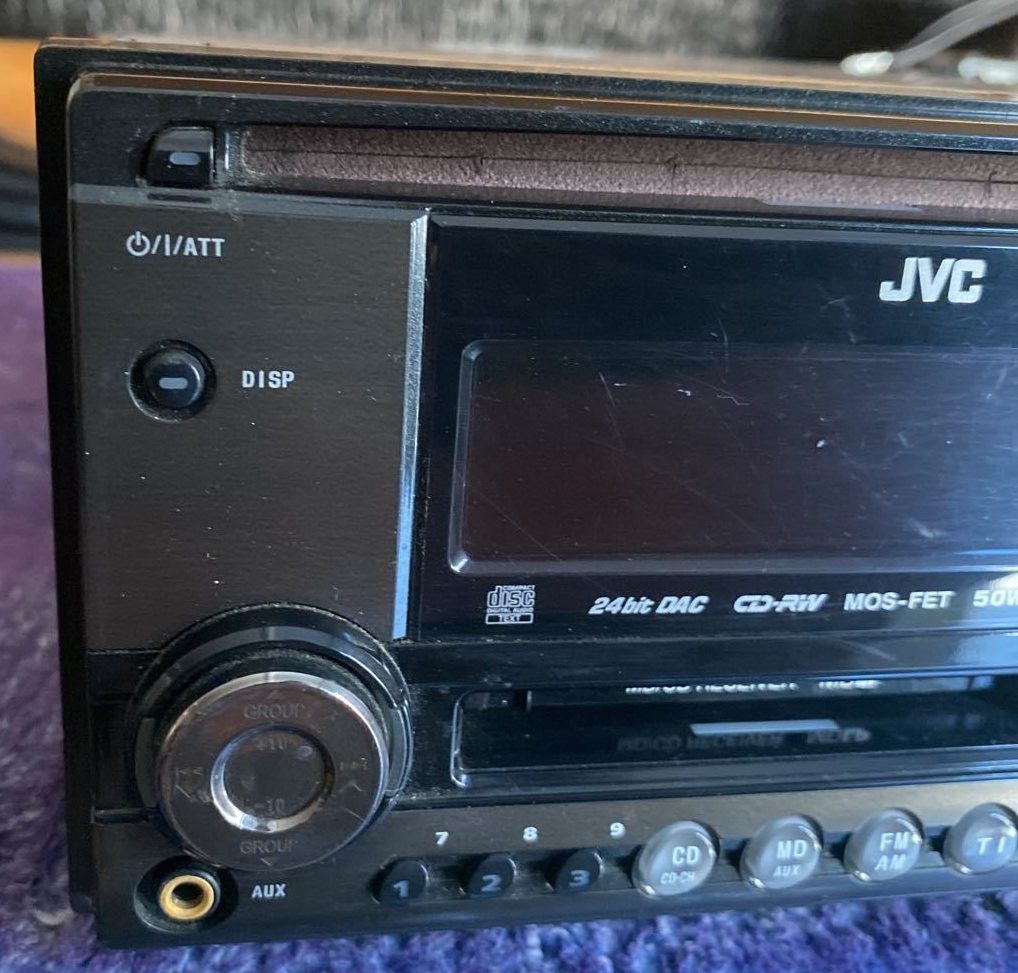

The front panel has a hairline finish. It is equipped with a display that uses a white negative LCD. In addition, the easy-to-operate rotary volume is placed on the right side according to the right-hand drive. In addition, it is equipped with an analog audio input terminal on the front. You can connect portable audio equipment. It also has one BUS input and one line out.

Content adapted from: JVC Press Release JVC Press Release (MiniDisc Wiki mirror) av.watch kakaku.com phileweb.com JVC car audio catalog spring 2007

Manuals

JVC KW-MC36 User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
