Device

JVC KW-MZ630

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-07-03

Manufacturer
JVC
Model / source grouping
KW-MZ630
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “JVC KW-MZ630”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name KW-MZ630
Manufacturer JVC
Released 2005/06
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din W 178 x H 100 x D 169mm
Weight 2100
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥29 800
-

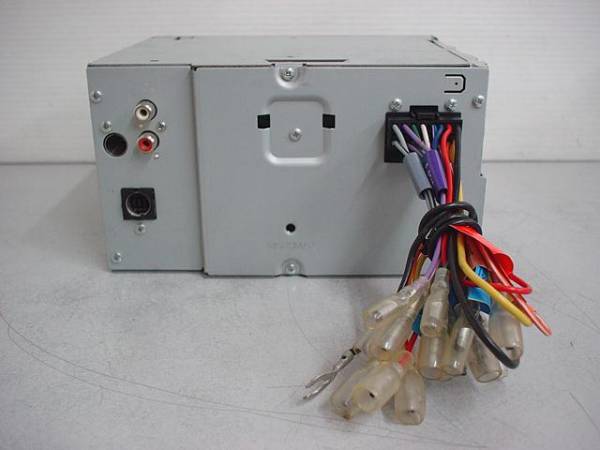

Inputs 3.5mm line in (analog-only), CD
Outputs Not recorded
Control Not recorded

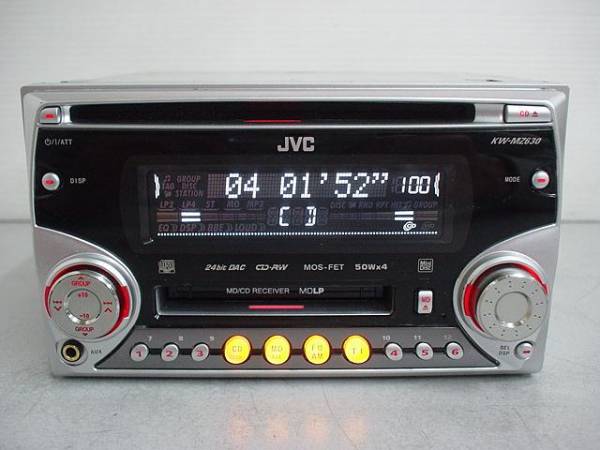

JVC KW-MZ630. Exclusive release for the AUTOBACS SEVEN stores in Japan.

The receiver of the new product is equipped with an external input terminal on the front face, and can be easily connected to a digital audio player, video movie, mobile phone with music playback function, etc., and you can enjoy the sound with car audio.

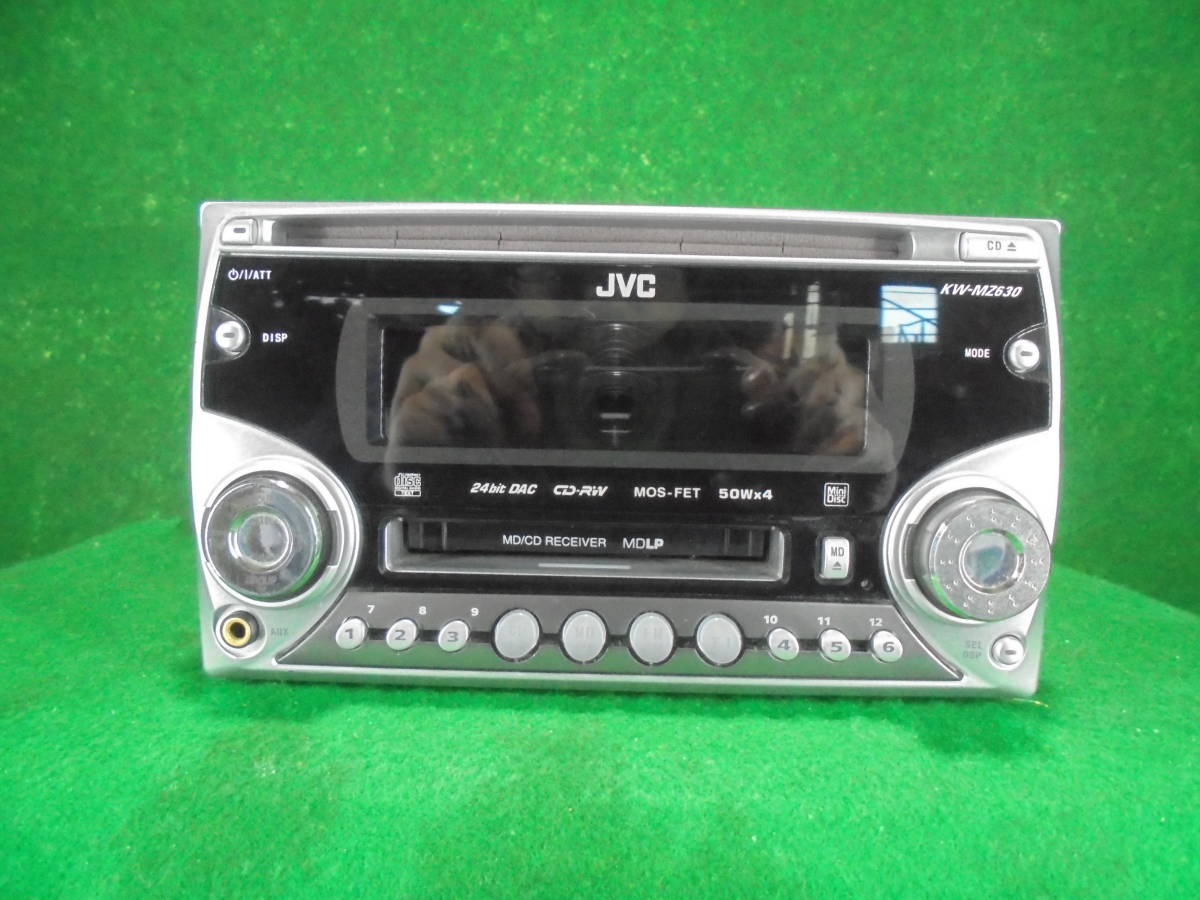

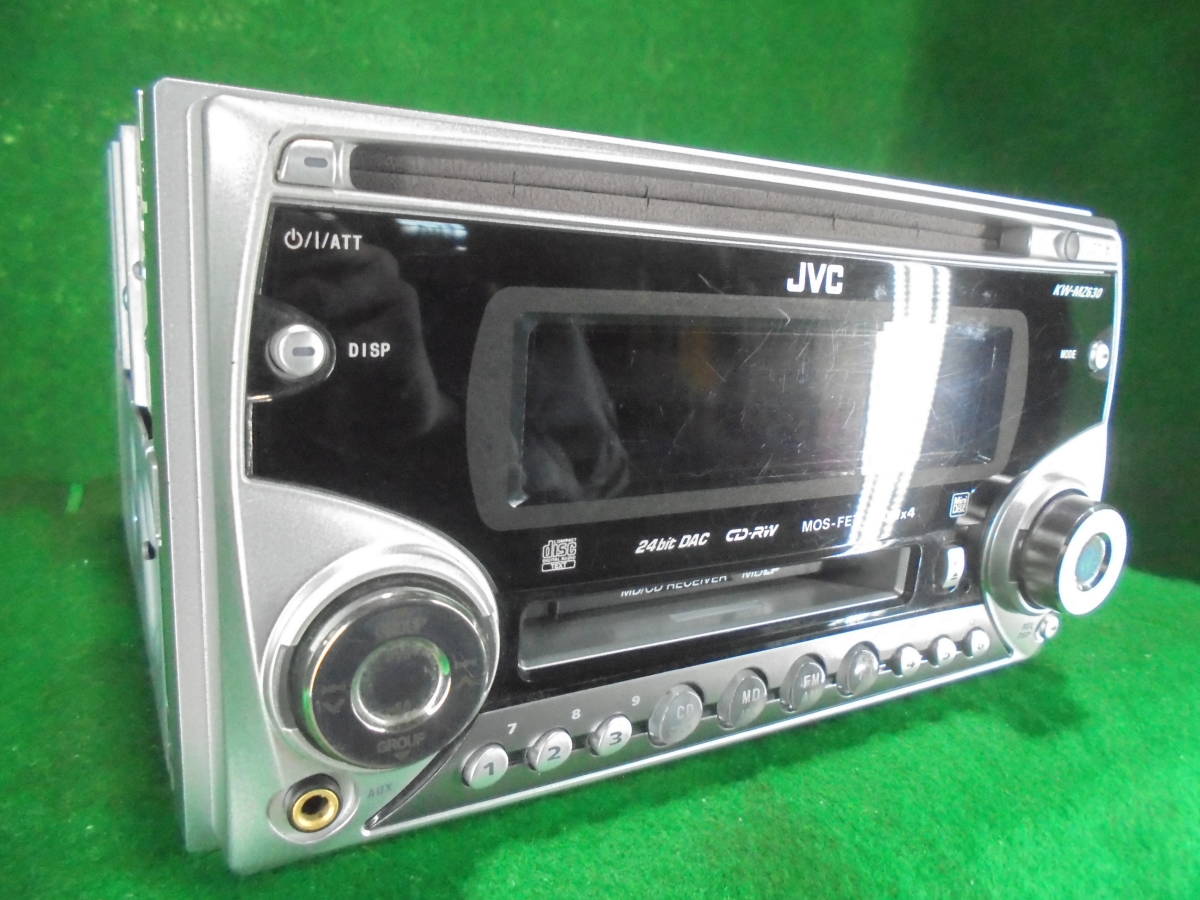

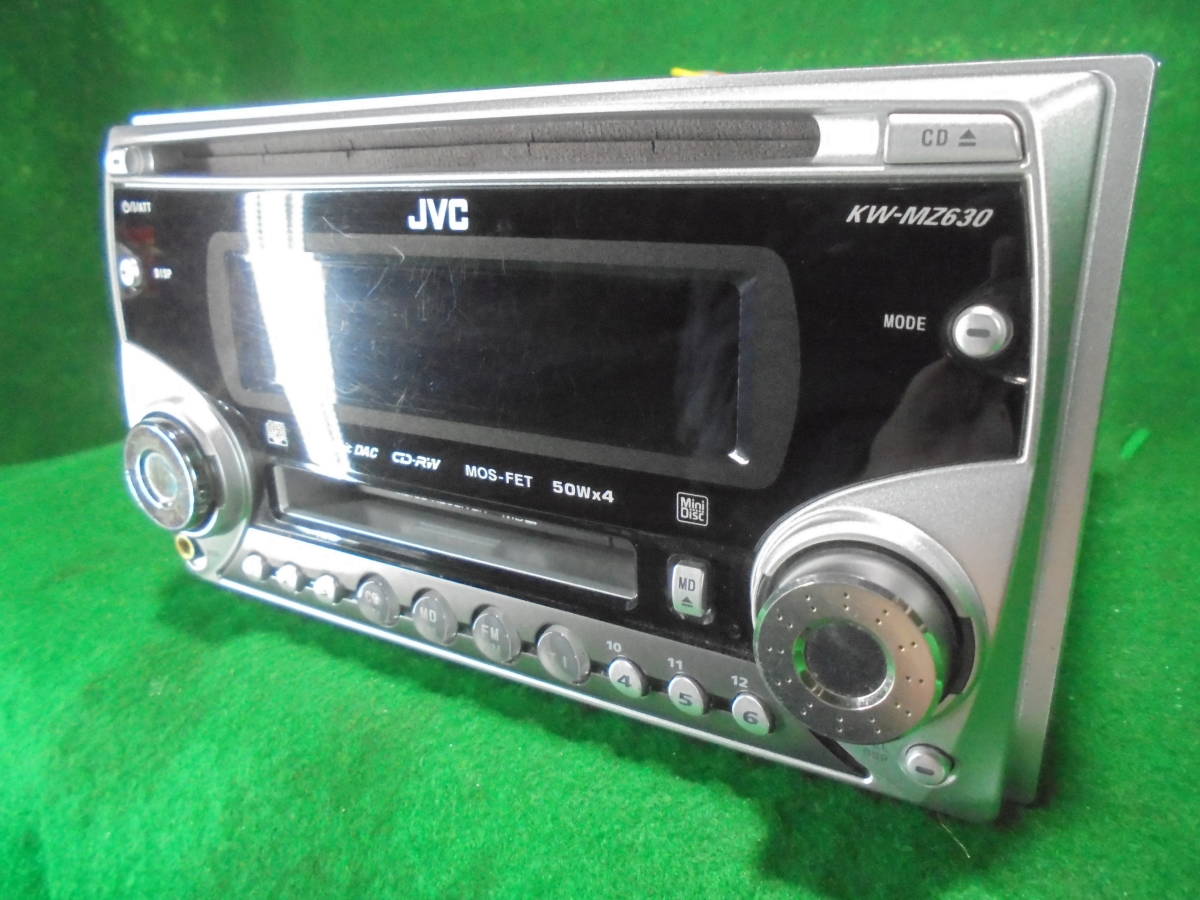

The design adopts a simple face panel design based on silver and black, and the frequently used direct source keys and number keys are concentrated at the bottom and the keys that emphasize operability are arranged.

In addition, a 6-mode DSP (digital signal processor) is installed to create the atmosphere of 6 types of performance venues such as dome and concert, and 6 patterns of customer equalizers are installed to match the sound quality of your choice according to the music genre you are playing. Can be selected.

Content adapted from: response.jp

Manuals

JVC KW-MZ630 User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
