JVC FS-V9MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2025-08-16

Manufacturer
JVC
Model / source grouping
FS-V9MD
Device type
bookshelf
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “JVC FS-V9MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FS-V9MD
Manufacturer JVC
Released 2000/01
Device type bookshelf
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Not recorded
Dimensions Center Unit 6.25 x 9.125 x 12.25 in / Speakers 5.56 x 9.625 x 8.625 In
Weight Center Unit 9.1 lbs., Speakers 4.0 lbs.
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage Not recorded
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs RCA in, Digital optical (TOSLINK), CD
Outputs 3.5mm line out (analog-only), 3.5mm headphone, RCA out, Speaker amplifier
Control Not recorded

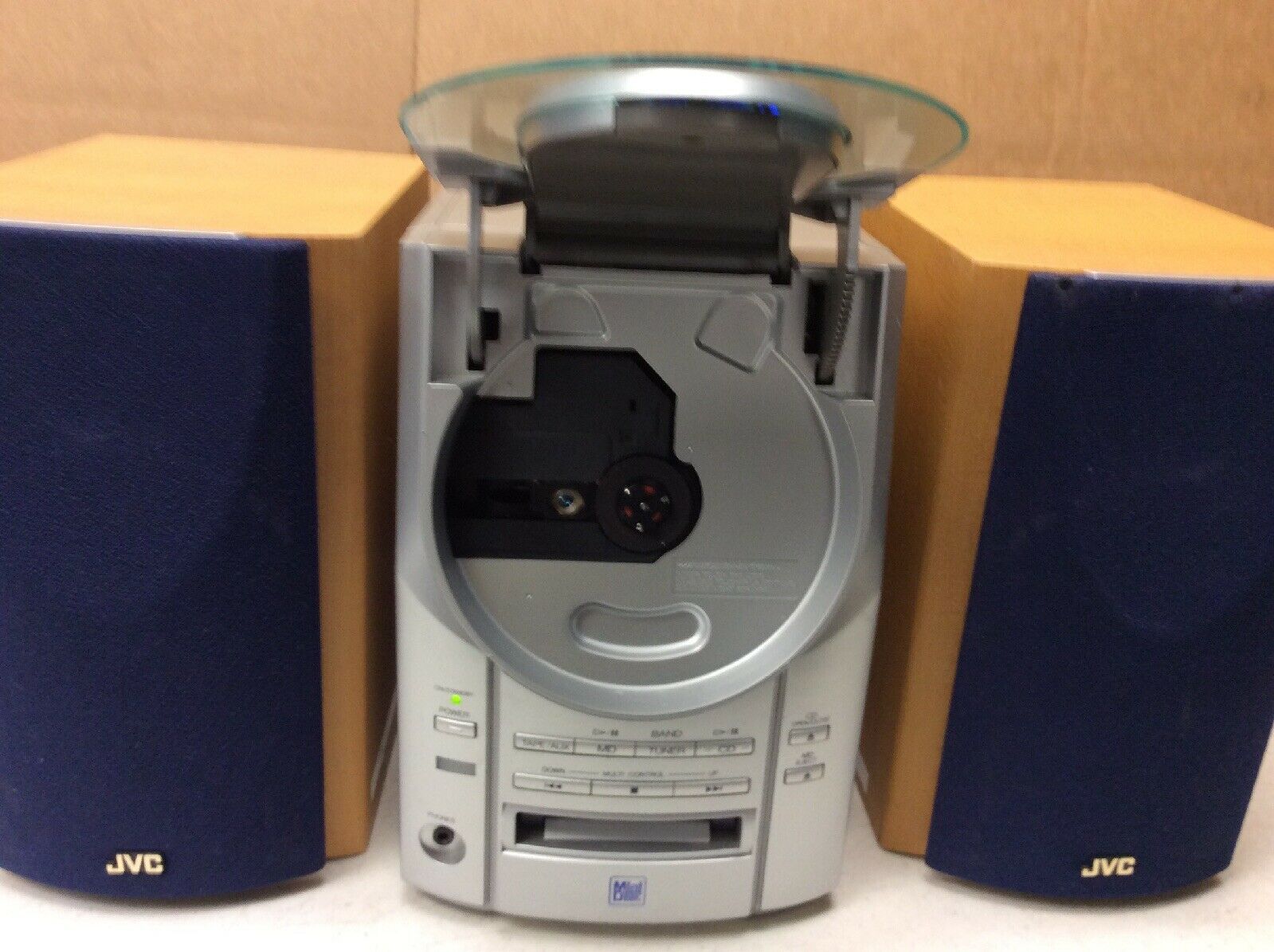

Has a unique CD door that opens vertically, as seen below.

  • Power: 17 watts x 2 channels
  • Active Hyper-Bass PRO
  • COMPU PLAY
  • Electronic Bass and Treble Controls
  • AUX input
  • Digital Tuner with Auto Preset
  • 30 FM and 15 AM station memory
  • 1-bit D/A converter
  • Playback Modes: Continuous, Random, and Repeat
  • 20 Track Program Memory
  • 15 track program chart
  • Single MD deck
  • 5-Mode MD Edit Functions (Divide/Join/Move/Erase/All Erase)
  • MD: 1 bit DAC
  • MD Sampling Rate Converter
  • MD Synchro-Start Recording
  • 2-way Bass-Reflex Speaker System
  • 3 9/16" Cone Woofers
  • 1 5/8" Cone Tweeter
  • MDF (Medium-Density Fiberboard) Speaker Enclosures help the system deliver crisp sound
  • Silver Front Panel and Wood Finish Speakers
  • Clock Timer with "Snooze" function
  • Large Blue LCD Display
  • Full Function Remote Control
  • Optical Digital Input

Content adapted from: JVC Product Page 2nd Product Page

Manuals

JVC UX-V9MD User Manual (maybe the same? both ux- and fs- don't turn up much when searching)

Repair

Photos

CD Door

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNot currently supported
Remote Page
ManualUser manual
RegionJapan
