| Name | MX-MD300 |
|---|---|
| Manufacturer | Victor |
| Released | 1998/07 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | (Width) 245 x (Height) 280 x (Depth) 346 mm |
| Weight | 7800 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥80 000 | |
| - | |
| Inputs | RCA in, CD, Tape deck |
| Outputs | 3.5mm headphone |
| Control | Not recorded |

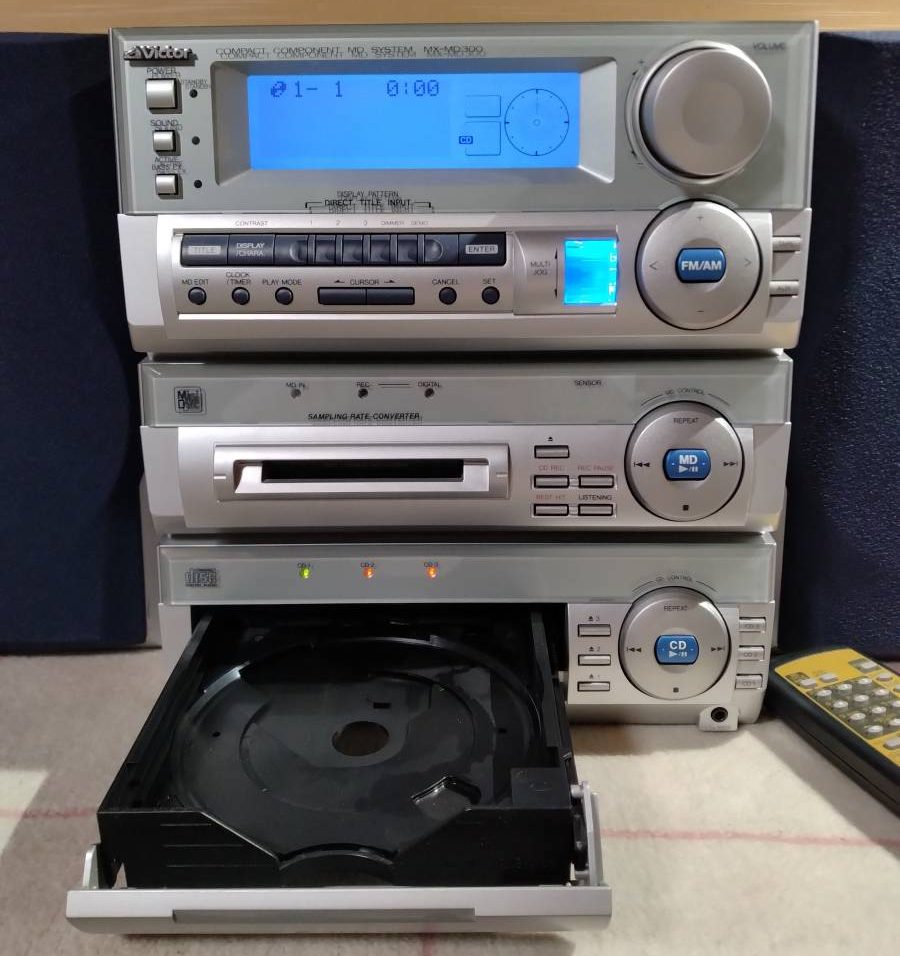

Victor Company of Japan, Ltd. has pursued ease of use with a large 4-line display and a shining jog dial, as well as a compact component MD system "MX-MD300" with a novel design that uses glass acrylic material. The optional cassette deck "TD-L1" will be released.

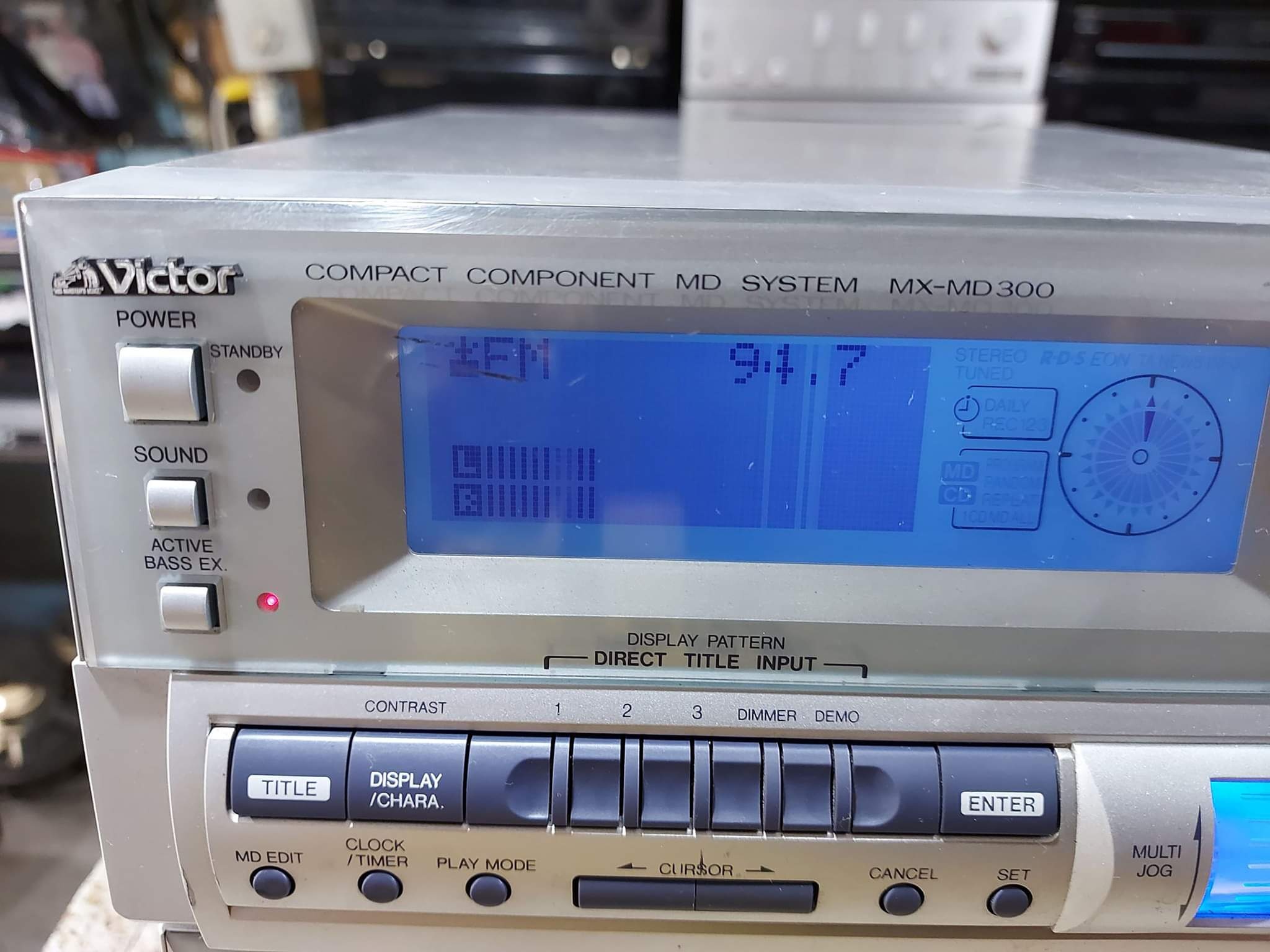

1. "Large COOL display" that uses "12 characters x 4 lines full dot LCD" displays convenient functions all at once.
- MD4 song scroll search …
- MD titles for 4 songs can be displayed at the same time, realizing speedy song selection.
- Rapid scroll character input:
- A completely new and speedy character input method is adopted, in which a line (Akasatana …) is selected with a glowing jog dial and determined with five direct keys.
- Easy best hit recording ……
- Automatically record only the first song from 3 CDs to MD with one touch while displaying the CD performance status in the 3 CD changer and the remaining time of MD at once.
- Panorama / info display:
- The operating status after remote control operation is enlarged for a few seconds so that it can be easily seen even from a distance.
- Batch timer setting …………
- When setting the timer, setting items such as start / end time, source, volume, etc. are displayed / set at once.
2. Equipped with a newly developed "shining cylinder JOG" that scrolls the screen according to the vertical rotation
* In combination with the "Large COOL Display", operability such as song selection and MD editing is dramatically improved.
3. Three "one push circle keys" that do not get lost in independent arrangement
* MD, CD, and tuner are arranged for each unit, and the main operation keys are arranged in a circular shape for easy viewing, so you can operate the music source you want to listen to without hesitation.

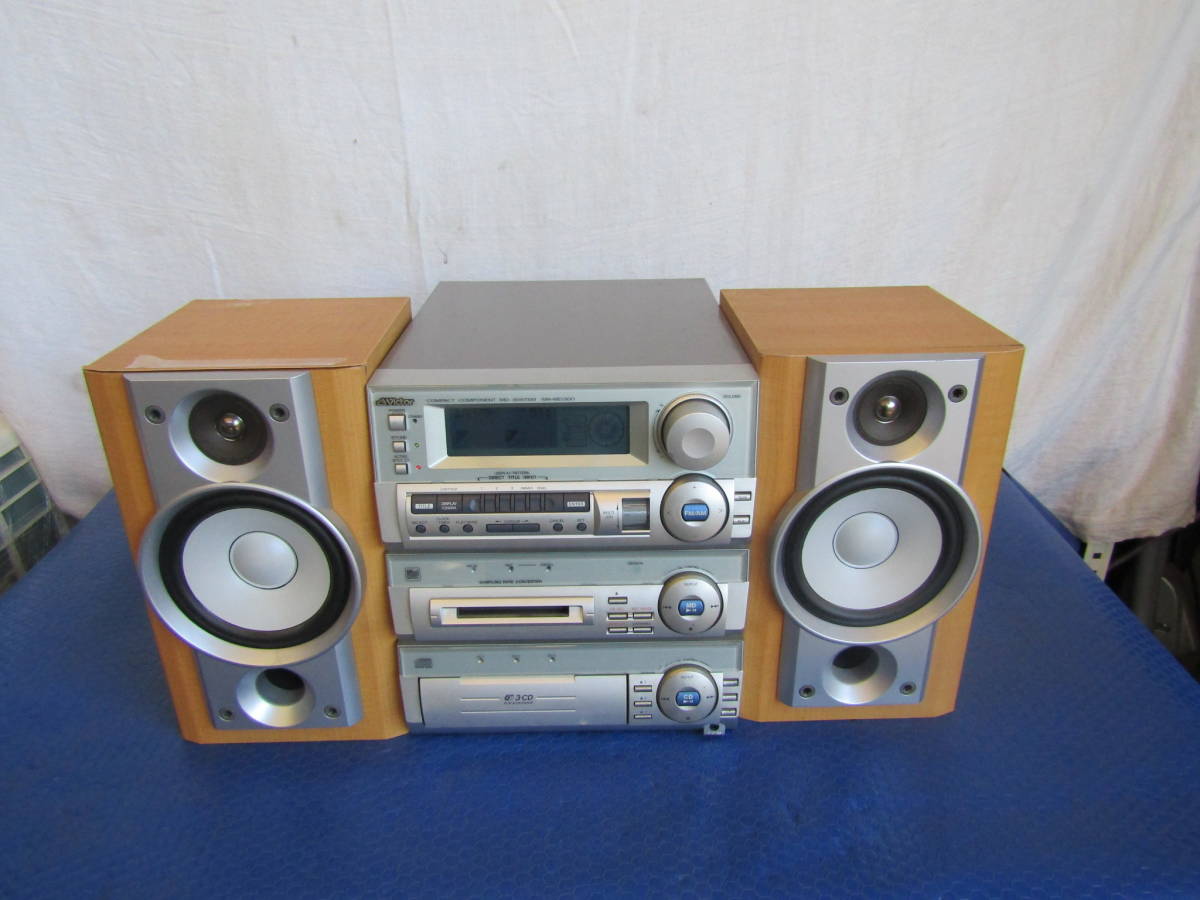

4. New sense separate design using glass acrylic material
- The body is elegant and dust-free white silver, and the display and "shining cylinder JOG" are cool aqua blue.
- New compact size design considering space saving (total width 62.5 cm x height 28 cm).
5. "MD title remote control" of the same 10-key type as mobile phones, etc., which allows you to enter titles at hand even during recording
<Main features of "TD-L1">
- Equipped with a sync terminal that enables basic operation with the remote control of "MX-MD300" and one-touch CD recording
- Equipped with Dolby B / C NR, auto-reverse method for metal tape recording / playback
Content adapted from: Victor Press Release Victor Press Release (MiniDisc Wiki mirror)
Manuals
Video

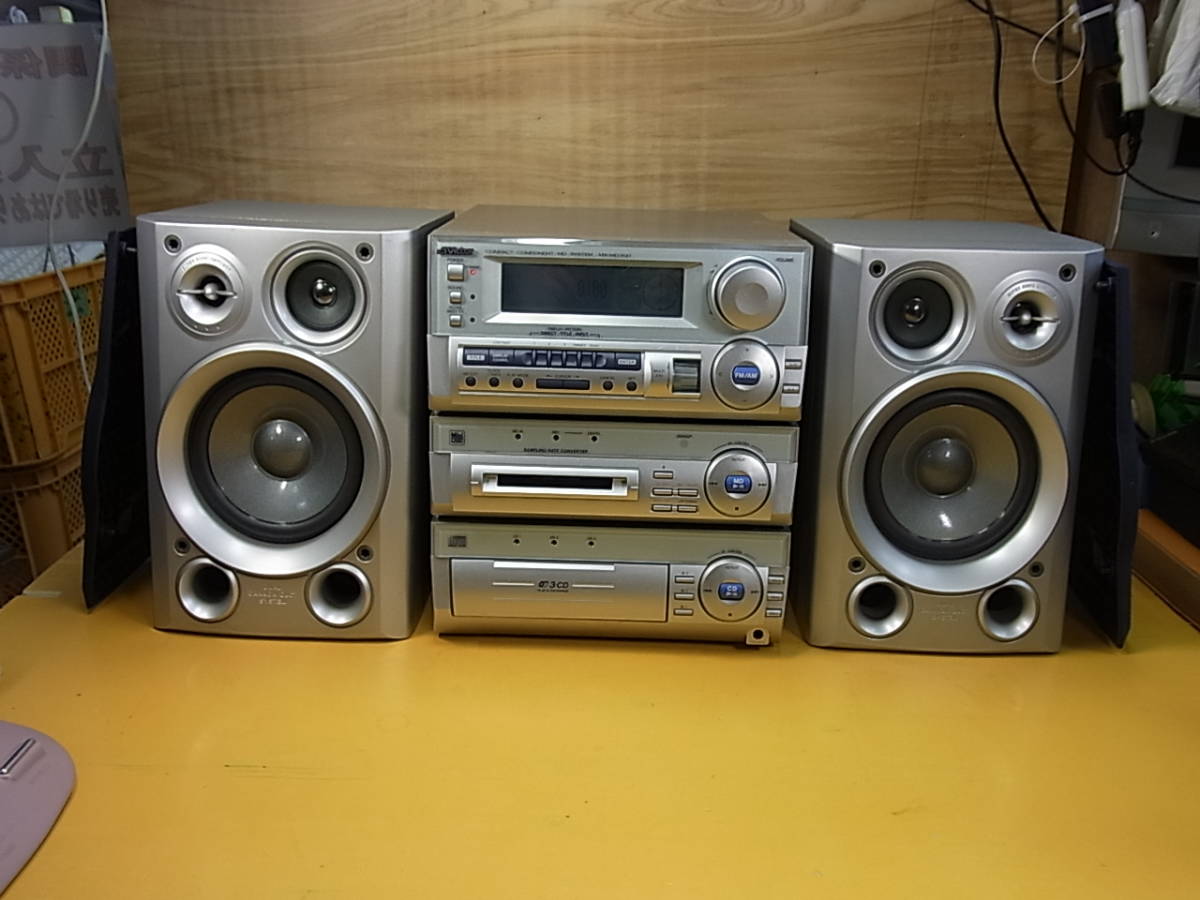

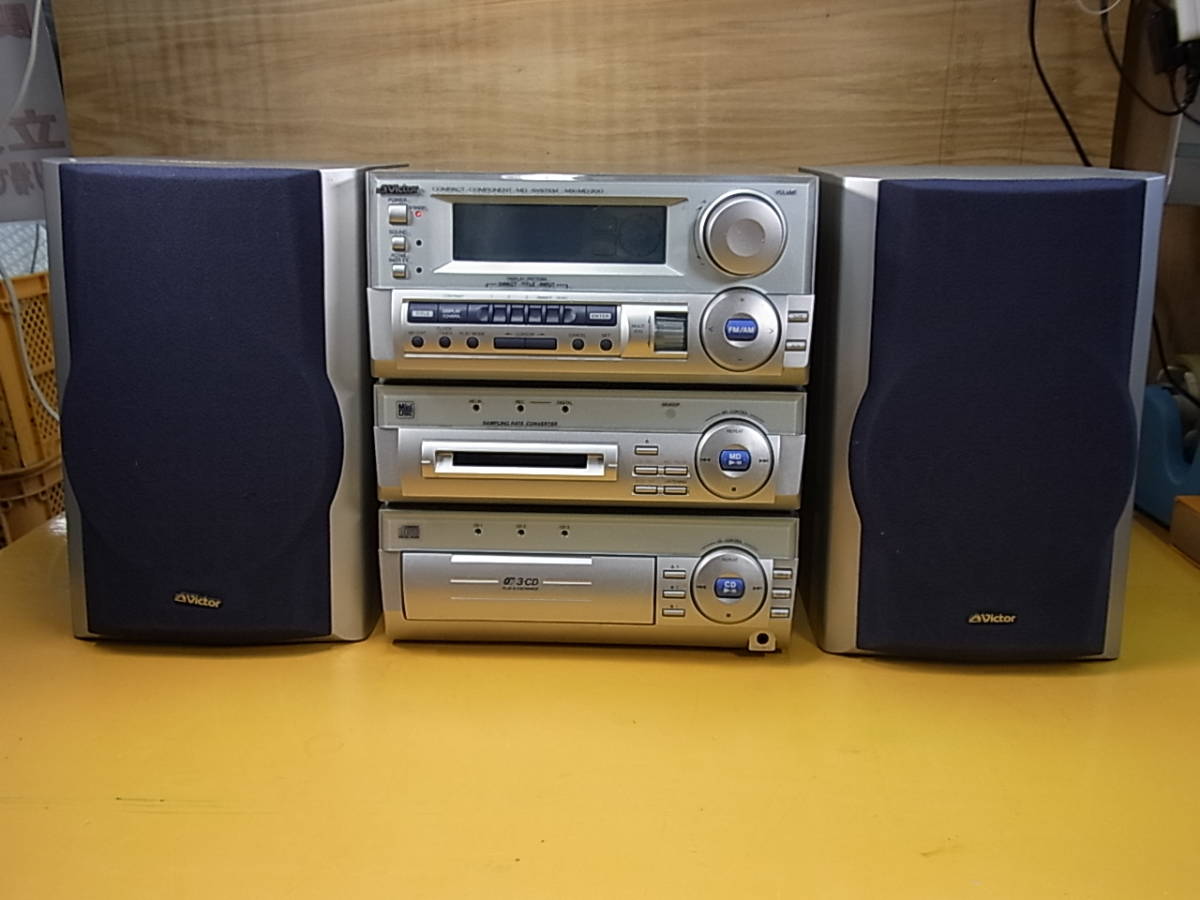

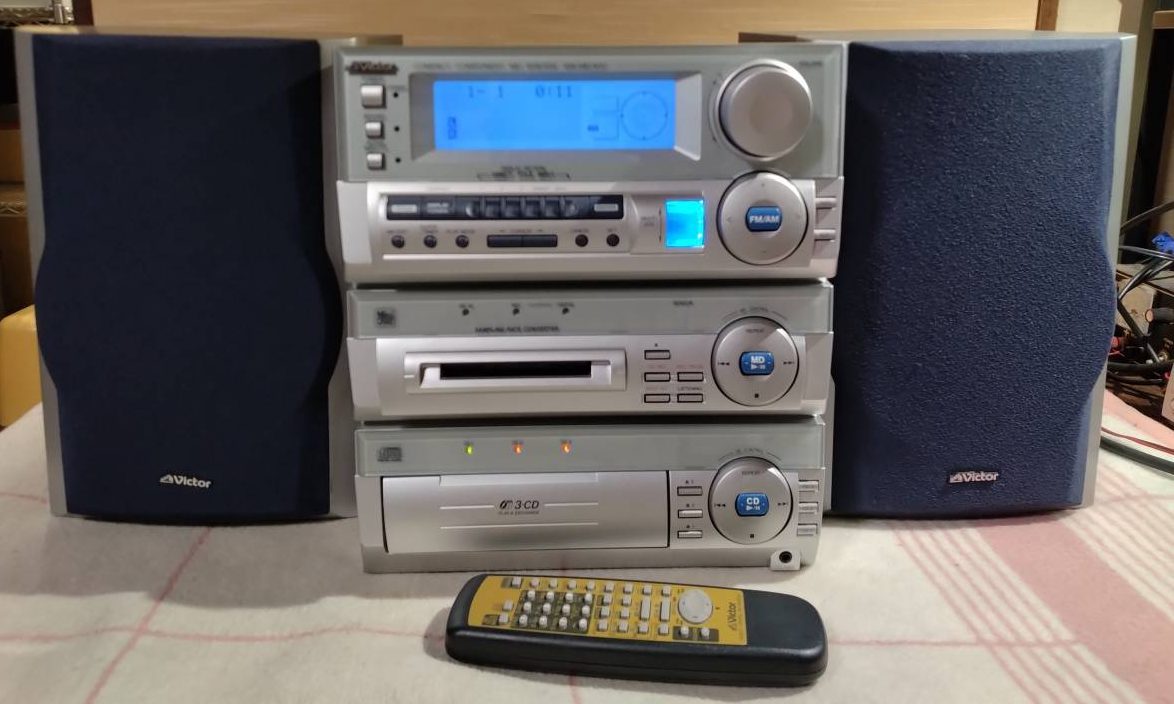

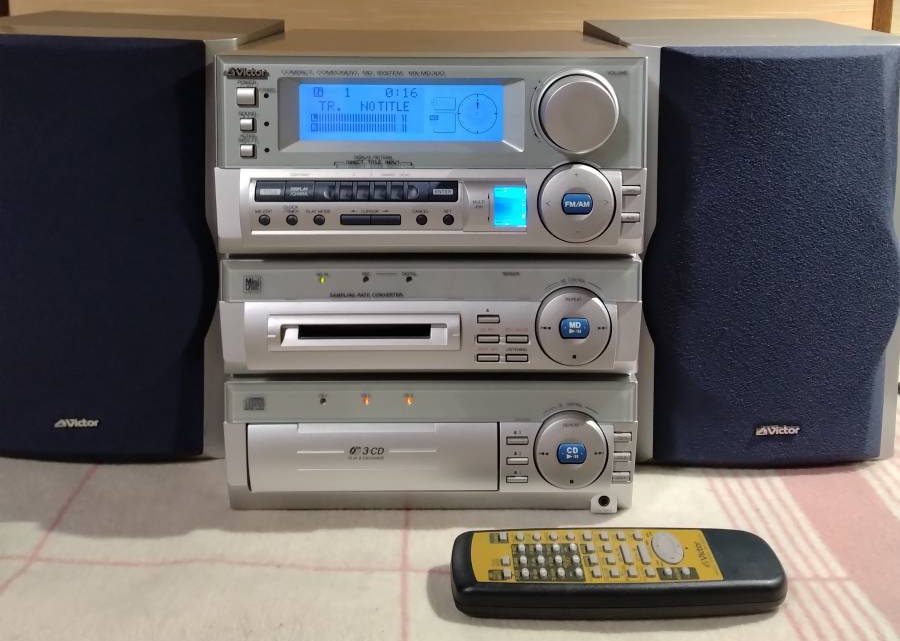

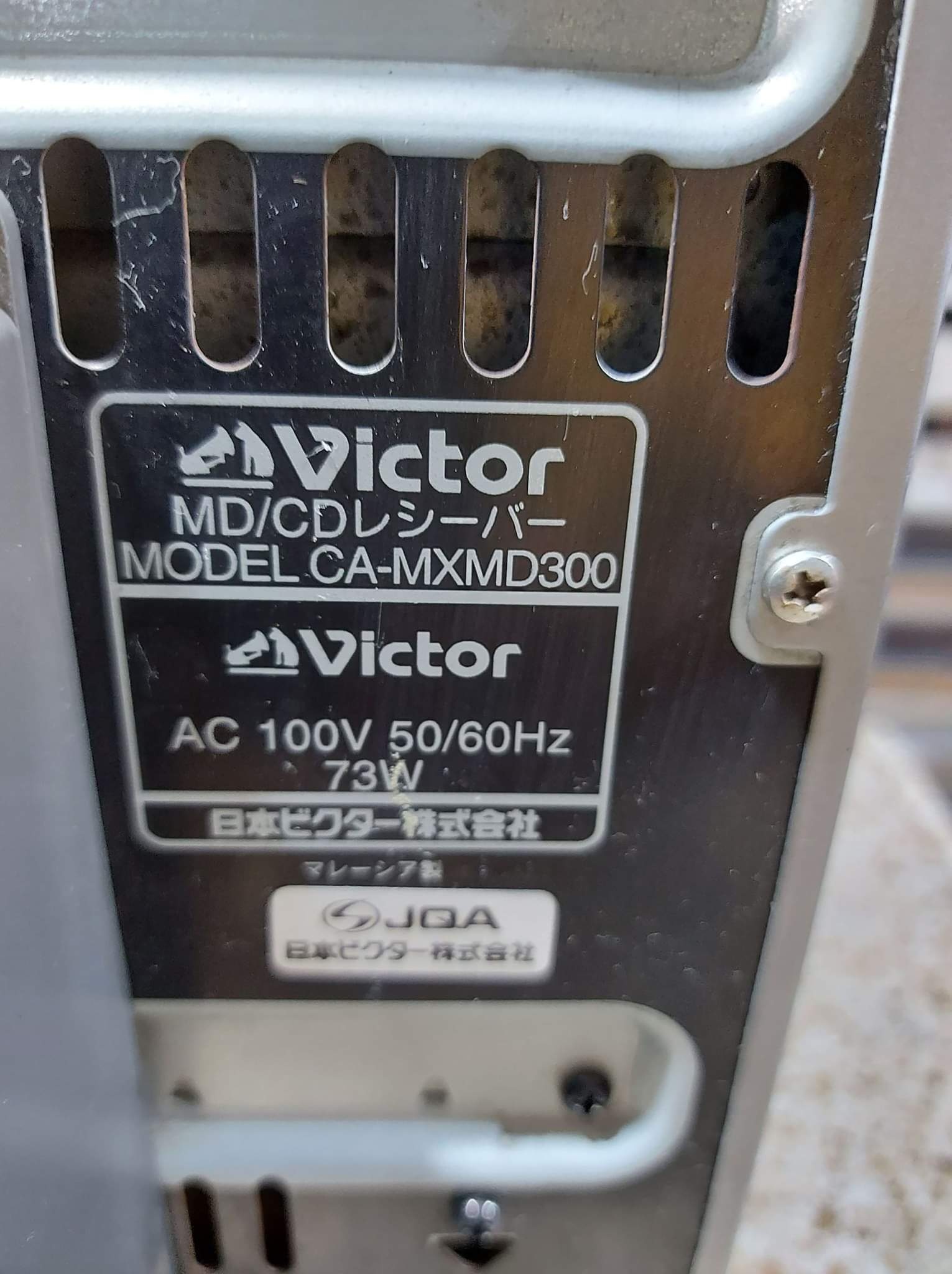

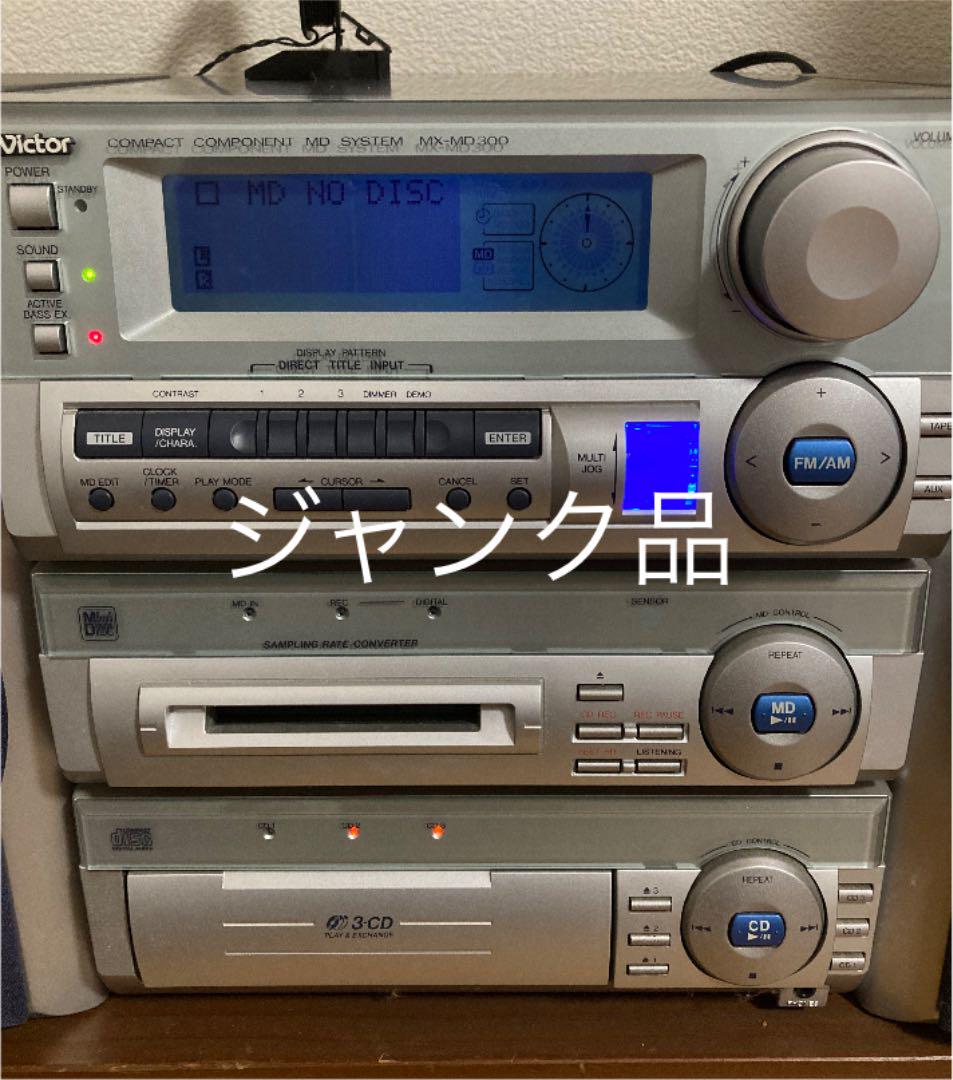

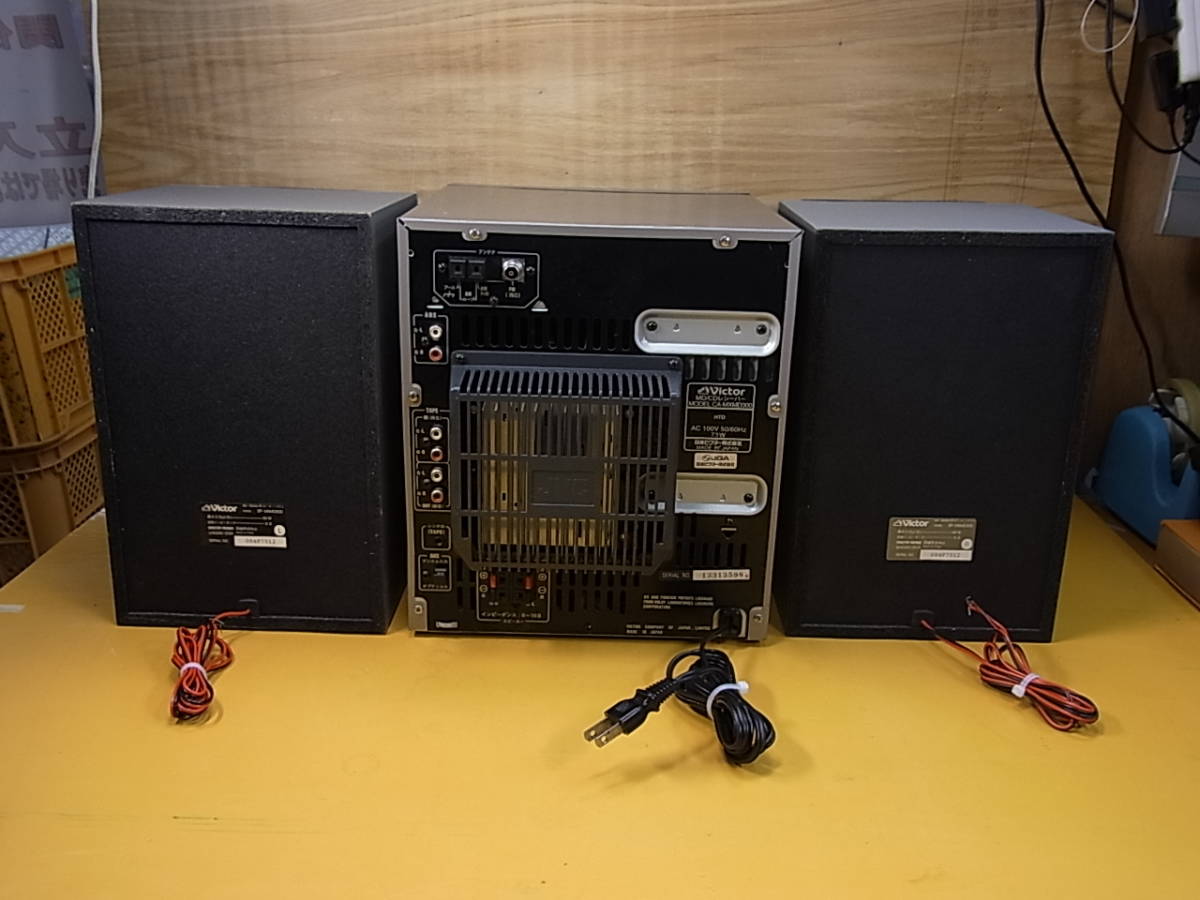

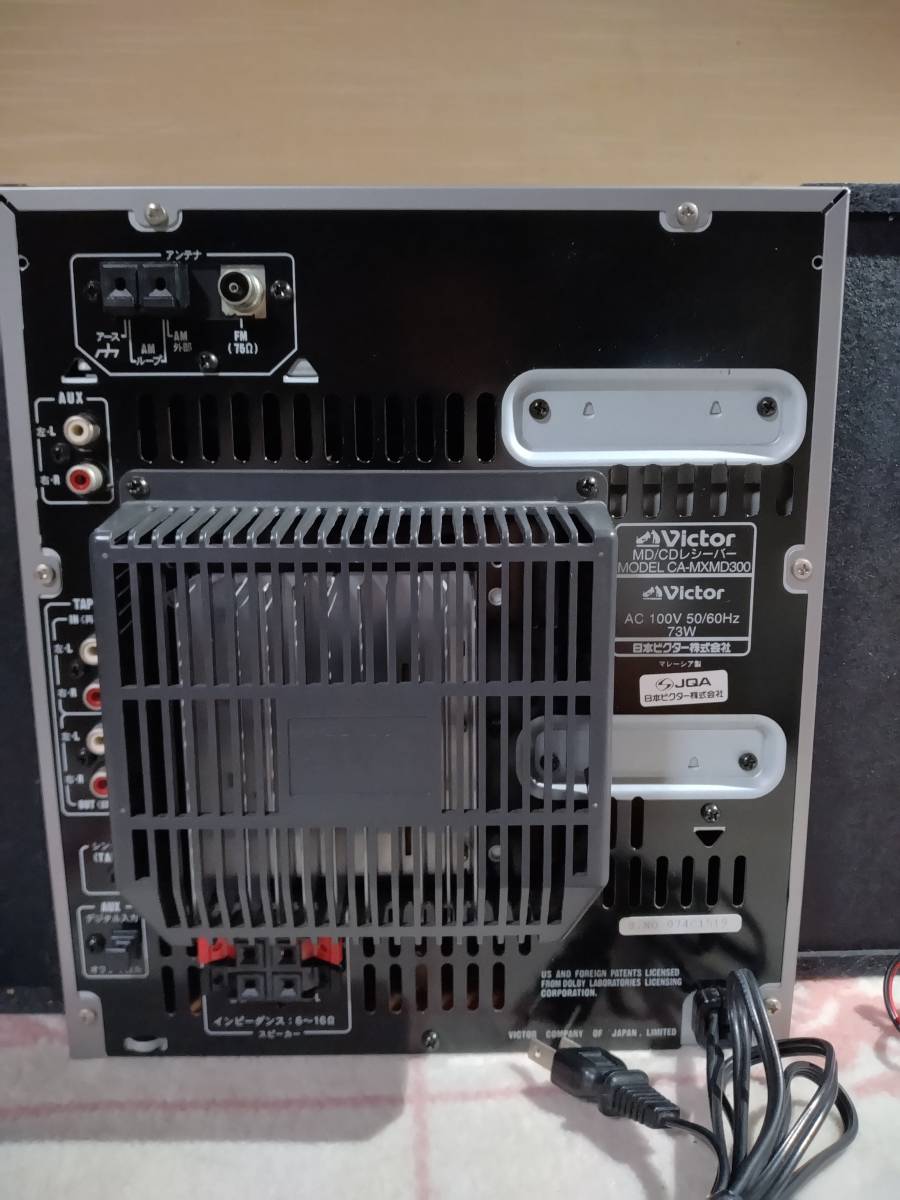

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | |
| Region | Japan |
