Device

Victor NX-DV3

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-10-20

Manufacturer
Victor
Model / source grouping
NX-DV3
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor NX-DV3”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name NX-DV3
Manufacturer Victor
Released 2004/11
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions (Width) 260mm x (Height) 80mm x (Depth) 358mm
Weight 3800
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥63 000
-

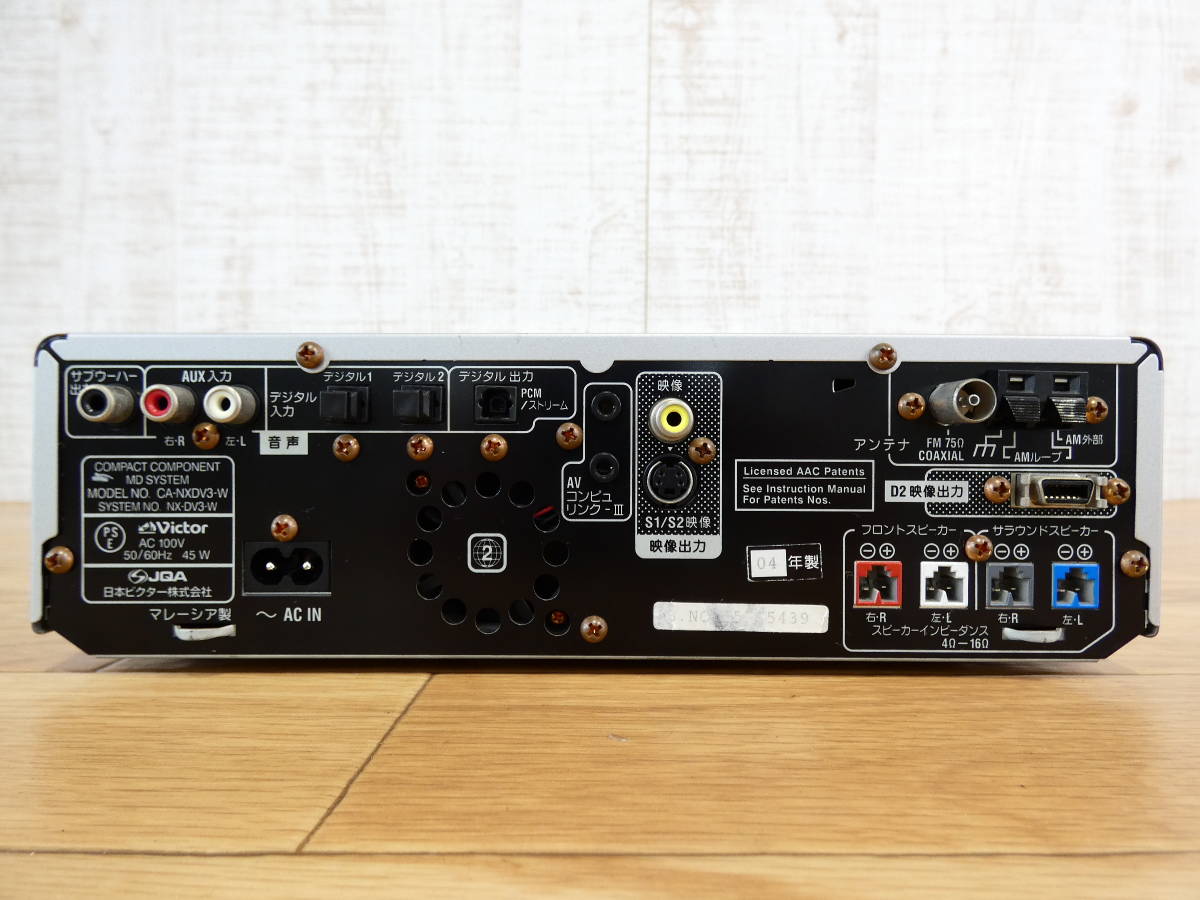

Inputs RCA in, Digital optical (TOSLINK), CD, Radio recording
Outputs 3.5mm line out (analog-only), Digital optical (TOSLINK)
Control Not recorded

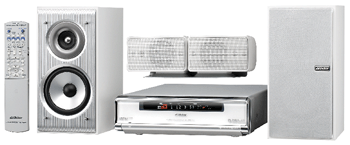

NX-DV3 / NX-DV3-W / CA-NXDV3

5x CD → MD recording

In addition to DVD audio, DVD video, video CD, music CD, DVD-R / RW (video format), MP3, WMA, JPEG, CD-R / RW recorded in super video CD format, etc. Disc playback is possible.

Equipped with "Digital Direct Progressive Circuit" that realizes high-definition video and 10bit / 54MHz video DAC. Uses a 192kHz / 24bit high-performance D / A converter that reproduces the high-quality sound of DVD audio.

Playback of PAL DVD discs is possible. (Converted to NTSC format and played. Limited to discs with region code "2".)

Optical block: QAL0424-003 MD Chipset: MN66621BPG1 (Panasonic)

Content adapted from: JVC-Victor Press Release JVC-Victor Press Release (MiniDisc Wiki mirror) Victor Product Page Victor Product Page (MiniDisc Wiki mirror) av.watch

Manuals

JVC NX-DV3-W User Manual JP

JVC NX-DV3 Service Manual

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
Pickupqal0424-003
Atrac Icmn66621bpg1
ManualUser manual, Service manual
RegionJapan
