Victor NX-F5WMD

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor NX-F5WMD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	NX-F5WMD
Manufacturer	Victor
Released	2001/11
Device type	bookshelf
Recorder	Recorder
MDLP	Yes
NetMD	No
Hi-MD	No
Radio	Yes
Dimensions	(Width) 185 mm x (Height) 210 mm x (Depth) 349 mm
Weight	7900
ATRAC ver	Not recorded
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	Not recorded

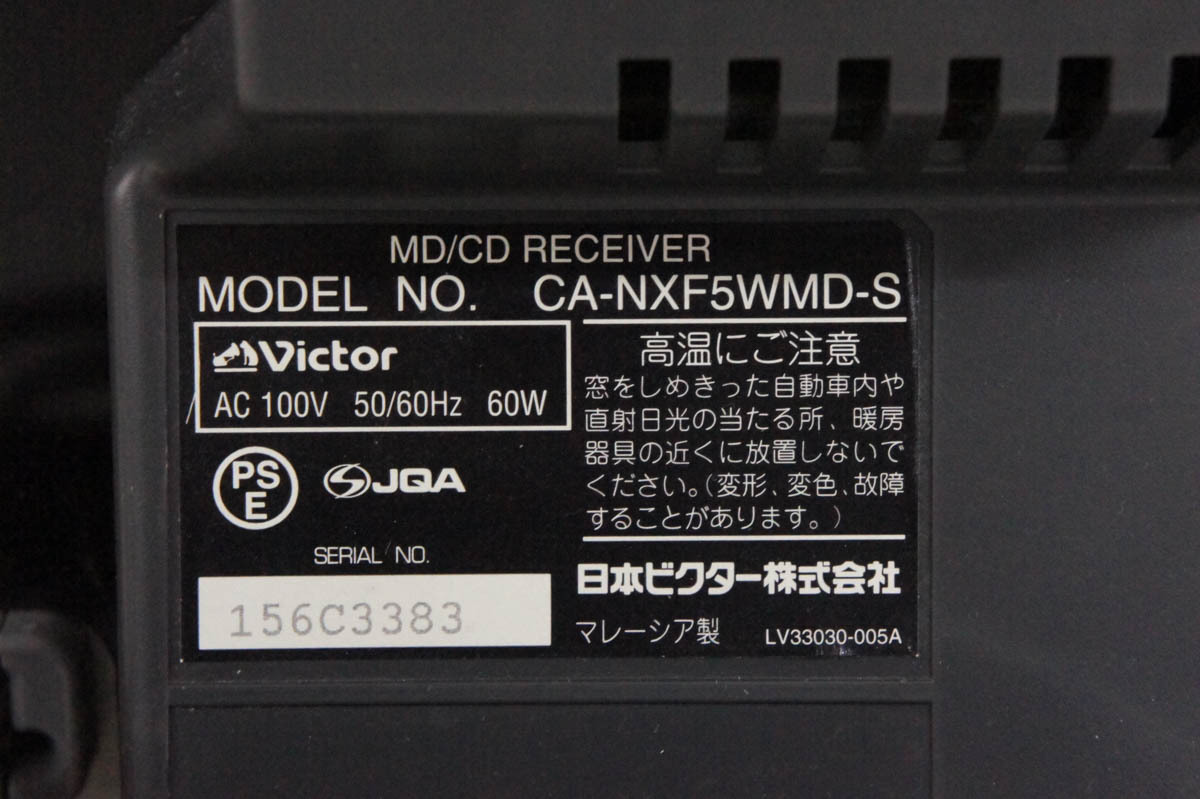

Voltage	100
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	¥60 000
-

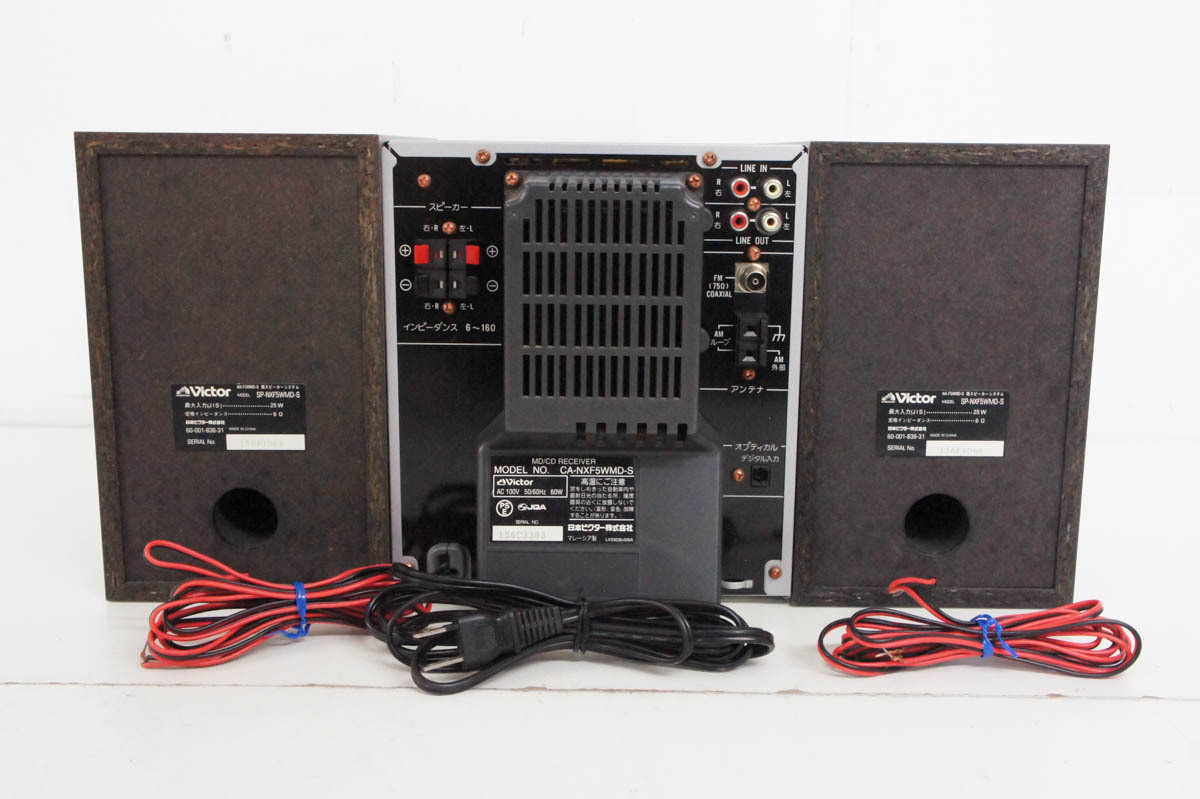

Inputs	RCA in, Digital optical (TOSLINK), CD
Outputs	3.5mm headphone, RCA out
Control	Not recorded

<Main features> 1. Equipped with a newly developed double MD mechanism that supports 4x speed recording from CD to MD and "MD new group search function" . 4x / 2x / constant speed recording function from 3 CD changer to MD. -SP / LP2 / LP4 mode recording from MD to MD. -Equipped with a "MD new group search function" that is convenient when selecting MD songs recorded with MDLP. You can search by grouping each CD album or multiple selected songs, access the song you want to listen to immediately, and easily edit such as moving or deleting in group units. * If you play an MD recorded on this unit on a device that does not support the new MD group search function, only the normal playback function will work. * Due to copyright protection, songs that have been recorded at double speed cannot be re-recorded for 74 minutes from the start of recording. * 4x speed recording is only in SP mode. In LP2 and LP4 mode, double speed recording is used. * Songs recorded in LP2 or LP4 mode can only be played on MDLP-compatible players.

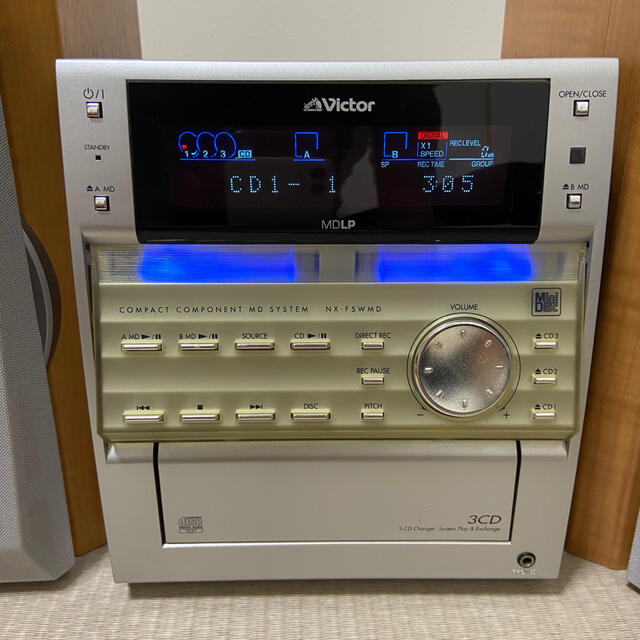

2. Uses an electric control panel that achieves both easy operation and versatility Compact double MD component system ・ Buttons and volumes for basic operations that are frequently used are located on the front of the control panel. The buttons related to recording and editing are located on the back of the panel, realizing a clean design with good operability while being multifunctional.

3. "MD title search function" that allows you to search quickly by simply entering the title of the song-By entering the track title, you can access the song you want to listen to quickly and easily. * Up to 5 characters can be entered. If the 5 characters are the same, the track number will be played from the smallest number.

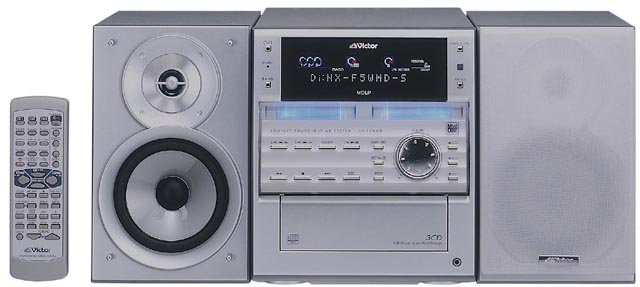

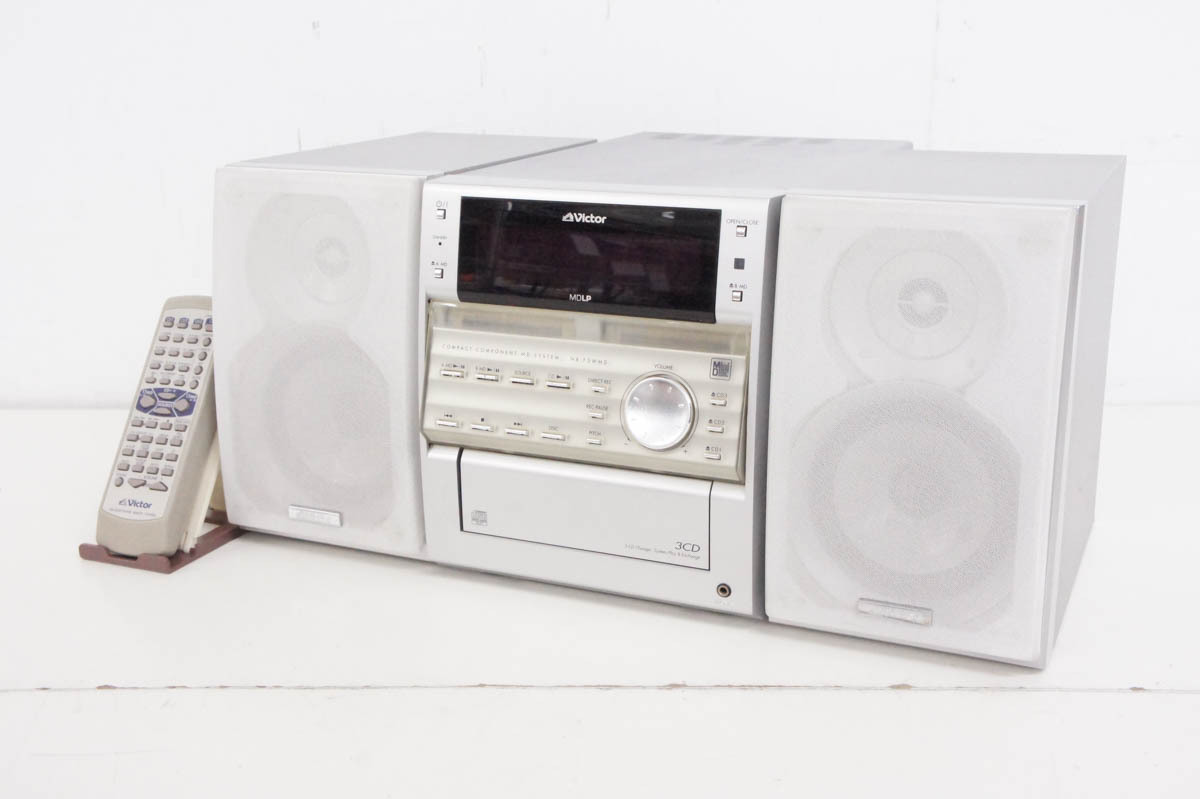

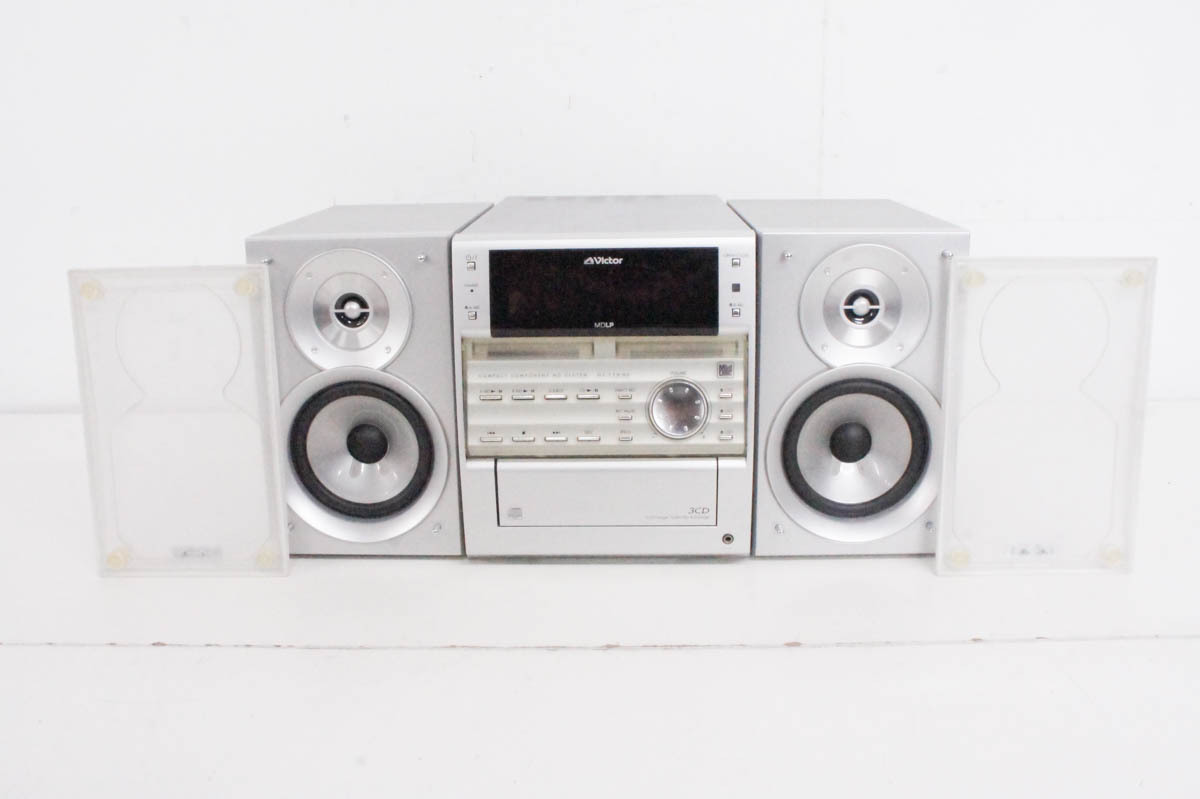

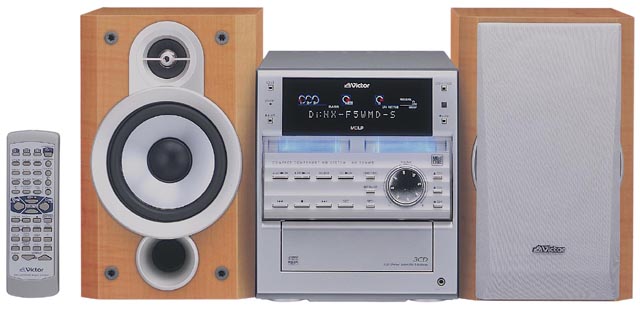

4. Two models are available in which speakers can be selected according to the interior and installation space.-Large wood grain finish cabinet "NX-F5WMD-M" that uses a large-diameter 13 cm woofer and a 4 cm corn tweeter that reproduces a comfortable bass, and a high-rigidity pearl containing boron. Two models of "NX-F5WMD-S", a compact silver finish cabinet that uses a mica 11cm woofer and a 3cm balanced dome tweeter that realizes delicate treble reproduction.

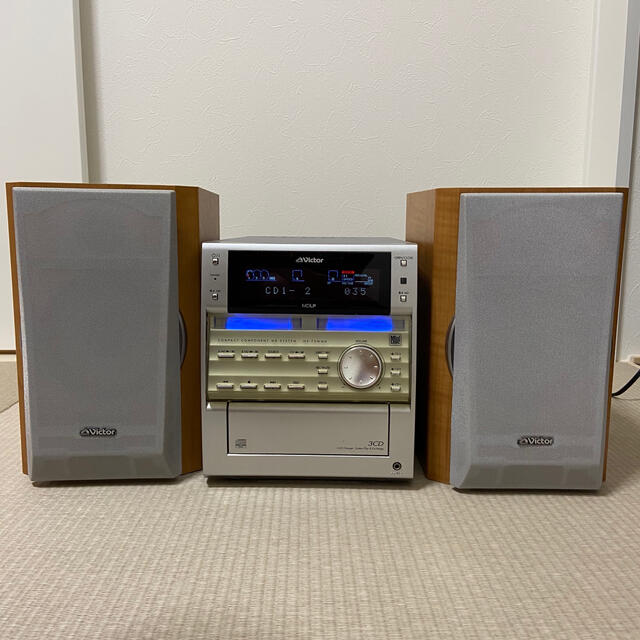

"Wood Grain Speaker"
