| Name | NX-TC5 |
|---|---|
| Manufacturer | JVC |
| Released | 2009/08 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 275 x 214.4 x 139 mm (main unit), 143 x 225 x 209 mm (speaker) |
| Weight | 2.8kg (main unit), 1.5 kg (speaker) |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | $655 |
| ¥62 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD |
| Outputs | 3.5mm headphone, Speaker amplifier |
| Control | USB Type-A, USB for Network Walkman |

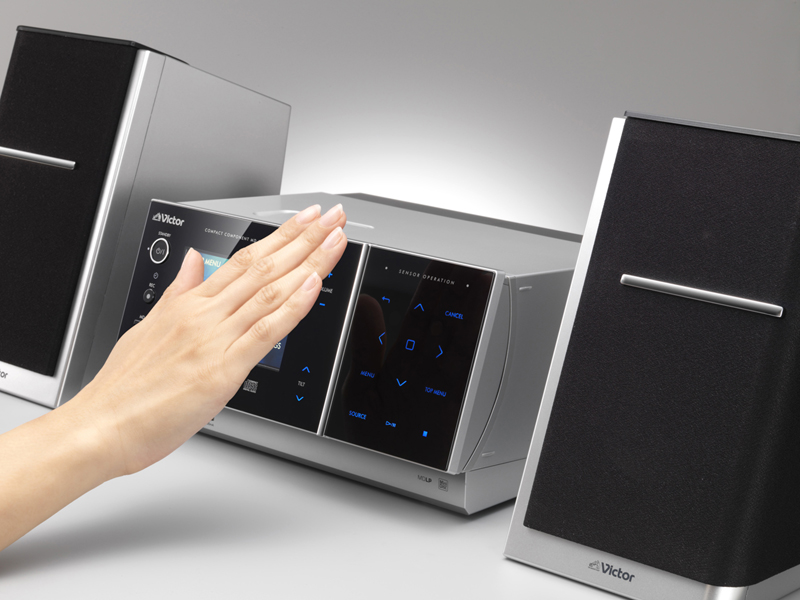

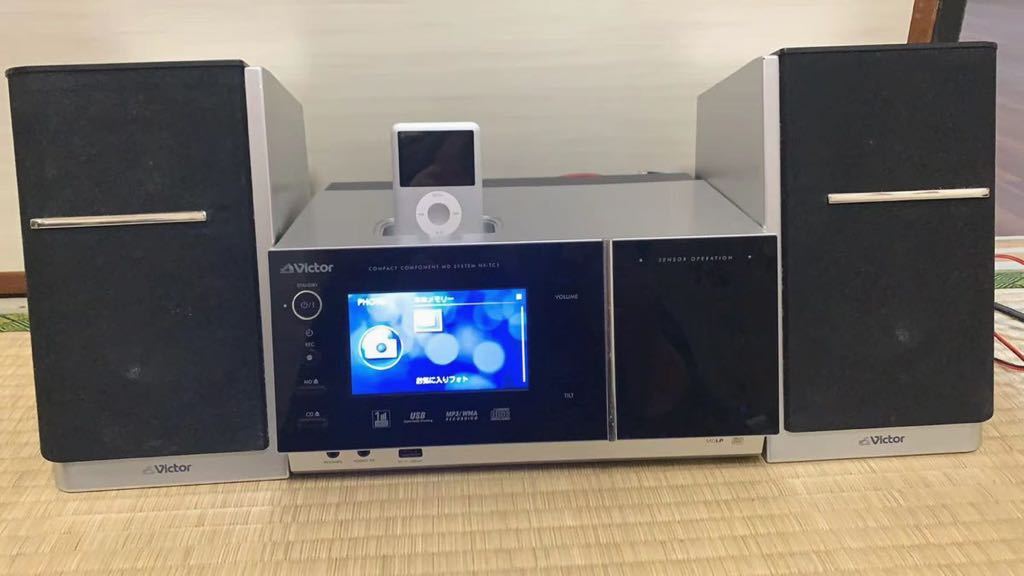

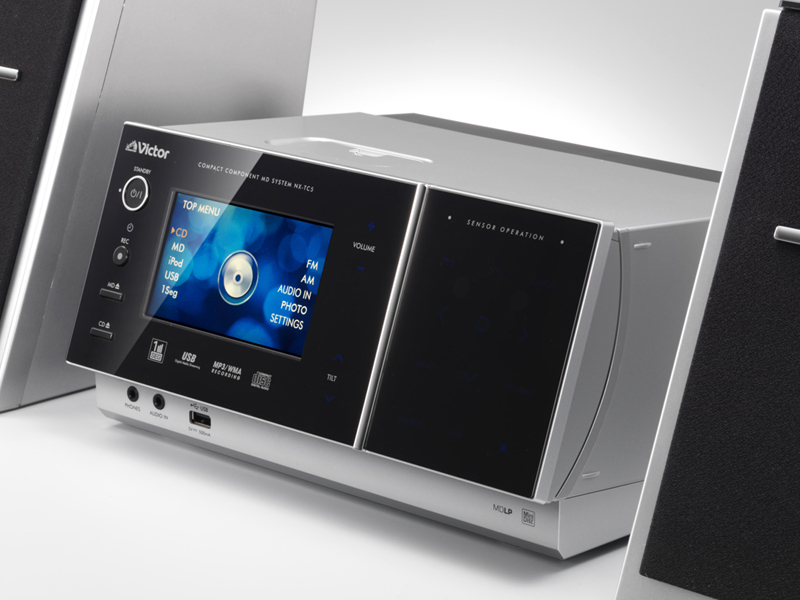

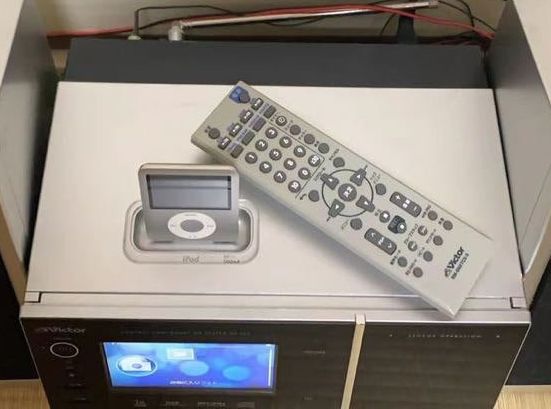

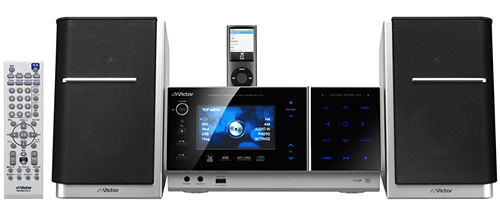

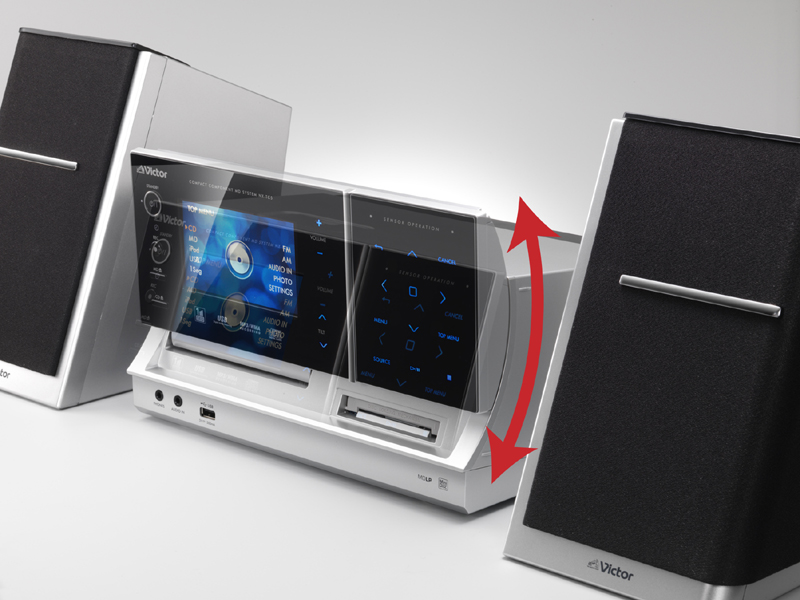

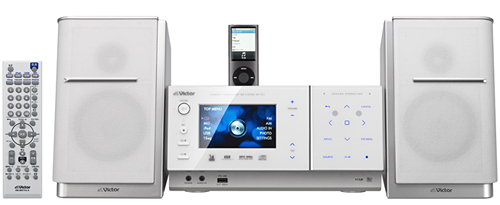

Bookshelf that can do Video, MD, CD and has a Mini iPod connector. Also has a motion activated front panel that moves up and down.

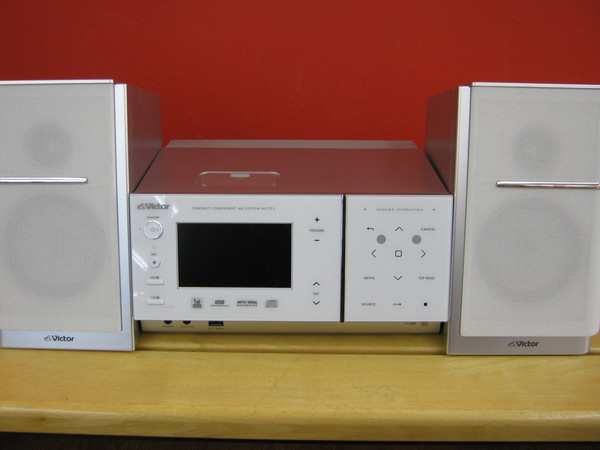

Available in 2 colors (White (NX-TC5-W) and Black (NX-TC5-B)).
See here for video
Content adapted from: Kenwood Press Release Engadget Victor Product Page av.watch news
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Export | Yes |
| Manual | User manual |
| Region | Japan |
