Victor SS-D5MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-19

Manufacturer
Victor
Model / source grouping
SS-D5MD
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor SS-D5MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SS-D5MD
Manufacturer Victor
Released 2002/12
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions (Width) 160mm x (Height) 130mm x (Depth) 242mm
Weight 2600
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

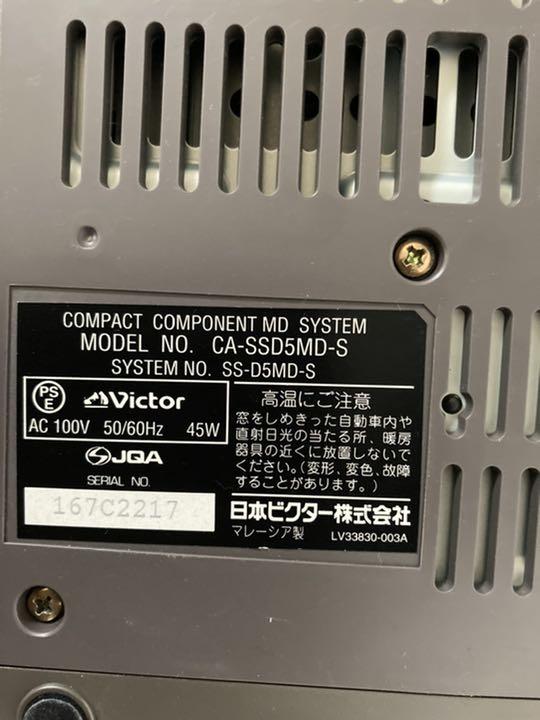

Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥70 000
-
Inputs 3.5mm line in (analog-only), Digital optical (TOSLINK), CD
Outputs 3.5mm line out (analog-only), 3.5mm headphone
Control Not recorded

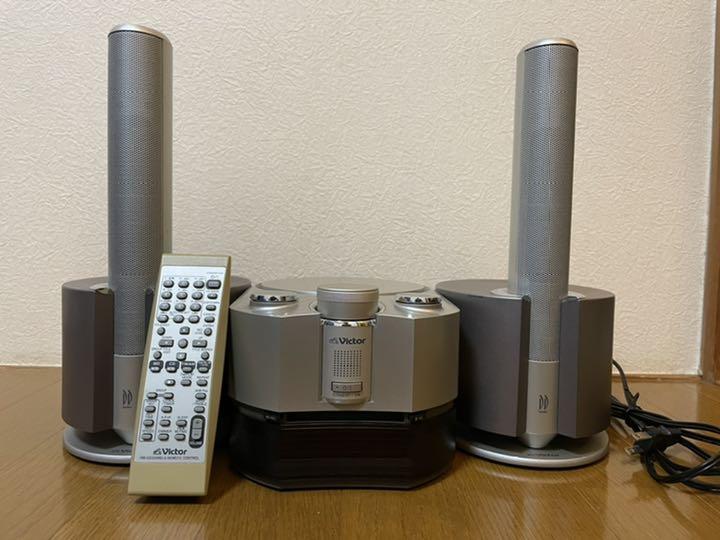

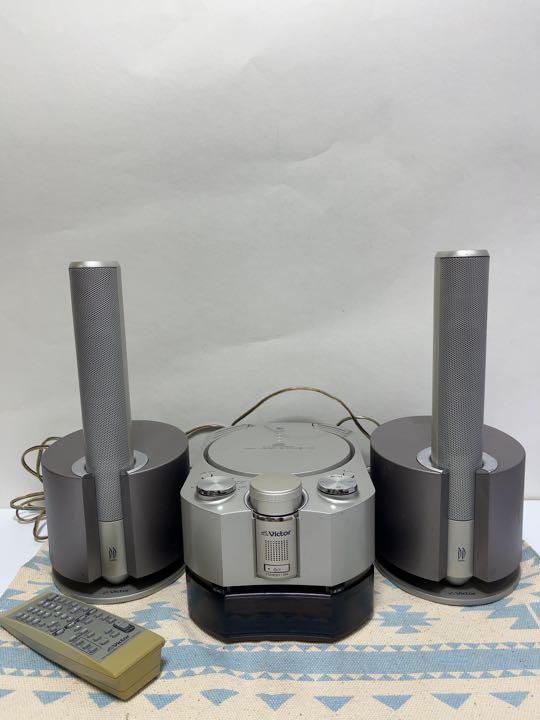

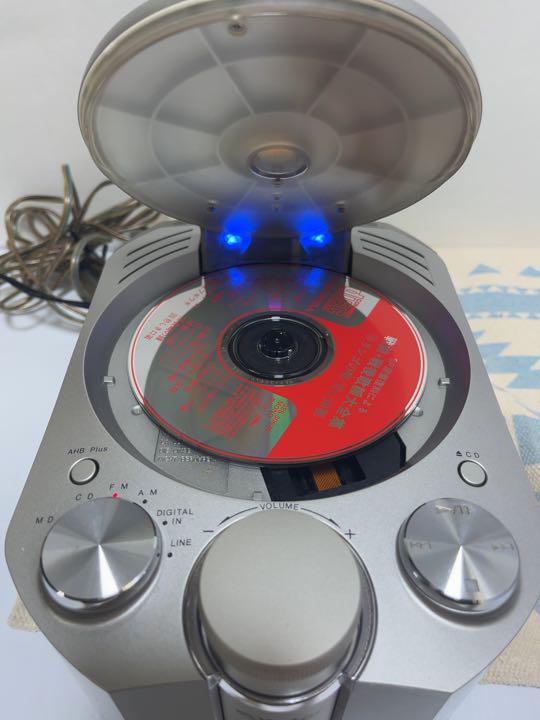

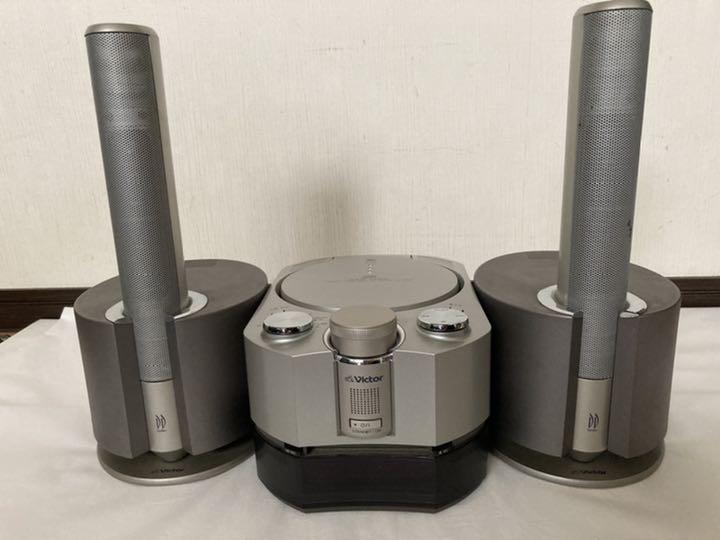

Like the NT1MD, it is a compact system equipped with a CD, MD, and AM / FM tuner. The difference from NT1MD is that the Net MD function is omitted and a DD speaker with an integrated subwoofer is used for the speaker. Moreover, the amplifier (DEUS) is a bi-amplifier.

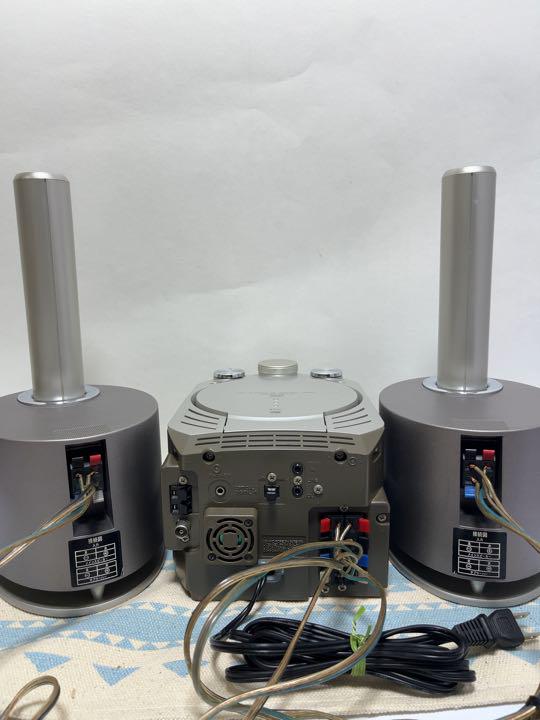

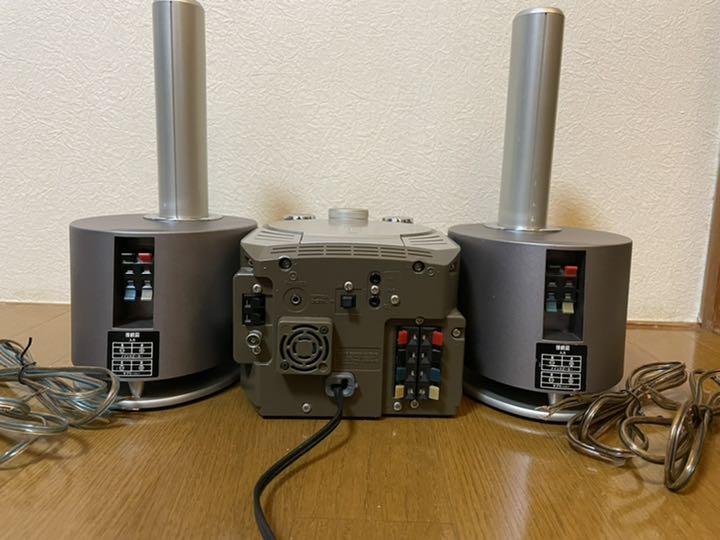

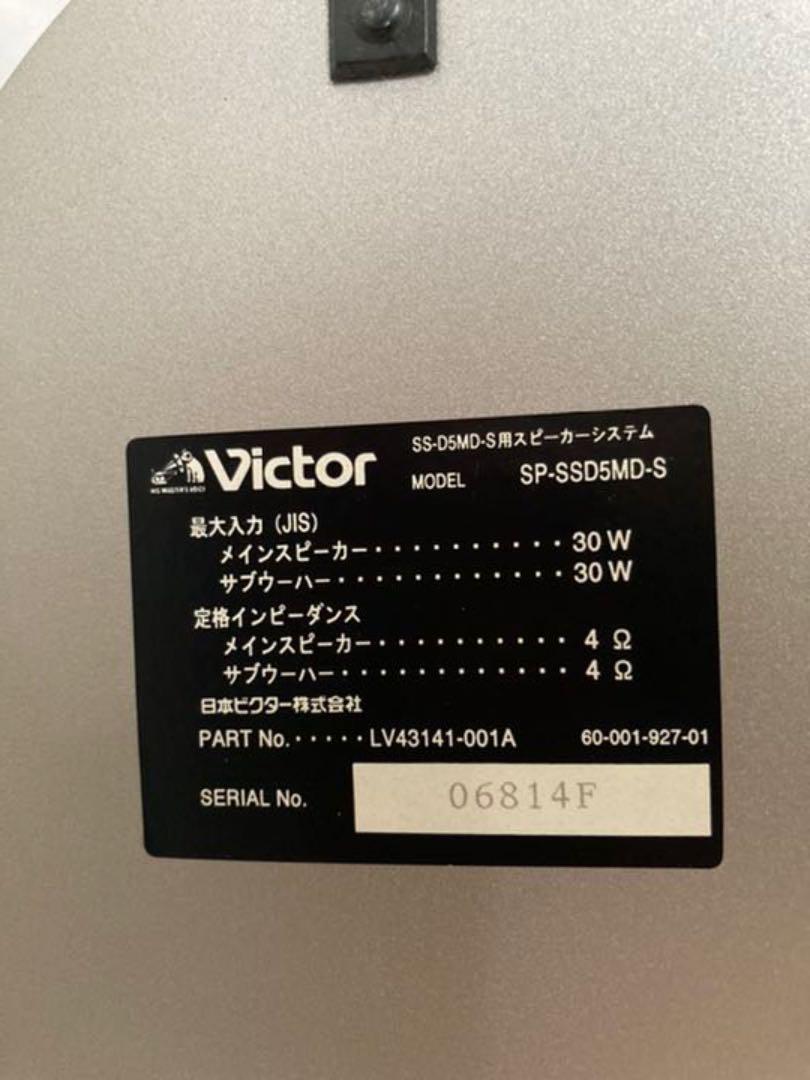

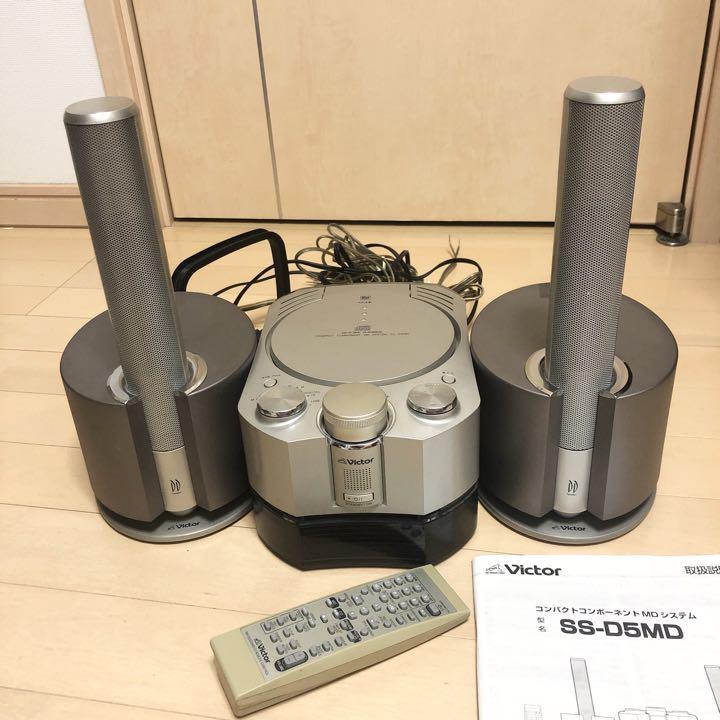

The attached DD speaker has a small subwoofer unit with a diameter of 9.5 cm mounted at the bottom. The subwoofer section is passive, and the main unit is equipped with two dedicated speaker output terminals. Unlike the NT1MD, it is not equipped with a subwoofer pre-out. Other inputs and outputs are the same.

MD part Program performance (up to 32 songs), repeat performance (1 song / all songs), random performance, stereo long-time recording / playback (MDLP), MD group recording / playback / editing, CD recording speed = constant speed / 2x speed / 4x speed / 5x speed, Ichi push CD → MD recording (1 song / all songs), sound sync recording (external input), MD editing function (for each song / group), MD title search (song name / group name), MD title reserve, Child Lock

FM 76.0MHz - 108.0MHz

Content adapted from: Victor Press Release Victor Press Release (MiniDisc Wiki mirror) Victor Product Page Victor Product Page (MiniDisc Wiki mirror) Victor DEUS page Victor DEUS page (MiniDisc Wiki mirror) AV Watch

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
Web MdNo (not NetMD)
Manual
RegionJapan
