Victor UX-A70MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-18

Manufacturer
Victor
Model / source grouping
UX-A70MD
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Victor UX-A70MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

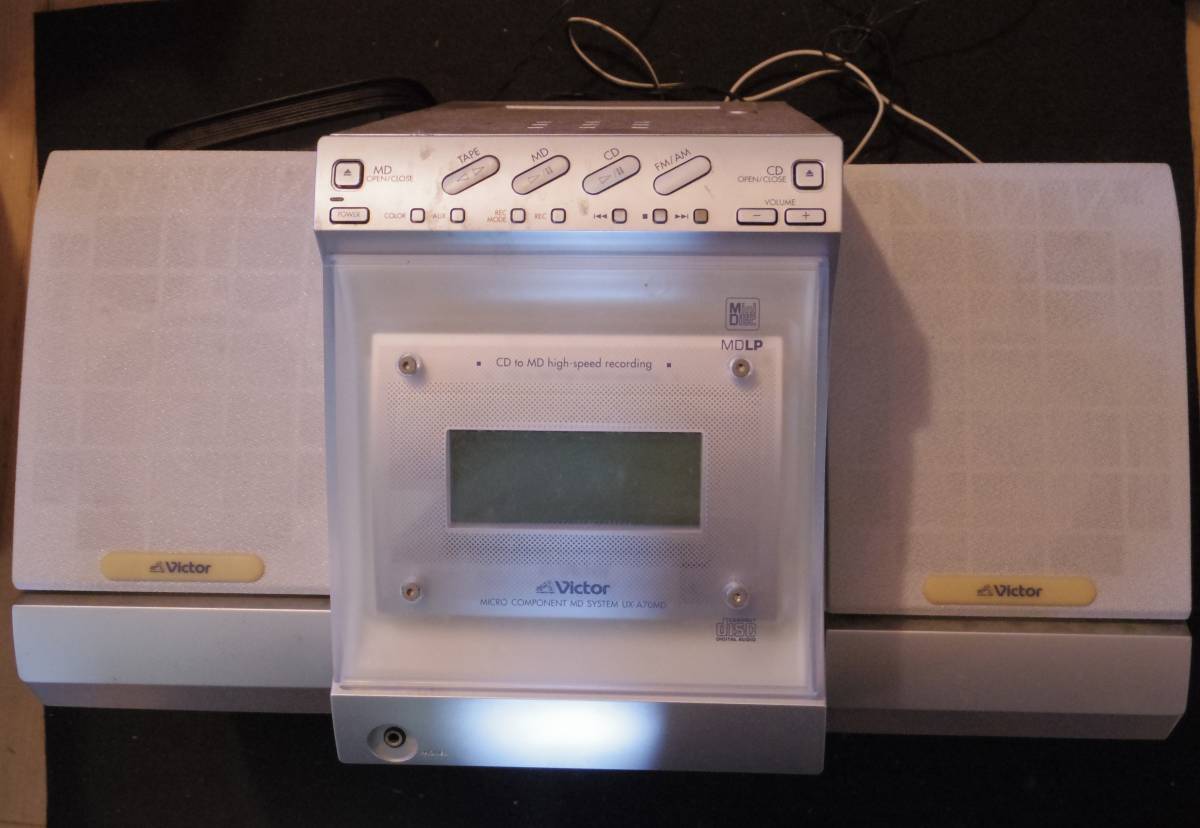

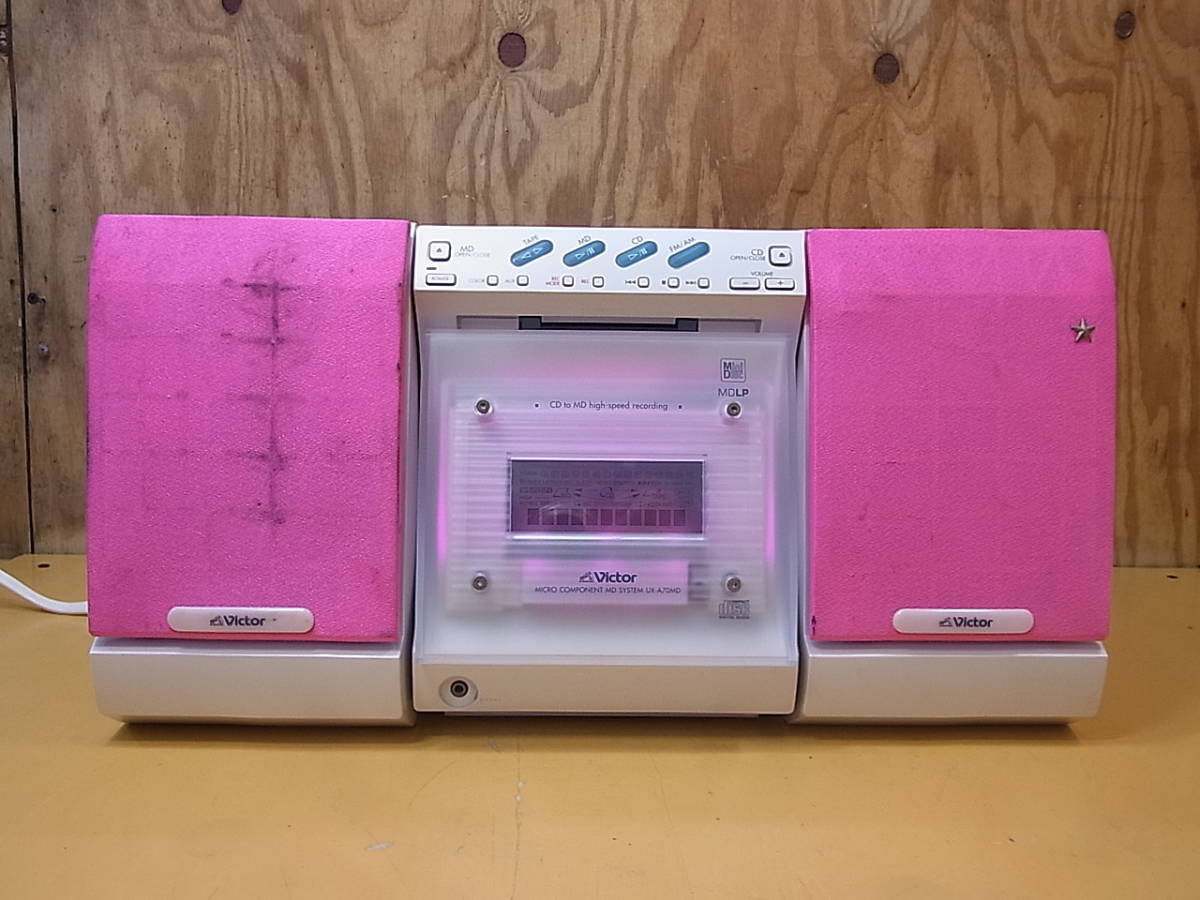

Name UX-A70MD
Manufacturer Victor
Released 2000/07
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Not recorded

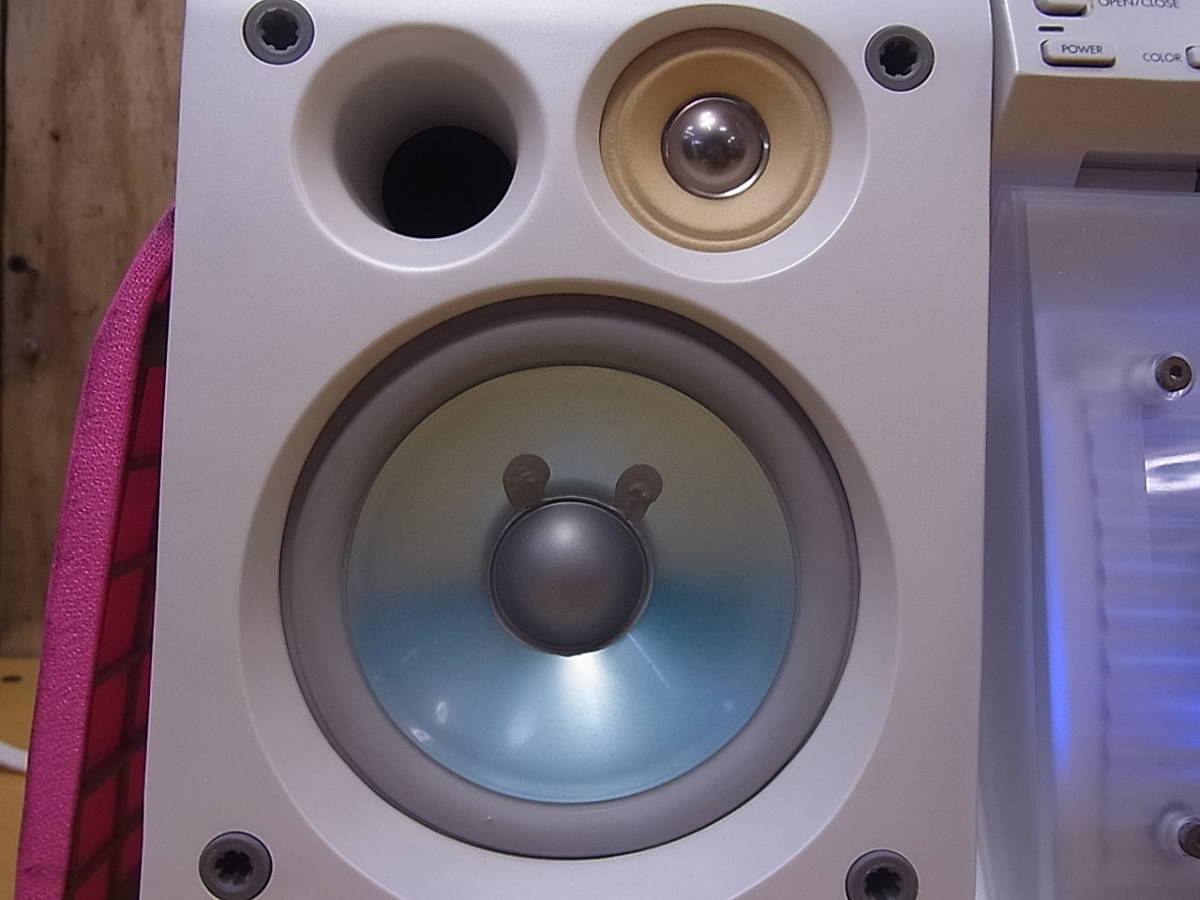

Dimensions Main unit: 161 x 217 x 330 mm, Speaker (1): 130 x 215 x 231.5 mm
Weight Main unit: 5kg, Speaker (1): 2kg
ATRAC ver Type-R
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No

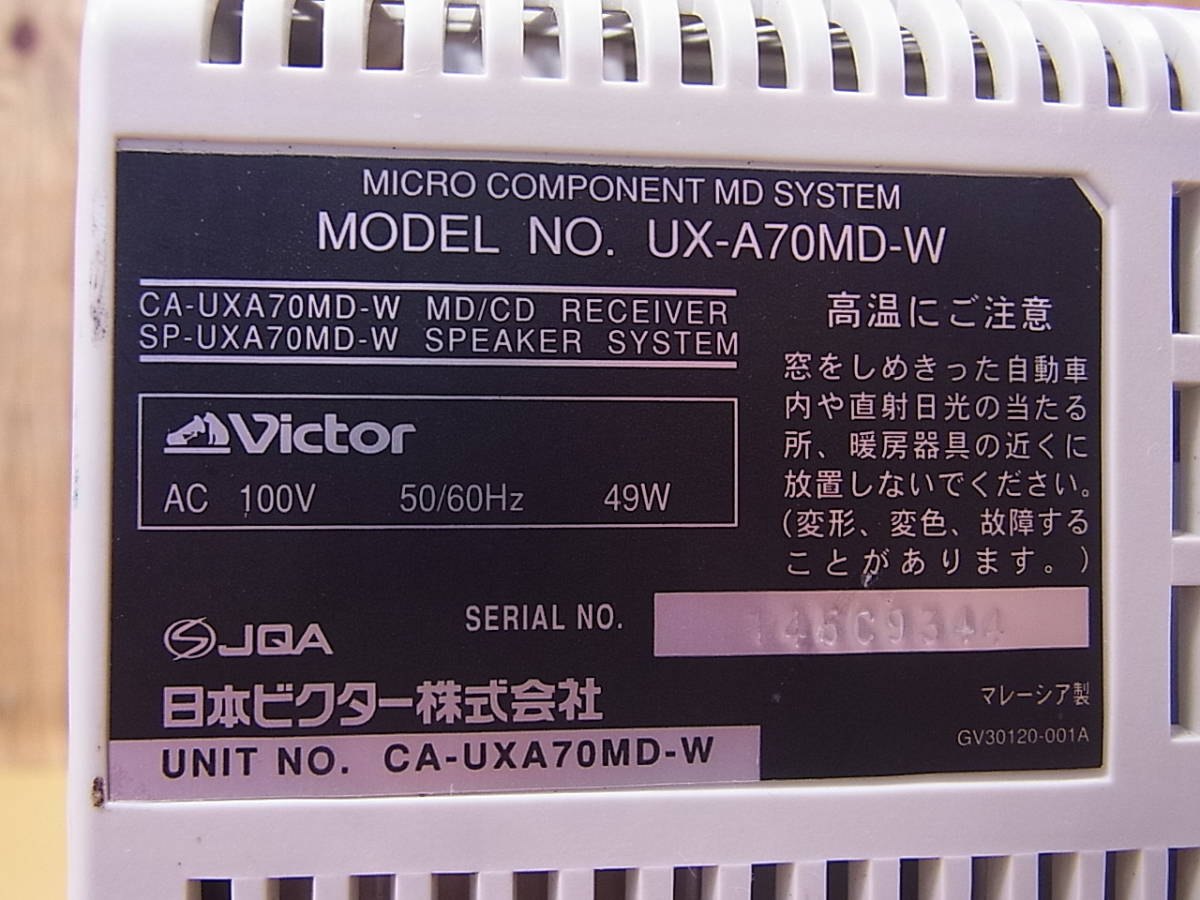

Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥64 000
-

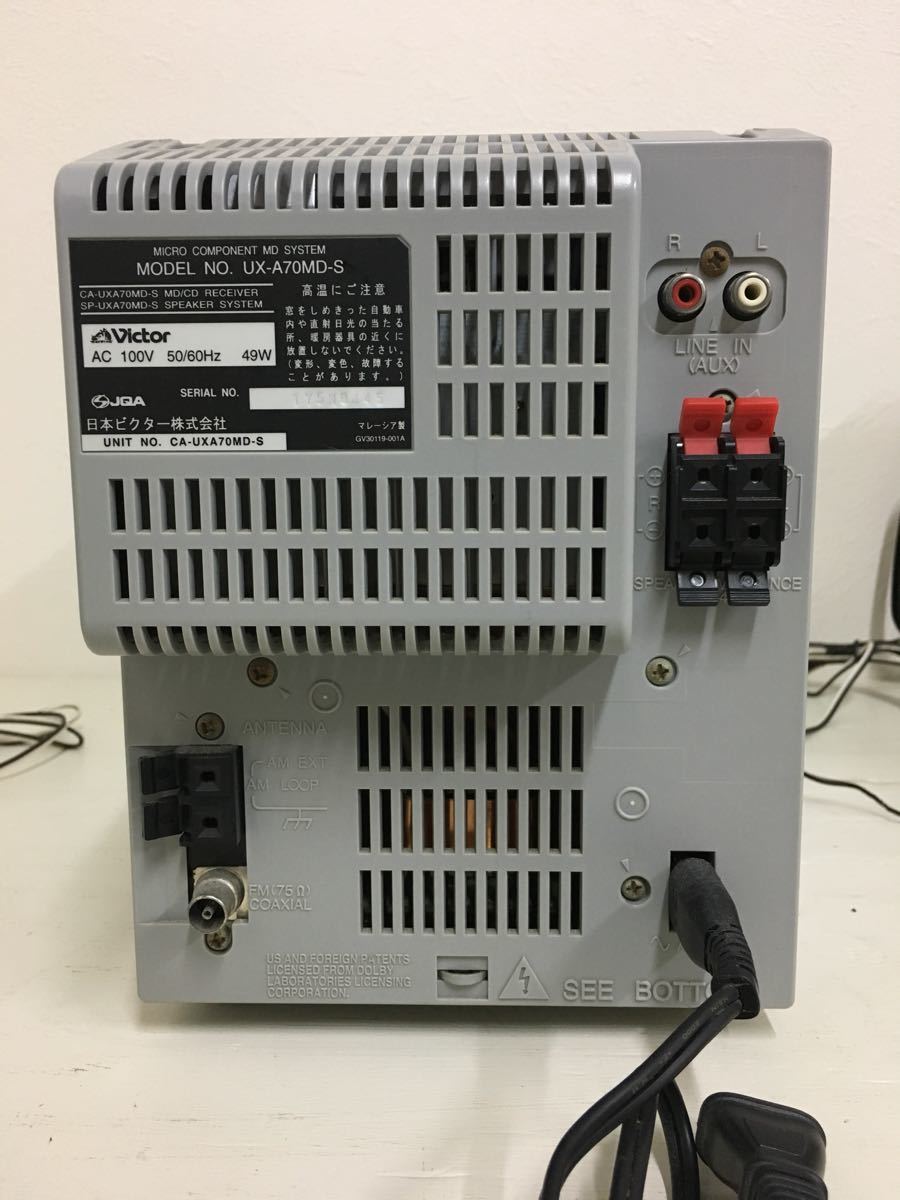

Inputs RCA in, CD, Radio recording, Tape deck

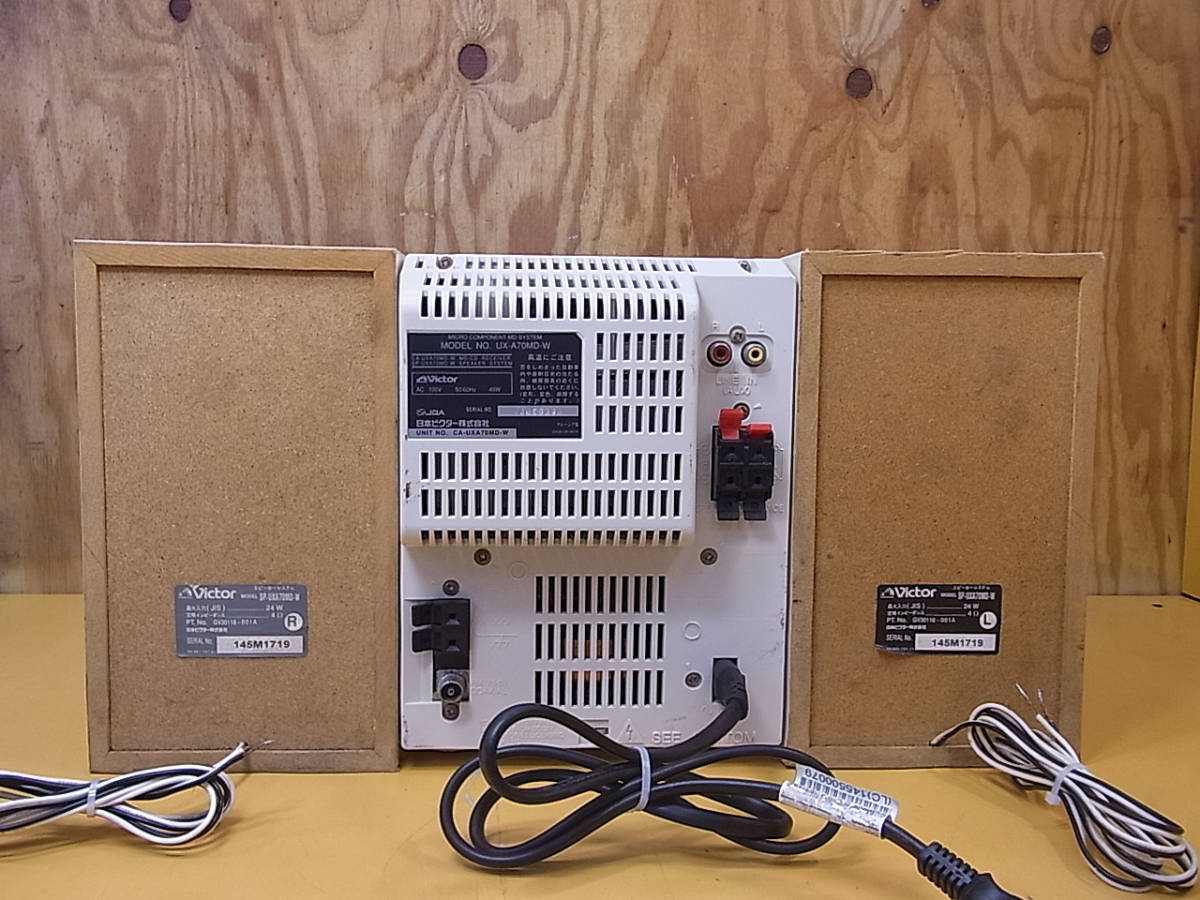

Outputs 3.5mm line out (analog-only), Speaker amplifier, Tape deck
Control Not recorded

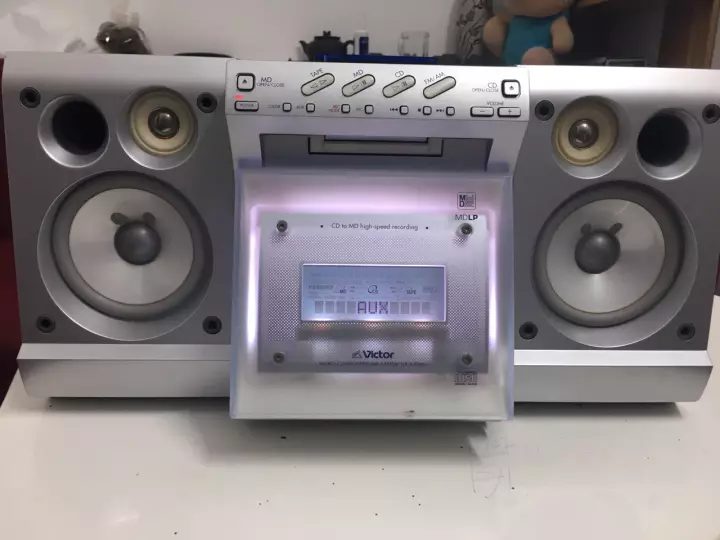

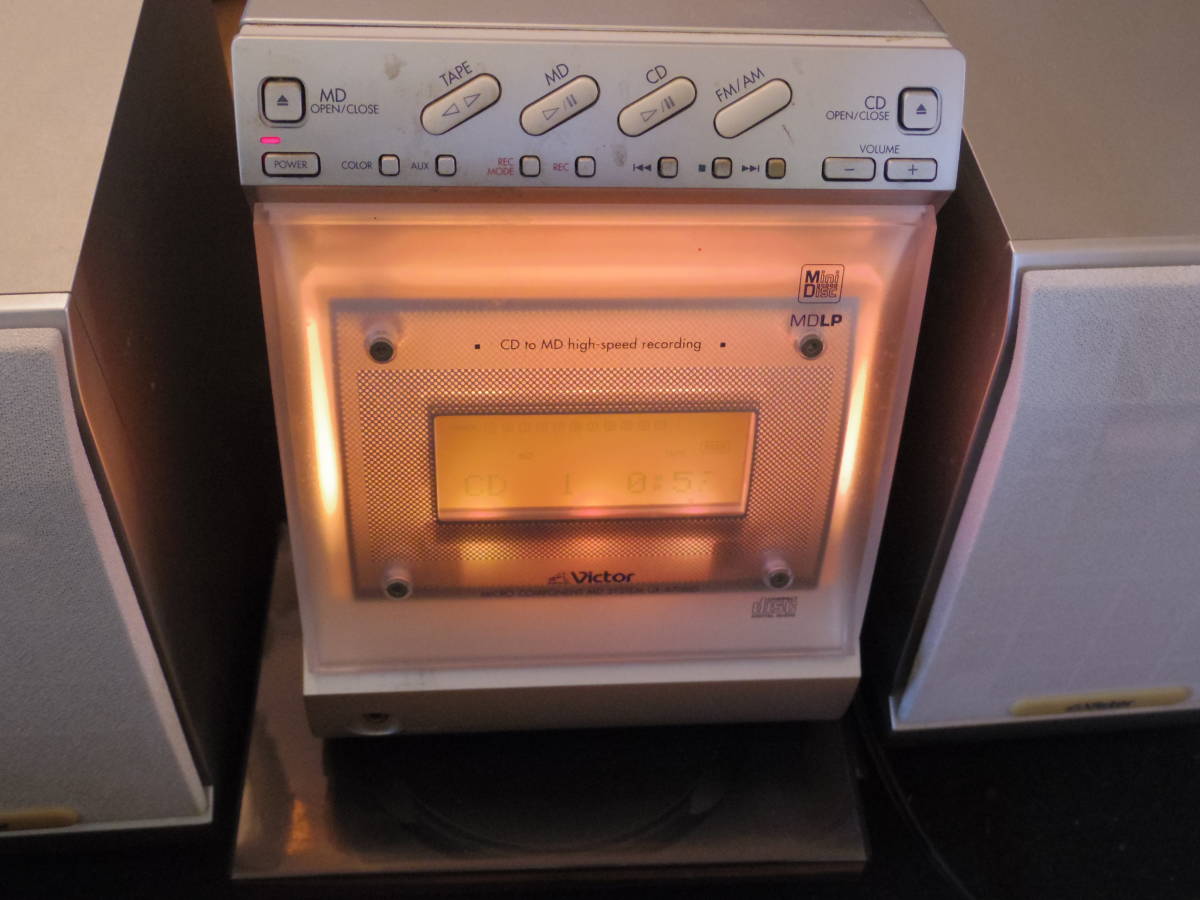

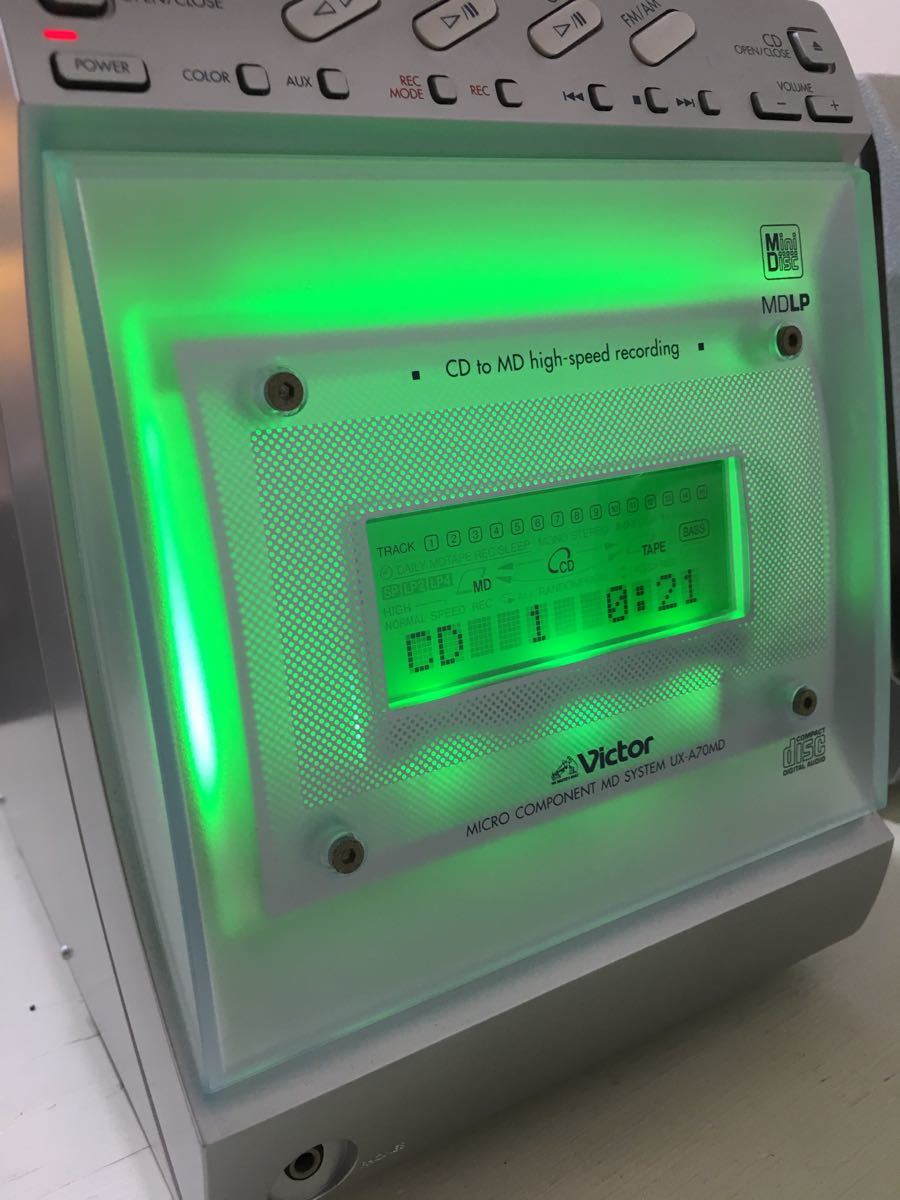

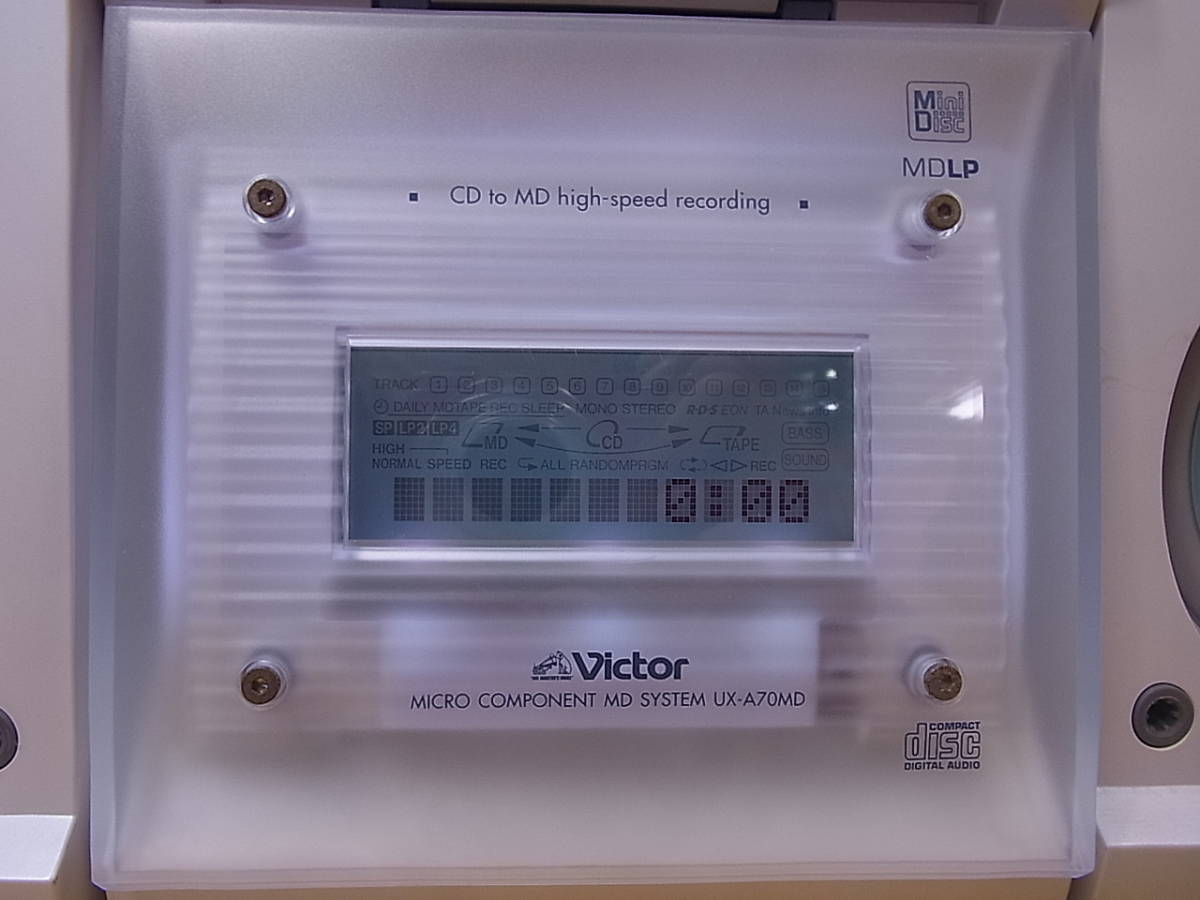

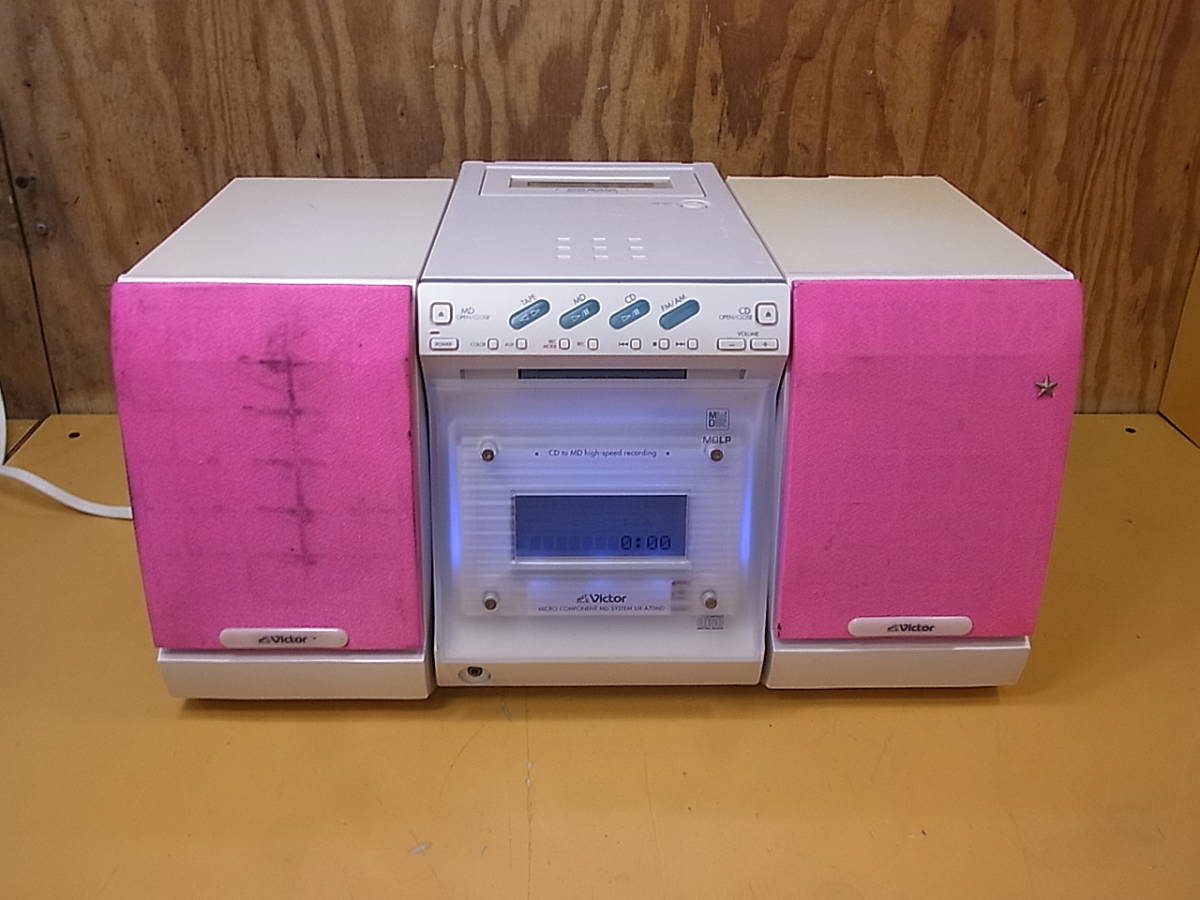

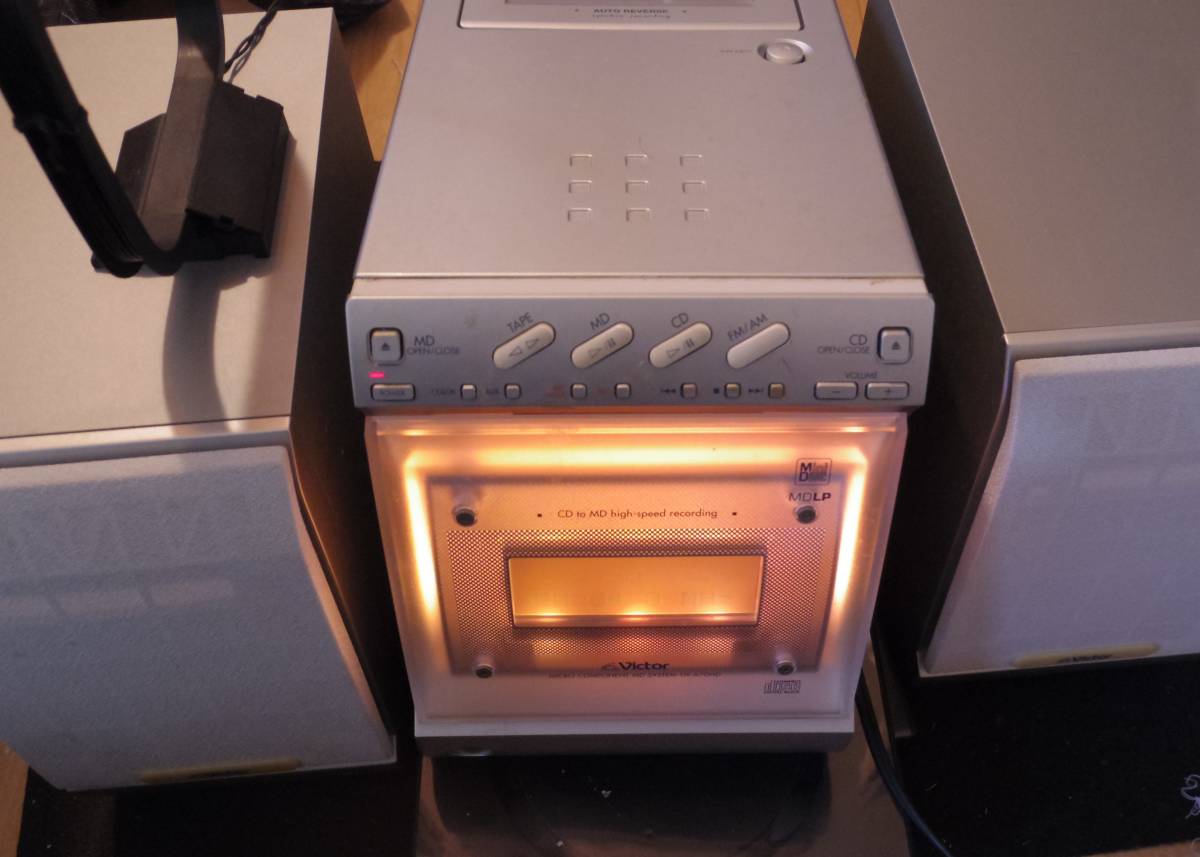

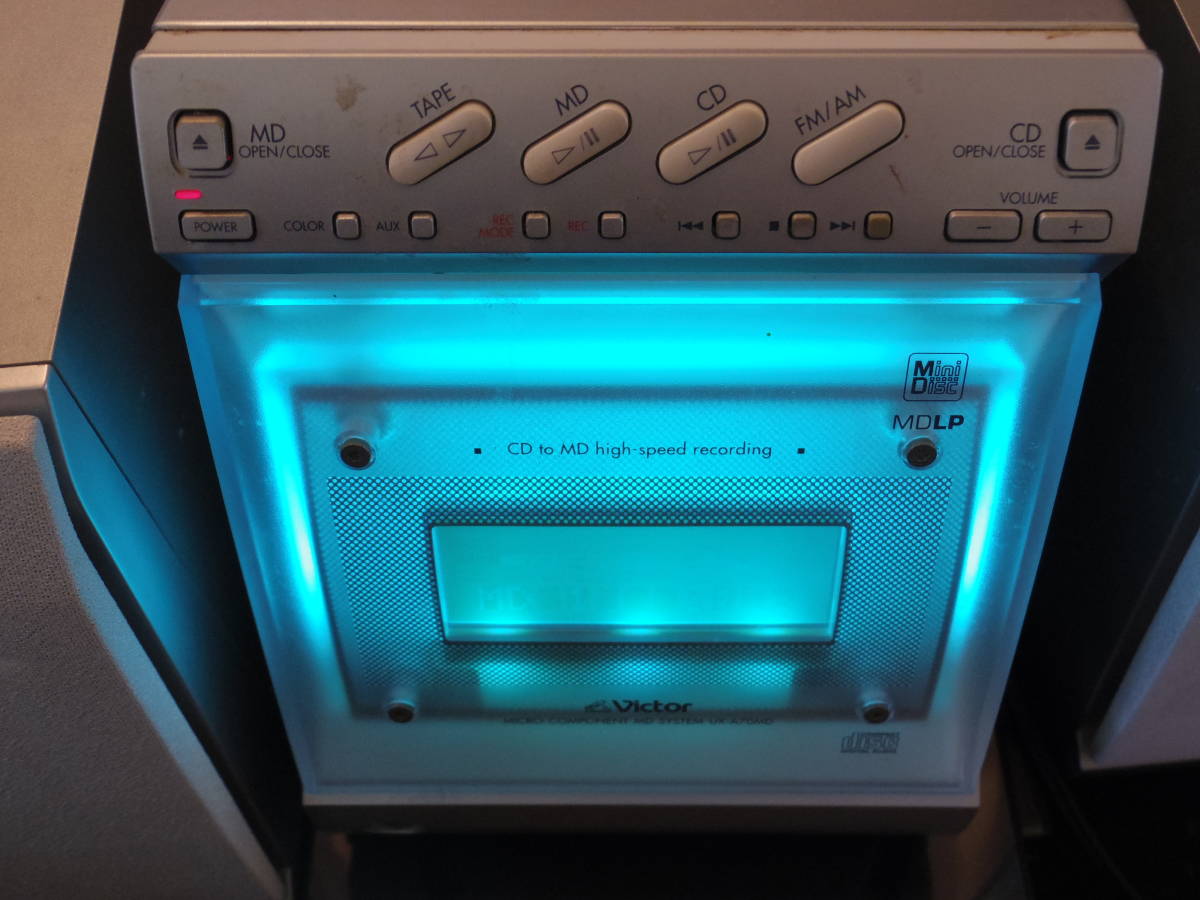

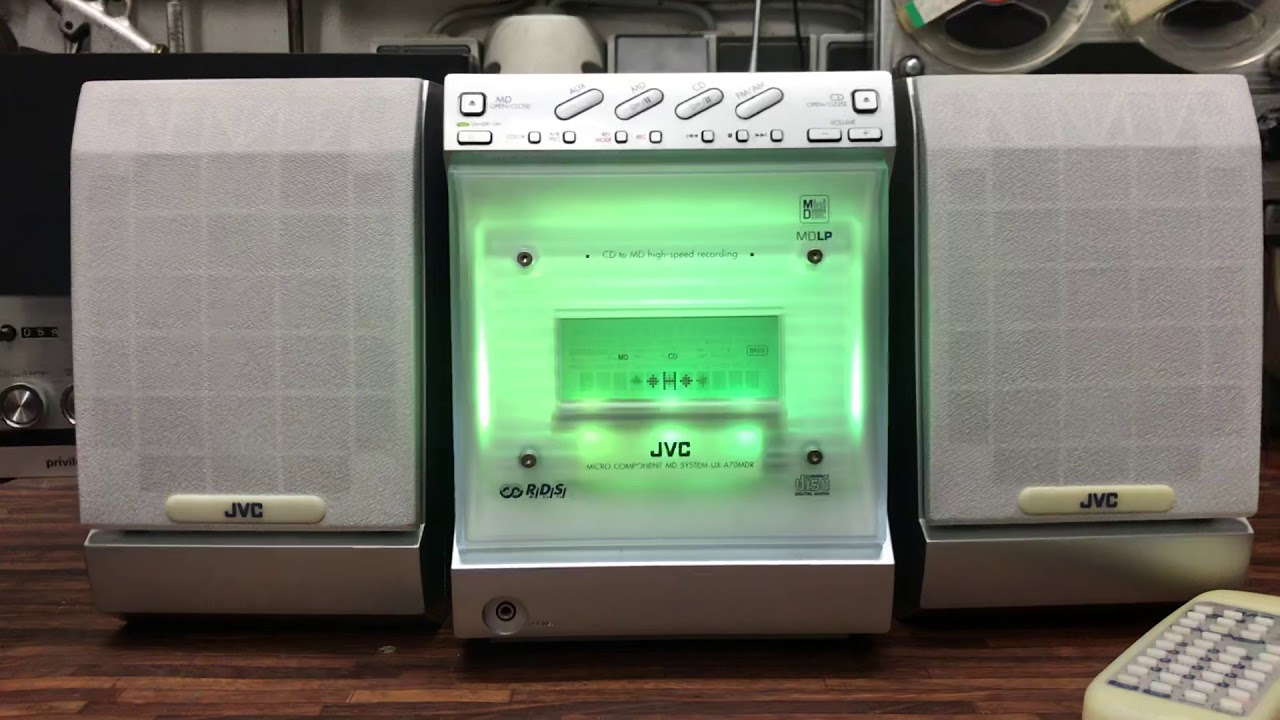

Front display glows in various RGB colors.

Features: First MDLP compact bookshelf system. Incorporates CD/MD/Cassette/AM/FM. Simultaneous CD recording to MD and tape possible. High speed (2x) CD→MD dubbing with SCMS and HCMS copy prohibition. AM/FM Tuner With RDS EON, Remote Control, Analog Recording Sync.

Variants: JVC-UXA70MDR available in UK apparently does not include cassette deck.

Specs: World-band [76.0 MHz-108.0 MHz] FM tuner. Audio input sensitivity/impedance (@1khz) 400mv/48k-ohm, Audio output level/impedance (@1khz) 260mv/5.8 k-ohm, Seaker terminals 4-16 ohm, Amp: EIAJ: 30W, UK: 44 watts @ 4 ohm (max), 40 watts @ 4 ohm (10% thd)

Optical Pickup: KMS-260B
ATRAC IC: CXD2662R

Content adapted from: Minidisc.org Page, T-Station page (archived) T-Station page (archived) (MiniDisc Wiki mirror) Press Release Press Release (MiniDisc Wiki mirror) winner of the good design award 2000

Manuals

UX-A70MD User Manual

UX-A70MD Service Manual

Repair

(repair links go here)

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Remote Page
Atrac IcCXD2656R / CXD2662R
ManualUser manual, Service manual
RegionJapan
